Akai ATT-603 User manual

1
Turntable
User’s Manual
ATT-603

2
Getting Started
Remove appliance from the box.
Remove any packaging from the product.
Place packaging inside the box and either store or dispose of safely.
Accessories Included:
USB Turntable
Software Installation CD
Instruction manual
RCA Cable
USB Cable
Features
●USB digital audio output
●Software included to record and process your recordings.
●Three speed turntable 33, 45 and 78rpm
●Separate line level output via Phono connections.
●Rear panel mounted Power switch.
●45 rpm single adaptor.
●With Auto Stop
●Built-in Speaker
PLEASE READ THIS OPERATING MANUAL COMPLETELY BEFORE
OPERATING THIS UNIT AND RETAIN THIS BOOKLET FOR FUTURE
REFERENCE.

3
SPECIFICATION:
1.GENERAL SECTION :
Power Supply
AC 230V 50 Hz
Built-in Speaker
Output:
1X8 ohm 5W
Power Consumption
5 Watts
Consumption Of
Power Standby
< 0.5 Watts
Dimensions:
350(W) x 280(D) x 50(H)mm
Weight
1.50Kg
Standard Test
Condition:
Ambient Temperature:20 +/- 2 degC
Relative Humidity:65% +/- 5%
NOTE : If there is no doubt for the measure results , test can be done at 5 degC to 35
degC , and 45% to 85% relative humidity .
2.TURNTABLE SECTION :
Type
3-speed full - auto
Motor
Motor (EG-530SD-3F)
Driving Method
Belt drive
Turntable platter
216mm dia. (Plastic)
Speeds
33-1/3 and 45 rpm,78rpm.
Wow and Flutter
Less than 0.5% (WTD) at 3KHz (JIS)
S/N ratio
More than 50 dB (DIN-B)
Speed Tolerance
3000Hz +1%,-1%
3.TONEARM SECTION :
Type
The integration of the arm
Effective Arm Length
195mm
Tracking Force
6.2 +/- 0.5 g

4
4.CARTRIDGE SECTION :
Type
Moving magnetic cartridge
Stylus
Diamond stylus
Output VOLTAGE
100-190mV , 1KHz 5 cm/sec LAT
Frequency Response
20Hz ~ 20KHz +1/-3(RIAA)
Channel Separation
More than 15dB at 1KHz (HP-4005)
Channel Balance
Within 2.5dB at 1KHz (HP-4005)
Load Impedence
4ohm ,3W
Important Safety Information
●When using electrical appliances, basic safety precautions should always be followed.
●This appliance is not intended for use by persons (including children) who are not
mentally able, physically capable, experienced or do not understand the product.
They should be given supervision and instruction in the use of the appliance by a
person responsible for their safety.
●Children should be supervised to ensure that they do not play with the appliance.
●Do not leave appliance unattended whilst connected to the mains supply
●To reduce the risk of electric shock, do not use outdoors or on wet surfaces.
●Do not immerse in water or any other liquids.
●Do not use if unit has been dropped or damaged in any way.
●Repairs to electrical equipment should only be performed by a qualified electrician.
Improper repairs may place user at serious risk
●Place the unit on sound, level surface free of vibrations and away from sources of heat.
●Do not use with wet hands.
●Do not put objects into openings.
●Keep free of dust, lint, hair, etc.
●Keep hair, loose clothing, fingers and all parts of the body away from moving parts.
●Do not use this unit for anything other than its intended use.
●Never place unit on top of or near loudspeakers as acoustic feedback will occur.

5
FUNCTIONS AND CONTROLS
1. 45 Single adaptor 2. Tone arm
3. Speed control switch 4. Tone arm rest and security latch
5. Cartridge/Stylus 6. Hi-fi speaker
7. Turntable 8. USB OUTPUT
9.AUX-L OUT 10. AUX-R OUT
11. Power Switch & Volume Control 12.Auto Stop Switch
Setting up the USB Turntable
●Remove all packaging from the unit.
●Ensure that the security latch is closed so that the tone arm is not free to move.
●Ensure unit is on a solid level surface, away from sources of heat, sunlight, etc.
●Remove the protective stylus guard from the tone arm cartridge by gently pulling
forwards.
Auto Stop Switch
If the AUTO STOP switch is set to ON, the record wills top automatically. If it is set to
OFF, the record will not stop automatically.

6
Installing the software
●Place the supplied CD into the drive of your computer, follow the instructions and the
software will automatically install as follows:
●Click ‘Next’
●Select ‘I accept’ option then click ‘Next’:

7
●Click ‘Next’:
●Here either select another location or click ‘Next’ to continue (recommended):

8
●Click ‘Next’ to continue:
●Click ‘Install’ to continue:

9
●The software will start to install:
●Click on ‘Finish’ to complete the installation:

10
●Audacity should automatically start up, if not follow the next sequence:
●The Audacity icon will now be seen on the desktop, double click on it to start Audacity
running, if an icon does not appear, go to the ‘C’ drive under ‘My Computer’, click on
‘Program files’ and then ‘Audacity’. Right click on the ‘orange ball wearing
Headphones’ icon and select ‘Send to’ then ‘Desktop (create shortcut)’.
Using Audacity
●Plug the USB cable into the back of the unit and the other end into a spare USB port on
your computer.
●Insert the mains plug into the nearest mains socket and switch on if applicable.
●Run the Audacity software by double clicking the Audacity icon.

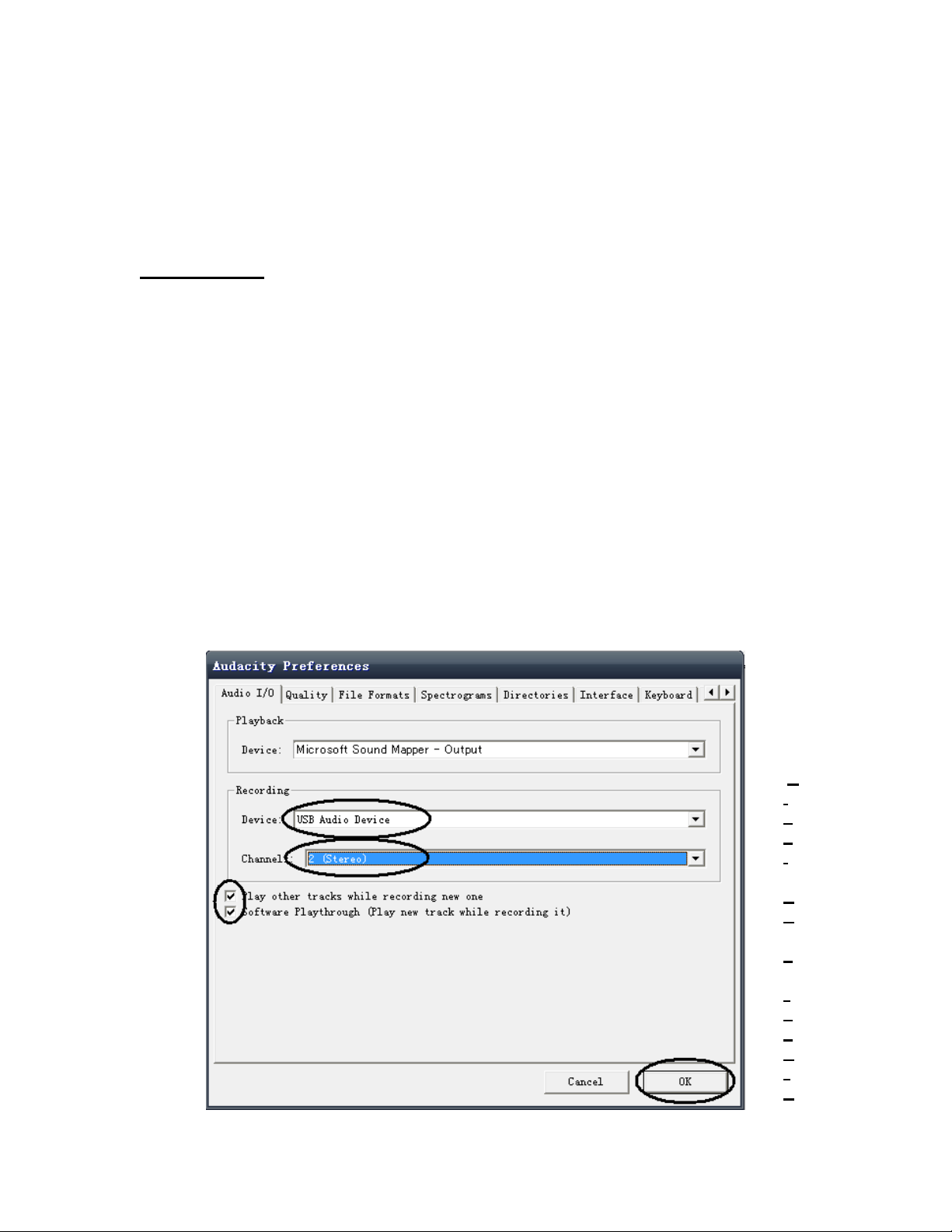

●Before recording, click on Edit at the top of the main page; select Preferences at the
bottom of the menu which will open up Preferences.
●At the recording part of the window open the Device menu by using the down arrow on
the right hand side. Select the USB Audio Device option from the menu. Also tick the
box next to ‘Software Play through (Play new track while recoding it)’.
●The lower box enables the number of recording channels to be set, 1 is Mono and 2 is
Stereo, select the Stereo option.
●Click ‘OK’ once the options have been selected:
P
l
a
y
i
n
g
a
r
e
c
o
r
d

11
Playing a record
●Switch on the unit by pressing the power switch on the front, the LED above it will light...
●Raise the dust cover and push it back far enough until it stays upright.
●Release the Security latch from the tone arm by moving it to the right.
●Place the record to be played on the turntable.
●Select the correct playing speed for the record (33, 45 or 78 rpm) using the
●Speed control switch on the top right hand side of the unit.
●Push the cue lever back to raise the tone arm.
●Moving the arm from its rest will start the turntable rotating.
●At the desired point on the record, pull the cue lever forward to lower the arm.
●At the end of the record the Turntable will automatically stop rotating.
Recording to computer using Audacity
●Start the record playing as described above, and press Record at the top of the
Audacity window to start recording to the computer.
●Once recorded use the Transport controls at the top of the screen to, Go to start, Play,
Record, Pause, Stop and Go to end of Wave form as below:

12
●Use the file, Edit, View, Project, Generate, Effect and Analyse menus to Save, Export
and Manipulate your music.
● If the recording level requires adjustment, click on ‘START’, ‘SETTINGS’ and select
control panel. Under Control Panel select ‘SOUNDS and AUDIO DEVICES’, click on
the ‘VOLUME’ tab and select ‘ADVANCED’.
● On the Master volume window select options at the top left hand corner, click on
properties in the drop down menu.
● In the Properties window select “USB PnP Audio Device “ from the drop down menu at
the top. Click on “OK “ to confirm the selection and a window will now appear with a
control for the recording level. Move this control up if the recording is too quiet and
down if the recording is too loud
● NOTE: the blue wave form should sit in the Audacity window such that the peaks of it
stop short of the top and bottom
● Before editing your music, the recorded waveform will need to be highlighted.
● To highlight your wave form, click with the left mouse button on the left hand side of
the waveform (under the L+R controls) and the waveform will go darker.
●At this point the whole waveform can be edited. However if only a section of the
waveform needs to be edited (or saved) the section required can be highlighted by
placing the mouse over the beginning of the section holding the left button down and
dragging it right over the area required and releasing it when the end of the desired
section is reached. This darkened section will now be the only audio that will be edited.
● Alternatively click on the "EDIT" menu at the top left and then click on "SELECT" then
choose from: "All" (whole wave form), "Start to Cursor" or "Cursor to end".
● NOTE: after recording to the Computer, the USB cable may have to be removed from
the USB port in order to enable playback later from the Computer.

13
Exporting your music files (.WAV)
● Once you have recorded and edited your music, you will need to save your files to the
computer. To do this, click on file and move down to "Export as WAV" tab.
● Click on this and you will promptly be asked for the file name of the music recorded
which will be saved in the location shown. At this point either make a note of the folder
where your music is saved or save it in a folder of your choice.
● This can either be an existing one or a new folder.
Exporting your music files (.Mp3)
● Once you have recorded and edited your music, you will need to save your files to the
computer. To do this click on file and move down to "Export as Mp3" tab.
●Click on this and you will promptly be asked for the file name of the music recorded
which will be saved in the location shown. At this point either make at note of the
folder where your music is saved or save it in a folder of your choice.
● This can be either be an existing one or a new folder.

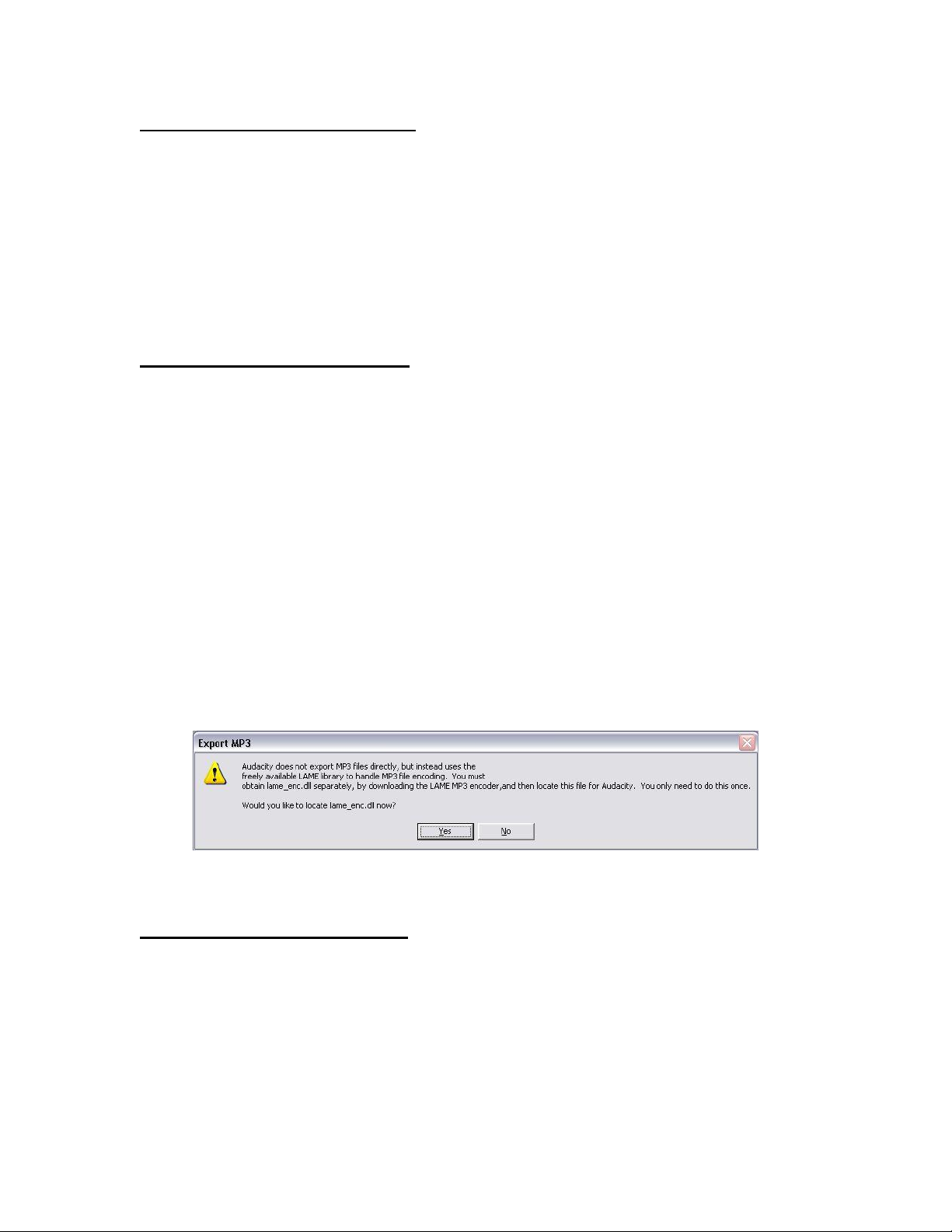

● NOTE: In order to activate the "Export to Mp3" feature, it will be necessary to
copy a file named lame_enc.dll from the installation CD and paste it in the
AUDACITY folder that contains the software on the hard drive that was copied
earlier from the CD. The software will automatically detect this file and exporting
as an mp3 will now be possible.
HOW TO REPLACE THE STYLUS
● Hold the tone arm with one hand to support it as you take either side of the stylus with
your thumb and forefinger of the other. Gently pull the stylus forward slightly then
move it downwards then pull clear.
● Fitting a new stylus is the reverse of removal
● NOTE: Never play records with a worn or damaged Stylus.

14
Do’s and don’ts
● Do not place unit on top of or near loudspeakers as acoustic feedback will occur.
● Do not play badly worn or chipped records.
● Ensure Stylus is clean and free of fluff and dust.
Care and Maintenance
● Clean the unit with a soft, damp lint free cloth, never use chemicals or harsh abrasives.
● Use a good quality record cleaner to optimise results.
DISPOSAL OF ELECTRICAL AND ELECTRONIC EQUIPMENT
This symbol on the product or packaging means that the
product should not be treated as household waste. Do not throw
garbage at the end of its life, but take it to a collection center for
recycling. in this way you will help to protect the environment and
be able to prevent any negative consequences that it would have
on the environment and human health.
To find your nearest collection center:
-Contact local authorities
- Access the webiste: www.mmediu.ro
Request additional information from the store where you
purchased the product.

15
Pick-up cu USB
ATT-603
Manualul Utilizatorului

16
Noţiuni introductive
Scoateţi aparatul din cutie.
Îndepărtaţi orice ambalaj de pe produs.
Aşezaţi ambalajul în interiorul cutiei şi fie o depozitaţi fie o aruncaţi în condiţii de
siguranţă.
Accesorii incluse:
Pick-up cu USB
CD pentru Instalarea Software-ului AUDACITY
Manual de Utilizare
Cablu RCA
Cablu USB
Caracteristici
●Ieşire USB audio digitală
●Software inclus pentru a înregistra şi procesa înregistrarile dumneavoastră.
●Trei viteze de redare 33, 45 şi 78 RPM
●Separate line level output via Phono connections.
●Comutator de Pornire montat pe Panoul din Spate.
●Adaptor "single" 45 RPM.
●Cu Auto Oprire
●Difuzor încorporat
VĂ RUGĂM SĂ CITIŢI ACEST MANUAL DE UTILIZARE ÎNAINTE DE A
OPERA APARATUL. PĂSTRAŢI ACESTE INTRUCŢIUNI PENTRU
CONSULTĂRI ULTERIOARE.

17
SPECIFICAŢII:
1.GENERAL:
Sursa de curent
AC 230V 50 Hz
Ieşire difuzor
încorporat:
1X8 ohm 5W
Putere Consumată
5 Watts
Putere consumată în
modul Standby
< 0.5 Watts
Dimensiuni:
350(W) x 280(D) x 50(H)mm
Greutate
1.50Kg
Condiţii de testare:
Temperatura ambientală:20 +/- 2 degC
Umiditate relativă:65% +/- 5%
NOTĂ : Măsurătorile pot fi făcute între 5 °C până la 35 °C, și 45% până la 85% umiditate
relativă.
2.Secţiunea Platan :
Tip
3 viteze full-auto
Motor
Motor (EG-530SD-3F)
Antrenare
Curea
Dimensiuni Platan
216mm diametru (Plastic)
Viteza
33-1/3 şi 45 rpm,78rpm.
Fluctuaţie
<0.5% (WTD) at 3KHz (JIS)
Raportul
Semnal/Zgomot
>50 dB (DIN-B)
Toleranţa de viteză
3000Hz +1%,-1%
3.Braţ :
Tip
Braţ integrat
Lungimea Efectivă
195mm
Forţa de apăsare
6.2 +/- 0.5 g

18
4.DOZĂ :
Tip
Doză magnetică
Peniţa
Diamant
Tensiune de ieşire
100-190mV , 1KHz 5 cm/sec LAT
Frecvenţa de răspuns
20Hz ~ 20KHz +1/-3(RIAA)
Separare Canale
>15dB la 1KHz (HP-4005)
Balanţă Canale
2.5dB la 1KHz (HP-4005)
Impedanţa
4ohm ,3W
Informaţii importante de siguranţă
●Atunci când utilizaţi aparate electrice, întotdeauna trebuie să respectaţi măsurile de
siguranţă de bază.
●Acest aparat nu este destinat utilizării de către persoanele (inclusiv copii) care nu sunt
apte mental, fizic capabile, nu au experienţă sau nu înţeleg produsul. Acestora ar
trebui să li se acorde o supraveghere şi o instruire în utilizarea aparatului, de către o
persoană responsabilă pentru siguranţa lor.
●Copiii trebuie supravegheaţi pentru a se asigura că nu se joacă cu aparatul.
●Nu lăsaţi aparatul nesupravegheat în timp ce este conectat la reţeaua de alimentare.
●Pentru a reduce riscul de electrocutare, nu utilizaţi aparatul în aer liber sau pe
suprafeţe umede.
●Nu introduceţi în apă sau alte lichide.
●A nu se utiliza dacă unitatea a fost scăpată pe jos sau deteriorată în vreun fel.
●Reparaţiile echipamentelor electrice ar trebui să fie efectuate numai de către un
electrician calificat. Reparaţiile necorespunzătoare pot expune utilizatorul la un risc.
●Aşezaţi aparatul pe o suprafaţă plată, fără vibraţii şi departe de surse de căldură
●Nu folosiţi cu mâinile umede.
●Nu introduceţi obiecte în orificii.
●Feriţi de praf, scame, păr, etc.
●Menţineţi pârul, hainele largi, degetele şi toate părţile corpului departe de piesele
mobile.
●Nu utilizaţi acest aparat pentru altceva decât pentru utilizarea prevăzută.
●Nu aşezaţi niciodată aparatul pe partea de sus sau în apropierea difuzoarelor,
altminteri va avea loc un feedback acustic.

19
Funcţii şi comenzi
1. Adaptor pentru disc Single 45 2. Braţ de ton
3. Comutator Control De Viteză 4. Dispozitivul de blocare şi spaţiul de repaus al
braţului de ton
5. Doză/Peniţă 6. Difuzor de Înaltă Fidelitate
7. Platan 8. Ieşire USB
9.Ieşire AUX stânga 10.Ieşire AUX dreapta
11. Comutator Pornire şi Control volum 12.Comutator Auto Stop
Punerea in funcţiune a Pick-up-lui
●Îndepărtaţi toate ambalajele de pe aparat.
●Asiguraţi-vă că dispozitivul de blocare este închis, astfel încât braţul de ton să nu fie
liber să se mişte
●Asiguraţi-vă că unitatea este pe o suparfaţă plană solidă, departe de surse de căldură,
lumină solară,etc.
●. Scoateţi dispozitivul de protecţie al peniţei de la braţul de ton, trăgând uşor înainte.

20
Comutator Auto Stop
Dacă comutatorul AUTO STOP este setat pe ON, redarea se va opri în mod automat.
Dacă este setat pe OFF, redarea nu se va opri în mod automat.
Instalarea Software-ului
●Aşezați CD-ul furnizat în unitatea calculatorului, urmați instrucțiunile și software-ul se
va instala automat, după cum urmează :
●Apăsaţi ‘Next’
