Dear music lover,
thank you for purchasing a Pro-Ject Audio record player.
In order to achieve maximum performance and reliability with this record player you should study these instructions
for use carefully.
** Your turntable has been delivered with a factory fitted and adjusted cartridge. Please ignore the
cartridge set up instructions unless changing the cartridge at a later date.
During assembling and adjusting of the deck, small parts could be lost if not carefully placed in a suitable
receptacle. Before starting the assembly, make yourself acquainted with the parts listed below and

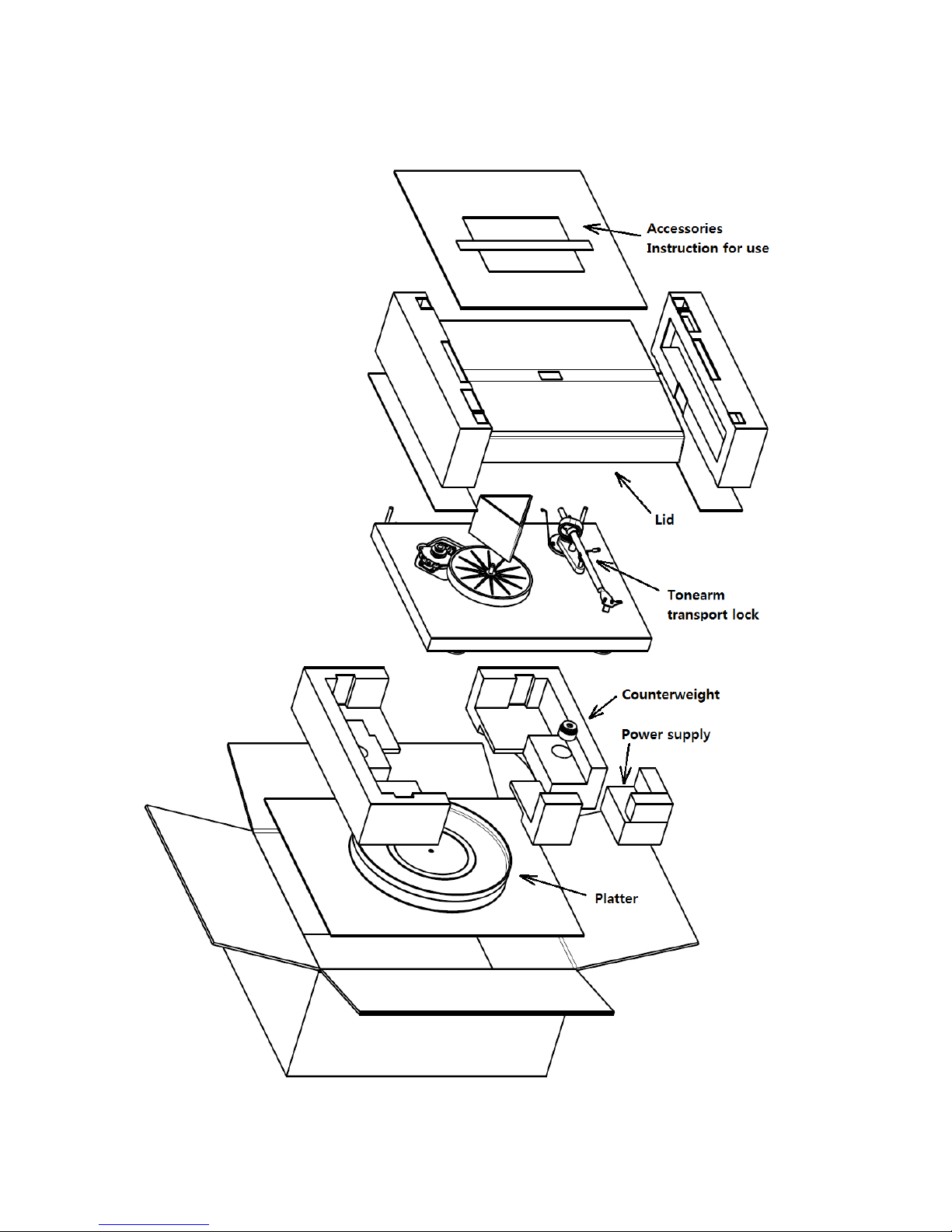

correspondingly numbered in the technical drawings above. Separately packed items are marked with an
asterisk *.
Parts list
1 Motor brackets with Ortofon®pads
2 Stepped drive pulley
3 Drive belt * 3a Hook *
4 Hub
5 Platter with felt mat *
6 Tonearm counterweight * 6a Downforce scale
7 Tonearm lift lever
8/18 Tonearm rest and removable transport lock
9 Tonearm tube 9a Tonearm base
10 Lid *
11 Lid hinges
12 Hinge fasteners
13 Power supply socket
14 Phono output sockets and earth connection
15 Anti-skating weight adjustment scale
16 Anti-skating weight *
17 Anti-skating weight support hoop
19 Power switch
20 Headshell with finger lift and fitted Ortofon OM 10 or Ortofon 2M Red cartridge
21 Motor
22 Single adapter *
Connection cable (not shown) *
!
Warning of a hazard for the user, the unit or possible misuse.
Important notice.
Safety instructions
!
Make sure that the plug and the switch are easily accessible at all times. Hold the plug when
unplugging the power cord. Never handle the power cord while your hands are wet or damp.
Avoid letting liquids enter the device. Never place any item containing liquid, such as a flower vase
on or near the device. Never spill any liquid on the device. Never place any naked flame sources,
such as lighted candles on or near the device. The product shall not be used in damp or wet locations,
next to a bathtub, sink, swimming pool or any other similar conditions.
Keep plastic bags away from children to prevent any risk of suffocation.

© Pro-Ject Audio Systems · Pro-Ject Debut Carbon / Ortofon OM 10 and Ortofon 2M Red · Revision 2014.03.10
4
Set-up
The deck is supplied partially disassembled and carefully packed to guarantee a safe transport. Remove all
parts from the transport packaging carefully.
Make sure the surface you want to place the turntable is levelled (use a spirit level).
Remove the transport lock (18) from the tonearm. Store it in the original packaging so it is available for
future transportations.
Fit the drive belt (3) around the hub (4) and the smaller diameter part of the motor pulley (2). Avoid getting
sweat or grease on the belt as these will deteriorate the performance and reduce the belt's lifespan. Use
absorbent kitchen paper to remove any oil or grease from the outer edge of the hub and the belt. Put the
platter (5) and felt mat over the spindle of the hub (4).
Cartridge downforce adjustment
The counterweights (6) supplied are suitable for cartridges weighing between 4,5 - 6g (
Ortofon OM 10
-
weight no.
80
) and 6,5 - 8,5g (
Ortofon 2M Red
- weight no.
8
).
Turn the counterweight (6) onto the rear end of the tonearm tube (9), so that the downforce scale (6a) shows
towards the front of the player. Lower the arm lift and place the cartridge in the space between arm rest and
platter. Rotate the counterweight (6) until the arm tube is balanced. The arm should return to the balanced
position if it is moved up or down. This adjustment must be done carefully. Do not forget to remove the
cartridge protection cap if fitted before balancing the arm tube.
Once the arm is balanced correctly, return it to the rest. Hold the counterweight (6) without moving it and gently
revolve the downforce scale ring (6a) until the zero is in line with the anti-skating prong (15). Check if the arm
is still balanced.
Rotate the counterweight counter clockwise (seen from the front) to adjust the downforce according to the
cartridge manufacturer's recommendations. One mark on the scale represents 1 mN (= 0,1g / 0,1 Pond) of
downforce.
Please note: Adjust the downforce before installing the anti-skating weight.
The recommended downforce for Ortofon OM 10 cartridge is 15mN.
The recommended downforce for Ortofon 2M Red cartridge is 17,5mN.
Anti-skating force adjustment
The anti-skating force must be adjusted corresponding to the downforce:
Downforce Groove in the stub (15)
10 - 14mN 1st bearing ring
15 - 19mN 2nd bearing ring
20mN and higher 3
rd
bearing ring
Slip the loop of the anti-skating weight's thread over the second groove of the stub to set the correct anti-
skating force for the factory-fitted cartridge. Feed the thread through the loop of the wire support (17).
Connection to the amplifier
The record player has gold plated female RCA phono sockets (14) so you can substitute the interconnect cables
supplied with higher quality cables such as the
Pro-Ject Connect it
interconnect cables for connection to the
amplifier.
Use the Phono input (sometimes labelled gram, disc or RIAA) on your amplifier. Make sure that the phono input
offers correct matching and amplification for the used cartridge. Line inputs (such as CD, Tuner, Tape or Video)
are not suitable.
Take care of connecting the left and right channels correctly. The right channel is usually marked red, the left
channel black or white. Check the manual supplied with your amplifier for relevant information. The earthing
wire of the tonearm should be connected to the earth terminal on your amplifier (if provided).
If your amplifier does not have an input suitable for phono cartridges you will require a separate phono
amplifier stage for MM or MC cartridges which is then connected between the record player and a free line
level input of the amplifier.
For detailed product information regarding Pro-Ject Audio interconnect cables and phono amplifiers please
visit the Pro-Ject web site
www.project-audio.com.

© Pro-Ject Audio Systems · Pro-Ject Debut Carbon / Ortofon OM 10 and Ortofon 2M Red · Revision 2014.03.10
5
The recommended load impedance for the factory fitted cartridges is: 47kohms/MM-input
Mains power connection
The turntable is supplied with the universal power supply with 3 exchangeable sockets adapters suitable for
all countries. Select the correct adapter for your country and insert the adapter to the exchangeable part of
the power supply.
Connect the low voltage plug from the power supply to the socket (13) on the rear of the record player before
connecting the power supply to the mains.
Mounting the lid
Put the lid (dust cover 10) carefully over the hinge prongs and adjust the screws (12) until the lid stays open
where you want it to without being too stiff to open or close.
Switching on and off
Pressing the power switch (19) alternately starts or stops the motor.
Changing replay speed
To play records at 45 r.p.m. remove the platter (5). Use the accessory tool provided (3a) and hook the belt
(3) over the larger diameter part of the motor pulley (2). Put the platter on. To revert to 33 r.p.m. repeat the
proceedings using the smaller step on the pulley.
*** In addition, 78 r.p.m. is available after mounting a special pulley, which may be purchased as an
optional extra.
For detailed product information please visit the Pro-Ject web site www.project-audio.com.
Useful tips
The record player should be positioned on a low-resonance surface such as wood or a multiple layer play
board to avoid structural vibrations disturbing replay.
Adjusting the azimuth
** The cartridge needle must be vertical in the record groove in order to trace the groove wall modulations
correctly.

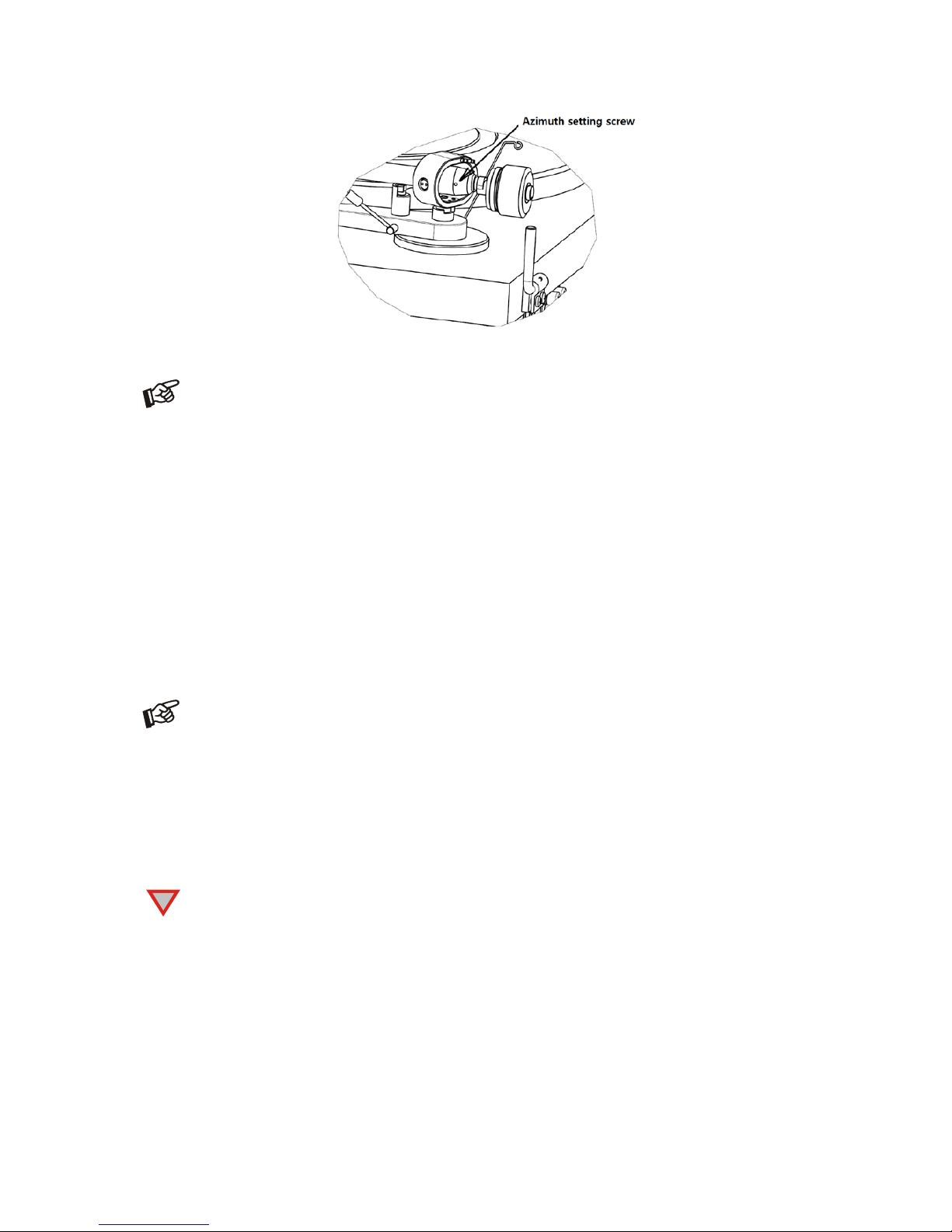

A small screw at the bearing end of the arm allows to correct incorrect azimuth
if your needle is not
mounted exactly perpendicular to the cartridge body.
Open the screw just enough to be able to revolve the arm tube without applying force. Please note: do not
remove the screw completely!
With the aid of a good magnifying glass adjust the needle until it is vertical in the groove (i.e. perpendicular
to the record's surface). Ideally this should correspond to the top surface of the cartridge body being parallel
to the record surface.
After adjusting the needle parallel, retight the screw carefully.

© Pro-Ject Audio Systems · Pro-Ject Debut Carbon / Ortofon OM 10 and Ortofon 2M Red · Revision 2014.03.10
6
Please note: Under no circumstances should the arm tube be adjusted with the needle still in the
record groove! Irreparable damage may be caused to the cantilever suspension! The arm must be
lifted to make each adjustment and lowered afterwards to check it.
Mounting and connecting the cartridge
** All cartridges with half inch mounting holes can be fitted. Leave the needle's protection cover on and put
the cartridge on the headshell by using the cartridge supplied screws. Pass one screw through each slot in
the headshell (20). Do not tighten the nuts yet.
Connect the tonearm wires to the cartridge pins as follows:
white left channel positive (L+)
red right channel pos. (R+)
green right channel return (R -)
blue left channel return (L -)
The full sound quality of the record player can only be achieved if the cartridge is adjusted correctly. Particular
tools like the Pro-Ject Audio Systems alignment tool are required to accomplish this job properly.
If you are not well acquainted with the adjustment of cartridges you are advised to call upon the willing help of
your Pro-Ject dealer to accomplish it for you.
Please note: Adjusting a cartridge and tonearm calls for the greatest care in order to avoid damaging
the cartridge or tonearm bearings. Leave this work to your dealer if you are in any way unsure of the
necessary steps and precautions to be taken.
Maintenance and cleaning
Your record player requires little or no regular maintenance. Remove dust with a slightly moistened antistatic
cloth. To avoid static electricity (which attracts even more dust), do not use a dry cloth! Antistatic cleaning
fluids are available at specialist stores but must be applied sparingly to avoid damage to rubber parts. It is
recommended to put on the needle cover before cleaning to avoid damage.
If the player is not used for a long time, the drive belt should be removed to prevent unequal stretching.
!
Always disconnect the record player from the mains power supply as a precaution before maintenance!
Technical specifications Pro-Ject Debut Carbon DC/ Pro-Ject 8.6cc
Nominal speeds
33/45 r.p.m.. *** 78 r.p.m. optional
Speed variance
33: 0,2% 45: 0,16%
Wow and flutter
33: 0,12% 45: 0,11%
Signal to noise
68dB
Effective tonearm mass
6g
Effective tonearm length
8,6 " ( 218,5mm)
Overhang
18,5mm
Power consumption
4W/0W in Stand-By
Outboard power supply
15V / 0 – 0.8mA DC (set at 0.5mA), universal power supply

© Pro-Ject Audio Systems · Pro-Ject Debut Carbon / Ortofon OM 10 and Ortofon 2M Red · Revision 2014.03.10
7
Dimensions (W x H x D)
415 x 118 x 320mm, dust cover open 415 x 365 x 405mm
Weight
5,6kg
Technical specifications MM-Cartridge Ortofon OM 10
Frequency range
20-22.000Hz
Channel separation
22dB/1kHz
Output voltage
4mV
Recommended load impedance
47kohms/amplifier connection – MM-input
Compliance/stylus type
25µm/mN – elliptical
Recommended tracking force
15mN
Weight
5g
Technical specifications MM-Cartridge Ortofon 2M Red
Frequency range
20-22.000Hz
Channel separation
22dB/1kHz
Output voltage
5,5mV
Recommended load impedance
47kohms/amplifier connection – MM-input
Compliance/stylus type
20µm/mN – elliptical
Recommended tracking force
18mN
Weight
7,2g

© Pro-Ject Audio Systems · Pro-Ject Debut Carbon / Ortofon OM 10 and Ortofon 2M Red · Revision 2014.03.10
8
Potential incorrect use and fault conditions
Pro-Ject Audio Systems turntables are manufactured to the highest standards and undergo strict quality
controls before leaving the factory. Faults that may possibly occur are not necessarily due to material or
production faults but can sometimes be caused by incorrect use or unfortunate circumstances. Therefore the
following list of common fault symptoms is included.
The platter does not turn although the unit is switched on:
The unit is not connected to the mains power supply.
No mains at the socket.
Drive belt is not fitted or has slipped off.
No signal through one or other channel or both channels:
No signal contact from the cartridge to the internal tonearm wiring or from that to the arm lead or
from that to the phono box or between that and the amplifier. This could be due to a faulty plug,
broken wire or solder joint or missing plug/socket connection.
Phono input is not selected at amplifier.
Amplifier is not switched on.
Amplifier or speakers are defective or muted.
No connection to the loudspeakers.
Strong hum on phono input:
No earth connection from cartridge or arm or arm cable to amplifier, or earth loop.
Distorted or inconsistent sound from one or both channels:
Record player is connected to a wrong input on the amplifier, or MM/MC switch is setted incorrectly.
Needle or cantilever is damaged.
Wrong r.p.m., drive belt is overstretched or dirty, platter bearing is without oil, dirty or damaged.
Service
Should you encounter a problem which you are not able to alleviate or identify despite the above information,
please contact your dealer for further advice. Only if the problem cannot be resolved there, the unit should
be sent to the responsible distributor in your country.
Guarantee repairs will only be effected if the unit is returned correctly packed. For this reason we recommend to
keep the original packaging.
Never return a record player without making sure that it is disassembled safely and packed correctly in the
original packaging according to the diagrams on the last page of this user guide. Please remove these parts
and pack them separately: lid (10), counterweight (6), anti-skating weight (16) platter (5) and belt (3). Put on
the cartridge protection cap. Insert the transport lock for the tonearm (18) before packing the record player.
Warranty
The manufacturer accepts no responsibility for damage caused by not adhering to these instructions
for use and/or by transportation without the original packaging. Modification or changes to any part
of the product by unauthorized persons, releases the manufacturer from any liability over and above
the lawful rights of the customer.
Pro-Ject Audio Systems is a registered Trademark of H.
Lichtenegger.
This guide was produced by: Pro-Ject Audio Systems
Copyright ©2014. All rights reserved.
The information was correct a
t the time of going to
press. The manufacturer reserves the right to make
changes to the technical specification without prior
notice as deemed necessary to uphold the ongoing
process of technical development.

© Pro-Ject Audio Systems · Pro-Ject Debut Carbon / Ortofon OM 10 and Ortofon 2M Red · Revision 2014.03.10
9
