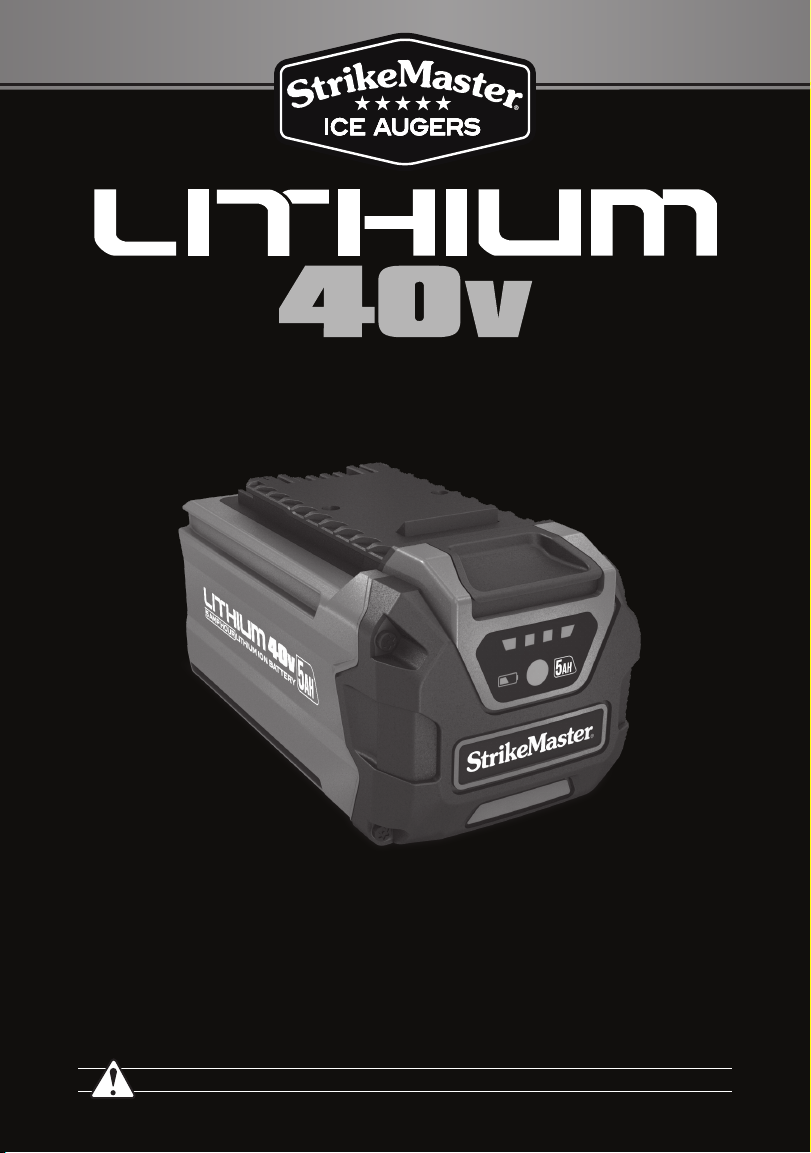

STRIKEMASTER LFV-B User manual

OWNER’S MANUAL
LITHIUM ION BATTERY
READ ALL SAFETY RULES AND INSTRUCTIONS CAREFULLY BEFORE OPERATING
Model No.
Lithium 40v 5 Amp Battery (LFV-B)
Model No.
Lithium 40v 5 Amp Battery
(LFV-B)

STRIKEMASTER®LITHIUM 40v BATTERY CONTENTS
PRODUCT SPECIFICATIONS ................................................................ 01
QUICK START ..................................................................................... 02
SAFETY INFORMATION .................................................................. 03-04
Instructions regarding BATTERY charging, information regarding ambient temperature range for tool and BATTERY
use and storage, and the recommended ambient temperature range for the CHARGING SYSTEM during charging.
SYMBOLS ......................................................................................... 05
KNOW YOUR BATTERY ........................................................................ 06
OPERATION ....................................................................................... 07
MAINTENANCE .................................................................................. 08
TROUBLESHOOTING ........................................................................... 08
ENVIRONMENTALLY SAFE BATTERY DISPOSAL ....................................... 09
LIMITED WARRANTY ........................................................................... 10
PRODUCT SPECIFICATIONS
COMPONENTS
• StrikeMaster Lithium 40v 5-Amp Lithium Ion Battery
• Rating: 36v DC 180Wh 40v Max
• Charge Time: 150 min. using StrikeMaster 40v Charging Base
• Weight: 3.53 lbs., (1.6 kg)
01 02
5 AMP
(
LFV-B)
STRIKEMASTER®LITHIUM 40v
BATTERY QUICK START
STRIKEMASTER LITHIUM 40v 5 AMP HOUR BATTERY
1. Remove StrikeMaster Lithium 40v Battery from carton (Image 1).
2. Unpack Battery Charging base, slide Battery onto Battery Charging Base using the
channels on both sides as a guide. Press down until you hear it click in place.
Leave Battery on Battery Charging Base until fully charged (Image 2).
NOTE: Battery is not fully charged when first removed from box and will not charge until
Battery's core temperature is above 32
°F/2°C
3. When Battery Charging Base indicator shows green, your Battery is
fully charged (Image 3).
4. Once Battery is fully charged remove from Battery Charging Base. Slide battery onto
Powerhead using the channels on both sides as a guide, pressing down until you hear it
click in place (Image 4). Y
our StrikeMaster Lithium 40v is ready for use.
BATTERY CARE AND MAINTENANCE
1. Store Battery in a warm, dry location (35°F/ 2°C – 100°F/ 38°C).
2. IN SEASON
A. Keep Battery fully charged.
B. Store on a plugged in Battery Charging Base in a warm, dry location (35°F/ 2°C – 100°F/ 38°C).
3. OFF SEASON
A. Charge Battery to full.
B. Store Battery in a warm, dry location (35°F/ 2°C – 100°F/ 38°C), off of Battery Charging Base.
C. If Battery is stored for a period longer than 6 months, Battery should be recharged back to full before use.
REGISTERYOUR PRODUCT ONLINETO ACTIVATEYOUR WARRANTY
www.rapala.com/content/rapala-brand-warranties/strikemaster-warranty.html
IMAGE 1
EXTREME COLD WEATHER OPERATION
The Lithium-Ion Battery can be used in temperatures down to (-4°F / -20°C). If your Battery is not performing correctly, put the
Battery on the Powerhead, free spin auger out and above ice for 30 to 90 seconds depending on how cold the unit is
(the colder the unit, the more time to warm up).After this sequence the Battery will warm up and begin operating normally.
NOTE: Always store Battery in a warm location.
IMAGE 2
IMAGE 3
IMAGE 4
5 AMP
( LFV-B)
Model No.
Lithium 40v 5 Amp Battery (LFV-B)

03 04
GENERAL POWER TOOL SAFETY WARNINGS
WA R N I N G
READ ALL SAFETY WARNINGS, INSTRUCTIONS AND SPECIFICATIONS PROVIDED WITH POWER TOOL.
Failure to follow all instructions listed below may result in electric shock, re and/or serious injury.
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery operated
(cordless) power tool.
1) WORK AREA SAFETY
A) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
B) Do not operate power tools in explosive atmospheres,such as in the presence of flammable liquids, gases or
dust. Power tools create sparks which may ignite the dust or fumes.
C) Keep children and bystanders away while operating a power tool.Distractions can cause you to lose control.
2) ELECTRICAL SAFETY
A) Power tool plugs must match the outlet.Never modify the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodied plugs and matching outlets will reduce risk of electric shock.
B) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There
is an increased risk of electric shock if your body is earthed or grounded.
C) Do not expose power tools to rain or wet conditions.Water entering a power tool will increase the risk of electric shock.
D) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away
from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
E) When operating a power tool outdoors, use an extension cord suitable for outdoor use.Use of a cord suitable for
outdoor use reduces the risk of electric shock.
F) If operating a power tool in a damp location is unavoidable,use a RESIDUAL CURRENT DEVICE (RCD) protected
supply. Use of an RCD reduces the risk of electric shock.
NOTE: The term "RESIDUAL CURRENT DEVICE (RCD)" may be replaced by the term "ground fault circuit interrupter
(GFCI)"or "earth leakage circuit breaker (ELCB)".
3) PERSONAL SAFETY
A) Stay alert, watch what you are doing and use common sense when operating a power tool.Do not use a power
tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while
operating power tools may result in serious personal injury.
B) Use personal protective equipment.Always wear eye protection. Protective equipment such as a dust mask,non-
skid safety shoes,hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
C) Prevent unintentional starting.Ensure the switch is in the off-position before connecting to power source and/or
battery pack, picking up or carrying the tool. Carrying power tools with your nger on the switch or energizing
power tools that have the switch on invites accidents.
D) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal injury.
E) Do not overreach.Keep proper footing and balance at all times. This enables better control of the power tool in
unexpected situations.
F) Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts.
Loose clothes, jewelry or long hair can be caught in moving parts.
G) If devices are provided for the connection of dust extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection can reduce dust-related hazards.
H) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety
principles. A careless action can cause severe injury within a fraction of a second.
4) POWER TOOL USE AND CARE
A) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the
job better and safer at the rate for which it was designed.
B) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with
the switch is dangerous and must be repaired.
C) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool
before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures
reduce the risk of starting the power tool accidentally.
D) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or
these instructions to operate the power tool.Power tools are dangerous in the hands of untrained users.
E) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts
and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly maintained power tools.
F) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to
bind and are easier to control.
G) Use the power tool,accessories and tool bits etc.in accordance with these instructions, taking into account the
working conditions and the work to be performed. Use of the power tool for operations different from those
intended could result in a hazardous situation.
H) Keep handles and grasping surfaces dry, clean and free from oil and grease.Slippery handles and grasping
surfaces do not allow for safe handling and control of the tool in unexpected situations.
5) BATTERY TOOL USE AND CARE
A) Recharge only with the charger specified by the manufacturer.A charger that is suitable for one type of battery
pack may create a risk of fire when used with another battery pack.
B) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk
of injury and fire.
C) When battery pack is not in use, keep it away from other metal objects, like paper clips,coins, keys, nails, screws
or other small metal objects,that can make a connection from one terminal to another. Shorting the battery
terminals together may cause burns or a fire.
D) Under abusive conditions,liquid may be ejected from the battery; avoid contact. If contact accidentally occurs,
flush with water. If liquid contacts eyes,additionally seek medical help. Liquid ejected from the battery may cause
irritation or burns.
E) Do not use a battery pack or tool that is damaged or modified.Damaged or modified batteries may exhibit
unpredictable behavior resulting in fire, explosion or risk of injury.
F) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above
265°F/130°C may cause explosion.
G) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range
specified in the instructions. Charging improperly or at temperatures outside the specified range may damage
the battery and increase the risk of fire.
6) SERVICE
A) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will
ensure that the safety of the power tool is maintained.
B) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer
or authorized service providers.

05 06
SYMBOLS
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER Indicates an imminently hazardous situation, which, if not avoided,
will result in death or serious injury.
WARNING Indicates an potentially hazardous situation, which, if not avoided,
could result in death or serious injury.
CAUTION Indicates an potentially hazardous situation, which, if not avoided,
may result in minor or moderate injury.
CAUTION (Without Safety Alert Symbol) Indicates a situation that may result in
property damage.
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper
interpretation of these symbols will allow you to operate the product better and safer.
SYMBOL NAME MEANING
V VOLTS Voltage
HzHERTZ
Frequency (cycles per second)
W WATTS Power
or d.c. DIRECT CURRENT Type or a characteristic of current.
RPM NO LOAD SPEED Rotational speed at no load.
WET CONDITIONS ALERT Do not expose to rain or use in damp locations.
SAFETY ALERT Indicates a potentially personal injury hazard.
READ OWNER’S MANUAL To reduce risk of injury, user must read and understand owner’s
manual before using this product.
KNOWYOUR BATTERY
The safe use of this product requires an understanding of the information on the product and in this operator’s
manual as well as a knowledge of the project you are attempting. Before using this product,familiarize yourself
with all operating features and safety rules.
CAUTION
The battery used in this device may present a fire or chemical burn if mistreated.
CAUTION
Risk of fire and burns. DO NOT OPEN, CRUSH, HEAT ABOVE 212°F/100°C or INCINERATE.
Follow manufacturer’s instructions.
CAUTION
When Battery is not in use,keep it away from other metal objects,like paper clips, coins, keys, nails, screws or
other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals
together may cause burns or a fire.
CAUTION
Under abusive conditions,liquid may be ejected from the battery; avoid contact. If contact accidentally occurs,
flush with water. If liquid contacts eyes,additionally seek medical help. Liquid ejected from the battery may cause
irritation or burns.
CAUTION
Do not use a battery that is damaged or modified. Damaged or modified batteries may exhibit unpredictable
behavior resulting in fire, explosion or risk of injury.
BATTERY CONTACTS
RELEASE BUTTON
BATTERY CAPACITY INDICATOR
(BCI)BUTTON
INDICATOR LIGHTS

07 08
OPERATION
CHECKING BATTERY CAPACITY
NOTE :The battery is not shipped fully charged. It is recommended to fully charge before first use to ensure
that maximum run time can be achieved.This lithium-ion battery will not develop a memory and may be
charged at any time.A fully discharged Battery will require approximately 180 minutes to fully charge from
a discharged state.
Press the Battery Capacity Indicator (BCI) Button.The lights will illuminate according to the batteries capacity level
as shown below.
LIGHTS CAPACITY
4 Green Lights More than 78% Capacity
3 Green Lights Between 50%-78% Capacity
2 Green Lights Between 35%-50% Capacity
1 Green Lights Between 15%-35% Capacity
1 Blinking Green Light Between 10%-15% Capacity
Lights Go Out Less than 10% Capacity
Requires Immediate Charging
BATTERY PROTECTION FEATURES
40v lithium-ion batteries are designed with features that protect the lithium-ion cells and maximize
battery life.
CHARGING THE BATTERY
Batteries are shipped in a low charge condition to prevent possible problems.Therefore, you should
charge prior to first use. If the charger does not charge the Battery under normal circumstances, return
both the battery and charger to your nearest Authorized Service Center for electrical check.
• Charge the Battery only with the recommended charger.
• Connect the Charging Base to a power supply.
• For approved power sources, refer to the operator’s manual for the charger.
• Make sure the Battery is secured in the Charging Base before beginning operation.
• Press down on the Battery to be sure contacts on the Battery engage properly with contacts in the
Charging Base.
• The Battery may become slightly warm to the touch while charging.This is normal and does not
indicate a problem.
• Do not place the Charging Base and Battery in an area of extreme heat or cold.They will work best
at normal room temperature.
• When batteries become fully charged, unplug the Charging Base from the power supply and
remove the Battery.
MAINTENANCE
WARNING
To avoid personal injury, always remove the Battery from the Auger when cleaning or performing any maintenance.
WARNING
When servicing use only identical StrikeMaster replacement parts. Use of any other parts may create a hazard or
cause product damage.
GENERAL MAINTENANCE
• Brush or blow dust and debris out of the air vents using compressed air or a vacuum. Keep the air vents free of
obstructions, sawdust, and wood chips. Do not spray, wash, or immerse the air vents in water.
• Wipe off the housing and the plastic components using a dry, soft cloth. Do not use strong solvents or
detergents on the plastic housing or plastic components. Certain household cleaners may cause damage and
may cause a shock hazard.
STORAGE
• Always remove the Battery before storing the Charging Base or any time the Charging Base is unplugged.
• Do not place the Battery in the sun or in extremely warm environment.Keep at normal room temperature.
• If the battery will not be used for 6 months or more, please store the battery in a room temperature
environment. Please fully charge before storage.
WARNING
Do not at any time let brake fluids,gasoline, petroleum-based products, penetrating oils, etc. to come in contact
with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal injury.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE REMEDY/ACTION
The Battery charge is reduced The Battery has automatically Fully recharge the battery before use
after more than one month performed self-maintenance
of non-use to extend its life
LIGHT METER
EXTREME COLD WEATHER OPERATION
The Lithium-Ion Battery can be used in temperatures down to (-4°F/ -20°C). If your Battery is not performing correctly, put the
Battery on the Powerhead, free spin auger out and above ice for 30 to 90 seconds depending on how cold the unit is (the
colder the unit, the more time to warm up).After this sequence the Battery will warm up and begin operating normally.
NOTE:
Always store Battery in a warm location.
BATTERY CAPACITY
INDICATOR (BCI) BUTTON

ENVIRONMENTALLY SAFE BATTERY DISPOSAL
The following toxic and corrosive materials are in the batteries used in this Battery:
Lithium Ion, a toxic material.
WARNING
All toxic materials must be disposed of in a specified manner to prevent contamination of the environment. Before
disposing of damaged or worn out Lithium-Ion Batterys,contact your local waste disposal agency, or the local
Environmental Protection Agency for information and specific instructions.Take the batteries to a local recycling
and/or disposal center,certified for lithium-ion disposal.
WARNING
If the Battery cracks or breaks, with or without leaks, do not recharge it and do not use.Dispose of it and replace
with a new Battery. DO NOT ATTEMPT TO REPAIR IT! To avoid injury and risk of fire, explosion, or electric shock, and
to avoid damage to the environment:
• Cover the battery's terminals with heavy-duty adhesive tape.
• DO NOT attempt to remove or destroy any of the Battery components.
• DO NOT attempt to open the Battery.
• If a leak develops, the released electrolytes are corrosive and toxic. DO NOT get the solution in the eyes or on
skin, and do not swallow it.
• DO NOT place these batteries in your regular household trash.
• DO NOT incinerate.
• DO NOT place them where they will become part of any waste landfill or municipal solid waste stream.
• Take them to a certified recycling or disposal center.
2-YEAR LIMITED WARRANTY
BATTERY WARRANTY
StrikeMaster®hereby warranties this product, to the original purchaser with proof of purchase,
for a period of two (2) years against defects in materials, parts or workmanship. Batteries
must be charged in accordance with the operator’s manuals directions and regulations in
order to be valid. StrikeMaster, at its own discretion will repair or replace any and all parts
found to be defective, through normal use, free of charge to the customer. This warranty
is valid only for units which have been used for personal use that have not been hired or
rented for industrial/ commercial use, and that have been maintained in accordance with the
instructions in the owner’s manual supplied with the product from new.
ITEMS NOT COVERED BY WARRANTY
1. Any part that has become inoperative due to misuse, commercial use, abuse, neglect,
accident, improper maintenance, or alteration; or
2.The unit, if it has not been operated and/or maintained in accordance with the owner’s
manual; or
3.Normal wear, routine maintenance, normal deterioration of finish due to use or
exposure.
REGISTERYOUR PRODUCT ONLINETO ACTIVATEYOUR WARRANTY
www.rapala.com/content/rapala-brand-warranties/strikemaster-warranty.html
TRANSPORTATION CHARGES
Transportation charges for the movement of any power equipment unit or attachment are
the responsibility of the purchaser. It is the purchaser’s responsibility to pay transportation
charges for any part submitted for replacement under this warranty unless such return is
requested in writing by StrikeMaster®.
09 10
Suite 100, 935 Aldrin Drive, Eagan, MN 55121
USA CUSTOMER SERVICE EMAIL:
[e-mail]
TOLL-FREE HELPLINE: 1-877-572-7278
(Monday - Friday / 8am - 4:30pm CST)
www.strikemaster.com
1350 Phillip Murray Ave, Oshawa, ON L1J 6Z9, Canada
cacustser[email protected]
TOLL-FREE HELPLINE: 905-571-3001
(Monday - Friday / 8am - 4:30pm ET)
LIGNE DE SECOURS: 905-571-3001
(Lundi-Vendredi / 8am - 4:30pm ET)
www.strikemaster.ca

©2022 StrikeMaster, Inc. 0723
Suite 100, 935 Aldrin Drive, Eagan, MN 55121
USA CUSTOMER SERVICE EMAIL:
[e-mail]
TOLL-FREE HELPLINE: 1-877-572-7278
(Monday - Friday / 8am - 4:30pm CST)
www.strikemaster.com
1350 Phillip Murray Ave, Oshawa, ON L1J 6Z9, Canada
cacustser[email protected]
TOLL-FREE HELPLINE: 905-571-3001
(Monday - Friday / 8am - 4:30pm ET)
LIGNE DE SECOURS: 905-571-3001
(Lundi-Vendredi / 8am - 4:30pm ET)
www.strikemaster.ca
