StrongHandTool BUILDPRO THT4020 User manual
ASSEMBLY INSTRUCTIONS
RHINO CART HAND TURNTABLE - THT4020
TABLE OF CONTENTS:
• Specifications
• Part List
• Assembly Instructions
• Maintenance
• Safety
• Limited Warranty
SPECIFICATIONS
PN Tabletop Size Tabletop
Thickness
Hole
Diameter Grid Pattern Load
Capacity Weight
THT4020 20" x 20"
508 x 508 mm
0.472"
12 mm
0.625"
15.88 mm
2" x 2"
50.8 x 50.8 mm
55 lb
25 kg
44 lb
20 kg
Assembly Instructions RHINO CART HAND TURNTABLE
PN: THT4020
PART LIST
Unpack all parts and components and compare them to the parts list below. Read all assembly instructions before
beginning assembly. Pre-assembled parts might need some adjustment.
No. Item Name Qty. No. Item Name Qty.
A Receiving Tube Mount/Adapter 1 F Flat Head Screw M10 x 30 2
B Turntable Connecting Tube 1
G
Nut M16 2
C Turntable Extension Arm 1 Flat Washer 2
D Steel Tabletop, 20" x 20" 1 Spring Washer 2
E Socket Head Screw M6 x 16 8 H Socket Head Screw M16 x 80 2
A
B
C
D
E
F
G
H
Assembly Instructions RHINO CART HAND TURNTABLE
PN: THT4020
Tools required for assembly: Allen wrench, Phillips screwdriver and Pliers.
1 2
3 4
Use two Flat Head Screws (F) to affix the
ReceivingTube Adapter (A) on the Rhino Cart.
F
A
B
HA
Slide ConnectingTube (B) intoTube Adapter
(A) and align the holes before locking with
Screw (H), Nuts and Washers (G).
C
B
G
H
Slide Extension Arm (C) into Connecting
Tube (B), algin the holes and lock them with
Screws (H), Nuts and Washers (G).
Lock the SteelTabletop (D) onto Extension
Arm (C) with eight Screws (E).
D
C
E
G
Assembly Instructions RHINO CART HAND TURNTABLE
PN: THT4020

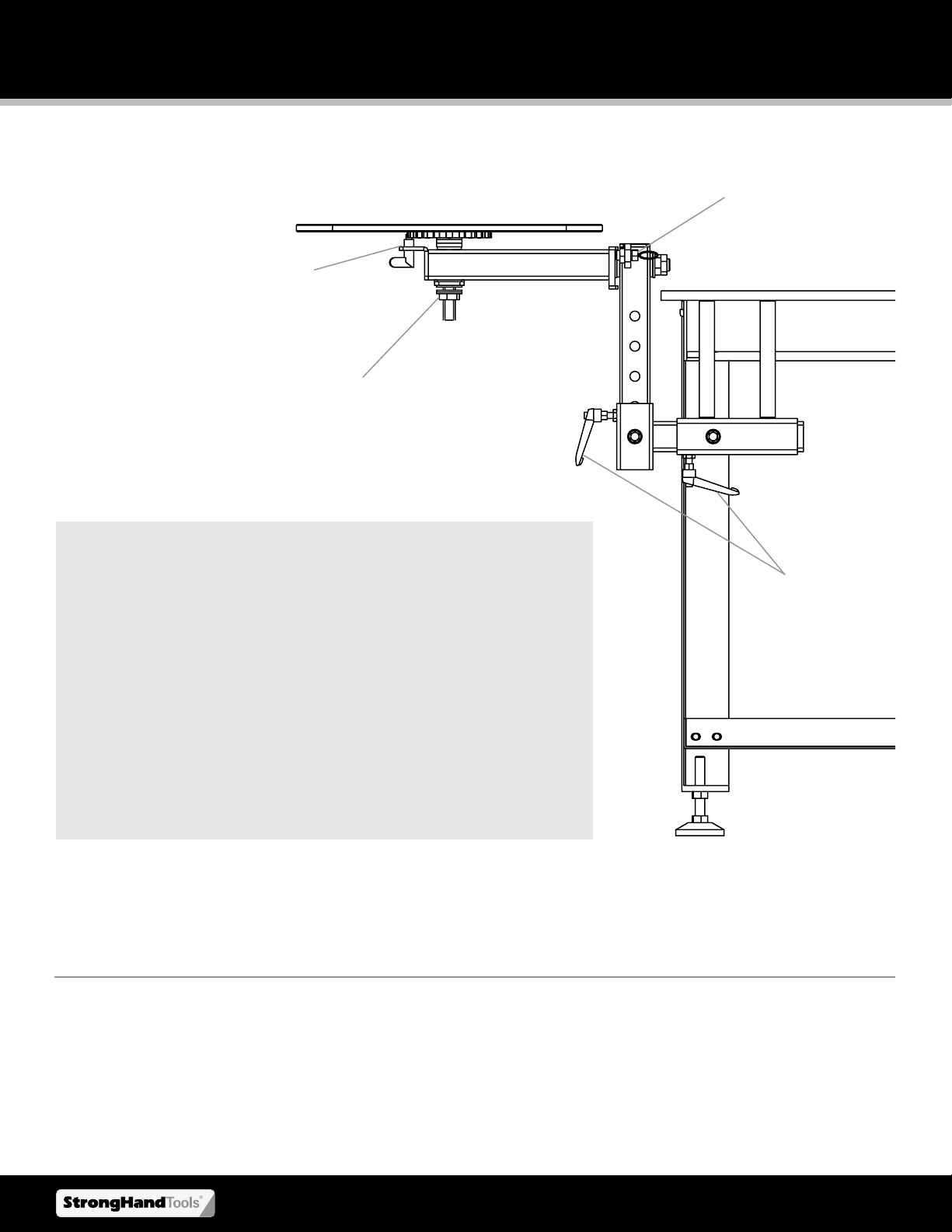

Handle Screw
Rotary Locking Pin
Tilt Locking Pin
Loosen / tighten the Handle Screw to adjust
the height and extension of the tabletop.
Tighten the Nut to adjust the rotation tension /
resistance of the tabletop.
Tilt the tabletop at 0°, 15°, 30°, and 45° by
adjusting theTilt Locking Pin.
Lock the rotation angle of the tabletop with
the Rotary Locking Pin.
MAINTENANCE
Keep the Rhino Cart Hand Turntable clean
for optimal performance. Wipe away dust
and debris from the tabletop and legs.
SAFETY
ALWAYS wear safety goggles,
gloves, and other appropriate
safety items for protection.
LIMITED WARRANTY
Each STRONG HAND TOOL product is warranted to
be free from defects in material and workmanship.
Return to place of purchase for a replacement if
warranty applies.
Adjusting Nut
