Strongway 10Ft. X 20Ft. User manual

READ & SAVE THESE INSTRUCTIONS
10Ft. x 20Ft. Truss Top Canopy
Owner’s Manual
WARNING: Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety
precautions may result in serious personal injury.
Item #47509

Page 2 of 12
Thank you very much for choosing a Strongway®product!
For future reference, please complete the owner’s record below:
Serial Number/Lot Date Code: ________________________________
Purchase Date: ____________________________________________
Save the receipt, warranty, and this manual. It is important that you read
the entire manual to become familiar with this product before you begin
using it.
This canopy is designed for certain applications only. Northern Tool and
Equipment is not responsible for issues arising from modification or
improper use of this product such as an application for which it was not
designed. We strongly recommend that this product not be modified
and/or used for any application other than that for which it was designed.
For technical questions, please call 1-800-222-5381.

Page 3 of 12
Table of Contents
Intended Use..........................................................................................................................................4
Packaging Contents..............................................................................................................................4
Technical Specifications......................................................................................................................4
Important Safety Information...............................................................................................................4
Specific Operation Warnings...............................................................................................................5
Main Parts of Canopy ...........................................................................................................................6
Before Each Use....................................................................................................................................6
Assembly Instructions..........................................................................................................................6
After Each Use.......................................................................................................................................8
Maintenance ..........................................................................................................................................9
Parts Diagram........................................................................................................................................9
Parts List..............................................................................................................................................10
Replacement Parts..............................................................................................................................10
Limited Warranty.................................................................................................................................11

Page 4 of 12
Intended Use
The Strongway 10Ft. X 20Ft. Truss Top Canopy is water and fade resistant. It’s ideal for backyard
parties, commercial events, camping, tailgating activities, and much more. The canopy is not intended
to be a permanent or semi- permanent structure. It is designed to be used for short periods of time
only. The canopy should be taken down and stored when not in use.
Packaging Contents
Canopy Top
Frame
Carrying Bag
12 Stakes
Owner’s Manual
Technical Specifications
Property
Specification
Coverage Area
200 square feet
Construction
Integrated steel frame (one piece)
Dimensions
10 feet x 20 feet
Center Height
133 inches
Important Safety Information
⚠WARNING
Read and understand all instructions. Failure to follow all instructions may result in serious injury
or property damage.
The warnings, cautions, and instructions in this manual cannot cover all possible conditions or
situations that could occur. Exercise common sense and caution when using this tool. Always be
aware of the environment and ensure that the tool is used in a safe and responsible manner.
Do not allow persons to operate or assemble the product until they have read this manual and
have developed a thorough understanding of how it works.
Do not modify this product in any way. Unauthorized modification may impair the function and/or
safety and could affect the life of the product. There are specific applications for which the product
was designed.
Use the right tool for the job. DO NOT attempt to force small equipment to do the work of larger
industrial equipment. There are certain applications for which this equipment was designed. This
product will be safer and do a better job at the capacity for which it was intended. DO NOT use
this equipment for a purpose for which it was not intended.
Industrial or commercial applications must follow OSHA requirements.

Page 5 of 12
⚠WARNING
WORK AREA SAFETY
Inspect the work area before each use. Keep work area clean, dry, free of clutter, and well-lit.
Cluttered, wet, or dark work areas can result in injury. Using the product in confined work areas
may put you dangerously close to cutting tools and rotating parts.
Do not use the product where there is a risk of causing a fire or an explosion; e.g., in the presence
of flammable liquids, gases, or dust. The product can create sparks, which may ignite the
flammable liquids, gases, or dust.
Be aware of all power lines, electrical circuits, water pipes, and other mechanical hazards in your
work area. Some of these hazards may be hidden from your view and may cause personal injury
and/or property damage if contacted.
⚠CAUTION
CANOPY USE AND CARE
Check for damaged parts before each use. Carefully check that the product will operate properly
and perform its intended function. Replace damaged or worn parts immediately. Never operate the
product with a damaged part.
Store the product when it is not in use. Store it in a dry, secure place out of the reach of children.
Inspect the tool for good working condition prior to storage and before re-use.
Use only accessories that are recommended by the manufacturer for use with your product.
Accessories that may be suitable for one product may create a risk of injury when used with
another tool.
Specific Operation Warnings
⚠WARNING
Read and understand all instructions. Failure to follow all instructions listed below may result in
serious injury.
Always check for damaged or worn out parts before using the canopy. Broken parts will affect the
canopy operation. Replace or repair damaged or worn parts immediately.
Adult assembly only. Do not allow children or those under the influence of drugs or alcohol to
assemble this canopy.
For use in low to moderate wind only. Do not assemble this canopy where it could encounter high
winds. There is a danger of it being carried by the wind and it could cause personal injury if it
becomes untethered. Ensure the canopy is properly anchored at all times.
Sunburn Warning: This canopy only provides sun ray protection in the shade area. Depending on
the sun’s position, this may not be directly under the canopy. Also, there may be additional sun
exposure off reflective surfaces that cannot be prevented by this canopy. Ensure that users are
aware of the sun’s position, that they wear sunscreen, and that they actively avoid overexposure
to the sun.
When canopy is not in use, store it inside, and in a secure place out of the reach of children.
Inspect it for good working condition prior to storage and before re-use.

Page 6 of 12
⚠WARNING
KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS TENT FABRIC. This tent meets the
flammability requirements of CAPAI-84 and NFPA 701, The fabric may burn if left in continuous
contact with any flame source. The application of any foreign substance to the tent fabric may
render the flame-resistant properties ineffective.
Main Parts of Canopy
Subassembly
Canopy Top
Frame
Carrying Bag
Stakes
Before Each Use
Verify the Package Contents
Verify the package contents by emptying the contents of the bag and confirming all parts are included
and undamaged.
Note: Find the stakes in the pocket of the carrying bag. Verify all contents before setting up the
canopy.
Assembly Instructions
Setting Up the Canopy
Step 1: Pull and extend the frame.
1) Select a smooth, level site to set up the canopy.
2) With two people on diagonal corners of the structure, have each person take a leg.
3) Have one person stand in place while the other walks the frame out.
4) Slide the roof lock mechanisms (located on each leg) up toward the roof corners two legs at a
time. At each leg, listen for the lock to click into place.
5) Stop adjusting frame legs at mid-level (half-way mark) for the next step.

Page 7 of 12

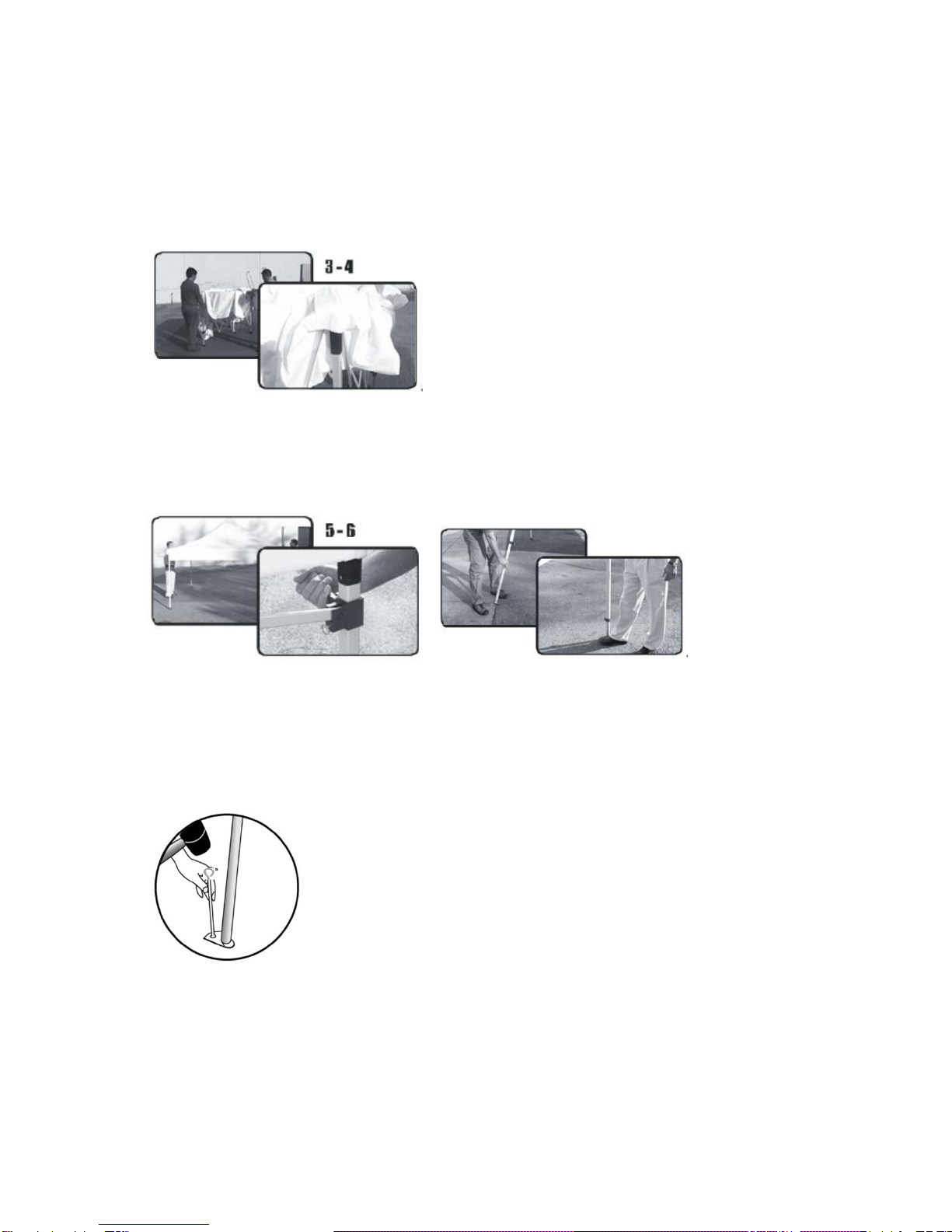

Step 2: Cover the frame with the fabric top.
1) Lay the fabric over the roof.
2) Line up all corners and adjust from the opposite sides. The fabric will fit snugly.
3) Locate the nylon fasteners on the underside of the fabric body and attach to the roof frame.
Step 3: Extend the legs.
Step on the frame leg base. Working from opposite sides, slide the roof lock mechanisms (located on
the upper leg portion) upwards until they lock into place.
Note: You will hear and feel a click when the roof lock is correctly secured at each position.
Step 4: Stake the canopy.
1) Stake the canopy by driving the stakes through the holes at the foot of each leg.
Note: For setting up on a beach or in soft soil, use additional weights (sand bags or other heavy
objects) on each foot or place legs twelve inches down into sand or soil to help secure set up. Stakes
alone will not secure canopy in sand or soft soil.
2) To stabilize the canopy, unroll the guy rope on the corner of the canopy. Tie the other end to the
stake and then drive the stake into the ground to secure. (Adjust the stake position to tighten up
the guy rope.) Repeat for each guy rope.

Page 8 of 12
After Each Use
Disassembling the Canopy
To prevent possible tearing or damage to the canopy fabric, store all poles and stakes in the
corresponding bag.
Step 1：Remove the stakes.
1) Carefully remove stakes by pulling out the hook ends.
2) Remove excess soil from the stakes and store them in their bag.
Step 2: Take down the canopy.
1) Remove any accessories if installed. Fold for storage.
2) Pull the PULL-PIN located in the middle of each leg, and carefully lower each leg, making sure
each leg is level before proceeding. Repeat until the frame is lowered to the ground.
3) Remember the fasteners are inside the roofline, on side scissors bars and at corners. Detach all
fasteners and remove the fabric top completely off the frame and fold for storing.
⚠CAUTION
Never store the fabric on the frame. You may damage the fabric, frame, or both.
4) Pull the pull-pin found on each leg at each upper corner of the frame, making sure that all sides
are detached from the snap button. Slowly slide the roof line downward while walking in. This will
collapse frame completely.
Step 3: Store the canopy and all parts in the carrying bag.
1) To prolong the life of the canopy, you will need to store it correctly. Place the folded frame ‘feet
first’toward the carry bag wheels.
2) Return the stakes to their stake bag and place alongside the frame.
3) Lastly, place the folded fabric into the carrying bag, making sure all pieces are completely tucked
inside the bag. Carefully zip the bag closed.
Note: After packing the bag, double check the contents and surrounding area for loose parts.

Page 9 of 12
Maintenance
Clean the canopy fabric gently with a damp cloth only. Do not clean with soaps or a washing
machine.
Store the canopy in a clean, dry place with proper ventilation like a garage, a walk-out
basement, or a storage area.
Parts Diagram
CTOP-1020CC FPTY-1020CC
CBAG-1020CC SSET-1020CC
SNUT-1020CC

Page 10 of 12
Parts List
Reference
Part Number
Part Description
Quantity
1
CTOP-1020CC
Canopy Top
1
2
FPTY-1020CC
Frame
1
3
CBAG-1020CC
Carrying Bag
1
4
SSET-1020CC
Stake
12
5
SNUT-1020CC
Screws and Nuts
5
Replacement Parts
For replacement parts and technical questions, please call Customer Service at 1-800-222-5381.
Not all product components are available for replacement. The illustrations provided are a
convenient reference to the location and position of parts in the assembly sequence.
When ordering parts, the following information will be required: item description, item model
number, item serial number/item lot date code, and the replacement part reference number.
The distributor reserves the rights to make design changes and improvements to product lines
and manuals without notice.

Page 11 of 12
Limited Warranty
Northern Tool and Equipment Company, Inc. ("We'' or "Us'') warrants to the original purchaser only
("You'' or "Your") that the Strongway product purchased will be free from material defects in both
materials and workmanship, normal wear and tear excepted, for a period of one year from date of
purchase. The foregoing warranty is valid only if the installation and use of the product is strictly in
accordance with product instructions. There are no other warranties, express or implied, including the
warranty of merchantability or fitness for a particular purpose. If the product does not comply with this
limited warranty, Your sole and exclusive remedy is that We will, at our sole option and within a
commercially reasonable time, either replace the product or product component without charge to You
or refund the purchase price (less shipping). This limited warranty is not transferable.
Limitations on the Warranty
This limited warranty does not cover: (a) normal wear and tear; (b) damage through abuse, neglect,
misuse, or as a result of any accident or in any other manner; (c) damage from misapplication,
overloading, or improper installation; (d) improper maintenance and repair; and (e) product alteration
in any manner by anyone other than Us, with the sole exception of alterations made pursuant to
product instructions and in a workmanlike manner.
Obligations of Purchaser
You must retain Your product purchase receipt to verify date of purchase and that You are the original
purchaser. To make a warranty claim, contact Us at 1-800-222-5381, identify the product by make
and model number, and follow the claim instructions that will be provided. The product and the
purchase receipt must be provided to Us in order to process Your warranty claim. Any returned
product that is replaced or refunded by Us becomes our property. You will be responsible for return
shipping costs or costs related to Your return visit to a retail store.
Remedy Limits
Product replacement or a refund of the purchase price is Your sole remedy under this limited warranty
or any other warranty related to the product. We shall not be liable for: service or labor charges or
damage to Your property incurred in removing or replacing the product; any damages, including,
without limitation, damages to tangible personal property or personal injury, related to Your improper
use, installation, or maintenance of the product or product component; or any indirect, incidental or
consequential damages of any kind for any reason.
Assumption of Risk
You acknowledge and agree that any use of the product for any purpose other than the specified
use(s) stated in the product instructions is at Your own risk.
Governing Law
This limited warranty gives You specific legal rights, and You also may have other rights which vary
from state to state. Some states do not allow limitations or exclusions on implied warranties or
incidental or consequential damages, so the above limitations may not apply to You. This limited
warranty is governed by the laws of the State of Minnesota, without regard to rules pertaining to
conflicts of law. The state courts located in Dakota County, Minnesota shall have exclusive jurisdiction
for any disputes relating to this warranty.

Page 12 of 12
Distributed by:
Northern Tool & Equipment Company, Inc.
Burnsville, Minnesota 55306
www.northerntool.com
Made in China
