Studio Logic PS 100 User manual

Declaration of Conformity
Fatar Srl
Zona Ind.le Squartabue
62019 Recanati MC Italy
declares that this product complies with the following European
Directives and related standards:
2006/95/EC
Low Voltage Directive
EN 60065:
1998
Safety Requirements for Audio, Video
and audio-visual apparatus for
professional use
2004/108/EC
Electromagnetic Compatibility Directive
(EMC)
EN 55103-1/E1:
1997
Product Standard –Audio, Video and
audio-visual apparatus for professional
use, Electromagnetic compatibility of
audio equipment: Emission
EN 55103-2/E1:
1997
Product Standard –Audio, Video and
audio-visual apparatus for professional
use, Electromagnetic compatibility of
audio equipment: Immunity
Technical files are maintained at corporate head-quarter of Fatar Srl,
62019 Recanati MC, Italy.
Above declarations are void by modifications of the device without
approval, or unauthorized servicing.
RoHS Conformity
This is to certify that the product is RoHS compliant and meet the
requirements and specified limits of restricted substances according
2002/95/EC directive.
WEEE
This product is marked with the WEEE symbol to comply with the
European Union’s Waste Electrical & Electronic Equipment (WEEE)
Directive 2002/96/EC. The symbol indicates that this product should not
be treated as household waste. It must be disposed and recycled as
electronic waste. Please assist to keep our environment clean.
FATAR Srl
Zona Ind.le Squartabue
62019 Recanati MC
ITALY
www.fatar.com
© by FATAR Srl
No part of this manual may be reproduced or transmitted in any form
or by any means without prior consent of the copyright owner.
Revision 07.2017
User Guide
Foot Switches
Sustain Pedals

Welcome!
Thank you for choosing this foot switch / sustain pedal. You have
obtained astate-of-the-art product made bythe renowned manufacturer
Studiologic by Fatar.
Please read the entire user guide thoroughly and keep it
for further reference.
Intended use
This product is designed to operate as foot switch / sustain pedal for
electronic musical instruments only.
Unauthorised conversion and/or modification of the device are
inadmissible because of safety and approval reasons (CE). Any usage
otherthan described above is not admitted and can damagetheproduct
or the connected device and can cause risks such as short circuit, fire,
electric shock etc.
Important Safety Instructions
Never plug the device to high voltages, such as mains.
This may cause risks of severe injury and death.
This device is designed to be controlled by foot, not by
hand. To avoid risk of bodily injury, keep your hand and
fingers away from moving parts (pedal lever).
Electronic devices and accessories must be stored away
from children.
Do not use the device for other purposes than as foot switch / sustain
pedal for electronic musical instruments. Plug the device only tosockets
on your musical device which are labelled with “Sustain”, “Hold”, “Foot
Switch” or similar.
Water / moisture:
To reduce the risk of fire or electric shock, do not expose the device to
water or moisture. If the device is moved from a cold place to a warm
room, condensation may occur inside. To avoid damage please allow
the device to reach room temperature before using it.
Cleaning / Maintenance
Never use any abrasive detergent, which maydamage the surface. We
recommend a slightly moist micro-fibre cloth.
Do not open the chassis. There are no user serviceable parts inside.
Warranty
Every Fatar Studiologic product has been carefully manufactured,
calibrated and tested. All this enables a warranty. Damages due to
incorrect transport, mounting or handling are not covered by this
warranty. All this is based on general terms and condition of the local
distributor / FATAR Srl, Italy. Compensation of more than the price of
the device is excluded.
State of the Art
To ensure maximum quality, all devices of Studiologic by Fatar are
always engineered to be state-of-the-art products. Therefore, updates,
modifications and improvements are made without prior notice.
Technical specification and product appearance may vary from this user
guide.
Specifications
PS 100 • PS 150 • PS 250
Momentary foot switch with slip-proof
surface.
PS 100: Open contact at rest.
PS 150: Closed contact at rest.
PS 250: Switchable contact state at rest.
Connector: 1x TS jack, 6,3mm (1/4').
Cable length: 2m
Dimensions: 10 x 8,5 x 4 cm (L x W x H). Weight: 0,25kg.
VFP 1/10 • VFP 1/15 • VFP 1/25
Solid Piano style sustain pedal.
VFP 1/10: Contact open at rest.
VFP 1/15: Contact closed at rest.
VFP 1/25: Contact selectable open or
closed at rest
Connector: 1x TS jack, 6,3mm (1/4').
Cable length: 2m
Dimensions: 22 x 7,5 x 5,5 cm (L x W x H). Weight: 0,45kg.
VFP 2/10 • VFP 2/15
Solid Piano style dual sustain pedal.
VFP 2/10: Contact open at rest.
VFP 2/15: Contact closed at rest.
Connector: 2x TS jack, 6,3mm (1/4').
Alternatively: 1x TRS jack, 6,3mm (1/4').
Cable length: 2m
Dimensions: 22 x 19,5 x 5,5 cm (L x W x H). Weight: 0,90kg.
VFP 3/10 • VFP 3/15
Solid Piano style triple sustain pedal.
VFP 3/10: Contact open at rest.
VFP 3/15: Contact closed at rest.
Connector: 1x TS jack and 1x TRS jack,
6,3mm (1/4').
Cable length: 2m
Dimensions: 22 x 19,5 x 5,5 cm (L x W x H). Weight: 1,10kg.
Compatibility
This product is compatible with most of the Studiologic instruments.
Please check the full list at:
http://studiologic-music.com/support/accessories-compatibility/
Compatibility to other brands cannot be assured due to different wiring
and hardware standards employed.
Studiologic excludes the liability for damages which derive from using
the pedal with devices whose compatibility has not been declared.

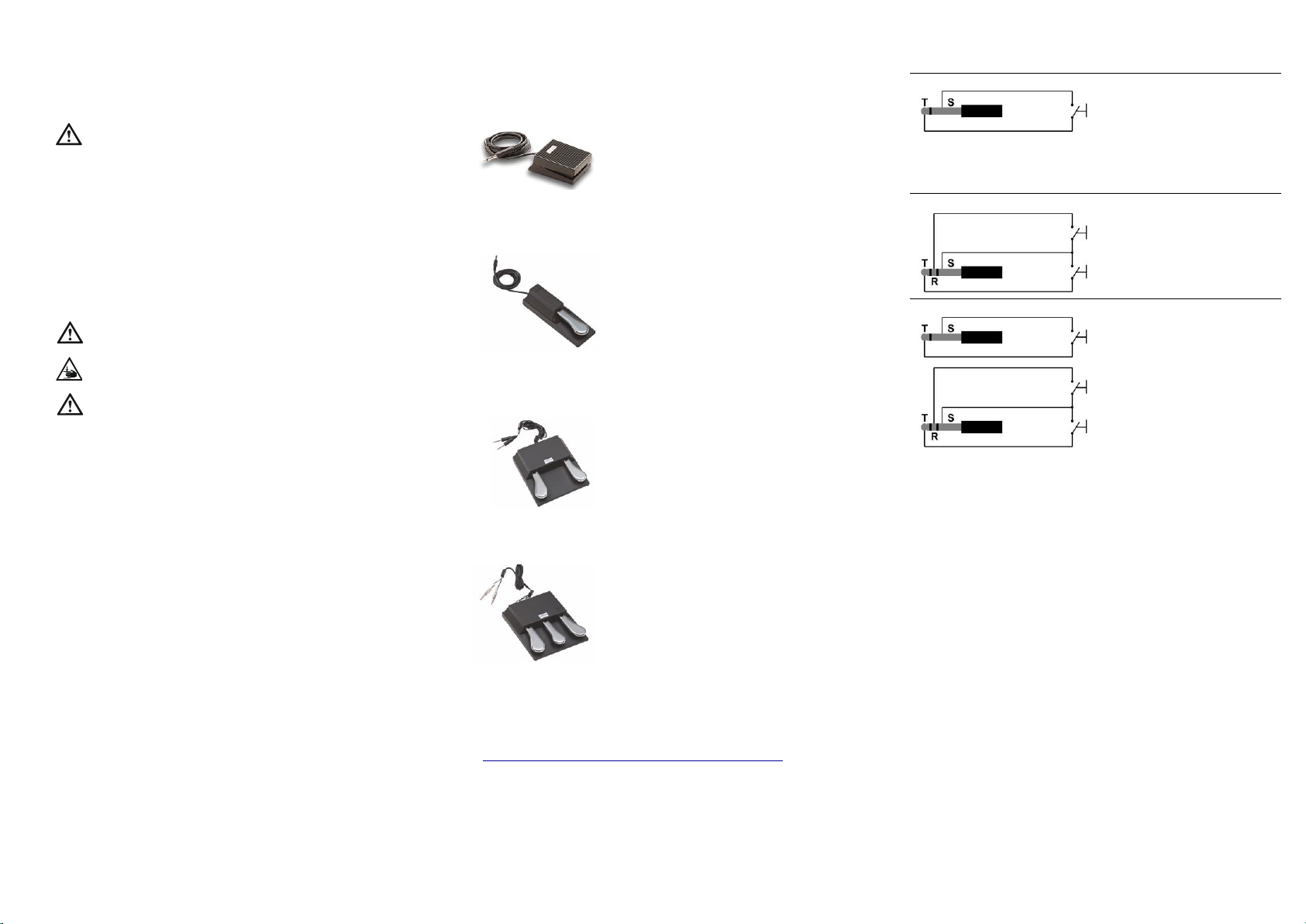

Schematics
Connector
Type
Product
single
momentary
switch
PS 100
PS 150
PS 250
VFP 1/10
VFP 1/15
VFP 1/25
VFP 2/10 (2x TS)
VFP 2/15 (2x TS)
dual
momentary
switch
VFP 2/10 (1x TRS)
VFP 2/15 (1x TRS)
single and
dual
momentary
switch
VFP 3/10
VFP 3/15
Setting up
According to your MIDI keyboard or digital Piano, you can use single or
multi pedal types.
Plug the connector of your foot switch / sustain pedal to a socket of your
MIDI keyboard, sound expander or digital Piano labelled with “Sustain”,
“Hold”, “Foot Switch” or similar.
Please refer to the manual of your MIDI device or digital Piano, which
pedal type is supported: Contact open or closed at rest (or both types).
In the manual of the MIDI device you will also find remarks, if a stereo
jack found at some models (VFP double or triple sustain pedals) are
supported.
Operation
Press and hold down the foot switch / sustain pedal as long as you
would like to perform its function. If the operation is reversed than
expected, you might have to use another type of pedal (contact
open/closed at rest). Or switch the function of the VFP 1/25.
