StuntCams DC-101 User manual

4CH CAR D.V.R
USER'S MANUAL - Eng

2
2
WARNIG AND CAUTIONS
CAUTION : TO REDUCE THE RISK OF FIRE OR ELECTRONISC
SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR
MOIS-TURE. DO NET INSERT ANY METALLIC OBJECT
THROUGH VEN-TILATION GRILLS.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN 󰏗
CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER(OR RACK)
NO USER-SERVICEABLE PARTSINSIDE.
REFER SERVICING TO QUALIFLED SERVICE PERSONNEL.
Explanation of Graphical Symbols

3
3
INDEX

4
4
Ⅰ INTRODUCTION
1. Before Usages
This manual is help to understand how to use _______ for all users. Also, must be
read carefully before use it. All users must follow the steps this manual before
installation hardware and set up the menu.
2. Important Safeguard and Warning
Warning
1. Use the adaptor, which is supplied or recommended by the supplier. It may cause
fire.
2. Do not dismantle or assemble the product. It may cause malfunction or fire.
3. Do net touch the product with wet hands. it may cause malfunction or fire.
4. matters must vbe ensured to a professional for insallation. It may cause
malfunction. electric shock or fire.
5. Consult the place of purchase if the need for installation arises. Delinquent
installation may be the reason for malfunction. electric shock or fire.
6. Ground applies to video products equipped with a 3-wire grounding type plug
having a third (grounding) pin. This plug only fits into a grounding-type power
outlet. If grounding is not done, it may cause electric shock.
7. Ground connection must not touch gas pipe, water pipe or telephone line. If
grounding is not done properly, it may cause electric shock.
8. Prevent metallic foreign substance inside the product. It may cause malfunction
or electric shock.
9. Do not spray insecticide or flammable spray while driving. It may cause fire.
10. Prevent water from entering inside electrical parts. Clean with a dry towel or
malfunction or electric shock could result.
Caution
1. Use the power cord, which is supploed or recommended by the supplier. The
internal fan rotates at high wpeed and may cause an accident.
2. Do not frop, give strong vibration, or shock to the product. It may cause
malfunction.
3. The air inhaler on each sides and the fan of the vack panel must not be blocked
during installation. The internal temperature of the product would be greater
than allowable and could cause malfunction or fire.
4. Do not touch the roduct or the power cord when there is thunder. It may cause
electric shock
5. Do not install the product near or on top of heating source. The internal
temperature would be greater than allowable and could cause malfunction or
fire.
6. Do not install the product near or on top of heating source. The internal
temperature would be greater than allowable and could cause malfunction or
fire. be committed. It may cause malfunction.
7. Do not remove or insert CF-Card before turn off the electric power.
8. Must use CF-Card At least 1G or more.
9. Manufacturer or seller never response any problem relater CF-Cards.

5
5
Ⅱ FUNCTIONS
Our 4 channel DVR (Stand Alone Digital Video Recorder) for CF-card interface is a
Digital Security System desigend to record/retrieve up to 4 channel video streams at
the same time. It adopts a digital image compression technology to compress the
input channel video streams, and uses a CF-memory card to record the compressed video
stream.
SADVR display 1/4 channels partition on a screen by user's control. It can be
surveillance 24 hours 7 days. It will be applied car or regular users.
All functions are;

6
6
Ⅲ SPECIFICATION
Spec. Details
System Type NTSC PAL
Video
Signal
Input Vp-p 75 Ohm, Input RCA(4Ch)
Output Vp-p 75 Ohm, Output RCA
Audio Input/ Output 2 x RCA (1CH output,
Recording Mode Moni PCM
Display
Display Frame 120 FPS (Total)
Display Resolution 720 x 480 720 x 576
Screen Split Mode Full, Auto, Quad
Triplex Mode Triplex(Simultaneous Recording/Playback/Live)
Recording
Video compression Real-time full duplex M-JEPG codec core
Video Resolution 720(360) x 480 (240) 720(360) x 576(288)
Recording method Continuous, Scheduled, Event (motion, Alarm)
Recording FPS 120 (30) FPS 100 (25) FPS
Image File Size 3 ~ 25 KB 4 ~ 27 KB
External CF Memory MLC, SLC, Type of CF Memory Card supported
Remote access through Internet N/A
Playback
Playback mode Live & Playback, Playback
Playback Screen
Mode FULL, Quad, Split
Search Search by Date/Time List, Event List
Zoom Mode N/A
Alarm
Control
External Alarm
Input Alarm Input : Terminal Block 1
Alarm Output N/A
Network
Protocol
N/A
Resolution
Remote Control
Browser
Recording
Data Backup N/A
Others
Remote Control IR Remote Control
Power 12V, 24V DC input (Locking wafer type)
Dimension Set: 159 x 105 x 28 (mm), Board:138X91 (mm)
Weight 0.52Kg
Certification CE, FCC

7
7
Ⅳ OPERATION
4-1 FRONT PANEL
1. LED
It shows status of each operations
PWR LED : This LED shows status of DVR is power ON/OFF.
RUN LED : This LED is flash when DVR is operating (Play or Record)
2. Buttons
Front Panel have 8 buttons which have multi functions applied by modes. Must be
careful how to use all buttons by different situations. It will explain special key
with any actions.
1) REC (Record)
When you press this key, DVR will
start recording and if you press
one more, Recording will be
stopped.
While you are watching live image,
you can start recording by
pressing this button. And if you
want to stop recording, simply
press this button again.
2) PLAY (PLAY / Pause)
Press this button (▶∥), it will be displayed recorded time, and user can pick time
after can play with play button. However, press one more time pause played screen.
when you press (▶∥)button, you will see below OSD (On screen Display) DHH First
Display and TIME search.
When you see there modes, PLAY (▶∥) button has not only time search function but
also simple play function.

8
8
Ⅳ. OPERATION
If you want simple play from the beginning,
then choose CF-card FIRST DISPLAY by(▶,
◀)button then press PLAY((▶∥)) button.
Once you have lacated an arrow mark at the
mode (CF-card FIRST DISPLAY), press PLAY(（▶
∥）) button. Now you can see 8 different
screens: the first 4 pictures are Live image
screens(srcreen L1, L1, L3 and L4) and the last 4 pictures are previously recorded
image screens(screen P1, P2, P3 and L4). And on top of the screen you can observe
time being charged accordingly to the recorded time.
3) DISPLAY MODE & LIST BUTTON
This button enables users to change different scrren settings such as Quad(4 screens)
and full screen. For instance, when your screen shows 4 channels of different screen.
Then press this button( MODE button ) to change different screen. Factory setting is
AUTO mode.
AUTO mode: Showing each camera channel one by one with Full screen. Also, can change
time rate with up/down button 1 to 99 second.
When you press and hold this button 3 second, screen will be show all list for
alarm and motion detection time and date.
M in circle mean motion detection list and A in circle mean alarm detection list.
This list shows up to 230 events.

9
9
Ⅳ OPERATION

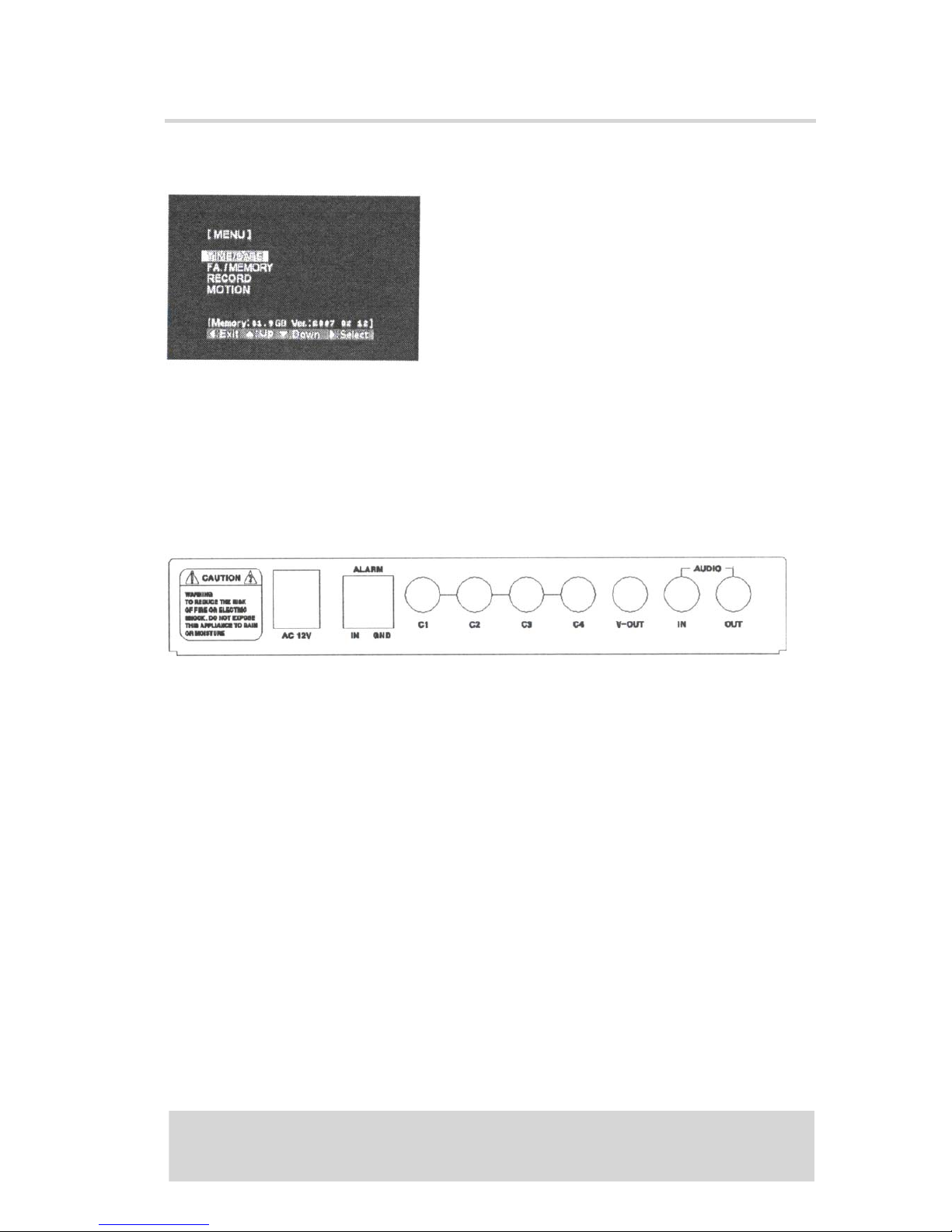

4) MENU (LOCK) Select button & (▲, ▼, ▶, ◀) Button
When you press Menu button, you can see "SETUP
MENU" with 4 different options. You can adjust
the setting by pressing MENU button.
when you go in to one certain mode, you can
navigate each mode by pressing "MENU" button.
but if the arrow make is on the EXIT and you
will go out from this mode.
In play mode, 4 arrow buttons are changed to different functions. ▶▶(▶) button is
fast is forward option which is playing spped to ×1, ×2, ×4, ×8 and ×16 for each time
pressing the button, and ◀◀(◀)fast backward option which is same as fast forward
option but it will be played to back. I▶ and ◀I are back to normal more time. it
will be unlocked all key buttons.
4-2. REAR PANEL
1. CAMERA INPUT
Connect DVR to camera(s). Each channel port indicates a single camera connection. It
has total 4 camera RCA connection ports.
2. VIDEO OUT
Use this port to connect DVR to the monitor.
3. AUDIO IN AND OUT
Use these port to connect DVR to the microphone and speaker.
Connect "AUDIO IN" for microphone and "AUDIO OUT"for a speaker connection.
4. ALARM IN AND GROUND
This is a alarm input terminal in case you need to install a single alarm device.
5. POWER
Free volt for 12 volt or 24 volt detect with automation. Approximately, this DVR use
less than 1A.

10
10
Ⅳ OPERATION

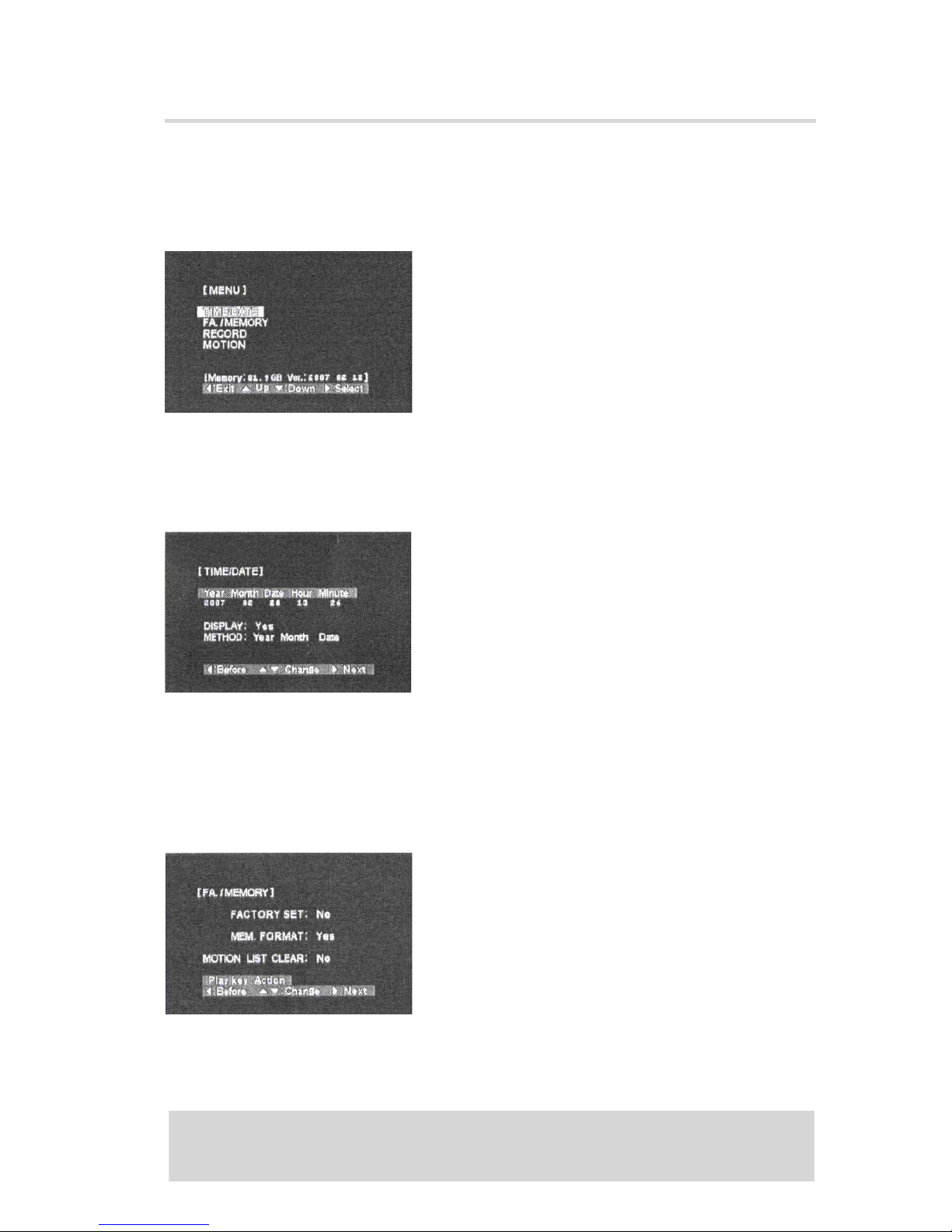

4-3. SETTING MENU
1. MENU (Function Selection)
When you press the menu button. You could
control the 4 function mode setting (The Press
◀,▶ button to select menu about 4 functions)
But press up/down button will be moved to other
functions.
Press MENU button again, it will be exit th Menu
screen.
2.TIME / DATE
Press Adjust Time. Press ◀, ▶ to move year.
date, time and press ▲,▼ to adjust.
Time Display: Press Yes or No to select Time
display on the screen.
3. FA/ MEMORY ( Initialize CF-card)
Initialize all settings and CF-card :
Press ▲,▼ to initialize the settings, CF-card
and, motion list. If you want to delete all info
and data, choose Yes line of Factory Set.
CF-card format mean deleting only data. Also,
Motion List Clear mean delete Motion list only.

11
11
Ⅳ OPERATION
4. RECORD
① Image quality : Press ▲,▼ to Adjust 3
level of image quality. (High, medium, low)
⇒ High image quality can't be saved long enough
due to HDD recording mode.
② Speed : Press ▲,▼ to adjust 6 level of
camera speed 30/ 15/ 7.5/ 5/ 2.5/ 1 frames per
second.
③ MODE : Press ▲,▼ to select record type which mean if you choose 'FULL', it will
be recorded with D1 type. It is recording each channel 1 by 1 each frames up to
30 frames per second that is why DVR has total pictures each channels but it has
quarter of 30 frames actually. If you choose 'QUAD', it will be recorded with CIF
type. It is recording all channels by quad type. So it has total picture of 4
channels 30 frames per second but it has half size of picture frames only quad
type of pictures.
④ AUDIO : Press ▲,▼ to select Yes or No. It mean user want to use audio or not.
⑤ ALARM : Press ▲,▼ to select Yes or No. It mean user want to use Alarm or not
⑥ Event recording Time : Press ▲,▼ to set the motion recording time. It can
be set 1 to 99 Second.
5. MOTION (Set motion mode)
1. Camera-press ▲,▼ button to set camera
channel and transformation.
2. Sensitivity: Press ▲,▼ to adjust
sensitivity (High, medium, Low)
3. Press ▲,▼,◀,▶ to set the motion Partition
( O, X ) and after selecting camera channel.

12
12
Ⅳ OPERATION
※ Precaution
1. HDD ERROR
When CF-card error happened, the "ERROR"
pop up on the screen. 4 scrren partition
played and no other function works.
※ Please check CF-card connectivity or
CF-card defect.
2. ⦸ Pop up
When there are no saved recording data, ⦸ pop up on the screen if using the remote
control to search the recording data.

13
13

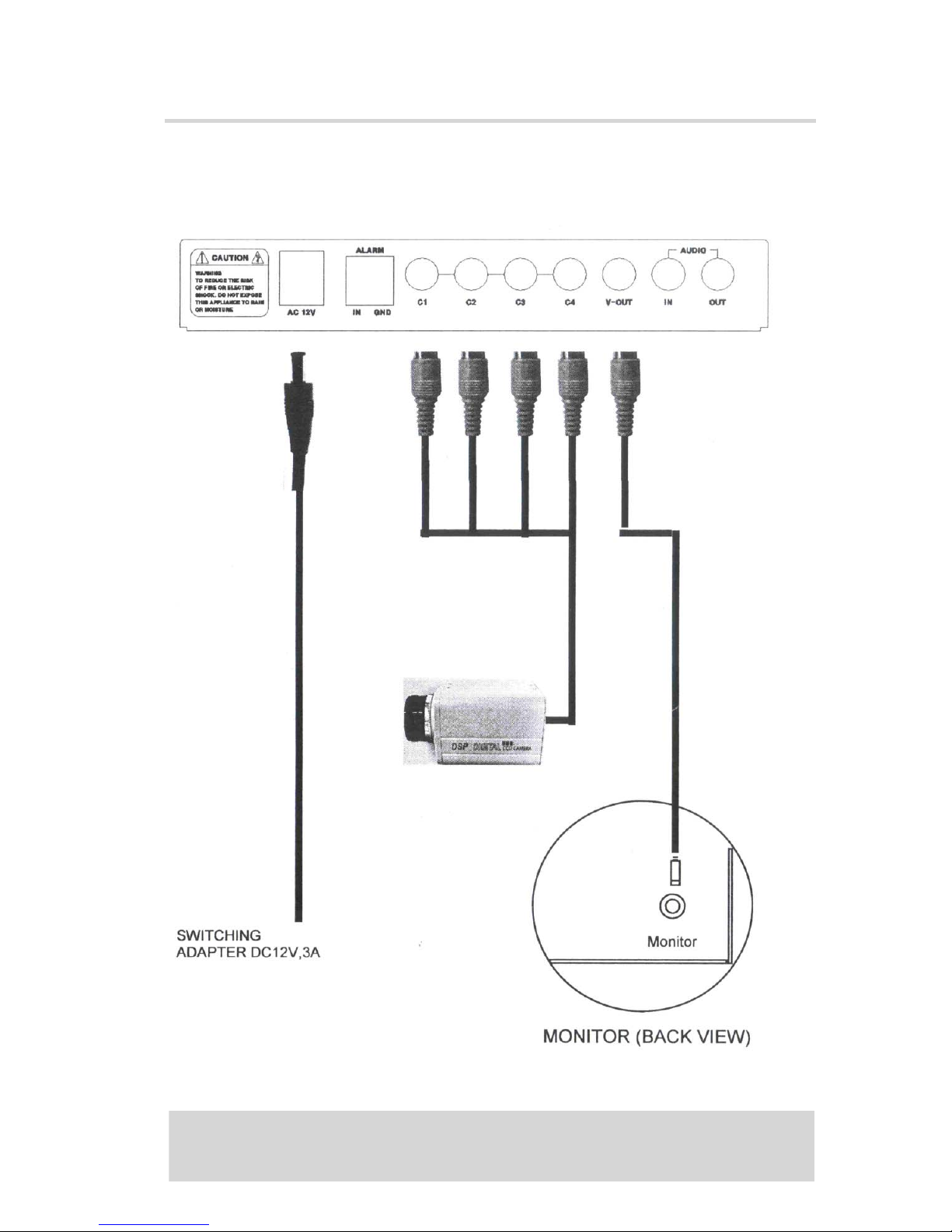

Ⅴ. SYSTEM CONNECTION

14
14
Ⅵ. REMOTE CONTROL
REMOTE CONTROLLER
The picture is the Remote Controller for this DVR, and with this remote controller,
you can get into the SETUP MENU. As you can see, remote controller can be divided
into three different sections:
1. Top part is DVR operation with cursor movement which user can change SETUP MENU.
2. Middle part is number key which user can change to see full screen of each camera.
3. Bottom part is PAN/TILT control of a speed dome camera. This remoted controller
is designed to work for both DVR and Speed dome camera. By using buttons in side
of bottom black box, you can control a speed dome camera without help of a speed
dome controller. However, SADVR doesn't have PAN/TILT control function.

15
