Installation Instructions
Admire LED Mirror
Model: 620105
INSTALLATION INSTRUCTIONS
Before you begin
These instructions illustrate the Stylmark® Admire LED
Mirror. If you have questions during assembly, call 800-
328-2495 to request technical assistance. This
installation recommends two people to install.
Please read these instructions carefully before beginning installation.
Tools you’ll need
•Level
•Tape measure
•Drill and bits
•#2 Phillips screwdriver
•75 lbs. pullout rated fasteners
•Wiring tools
•Vacuum glass cups
Figure 1

Sheet# 971826
Revision C (1/17)
Stylmark, Incorporated ♦6536 Main Street NE, PO Box 32008 ♦Minneapolis, MN 55432
1-800-328-2495 ♦www.stylmark.com
Stylmark Installation Instructions: Admire LED Mirror
Getting Started:
Please review the important safety instructions
before starting. Installation should be performed by
authorized personnel only. This mirror is for
commercial use only, intended as a viewing mirror.
Step-by-Step Instructions – With Hardwired
Connection:
1. Remove the product from the box and put the mirror
and setting blocks aside.
2. Determine mounting location. Location must have
power source location on the wall within the inner
area of the fixture. The fixture includes slotted
mounting holes located in the top and bottom of the
fixture. The distance from floor is to be determined
by customer. Stylmark recommends this distance to
be a minimum of 8”. See Figure 2
3. Fasten mirror frame to wall studs or suitable
structural location through slotted mounting holes in
both the top and bottom of the frame. Use fastening
screws with a minimum pullout rating of 75lbs per
fastener (obtain locally).
Note:Fixture must be level & plumb.
4. Once metal frame is securely attached to wall,
remove the power enclosure cover and connect all
wiring per applicable local codes. See Figure 3
When finished, replace the power enclosure cover.
5. Position the setting blocks on the lower edge of the
frame. See Figure 4
6. Using vacuum glass cups, install the mirror by lifting
it up into the top channel, then down into the lower
channel and onto the setting blocks. See Figure 5
Figure 3
Figure 4

Sheet# 971826
Revision C (1/17)
Stylmark, Incorporated ♦6536 Main Street NE, PO Box 32008 ♦Minneapolis, MN 55432
1-800-328-2495 ♦www.stylmark.com
Step-by-Step Instructions – With Plug-in
power cord
1. Remove the product from the box and put the
mirror and setting blocks aside.
2. Determine mounting location. Location must have
a standard 115V 15 amp outlet located within the
inner area of the fixture or within 12” from the
bottom center of the mirror frame. The fixture
includes slotted mounting holes located in the top
and bottom of the fixture. The distance from the
floor is to be determined by customer. Stylmark
recommends this distance to be a minimum of 8”.
See Figure 6
3. Fasten mirror frame to wall studs or suitable
structural location through slotted mounting holes
in both the top and bottom of the frame (if outlet
is located outside of the frame, feed cord through
the “mouse hole” before securing to the wall).
See Figure 7
Use fastening screws with a minimum pullout
rating of 75lbs per fastener (obtain locally).
Note:Fixture must be level & plumb.
4. Once metal frame is securely attached to the wall,
plug the cord into the outlet.
5. Position setting blocks on the lower edge of the
frame. See Figure 8
6. Using vacuum glass cups, install the mirror by
lifting it up into the top channel, then down into
the lower channel and onto the setting blocks.
See Figure 9
Stylmark Installation Instructions: Admire LED Mirror
Figure 5
Figure 7
Figure 8

Sheet# 971826
Revision C (1/17)
Stylmark, Incorporated ♦6536 Main Street NE, PO Box 32008 ♦Minneapolis, MN 55432
1-800-328-2495 ♦www.stylmark.com

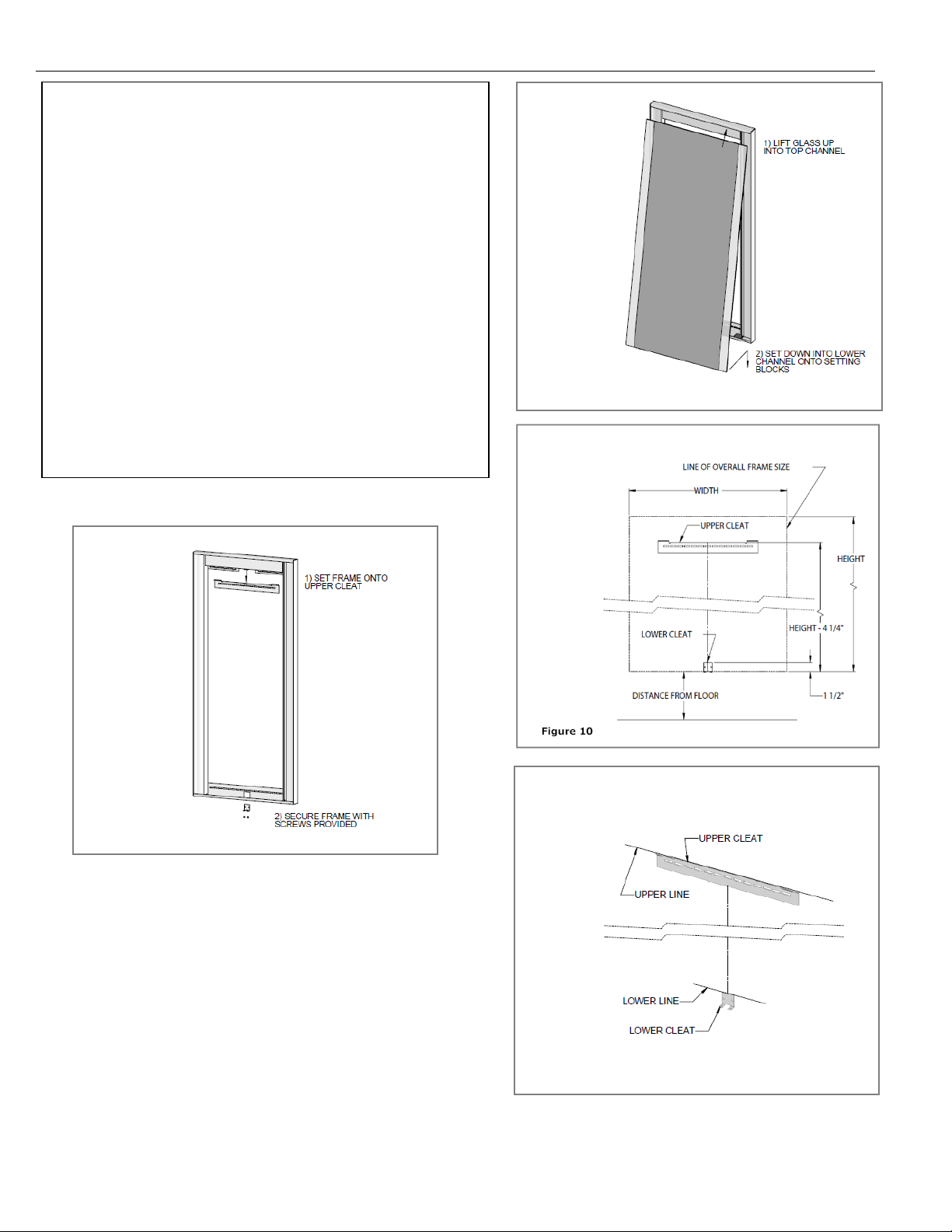

Step-by-Step Instructions – Wall Cleat Kit
Part #520075 (order separately)
1. Refer to Figure 10 for the mounting locations of the
upper and lower cleats. Mark a level line at these
locations.
See Figure 10
2. Fasten the upper and lower cleats to the wall or
suitable structural location with the top edge of the
part on the lines from step 1. See Figure 1
Use fastening screws with a minimum pullout rating
of 75lbs per fastener (obtain locally).
Note: Cleats must be level and plumb
3. Set frame onto upper cleat and secure frame to lower
cleat with screws provided. See Figure 12
Stylmark Installation Instructions: Admire LED Mirror
Figure 9
Figure 11
Figure 12

Sheet# 971826
Revision C (1/17)
Stylmark, Incorporated ♦6536 Main Street NE, PO Box 32008 ♦Minneapolis, MN 55432
1-800-328-2495 ♦www.stylmark.com
Stylmark Installation Instructions: Admire LED Mirror
Step-by-Step Instructions – Wings
1. With Admire Mirror pre-installed, measure down from
the top surface of the Admire Mirror making one
small pencil location mark at 12-7/8”. Then measure
up from the bottom edge and make a mark at 11-
29/32”. Using a carpenter’s square, draw a
perpendicular line from the side of the Admire Mirror
at each of the pencil location marks. Note: the
perpendicular line will be used for lining up the top
edge of the wall mount brackets. See Figure 13
2. Locate the top edge of the wall mount bracket flush
with the perpendicular lines and flush to the side of
the Admire Mirror. Once located, fasten each wall
mount bracket through the slotted mounting holes
using fasteners with a minimum pullout rating of
75lbs per fastener (obtain locally).
See Figure 13
3. With the wall mount brackets securely fastened in
place, carefully lift and lower the mirror wing onto the
wall mount brackets making sure it is flush with the
four wall mount bracket tabs and in line with the four
frame brackets. See Figure 14
4. Once the mirror wings are in place on the wall mount
bracket, to minimize the gap between the mirror and
the wing and to secure the wing in place, gently push
the wing frame edge towards the pre-installed Admire
Mirror. With slight pressure applied to the wing
frame edge, fasten the set screws through the frame
bracket and into the wall mount bracket tabs.
See Figure 15
Figure 15
Figure 14

Sheet# 971826
Revision C (1/17)
Stylmark, Incorporated ♦6536 Main Street NE, PO Box 32008 ♦Minneapolis, MN 55432
1-800-328-2495 ♦www.stylmark.com
W
h
Stylmark Installation Instructions: Admire LED Mirror
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
A) READ ALL INSTRUCTIONS BEFORE USING THIS PRODUCT
B) DANGER- TO REDUCE THE RISK OF ELECTRICAL SHOCK: CONNECT THIS FURNISHING TO A PROPERLY GROUNDED
CIRCUIT
C) WARNING – TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSON:
a. UNPLUG OR SWITCH OFF POWER BEFORE REMOVING OR REINSTALLING ANY PARTS.
b. USE THIS PRODUCT FOR ITS INTENDED PURPOSE AS DESCRIBED IN THESE INSTRUCTIONS. DO NOT USE ANY
ATTACHMENTS NOT RECOMMENDED BY THE MANUFACTURER.
c. DO NOT CLEAN BY SPRAYING CLEANERS DIRECTLY ON OR NEAR THE LAMPS OF ITS ELECTRICAL CONNECTIONS NEAR THE
REAR OF THE PRODUCT
d. DO NOT ALLOW SPILLED LIQUID TO FALL INTO THE LAMP AREA OR THE CONNECTION BOX AT THE REAR OF THE PRODUCT
e. DO NOT USE OUTDOORS
f. ALWAYS DISABLE POWER TO THIS PRODUCT PRIOR TO SERVICING.
D) RISK OF INJURY – KEEP CHILDREN FROM CLIMBING ON THIS DISPLAY
E) GROUNDING INSTRUCTIONS - THIS PRODUCT MUST BE CONNECTED TO A GROUNDED METAL, PERMANENT WIRING SYSTEM.
F) DANGER- IMPROPER CONNECTION OF THE EQUIPMENT GROUNDING CONDUCTOR CAN RESULT IN RISK OF ELECTRICAL
SHOCK. CHECK WITH QUALIFIED ELECTRICIAN OR SERVICEMAN IF YOU ARE IN DOUBT WHETHER PRODUCT IS CORRECTLY
GROUNDED.
Step-by-Step Instructions – Cleaning:
1. Turn off power to mirror.
2. Clean mirror with appropriate cleaners before restoring power.
3. Turn on power to mirror.
Step-by-Step Instructions – Power Supply Replacement:
1. Turn off power to mirror.
2. Use vacuum glass cups to remove mirror from fixture by lifting up and swinging the bottom of the mirror out of
the frame and set the glass aside.
3. To replace the power supply, proceed by removing the power enclosure cover, disconnect the power supply from
the high voltage side, then the low voltage side.
4. Remove and replace the power supply and make all electrical connections.
Note: Polarity must be followed
5. Replace power enclosure cover and mirror.
Step-by-Step Instructions – LED Replacement
1. Turn off power to mirror.
2. Use vacuum glass cups to remove mirror from fixture by lifting up and swinging the bottom of the mirror out of
the frame and set the glass aside.
3. To replace the LED strip, proceed by removing the power enclosure cover and disconnect the low voltage side
from the power supply.
4. The LED strips are attached to a magnetic strip. Simply peel from the fixture and pull the wire through the
grommet.
5. Position the new strip so that it is against the front lip of the fixture. Next, feed the wire through the grommet
and reconnect to the power supply.
Note: Polarity must be followed.
6. Replace power enclosure cover and mirror.
