BUILT-IN DESIGN GUIDE

Contents
Built-In Design Options 4
Model Specifications 6
Planning Information 9
Framed Panels 12
Overlay Panels 18
Flush Inset Panels 22
Dispenser Specifications 28
Side Panels 29
Dual Installations 30
Accessories 37
Full-Scale Templates 38
Sub-Zero Warranty 42
Features and specifications indicated herein and on our
website are subject to change at any time without notice.
Check our website, subzero.com, for the most up-to-date
specifications.
SUB-ZERO®is a registered trademark of Sub-Zero, Inc.

Introducing New Built-In Refrigeration. Beginning in Fall, 2008, you will have a new line of built-in refrigeration
to offer your clients. We have re-engineered—exterior and interior—our built-in product line to offer you the best in design
options, and your clients the best in food preservation. The 600 series as you understand it now will be gone and the new
offering will take its place. We will have new panel sizes, model numbers and many new features. Review this design
guide for general specification information and keep coming back to the trade section of our website, subzerotrade.com,
for new information during the coming months.
Built-In Refrigeration 3
Model Numbers. The cross-reference chart below
provides a listing of the new built-in model numbers and
the existing 600 series model numbers they are replacing.
New Built-In Model 600 Series
ALL REFRIGERATOR / ALL FREEZER
BI-36R 601R
BI-36RG 601RG
BI-36F 601F
OVER-AND-UNDER
BI-30U 611
BI-30UG 611G
BI-36U 650
BI-36UG 650G
SIDE-BY-SIDE
BI-36S 661
BI-42S 642
BI-42SD 685
BI-48S 632
BI-48SD 695
EXAMPLES
BI-30UG/O-RH 611G/O-RH
BI-48SD/F 695/F
Model Number Key
MODEL BI-36UG/S/PH-RH
PRODUCT TYPE
WIDTH
STYLE
FEATURE
DESIGN
HANDLE
DOOR SWING
PRODUCT TYPE
Built-In Refrigeration BI
WIDTH
30" (762) 30
36" (914) 36
42" (1067) 42
48" (1219) 48
STYLE
All Refrigerator R
All Freezer F
Over-and-Under U
Side-by-Side S
FEATURE
Glass Door G
High Altitude Glass A
Ice and Water Dispenser D
DESIGN
Framed /F
Overlay or Flush Inset /O
Classic Stainless Steel /S
HANDLE (classic stainless steel models)
Tubular Handle /TH
Curved Handle /CH
Pro Handle /PH
DOOR SWING
Right-Hand Swing -RH
Left-Hand Swing -LH
subzerotrade.com

Built-In Design Options 4

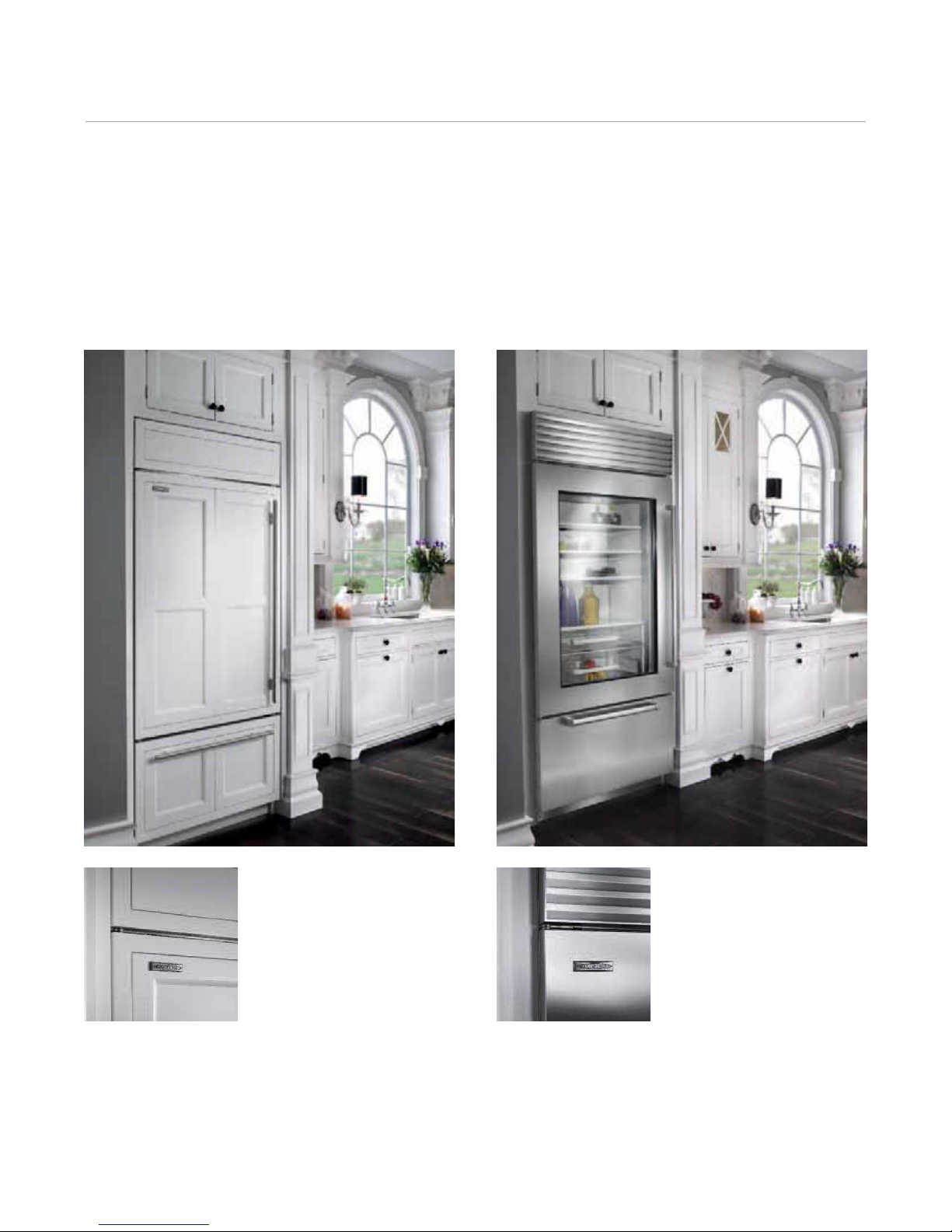

Built-In Design Options. A design classic is now even better. Four distinct design approaches provide limitless
flexibility for creating a beautiful kitchen. New lower profile hinges enable the new built-in units to merge more seamlessly
with surrounding cabinetry. Three handle options coordinate with Wolf cooking products.
Framed. Custom cabinetry
panels slide into the framed
door to blend into the kitchen
design. The framed design
comes with a standard
louvered grille and extruded
handles.
Overlay. Custom cabinet
overlay panels can be
combined with unique hard-
ware for design flexibility.
Shown with curved handle
option to compliment Wolf
E Series ovens.

Built-In Design Options 5
Flush Inset. This brand new
design option allows for a flush
door and grille. Classic,
platinum and carbon stainless
steel panels are available as
sales accessories. Shown with
tubular handle option to mirror
Wolf L Series ovens.
Stainless Steel. For a
professional look, classic
stainless is standard and
requires no customization.
To compliment the look of Wolf
ranges, choose the Pro handle
option shown here.
subzerotrade.com

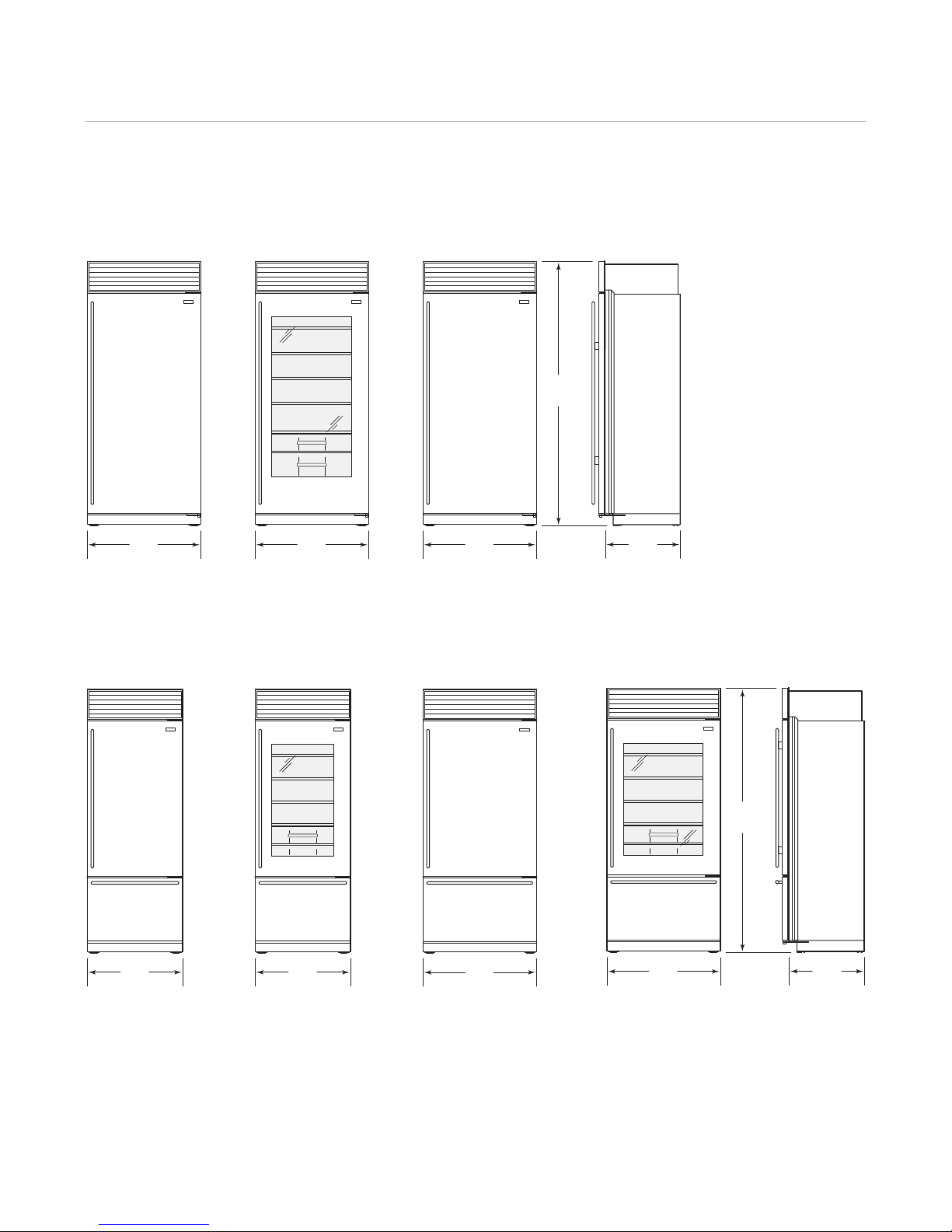

Model Specifications 6
Model BI-36F
ALL FREEZER
36"
(914)
36"
(914)
30"
(762)
30"
(762)
36"
(914)
36"
(914)
84"
(2134)
24"
(610)
36"
(914)
84"
(2134)
24"
(610)
Model BI-36RG
ALL REFRIGERATOR
GLASS DOOR
Model BI-36R
ALL REFRIGERATOR
Model BI-30UG
WITH GLASS DOOR
Model BI-30U Model BI-36UG
WITH GLASS DOOR
Model BI-36U
All Refrigerator / All Freezer Models
Over-and-Under Models
SIDE VIEW
SIDE VIEW
IMPORTANT NOTE:
The heights of the All
Refrigerator / All Freezer
Models have increased
from 73" (1854) to 84"
(2134).

Model Specifications 7
36"
(914)
42"
(1067)
48"
(1219)
42"
(1067)
84"
(2134)
24"
(610)
48"
(1219)
84"
(2134)
24"
(610)
Model BI-42SD
WITH DISPENSER
Model BI-42SModel BI-36S
Model BI-48SD
WITH DISPENSER
Model BI-48S
Side-by-Side Models
Models are shown in the stainless
steel design.
IMPORTANT NOTE: Throughout this
guide, dimensions in parentheses
are millimeters unless otherwise
specified.
SIDE VIEW
SIDE VIEW
subzerotrade.com

Model Specifications 8

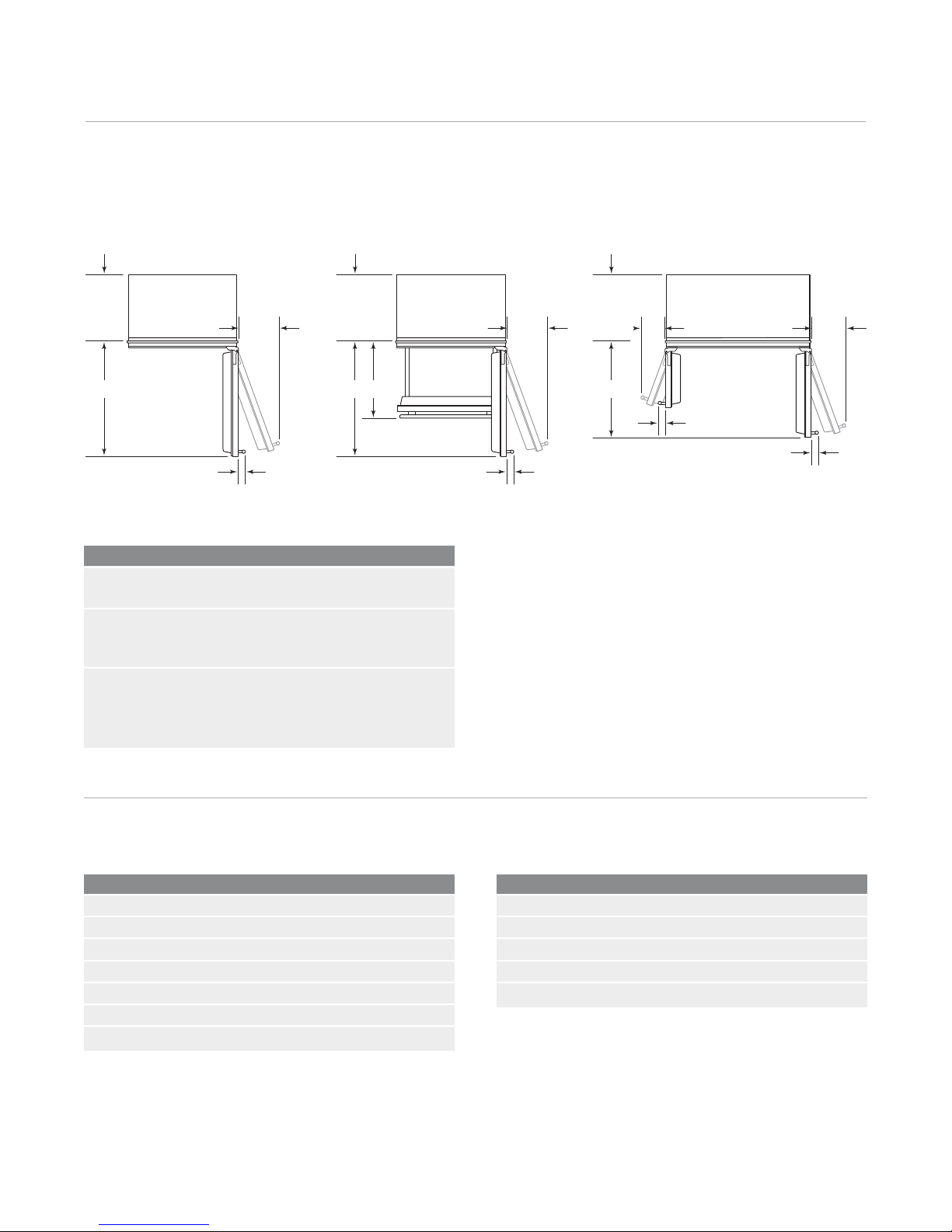

The doors of all built-in models open to a maximum of 110°.
A 90° door stop is shipped with all units. For additional
information, refer to the full-scale templates at the end of this
guide. The handle depth reflects the tubular, curved and pro
handles. For framed handle profile, refer to the full-scale
template on page 38.
IMPORTANT NOTE: For flush inset applications, add 1/2"(13)
to dimension (A).
Door Clearance
All Refrigerator / All Freezer Models Over-and-Under Models Side-by-Side Models
237/8"
(606)
BEHIND
FRAME
A
C
23/8"
(60)
BA
C
23/8"
(60)
237/8"
(606)
BEHIND
FRAME
23/8"
(60)
CD
23/8"
(60)
237/8"
(606)
BEHIND
FRAME
A
Interior Capacity / Weight
Refrigerator (R) and freezer (F) interior capacities are listed in
cubic feet and (liters). Shipping weights (W) are listed in
pounds and (kilograms) and are based on stainless steel
models.
Door Clearance
ALL REFRIGERATOR / ALL FREEZER A C
BI-36R, BI-36RG and BI-36F 371/4"(946) 17" (432)
OVER-AND-UNDER A B C
BI-30U and BI-30UG 311/4"(796) 235/8"(600) 141/2"(368)
BI-36U and BI-36UG 371/4"(946) 235/8"(600) 17" (432)
SIDE-BY-SIDE A C D
BI-36S 221/4"(565) 101/4"(260) 81/2"(216)
BI-42S and BI-42SD 261/4"(668) 121/2"(318) 83/4"(222)
BI-48S and BI-48SD 30" (762) 14" (356) 93/4"(248)
Capacity / Weight R F W
BI-36S 12.2 (346) 8.0 (227) 538 (244)
BI-42S 16.0 (455) 8.0 (227) 582 (264)
BI-42SD 15.9 (452) 8.1 (230) 608 (276)
BI-48S 18.8 (532) 9.5 (269) 630 (286)
BI-48SD 18.7 (530) 9.6 (272) 656 (298)
Capacity / Weight R F W
BI-36R 23.3 (660) 420 (191)
BI-36RG 23.5 (665) 430 (195)
BI-36F 22.8 (646) 406 (184)
BI-30U 12.7 (361) 4.1 (116) 462 (210)
BI-30UG 12.9 (367) 4.1 (116) 476 (216)
BI-36U 15.9 (450) 5.2 (148) 515 (234)
BI-36UG 16.1 (447) 5.2 (142) 529 (240)

Planning Information 9
Standard Installation Opening Dimensions
Framed, Overlay and Classic Stainless Steel Models
Opening Width A
BI-36R, BI-36RG and BI-36F 351/2"(902)
BI-30U and BI-30UG 291/2"(746)
BI-36U and BI-36UG 351/2"(902)
BI-36S 351/2"(902)
BI-42S and BI-42SD 411/2"(1054)
BI-48S and BI-48SD 471/2"(1206)
IMPORTANT NOTE: If two units are installed side by side,
refer to pages 30–31 for dual standard installations.
Classic stainless steel models are ready to install out of the
box.
SIDE VIEW
24" (610)
OPENING DEPTH
833/4"
(2127)
OPENING
HEIGHT
83" min
(2108)
24" (610)
OPENING
DEPTH
FRONT VIEW
TOP VIEW
A
OPENING WIDTH
OUTLINE
OF UNIT WITH
3/4"(19) PANEL
subzerotrade.com

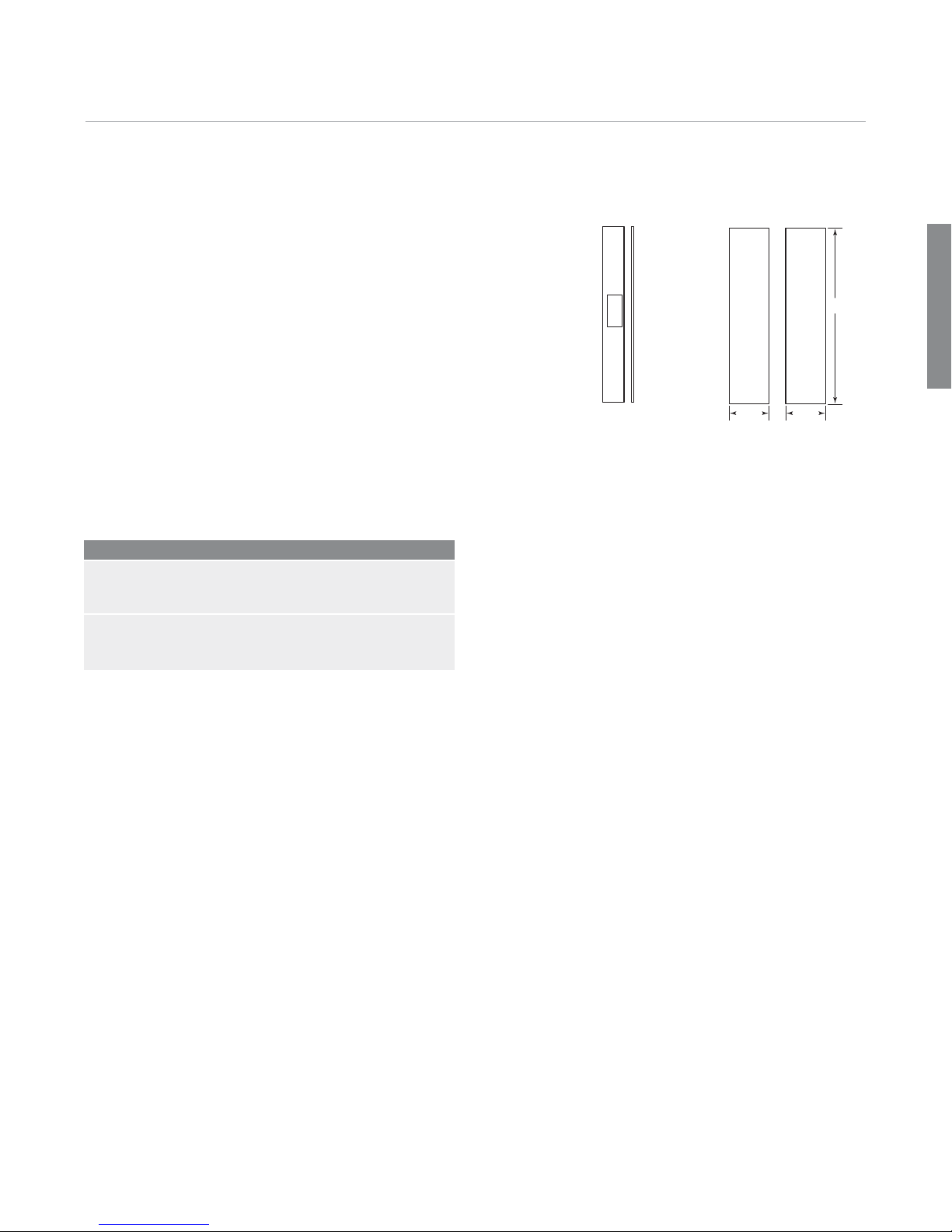

Planning Information 10
Electrical Requirements. For all built-in models, the
electrical supply should be located within the shaded area
shown in the illustration. Follow the National Electrical
Code and local codes and ordinances when installing
the receptacle. A separate circuit, servicing only this
appliance is required.
IMPORTANT NOTE: A ground fault circuit interrupter
(GFCI) is not recommended and may cause interruption of
operation.
Electrical Requirements
Power Supply 115 V AC, 60 Hz
Circuit Breaker 15 amp
Receptacle 3-prong grounding-type
751/2"
(1918)
7"
(178)
6"
(152)
E
FRONT VIEW
Location of electrical supply.

Planning Information 11
Plumbing Requirements. All built-in models with an
automatic ice maker come with a microbiological water
filtration system. The water supply line should be located
within the shaded area shown in the illustration. The
water supply line should be connected to the house
supply with an easily accessible shut-off valve between
the supply and the unit. Do not use self-piercing valves.
A saddle valve kit (4200880) is available from your
Sub-Zero dealer. The water line must not interfere with
installation of the anti-tip brackets.
IMPORTANT NOTE: A reverse osmosis system can be
used provided there is constant water pressure of 30 psi
(2.1 bar) to 100 psi (6.9 bar) supplied to the unit at all
times. In this application, the microbiological water filtra-
tion system should be set to bypass mode by removing
the water filter cartridge and inserting the bypass plug
(7005018) available from your Sub-Zero dealer. Installation
instructions packed with the unit will outline this
procedure.
Plumbing Requirements
Water Supply Line 1/4" OD copper line
Water Pressure 30–100 psi (2.1–6.9 bar)
Excess Water Line for Connection 36" (914)
1/2"
(13)
18"
(457)
6"
(152)
SHUT-OFF
VALVE
WATER LINE
18"
(457)
W
6"
(152)
3" (76)
FRONT VIEW
TOP VIEW
Location of water supply.
subzerotrade.com

Framed Panels 12

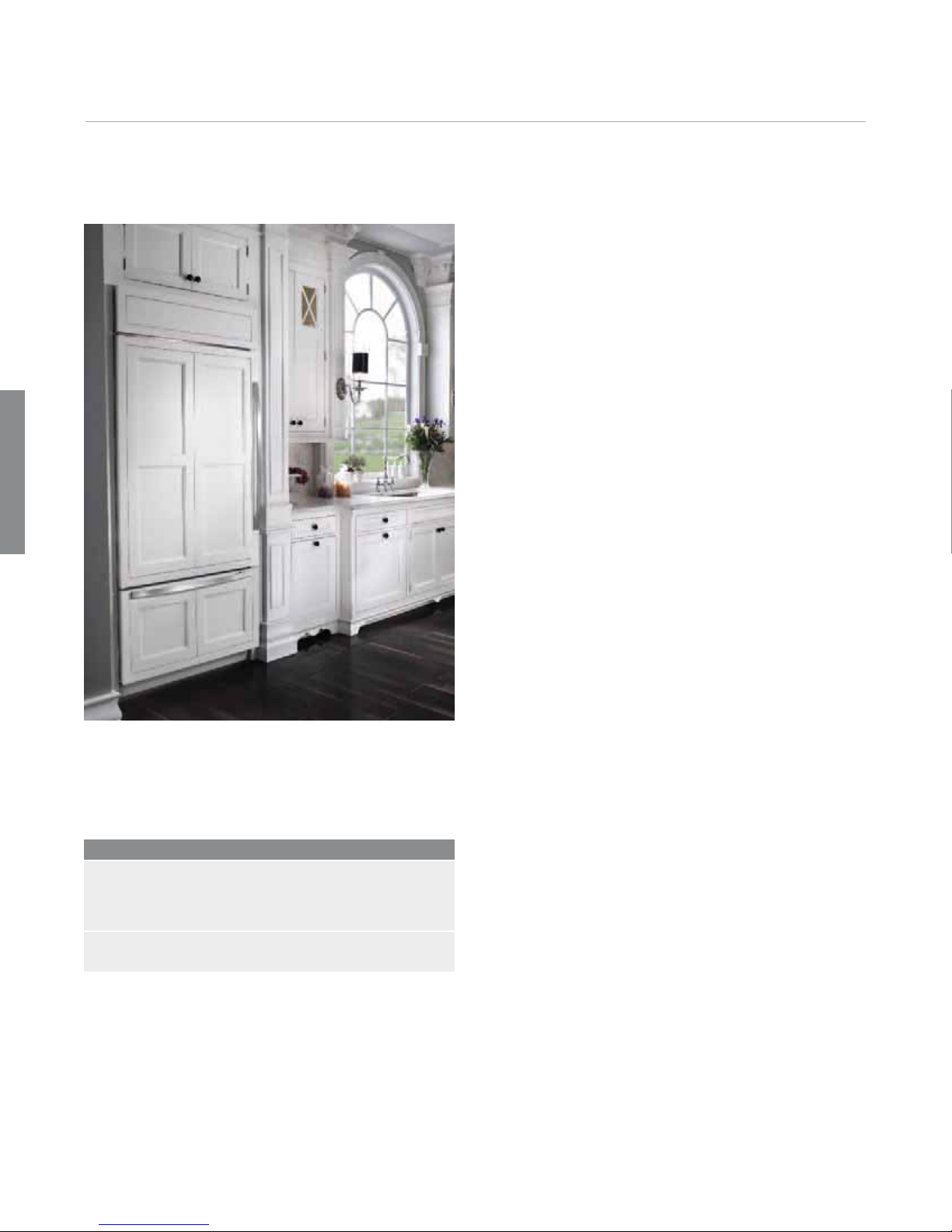

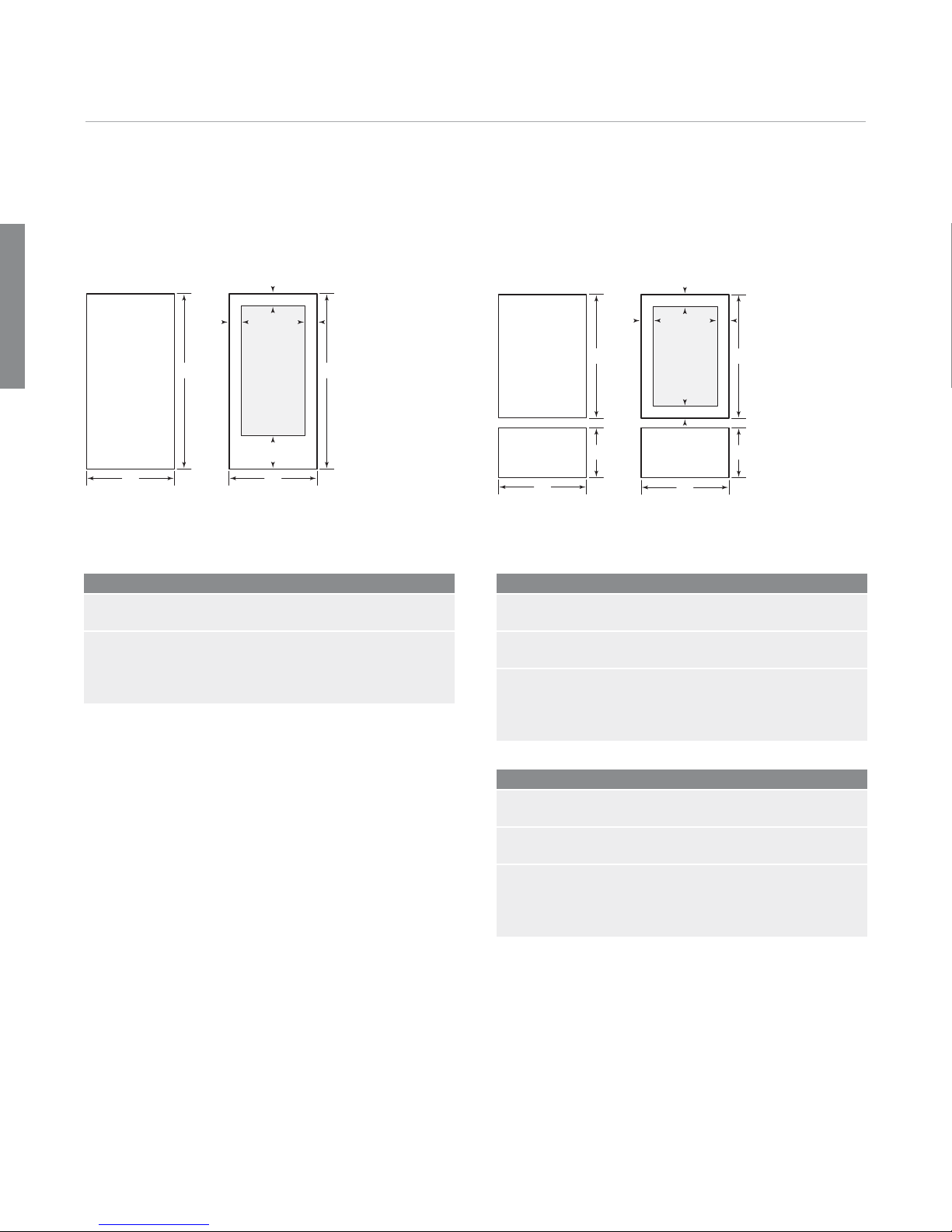

Framed Panels. If you and your client have ordered a
framed model, you will be adding panels to give the unit
the traditional Sub-Zero look. The framed panel design
option is available for all built-in framed models. For exact
door panel dimensions for built-in framed models, refer to
framed panel specifications on the following pages. Also
refer to the full-scale templates at the end of this guide
for additional panel and handle considerations.
The traditional framed models come with an elegant,
smooth, full-length handle. Optional extended full-length
handles that provide additional finger clearance for raised
panels are available through your Sub-Zero dealer.
Framed Panel Requirements
MAX WEIGHT PER PANEL
BI-36R, BI-36RG and BI-36F 75 lbs (34 kg)
All Other Framed Models 50 lbs (23 kg)
MIN PANEL THICKNESS
All Framed Panels 1/4"(6)
Framed
Custom cabinetry panels slide into the framed door to
blend into the kitchen design. The framed design comes
with a standard louvered grille and extruded handles.

Framed Panels 13
Framed Panels. If the thickness of the custom panels
is less than 1/4" (6), they must be backed up with a sheet
of shim material to build the total thickness to 1/4" (6). If
the panel is thicker than 1/4" (6), a routed edge must be
provided around the panel to ensure a proper fit. Refer to
the illustrations.
IMPORTANT NOTE: On all framed models, routing,
recessing or optional extended handles may be required
on raised panels for finger clearance under the handle.
Refer to the full-scale templates at the end of this guide.
IMPORTANT NOTE: On glass door models, the edges of
the window cut-out will need to be finished, as they will
be exposed.
IMPORTANT NOTE: When installing two units in a side by
side application, refer to pages 30–31 for dual standard
installations. Be aware that rough opening dimensions are
different for this application.
1/4"(6)
PANEL
TRIM
REVEAL
1/4"(6) min
DOOR
MAIN FRAME
Panels 1/4" (6) thick or less. Panels thicker than 1/4" (6).
TRIM
REVEAL
1/4"(6) min
ROUT TO
1/4"(6) DOOR
MAIN FRAME
Do not exceed the framed decorative panel dimen-
sions. Exceeding dimensions could cause damage
to the panels and the Sub-Zero unit.
Framed
subzerotrade.com

Framed Panels 14
Framed Panel Specifications
BI-30U / BI-36U BI-30UG / BI-36UG
A
W
H
A A
B
W
H
A
A A
H
W
H
A
H
W
H
Models BI-30U and BI-30UG
REFRIGERATOR W H
Door Panel 293/4"(756) 4915/16"(1268)
FREEZER W H
Drawer Panel 293/4"(756) 1811/16"(475)
BI-30UG W H
Window Cut-Out 191/2"(495) 3911/16"(1008)
A
Cut-Out Location 53/16"(132)
Models BI-36U and BI-36UG
REFRIGERATOR W H
Door Panel 353/4"(908) 4915/16"(1268)
FREEZER W H
Drawer Panel 353/4"(908) 1811/16"(475)
BI-36UG W H
Window Cut-Out 251/2"(648) 3911/16"(1008)
A
Cut-Out Location 53/16"(132)
Models BI-36R, BI-36RG and BI-36F
REFRIGERATOR/FREEZER W H
Door Panel 353/4"(908) 699/16"(1767)
BI-36RG W H
Window Cut-Out 251/2"(648) 541/16"(1373)
AB
Cut-Out Location 53/16"(132) 105/16"(262)
BI-36R / BI-36F BI-36RG
Framed

Framed Panels 15

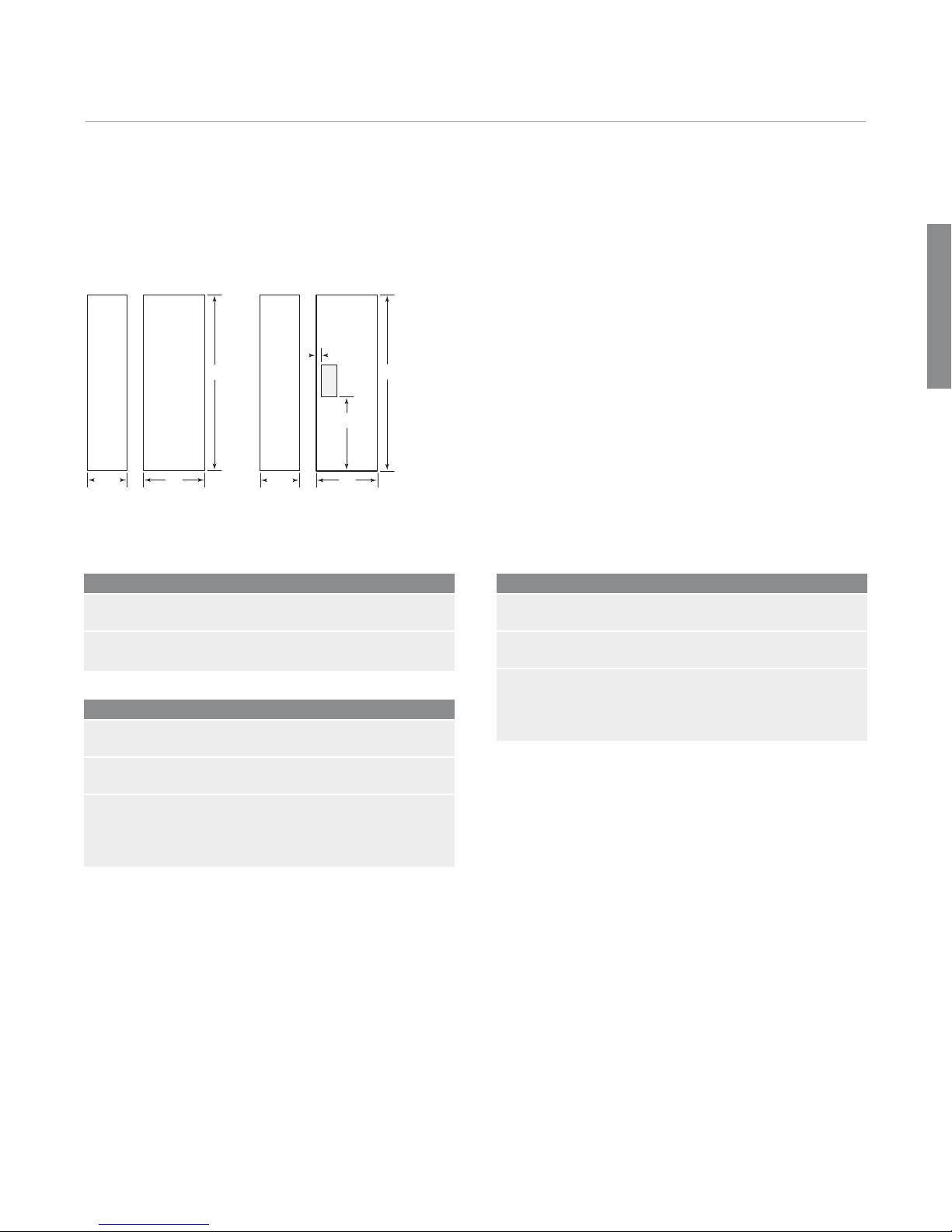

Framed Panel Specifications
BI-36S / BI-42S / BI-48S BI-42SD / BI-48SD
WW
H
WW
H
A
B
For Models BI-42SD and BI-48SD, panel thickness in the
dispenser area can range from 1/4" (6) to a maximum of
11/8" (29). If the panel is thicker, you must rout out a mini-
mum 1/4" (6) flat landing area to accommodate the glasswell
bezel.
Model BI-36S
REFRIGERATOR W H
Door Panel 1913/16"(503) 699/16"(1767)
FREEZER W H
Door Panel 157/16"(392) 699/16"(1767)
Models BI-42S and BI-42SD
REFRIGERATOR W H
Door Panel 2413/16"(630) 699/16"(1767)
FREEZER W H
Door Panel 167/16"(418) 699/16"(1767)
BI-42SD W H
Dispenser Cut-Out 57/8"(149) 127/16"(316)
AB
Cut-Out Location 17/8"(48) 283/4"(730)
Models BI-48S and BI-48SD
REFRIGERATOR W H
Door Panel 281/2"(724) 699/16"(1767)
FREEZER W H
Door Panel 183/4"(418) 699/16"(1767)
BI-48SD W H
Dispenser Cut-Out 57/8"(149) 127/16"(316)
AB
Cut-Out Location 17/8"(48) 283/4"(730)
Framed
subzerotrade.com

Framed Panels 16
Optional Panel Grille. A louvered grille, providing an
84" (2134) overall unit height, is standard on framed
applications. You may choose to use Sub-Zero’s optional
panel grille for your application. The panel grilles can be
used with all built-in models and are available for 83"
(2108), 84" (2134) and 88" (2235) overall unit heights.
Grille panel dimensions listed are for a standard 84"
(2134) overall height of the unit. For an 83" (2108) overall
height, subtract 1" (25) from grille panel height dimen-
sions. For an 88" (2235) overall height, add 4" (102) to
height dimensions.
Optional panel grille.
Optional Grille Panel W H
30" (762) Models 293/4"(756) 815/16"(227)
36" (914) Models 353/4"(908) 815/16"(227)
42" (1067) Models 413/4"(1060) 815/16"(227)
48" (1219) Models 473/4"(1213) 815/16"(227)
Grille Panel Requirements
MAX WEIGHT
Grille Panel 13 lbs (6 kg)
MIN PANEL THICKNESS
Grille Panel 1/4"(6)
Framed

Framed Panels 17
Partial Framed Option. If you choose not to use
custom panels above and below the glasswell for
dispenser Model BI-42SD or BI-48SD, a stainless steel
insert panel is available as a sales accessory. This
accessory kit includes partial framed molding and classic
stainless steel panel to provide a spill-resistant finish
above and below the glasswell on the refrigerator door
only. The partial framed accessory kit (7004855) is
available through your Sub-Zero dealer. Refer to panel
dimensions for the partial framed option below.
IMPORTANT NOTE: When using raised panels with the
partial framed kit, a 1/2" (13) trim reveal down to 1/4"(6)
thickness is necessary at the bezel for the panels to fit
properly.
Optional Partial Framed Panels
MODEL BI-42SD W H
Refrigerator Panel 151/16"(383) 699/16"(1767)
Freezer Panel 151/16"(383) 699/16"(1767)
MODEL BI-48SD W H
Refrigerator Panel 163/4"(425) 699/16"(1767)
Freezer Panel 163/4"(425) 699/16"(1767)
WW
H
BI-42SD / BI-48SD
Partial Framed Option
Partial Framed Kit
subzerotrade.com
Framed

Overlay Panels 18
Overlay Panels. If you and your client have ordered
an overlay model, you will be adding panels and handles
to give the unit a more custom look. The overlay panel
design option is available for all built-in overlay models.
For exact door panel dimensions, refer to overlay panel
specifications on the following pages.
IMPORTANT NOTE: Overlay models can be used in a
overlay or a flush inset application. Be aware that the
application specified will affect panel sizes, rough open-
ing dimensions and installation.
The overlay design allows decorative panels to cover the
door trim for a more seamless appearance that blends
with the design of the room. The most common way to
achieve this look is to work with three panels—the deco-
rative overlay panel which is typically 3/4" (19), a .10" (3)
spacer panel and a 1/4" (6) backer panel. Depending on
your cabinet manufacturer, this could also be one panel
routed for different dimensions.
Regardless of the physical construction of the panels
(three-panel assembly or routed panel), you will need to
follow the overlay panel specifications on the following
pages for exact sizing and panel placement to ensure a
proper fit.
Custom cabinet overlay panels can be combined with
unique hardware for design flexibility. Shown with curved
handle option to compliment Wolf E Series ovens.
Overlay Panel Requirements
MAX WEIGHT PER PANEL
BI-36R, BI-36RG and BI-36F 75 lbs (34 kg)
All Other Overlay Models 50 lbs (23 kg)
Grille Panel 13 lbs (6 kg)
MIN PANEL THICKNESS
All Overlay Panels 5/8"(16)
Overlay

Overlay Panels 19
Overlay Panels. The illustrations provide a cross
section view of the three-panel assembly showing place-
ment of the trim and a rear view of the three-panel
assembly with critical dimensions, standard for all built-in
models.
Overlay grille panels for the panel grille match the design
of the overlay door panels. Dimensions for the grille panel
are listed in the overlay panel specifications on the follow-
ing pages.
IMPORTANT NOTE: On glass door models, the edges of
the window cut-out will need to be finished, as they will
be exposed.
IMPORTANT NOTE: When installing two units in a side by
side application, refer to pages 30–31 for dual standard
installations. Be aware that rough opening dimensions are
different for this application.
1/8"
(3)
OVERLAY PANEL
SPACER PANEL
BACKER PANEL
TRIM
5/16"(8) min
Panel assembly cross
section.
Panel assembly rear view.
1/4"(6)
.10" (3)
OVERLAY
PANEL
SPACER
PANEL
BACKER
PANEL
3/4"
(19)
typical
Do not exceed the overlay decorative panel dimen-
sions. Exceeding dimensions could cause damage
to the panels and the Sub-Zero unit.
Overlay
subzerotrade.com

Overlay Panels 20
Overlay Panel Specifications
BI-36R / BI-36F BI-36RG BI-30U / BI-36U BI-30UG / BI-36UG
HH
A
W
H
A A
B
W
H
A
A A
H
W
H
A
H
H H
W
H
Grille panel dimensions listed are for a standard 84" (2134)
overall height of the unit. For an 83" (2108) overall height,
subtract 1" (25) from grille panel height dimensions. For an
88" (2235) overall height, add 4" (102) to height dimensions.
Width dimensions do not vary.
Models BI-30U and BI-30UG
REFRIGERATOR W H
Overlay Panel 30" (762) 501/8"(1273)
Spacer Panel 291/8"(740) 495/16"(1253)
Backer Panel 293/4"(756) 4915/16"(1268)
FREEZER W H
Overlay Panel 30" (762) 19" (483)
Spacer Panel 291/8"(740) 181/16"(459)
Backer Panel 293/4"(756) 1811/16"(475)
GRILLE WH
Overlay Panel 30" (762) 91/4"(235)
Spacer Panel 291/8"(740) 85/16"(211)
Backer Panel 293/4"(756) 815/16"(227)
BI-30UG W H
Window Cut-Out 191/2"(495) 395/8"(1006)
A
Cut-Out Location 51/4"(133)
Models BI-36R, BI-36RG and BI-36F
REFRIGERATOR/FREEZER W H
Overlay Panel 36" (914) 693/4"(1772)
Spacer Panel 351/8"(892) 6815/16"(1751)
Backer Panel 353/4"(908) 699/16"(1767)
GRILLE W H
Overlay Panel 36" (914) 91/4"(235)
Spacer Panel 351/8"(892) 85/16"(211)
Backer Panel 353/4"(908) 815/16"(227)
BI-36RG W H
Window Cut-Out 251/2"(648) 541/8"(1375)
AB
Cut-Out Location 51/4"(133) 103/8"(264)
Models BI-36U and BI-36UG
REFRIGERATOR W H
Overlay Panel 36" (914) 501/8"(1273)
Spacer Panel 351/8"(892) 495/16"(1253)
Backer Panel 353/4"(908) 4915/16"(1268)
FREEZER W H
Overlay Panel 36" (914) 19" (483)
Spacer Panel 351/8"(892) 181/16"(459)
Backer Panel 353/4"(908) 1811/16"(475)
GRILLE W H
Overlay Panel 36" (914) 91/4"(235)
Spacer Panel 351/8"(892) 85/16"(211)
Backer Panel 353/4"(908) 815/16"(227)
BI-36UG W H
Window Cut-Out 251/2"(648) 395/8"(1006)
A
Cut-Out Location 51/4"(133)
Overlay
