2001 FORESTER SERVICE MANUAL QUICK REFERENCE INDEX
CHASSIS SECTION
G8050GE5

ABS (DIAGNOSTICS) ABS
Page
1. Basic Diagnostic Procedure........................................................................2
2. Check List for Interview...............................................................................6
3. General Description.....................................................................................9
4. Electrical Components Location................................................................12
5. Control Module I/O Signal.........................................................................14
6. Subaru Select Monitor...............................................................................18
7. Read Diagnostic Trouble Code.................................................................20
8. Inspection Mode........................................................................................21
9. Clear Memory Mode..................................................................................22
10. ABS Warning Light Illumination Pattern....................................................23
11. List of Diagnostics Trouble Code..............................................................24
12. Diagnostics Chart with Diagnosis Connector............................................28
13. Diagnostics Chart with Subaru Select Monitor.........................................90
14. General Diagnostics Table......................................................................174

1. Basic Diagnostic Procedure S006501
A: PROCEDURE S006501E45
1. WITHOUT SUBARU SELECT MONITOR S006501E4501
CAUTION:
Remove foreign matter (dust, water, etc.) from the ABSCM&H/U connector during removal and
installation.
NOTE:
쐌To check harness for broken wires or short circuits, shake it while holding it or the connector.
쐌When ABS warning light illuminates, read and record trouble code indicated by ABS warning light.
No. Step Check Yes No
1 CHECK PRE-INSPECTION.
1) Ask the customer when and how the
trouble occurred using interview checklist.
<Ref. to ABS-6, Check List for Interview.>
2) Before performing diagnosis, inspect unit
which might influence the ABS problem. <Ref.
to ABS-9, INSPECTION, General Descrip-
tion.>
Is unit that might influence
the ABS problem normal? Go to step 2. Repair or replace each unit.
2 CHECK INDICATION OF TROUBLE CODE.
Calling up trouble code. <Ref. to ABS-20,
Read Diagnostic Trouble Code.>
Is trouble code readable? Go to step 3. Inspect using
diagnostic chart
for ABS warning
light failure.<Ref.
to ABS-28, Diag-
nostics Chart with
Diagnosis Con-
nector.>
NOTE:
Call up trouble
code again after
inspecting ABS
warning light.
<Ref. to ABS-20,
Read Diagnostic
Trouble Code.>
3 CHECK TROUBLE CODE.
NOTE:
Record all trouble codes.
Is only the start code
issued? Go to step 4. Go to step 5.
4 PERFORM THE GENERAL DIAGNOSTICS.
1) Inspect using “General Diagnostics Table”.
<Ref. to ABS-174, General Diagnostics
Table.>
2) Perform the clear memory mode. <Ref. to
ABS-22, WITHOUT SUBARU SELECT
MONITOR, OPERATION, Clear Memory
Mode.>
3) Perform the inspection mode. <Ref. to
ABS-21, Inspection Mode.>
Calling up the trouble code. <Ref. to ABS-20,
Read Diagnostic Trouble Code.>
Is only the start code
issued? Complete the diagnosis. Go to step 5.
ABS-2
BASIC DIAGNOSTIC PROCEDURE
ABS (DIAGNOSTICS)

No. Step Check Yes No
5 PERFORM THE DIAGNOSIS.
1) Inspect using “Diagnostics Chart with Diag-
nostic Connector”.<Ref. to ABS-28, Diagnos-
tics Chart with Diagnosis Connector.>
NOTE:
For trouble code list, refer to “List of Diagnos-
tics Trouble Code”.<Ref. to ABS-24, WITH-
OUT SUBARU SELECT MONITOR, LIST, List
of Diagnostics Trouble Code.>
2) Repair trouble cause.
3) Perform the clear memory mode. <Ref. to
ABS-22, WITHOUT SUBARU SELECT
MONITOR, OPERATION, Clear Memory
Mode.>
4) Perform the inspection mode. <Ref. to
ABS-21, Inspection Mode.>
5) Calling up the trouble code. <Ref. to ABS-
20, Read Diagnostic Trouble Code.>
Is only the start code
issued? Complete the diagnosis. Inspect using “Diagnostics Chart
with Diagnostic
Connector”. <Ref.
to ABS-28, Diag-
nostics Chart with
Diagnosis Con-
nector.>
ABS-3
BASIC DIAGNOSTIC PROCEDURE ABS (DIAGNOSTICS)

2. WITH SUBARU SELECT MONITOR S006501E4502
CAUTION:
Remove foreign matter (dust, water, etc.) from the ABSCM&H/U connector during removal and
installation.
NOTE:
쐌To check harness for broken wires or short circuits, shake it while holding it or the connector.
쐌Check list for interview. <Ref. to ABS-26, WITH SUBARU SELECT MONITOR, LIST, List of Diagnostics
Trouble Code.>
No. Step Check Yes No
1 CHECK PRE-INSPECTION.
1) Ask the customer when and how the
trouble occurred using interview checklist.
<Ref. to ABS-6, Check List for Interview.>
2) Before performing diagnosis, inspect unit
which might influence the ABS problem. <Ref.
to ABS-9, INSPECTION, General Descrip-
tion.>
Is unit that might influence
the ABS problem normal? Go to step 2. Repair or replace each unit.
2 CHECK INDICATION OF TROUBLE CODE
DISPLAY.
1) Turn ignition switch to OFF.
2) Connect the SUBARU SELECT MONITOR
to data link connector.
3) Turn ignition switch to ON and SUBARU
SELECT MONITOR to ON.
NOTE:
If the communication function of the select
monitor cannot be executed normally, check
the communication circuit. <Ref. to ABS-90,
COMMUNICATION FOR INITIALIZING
IMPOSSIBLE , Diagnostics Chart with Subaru
Select Monitor.>
4) Read diagnostic trouble code. <Ref. to
ABS-18, OPERATION, Subaru Select Moni-
tor.>
5) Record all trouble codes and frame data.
Is the corresponding
trouble encoding? Go to step 3. Go to step 4.
3 PERFORM THE GENERAL DIAGNOSTICS.
1) Inspect using “General Diagnostics Table”.
<Ref. to ABS-174, General Diagnostics
Table.>
2) Perform the clear memory mode. <Ref. to
ABS-19, CLEAR MEMORY MODE,
OPERATION, Subaru Select Monitor.>
3) Perform the inspection mode. <Ref. to
ABS-21, Inspection Mode.>
4) Calling up the trouble code. <Ref. to ABS-
18, READ DIAGNOSTIC TROUBLE CODE,
OPERATION, Subaru Select Monitor.>
Is no trouble code desig-
nated and ABS warning
light goes out after turning
on?
Complete the
diagnosis. Go to step 4.
ABS-4
BASIC DIAGNOSTIC PROCEDURE
ABS (DIAGNOSTICS)

No. Step Check Yes No
4 PERFORM THE DIAGNOSIS.
1) Inspect using “Diagnostics Chart with
Subaru Select Monitor”.<Ref. to ABS-90,
Diagnostics Chart with Subaru Select Moni-
tor.>
NOTE:
For trouble code list, refer to “List of Diagnos-
tics Trouble Code”.<Ref. to ABS-24, WITH-
OUT SUBARU SELECT MONITOR, LIST, List
of Diagnostics Trouble Code.>
2) Repair trouble cause.
3) Perform the clear memory mode. <Ref. to
ABS-19, CLEAR MEMORY MODE,
OPERATION, Subaru Select Monitor.>
4) Perform the inspection mode. <Ref. to
ABS-21, Inspection Mode.>
5) Calling up the trouble code. <Ref. to ABS-
18, READ DIAGNOSTIC TROUBLE CODE,
OPERATION, Subaru Select Monitor.>
Is no trouble code desig-
nated and does ABS warn-
ing light go out after turning
on?
Complete the
diagnosis. Inspect using “Diagnostics Chart
with Subaru
Select Monitor”.
<Ref. to ABS-90,
Diagnostics Chart
with Subaru
Select Monitor.>
ABS-5
BASIC DIAGNOSTIC PROCEDURE ABS (DIAGNOSTICS)

2. Check List for Interview S006502
A: CHECK S006502A04
Check the following items about the vehicle’s state.
1. STATE OF ABS WARNING LIGHT S006502A0401
ABS warning light
comes on. 쏔Always 쏔Sometimes
쏔Only once
쏔Does not come on
쐌When / how long does it come on?:
Ignition key position 쏔LOCK
쏔ACC
쏔ON (before starting engine)
쏔START
쏔On after starting (Engine is running)
쏔On after starting (Engine is stop)
Timing 쏔Immediately after ignition is ON.
쏔Immediately after ignition starts.
쏔When advancing km/h to km/h
MPH to MPH
쏔While traveling at a constant speed km/h MPH
쏔When decelerating km/h to km/h
MPH to MPH
쏔When turning to right Steering angle : deg
Steering time : sec
쏔When turning to left Steering angle : deg
Steering time : sec
쏔When moving other electrical parts
쐌Parts name :
쐌Operating condition :
ABS-6
CHECK LIST FOR INTERVIEW
ABS (DIAGNOSTICS)

2. SYMPTOMS S006502A0402
ABS operating con-
dition 쏔Performs no work.
쏔Operates only when abruptly applying brakes. Vehicle speed : km/h
MPH
쐌How to step on brake pedal :
a) Operating time : sec
b) Operating noise : 쏔Produce / 쏔Does not produce
쐌What kind of noise? 쏔Knock
쏔Gong gong
쏔Bong
쏔Buzz
쏔Gong gong buzz
쏔Others :
c) Reaction force of brake pedal
쏔Stick
쏔Press down once with a clunk
쏔Press and released
쏔Others :
Behavior of vehicle a) Directional stability cannot be obtained or steering arm refuses to work when applying brakes :
쏔Yes / 쏔No
쐌When : 쏔Vehicle turns to right
쏔Vehicle turns to left
쏔Spins
쏔Others :
b) Directional stability cannot be obtained or steering arm refuses to work when accelerating :
쏔Yes / 쏔No
쐌When : 쏔Vehicle turns to right
쏔Vehicle turns to left
쏔Spins
쏔Others :
c) Brakes are out of order : 쏔Yes / 쏔No
쐌What : 쏔Braking distance is long
쏔Brakes lock or drag
쏔Pedal stroke is long
쏔Pedal sticks
쏔Others :
d) Poor acceleration : 쏔Yes / 쏔No
쐌What : 쏔Fails to accelerate
쏔Engine stalls
쏔Others :
e) Occurrence of vibration : 쏔Yes / 쏔No
쐌Where
쐌What kind :
f) Occurrence of abnormal noise : 쏔Yes / 쏔No
쐌Where
쐌What kind :
g) Occurrence of other phenomena : 쏔Yes / 쏔No
쐌What kind :
ABS-7
CHECK LIST FOR INTERVIEW ABS (DIAGNOSTICS)

3. CONDITIONS UNDER WHICH TROUBLE OCCURS S006502A0403
Environment a) Weather 쏔Fine
쏔Cloudy
쏔Rainy
쏔Snowy
쏔Various/Others :
b) Ambient temperature °F(°C)
c) Road 쏔Urban area
쏔Suburbs
쏔Highway
쏔General road
쏔Ascending slope
쏔Descending slope
쏔Paved road
쏔Gravel road
쏔Muddy road
쏔Sandy place
쏔Others :
d) Road surface 쏔Dry
쏔Wet
쏔New-fallen snow
쏔Compressed snow
쏔Frozen slope
쏔Others :
Condition a) Brakes Deceleration : g
쏔Continuous / 쏔Intermittent
b) Accelerator Acceleration : g
쏔Continuous / 쏔Intermittent
c) Vehicle speed km/h MPH
쏔Advancing
쏔Accelerating
쏔Reducing speed
쏔Low speed
쏔Turning
쏔Others :
d) Tire inflation pressure Front RH tire : kPa
Front LH tire : kPa
Rear RH tire : kPa
Rear LH tire : kPa
e) Degree of wear Front RH tire :
Front LH tire :
Rear RH tire :
Rear LH tire :
f) Genuine parts are used. : 쏔Yes / 쏔No
g) Chain is passed around tires. : 쏔Yes / 쏔No
h) T tire is used. : 쏔Yes / 쏔No
i) Condition of suspension alignment :
j) Loading state :
k) Repair parts are used. : 쏔Yes / 쏔No
쐌What :
l) Others :
ABS-8
CHECK LIST FOR INTERVIEW
ABS (DIAGNOSTICS)

3. General Description S006001
A: CAUTION S006001A03
1. SUPPLEMENTAL RESTRAINT SYSTEM
“AIRBAG”S006001A0301
Airbag system wiring harness is routed near the
ABS sensor, ABS control module and hydraulic
control unit.
CAUTION:
쐌All Airbag system wiring harness and con-
nectors are colored yellow. Do not use electri-
cal test equipment on these circuit.
쐌Be careful not to damage Airbag system wir-
ing harness when servicing the ABS sensor,
ABS control module and hydraulic control unit.
B: INSPECTION S006001A10
Before performing diagnostics, check the following
items which might affect ABS problems:
1. BATTERY S006001A1001
Measure battery voltage and specific gravity of
electrolyte.
Standard voltage: 12 V, or more
Specific gravity: Above 1.260
2. BRAKE FLUID S006001A1002
1) Check brake fluid level.
2) Check brake fluid leakage.
3. HYDRAULIC UNIT S006001A1006
Check the hydraulic unit.
쐌With brake tester <Ref. to ABS-9, CHECKING
THE HYDRAULIC UNIT ABS OPERATION WITH
BRAKE TESTER, INSPECTION, ABS Control
Module and Hydraulic Control Unit (ABSCM&H/
U).>
쐌Without brake tester <Ref. to ABS-8, CHECK-
ING THE HYDRAULIC UNIT ABS OPERATION
BY PRESSURE GAUGE, INSPECTION, ABS
Control Module and Hydraulic Control Unit
(ABSCM&H/U).>
4. BRAKE DRAG S006001A1003
Check brake drag.
5. BRAKE PAD AND ROTOR S006001A1004
Check brake pad and rotor.
쐌Front <Ref. to BR-21, INSPECTION, Front
Brake Pad.> and <Ref. to BR-22, INSPECTION,
Front Disc Rotor.>
쐌Rear <Ref. to BR-26, INSPECTION, Rear Brake
Pad.> and <Ref. to BR-28, INSPECTION, Rear
Disc Rotor.> or <Ref. to BR-33, INSPECTION,
Rear Drum Brake Shoe.> and <Ref. to BR-34,
INSPECTION, Rear Drum Brake Drum.>
6. TIRE S006001A1005
Check tire specifications, tire wear and air pres-
sure. <Ref. to WT-2, SPECIFICATIONS, General
Description.>
ABS-9
GENERAL DESCRIPTION ABS (DIAGNOSTICS)

C: PREPARATION TOOL S006001A17
1. SPECIAL TOOLS S006001A1701
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
B2M3876
24082AA150
(Newly adopted tool) CARTRIDGE Troubleshooting for electrical systems.
B2M3877
22771AA030 SELECT MONITOR
KIT Troubleshooting for electrical systems. 쐌English: 22771AA030 (Without printer)
쐌German: 22771AA070 (Without printer)
쐌French: 22771AA080 (Without printer)
쐌Spanish: 22771AA090 (Without printer)
2. GENERAL PURPOSE TOOLS S006001A1702
TOOL NAME REMARKS
Circuit tester Used for measuring resistance, voltage and ampere.
Oscilloscope Used for measuring sensor.
ABS-10
GENERAL DESCRIPTION
ABS (DIAGNOSTICS)

MEMO:
ABS-11
GENERAL DESCRIPTION ABS (DIAGNOSTICS)

4. Electrical Components Location S006507
A: LOCATION S006507A13
S4M0478A

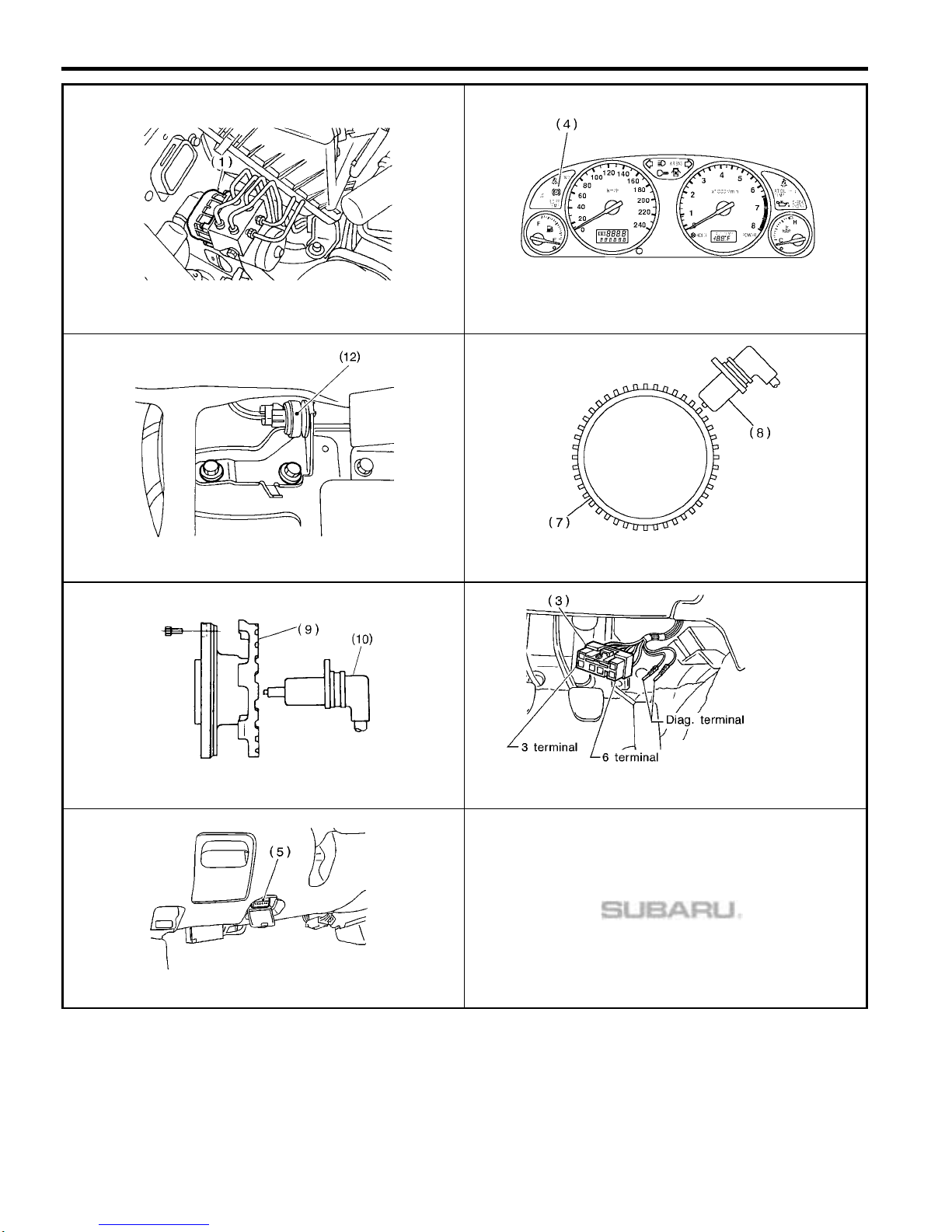

(1) ABS control module and hydrau-
lic control unit (ABSCM&H/U)
(2) Proportioning valve
(3) Diagnosis connector
(4) ABS warning light
(5) Data link connector (for
SUBARU select monitor)
(6) Automatic transmission control
module
(7) Front tone wheel
(8) Front ABS sensor
(9) Rear tone wheel
(10) Rear ABS sensor
(11) Wheel cylinder
(12) G sensor
(13) Stop light switch
(14) Master cylinder
ABS-12
ELECTRICAL COMPONENTS LOCATION
ABS (DIAGNOSTICS)

B4M1226B S2M2018B
H4M1328B
B4M2285A
B4M0646H B4M0231E
S4M0056A
ABS-13
ELECTRICAL COMPONENTS LOCATION ABS (DIAGNOSTICS)

5. Control Module I/O Signal S006524
A: ELECTRICAL SPECIFICATION S006524A08
B4M1228A
NOTE:
쐌The terminal numbers in the ABS control module and hydraulic control unit connector are as shown in
the figure.
쐌When the connector is removed from the ABSCM&H/U, the connector switch closes the circuit between
terminal No. 21 and No. 23. The ABS warning light illuminates.
ABS-14
CONTROL MODULE I/O SIGNAL
ABS (DIAGNOSTICS)

Contents Terminal No.
(+)—(−)Input/Output signal
Measured value and measuring conditions
ABS sensor*2
(Wheel speed sensor)
Front left wheel 9—10 0.12 —1V
(When it is 20 Hz.)
Front right wheel 11—12
Rear left wheel 7—8
Rear right wheel 13—15
Valve relay power supply 24—23 10 —15 V
Motor relay power supply 25—23 10 —15 V
G sensor*2 Power supply 30—28 4.75 —5.25 V Ground 28 —
Output 6—28 2.3±0.2 V when vehicle is in horizontal position.
Stop light switch*1 2—23 Less than 1.5 V when the stop light is OFF and, 10 —15 V
when the stop light is ON.
ABS warning light*2 21—23 Less than 1.5 V during 1.5 seconds when ignition switch is
ON, and 10 —15 V after 1.5 seconds.
AT ABS signal*2
(AT model only) 31—23 Less than 1.5 V when the ABS control still operates and more than 5.5 V when ABS does not operate.
ABS operation signal monitor*2 3—23 Less than 1.5 V when the ABS control still operates and
more than 5.5 V when ABS does not operate.
Select monitor*2 Data is received. 20—23 Less than 1.5 V when no data is received.
Data is sent. 5—23 4.75 —5.25 V when no data is sent.
ABS diagnosis connec-
tor*2 Terminal No. 3 29—23 10 —15 V when ignition switch is ON.
Terminal No. 6 4—23 10 —15 V when ignition switch is ON.
Power supply*1 1—23 10 —15 V when ignition switch is ON.
Grounding line 23 —
Grounding line 26 —
*1: Measure the I/O signal voltage after removing the connector from the ABSCM&H/U terminal.
*2: Measure the I/O signal voltage at connector (B62) and (R48) of LHD model or (B100) of RHD model.
ABS-15
CONTROL MODULE I/O SIGNAL ABS (DIAGNOSTICS)

B: SCHEMATIC S006524A21
B4M2226
(1) ABS control module and hydrau-
lic control unit (ABSCM&H/U)
(2) ABS control module area
(3) Valve relay
(4) Motor relay
(5) Motor
(6) Front left inlet solenoid valve
(7) Front left outlet solenoid valve
(8) Front right inlet solenoid valve
(9) Front right outlet solenoid valve
(10) Rear left inlet solenoid valve
(11) Rear left outlet solenoid valve
(12) Rear right inlet solenoid valve
(13) Rear right outlet solenoid valve
(14) Transmission control module
(only AT model)
(15) Diagnosis connector
(16) Data link connector
(17) ABS warning light
(18) Stop light switch
(19) Stop light
(20) G sensor
(21) Front left ABS sensor
(22) Front right ABS sensor
(23) Rear left ABS sensor
(24) Rear right ABS sensor
ABS-16
CONTROL MODULE I/O SIGNAL
ABS (DIAGNOSTICS)

C: WAVEFORM S006524G79
B4M2526A
ABS-17
CONTROL MODULE I/O SIGNAL ABS (DIAGNOSTICS)

6. Subaru Select Monitor S006503
A: OPERATION S006503A16
1. READ DIAGNOSTIC TROUBLE CODE
S006503A1601
1) Prepare Subaru Select Monitor kit.
S2M0285
2) Connect diagnosis cable to Subaru Select
Monitor.
3) Insert cartridge into Subaru Select Monitor.
<Ref. to ABS-10, SPECIAL TOOLS, PREPARA-
TION TOOL, General Description.>
S2M0286
4) Connect Subaru Select Monitor to data link
connector.
(1) Data link connector located in the lower por-
tion of the instrument panel (on the driver’s
side).
S2M2157
(2) Connect diagnosis cable to data link con-
nector.
5) Turn ignition switch to ON (engine OFF) and
Subaru Select Monitor switch to ON.
S2M0288D
(1) Power switch
6) On the ⰆMain MenuⰇdisplay screen, select
the {Each System Check} and press the [YES] key.
7) On the ⰆSystem Selection MenuⰇdisplay
screen, select the {Brake Control System} and
press the [YES] key.
8) Press the [YES] key after displayed the infor-
mation of engine type.
9) On the ⰆABS DiagnosisⰇdisplay screen,
select the {Diagnostic Code(s) Display} and press
the [YES] key.
10) On the ⰆDiagnostic Code(s) DisplayⰇdisplay
screen, select the {Current Diagnostic Code(s)} or
{History Diagnostic Code(s)} and press the [YES]
key.
NOTE:
쐌For detailed operation procedure, refer to the
SUBARU SELECT MONITOR OPERATION
MANUAL.
쐌For detailed concerning diagnostic trouble
codes, refer to the LIST OF DIAGNOSTICS
TROUBLE CODE. <Ref. to ABS-24, List of Diag-
nostics Trouble Code.>
ABS-18
SUBARU SELECT MONITOR
ABS (DIAGNOSTICS)

2. READ CURRENT DATA S006503A1602
1) On the ⰆMain MenuⰇdisplay screen, select the {Each System Check} and press the ⰆYESⰇkey.
2) On the ⰆSystem Selection MenuⰇdisplay screen, select the {Brake Control System} and press the
ⰆYESⰇkey.
3) Press the ⰆYESⰇkey after displayed the information of ABS type.
4) On the ⰆBrake Control DiagnosisⰇdisplay screen, select the {Current Data Display & Save} and press
the ⰆYESⰇkey.
5) On the ⰆData Display MenuⰇdisplay screen, select the {Data Display} and press the ⰆYESⰇkey.
6) Using the scroll key, move the display screen up or down until the desired data is shown.
쐌A list of the support data is shown in the following table.
Display screen Contents to be monitored Unit of measure
FR Wheel Speed Wheel speed detected by the Front Right ABS sensor is dis-
played km/h or MPH
FL Wheel Speed Wheel speed detected by the Front Left ABS sensor is dis-
played km/h or MPH
RR Wheel Speed Wheel speed detected by the Rear Right ABS sensor is dis-
played km/h or MPH
RL Wheel Speed Wheel speed detected by the Rear Left ABS sensor is displayed km/h or MPH
Stop Light Switch Stop light switch signal ON or OFF
Stop Light Switch Stop light switch monitor voltage is displayed. V
G sensor output Signal Refers to vehicle acceleration detecting by the analog G sensor.
It appears on the select monitor display in volts. V
Valve Relay Signal Valve Relay Signal ON or OFF
Motor Relay Signal Motor Relay Signal ON or OFF
ABS Signal to TCM ABS operation signal from ABS control module to TCM ON or OFF
ABS Warning Lamp ON operation of the ABS warning light is displayed. ON or OFF
Motor Relay Monitor Operating condition of the motor relay is displayed. High or Low
Valve Relay Monitor Operating condition of the valve relay is displayed. ON or OFF
CCM Signal ABS operation signal from ABS control module to TCM ON or OFF
NOTE:
For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL.
3. CLEAR MEMORY MODE S006503A1603
1) On the ⰆMain MenuⰇdisplay screen, select the {2. Each System Check} and press the ⰆYESⰇkey.
2) On the ⰆSystem Select MenuⰇdisplay screen, select {Brake System} and press the ⰆYESⰇkey.
3) Press the ⰆYESⰇkey after displayed the information of engine type.
4) On the ⰆBrake Control DiagnosisⰇdisplay screen, select the {Clear Memory} and press the ⰆYESⰇ
key.
5) When the “Done”and “turn ignition switch OFF”are shown on the display screen, turn the Subaru Select
Monitor and ignition switch to OFF.
NOTE:
For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL.
ABS-19
SUBARU SELECT MONITOR ABS (DIAGNOSTICS)
