Subaru Forester 2017 User manual

2017
Quick Reference Guide
Forester
Love. It’s what makes a Subaru, a Subaru.
2451692 17b Subaru Forester QRG_052516.indd 2 5/25/16 2:29 PM

Complete U.S. specications and
illustrations may not have been
available at time of publication.
Specications are based on the
latest product information available
at time of publication. Some
images shown are for illustration
purposes only. Some equipment
shown may be optional at extra
cost. Specic options may be
available only in combination
with other options. Specic
combinations of equipment or
features may vary from time
to time and by geographic
area. Certain accessories and
equipment may not be available
at the time of publication.
This Quick Reference Guide
applies to all Forester models.
Therefore, some explanations may
be for equipment not installed on
your vehicle. Subaru of America,
Inc., reserves the right to change
or discontinue at any time,
without notice, prices, colors,
materials, equipment, accessories,
specications, models and
packages without incurring any
obligation to make the same or
similar changes on vehicles
previously sold. Colors shown may
vary due to reproduction process.
For detailed operating and
safety information, please
consult the Owner’s Manual.
Subaru, Outback, Legacy,
Forester, Impreza, WRX, WRX STI,
BOXER, SI-DRIVE, Lineartronic,
Alcantara, EyeSight, HD Radio,
Aha Radio, and SiriusXM are
registered trademarks. SUBARU
STARLINK is a trademark of
Fuji Heavy Industries, Ltd.
All rights reserved. Contents may
not be reprinted or electronically
reproduced in whole or in part
without prior written approval
of Subaru of America, Inc.
© 2016 Subaru of America, Inc.
2451692 17b Subaru Forester QRG_052516.indd 3 5/25/16 2:29 PM

Table of Contents
2-5 Getting Started
6-7 Instrument Panel
8-11 Gauges
12-13 Personalize
14-21 Controls
22-23 While Operating
24-25 Safety/In Case of Emergency
26-28 Additional Information
2451692 17b Subaru Forester QRG_052516.indd 5 5/25/16 2:29 PM

2

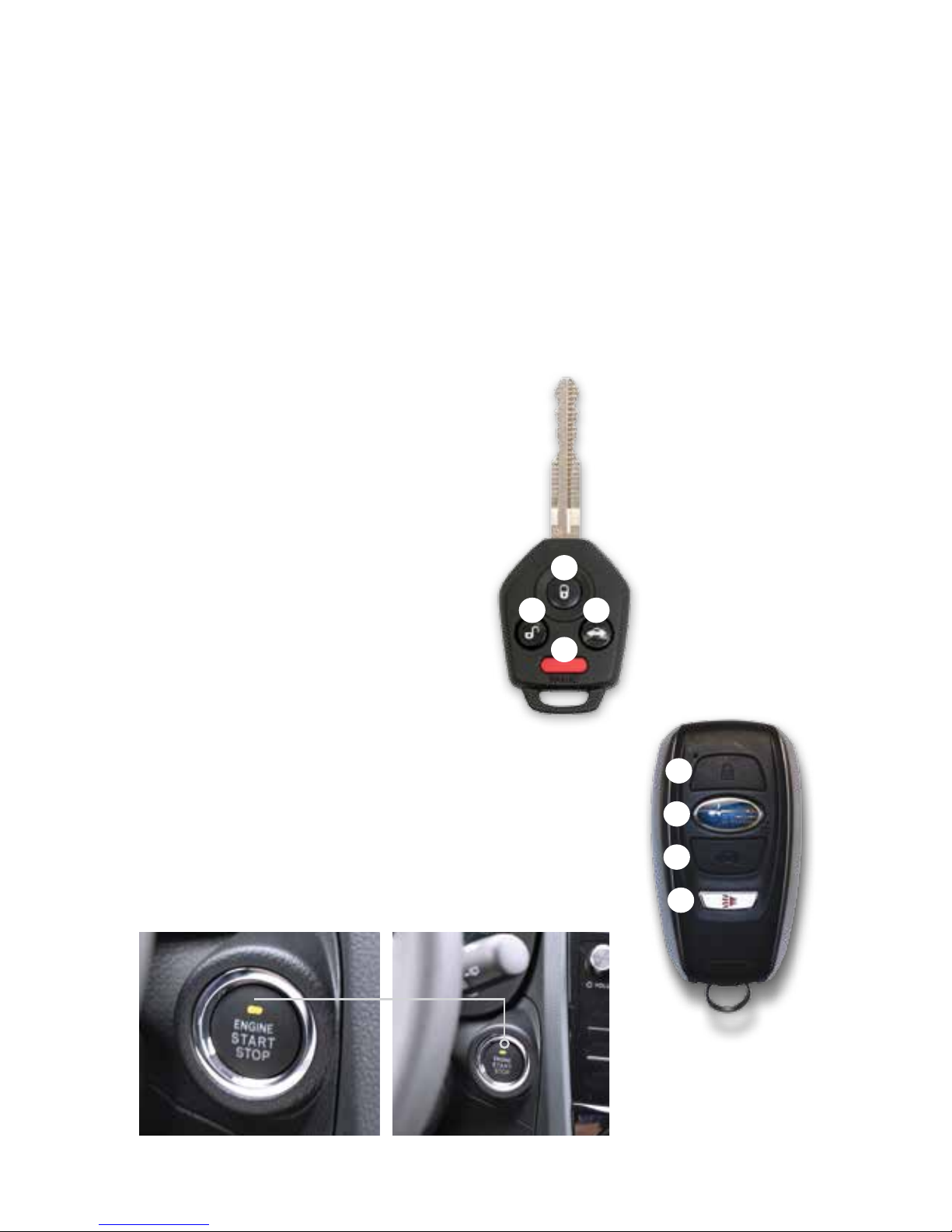

Remote Keyless Entry
Keyless Access with Push-Button
Start System (if equipped)
By simply carrying the access key in your pocket, you can
lock and unlock doors, open the rear gate and start your car
without ever having to take the key fob out of your pocket.
1. Lock/Arm
• Press to lock all doors and the rear gate.
• If any of the doors or the rear gate are
not fully closed, an electronic chirp
will sound and the hazard lights will
ash to alert you that the doors or the
rear gate are not properly closed.
• To activate the vehicle nder function,
press three times (within ve seconds).
If you are within 30 feet of the vehicle,
the horn will sound one time and the
hazard lights will ash three times.
2. Unlock/Disarm
• Press once to unlock the driver’s door.
• Press twice (within ve seconds) to
unlock all doors.
• When the “Unlock/Disarm” button is
pressed, the dome and map lights will
illuminate if the dome light switch is in
the middle position.
3. Unlocking the Rear Gate
• Press the button to unlock the rear gate.
4. Panic Alarm
• Press once and the horn will sound
and the hazard lights will ash.
• Press any button on the remote
to deactivate.
1
2 3
4
1
2
3
4
2451692 17b Subaru Forester QRG_052516.indd 2 5/25/16 2:29 PM

3
Getting Started
Instrument
Panel Gauges Personalize Controls While
Operating
Safety/In Case
of Emergency
Additional
Information

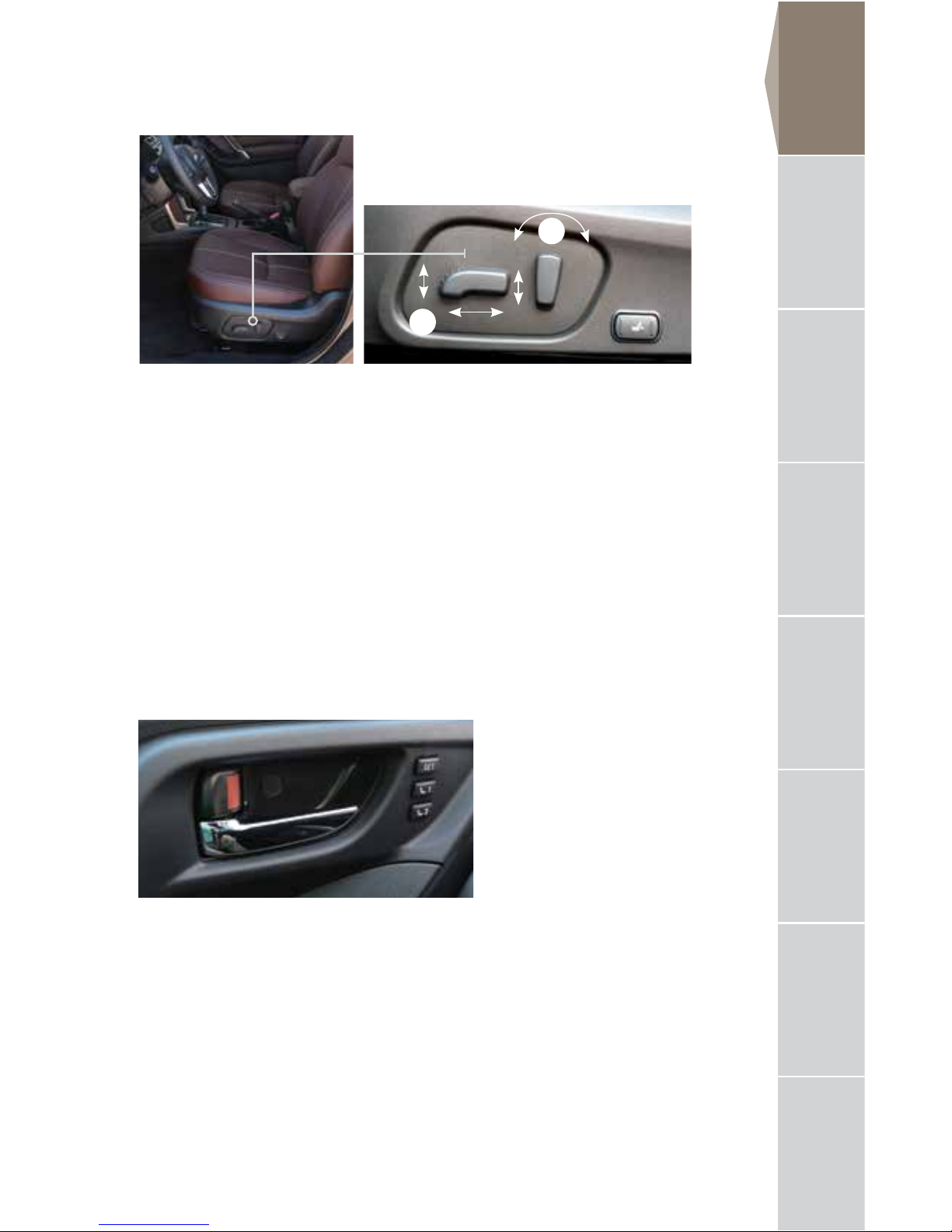

10-Way Power Driver’s Seat (if equipped)
1. Forward/Backward, Angle
and Height
Move the switch toward the front
or rear to move the seat forward
or backward. Pull the switch up
or push down on the front of the
switch to adjust the angle of the
seat cushion. Pulling the switch
straight up or pushing the switch
straight down will adjust the height
of the entire seat cushion.
2. Seatback
Move the switch in the
corresponding direction to adjust
the angle of the seatback.
3. Lumbar Support
Press the front part of the switch
to increase lumbar support;
press the rear part of the switch
to decrease lumbar support.
1
2
3
Getting Started
Memory Driver’s Seat
(if equipped)
While pressing the “SET” button, press and hold the desired button
“1” or “2”. A beep sounds when the seat position is registered.
Press button “1” or “2” to retrieve the seat positions.
Seating
2451692 17b Subaru Forester QRG_052516.indd 3 5/25/16 2:29 PM

4
Seat Controls
1. Forward/Backward
Pull up on the lever below the front of
the driver’s seat to move the seat forward
or backward.
2.Raise/Lower Seat Cushion
To adjust the height of the driver’s seat,
pull up or push down the seat height
adjustment lever, located on the lower left side front of the seat.
3. Recline Seatback
To adjust the seatback to the desired position, pull up on the recline lever, located on the
lower left rear of the driver’s seat or lower right rear of the passenger’s seat. Do not adjust
seats while driving.
1
23
Seating
Heated Seats (if equipped)
Press the switch in the corresponding direction for the desired seat temperature. To
turn off the seat heater, slightly press in the opposite direction of the current position.
2451692 17b Subaru Forester QRG_052516.indd 4 5/25/16 2:29 PM

5
Getting Started
Instrument
Panel Gauges Personalize Controls While
Operating
Safety/In Case
of Emergency
Additional
Information
Folding the Rear Seat
Lower the headrests. Pull up on the release
knob on the seat side that you want to fold
down. To return the seatback to its original
position, raise the seatback until it locks into
place, making sure that it is securely locked.
Getting Started
2451692 17b Subaru Forester QRG_052516.indd 5 5/25/16 2:29 PM

6
Instrument Panel
8-11
PAGE
NUMBER 20
14, 22
2451692 17b Subaru Forester QRG_052516.indd 6 5/25/16 2:29 PM

7
Getting Started
Instrument
Panel Gauges Personalize Controls While
Operating
Safety/In Case
of Emergency
Additional
Information
Instrument Panel
16-1921
Clock
Press the “+” button to advance time
or the “–” button to reverse the time.
For vehicles with a navigation system,
please refer to the separate “Operating
Instructions for Navigation System.”
Instrument
Panel
2451692 17b Subaru Forester QRG_052516.indd 7 5/25/16 2:29 PM

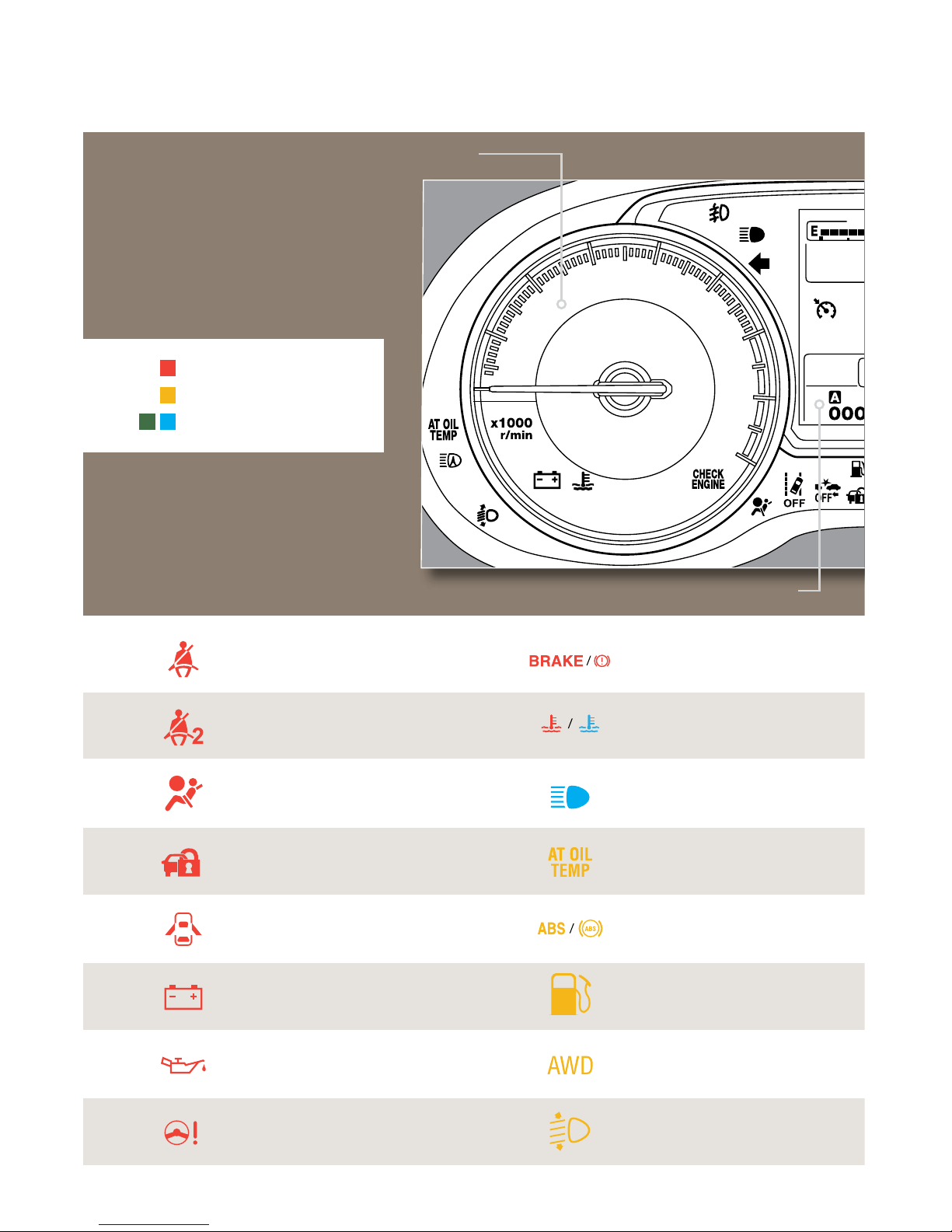

8
Trip meter A/B
selection and trip
meter reset knob
Trip meter and odometer
Forester 2.5i
Forester 2.5i Premium
Tachometer
Gauges
Seatbelt warning
Front passenger
seatbelt warning
SRS airbag system
Security indicator light
Door open
Charge warning
Oil pressure warning
Power steering warning
Brake system
Hot coolant temperature /
Cold coolant temperature
High beam indicator light
AT OIL TEMP
(Automatic Transmission)
ABS warning
Low fuel
All-Wheel Drive
(Automatic Transmission)
Windshield washer
uid warning
Immediate Attention
Caution
Informational
2451692 17b Subaru Forester QRG_052516.indd 8 5/25/16 2:29 PM

9
Getting Started
Instrument
Panel Gauges Personalize Controls While
Operating
Safety/In Case
of Emergency
Additional
Information

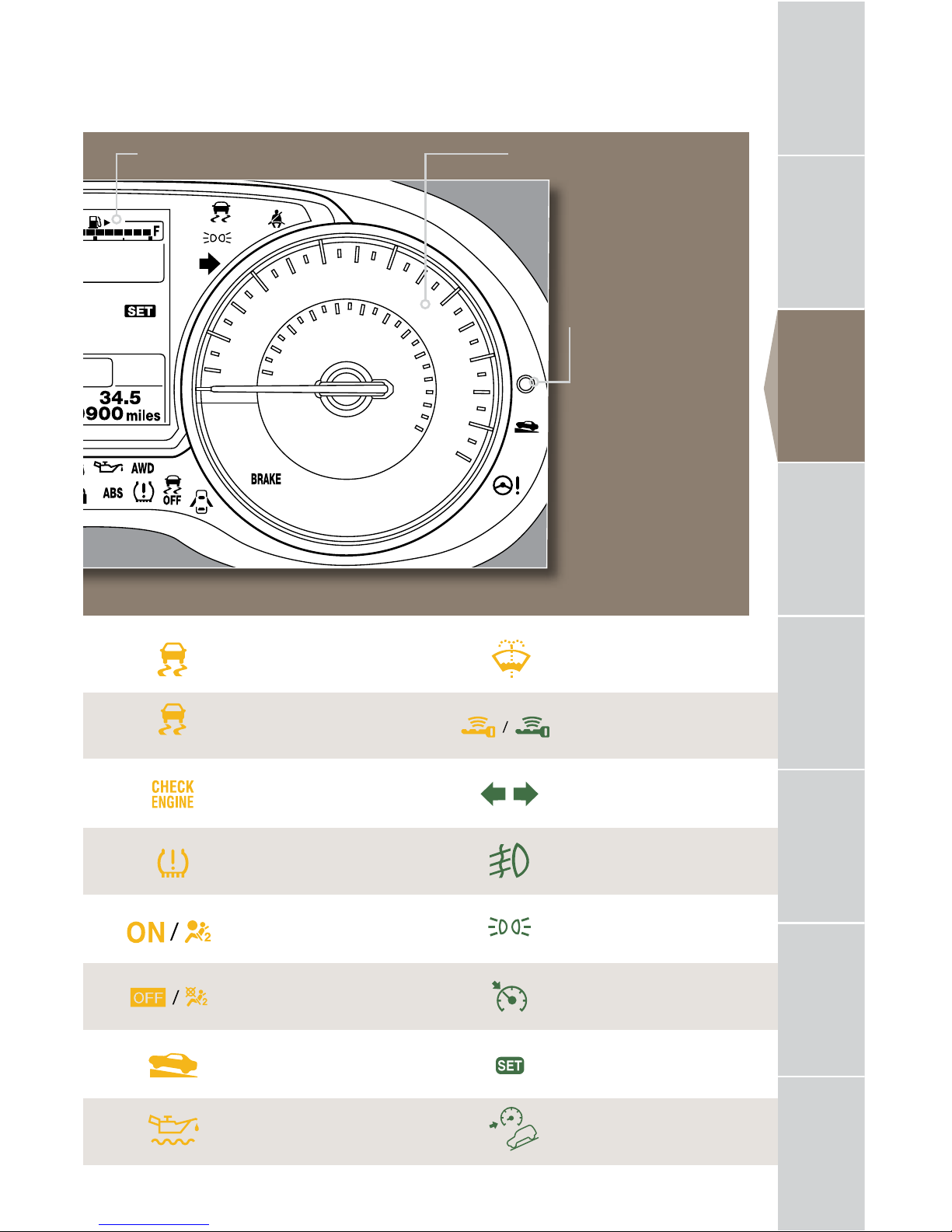

Information display
selection knob
Speedometer
Fuel gauge
Vehicle Dynamics
Control / Vehicle Dynamics
Control operation
Vehicle Dynamics Control OFF
CHECK ENGINE /
Malfunction indicator
Tire pressure warning light
Front passenger airbag ON
(Located on overhead console)
Front passenger airbag OFF
(Located on overhead console)
Incline start assist
Engine oil level warning light
Keyless Access with
Push Button Start
System (if equipped)
Turn signals
Front fog light indicator
light (if equipped)
Headlight indicator light
Cruise control
indicator light
Cruise control set
indicator light
Gauges
2451692 17b Subaru Forester QRG_052516.indd 9 5/25/16 2:29 PM

10

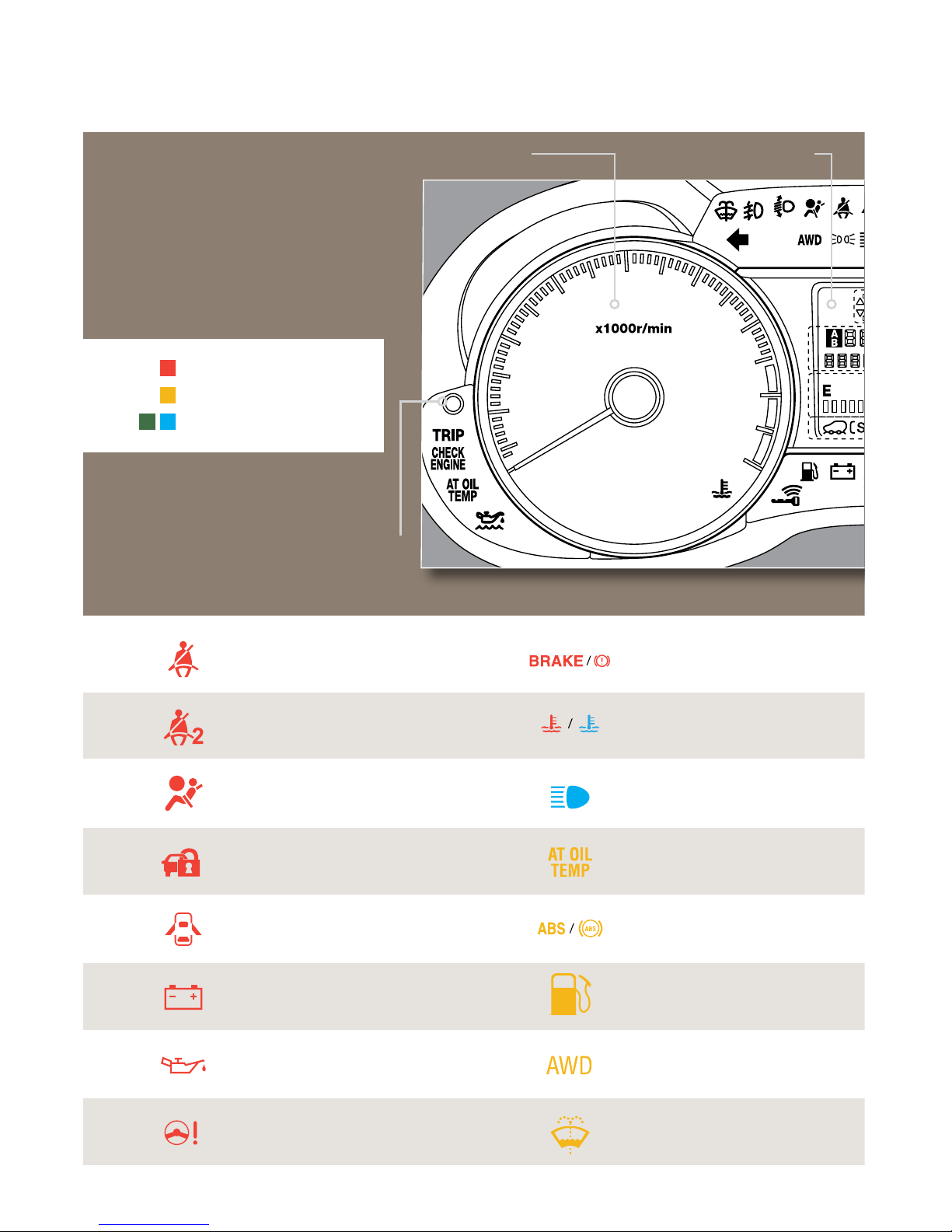

Gauges
Forester 2.5i Limited
Forester 2.5i Touring
Forester 2.0i XT Premium
Forester 2.0i XT Touring
Seatbelt warning
Front passenger
seatbelt warning
SRS airbag system
Security indicator light
Door open
Charge warning
Oil pressure warning
Power steering warning
Brake system
Hot coolant temperature /
Cold coolant temperature
High beam indicator light
AT OIL TEMP
(Automatic Transmission)
ABS warning
Low fuel
All-Wheel Drive
(Automatic Transmission)
Headlight leveler
(if equipped)
Immediate Attention
Caution
Informational
Trip meter and odometer
Tachometer
2451692 17b Subaru Forester QRG_052516.indd 10 5/25/16 2:30 PM

11
Getting Started
Instrument
Panel Gauges Personalize Controls While
Operating
Safety/In Case
of Emergency
Additional
Information
Vehicle Dynamics
Control / Vehicle Dynamics
Control operation
Vehicle Dynamics Control OFF
CHECK ENGINE /
Malfunction indicator
Tire pressure warning light
Front passenger airbag ON
(Located on overhead console)
Front passenger airbag OFF
(Located on overhead console)
Incline start assist
Engine oil level warning light
Windshield washer
uid warning
Keyless Access with
Push Button Start
System (if equipped)
Turn signals
Front fog light indicator
light (if equipped)
Headlight indicator light
Cruise control
indicator light
Cruise control set
indicator light
Hill descent control
(if equipped)
Gauges
Trip meter A/B
selection and trip
meter reset knob
SpeedometerFuel gauge
2451692 17b Subaru Forester QRG_052516.indd 11 5/25/16 2:30 PM

12
Power Exterior Mirrors
Turn the knob to the “L” side to adjust the left-hand mirror or to the “R” side to adjust the
right-hand mirror. Move the knob in the direction you want to move the mirror. Then return
the knob to the neutral/center position.
Personalize
Tilt and Telescopic Steering Column
Push the lever down rmly to adjust the height and lengthwise position of the column; rmly
push the lever back up to lock the column in place. Do not adjust while driving.
Heated Steering Wheel System (if equipped)
To activate, pull the Heated Steering
Wheel switch while the ignition is in the ON
position. The indicator light on the switch
will illuminate.
To deactivate, pull the Heated Steering
Wheel switch again.
2451692 17b Subaru Forester QRG_052516.indd 12 5/25/16 2:30 PM

13
Getting Started
Instrument
Panel Gauges Personalize Controls While
Operating
Safety/In Case
of Emergency
Additional
Information

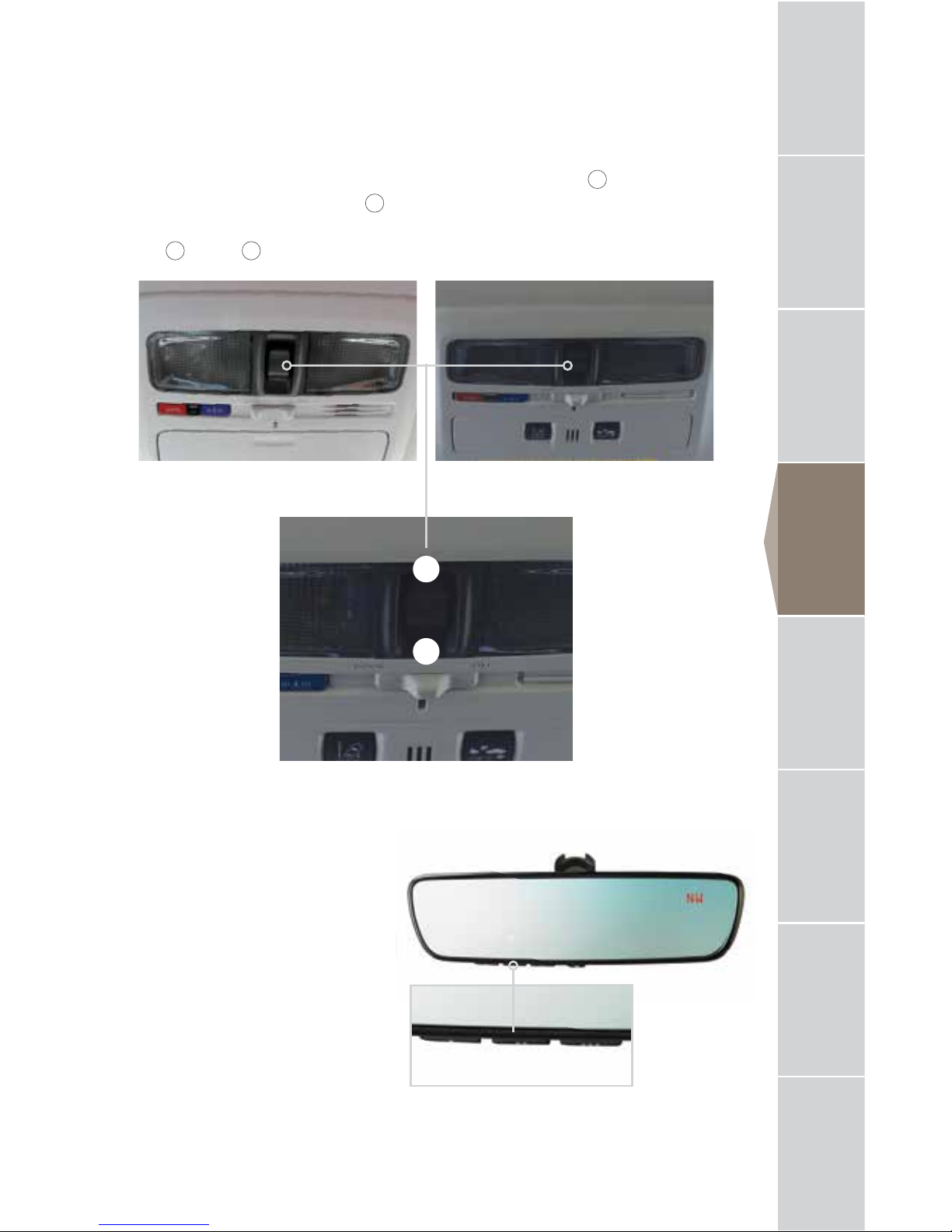

Power Moonroof (if equipped)
With the moonroof in the fully closed position, press the switch 1to fully open
the moonroof. Press the switch 2to close the moonroof. To stop the moonroof
in a midway position while opening or closing, momentarily press the switch to
the 1side or 2side.
Vehicles equipped with EyeSight
1
2
Personalize
HomeLink®5 Accessory Mirror (if equipped)
The HomeLink 5 accessory mirror
provides three buttons to replace up
to three hand-held radio frequency
remotes used to activate devices
such as garage door openers,
gate openers, entry door locks,
security systems and home lighting.
Please see your Owner’s Manual for
programming instructions or visit
www.subaru.com/homelink to
view a how-to video.
2451692 17b Subaru Forester QRG_052516.indd 13 5/25/16 2:30 PM

14
Controls
While the light switch is on, rotate the dial downward to dim the instrument panel illumination.
Rotate the dial upward to make the illumination brighter. When the dial is fully rotated upward,
the instrument panel illumination becomes fully bright.
Light Controls
Turns on instrument panel
lights, tail lights, parking lights
and license plate lights.
Turns on headlights, instrument
panel illumination, parking lights,
tail lights and license plate lights.
Turns on
fog lights
(if equipped).
Push up for
right turn signal.
Push down for
left turn signal.
AUTO (if equipped): The vehicle’s lights
are automatically on or off, depending
on the level of outside light.
Push forward to change from low
beam to high beam. Pull the lever
back to center to return to low beam.
2451692 17b Subaru Forester QRG_052516.indd 14 5/25/16 2:30 PM

15
Getting Started
Instrument
Panel Gauges Personalize Controls While
Operating
Safety/In Case
of Emergency
Additional
Information
Windshield Wipers
To turn on the wipers, press the wiper control lever down one level for intermittent,
two levels for low, or three levels for high speed. Return the lever to the “OFF”
position to stop the wipers. For a single wipe, move the lever up. To spray washer
uid, pull and hold the lever toward you.
To operate the rear wiper, rotate the end of the knob upward to the intermittent,
continuous, or wash position. When the rear wiper is off, rotate the knob
downward to wash and wipe the rear window.
Daytime Running Lights
Daytime running lights are standard on your vehicle. Only a reduced brightness
high beam will be automatically turned on when the engine has started, the
parking brake is fully released and the light switch is in the “OFF” or “ ”
position. The brightness of the illumination of the high beam headlights is reduced
by the daytime running light system. You must always switch on your headlights
when it is dark outside by turning the light switch to the “ ” position.
1
2
3
INT.
LOW
HIGH
OFF
Controls
2451692 17b Subaru Forester QRG_052516.indd 15 5/25/16 2:30 PM

16
Controls
146
53 2
Manual HVAC System (if equipped)
1. Temperature Control Dial
Rotate the temperature control dial from
blue for cool, to red for warm.
2. Air Conditioning Button
Press the “A/C” button to activate the
air conditioning. Press it again to turn
off the air conditioning.
3. Recirculated/Outside Air Button
Press the air inlet selection button to
prevent outside air from being drawn into
the passenger compartment. If the button
is pushed in, press it again to draw outside
air into the compartment. TO PREVENT
WINDSHIELD FOGGING, DO NOT
REMAIN IN THE RECIRCULATED MODE
FOR AN EXTENDED PERIOD OF TIME.
4. Fan Speed Control Dial
Rotate the fan speed control dial to select
one of four fan speeds.
5. Rear Window Defogger Button
Press the rear window defogger button
to turn on the defogger. The defogger
will automatically shut off after about
15 minutes. If the window clears before
that time, you can press the button again
to turn it off.
6. Air Flow Control Dial
The air ow control dial allows you to
choose the direction of air ow. Rotate
the dial for the desired air ow position.
Defrost/Defog
To clear the windshield and front door
windows of fog or frost, rotate the air ow
control dial to the defrost position, set the
temperature control to the red position,
and set the fan speed control to the
fastest speed.
2451692 17b Subaru Forester QRG_052516.indd 16 5/25/16 2:30 PM

17
Getting Started
Instrument
Panel Gauges Personalize Controls While
Operating
Safety/In Case
of Emergency
Additional
Information
Automatic Climate
Control System (if equipped)
1. Automatic On and Off
This system automatically controls
outlet air temperature, fan speed,
air ow distribution, air inlet control,
and air conditioner compressor
operation. Press “AUTO” to activate.
Press “OFF” to turn off the system.
2. Temperature Control Dial
Rotate the dial clockwise to
increase the temperature or
rotate the dial counterclockwise
to decrease the temperature and
maintain a comfortable climate
within the driver and passenger
compartment. The temperature is
displayed digitally on the screen.
Operation in Manual Mode
3. Recirculated/Outside Air Button
Press the air inlet selection button to
prevent outside air from being drawn
into the passenger compartment.
Press the button again to allow
outside air into the compartment.
TO PREVENT WINDSHIELD
FOGGING, DO NOT REMAIN IN THE
RECIRCULATED MODE FOR AN
EXTENDED PERIOD OF TIME.
4. Fan Speed Control Knob
Rotate the fan speed control
knob to select one of seven
different fan speed positions.
5. Air Flow Mode Selection Dial
Turn the “MODE” dial to select
the desired air ow mode. The
selected air ow mode – either
ventilation, bi-level, heat or heat-
defrost – is shown on the display.
6. Air Conditioner Button
Press the “A/C” button to activate
the air conditioning. Press it again
to turn off the air conditioning.
7. Defroster Button
Press the button to defrost
or dehumidify the windshield
and front door windows.
8. Rear Window Defogger Button
Press the button to turn on the
defogger. It will automatically shut off
after about 15 minutes. If the window
clears before that time, you can
press the button again to turn it off.
Controls
Located in the
multi-function
display; top
center of dash
1
7
3
42
8
6
5
2451692 17b Subaru Forester QRG_052516.indd 17 5/25/16 2:30 PM

18
Controls
Dual Zone Automatic Climate Control System (if equipped)
1. Automatic On and Off
This system automatically controls
outlet air temperature, fan speed,
air ow distribution, air inlet control,
and air conditioner compressor
operation. Press “AUTO” to activate.
Press “OFF” to turn off the system.
2. Temperature Control Dial
Rotate the dial clockwise to increase
the temperature or rotate the dial
counterclockwise to decrease the
temperature and maintain a comfortable
climate within the driver and passenger
compartment. The temperature is
displayed digitally on the screen.
Separate temperature settings
can be adjusted for the driver’s
side and passenger’s side.
Operation in Manual Mode
3. Recirculated/Outside Air Button
Press the air inlet selection button to
prevent outside air from being drawn
into the passenger compartment. Press
the button again to allow outside air
into the compartment. TO PREVENT
WINDSHIELD FOGGING, DO NOT
REMAIN IN THE RECIRCULATED MODE
FOR AN EXTENDED PERIOD OF TIME.
4. Fan Speed Control Knob
Rotate the fan speed control knob
to select one of seven different
fan speed positions.
5. Air Flow Mode Selection Button
Press the “MODE” button to select
the desired air ow mode. The
selected air ow mode – either
ventilation, bi-level, heat or heat-
defrost – is shown on the display.
1
8
3
6
9
7
5
42
2451692 17b Subaru Forester QRG_052516.indd 18 5/25/16 2:30 PM
