Installation Information
INSTALLATION INFORMATION
This section of the manual covers some of the installation issues that a service technician may need to know when
servicing a Wolf Gas Cooktop. If additional installation information is needed after reviewing this section of the man-
ual, please refer to the Installation Guide or contact the Wolf Appliance Customer Service Department.
Electrical Requirements:
•110-120 volts AC, 60 Hertz, 15 amp fused electrical supply.
• “ICB ONLY” 220-240 VAC, 50/60 Hz, 15 amp fused electrical supply.
•A timed-delay fuse or circuit breaker is recommended.
•Separate circuit serving only this appliance.
•Installation site must be equipped with a properly grounded 3-prong receptacle.
This appliance when installed must be properly grounded. This appliance is equipped with a 3-prong (grounding)
plug. The power cord must be plugged into a mating 3-prong ground-type receptacle. (See Figure 3-1).
If a mating receptacle is not available, it is the obligation of the customer to have a properly grounded, 3-prong
receptacle installed by a qualified electrician.
If the electric receptacle or the power cord are not properly grounded and polarized, a shock hazard could exist and
the appliance may experience ignition problems.
• A SHOCK HAZARD COULD EXIST IF THE ELECTRIC RECEPTACLE OR THE POWER CORD ARE NOT
PROPERLY GROUNDED AND POLARIZED.
• TO AVOID SHOCK HAZARD, NEVER REMOVE THE GROUNDING PRONG FROM THE PLUG OF THE
POWER SUPPLY CORD.
Fig. 3-1. Power Supply Cord
The appliance may experience ignition problems if not properly grounded and polarized.
Grounding Plug
Grounding Type
Electrical Outlet
InternationalDomestic

Page 3
3-3
GGAASSCCOOOOKKTTOOPP--
GGAASSCCOOOOKKTTOOPP--33
33SSEERRIIEESS
SSEERRIIEESSInstallation Information
Gas Requirements:
NOTE: All Wolf gas appliances are manufactured to
work with natural gas or LP gas (Liquid Propane gas).
Natural Gas Manifold Pressure
Standard natural gas orifices on the appliance are set
for 5” WC (Water Column Pressure).
Liquid Propane Manifold Pressure
The standard propane gas orifices on the appliance are
set for 10” WC (Water Column Pressure).
Gas Supply Line Size
• 1/2 inch
Gas Supply Pressure for Domestic Units
•Maximum line pressure for natural gas and LP is
14” WC; 1/2 psi (3.5 kPa).
•Minimum line pressure for natural gas is 7” WC.
•Minimum line pressure for LP gas is 11” WC.
ICB units are CE certified for the following gas type
and pressure:
•I3P – G31 at 37 mbar
•I2E – G20 at 20 mbar
•I2E+ – G20/25 at 20/25 mbar
•I2H – G20 at 20 mbar
Gas Pressure Regulator (Domestic Models Only)
To control and maintain a uniform gas pressure in the
gas manifold, Wolf gas appliances must be connected
to the gas supply line through a pressure regulator.
The burner orifices are sized for the pressure delivered
by the regulator. Never attempt to operate a Wolf gas
appliance without the use of the proper pressure
regulator.
* NOTE: ICB units do not utilize a gas regulator.
Gas Shut-off Valve
The supply line must be equipped with an approved
shut-off valve. This valve should be located in accor-
dance to all national, local codes and ordinances.
(See Figure 3-2).
Leak Testing
NEVER USE OPEN FLAMES TO CHECK FOR GAS
LEAKS. ONLY USE A LEAK TESTING SOLUTION
OF SOAPY WATER OR AN ELECTRONIC LEAK
DETECTOR. DO NOT USE LIQUID NEAR VALVE
STEMS.
The maximum gas supply pressure to the regulator
should never exceed 14” WC (Water Column
Pressure); 1/2 psi (3.5kPa)
Shut-off Valve
(open position)
To Cooktop
Gas Supply Line
Fig. 3-2. Shut-off Valve

Page 4
3-4
GGAASSCCOOOOKKTTOOPP--
GGAASSCCOOOOKKTTOOPP--33
33SSEERRIIEESS
SSEERRIIEESS
Installation Information
15” AND 30” GAS COOKTOP INSTALLATION DIMENSIONS
Area Requirements:
Note: Countertop opening dimensions that are shown must be used. Given dimensions provide required clear-
ances.
E21/2"min
(6.4)
15"
(38.1)
15"
(38.1)
14"*
(35.6)
4"
(10.2)
5"
(12.7)
G
* Dimensions may vary
by ± 1/8" (.3 cm)
13"
(33.0)
24" or 30"***
18"**
(45.7)
Combined width
of all cooktops
(61.0 or 76.2)
to cooking surface
7"
(17.8)
7"
(17.8)
"*
19
1/4
(49.0)
** 18” (45.7cm) minimum clearance upper cabinet to countertop within 7” (17.8cm) minimum side clearance to
combustible surface above countertop.
*** 24” (61cm) minimum clearance between top of cooking surface and bottom of wood or metal cabinet which is
protected by not less than 1/4” (.6cm) flame retardant millboard covered with not less than No. 28 MSG sheet
steel, .015” (.04cm) stainless steel, or .024” (.06cm) aluminum or .02” (.05cm) copper.
*** 30” (76.2) minimum clearance between top of cooking surface and bottom of an unprotected wood or metal
cabinet.
Note: Do not seal cooktop to countertop.
Fig. 3-3. 15” Installation Dimensions
E
31/2"
(8.9)
10"
(25.4)
4"
(10.2)
10"
(25.4)
29"*
(73.7)
191/4"*
(48.9)
21/2"
min
(6.4) 31/2"min
(8.9)
30" oven cutout location
43/4"min
(12.1)
E
G
* Dimensions may vary
by ± 1/8" (.3 cm)
30"
(76.2)
13"
(33.0)
24" or 30"***
(61.0 or 76.2) 18"**
(45.7)
to cooking surface
Fig. 3-4. 30” Installation Dimensions

Page 5
3-5
GGAASSCCOOOOKKTTOOPP--
GGAASSCCOOOOKKTTOOPP--33
33SSEERRIIEESS
SSEERRIIEESSInstallation Information
36” GAS COOKTOP INSTALLATION DIMENSIONS
Area Requirements:
Note: Countertop opening dimensions that are shown must be used. Given dimensions provide required clear-
ances.
** 18” (45.7cm) minimum clearance upper cabinet to countertop within 7” (17.8cm) minimum side
clearance to combustible surface above countertop.
*** 24” (61cm) minimum clearance between top of cooking surface and bottom of wood or metal cabinet which is
protected by not less than 1/4” (.6cm) flame retardant millboard covered with not less than No. 28 MSG sheet
steel, .015” (.04cm) stainless steel, or .024” (.06cm) aluminum or .02” (.05cm) copper.
*** 30” (76.2) minimum clearance between top of cooking surface and bottom of an unprotected wood or metal
cabinet.
Note: Do not seal cooktop to countertop.
36" oven cutout location
191/4"*
(48.9)
35"*
(88.9)
E
21/2"
min
(6.4)
31/2"
(8.9)
10"
(25.4)
4"
(10.2)
10"
(25.4)
31/2"min
(8.9)
73/4"min
(19.7)
E
G
* Dimensions may vary
by ± 1/8" (.3 cm)
36"
(76.2)
13"
(33.0)
24" or 30"***
(61.0 or 76.2) 18"**
(45.7)
to cooking surface
Fig. 3-5. 36” Installation Dimensions
B
A
C
D
E
21/2"min
Installation of Multiple Units
Integrated units can be installed together or with 30” or
36” cooktops. Where multiple units are installed side-
by-side, the cut out dimensions are added together.
Then add an additional space of 1-1/4” to each unit, to
get the total cutout width. (See Figure 3-7).
Cut-out Dimensions
AWidth of single module
BDepth of module
CCombined width of two modules plus 1-1/4”
DCombined width of three modules plus 2-1/2”
ECombined width of four modules plus 3-3/4”

Page 6
GGAASSCCOOOOKKTTOOPP--
GGAASSCCOOOOKKTTOOPP--33
33SSEERRIIEESS
SSEERRIIEESS
Installation Information
3-6
INSTALLATION PROCEDURE
•Insert cooktop into countertop opening and center
cooktop. Check that front edge of cooktop is parallel
to front edge of countertop. Check that all required
clearances are met.
•Use a pencil to outline rear of cooktop on counter-
top. Then remove cooktop from countertop.
•Apply foam strip around bottom of burner box flush
with edge. (See Figure 3-8).
•Reinsert cooktop into countertop opening. Check
that cooktop is parallel to front edge of countertop.
Lift entire cooktop to make adjustments, aligning
with pencil line.
•Attach brackets to burner box. Insert clamping
screws into brackets. Use a screw driver to tighten
clamping screws against underside of countertop.
(See Figure 3-8).
Note: Do not overtighten screws.
•Install pressure regulator with arrow on regulator
pointing up towards unit and in a position where
you can reach the access cap. (See Figure 3-9).
* NOTE: ICB units do not utilize a gas regulator.
•Assemble flexible metal connector from gas supply
pipe to pressure regulator. (See Figure 3-10).
•Use a pipe-joint compound made for natural and LP
gas. If a flexible connector is used, be certain the
tubing is not kinked.
Note: All connections must be wrench tightened. Do
not make connections to regulator too tight. Making
connections too tight could crack pressure regulator.
Do not allow regulator to turn on pipe when tighten-
ing fittings.
•Open shut-off valve in supply line. Wait a few min-
utes for gas to move through line.
•Leak testing of appliance shall be conducted accord-
ingly using a soapy water solution or an electronic
leak detector.
* NOTE: ICB units requrie an electrical gas shut off valve that
must be energized before gas will flow to burners.
The maximum gas supply pressure to the regulator
should never exceed 14” WC (Water Column
Pressure); 1/2 psi (3.5kPa)
NEVER USE OPEN FLAMES TO CHECK FOR GAS
LEAKS. ONLY USE A LEAK TESTING SOLUTION OF
SOAPY WATER OR AN ELECTRONIC LEAK DETECTOR.
DO NOT USE LIQUID NEAR VALVE STEMS.
Regulator
Gas Flow
Arrow
Points Up
Rear of
Burner Box
Fig. 3-8. Foam Strip
Fig. 3-10. Regulator Flow Arrow
Fig. 3-11. Gas Connection
Manual
Shut-off Valve
1/2" Adapter 1/2" Adapter
Pressure
Regulator
1/2" Nipple
(use pipe-joint compound) 1/2" Nipple
(use pipe-joint compound)
Flexible Metal Connector
Burner Box
Cooktop
Foam Strip
Pan
Cooktop
Countertop
Burner Box Bracket
Bracket Screws Clamping Screw
3" (6.4cm)
Pan
Fig. 3-9. Holding Clamp

Page 7
GGAASSCCOOOOKKTTOOPP--
GGAASSCCOOOOKKTTOOPP--33
33SSEERRIIEESS
SSEERRIIEESSInstallation Information
3-7
FILLER STRIP INSTALLATION PROCEDURE
These instructions contain procedural information to install the Integrated Filler Strip Kit into countertop installations.
1. Locate center of Filler Strip Bracket (2) at required distance from cooktop cutout edge.
2. Position Filler Strip Bracket (2) so that top surface is flush with counter top. You may need a
straight edge to assist in locating bracket at correct height.
3. Mark center of elongated slots of Filler Strip Bracket (2) on front and rear of cooktop cutout.
4. Using a 3/32" drill bit, drill a ¾" deep pilot hole for the #6/32 (3) mounting screws.
5. Secure Filler Strip Bracket (2) to counter top.
6. Install all cooktops into corresponding openings.
7. Position Filler Strip (1) into Filler Strip Bracket (2) and install three #10-24 nuts (4), but do not tighten.
8. Align and adjust cooktops and filler strips in countertop opening and then tighten cooktop hold down
clamps and filler strip nuts.
145/8"
441/2" 151/4"
3
4
12
145/8"

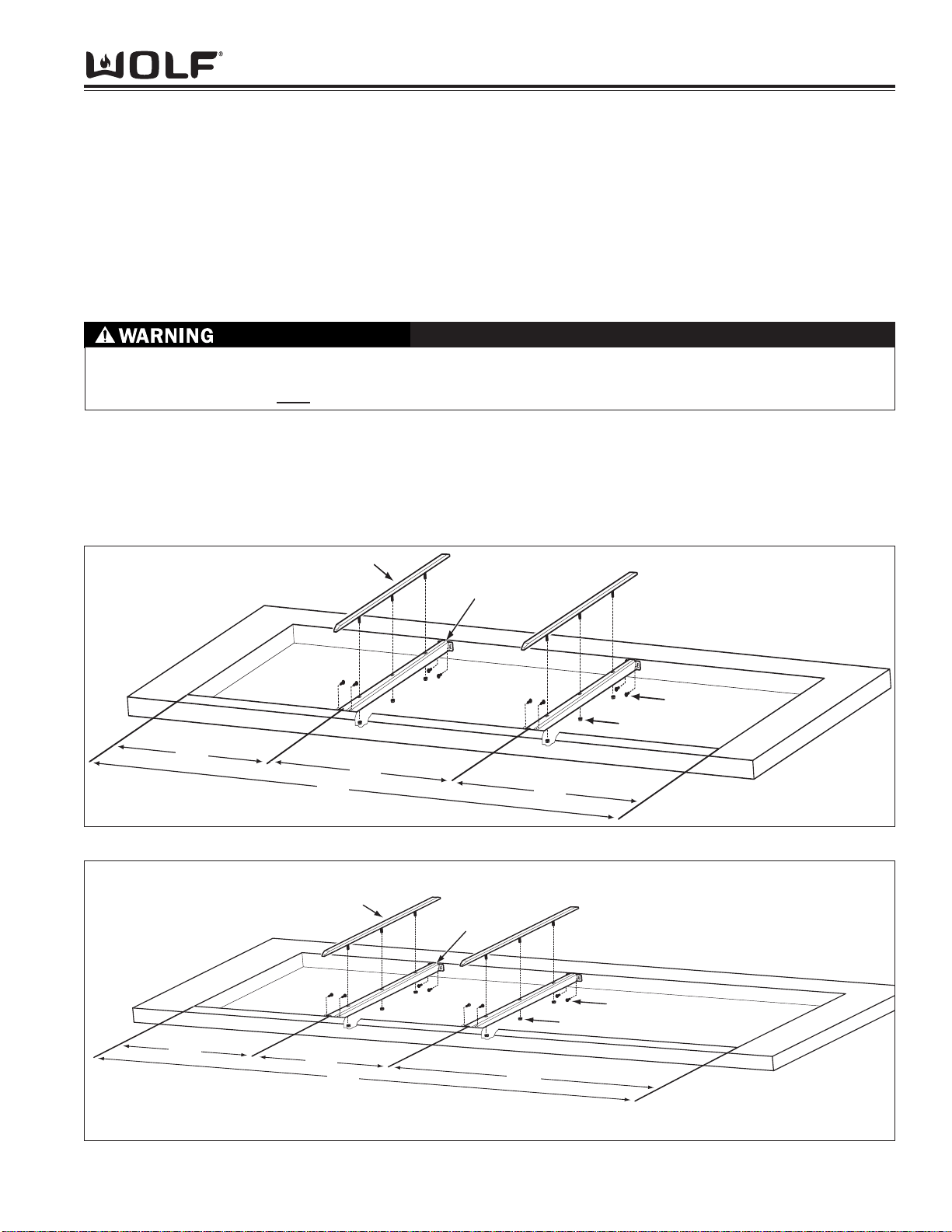

Fig. 3-13. Filler Strip with Two Integrated Cooktops and a 30" Gas or Electric Cooktop, Typical Installation
145/8"
591/2"
151/4" 295/8"
12
3
4
Fig. 3-12. Filler Strip with Three Integrated Cooktops, Typical Installation.
PLEASE CONSULT WITH THE COUNTERTOP MANUFACTURER/INSTALLER FOR THE PROPER METHOD OF
INSTALLING SCREWS INTO THE INSIDE EDGE OF THE COUNTER TOP. DAMAGE MAY OCCUR IF THE
PROPER METHODS ARE NOT USED.

Page 8
GGAASSCCOOOOKKTTOOPP--
GGAASSCCOOOOKKTTOOPP--33
33SSEERRIIEESS
SSEERRIIEESS
Installation Information
3-8
SUPPORT KIT FOR DOWNDRAFT INSTALLATION PROCEDURE
These instructions contain procedural information to install the Integrated Cooktop Support Kit for downdraft ventilation
installations.
NOTE: This kit does not include the Filler Strip Kit Assembly. Please order Kit Model number: 803386.
1. Locate and center Rear Bracket Support (1) in downdraft cutout as shown.
2. Position Rear Bracket Support (1) so that top surface is flush with counter top. You may need a straight edge to
assist in locating the bracket at the correct height.
3. Mark center of elongated slots of Rear Bracket Support (1) at both ends on countertop.
4. Mark center of elongated slots of Filler Strip Bracket (not included) on front of cooktop cutout.
5. Using a 3/32" drill bit, drill a ¾" deep pilot hole for the #6/32 mounting screws (3).
6. Install Downdraft into countertop opening, but do not secure in place at this time.
7. Secure Rear Bracket Support (1) and Filler Strip Bracket (not included) to countertop using items (2 & 3).
8. Install Integrated cooktops into corresponding openings.
9. Position Filler Strip (not included) into Filler Strip Bracket (not included) and install three #10-24 nuts, but do not
tighten.
10. Align and adjust cooktops, downdraft and filler strip in counter top opening and then tighten cooktop hold
down clamps, filler strip nuts and secure downdraft per installation instructions.
PLEASE CONSULT WITH THE COUNTERTOP MANUFACTURER/INSTALLER FOR THE PROPER METHOD OF
INSTALLING SCREWS INTO THE INSIDE EDGE OF THE COUNTER TOP. DAMAGE MAY OCCUR IF THE
PROPER METHODS ARE NOT USED.
Fig. 3-14. Support Kit for DownDraft Ventilation Installation
3
1
2
2
Filler Strip Bracket
Not Included
CENTER OF
CUTOUT
Filler Strip
Not Included
Not Included
