JIM KELLEY

USER GUIDE

SINGLE CHANNEL

REVERB HEAD

™

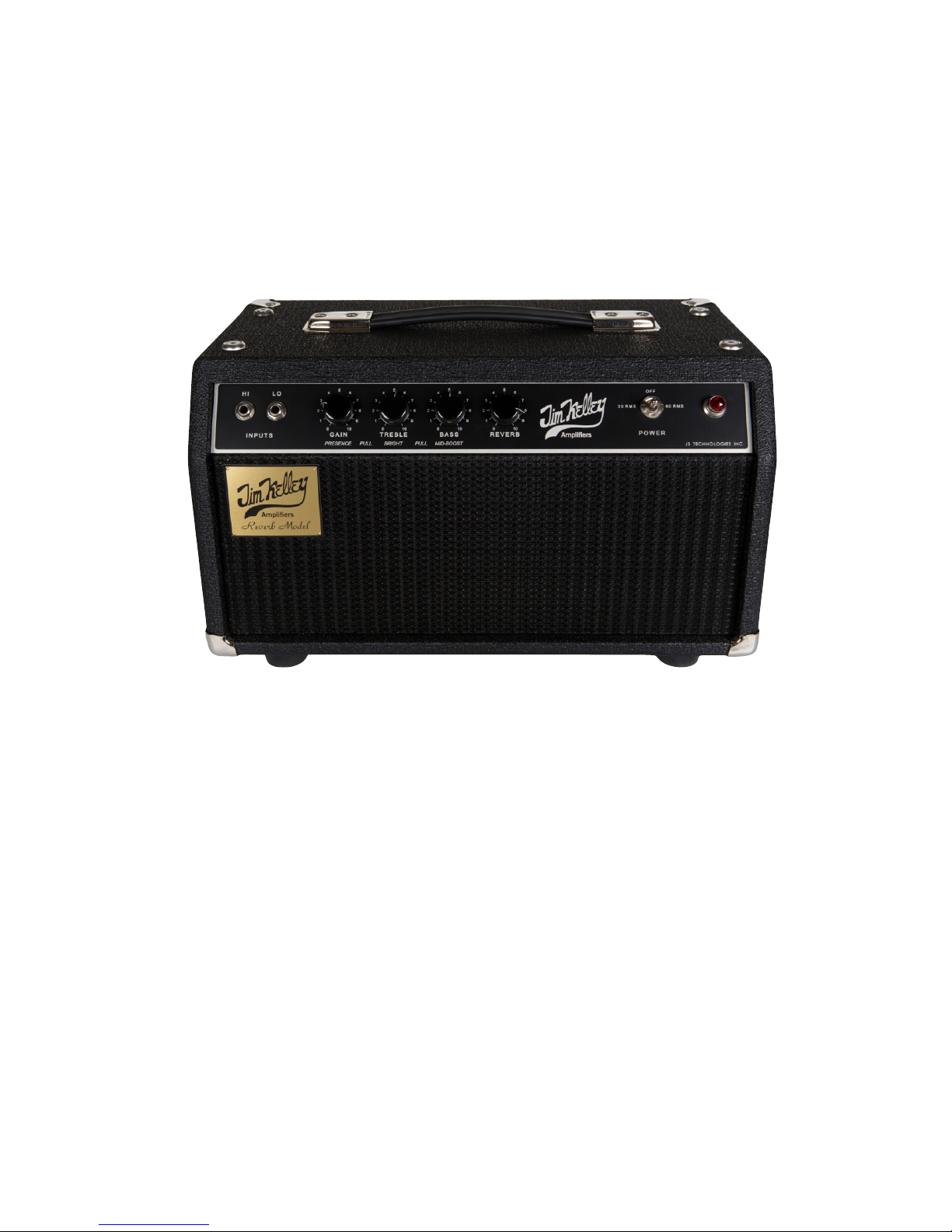

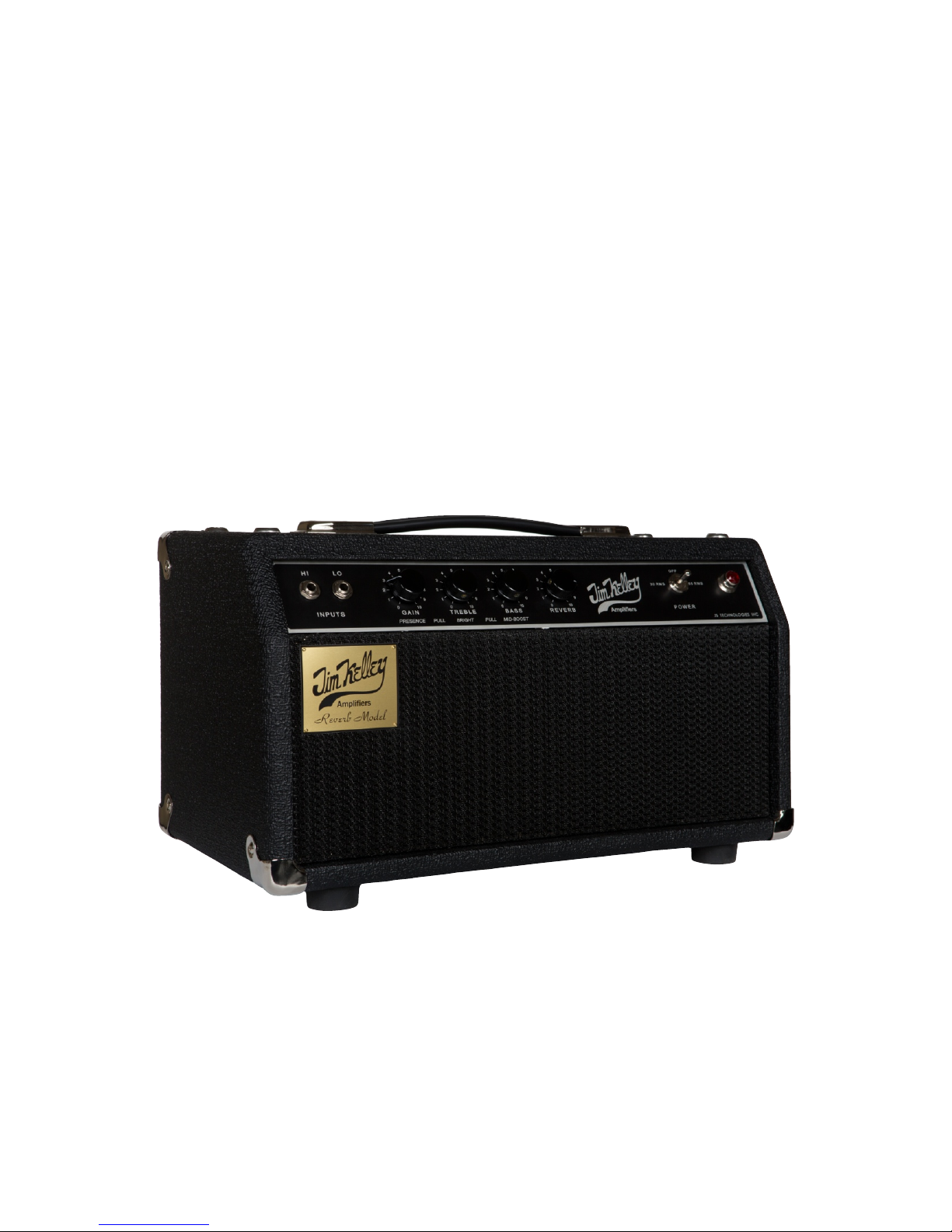

JIM KELLEY SINGLE CHANNEL REVERB HEAD

The Jim Kelley Single Channel Head is a 60 watt all-tube amplifier designed to retain your guitar’s

natural tonal characteristics. It delivers a broad range of punchy, high powered clean and smooth

dynamic overdrive tones. The single channel model features a versatile preamp/power amp circuit,

active shelving tone controls, four 6V6 output tubes and reverb.

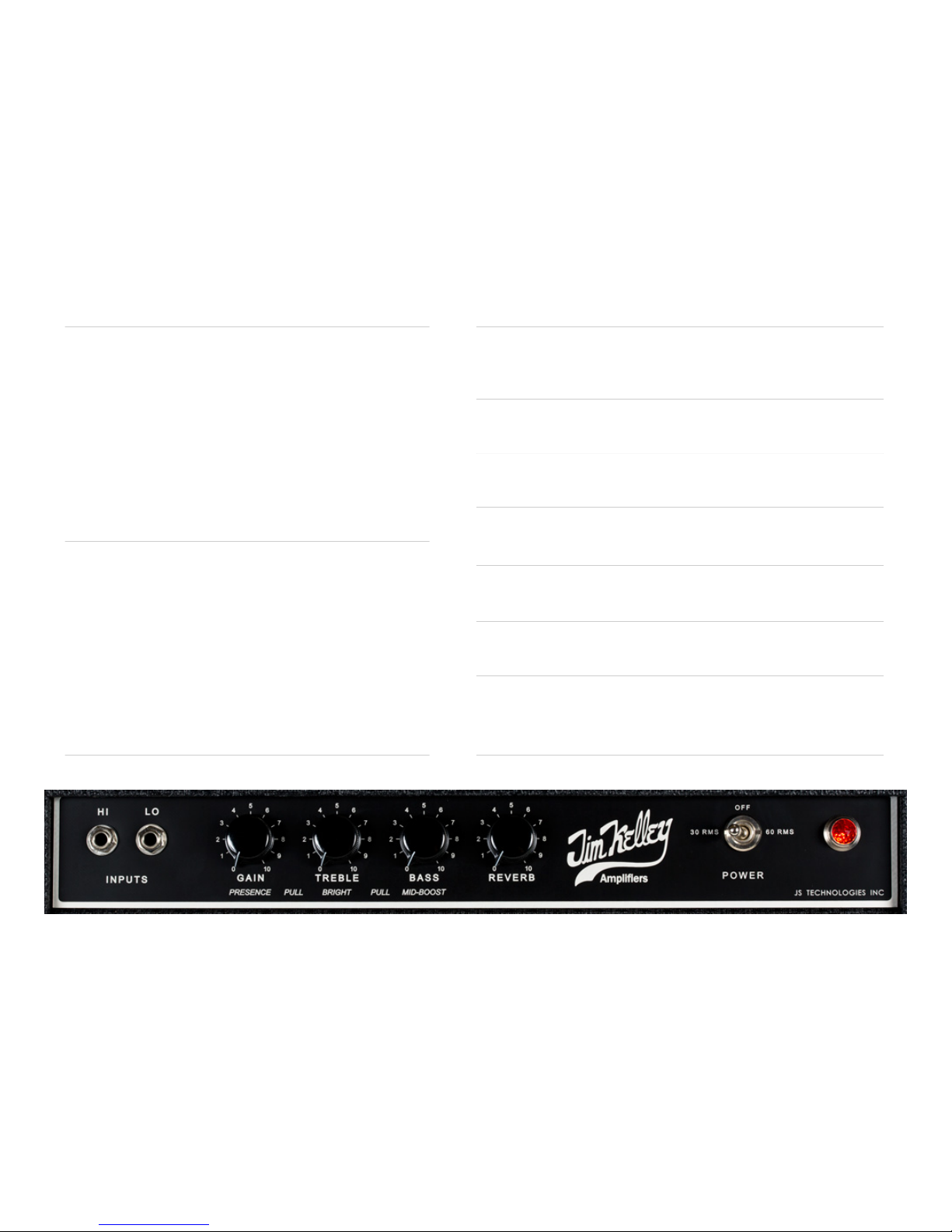

Gain

Operates as an overdrive and a volume control. !This is

responsible for adding harmonic sustain, richness and

depth at higher gain settings.

Presence

(pull Gain)

Located on the Gain control, this adds high frequencies by

altering the power section’s negative feedback.

Treble

Adjusts the boost and cut of treble frequencies. When

control is set to “5”, treble response is considered ﬂat.

Bright

(pull Treble)

Located on the Treble control, this provides an additional

boost of treble for a glassy edge to your sound.

Bass

Adjusts the boost and cut of bass frequencies. When control

is set to “5”, bass response is considered ﬂat.

Mid-Boost

(pull Bass)

Located on the Bass control, this adds thickness and

sustain for “fattening up” lead tones.

Reverb

Adjusts the amount of reverb effect that is added to the

original signal. Turning the knob fully clockwise will provide

the maximum reverb effect. !!

The power select switch offers the following three-positions:

30 Watts: !Amplifier operates at half power.

OFF:!"Power is switched off

60 Watts:"Amplifier operates at full power

NOTE: In 30-watt position, only the middle two 6V6 output

tubes are used.

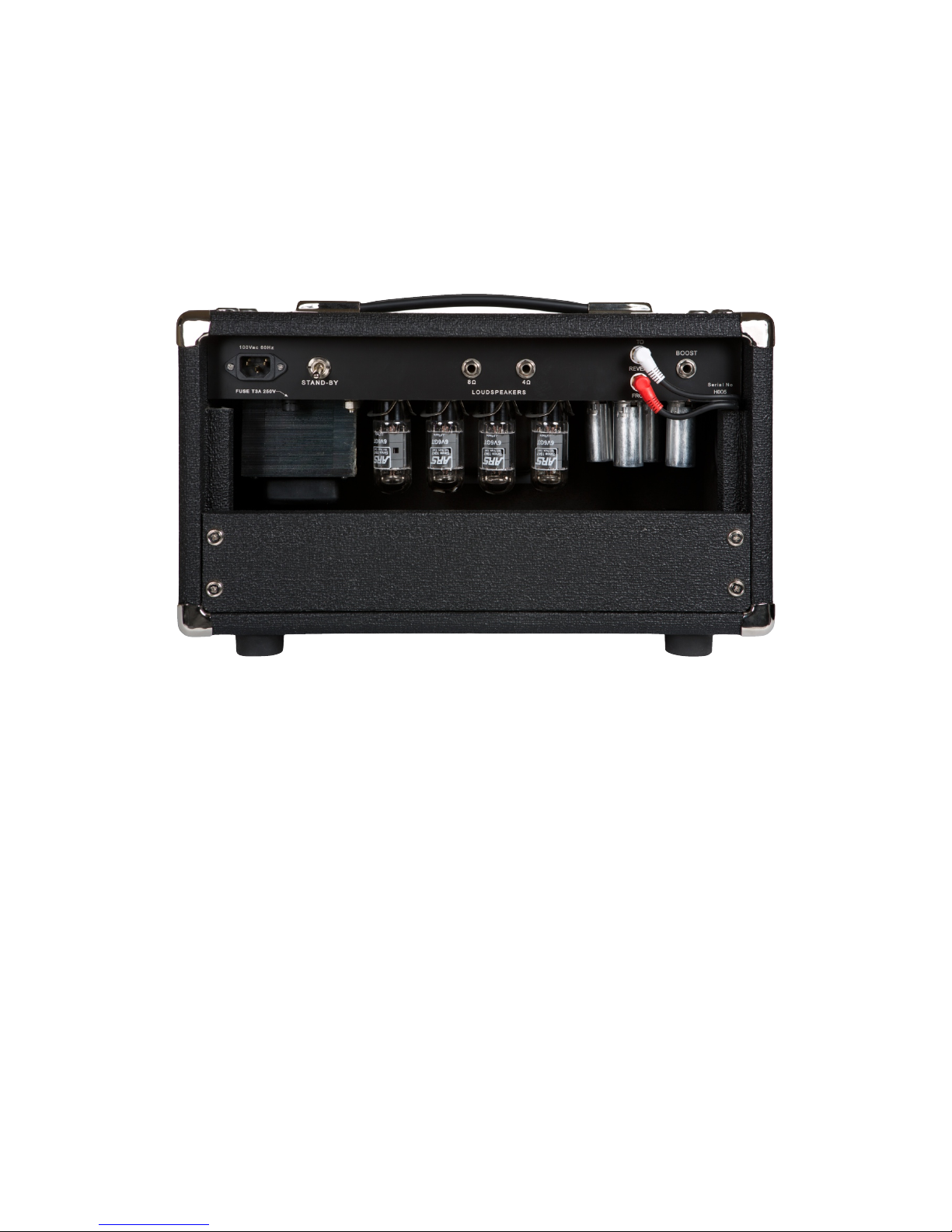

Standby

(located on

the back)

With the Power switch in the OFF position and the Standby

switch in the Standby position, ﬂip the power switch to ON.

Wait sixty seconds, then ﬂip the Standby switch to the ON

position.* To power down, simply switch the power switch to

the OFF position.

* This will prolong tube life.

NOTE: To avoid loud popping or damage, ensure the

ampliﬁer is in the Standby position.

Power Select Switch

TONE CONTROLS

Inputs

HI: "Use this input for guitars with passive or high impedance pickups.

LO: "Use this input for guitars with active or low impedance pickups.

Boost (located on the back)

Provides a Post-EQ boost in gain to the output section for more saturation

while leaving the pre-amp clean and punchy.

NOTE: Boost function requires a latching on/off foot switch to activate.

Tubes

The single channel tube complement consists of four 6V6 power tubes, three

12AX7 and one 12AT7 preamp tubes.

Speaker Outputs:

The single channel has two loudspeaker outputs and utilizes a custom built

output transformer and has two loudspeaker outputs (one 8Ωand one 4Ω) to

interface with a variety of speaker cabinet options.

Optimum Speaker Load Impedances

60 Watts (switch to the right)

8Ωoutput into 8Ωspeaker cabinet

4Ωoutput into 4Ωspeaker cabinet

30 Watts (switch to the left)

8Ωoutput into 16Ωspeaker cabinet

4Ωoutput into 8Ωspeaker cabinet

IMPORTANT: To avoid damage to your ampliﬁer,

do not operate without a speaker or suitable load. !

Tube Reference Chart:

V1 - 12AX7A/7025 Pre-amp

V2 - 12AT7 Reverb

V3 - 12AX7A/7025 Reverb recovery amp and mixer amp

V4 - 12AX7A/7025 Phase Inverter/Driver

V6-V9 - 6V6 Power Tubes

SAMPLE SETTINGS

CLEAN & PUNCHY: Gain 3, Presence On, Treble: 3.2, Bright: Off, Bass: 6.5, Mid-Boost: Off, Reverb: 4, Power: 60w

CRUNCH: Gain: 5.5, Presence On, Treble: 3, Bright Off, Bass: 4.5, Mid-Boost: Off, Reverb: 0, Power: 30w

LEAD: Gain: 8, Presence On, Treble: 3, Bright On, Bass: 3, Mid-Boost: On, Reverb: 0, Power: 30w

SPECIFICATIONS:!

Output: 30/60 Watts

Tubes: 4-6V6, 3-12AX7 & 1-12AT7

Fuse: 3 Amp Slo-Blo

Front Panel: Inputs, Gain, Treble, Bass, Reverb, Power Select and Power Indicator

Back Panel: Mains Inlet, Standby, Speaker Outputs, Reverb (send and return) and Boost jack.

Dimensions: W - 18 ⅝” x H - 11.25” x D - 10.5”

Weight: 41 lbs.

Options: Jim Kelley Power Attenuator, Jim Kelley Power Attenuator Activation Footswitch
