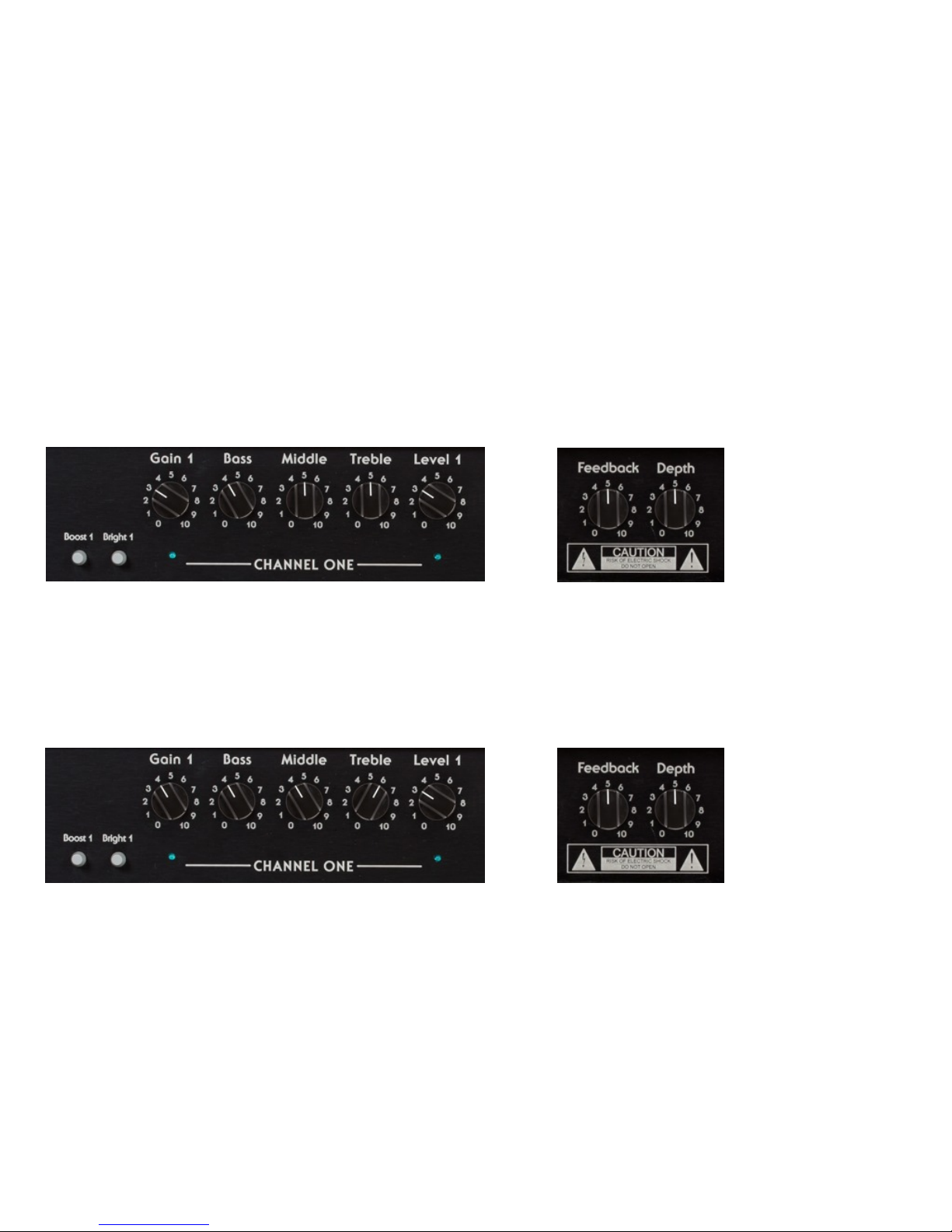

Feedback
A speaker dampening control, that adjusts the overall feel of the power amp section.
Turning it clockwise from the center offers a tighter more aggressive response.!
Turning it counterclockwise from center makes it spongier with more of a vintage sag
and feel.
Depth
Adjusts the amount of low-end boost added to your amplifiers power section. This will
provide more bottom end while retaining clarity.
Effects Loop
The OD-100 CL+ comes standard with a tube buffered series effects loop which
performs well with pedals and line-level rack gear. The return level control acts as the
CL+’s master volume while the channel level controls become your send levels.
Speaker Outputs
The OD-100 CL+ has individual speaker outputs, therefore you must choose
the appropriate speaker output jack(s) depending on the impedance (Ω) of your
cabinet(s).
One 16 Ωcabinet, use the 16 Ωoutput jack.
Two 16 Ωcabinets, use both 8 Ωoutput jacks.
One 8 Ωcabinet, use one 8 Ωoutput jack.
Two 8 Ωcabinets, use both 4 Ωoutput jacks.
One 4 Ωcabinet, use one 4 Ωoutput jack.
Two 4 Ωcabinets, the OD-100 CL+ will not work with a 2 Ωload.
Important: To avoid damage to your amplifier, do not operate without a speaker or suitable
load. !Doing so may cause your warranty to be void.
