SUMMERSET REFRIGERATOR INSTALLATION INSTRUCTIONS
& OWNERS MANUAL
21” 4.5 COMPACT REFRIGERATOR W/ REVERSIBLE DOOR
NAME:
SSRFR-21S
PART #:
THANK YOU
Thank you for your purchase. We’d like to welcome you to the Summerset family of luxury outdoor
kitchen products and look forward to being a part of your home for years to come. As a family business
with over 30 years of industry experience, we aim to deliver exceptional quality and personal service.
Welcome to the Summerset family and we hope you love your new refrigerator!
INSTALLER:
Please leave this manual for the owner.
Serial Number:
Model:
Date of Purchase:
Place of Purchase:
To view on your phone, scan the QR code on your smart phone’s
camera app. (For Android devices, use Google Lens.)
For warranty information and to register your refrigerator
visit, Summersetgrills.com/register/refrigeration

1. Child entrapment and suffocation
are not problems of the past. Junked
or abandoned appliances are still
dangerous, even if they will “just sit for
a few days”
2. Before discarding your old refrigerator:
Take out the drawers
3. Before you throw away your old
refrigerator: Take off the doors. Leave
the shelves in place so that children may
not easily climb inside.
RISK OF CHILD ENTRAPMENT
WARNING!
1. Stainless steel models exposed to
chlorine gas and moisture such as areas
with spas or swimming pools, may have
some discolorations of the stainless
steel. Discoloration from chlorine gas is
normal.
2. NEVER USE CHLORIDE TO CLEAN
STAINLESS STEEL
CAUTION!
• Plug into a grounded 3 prong outlet,
do not remove prong, do not use an
adapter and do not use an extension
cord.
• Replace all panels before operating
• It is recommended that a separate circuit
serving only your appliance be provided.
Use receptacles that cannot be turned
off by a switch or pull chain.
• Never clean appliance parts with
flammable fluids. These fumes can
create a fire hazard or explosion.
• Do not store or use gasolines or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
The fumes can create a fire hazard or
explosion.
• Do not connect or disconnect the
electric plug when your hands are wet.
• Unplug the appliance or disconnect
power before cleaning or servicing.
Failure to do so can result in electrical
shock or death.
• Do not aempt to repair or replace
any part or your appliance unless it
is specifically recommended in this
manual. All other servicing should be
referred to a qualified technician.
WARNING!
Before the appliance is used, it must be
properly positioned and installed as described
in this manual, so read the manual carefully.
To reduce the risk of fire, electrical shock or
injury when using the appliance, follow basic
precautions, including the following:
SAFETY AND INSTALLATION INSTRUCTIONS
• The appliance should be located in the
coolest area of the room or outdoor location,
away from heat producing appliances and
out of direct sunlight.
• Ensure that the unit is adequately ventilated.
Never cover air vents.
• Do not keep the drawer open any longer
than necessary.
• Let hot foods cool to room temperature
before placing in the unit. Overloading the
unit forces the compressor to run longer.
• Be sure to wrap foods properly and wipe
containers dry when placing them in the
unit. This cuts down on frost build up in side
the unit.
• Unit drawers should not be lined with
aluminum foil, wax paper or paper toweling.
• Liners interfere with cold air circulation,
making the unit less efficient.
• Organize and label stored items reduce
drawer openings and extend searches.
• Remove as many items as needed at one
time and close the drawer as soon as
possible.
ENERGY SAVING TIPS
FOLLOW WARNING CALL OUTS BELOW ONLY
WHEN APPLICABLE TO YOUR MODEL
• Use two or more people to move and
install appliance. Failure to do so can
result in back or other injury.
• To ensure proper ventilation for your
appliance, the front of the unit must be
completely unobstructed.
• Choose a well-ventilated area with
temperatures above 60°F (16°C) and
below 90°F (32°C).
WARNING!

GENERAL SAFETY REQUIREMENTS
• The appliance should not be located next
to ovens, grills or other sources of high
heat.
• The appliance must be installed with all
electrical, water and drain connections in
accordance with state and local codes. A
standard electrical supply (115 V AC only,
60HZ), properly grounded in accordance
with the National Electrical Code and local
codes and ordinances is required.
• Do not kink or pinch the power supply cord
of the appliance.
• The size of the fuse (or circuit breaker)
should be 1.3 amperes.
• It is important that the appliance be leveled
in order to work properly. You may need to
make several adjustments to level it.
• All installations must be in accordance with
local plumbing code requirements.
• Make certain that the pipes are not pinched,
kinked or damaged during installation.
• Check for leaks aer connection.
• Never allow children to operate, play with
or crawl inside the appliance.
• Do not use solvent-based cleaning agents
or abrasives on the interior. These cleaners
may damage or discolor the interior.
• Use this appliance only for its intended
purposes as described in this instruction
manual.
• Keep fingers out of the “pinch point”
areas. Clearances between the drawer and
cabinet are necessarily small. Be careful
closing drawer when children are in the
area.
• Do not store or use gasoline or any other
flammable vapors and liquids in the
vicinityof this or any other refrigerator. The
fumes can create a fire hazard or explosion.
Improper use of the grounded plug can
result in the risk of electrical shock. If the
power record is cord is damaged, have it
replaced by a qualified or an authorized
service dealer.
WARNING!

TABLE OF CONTENTS
Replacement Parts List
Exploded View
Before Operating
Installation
Gas Requirements
Lighting The Power Burner
Maintenance Tips
Power Burner Features
Warranty
1
2
3
4
6
9
9
11
12

BEFORE OPERATING
SHIPMENT ARRIVING DAMAGED:
IMPORTANT NOTES:
VISIBLE DAMAGE
If your shipment arrives with visible damage to
the box/carton, be sure the damage is noted on
the bill of freight or express receipt and signed
by the person making the delivery. File claim for
damages immediately, regardless of the extent of
damage.
CONCEALED DAMAGES
If damages are unnoticed until the refrigerator is
unpacked, notify the transportation company or
carrier immediately and file a concealed damage
claim with them. This should be done within (5)
days of the delivery date. Be sure to hold on to
the box/carton for inspection. We cannot assume
responsibility for damage or loss incurred in
transit.
Remove the exterior and interior packing.
Before connecting the appliance to the power
source, let it stand upright for approximately
24 hours. This will reduce the possibility of a
malfunction in the cooling system from handling
during transportation.
Clean the interior surface with lukewarm water
using a so cloth.
Install the handle on the drawer if not already
aached.
• Remove the exterior and interior packing.
• Check to be sure you have all of the following
parts:
• 3 Shelves
• 1 Glass Lid
• 1 Crisper
• 1 Instruction Manual
• Before connecting the unit to the power
source, let it stand upright for approximately
2 hours. This will reduce the possibility of
a malfunction in the cooling system from
handling during transportation.
• Clean the interior surface with lukewarm
water using a so cloth.
• This appliance is designed to be free standing
only, and should not be recessed or built-in.
• Allow 5 inches of space between the back
and sides of the unit, which allow proper
air circulation to cool compressor and
condenser.
• Place your unit on a floor that is strong
enough to support the unit when it is fully
loaded. To level your unit, adjust the two
leveling legs at the boom of the unit.
BEFORE USING YOUR APPLIANCE
BEFORE INSTALLING YOUR UNIT
INSTALLING YOUR UNIT
It is recommended that you install the appliance in
a place where the ambient temperature is between
60°F and 90°F (16°C-32°C). If the ambient
temperature is above or below recommended
temperatures, the performance of the unit may
be affected. For example, placing your unit in
extremely cold or hot conditions may cause
interior temperatures to fluctuate. The operating
temperature range may not be reached.
PARTS AND FEATURES
1. Interior Light Cover
2. Temperature Control
Knob
3. Wire Shelves
4. Glass Shelf
5. Drawer
6. Leveling Leg
7. Door Bar (2)
8. Can Dispenser
9. Condiment Bar
10. Door
11. Boom Hinge
12. Top Hinge
13. Top Hinge Cover

BEFORE OPERATING
This refrigerator can be opened either from the
le or right side. The default way of opening the
zdoor is from the right side. If you want to open
the door from the le side, please follow the
instructions below.
NOTE: All the removed parts must be well kept for
the re-installation of the door
• Remove the three screws (6) that hold the
lower door hinge (5), keep the hinge for later
use.
• Remove the door from the upper pin (3), and
keep the padded surface upwards to prevent
the scratching
• Remove the upper hinge cover (1), remove
the two screw (2), hold the upper hinge(3),
save the hinge for later use.
• Remove the hole cover (1) and transfer it to
the same location on the opposite side.
• Insert the lower door hinge in the right side,
fix the lower right hinge by tightening all the
screws.
• Remove the pin cap (9) from the right side
of the upper frame of the door, and then
transfer it to the same location on the
opposite side.
• Put the door on the Lower Door Hinge(5),
keep the door level , and then fix the upper
hinge(3) to the body(4) by the screws
• Put on the upper hinge cover(1).
• Your unit has only one control for regulating
the temperature in the compartment. The
temperature control is located on the upper
right hand side of the compartment.
• The first time you turn the unit on, set the
temperature control to “6”.
• The range of the temperature control is from
position “OFF” to “6”. Aer 24 to 48 hours,
adjust the temperature control to the seing
that best suites your needs. The seing of “3”
should be
• To turn the appliance off, turn the
temperature control to ”OFF”.
REVERSING THE DOOR SWING OF YOUR
APPLIANCE
SETTING THE TEMPERATURE CONTROL

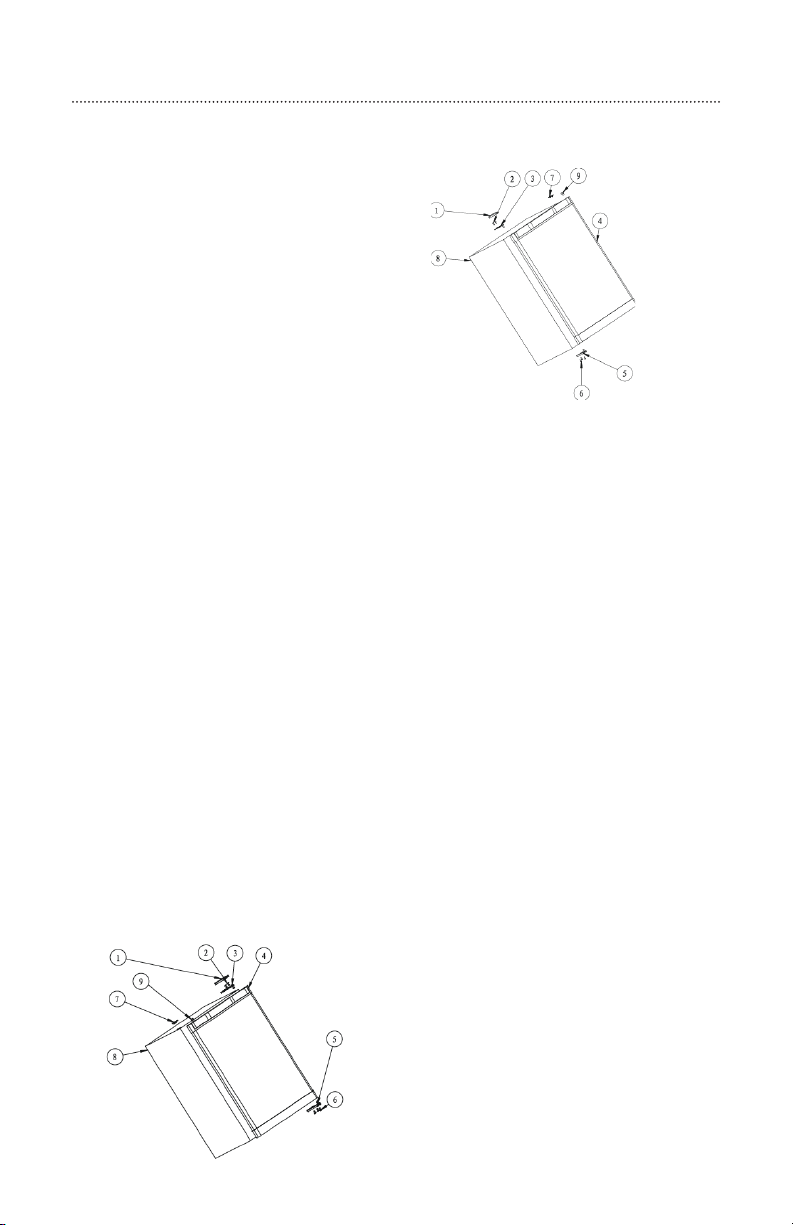

FIGURE 2 (POSITION AFTER DOOR REVERSAL)
1. Upper hinge cover
2. Screw
3. Upper hinge
4. Door
5. Lower Door Hinge
• Locate the unit away from direct sunlight and
sources of heat (stove, heater, radiator, etc.).
Direct sunlight may affect the acrylic coating
and heat sources may increase electrical
consumption. Extreme cold ambient
temperatures may also cause the unit not to
perform properly.
• Avoid locating the unit in moist areas.
• Plug the unit into an exclusive, properly
installed-grounded wall outlet. Do not
under any circumstances cut or remove
the third (ground) prong from the power
cord. Any questions concerning power and/
or grounding should be directed toward a
certified electrician or an authorized Products
service center.
• Aer plugging the appliance into a wall
outlet, allow the unit to cool down for 2-3
hours before placing food in the refrigerator
compartment.
FIGURE 1 (NORMAL POSITION)
6. Screw
7. Hole cover
8. Cabinet
9. Pin cap
• Turning the temperature control to “OFF”
position stops the cooling cycle but does not
shut off the power to the unit.
• If the unit is unplugged, has lost power, or
is turned off, you must wait 3 to 5 minutes
before starting the unit. If you aempt to
restart before this time delay, the unit will not
start.
NOTE

CARE AND MAINTENANCE
CAUTION
Do not use boiling water because it may damage
the plastic parts. In addition, never use a sharp
or metallic instrument to remove frost as it may
damage the cooling system and will void the
warranty. We recommend using a plastic scraper.
Failure to unplug the unit could result in electrical
shock or personal injury.
CAUTION
CLEANING YOUR UNIT
ENERGY SAVING TIPS
WIRING DIAGRAM
• Turn the temperature control to “OFF”,
unplug the unit, and remove the food, shelf,
and tray.
• Wash the inside surfaces with a warm water
and baking soda solution. The solution
should be about 2 tablespoons of baking
soda to a quart of water.
• Wash the shelf and tray with a mild detergent
solution.
• The outside of the unit should be cleaned
with mild detergent and warm water.
• Wring excess water out of the sponge or cloth
before cleaning the area of the controls, or
any electrical parts.
• Wash the outside cabinet with warm water
and mild liquid detergent. Rinse well and
wipe dry with a clean so cloth.
• The unit should be located in the coolest
area of the room, away from heat producing
appliances, and out of the direct sunlight.
• Let hot foods cool to room temperature
before placing in the unit. Overloading the
unit forces the compressor to run longer.
• Be sure to wrap foods properly, and wipe
containers dry before placing them in the
unit. This cuts down on frost build-up inside
the unit.
• Unit storage bin should not be lined with
aluminum foil, wax paper, or paper toweling.
Liners interfere with cold air circulation,
making the unit less efficient.
• Organize and label food to reduce door
openings and extended searches. Remove as
many items as needed at one time, and close
the door as soon as possible.
Most power failures are corrected within a few
hours and should not affect temperature of your
appliance if you minimize the number of times the
drawer is opened. If the power is going to be off
for a longer period of time, you need to take the
proper steps to protect the contents.
Short Vacations: Leave the appliance operating
during vacations of less than three weeks.
Long Vacations: If the appliance will not be used for
several months, remove all items and turn off the
appliance. Clean and dry the interior thoroughly.
To prevent odor and mold growth, leave the drawer
open slightly, blocking it open if necessary.
• Remove all items
• Securely tape down all loose items inside
your appliance
• Turn the adjustable legs up to the base to
avoid damage
• Tape the drawer shut
• Be sure the appliance stays secure in the
upright position during transportation. Also
protect the outside of the appliance with a
blanket or similar item.
POWER FAILURE
VACATION TIME
MOVING YOUR APPLIANCE
