Summit DW18 User manual
P R O F E S S I O N A L
Use and Care Manual
Dishwasher
USA
To prevent accidents, which could cause serious injury or death, as well as
machine damage read these instructions before installation and / or use.
Contents
1. IMPORTANT SAFETY INSTRUCTIONS 1
2. INSTALLATION 3
3. GETTING TO KNOW YOUR DISHWASHER 4
4. LOADING THE DISHWASHER 5
4.1 UPPER RACK 6
4.2 LOWER RACK 7

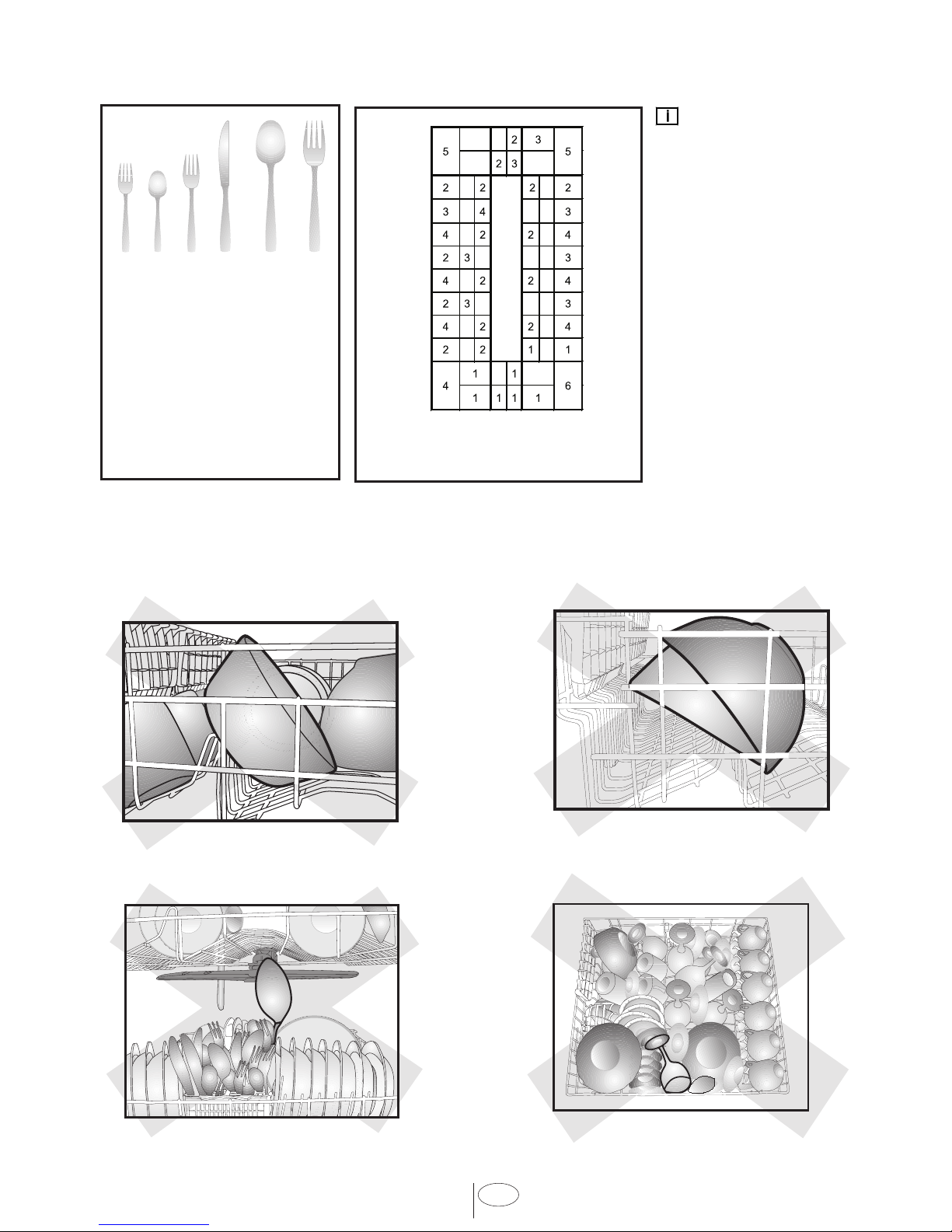

4.3 PROPER AND IMPROPER LOADING OF DISHWARE 10
5. WHAT SHOULD NOT BE WASHED IN YOUR DISHWASHER 11
6. OPERATING THE DISHWASHER 12
7. DETERGENT & RINSE AID DISPENSER 15
7.1 FILLING THE DETERGENT DISPENSER 15
7.2 FILLING RINSE AID DISPENSER 16
8. SETTING THE WATER SOFTENER (MODEL DEPENDING) 17
9. FILLING THE DISHWASHER SALT DISPENSER (MODEL
DEPENDING) 18
10. CARE AND MAINTENANCE 19
10.1 CARING FOR YOUR DISHWASHER EXTERIOR 19
10.2 CARING FOR YOUR DISHWASHER INTERIOR 19
11. TROUBLE SHOOTING 21
12. TECHNICAL FEATURES 27
13. WARRANTY STATEMENT FOR THE SUMMIT DISHWASHERS 28
14. HOW TO GET SERVICE 29
1USA
INTRODUCTION
Please read this user manual and
particularly the safety instructions
completely and carefully. They will save you
time and effort and help to ensure optimum
dishwasher performance.
Be sure to observe all listed warnings and
cautions. Look particularly for the icons with
exclamation marks inside. The information
icon will also provide important references.
1. IMPORTANT SAFETY
INSTRUCTIONS
WARNING
When using the dishwasher, follow
basic precautions, including the
following:
Read all instructions before using the
dishwasher! Save these operating
instructions and pass them on to any
future user.
• Use the dishwasher only for its intended
purpose as described in this user
manual. This appliance is intended for
normal household use only.
• The manufacturer disclaims
responsibility for damage or injury
caused by improper use of this
appliance.
• The information in this user manual must
befollowedtominimizetheriskofre
or explosion and to prevent property
damage, personal injury or loss of life.
• Do not operate your dishwasher unless
all the enclosure panels are properly in
place.
• Do not tamper with the controls.
• Do not abuse, sit on, stand in or on the
door or dish rack of the dishwasher.
• The cup racks are designed to support
cups, glasses and kitchen utensils. When
the cup racks are in the dishwasher
do not lean on or use the cup racks to
support your body weight.
• To reduce the risk of injury, do not
allow children to play in, on or near the
dishwasher.
• Use only detergents or rinse aids
recommended for use in a household
dishwasher and keep them in a dry place
out of the reach of children. Check that
the detergent dispenser is empty after
the completion of each wash program.
• Dishwasher detergents are alkaline.
They can be dangerous if inhaled or
swallowed. Avoid contact with skin
andeyesandkeepchildrenandinrm
WARNING:
Indicates a potentially hazardous situation
which, if not avoided, could result in death
or serious injury.
CAUTION :
Indicates a potentially hazardous situation
which, if not avoided, may result in injury.
It may also be used to alert against unsafe
practices.
Notice :
Indicates a potentially hazardous situation
which, if not avoided, may result in damage
to the dishwasher, the table-ware, the
equipment or the environment.
2USA
persons away from the dishwasher
when the door is opened. Consult a
doctor immediately if detergent has been
swallowed or inhaled.
• Do not drink water from the dishwasher!
Harmful residues could be present.
• Under certain conditions hydrogen gas
may be produced in a hot water heater
system that has not been used for
two weeks or more. Hydrogen gas is
explosive. If the hot water system has not
been used for such period, before using
the dishwasher turn on all hot water
tapsandletthewaterowfromeachfor
several minutes. This will release any
accumulated hydrogen gas. As gas is
ammable,donotsmokeoruseanopen
ameduringthistime.
• Donotstoreoruseammableliquidsor
vapors in the area of the dishwasher.
• When loading items to be washed,
position sharp items so that they are
not likely to damage the door seal and
load sharp knives with the handles up to
reduce the risk of cut-type injuries.
• Do not wash plastic items unless they
are marked “dishwasher safe” or the
equivalent. For plastic items not so
marked, check the manufacturer’s
recommendations.
• If a malfunction occurs, switch off the
appliance and turn off the water supply to
the dishwasher.
• Before cleaning or carrying out
maintenance, switch off the appliance,
disconnect the power plug and turn off
the water supply.
• Repairsandtechnicalmodicationsmust
becarriedoutexclusivelybyaqualied
technician.
• If the dishwasher is not in use for an
extended period of time (i.e. vacation
home), we recommend you check that
the baskets are empty, leave the inside
of the dishwasher clean, leave the door
cracked open to allow air to circulate and
turn off both the power and water supply
to the dishwasher.
• This appliance must be grounded. In the
event of a malfunction or breakdown,
grounding will reduce the risk of electric
shock by providing a path of least
resistance for electric current. This
appliance is equipped with a cord having
an equipment-grounding conductor and
a grounding plug. The plug must be
plugged into an appropriate outlet that
is installed and grounded in accordance
with all local codes and ordinances.
• This appliance must be connected to
a grounded metal, permanent wiring
system, or an equipment-grounding
conductor must be run with the circuit
conductors and connected to the
equipment-grounding terminal or lead on
the appliance.
WARNING
• Improper connection of the
equipment-grounding conductor
can result in a risk of electric shock.
Check with a qualied electrician
or service representative if you are
in doubt whether the appliance is
properly grounded. Do not modify
the plug provided with the appliance,
if it will not t the outlet, have a
proper outlet installed by a qualied
electrician.
SAVE THESE INSTRUCTIONS
3USA
2. INSTALLATION
WARNING
When installing the dishwasher, follow
basic precautions, including the
following:
• The dishwasher installation must be
performed in accordance with the
installation manual. If you did not receive
an installation manual order it by calling
1-800-- or you may also download
it from our web site at
www.VXPPLWappliances.com
• Installation, maintenance and repair should
beperformedbyaqualiedinstaller.Work
byunqualiedpersonscouldbedangerous
and may void the warranty.
• Do not operate the appliance if damaged,
malfunctioning, partially disassembled or if
it has missing or broken parts.
• Before installation or service, disconnect
the power supply to the work area by
unplugging the unit, “tripping” the circuit
breaker or removing the fuse.
• Only connect the dishwasher to the power
supply when all installation and plumbing
work is complete.
• Do not install or store the dishwasher
where it can be exposed to below freezing
temperatures or exposed to weather.
• Dishwasher must be secured to adjacent
cabinetry using the brackets provided.
Failure to do this may cause damage to
property or bodily injury.
• Connect to a properly rated, protected
and sized power supply circuit to avoid
electrical overload. The dishwasher is
designed for an electrical supply of 120 V
(volts), 60 Hz (hertz), AC, connected to a
dishwasher-dedicated, properly grounded
electrical circuit with a fuse or breakers
rated for 15 amperes. Electrical supply
conductors shall be a minimum of # 16
AWG copper wire rated at 75 °C (167 °F)
or higher. These requirements must be met
to prevent injury and machine damage.
Consultaqualiedelectricianifindoubt.
• Do not use any extension cord or portable
outlet device to connect the dishwasher to
a power supply.
WARNING
Danger of suffocation!
Ensure that any plastic wrappings, bags,
small pieces etc. are disposed of safely
and kept out of the reach of children.
• Remove the door to the washing
compartment when removing an old
dishwasher from service or discarding it.
Ensure that the appliance presents no
danger to children while being stored for
disposal.
• Old appliances may contain materials
that can be recycled. Please contact
your local recycling authority about the
possibility of recycling these materials.
