Summit AZRF7W User manual

COMBINATION REFRIGERATOR-FREEZER
WITH ALLERGY-FREE ZONE
Model: AZRF7W
User Manual
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS
FELIX STORCH, INC.
An ISO 9001:2015 registered company
770 Garrison Avenue
Bronx, NY 10474
www.accucold.com

2
TABLE OF CONTENTS
Important Safeguards 3-4
Location of Parts 5
Technical Information 6
Installation Instructions 7-10
Before Using your Appliance 7
Installing your Appliance 7-8
Electrical Connection 8
Reversing the Door Swing of the Lower Unit (FF71ES) 9-10
Operating your Appliance 11
Care and Maintenance 11-12
Troubleshooting 13
Limited Warranty 16

3

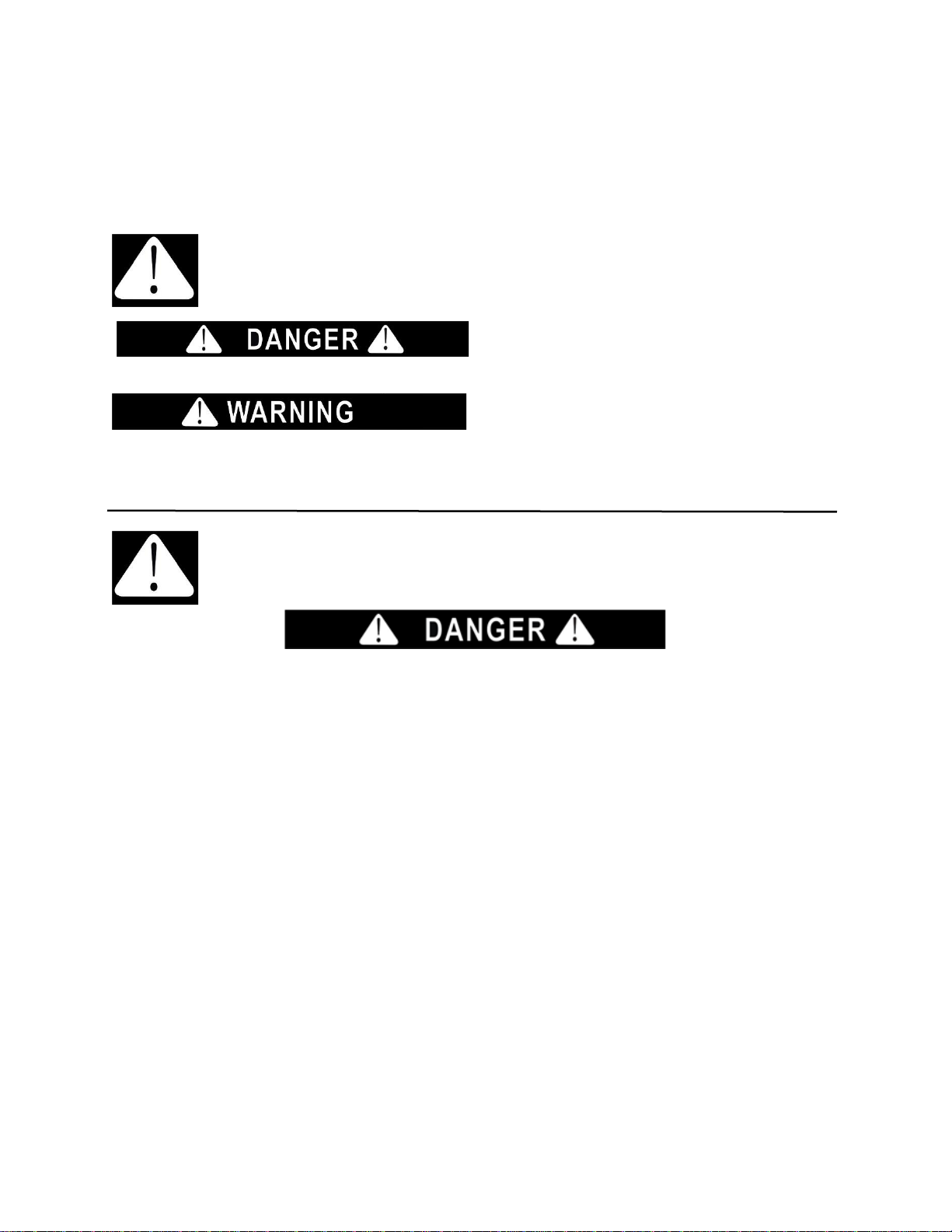

IMPORTANT SAFEGUARDS
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read
and obey all safety messages.
This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can kill or
injure you and others. All safety messages will follow the Safety Alert Symbol and either
the words DANGER or WARNING.
DANGER means that failure to heed this safety
statement may result in severe personal injury or
death.
WARNING means that failure to heed this safety
statement may result in extensive product
damage, serious personal injury, or death.
Safety messages will alert you to what the potential hazard is, tell you how to reduce the chance of injury,
and let you know what can happen if the instructions are not followed.
Before the refrigerator is used, it must be properly positioned and installed as described in
this manual, so read the manual carefully. To reduce the risk of fire, electrical shock or
injury when using the refrigerator, follow basic precautions, including the following:
•Plug into a grounded 3-prong outlet. Donot removegrounding prong, do not usean adapter, and do not
use an extension cord.
•It is recommended that a separate circuit, serving only your refrigerator, be provided.
•Use receptacles that cannot be turned off by a switch or pull chain.
•Never clean the refrigerator parts with flammable fluids. These fumes can create a fire hazard or
explosion. And do not store gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance. The fumes can create a fire hazard or explosion.
•Beforeproceeding with cleaning and maintenance operations, makesurethe power lineof theunitis
disconnected.
•Do not connect or disconnect the electric plug when yourhands are wet.
•Unplug the refrigerator or disconnect the power before cleaning or servicing. Failure to do so can
result in electrical shock or death.
•Do not attempt to repair or replace any part of your refrigerator unless it is specifically recommended
in this manual. All other servicing should be referred to a qualified technician.
•The FFAR23L is CFC- and HFC-free and contains small quantities of Isobutane (R600a), which is
environmentally friendly, but flammable. It does not damage the ozone layer, nor does it increase the
greenhouse effect. Care must be taken during transportation and setting up of the appliance that no
parts of the cooling system are damaged. Leaking coolant can ignite and may damage theeyes.

4
•In the event of anydamage:
oAvoid open flames and anything that creates a spark,
oDisconnect from the electrical power line,
oAirtheroom inwhich theapplianceislocatedforseveralminutes,and
oContact theService Departmentfor advice.
•The more coolant there is in an appliance, the larger the room it should be installed in. In the event of
a leakage, if the appliance is in a small room, there is the danger of combustible gases building up.
For every ounce of coolant at least 325 cubic feet of room space is required. The amount of coolant in
the appliance is stated on the data plate on the back of the appliance. It is hazardous for anyone other
than an authorized Service Person to carry out servicing or repairs to this appliance.
•Take serious care when handling, moving, and using the appliance to avoid either damagingthe
refrigerant tubing or increasing the risk of a leak.
•Replacing component parts andservicing shallbe done byfactory authorized service personnel soasto
minimizetherisk ofpossibleignitionduetoincorrectpartsor improper service.
• Use two or more people to move and install the refrigerator. Failure to do so can result in back or
other injury.
• To ensure proper ventilation for your refrigerator, the front of the unit must be completely
unobstructed. Choose a well-ventilated area with temperatures above 60° F (16° C) and below 90° F
(32° C). This unit must be installed in an area protected from the elements, such as wind, rain, water
spray or drips.
• The refrigerator should not be located next to ovens, grills or other sources of high heat.
• The refrigerator must be installed with all electrical connections in accordance with state and local
codes. A standard electrical supply (115V AC only, 60 Hz), properly grounded in accordance with the
National Electrical Code and local codes and ordinances, is required.
• Do not kink or pinch the power supply cord of the refrigerator.
• Thefuse (or circuit breaker) size should be 15 amperes.
• It is important for the refrigerator to be leveled in order to work properly. You may need to make
several adjustments to level it.
• Never allow children to operate, play with or crawl inside the refrigerator.
• Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners maydamage or
discolor the interior.
• Do not use this apparatus for other than its intendedpurpose.
Risk of child entrapment
Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still
dangerous, even if they will “just sit in the garage a few days.”
• Beforeyouthrowawayyouroldrefrigerator:Takeoff the doors. Leavethe shelves in place sothat
children may not easily climb inside.
• Never allow children to operate, play with, or crawl inside the refrigerator.
- SAVE THESE INSTRUCTIONS -

5

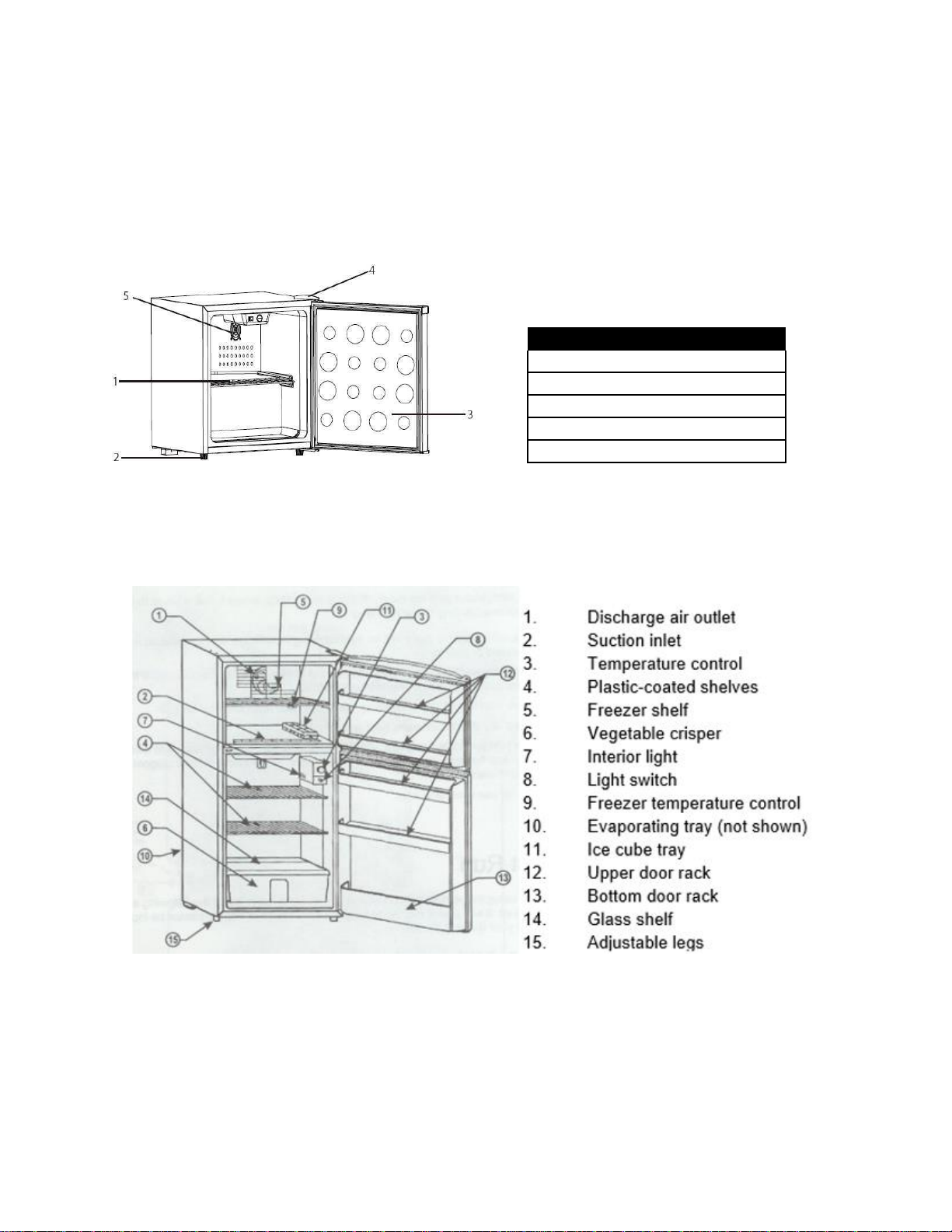

LOCATION OF PARTS
FFAR23L (Upper Refrigerator)
Item
Part Name
1
Shelf
2
Adjustable foot
3
Door
4
Hinge
5
Fan
This unit has a lock located on the front of the door
FF71ES (Lower Refrigerator-Freezer)

6
TECHNICAL INFORMATION
FFAR23L (Upper Refrigerator)
Model
FFAR23L
Capacity
1.7 cubic feet
Electrical Input
115V AC / 60Hz
Rated Current
1.0A
Refrigerant
R600a, 0.57oz
Installation
Free-standing
Unit Weight
35.2 lbs.
Unit Dimensions
18.9” W x 17.7” D x 20.6” H
NOTE: This unit is designed to be used as an allergy-free zone. It features a lock and two keys for
safe and secure storage. Included additionally are nine magnets (specifying no storage of
fish, shellfish, peanuts, tree nuts, gluten, dairy, wheat, soy, and eggs), which can be used to
designate which items should not be stored inside.
FF71ES (Lower Refrigerator-Freezer)
Model
FF71ES
Type
Compact Refrigerator-
Freezer
Capacity
4.8 cubic feet
Electrical Input
115V AC / 60Hz
Energy Consumption
346 kWh/yr.
Energy-Star Approved
Yes
Refrigerant
R134a, 2.8oz.
Installation
Free-standing
Unit Weight
102 lbs.
Unit Dimensions
18.75” W x 23” D x 45” H
•The total height of this unit is 67 ½”.
•The total weight of this unit it 143 pounds.

7
INSTALLATION INSTRUCTIONS
Before Using your Appliance
•Remove the exterior and interior packaging
•Check to be sure the refrigerator-freezer shelves in the FF71ES are installed and that the
strips of tape holding them in place have been removed.
•Check to be sure the FFAR23L has the following parts included:
o1 water drip tray
o1 removable shelf
o2 keys
•Before connecting the appliance to the power source, let it stand upright for at least 2 hours.
This will reduce the possibility of a malfunction in the cooling system from handling during
transportation.
•Clean the interior surfaces with lukewarm water using a soft cloth. Any plastic odor that you
notice when you first open the doors will dissipate once the appliance is operating.
Installing your Appliance
•This appliance is designed to be free-standing only, and should not be recessed or built-in.
•Place your appliance on a floor that is strong enough to support it when it is fully loaded. Be sure
the appliance is level. (Level your refrigerator- freezer by adjusting the legs at the front.)
•Allow at least 4” of clearance at the sides and the top, and 5” between the back of the unit and
the wall behind, which allows the proper air circulation to cool the compressor. This improves
cooling efficiency and saves energy.
•Do not cover the top of the unit with a mat or cloth. This will help maintain the operating
efficiency of the appliance.
•Locate the refrigerator away from direct sunlight and sources of heat (stove, heater, radiator,
etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Extremely cold ambient temperatures may also cause the refrigerator to perform
improperly.
•Avoid locating the refrigerator in moist areas.
•This refrigerator-freezer is equipped with a three-prong plug and is grounded to eliminate
electrical hazards. In order to make it effective, the unit must be plugged into a grounded
electrical outlet.
•Do not use an extension cord.
•After plugging the appliance into a wall outlet, allow the unit to cool down for 2 to3 hours before
placing food inside.
Test Run
Before using the FF71ES refrigerator-freezer, clean it and perform a test run to see if the following
steps can be completed. If not, check the electrical supply. If the cause of trouble cannot be located,
contact your Summit dealer.
1. Set the Temperature Control Knob to the OFF position and then plug theAC cord into an
electrical outlet of 115 volts, 60 Hz. The motor should notrun.

8
2. Set the Temperature Control Knob at the MAX position and let the unit operate for 20 minutes.
The freezer compartment should get slightly frosted, and the motor should run smoothly with a
soft hum.
3. Rotate the Temperature Control Knob counterclockwise toward the MIN position. Before the
pointer of the knob reaches the MIN position,the motor should turn off.
NOTE: This appliance is equipped with a special Thermostat Control Device. If the unit is turned off
or unplugged, YOU MUST ALLOW THREE (3) MINUTES BEFORE RESTARTING OR
REPLUGGING THE UNIT. The unit will not start if you attempt to restart it in less than three
minutes.

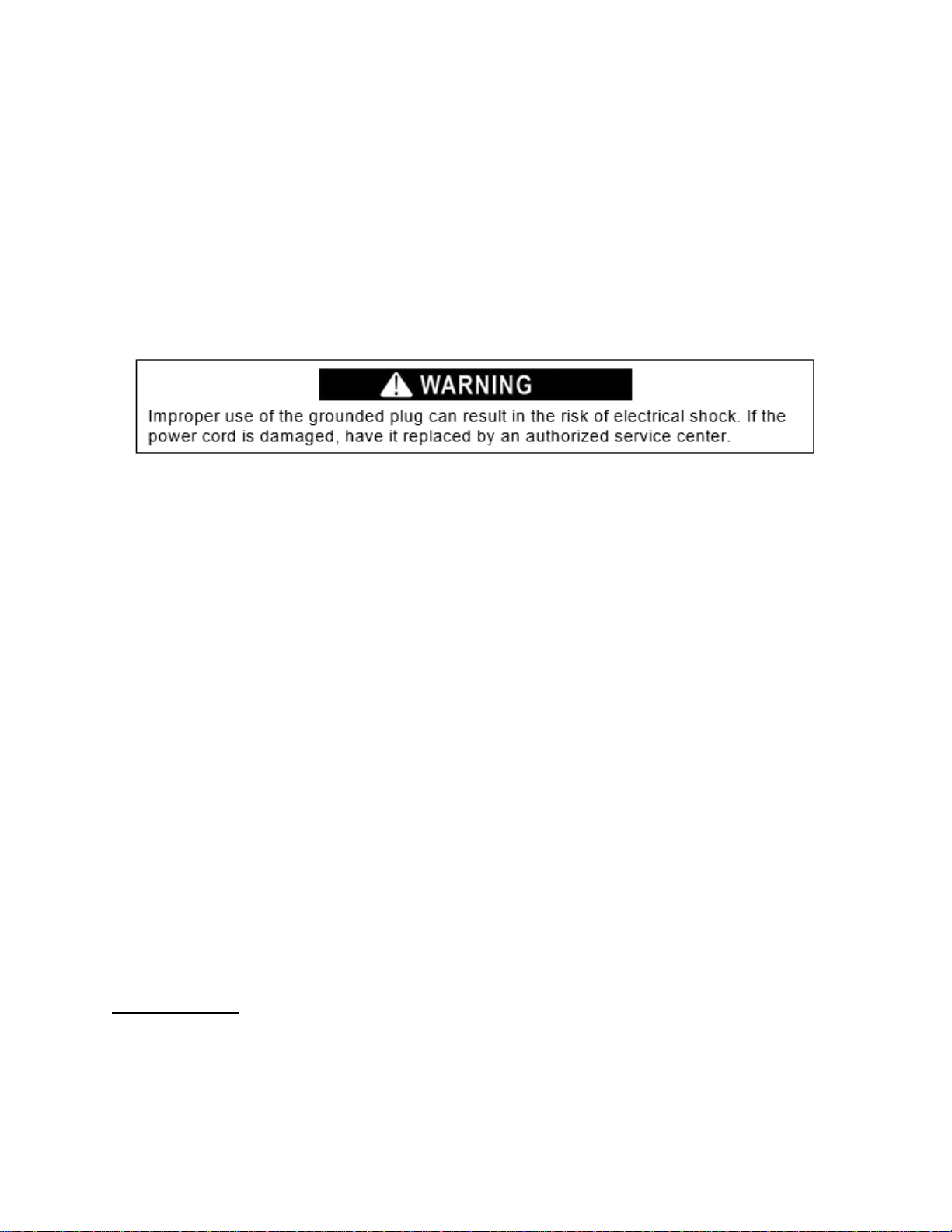

Electrical Connection
Thisunitshouldbeproperlygroundedforyoursafety.Thepowercordofthisunitis equipped witha
three-prongplugwhichmateswithastandardthree-prongwalloutletto minimize the possibilityof
electricalshock.
Donotunderanycircumstancescutorremovethethirdground prongfromthepower cordsupplied.For
personal safety, this appliancemust be properlygrounded.
This unit requires a standard 115-volt AC/60Hz electrical outlet with three-prong ground. Have the
wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.
When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation to have it
replaced with a properly grounded 3-prong wall outlet.
Topreventaccidentalinjury,thecordshouldbesecuredbehindtheunitandnotleft exposed or
dangling.
Theunitshouldalwaysbepluggedintoitsownindividualelectricaloutletwhichhasa voltage rating that
matches the rating label on the appliance. This provides the best performance and also prevents
overloading house wiring circuits that could cause a fire hazard from overheatedwires.Neverunplug
theunitbypullingonthepowercord.
Always grip the plug firmly and pull straight out from the receptacle. Repair or replace immediately
any power cord that has become frayed or otherwise damaged. Do not use a cord that shows cracks
or abrasion damage along its length or at either end. When moving the unit, be careful not to
damage the power cord.
Extension Cord
Do not use an extension cord with this appliance. If the power cord is too short, have a qualified
electrician or service technician install an outlet near the appliance.

9
Reversing the Door Swing of the Lower Unit (FF71ES)
The doors of the FF71ES refrigerator-freezer can be hinged on either side so that the door swing
can be suited to the location of the installation.
Tools Required:
•Standard screwdriver
•Large Phillips head screwdriver
•Socket wrench (3/8")

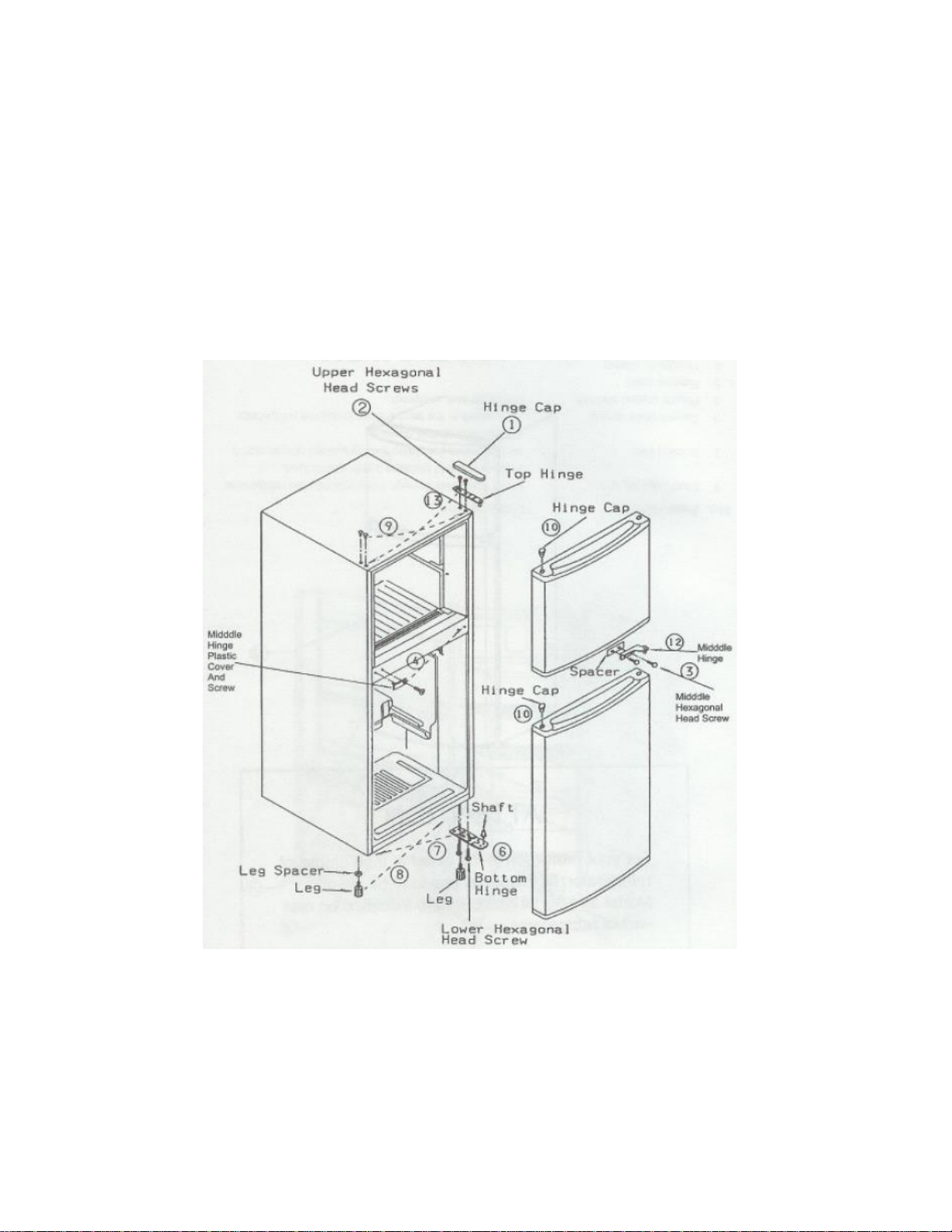

In order to reverse the position of the door hinges, refer to the disassembly diagram below, and
follow this procedure:
1. Remove the hinge cap by twisting it off.
2. Remove the upper hexagonal-head screws. The top hinge and the freezer door can now be
removed.
3. Remove the middle hexagonal screws. The middle hinge andthe refrigerator door can now be
removed.
4. Remove the cover for the middle hinge holes and re-attach it symmetrically to the holes on the
other side.

10
5. Tilt the refrigerator back or lay it on its back for steps 6, 7 and 8. Use apad or blanket to protect
the floor and to avoid scratching the paintedfinish.
6. Remove the leveling legs by turning them counterclockwise. Remove the lower hexagonal-head
screws, two on the hinge side and one near thefront corner of the other side.
7. Attach the bottom hinge symmetrically to the other side of the cabinetwith the screws removed in
Step 6. (Do not tighten screwscompletely.)
8. Attach the left side leg and the leg spacer to the other side hole whichwas positioned
symmetrically.
9. Remove the upper hinge plastic pins and insert them in the holesfrom which the screws were
removed in Step 2.
10. Take off the hinge collar caps from both the freezer and refrigerator doors using a screwdriver
and insert them in the hinge collar on the oppositeside.
11. Attach the shaft to the hinge bottom. Attach the refrigerator door to the shaft.
12. Rotate the middle hinge 180°. Attach it to the refrigerator door and secure it with screws. (Do not
tighten screws completely.)
13. Attach the upper hinge to the freezer door. Attach the freezer door to the middle hinge and use
the screws to attach the upper hinge. (Do not tighten screws completely.)
14. The direction in which the doors open has now been changed; however,the following points
should be checked:
a. Make sure the doors are onstraight.
b. Make sure there is no space between the door gaskets and the refrigerator and freezer units
themselves when the doors areclosed.
c. Make sure that the gasket on the hinge side is not caught between the door and the unit when
the door is opened or closed. (If the door is forced closed when the gasket is caught, the gasket
might bedamaged.)
d. When checking the above points, if it is discovered that the doors are not installed properly (this
is apt to happen on the first try), loosen thescrews holding the upper hinge, straighten the door
and tighten the screws slowly with the socket wrench. After making sure that the doors are
installed correctly, tighten all the screws holding the hinge. If they are not tightened, the doors
may slip out of position or there may be an opening between the doors and the unit.
15. Stand the unit back in the upright position.
NOTE: The door of the top unit (FFAR23L) cannot be reversed.

11
OPERATING YOUR APPLIANCE
Temperature Control
•The appliance temperature can be regulated by adjusting the Temperature Control Knob. The
closer to the MAX position the control knob is set byrotating it clockwise, the lower the
refrigerator temperature becomes.
•Refrigerator temperature will vary depending on the quantity of food stored and on the frequency
with which the door is opened. Set the Temperature Control Knob at the MAX position only when
ice cubes are needed in a hurry.
•This appliance may turn on and off more frequently than regular size refrigerators. This is normal
because of its compactness.
•The middle or “NORMAL” position should be appropriate for most uses.
Defrosting
This appliance defrosts automatically.
NOTE: If the appliance is unplugged, has lost power, or is turned off, you must wait 3 to 5 minutes
before restarting. If you attempt to restart before this time delay, the appliance will not start.
CARE AND MAINTENANCE
Cleaning your Appliance
• Turn the refrigerator temperature control to OFF, unplug the unit and remove the contents,
including shelves.
• Wash the inside surfaces with a solution of warm water and baking soda. The solutionshould
containabout2 tablespoonsof bakingsoda to aquartof water.
• Washthe shelves with a mild detergent solution.
• Wash the ice cube tray, drip trays, and shelves in a mild detergent solution, and dry with a soft
cloth.
• Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry
with a clean softcloth.
• Use only lukewarm, soapy water to clean the door gaskets.
• Wringexcess water out of the sponge or cloth before cleaning the area of the controls, or any
electrical parts.
• NEVER use acids, chemical thinner, gasoline, benzene or the like for cleaning any part of the
refrigerator. Boiling water and benzene may deform or damage plastic parts.
CAUTION: Failure to unplug the unit before cleaning could result in electrical shock or personal
injury.
Power Failure
Most power failures are corrected within a few hours and should not affect the temperature of your
appliance if you minimize the number of times the doors are opened. If the power is going to be off
for a longer period of time, you need to take the proper steps to protect your food.

12
Vacations
• Short vacations: Leave the appliance operating during vacations of less than three weeks.
• Long vacations: If the appliance will not be used for several months, remove all food and unplug
the power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the
doors open slightly, blocking them open if necessary.
Moving your Appliance
1. Remove all storeditems.
2. Securely tape down all loose items inside your unit (shelves).
3. Turn the leveling legs up to the base to avoid damage.
4. Tape the door shut.
5. Be sure the unit stays secure in the upright position during transportation. Also, protect the
outside of the unit with a blanket or similar covering.
Energy-Saving Tips
• Theapplianceshould belocatedinthecoolestareaof theroom,awayfromheat-producing
appliancesandoutof directsunlight.
• Let hot foods cool to room temperature before placing in the appliance. Overloading the
appliance forces the compressor to run longer.
• Besuretowrapfoodsproperlyandwipecontainersdrybeforeplacingtheminthe appliance.This
cutsdownonfrostbuild-upinsidethe cabinets.
• The appliance’s storage areas should not be lined with aluminum foil, wax paper or paper
toweling. Liners interfere with cold air circulation, making the appliance less efficient.
• Organize and label storeditems to reduce door openings and extended searches. Remove as
many items as needed at one time, and close the door as soon as possible.

13
TROUBLESHOOTING
You can solve many common refrigerator problems easily, saving you the cost of a possible
service call. Try the suggestions below to see if you can solvethe problem before calling a
service technician.
Problem
Possible Cause
The appliance does not operate.
Not plugged in.
The circuit breaker has tripped or the fuse has
blown.
The appliance's temperature control is set at OFF.
Turns on and off frequently.
Room temperature is warmer than usual.
A large amount of food has been added to the
appliance.
The doors are opened too often. Thedoors arenot
closedcompletely.
Thetemperaturecontrols arenotsetcorrectly.
The door gaskets arenot seal properly.
The appliance does not have the correct
clearances.
Vibrations
Check to be sure the appliance is level.
The appliance seems to be
making too much noise.
A rattling noise may come from the flow of
refrigerant, which is normal.
As each cycle ends, you may hear gurgling
sounds caused by the flow of refrigerant in
your appliance.
Contraction and expansion of the inside walls
may cause popping and crackling noises.
The appliance is not level.
The door will not close properly.
The appliance is not level.
The gasket is dirty or bent.
If your appliance shows other symptoms than those described above, or if you have checked all
items listed as the cause and the problem still exists, then call SUMMIT® Customer Service at
1-800-932-4267.

14
NOTES

15
NOTES

16
LIMITED WARRANTY
ONE-YEAR LIMITED WARRANTY
Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated
and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-
specified parts and repair labor to correct defects in materials or workmanship. Service must be provided by a
designated service company. Outside the 48 states, all parts are warranted for one year from manufacturing
defects. Plastic parts, shelves and cabinets are warranted to be manufactured to commercially acceptable
standards, and are not covered from damage during handling or breakage.
5-YEAR COMPRESSOR WARRANTY
1. The compressor is covered for 5 years.
2. Replacement does not include labor.
ITEMS WARRANTOR WILL NOT PAY FOR:
1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to
replace or repair fuses or to correct wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs or broken shelves. Consumable parts (such as filters)
are excluded from warranty coverage.
3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation,
installation not in accordance with electrical or plumbing codes, or use of products not approved by
warrantor.
4. Replacement parts or repair labor costs for units operated outside the United States.
5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
6. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed
in accordance with published installation instructions.
DISCLAIMER OF IMPLIED WARRANTIES –LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR. WARRANTOR SHALL NOT BE
LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE
DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR
LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU
MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE
FELIX STORCH, INC.
An ISO 9001:2015 registered company
770 Garrison Avenue
Bronx, NY 10474
www.accucold.com
For parts and accessory ordering,
troubleshooting and helpful hints, visit:
www.summitappliance.com/support
Revised 8/2020
Printed in the USA
