Model FC2694B
Deluxe Charcoal Grill

Owner’s Manual,
Model FC2694B Charcoal Grill
FC2694B owner’s manual 1
Dear Valued Customer,
Congratulations on your new barbecue grill: You’ve made the right choice! In this
manual, you will find assembly instructions, suggestions for grilling, and helpful hints, as
well as guidelines for the safe operation, proper care of, and use of your grill. Our
expert staff strives to provide you with an easy to assemble product. However, in the
unlikely event that a part is missing or defective, please call our customer satisfaction
department seven days a week at [phone] from 8 a.m. to 5 p.m. central
standard time. You also can fax your request to [phone]. When faxing, please
include your name, address, model number, part needed, and the name of the store
where you purchased your grill. We then will ship your request as soon as possible.
We appreciate and encourage customer feedback. Please contact us if you have any
suggestions or comments regarding this product.
Best Regards,
UniFlame Corporation
Customer Satisfaction Department

Owner’s Manual,
Model FC2694B Charcoal Grill
FC2694B owner’s manual 2
Safety First!
Read and understand all warnings and precautions prior to
operating your grill.
WARNING!
♦DO NOT use gasoline, kerosene, or alcohol for lighting charcoal
briquettes.
♦ALWAYS open charcoal grill lid carefully and slowly as heat and
steam trapped within grill can severely burn you.
♦ALWAYS place the charcoal grill on a hard, level surface far away
from combustibles and children.
♦This is NOT a tabletop grill! Therefore, DO NOT place this grill on
any type of tabletop surface
♦DO NOT attempt to move the grill once the charcoal briquettes
have been lit.
♦DO NOT leave a lit grill unattended, especially around children and
pets.
♦DO NOT touch metal parts of grill until it has completely cooled to
avoid burns. Unless you are wearing protective gear (Potholders,
gloves, BBQ mittens, hot pads & etc.).
♦DO NOT remove the ashes until all briquettes are completely and
fully extinguished.
♦DO NOT place charcoal briquettes directly into bottom of grill. Place
the charcoal ONLY In the charcoal pan.
♦DO NOT place a hot lid onto grass or deck, hang the lid on side of
grill.
♦KEEP all electrical cords away from a hot grill
♦DO NOT use grill in high winds.
DO NOT use the grill unless it is COMPLETELY assembled and all
parts are securely fastened and tightened.
IMPORTANT NOTICE: READ ALL INSTRUCTIONS PRIOR TO ASSEMBLY AND USE!
DANGER
DO NOT use charcoal
briquettes for indoor
cooking or heating.
TOXIC carbon
monoxide fumes can
accumulate and cause
asphyxiation. Live hot
briquettes can create a
fire hazard.

Owner’s Manual,
Model FC2694B Charcoal Grill
FC2694B owner’s manual 3

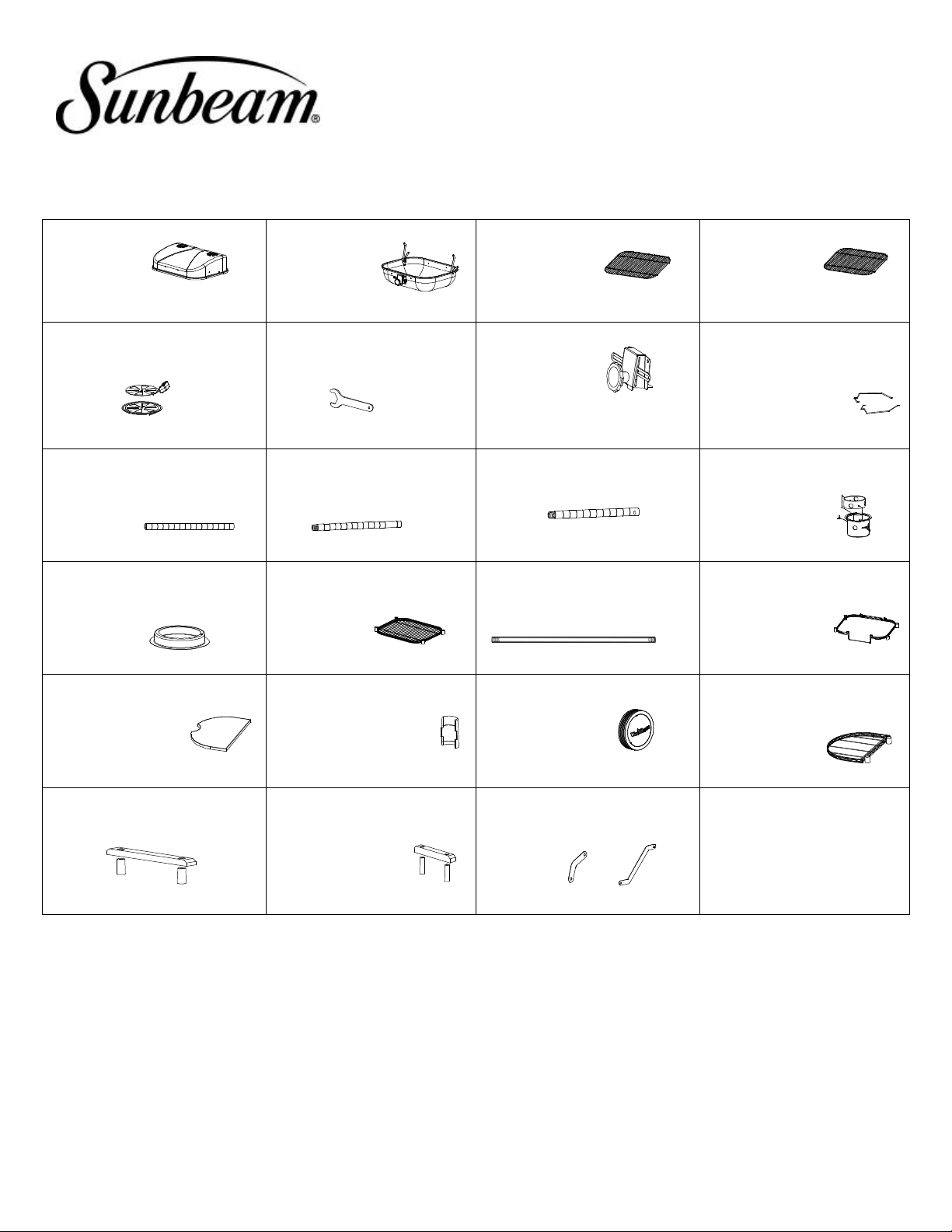

Illustrated Parts List
1: Top Lid ……………………..1pc
1. Couvercle
1. Tapa
2.Bottom Bowl ……………….1pc
2. Plateau
inférieur
2. Bandeja
inferior
3.Cooking Grid …………....….1pc
3. Gril de cuisson
3. Parrilla
4.Charcoal Grid ……………..…1pc
4. Grille de fond
4. Rejilla del
fondo
5. Lid Air vent ……………… 2 sets
5. Registre d'air de couvercle
5. Regulador del aire de tapa
6.Wrenchs…….……….……2 pcs
6. Clés
6. Llaves
7.Adjustable Knob………...….1pc
(Pre-assembled)
7. Bouton réglable
(pré-assemblé)
7. Botón ajustable
(pre-ensamblado)
8.Cooking Grid Support Rods
(Pre-assembled) …….…………1set
8. Tiges de support pour gril de
cuisson (pré-assemblé)
8. Varillas de soporte
para parrilla (pre-
ensamblado)
9.Straight Legs (Upper)……......4 pcs
9. Pattes droites (partie supérieure)
9. Patas derechas (parte superior)
10. Straight Legs (Lower)…..2 pcs
10. Courtes pattes droites
10. Patas cortas derechas
11.Wheel Legs With Hole…….2pcs
11. Pattes pour roulettes avec orifice
11. Patas para ruedecillas con orificio
12. Ash Receiver ……………...1set
(Pre-assembled)
12. Cendrier (pré-
assemblé)
12. Cenicero (pre-
ensamblado)
13.Bottom Slide…………….…..1pc
13. Anneau à glissière
13. Anillo con corredera
.
14. Bottom Shelf..……....……1pc
14. Tablette inférieure
14. Tabla inferior
15.Wheel Axle …………….….1pc
15. Essieu de roulettes
15. Eje para ruedecillas
16.Bottom Support Rack……....1 pc
16. Structure de support du plateau
inférieur
16. Estructura para
soporte de bandeja
inferior
17.Side Shelf Insert ..…………….2pc
17. Structure de tablette latérale
17. Estructura de tabla
lateral
18.Clips ………. ... .……….24pcs
18. Attaches
18. Sujetadores
19. Wheels With Decal ……..2pcs
19. Roulettes
19. Ruedecillas
20. Side
Shelf………….………..2pc
20. Tablette latérale
20. Tabla lateral
21. Lid Handle …………….….....1pc
21. Poignée de couvercle
21. Manija para tapa
22. Ash Receiver Handle ……1pc
22. Poignée de cendrier
22. Manija para cenicero
23.Hinges (Pre-assembled).….2 sets
23.Penture (pré-assemblé)
23.Pernio (pre-ensamblado)

Owner’s Manual,
Model FC2694B Charcoal Grill
FC2694B owner’s manual 4
Illustrated hardware list ( Some hardware already assembled to parts above)
ABolts-Large
Boulons-Longs
Pernos –Largos
4pcs HMedium nuts
Écrous capuchon
Tuercas capuchón
4 pcs
BBolts-Air Damper
Boulons pour registre d'air
Pernos para regulador del aire
2pcs IWashers-Regular
Rondelles régulières
Arandelas regulares
7 pcs
CBolts
Boulons
Pernos
3 pcs JLock Washers-Large
Grandes rondelles de blocage
Arandelas grandes de bloqueo
4 pcs
DBolt-Small
Boulons-Courts
Pernos –Cortos
4 pcs KLock Washers-Small
Petite rondelles de blocage
Arandelas pequeña de bloqueo
2pc
ERegular Wing Nuts
Écrous réguliers
Tuercas regulares
7 pcs LHeat Resistant Washers
Rondelles résistantes à la chaleur
Arandelas resistentes al calor
4 pcs
FLarge Nuts-Wheels
Grands écrous -Roulettes
Tuercas grandes –Ruedecillas
2 pcs MRubber spacers 2 pcs
GSmall Wing Nuts For Air damper
Petits écrous pour registre d'air
Tuercas pequeñas para regulador del aire
2 pcs

Owner’s Manual,
Model FC2694B Charcoal Grill
FC2694B owner’s manual 5
Assembly Instructions
For Best Results
Remove all contents from packaging, and make sure all parts are present before attempting to
assemble! Tighten all bolt connections by hand first, then when the grill is fully assembled, go
back and tighten.
Step 1
Attach two lid air vents (5) to lid (1),
using air-damper bolts (B), small
lock washers (K) and small
w
ingnuts (G). Then attach the lid
handle (21) to the lid using large
bolts (A), washers (I), lock washers
(J), and wing nuts (E).
Step2
Attach two clips (18) to each of two lower
legs (10), and two lower legs with wheel
holes (11), at spot indicated by arrow.
Noted, when attaching clips, assure that
arrow on clips faces upwards. Then
slide bottom shelf (14) over four lower
legs, and secure on clips. Assure that
two legs with wheel holes are together at
short end of shelf, and that wheel holes
are positioned to allow axle to pass
through both legs. Next attach four
upper legs (9), to each of the four lower
legs by threading them clockwise.
Finally insert wheel axle (15) through
both legs with wheel holes, and attach
wheels with decals by placiing rubb
er
spacers (M) between wheel and leg, and
securing wheel by popping decal off
wheel and using washers (N) and nuts
(F). Then reattach decals.
TOP
9
14
10
18
N
F
11
M
19
9
Blow Up
Adjustable foot
15
B51
A
21
I
L
J
E
B
G
k

Owner’s Manual,
Model FC2694B Charcoal Grill
FC2694B owner’s manual 6
Step 3
Attach two clips (18) to each of
four legs at lower of two arrow
indicator marks. Assure that
arrow on clips faces upwards.
Then slide two side shelves (20)
onto legs, as shown, securing
shelves at clips. Then insert side-
shelf inserts (17) into side
shelves, as shown.
Step 4
Attach two clips (18) to each of four
legs at remaining arrow mark,
assuring that arrow on clip faces
upwards. Then slide support rack
(16) onto legs securing at clips, as
shown.
17
20
18
17
20
16
18

Owner’s Manual,
Model FC2694B Charcoal Grill
FC2694B owner’s manual 7
Step 6
Step 5

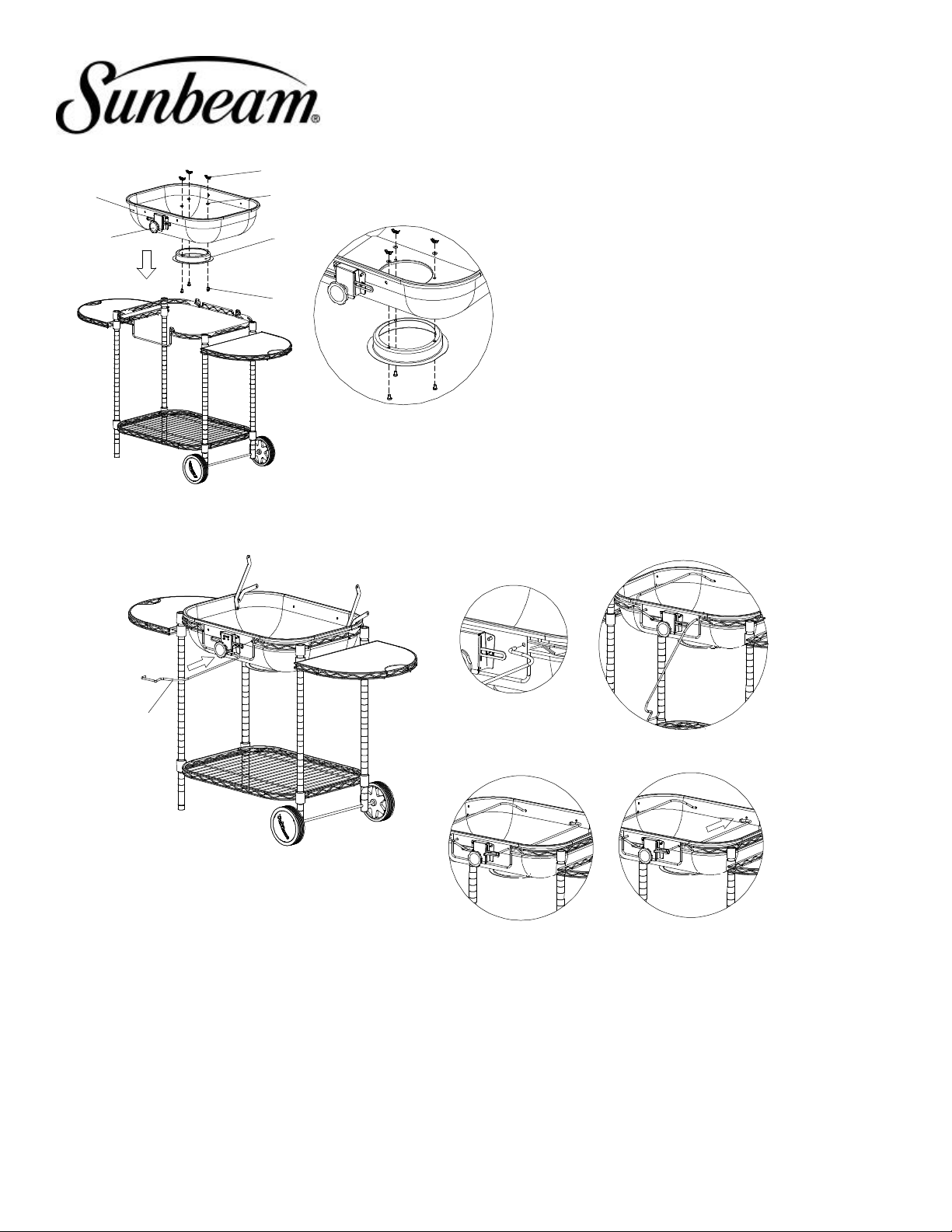

Attach bottom slide (13) to bottom bowl
(2) using three bolts (C), washers (I),
and wing nuts (E). Then place bottom
bowl into bottom bowl support, as
shown.
2I
E
C
13
7
Step A Step B
Step D
Step C
8
Feed first cooking grid support rod through hole in front of bottom bowl, next to knob
(step A). Then angle rod downward to allow bend in rod to fit through hole (step B).
Feed long shaft of rod through hole, so entire straight length of rod is inside bottom
bowl (step C). Insert end of rod into back of bowl and front en
d of rod (still protruding
from front of bottom bowl) into arm of adjustable knob mechanism (step D).

Owner’s Manual,
Model FC2694B Charcoal Grill
FC2694B owner’s manual 8
Step 7
To Adjust Cooking Grid
To LIFT the cooking grid, turn the adjustable knob to the right.
To LOWER the cooking grid, turn the adjustable knob to the left.
Por régler le gril de cuisson
Pour Souldver le gril de cuisson, tournez le bouton réglable vers la droite.
Pour Abaisser le gril de cuisson, tournez le bouton réglable vers la gauche.
Para ajustar la parrilla
Para Levantar la parrilla, gire el botón ajustable hacia la derecha.
Para Bajar la parrilla gire el botón ajustable hacia lal izquierda.
DOWN
UP
E
J
I
22
A
L12
1
D
3
4
H23
23
Attach ash receiver handle, (22) to ash receiver (12) using large bolts (A), washers (I), lock
washers (J), and wing nuts (E). Set charcoal grid (4) inside bottom bowl underneath cooking
grid support rods. Set cooking grid (3) on support rods. Then attach the lid (1), to the two
hinges (already attached to the bottom bowl) by using small bolts (D), and medium nuts (H).
Then slide ash receiver into bottom slide

Owner’s Manual,
Model FC2694B Charcoal Grill
FC2694B owner’s manual 9
OPERATING YOUR GRILL
Lighting your grill
1. Make sure lid and vents all are open.
2. Remove the cooking grid. Pile 2-3 pounds of charcoal in the
center of the charcoal grid, and shape into a pyramid. (See
figure 1.)
3. If you are using regular charcoal and intend to use
lighter fluid, apply fluid according to the instructions on the
container. Allow lighter fluid to soak in for approximately 1
minute before carefully lighting. If you are using an
electric fire starter, do not add any lighter fluid, and light
charcoal according to the instructions from the manufacturer
of the fire starter. If you are using instant-light charcoal,
do not use any extra lighting methods, carefully light
charcoal.
4. Allow charcoal to burn for approximately 15-20 minutes, or
until all coals are lightly coated in gray ash.
Cooking styles
1. Direct grilling: When the coals have ashed over, using a
long-handled cooking utencil and wearing protective
cooking mits, spread the coals evenly over the charcoal grid.
Place the cookoing grid back onto the grill and arrange food
on cooking grid. You can cook food with lid open or closed.
(See figure 2.)
2. Indirect grilling: When the coals have ashed over, using a
long-handled cooking utencil and wearing protective cooking
mits, arrange charcoal in a donut shape, leaving an open
space in the center. In the center opening, put a small drip
pan (not included) to catch drippings. Place food on the
cooking grid directly above the drip pan. Cook with lid open
or closed. (See figure 3.)
3. Smoking: soak any fragrant wood chips in water over night
so they will not burn when you put them on the charcoal.
After spreading the coals per the direct cooking method,
above, place wood chips on charcoal. Cook with lid closed
and cooking grid, if adjustable, set to it’s highest (away from
coals) setting.
Figure 1:
Pile 2-3 pounds of charcoal in the center of the
charcoal grid to light.
Figure 2:
To cook directly, spread the coals evenly over the
charcoal grid after they ash over.
Figure 3:
To cook indirectly, put a small drip pan in the
center of the grill, surrounded by charcoal, and
place meat cirectly above the drip pan.

Owner’s Manual,
Model FC2694B Charcoal Grill
FC2694B owner’s manual 10
General Helpful Hints for Successful Charcoal
cooking
1. Store your charcoal in a dry place. If storing outside, seal
charcoal in a waterproof container.
2. When removing lid during cooking, if your lid is not hinged,
lift to one side instead of straight up. As lifting straight up will
create a vacuum within the grill sucking up the ash into the
food.
3. When cleaning your grill DO NOT use abrasive cleaners, for
it will damage the parts of this product. Clean all grids and
pans with mild detergent. Rinse clean with water. Remove all
ash and dispose properly.

Owner’s Manual,
Model FC2694B Charcoal Grill
FC2694B owner’s manual 11
Award-Winning Barbecue Recipes
Never-fail barbecue sauce
Ingredients:
¼ cup Finely Chopped Onion
2 tablespoons Butter Or Margarine
¼ cup Brown Sugar, Firmly Packed
1 tablespoon Worcestershire Sauce
¼ teaspoon Hot Pepper Sauce
1Clove Garlic, Finely Chopped
1 cup Catsup
¼ cup Lemon Juice
1 teaspoon Prepared Mustard
Prepare:
Cook onion and garlic in margarine until tender. Add remaining ingredients and bring to a boil. Simmer
uncovered 15 to 20 minutes. Refrigerate leftovers after using.
Mamma’s Marinated Chicken
Ingredients:
¼ cup Dijon mustard
2 tablespoons fresh lemon juice
1 ½ teaspoons Worcestershire sauce
½ teaspoon dried tarragon
¼ teaspoon freshly ground black pepper
4boneless skinless chicken breast halves
Prepare:
Combine ingredients, mixing well. Marinade chicken for several hours. Grill uncovered, over medium heat, for
10 to 15 minutes or to taste.
Barbecued Honey Steak
Ingredients:
5 pounds Beef sirloin steak
2 tablespoons Red pepper -- crushed
1 teaspoon Black pepper
2Garlic cloves -- crushed
1 large Onion
1 cup Honey
Prepare:
Combine all ingredients and marinate steak for 7-8 hours. Remove meat from marinade and grill over very hi
gh heat. Heat leftover marinade and pour over grilled steak to serve.

Owner’s Manual,
Model FC2694B Charcoal Grill
FC2694B owner’s manual 12
Hardcore Grilled Trout
Ingredients:
1/4 cup lemon or lime juice
2 tablespoons melted butter
2 tablespoons vegetable oil
2 tablespoons chopped parsley
1 tablespoon hot sauce
1/2 teaspoon ground ginger
1/2 teaspoon salt
4 brook trout -- about 1 pound each
Prepare:
Combine lemon juice, margarine, oil, parsley, sesame seeds, hot sauce, ginger and salt. Mix well. Pierce skin
of fish in several places. Roll fish in juice mixture to coat inside and out. Cover. Refrigerate 30 minutes to 1
hour, turning occasionally. Remove fish from marinade. Place fish on grill; brush fish with marinade while
grilling. Cook over high heat for 5 minutes. Turn; brush with marinade, cook 5 minutes longer. Fish is done
when it flakes easily with fork –Cook to taste.
Grilled Veggies
Ingredients:
¾ cup Olive oil
¼ cup Red wine vinegar
1 teaspoon Fresh rosemary
1 teaspoon Fresh thyme leaves
1 teaspoon Fresh basil; chopped
1 teaspoon Fresh oregano; chopped
1 tablespoon minced garlic
½ teaspoon salt
½ teaspoon Ground black pepper
2 pounds assorted vegetables, chopped or whole, according to taste.
Prepare
Combine all ingredients in a small bowl. Marinade vegetables with sauce, and cover and refrigerate for 2 hrs.
Grill vegetables over medium heat until tender, brushing them with marinade while they cook. Cooking times
will vary according to the vegetables chosen.

Owner’s Manual,
Model FC2694B Charcoal Grill
FC2694B owner’s manual 13
1 YEAR LIMITED WARRANTY
UniFlame Corporation warrants to the original retail purchaser of this grill that if it is assembled and operated in
accordance with the printed instructions accompanying it then for a period of one (l) year from the date of purchase. All
parts shall be free from defects in material and workmanship. UniFlame may require reasonable proof of your date of
purchase. Therefore, you should retain your sales slip or invoice.
This Limited Warranty shall be limited to the repair or replacement of parts, which prove defective under normal use and
service and which on examination, shall indicate, to UniFlame's satisfaction, they are defective.Before returning any
parts, contact UniFlame's Customer Service Department. If UniFlame confirms the defect and approves the claim,
Uniflame will elect to replace such parts without charge. If you are required to return defective parts, transportation
charges must be prepaid. UniFlame will return parts to the purchaser, freight or postage prepaid.
This Limited Warranty does not cover any failures or operating difficulties due to accident, abuse, misuse, alteration,
misapplication, improper installation or improper maintenance or service, or failure to perform normal and routine
maintenance, as set out in this owners manual. There are no other express warrants except as set forth herein and any
applicable implied warranties of merchantability and fitness are limited in duration to the period of coverage of this express
written Limited Warranty. Some states do not allow limitation on how long an implied warranty lasts, so this limitation may
not apply to you.
UniFlame is not liable for any special, indirect or consequential damages. Some states do not allow the exclusion or
limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you.
UniFlame does not authorize any person or company to assume for it any other obligation or liability in connection withthe
sale, installation, use, removal, return, or replacement of its equipment, and no such representations are binding on
UniFlame.
UniFlame Corporation
1817 N. Kenosha Road
Zion, Illinois 60099,USA
[phone]
24 Hour Fax: [phone]
