Sunbeam SMW759 User manual

Owner’s Manual
Microwave Oven
SMW759
Please read these instructions carefully before installing and operating the
oven.
Record in the space below the SERIAL NO. found on the nameplate on your
oven and retain this information for future reference
. SERIAL NO.:

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY
1. Do not attempt to operate this oven with the door-open since open-door operation can result in
harmful exposure to microwave energy. It is important not to defeat or tamper with the safety
interlocks.
2. Do not place any object between the oven front face and the door or allow soil or cleaner residue
to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is particularly important that the oven door close
properly and that there is no damage to the:
a.Door (bent),
b.Hinges and latches (broken or loosened),
c.Door seals and sealing surfaces.
4. The oven should not be adjusted or repaired by anyone except properly qualified service
personnel.
CONTENT
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY
.............................................................................................................................................................1
IMPORTANT SAFETY INSTRUCTIONS.........................................................................................2
GROUNDING INSTRUCTIONS .......................................................................................................3
UTENSILS GUIDE.............................................................................................................................4
COOKING TECHNIQUES.................................................................................................................6
BEFORE YOU CALL FOR SERVICE...............................................................................................7
SPECIFICATIONS..............................................................................................................................7
PART NAMES...................................................................................................................................7
CONTROL PANEL.............................................................................................................................8
OPERATION INSTRUCTIONS .........................................................................................................8
SETTING THE CLOCK............................................................................................................9
SETTING THE OVEN TIMER................................................................................................9
SETTING A COOKING PROGRAM ......................................................................................9
SETTING “SPEED DEFROST”.............................................................................................10
SETTING “COOK BY WEIGHT”.........................................................................................10
SETTING “DEFROST BY WEIGHT” ..................................................................................11
SETTING “CHILD LOCK”....................................................................................................11
TO STOP THE OVEN WHILE THE OVEN IS OPERATING............................................11
ABOUT “ QUICK COOK ” SETTINGS ..........................................................................................11
SETTING “POPCORN”..........................................................................................................12
SETTING “ BAKED POTATO”.............................................................................................12
SETTING “PIZZA”.................................................................................................................12
SETTING “ BEVERAGE ”.....................................................................................................12
SETTING “FROZEN DINNER”............................................................................................12
SETTING “ REHEAT”............................................................................................................13
CLEANING AND CARE..................................................................................................................14
1

IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances, basic
safety precautions should be followed,
including the following:
WARNING - To reduce the risk of burns,
electric shock, fire, and injury to persons or
exposure to excessive microwave energy:
1. Read all instructions before using the
appliance.
2. Read and follow the specific
"PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY" on page 1.
3. This appliance must be grounded.
Connect only to properly grounded outlet.
See "grounding instructions” on page 3.
4. Install or locate this appliance only in
accordance with the provided installation
instructions.
5. Some products such as whole eggs and
sealed containers -for example, closed
glass jars- are able to explode and
should not be heated in this oven.
6. Use this appliance only for its intended
use as described in this manual. Do not
use corrosive chemicals or vapors in this
appliance. This type of oven is
specifically designed to heat, cook, or dry
food. It is not designed for industrial or
laboratory use.
7. As with any appliance, close supervision
is necessary when used by children.
8. To reduce the risk of fire in the oven
cavity:
 Do not overcook food. Carefully attend
appliance when paper, plastic, or other
combustible materials are placed inside
the oven to facilitate cooking.
 Remove wire twist-ties from paper or
plastic bags before placing bag in oven.
 If materials inside the oven should ignite,
keep oven door closed, turn oven off,
and disconnect the power cord or shut
off power at the fuse or circuit breaker
panel.
 Do not use the cavity for storage
purposes. Do not leave paper products,
cooking utensils or food in the cavity
when not in use.
9. Liquids, such as water, coffee, or tea can
be overheated beyond the boiling point
without appearing to be boiling due to
surface tension of the liquid. Visible
bubbling or boiling when the container is
removed from the microwave oven is not
always present. THEIS COULD RESULT
IN VERY HOT LIQUIDS SUDDENLY
BOILING OVER WHEN A SPOON OR
OTHER UTENSIL IS INSERTED INTO
THE LIQUID. To reduce the risk of injury
to person:
 Do not overheat the liquid.
 Stir the liquid both before and halfway
through heating it.
 Do not use straight-sided containers
with narrow necks.
 After heating, allow the container to
2

stand in the microwave oven for a short
time before removing the container.
 Use extreme care when inserting a
spoon or other utensil into the container.
10. Do not heat oil or fat for deep-frying. It is
difficult to control the temperature of oil in
microwave oven.
11. Pierce foods with heavy skins such as
potatoes, whole squash, apples and
chestnuts before cooking.
12. The contents of feeding bottles and baby
jars should be stirred or shaken and the
temperature should be checked before
serving in order to avoid burns.
13. Cooking utensils may become hot
because of heat transferred from the
heated food. Potholders may be needed
to handle the utensil.
14. Do not cover or block any openings on
the appliance.
15. Do not store or use this appliance
outdoors. Do not use this product near
water, for example, near a kitchen sink,
in a wet basement, near a swimming
pool, or similar locations.
16. Do not operate this appliance if it has a
damaged cord or a plug, if it is not
working properly or if it has been
damaged or dropped.
17. Do not immerse cord or plug in water.
Keep cord away from heated surface. Do
not let cord hang over edge of table or
counter.
18. Use only thermometers, which are
specifically designed for use in
microwave ovens.
19. Do not operate any heating or cooking
appliance beneath this appliance.
20. Be certain the glass tray and roller rings
are in place when you operate the oven
21. This appliance should be serviced only
by qualified service personnel contact
nearest authorized service facility for
examination, repair, or adjustment.
22. When cleaning surfaces of door and
oven that comes together on closing the
door, use only mild, nonabrasive soaps,
or detergents applied with a sponge or
soft cloth.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an electrical short circuit, grounding reduces
risk of electric shock by providing an escape wire for the electric current. The appliance is
equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged
into an outlet that is properly installed and grounded.
WARNING:Improper use of the grounding plug can result in a risk of electric shock.
Electrical Requirements
The electrical requirements are a 120 volt 60 Hz, AC only, 15 amp. It is recommended that a
3

separate circuit serving only the oven be provided. The oven is equipped with a 3-prong
grounding plug. It must be plugged into a wall receptacle that is properly installed and
grounded.
Power Supply Cord
1. A short power supply cord is provided to reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
2. Longer cord sets or extension cords are available and may be used if care is exercised in
their use.
3. If long cord or extension cord is used：
a) The marked electrical rating of the cord set or extension cord should be at least as
great as the electrical rating of the appliance.
b) The extension cord must be a grounding-type 3-wire cord, and The longer cord
should be arranged so that it will not drape over the counter top or table top where it
can be pulled on by children or tripped over unintentionally.
Notes:
1. If you have any questions about the grounding or electrical instructions, consult a qualified
electrician or service person.
2. Neither Manufacturer nor the dealer can accept any liability for damage to the oven or
personal injury resulting from failure to observe the electrical connection procedures.
Radio or TV Interference
Should there be any interference caused by the microwave oven to your radio or TV, check that
the microwave oven is on a different circuit, relocated the radio or TV as far away from the oven
as feasible or check position and signal of receiving antenna.
UTENSILS GUIDE
This section lists which utensils can be used in the microwave, which ones have limited use for
short periods, and which ones should not be used in the microwave.
Recommended
·Microwave browning dish —Use to brown the exterior of small items such as steaks,
chops, or pancakes. Follow the directions provided with your browning dish.
·
Microwaveable plastic wrap —Use to retain steam. Leave a small opening for some
steam to escape and avoid placing it directly on the food.
·Paper towels and napkins —Use for short-term heating and covering; These absorb
excess moisture and prevent spattering. Do not use recycled paper towels, which may
contain metal and could ignite.
·Glass and glass-ceramic bowls and dishes —Use for heating or cooking.
·Paper plates and cups —Use for short-term heating at low temperatures. Do not use
recycled paper, which may contain metal and could ignite.
4

·Wax paper —Use as a cover to prevent spattering.
·Thermometers —Use only those labeled “Microwave Safe” and follow all directions. Check
the food in several places. Conventional thermometers may be used on microwave
food once the food has been removed from the oven.
Limited Use
·
Aluminum foil —Use narrow strips of foil to prevent overcooking of exposed areas.
Using too much foil can damage your oven, so be careful.
·Ceramic, porcelain, and stoneware —Use these if they are labeled “Microwave Safe”.
If they are not labeled, test them to make sure they can be used safely.
·Plastic —Use only if labeled “Microwave Safe”. Other plastics can melt.
·Straw, wicker, and wood —Use only for short-term heating, such as warming dinner rolls
for a few seconds. Baskets and bowls may be flammable.
Not Recommended
·Glass jars and bottles —Regular glass is too thin to be used in a microwave. It can shatter
and cause damage and injury.
·Paper bags —These are a fire hazard, except for popcorn bags that are designed for
microwave use.
·Styrofoam plates and cups —These can melt and leave an unhealthy residue on food.
·Plastic storage and food containers —Containers such as margarine tubs can melt in the
microwave.
·Metal utensils —These can damage your oven. Remove all metal before cooking.
Note: Should you wish to check if a dish is safe for microwaving, place the empty dish in the
oven and microwave on HIGH for 30 seconds. A dish which becomes very hot should
not be used.
Save These Instructions
5

COOKING TECHNIQUES
Your microwave makes cooking easier than conventional cooking, provided you keep these
considerations in mind:
Stirring
Stir foods such as casseroles and vegetables
while cooking to distribute heat evenly. Food
at the outside of the dish absorbs more
energy and heats more quickly, so stir from
the outside to the center. The oven will turn
off when you open the door to stir your food.
Arrangement
Arrange unevenly shaped foods, such as
chicken pieces or chops, with the thicker,
meatier parts toward the outside of the
turntable where they receive more
microwave energy. To prevent overcooking,
place delicate areas, such as asparagus tips,
toward the center of the turntable.
Shielding
Shield food with narrow strips of aluminum
foil to prevent overcooking. Areas that need
shielding include poultry wing-tips, the ends
of poultry legs, and corners of square baking
dishes. Use only small amounts of aluminum
foil. Larger amounts can damage your oven.
Turning
Turn foods over midway through cooking to
expose all parts to microwave energy. This is
especially important with large foods such as
roasts.
Standing
Foods cooked in the microwave build up
internal heat and continue to cook for a few
minutes after heating stops. Let foods stand
to complete cooking, especially foods such
as cakes and whole vegetables. Roasts
need this time to complete cooking in the
center without overcooking the outer areas.
All liquids, such as soup or hot chocolate,
should be shaken or stirred when cooking is
complete. Let liquids stand a moment before
serving. When heating baby food, stir well at
removal and test the temperature before
serving.
Adding moisture
Microwave energy is attracted to water
molecules. Food that is uneven in moisture
content should be covered or allowed to
stand so that the heat disperses evenly. Add
a small amount of water to dry food to help it
cook.
Save These Instructions
6

7
3
7
6
2
1
4 5
⑦Control Panel
BEFORE YOU CALL FOR SERVICE
If the oven fails to operate:
1. Check to ensure that the oven is
plugged in securely. If it is not, remove
the plug from the outlet, wait 10 seconds
and plug it in again securely.
2. Check for a blown circuit fuse or a
tripped main circuit breaker. If these
seem to be operating properly, test the
outlet with another appliance.
3. Check to ensure that the control panel is
programmed correctly and the timer is
set.
4. Check to ensure that the door is
securely closed engaging the door
safety lock system. Otherwise, the
microwave energy will not flow into the
oven.
IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A QUALIFIED
TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.
SPECIFICATIONS
Power Consumption 120V~60Hz,1200W(MICROWAVE)
Output 700W
Operation Frequency 2450MHz
Outside Dimensions(H×W×D) 11 5/8×18×14 9/16 in.
Oven Cavity Dimensions(H×W×D) 8 1/8×11 13/16×11 3/16 in.
Oven Capacity: 0.7 cu.ft.
Cooking Uniformity: Turntable System (Φ9 5/8” )
Net Weight: Approx. 30.2lbs.
PART NAMES
①Door Safety Lock System
②Oven Window
③Oven Air Vent
④Shaft
⑤Turntable Roller
⑥Glass Tray

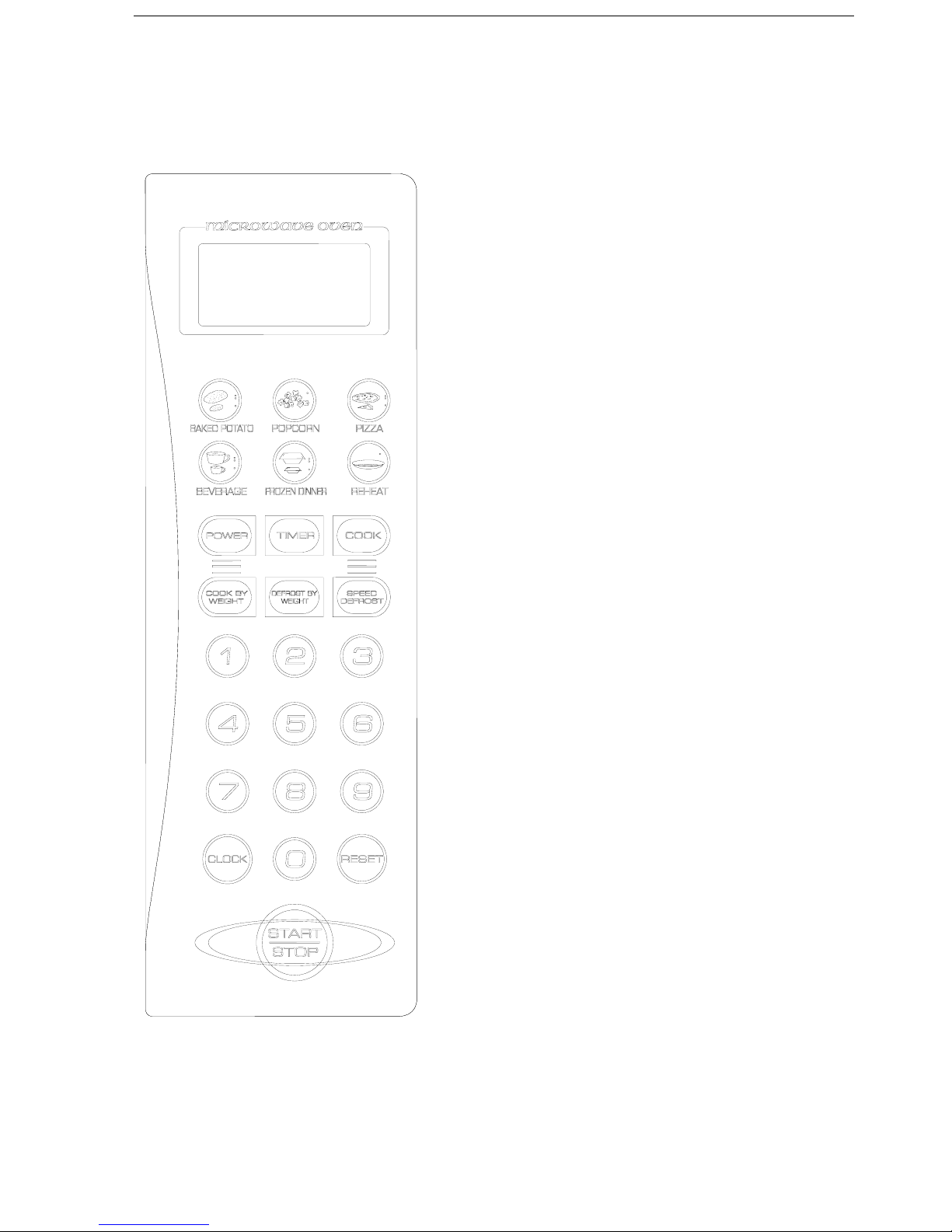

CONTROL PANEL
(Also see following pages for more detail.)
Cooking time, power, indicators and present
time are displayed.
QUICK COOK BUTTONS
Instant settings to cook popular foods
NUMBER PADS (0-9)
Touch to set times or amount.
POWER
Use to set power level other than high..
TIMER
Timer functions independently, even while a
cooking program is in process.
COOK
Use for multi-stage cooking. Enables cooking
at multiple power and time settings
automatically.
COOK BY WEIGHT
Programmed cooking based on the weight of
the foods to be cooked.
DEFROST BY WEIGHT
Programmed defrosting based on the weight
of the foods to be defrosted.
SPEED DEFROST
Quick defrost function that alternates defrost
and stand times to quickly and effectively
defrost foods.
CLOCK
Sets current time.
RESET
Clears all previous settings.
START/STOP
Touch to start or stop cooking.
.
OPERATION INSTRUCTIONS
8

BEEPS DURING OVEN SETTINGS
ONE BEEP: Oven accepts the entry.
TWO BEEPS: Oven does not accept the
entry, check and try again.
SETTING THE CLOCK
1. Touch CLOCK pad.
2. Use the number pads to enter the
correct time. You must touch at least
three numbers to set the clock (one
for hour and two for minutes).
3. Touch CLOCK pad again.
NOTE:
This is a 12 hour clock. When the oven is
first plugged in or when power resumes
after a power interruption, the display will
show ENTER CLOCK TIME, if you prefer
to not have the clock displayed, touch
RESET pad. You can check the clock
time while cooking is in progress by
touching the CLOCK pad.
SETTING THE OVEN TIMER
1. Touch TIMER pad.
2. Enter the amount of time you want to
count down by touching the number
pads. Digit time is in minutes and
seconds and set left to right. Set one
digit (a 5 for 5 seconds) or up to four
digits (2405 for 24 minutes, 5
seconds). The maximum number can
be entered is 99 min. 99sec.
3. Touch START/STOP pad.
NOTE:
 Time countdown can be seen in
display for 3 seconds before clock or
cooking time is returned to display.
 Touch TIMER and then touch RESET
to cancel TIMER during timing
process.
SETTING COOKING TIMES AND
POWER LEVELS
A. One-stage Cooking
1. Use the number pads to set a
cooking time. You can set a
cooking time from one second to
99 minutes and 99 seconds. If you
are setting a time greater than one
minute, you must enter numbers
for both minutes and seconds. For
example: to set 20 minutes, enter
2,0,0,0.
2. If you want to set a power level
other than 100% power, touch
POWER, then use the number
pads to enter the power level. You
can set the power level from 1 to 9.
3. Touch START/STOP to start
cooking.
USE THESE SINGLE DIGIT TO
REPRESENT POWER LEVELS
Number pad % of Power
9 90%
8 80%
7 70%
6 60%
5 50%
4 40%
3 30%
2 20%
1 10%
B. Two-stage Cooking
Some recipes require different stages
of cooking at different temperatures.
9

1. SET STAGE 1:
Follow steps 1 and 2 in “One-stage
Cooking”.
DO NOT TOUCH START/STOP
PAD.
2. SET STAGE 2:
Touch COOK pad then enter proper
cooking time and (lower) power level.
(Most 2-stage recipes use lower
power for second stage.)
·For speed defrost and two stage
cooking, follow steps above. Before
touching START/STOP pad, enter
two-stage cooking programs.
3. Touch START/STOP pad.
NOTE:
After total time has elapsed, 4 beeps
sound and END appears in display. Touch
RESET pad or open the oven door to
clear END before starting another
cooking function.
SETTING “SPEED DEFROST”
1. Touch SPEED DEFROST pad.
2. Enter desired defrosting time by
touching correct number pads.
Digital timer sets minutes and
seconds from left to right so a
single digit can be set (5 for 5
seconds) or up to 4 digits (2405
for 24 minutes 5 seconds).
3. Touch START/STOP pad.
NOTE:
·After time has elapsed four beeps
sound and END appears in display.
Touch RESET pad or open the door to
clear END before starting another
cooking function.
·After setting SPEED DEFROST, oven
can be programmed to automatically
switch to one or two-Stage cooking.
·For speed defrost and one stage
cooking, follow steps above. Before
touching START/STOP pad, touch
COOK pad, and enter time and power
level. Then touch START/STOP pad.
SETTING “COOK BY WEIGHT”
1. Touch COOK BY WEIGHT pad.
2. Enter the one-digit code by touching
the correct number pad.
3. Enter weight.
4. Touch START/STOP PAD.
NOTE:
·Your microwave oven makes cooking
easy. You set the type and weight of
food, and the oven automatically sets the
cooking time and power level.
“COOK BY WEIGHT ” CODE
DESCRIPTIONS
CODE TYPE MAX WEIGHT
1 Beef 5 lb. 16oz
2 Mutton 5 lb. 16oz
3 Pork 5 lb. 4oz
·Meat must be defrosted and at
refrigerated temperature.
·Weight must be in pounds and ounces.
Ounce weights less than 10 must be
preceded by a “0”. If label gives weight in
pounds only, change the fraction of a
pound to ounces using the following
10

chart.
CONVERTING FRACTIONS OF A
POUND TO OUNCES
FRACTIONS OF A
POUND OUNCES
Less than .03 0
.03 to .09 1
.10 to .15 2
.16 to .21 3
.22 to .27 4
.28 to .34 5
.35 to .40 6
.41 to .46 7
.47 to .53 8
.54 to 59 9
.60 to .65 10
.66 to .71 11
.72 to .78 12
.79 to .84 13
.85 to .90 14
.91 to .97 15
above .97 go to next even
·Turn meat over when oven beep twice.
Touch START/STOP to resume
cooking.
·After total cooking time, 4 beeps sound
and END appears in display. Touch
RESET or open oven door to clear
END before starting another cooking
function. Let meat stand few minutes
before carving.
SETTING “DEFROST BY WEIGHT”
1. Touch DEFROST BY WEIGHT pad.
2. Enter weight.
3. Touch START/STOP pad.
NOTE:
·Weight must be in pounds and ounces.
Ounce weights less than 10 must be
preceded by a 0. If label gives weight in
pounds only, change the fraction of a
pound to ounces using the chart on this
page.
 Turn food over when oven beep
twice.
 Touch START/STOP pad to resume
defrosting.
 After total defrosting time, 4 beeps
sound and END appears in display.
 Touch RESET or open oven door to
clear END before starting another
cooking function.
SETTING “SAFETY LOCK”
The safety lock prevents unsupervised
operation by little children.
To set, press and hold RESET pad for 3
seconds, LOCK indicator lights.
To cancel, press and hold RESET pad
for 3 seconds, LOCK indicator goes off.
TO STOP THE OVEN WHILE THE
OVEN IS OPERATING
1. Touch START/STOP pad.
·You can restart the oven by touching
START/STOP pad.
·Touch RESET to erase all instructions.
2. Open the door.
·You can restart the oven by closing the
door and touching START/STOP pad.
NOTE:
·Oven stops operating when door is
opened.
ABOUT “ QUICK COOK ” SETTINGS
11

“QUICK COOK” allows you to cook or
reheat food automatically without entering
power level or time. When setting “quick
cook”, check visual guide on pad for
correct setting. Three “quick cook” settings
allow you to cook several amounts of the
same food. These include the “FROZEN
DINNER”, “BAKED POTATO” and
“BEVERAGE”. After you touch these pads,
ENTER AMT appears in the display. In
each “quick cook” category, smaller size
food is set by touching pad once. The
larger size can be set by touching the
picture pad twice.
SETTING “POPCORN”
1. Touch POPCORN pad. POPCORN
automatically sets the cooking time
for 3 1/2 oz. bag of microwave popcorn.
2. Touch START/STOP pad.
NOTE:
·To reset POPCORN time:
Tap POPCORN pad twice. ENTER TIME
appears in display. Touch number pads
to enter minutes and seconds. Touch
START/STOP pad. This new cooking
time will remain whenever you touch the
POPCORN pad until you reset it.
SETTING “BAKED POTATO”
For potatoes (3.5 to 5 oz. Per entries):
1. Touch
BAKED POTATO pad once.
2. Enter number of potatoes by touching
number pads from 1 to 4.
3. Touch START/STOP pad.
For the large potatoes (6 to 8 oz. Per
entries):
1. Tap
BAKED POTATO pad twice.
2. Enter number of potatoes by touching
number pads from 1 to 4.
3. Touch START/STOP pad.
SETTING “PIZZA”
Reheating a slice (or two thin ones) of
leftover pizza:
1. Touch PIZZA pad once.
2. Touch START/STOP pad.
Heating a whole frozen pizza:
1. Tap PIZZA pad twice.
2. Touch START/STOP pad.
SETTING “ BEVERAGE ”
For coffee cups (4 to 6 oz. Per share):
1. Touch BEVERAGE pad once.
2. Enter number of cups by touching
number pads from 1 to 4.
3. Touch START/STOP pad.
For the larger coffee mugs (7 to 9 oz. Per
share):
1. Tap BEVERAGE pad twice.
2. Enter number of mugs by touching
number pads from 1 to 4.
3. Touch START/STOP pad.
SETTING “FROZEN DINNER”
Microwaving one or two small (5-7 oz. Per
share) frozen dinner:
1. Touch FROZEN DINNER pad once.
12

2. Touch “1” or “2” to select 1 entree or 2
entrees.
3. Touch START/STOP pad.
Microwaving one large (8-10 oz. Per share)
frozen dinner:
1. Tap FROZEN DINNER pad twice.
2. Touch “1” or “2” to select 1 entree or 2
entrees.
3. Touch START/STOP pad.
SETTING “ REHEAT”
1. Touch REHEAT pad.
2. Touch START/STOP pad.
NOTE:
This setting lets you reheat a dinner
plate of chilled leftovers with good results.
13

CLEANING AND CARE
1. Turn off the oven and remove the power
plug from the wall socket before
cleaning.
2. Keep the inside of the oven clean.
When food splatters or spilled liquids
adhere to oven walls, wipe with a damp
cloth. Mild detergent may be used if the
oven gets very dirty. Avoid the use of
spray and other harsh cleaners as they
may stain, streak or dull the door
surface.
3. The outside surfaces should be cleaned
with a damp cloth. To prevent damage
to the operating parts inside the oven,
water should not be allowed to seep
into the ventilation openings.
4. Wipe the window on both sides with a
damp cloth to remove any spills or
spatters.
5. Do not allow the control panel to
become wet. Clean with a soft, damp
cloth. When cleaning the control panel,
leave oven door open to prevent oven
from accidentally turning on.
6. If steam accumulates inside or around
the outside of the oven door, wipe with
a soft cloth. This may occur when the
microwave oven is operated under high
humidity conditions, this is normal.
7. It is occasionally necessary to remove
the glass tray for cleaning. Wash the
tray in warm sudsy water or in a
dishwasher.
8. The roller ring and oven floor should be
cleaned regularly to avoid excessive
noise. Simply wipe the bottom surface
of the oven with mild detergent. The
roller ring may be washed in mild sudsy
water or dishwasher. When removing
the roller ring from cavity floor for
cleaning, be sure to replace in the
proper position.
9. Remove odors from your oven by
combining a cup of water with the juice
and skin of one lemon in a deep
microwaveable bowl, microwave for 5
minutes. Wipe thoroughly and dry with
a soft cloth.
10. When it becomes necessary to
replace the oven light, please consult a
dealer to have it replaced.
SAVE THESE INSTRUCTIONS
14
