SunDash 20 GENESIS System 332 Pro-1 User manual

11
Specifications
Length: 85”
Width: 41”
Height: 39.8” - 49.6”
No. ofLamps: 32 Low Presure & 1 High Presure
Electrical: 120/208VAC and 120/240VAC
CircuitRequired: 20Amp Breaker
DANGER - ULTRAVIOLET RADIATION. FOLLOW INSTRUCTIONS. AVOID OVEREXPOSURE.AS
WITH NATURAL SUNLIGHT, OVEREXPOSURE CAN CAUSE EYE AND SKIN INJURY AND
ALLERGIC REACTIONS. REPEATED EXPOSURE MAY CAUSE PREMATUREAGING OF THE SKIN
AND SKIN CANCER. WEAR PROTECTIVE EYEWEAR; FAILURE TO MAY RESULT IN SEVERE
BURNS OR LONG-TERM INJURY TO EYES.
MEDICATIONS OR COSMETICS MAY INCREASE YOUR SENSITIVITY TO THE ULTRAVIOLET
RADIATION. CONSULT PHYSICIAN BEFORE USING SUNLAMP IFYOUARE USING MEDICATIONS
OR HAVE A HISTORY OF SKIN PROBLEMS OR BELIEVE YOURSELF ESPECIALLY SENSITIVE
TO SUNLIGHT. IF YOU DO NOT TAN IN THE SUN, YOUARE UNLIKELYTO TAN FROM THE USE
OF THIS PRODUCT.
THIS UNIT UTILIZES UVALAMPS. REPLACE TOP UNIT ONLY WITH GENESIS 120W HP 20, F71-
T12-HO-BP-120W, GENESIS 120W HP 20, F59-T12-HO-BP-120W AND FACIAL LAMPS WITH JK
RUSA 400W AND BOTTOM UNIT WITH GENESIS 120W HP 20, F71-T12-HO-BP-120W.
LIE ONACRYLIC SURFACEAND LOWER TOP SECTION. TOP SECTION WILLSTOPAT 12 INCHES
(305 MM) FROM BOTTOMACRYLIC SURFACE. THE USE OFANY OTHER POSITION MAY RESULT
IN OVEREXPOSURE.
MAXIMUM EXPOSURE TIME IS 20 MINUTES.
TANNING CAN BEGIN ON A REGULAR BASIS. AN APPEARANCE OF TANNING NORMALLY
APPEARS AFTER A FEW EXPOSURES AND MAXIMIZES AFTER FOUR (4) WEEKS OF
EXPOSURE FOLLOWING THE RECOMMENDED SCHEDULE FOR YOUR SKIN TYPE.
USE PROTECTIVE EYEWEAR, WHENEVER THE EQUIPMENT IS ENERGIZED. READ THE
INSTRUCTION BOOKLET BEFORE USINGTHIS UNIT.
INSTRUCTIONSACCOMPANYING THIS PRODUCT SHOULD ALWAYS BE FOLLOWED TOAVOID
OR MINIMIZE POTENTIAL INJURY.
“THIS PRODUCT IS IN CONFORMITY WITH PERFORMANCE STANDARDS FOR SUNLAMP PRODUCTS UNDER 21CFR PART 1040.”
Recommended Exposure Schedule
Skin Type Week 1
1st- 3rd
Treatments
Week 3
7th - 10th
Treatments
Week 4
11th-15th
Treatments
Weekly
Subsequent
Treatents
Week 2
4th - 6th
Treatments
Not Advised
3 Min.
3 Min.
3 Min.
3 Min.
Not Advised
7 Min.
7 Min.
10 Min.
10 Min.
Not Advised
15 Min.
15 Min.
15 Min.
15 Min.
Not Advised
15 Min.
15 Min.
20 Min.
20 Min.
Not Advised
20 Min.
20 Min.
20 Min.
20 Min.
I - Sensitive
II - Fair
III - Average
IV - Brown
V - Dark Brown

12
Mandatory Reading
Always read and follow all instructions for proper usage prior to using any tanning system.
Remember:
1. Follow the exposure schedule in accordance with your skin type. Failure to do so may result
in overexposure.
2. A tanning system is not a toy. Children should not play on, around or use this tanning
equipment. You cannot vary the strength of the lamps in your unit.
Should you have any questions regarding the proper use of your tanning system, contact JK Products
and Services at:
800-445-0624
Monday - Friday
7:00 a.m. to 7:00 p.m. (CST)
Warnings and Cautions
Certain drugs - particularly those that
produce photosensitivity - may cause
individuals under the influence of this type drug
to experience adverse effects and those people
should avoid exposure to UV sources of all
kinds. Doctors will advise persons taking
these drugs to possible adverse effects.
It is recommended that only one person
at a time should use the tanning system while
in use, and advises using protective eyewear
while taking a tanning session. One pair of
goggles is provided with each sunbed sold.
WARNING
If you have been diagnosed by a physician as being allergic to the sun or are currently
taking photosensitive medications, consult your physician before using the tanning unit.
Occasionally, persons using the tanning
system will experience a slight reddening of
the skin - usually in small patches - after the
second or third session. This redness is often
accompanied by an itching sensation. This
may be nothing more than a heat “rash” caused
by heat from the lamps within the system.
It is generally very limited and caused
by constant contact of the skin with the acrylic
surface. It should go away within approximately
24 hours and should not reappear. This rashing
can be lessened or prevented by applying
moisturizer lotion to the affected area after the
tanning session is completed.
CAUTION
While there is no immediate clinical evidence UVA exposure and its effects upon
expectant mothers, it is strongly advised that expectant mothers be discouraged
from using the tanning unit.
WARNING - Failing to properly maintain this equipment in accordance with the manufacturers
instructions can result in a FIRE HAZARD where dirt or dust is allowed to accumulate. Failing to
preform required testing, lubercating, or adjusting as recommended by the manufacturer can result
in a failure of the equipment which MAY RESULT IN SERIOUS INJURY OR DEATH.

13
Care and Cleaning of Your Tanning Unit
After each session is completed, spray the
acrylic surface with specially formulated UVT
(ultraviolet transmitting) acrylic cleaner. Wipe
the surface of the acrylic with a clean cloth.
The acrylic should never be wiped with a dry
cloth because this will generate a slight static
charge which will attract dust. A mild liquid
detergent and water solution can be used
temporarily in place ofAcrylic Cleaner.
For maximum efficiency of your tanning unit, periodic cleaning of lamps, reflectors and the inside of
the acrylics is required. Refer to relamping instructions for acrylic removal.
CAUTION: Do not use excessive amounts of water, any abrasive cleaners, or any spray cleaners
that carry label warnings regarding reactions to contact with skin!
Skin Types
Melanin - The brownish pigment produced by special cells in the base layer of your skin
determines the individual’s tan.As the skin is exposed to the ultraviolet light, the melanin is activated
and combines with protein cells that rise to the skin’s surface, thus producing a tan.
The amount of melanin in your body determines how quickly and dark you tan. The more
melanin produced and exposure time an individual has, the faster and deeper the individual will tan.
Do not tan more then once in a twenty-four (24) hour period.
NOTE
The tan produced by the tanning unit is a deep, rich “COSMETIC” tan. However, regardless of
how dark an individual may tan on this system, it will not provide adequate protection against
overexposure to natural sunlight or UVB tanning systems.
Skin Type I - Always burns, not advised to tan.
Skin Type II - This is the individual that usually burns easily and severely, tans minimally or lightly and
peels.
Skin Type III -Often referredto as“AVERAGE”complexion, burnsmoderately and tansaboutaverage.
Skin Type IV -Thisindividual burnsminimally,tanseasily andabove averagewith eachexposure.
Skin Type V -This individual’s skin rarely burns, tans easily and substantially.
NOTE: No two individual skin tones are the same. Atan to one person may be different to another and
treatmentlength mayvary.

PACKAGING
The tanning system is shipped in three separate boxes. The type of assembly in
each box is labeled on the outside. The box containing the tanning system legs
is placed on top, followed by the box containing thebase and then the box
containing the canopy. The tanning system should be unpacked and assembled
in this order. For additionalinstallation instructionsconsult the “ASSEMBLY”
sectionof this manual.
CONTENTS OF EACH BOX
LEG BOX:
•Two (2) legs
•Owner’s manual
•Assembly hardware
oCanopy
§Four (4) 5/16 hex washer nuts, to secure canopy to the leg (PN
0022003209)
§Four (4) 5/16 Nylock nut (PN 0022003249)
§Four (4) ¼ flat washer (PN 0028003265)
oBase
§Four (4) ¼-20 HEX nuts used to secure the base to the legs (PN
0022003212)
§Four (4) Flat ¼ washers used with above nuts
oPower Box
§Four (4) Phillips screws, to be used to secure ”Power Box” to the legs
and (PN 0024003092)
oMiddle Façade
§Four (4) Philip screws used to secure middle façade to leg assembly (PN
0048003608)
oFront Façade
§Two Phillips truss-head ¼-20 screws used to secure front façade to the
tanning system (PN 0020003041)
BASE BOX:
•Base of tanning system
•Power box
•Middle façade
CANOPYBOX:
•Top of tanning system
•Front façade

FASTENER ILLUSTRATIONS
5/16 Hex Washer Nut
¼ -20 Hex Nut
Phillips Screw #6 X 3/8
Flat Washer
Phillips Truss Head Screw ¼ X 20

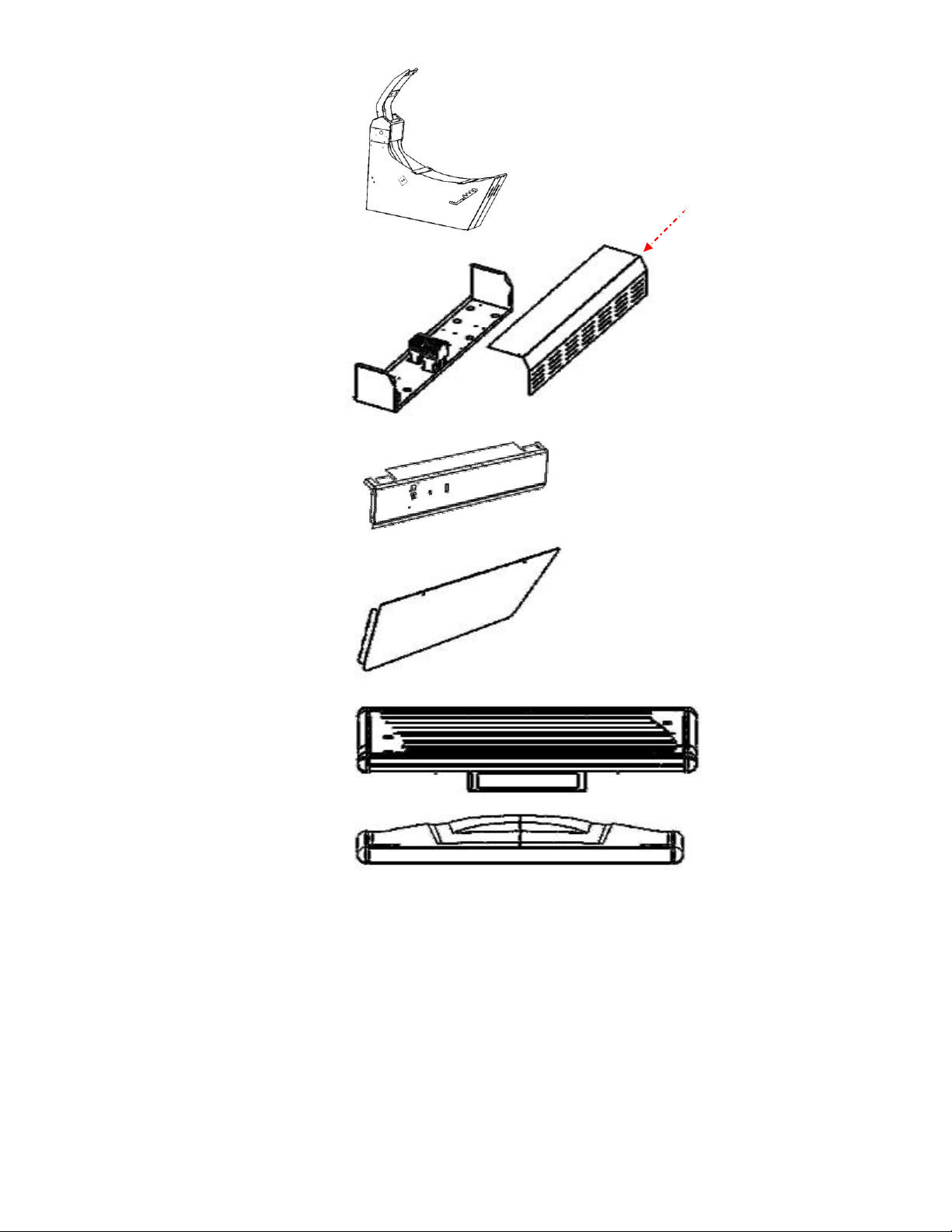

CONTENTS
LEG
POWER
BOX
MIDDLE
FACADE
FRONT
FACADE
BASE
CANOPY
POWER BOX COVER

ASSEMBLY
ASSEMBLY
To avoid personal injury and or damage to the tanning system, it is
recommended that the tanning system be assembled by a minimum of two
persons.
All electrical connections inside the tanning system should be completed by aCertified
Electrician or a Factory Authorized Representative. Connection to electrical service
should only be made by aCertified Electrician. All wiring and connections should
conform to local and national electrical codes.
To protect the tanning system components (acrylic, paint, etc.) from superficial
damage during assembly orservice, place a soft non-abrasive material over the
tanningsystem and or over the area in proximity where the work is being
performed.
TOOLS REQUIRED FOR ASSEMBLY:
The following is a list of tools required for installation:
Standard screw driver ( _)
Phillips screw driver (+)
Standard and Stubby
1/2” and 7/16” deep well socket
and ratchet combination

LEG INSTALLATION
1
Remove packing and leg
assemblies from the carton
marked LEG ASSEMBLIES.
Position leg assemblies in the
desired location. The leg
assemblies are in the shape of
a boomerang and should face
outward away from the wall
with support brackets facing
the middle. The legs should
be approximately 2 ½ feet
apart from each other and
equal distance away from the
wall (minimum 3”). (one
person can handle the lifting
and positioning of legs)
2
The “Power Box” should be
installed next. The power box
contains electrical components
that receive and distribute
power throughout the tanning
system. The power box rests
on the support brackets on
each leg and is secured to the
each leg assembly using #6
screws. This procedure will
allow the legs to be properly
positioned and ease the
installation of the base and
canopy (the installation of the
“Power Box” can be completed
by one person).
BASE INSTALLATION
3
Remove packing and unit from
box marked BASE UNIT. Lift
base into position (acrylic
facing up). The bolts should
protrude the holes of the
mounting bracket in the leg
assemblies.
The base is secured to the leg
assemblies using four (4) 1/4”
nut and washer combinations
(the “Base” can be easily
installed by two individuals).

CANOPY INSTALLATION
4
Remove packing and unit from
box marked TOP UNIT. Lift
top into position (acrylic facing
down). The bolts should
protrude through the holes of
the mounting bracket in the leg
assemblies. The canopy is
secured to the leg assemblies
using eight (8) 5/16” nuts (four
on each leg).
Note: For proper balancing
and limited spring adjustment
of the canopy, the bolts of the
canopy should rest against the
top of the holes in the
mounting bracket of the leg
assembly. Ignoring this
recommendation will allow the
canopy to move to the closed
position and not remain open
(the canopy will require two
individuals to install and secure
into position. The addition of a
third person will simplify the
procedure of securing the
“Canopy” to the legs).

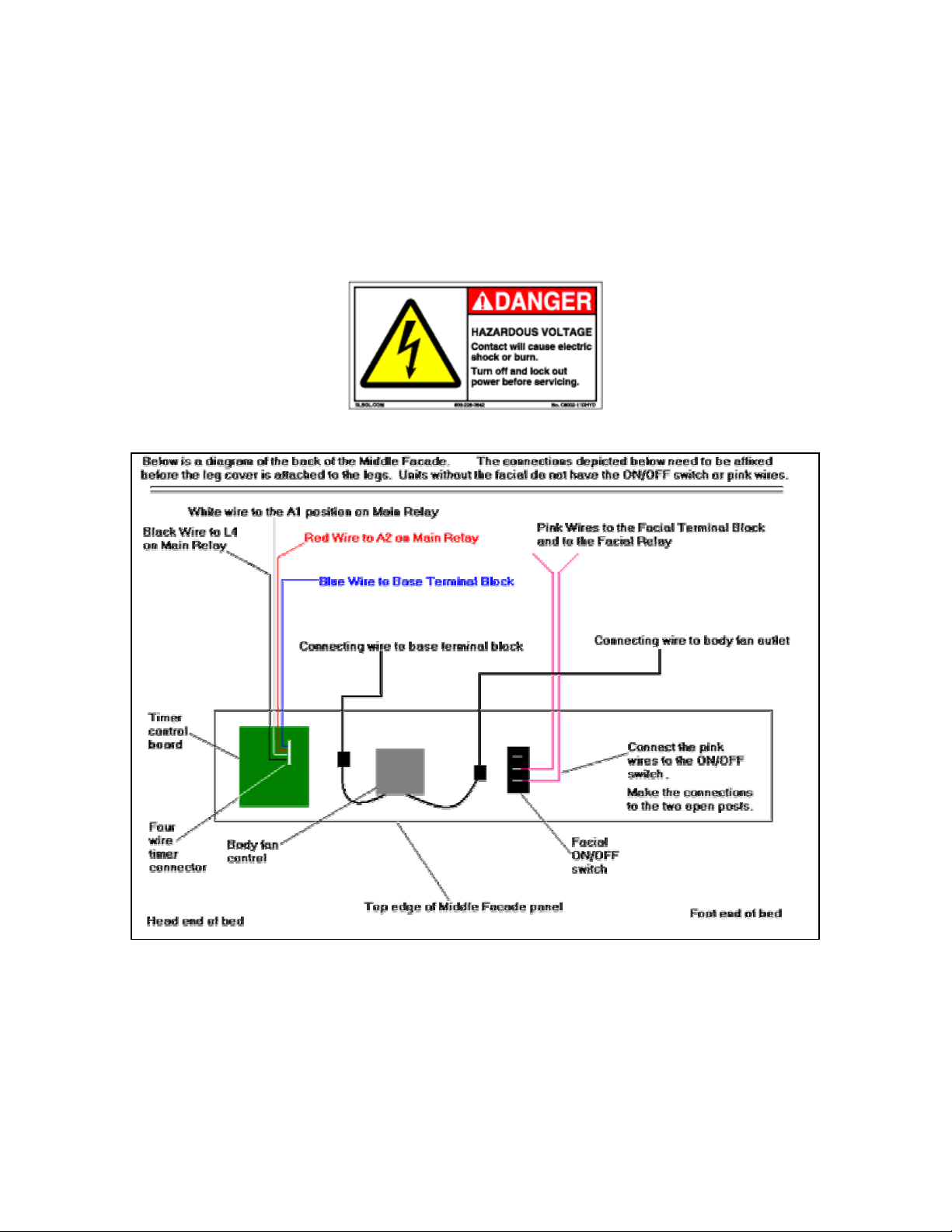

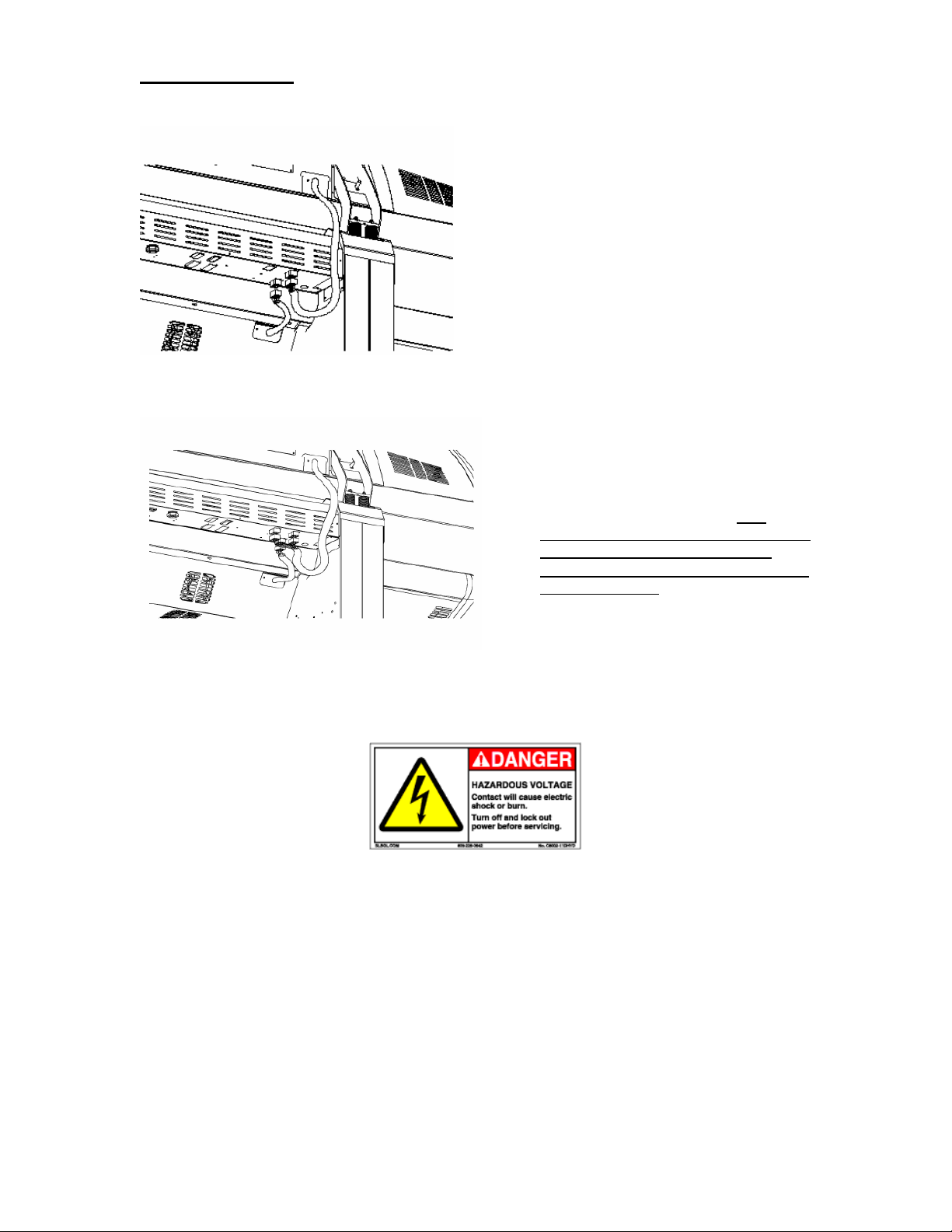

Bed Connections
CANOPY AND BASE
The power cords from the canopy and
base are plugged into bottom of relay
enclosure. The illustration to the left
indicates the position of each wire.
FACIAL
The power cord (on tanning systems
with a facial lamp) for the facial
assembly is equipped with plug. In
208V single/three-phase power
configurations, a Buck-Boost
transformer will be required. This
tanning system cannot be configured to
operate as three-phase. It can be
installed in a three-phase panel using a
two-pole breaker.
Note: The Buck-Boost transformer is
required to boost power to the single
facial lamp circuit. The Buck-Boost
transformer should not be used to raise
the operating voltage to the tanning
system.
ALL ELECTRICAL CONNECTIONS INSIDE OF TANNING SYSTEM MUST BE COMPLETED BY
FACTORY AUTHORIZED PERSONNEL OR LICENSED ELECTRICIAN. CONNECTIONS TO THE
ELECTRICAL SERVICE MUST BE COMPLETED BY LICENSED ELECTRICIAN ONLY.

BUCK-BOOST TRANSFORMER
BUCK-BOOST TRANSFORMERS SHOULD NEVER BE USED TO BOOST POWER BEING
SUPPLIED TO ENTIRE TANNING SYSTEM. POWER TO THE FACIAL TANNER CIRCUIT SHOULD
ONLY BE BOOSTED WHEN REQUIRED (SEE EXPLANATION BELOW).
The use of Buck-Boost transformers is NOT REQUIRED on units that do NOT have a facial tanner. A
Buck-Boost transformer is not required for tanning systemswith a facial tanner being installed in
locations where the incoming power is 240V. A tanning system equipped with a facial tanner will
require the use of a Buck-Boost transformer in locations where the incoming voltage to the salon is 208
volts.
A 0.15KVA transformer (JK Products PN #)boosting voltage from 208V to 230V supporting AMP load
capacity of 7.0 AMPS is required to be used with the model having a facial tanner on 208V systems.
The Buck-Boost transformer should be installed on the right leg behind the tanning system (enough
cable should used when wiring the Buck Boost transformer to allow the tanning system to be moved a
minimum of 24 inches away from the wall for service requirements). All wiring and connections
should conform to local and national electrical codes.
The facial terminal block and facial relay are located on the power box. CAUTION: To avoid personal
injury and electrical shock hazard all electrical connections must be completed with the power
to the tanning system off.
Buck Boost Connection

WIRE CONNECTIONS
The illustration below shows the placement of each wire in the power box.
ALL ELECTRICAL CONNECTIONS INSIDE OF TANNING SYSTEM MUST BE
COMPLETED BY FACTORY AUTHORIZED PERSONNEL OR LICENSED
ELECTRICIAN. CONNECTIONS TO THE ELECTRICAL SERVICE MUST BE
COMPLETED BY LICENSED ELECTRICIANS ONLY.

To install front façade, center the facade
with the tanning system and position it in
close proximity with the bottom of each
leg. Align the clips on the bottom of the
facade with the receptacles on each leg
(one person can lift, install,and secure
the “Front Façade” to the tanning
system”).

ACRYLIC REMOVAL & INSTALLATION
Quarter turn fasteners are used to secure the
acrylic to the canopy. A standard screw driver
should be used to removeeach of the six ¼
turn fasteners.The location of the ¼ turn
fasteners are indicated by the arrows on the
illustration on the left. The acrylic should be
supported while the fasteners are being
removed to avoid damaging the acrylic and or
avoiding personal injury. Once the fasteners
are all removed the acrylic should slide out of
its position and stored in a safe place while
service is being performed.
To assist with the installation process of the
canopy acrylic,follow the steps listed below:
•Place the acrylic inside the track on the
back of the canopy
•Install ¼ turn screws in the center
locations first, then in each end of the
canopy.
FACIAL ASSEMBLY
Special CAUTION must be exercised when
lowering the facial assembly. Once the
fastener used to secure the facial housing
to the canopy is removed, the facial
housing will pivot downward on an angle.
The potential for the filter glass to slide out
of its original position is present. To
prevent the filter glass from falling out,
breaking and or potentially causing
personal injury, remove the facial filter
glass during the service process.

LAMP REMOVAL
To remove lamps, rotate 900and lift
out.
LAMP INSTALLATION
To install lamps, position pins inside
lamp holder as illustrated and rotate
900. Lamp etching should always be
visible to tanner after installation.

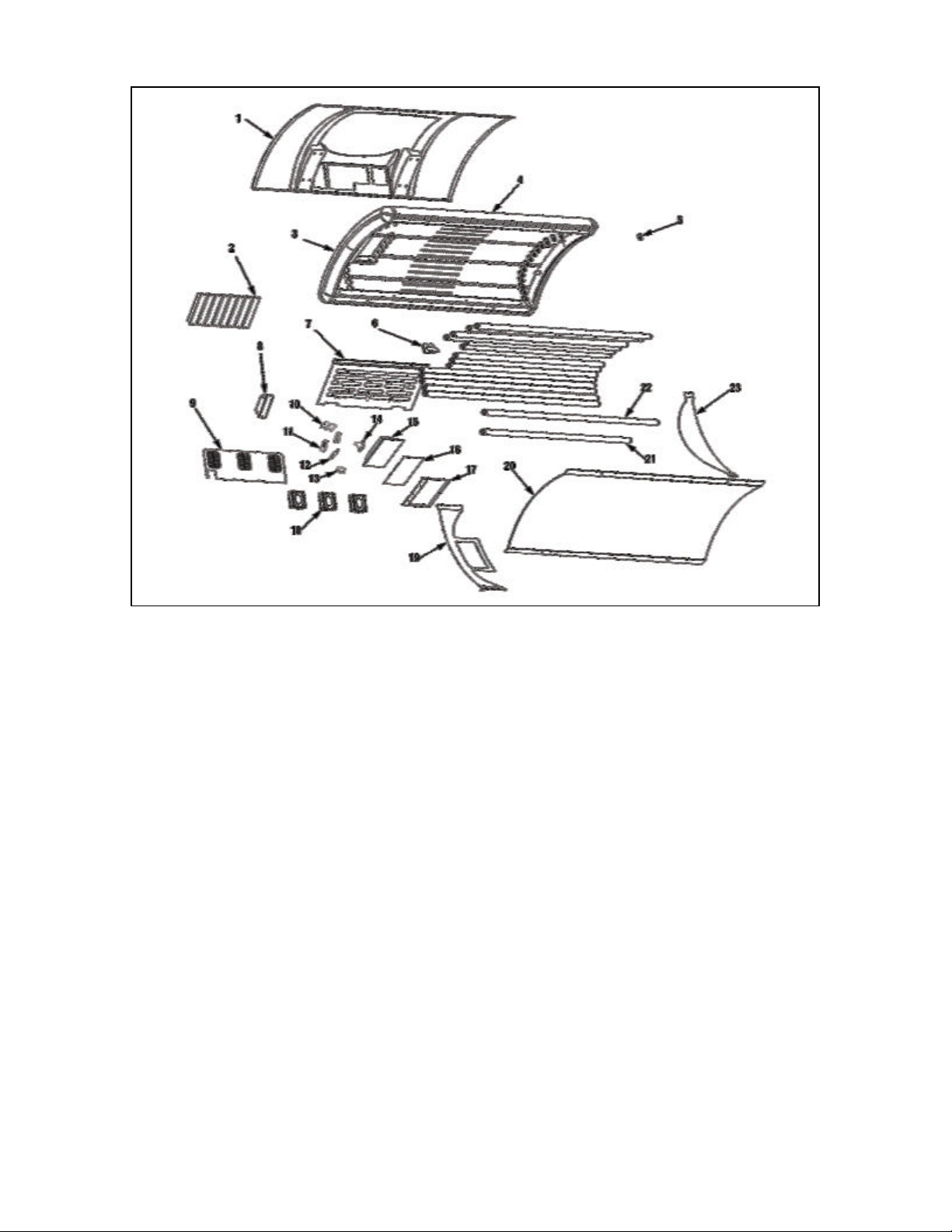

CANOPY(SERVICE PARTS EXPLOSION)

CANOPY SERVICE PARTS
NO. PART NO. DESCRIPTION
10055005000 UPPER COVER
20031002482 BALLAST, ELECTRONIC SMART CELL
3N/A NOT A SERVICE ITEM
4N/A NOT A SERVICE ITEM
50000012321 LAMP HOLDER W/O STARTER (BLACK)
6N/A NOT A SERVICE ITEM
7N/A NOT A SERVICE ITEM
80031002030 BALLAST, 400 W
9N/A NOT A SERVICE ITEM
10 N/A NOT A SERVICE ITEM
11 0000050408 LAMP HOLDER FACIAL CERAMIC
12 0000100723 HP PRESSURE LAMP (400W)
13 N/A NOT A SERVICE ITEM
14 0000011716 TEMPERATURE FUSE 1200C
15 N/A NOT A SERVICE ITEM
16 0000735044 HP FACIAL FILTER GLASS
17 N/A NOT A SERVICE ITEM
18 0032002410 AXIAL FAN (105 CFM) 120V
19 N/A NOT A SERVICE ITEM
20 0000550046 ACRYLIC, SUNDASH 32
21 0000012842 LAMP 59” (100 W)
22 0000012843 LAMP 71” (120 W)
23 N/A NOT A SERVICE ITEM

BASE (SERVICE PARTS EXPLOSION)
BASE (SERVICE PARTS)
NO. PART NO DESCRIPTION
1N/A NOT A SERVICE ITEM
20031002482 BALLAST ELECTRONIC SMART CELL
30032002410 AXIAL FAN (105 CFM) 120 V
4N/A NOT A SERVICE ITEM
5N/A NOT A SERVICE ITEM
60000050408 LAMP HOLDER W/O STARTER (BLACK)
7N/A NOT A SERVICE ITEM
80000012843 LAMP 71” (120 W)
90055005026 LAMP HOLDER COVER (HEAD END)
10 0055005028 LAMP HOLDER COVER (FOOT END)

LEG & MIDDLE FAÇADE (SERVICE PARTS EXPLOSION)
