Sunjoy SUMMERCOVE A102018600 User manual

Country of Origin: China Production Number: XXXXXXXXXX
Pais d’origine: Chine Numéro de fabrication: XXXXXXXX
ASSEMBLYINSTRUCTION
INSTRUCTIONS DE MONTAGE
Item/Article #：A102018600
WE HAVE YOU IN MIND, LET US SERVE YOU!
Nous pensons en vous, laissez nous vous aider!
Questions? Issues?/ Questions? Problèmes?
CONTACT US / Contactez-nous
[e-mail]
www.sunjoyonline.com

2/ 44
Country of Origin: China
Pais d’origine: Chine
This product is intended for domestic outdoor use only.
The product should be placed on flat, horizontal ground.
Ensure enough clearance around the product. Before assembling the product, find level
ground not less than 6' (1.8 m) away from any structures or obstructions, such as fences,
garages, houses, overhanging branches, laundry lines, or electrical wires.
This gazebo is not to be regarded as part of a building/house structure. The gazebo is to be
anchored onto the ground for added safety. Do not assemble the gazebo onto soil/earth
ground. It is best advisable to have the gazebo built onto a wooden deck or concrete ground
for stability. If it is to be build onto a wooden deck/ground, do ensure that the wooden
deck/ground has a strong foundation. It is advisable to use appropriate floor plugs (not
provided) to anchor the gazebo onto the wooden/concrete ground.
Some structures may require two or more people to install safely. Check for underground
utilities before digging or driving stakes into the ground.
During installation, follow all safety warnings provided with your tools, and use safety glasses.
In case you set up more than one gazebo, keep a minimum distance of 10' (3 m) between the
gazebos.
Any assembly or maintenance of the product must be carried out by adults only.
Arrange necessary manpower when assembling or moving the product.
Some parts may contain sharp edges. Wear protective gloves if necessary.
Keep children and pets away while setting up the gazebo.
Check all nuts and bolts periodically to ensure bolts/nuts are tightened.
Repairing and replacing parts should be done by a qualified technician.
This gazebo is intended for decorative and sunshade purposes only, and it is not designed to
withstand harsh weather, including high winds, rain, and snow.
Do not light any fires inside or near the product！
Stay calm if fire breaks out. Search for the nearest exit. Do not return to the gazebo before
firemen allow you to do so.
Do not hang heavy weights on the roof frame.
Do not climb onto the roof of the gazebo. Falling off the gazebo can result in serious injury.
Retain the original packaging to store the gazebo
Important Safety Instructions
Warning! To reduce the risk of serious injury, read the following safety instructions
before assembling and using the gazebo.
Please check with your local governing authority/local municipal codes regarding
installation of structures before assembly.
Caution!
Proper placement of your gazebo is essential.
Do not place the product underneath electrical lines.
Keep children away during assembly.
This product contains small parts which can be swallowed by children.
Keep fingers away from the places where they can be pinched or trapped.
Do not attempt to assemble the gazebo if any parts are missing.

3 / 44
Consignes de sécurité importantes
ATTENTION! 





Avertissement!



•
•
•



• 
 
 
 
 

•

•

• 

•
•
•
•
•

•
•

•
•

•
•

•
Country of Origin: China
Pais d’origine: Chine

4/ 44
Country of Origin: China
Pais d’origine: Chine
• Please read and understand this manual before any assembly. Beforebeginning
assembly of product, make sure all parts are present. Compare parts with packaging
contents list.
•When assembling wooden parts, do not overtorque the bolts to avoid splitting the wood.
See image illustration.
•Place all parts from the box in a cleared area and position themon the floor in front of you.
•Remove all packing materials and place them back into the box. Do not dispose of the
packing materials until assembly is complete.
•Needed for assembly:（The following tools are not included）
IMPORTANT:
Cordless drill
Hammer
Screwdriver
Ladder
5 people

5/ 44
IMPORTANT:
•

•
•

•

•




Utilisez un niveau


Véfifiez avec un équerre


Serrer les boulons Mesurer la distance




Country of Origin: China
Pais d’origine: Chine
Perceuse pistolet Marteau Tournevis Escabeau 5 personnes

6/ 44
Country of Origin: China
Pais d’origine: Chine
EXPLODED DRAWING/DESSIN ÉCLATÉ

7/ 44
Country of Origin: China
Pais d’origine: Chine
EXPLODED DRAWING/DESSIN ÉCLATÉ

8/ 44
Country of Origin: China
Pais d’origine: Chine

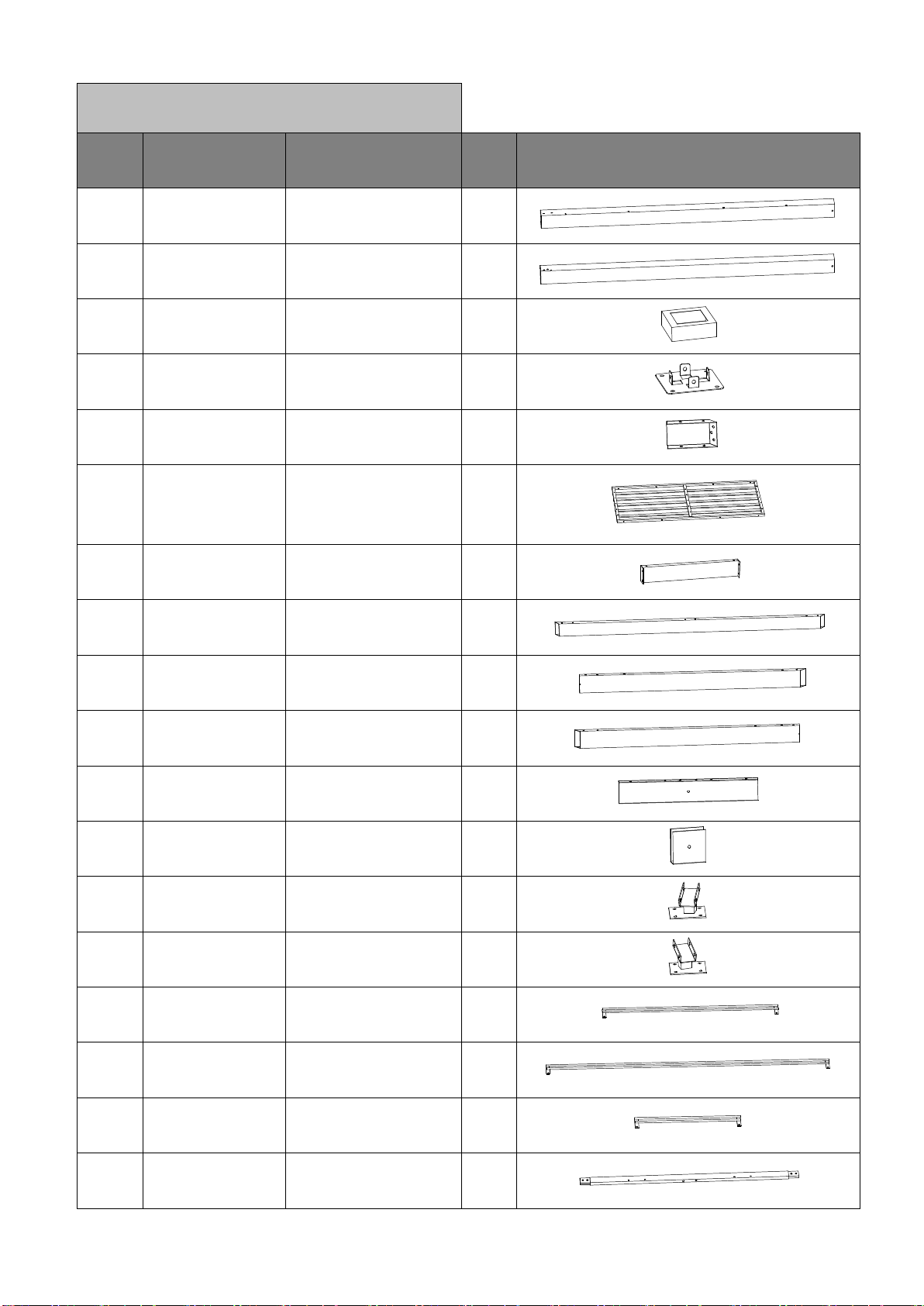

Parts List
Label Part Number Description Qty Part Image
A P00020075701 Post 1 4
B P00020075801 Post 2 4
C P00610024801 Post Base 8
D P00010050101 Pase Cover 8
E P00050180701
Cross Beam
Connector 2 8
F P00620002901 Fence 4
G P00040141301 Corner Cross Beam 4
J P00040141001 Short Cross Beam 2
K P00040141101
Left Long Cross
Beam 2
L P00040141201
Right Long Cross
Beam 2
M P00050180601
Cross Beam
Connector 1 2
N P00220040701 Beam Cap 2
P P00050180801 Rafter Connector 1 4
Q P00050180901 Rafter Connector 2 4
R P00570089001 Long Netting Rod 4
S P00570089101 Short Netting Rod 2
T P00570089201 Corner Netting Rod 4
U P00050181201 Long Big Roof Frame 2

9/ 44
Country of Origin: China
Pais d’origine: Chine
Liste de Pièces
Étiquette Numéro dela Pièce Description Quantité Numéro de la Pièce Diagramme
A P00020075701 Poteau 1 4
B P00020075801 Poteau 2 4
C P00610024801 Base du Poteau 8
D P00010050101 Base du Poteau 8
E P00050180701 Connexion de la
Traverse 2 8
F P00620002901 Barrière 4
G P00040141301 Traverse d'angle 4
J P00040141001 Traverse courte 2
K P00040141101 Traverse longue
gauche 2
L P00040141201 Traverse longue
droite 2
M P00050180601 Connexion de la
Traverse 1 2
N P00220040701 Chapeau de faisceau 2
P P00050180801 Connexion du
Chevron 1 4
Q P00050180901 Connexion du
Chevron 2 4
R P00570089001 Longue tige de filet 4
S P00570089101 Tringle à filet courte 2
T P00570089201 Tringle à filet d'angle 4
U P00050181201 Long et grand
cadre de toit 2

10 / 44
Country of Origin: China
Pais d’origine: Chine
V P00050181301
Short Big Roof
Frame 2
W P00060238301 Big Roof Rafter 1 4
X P00060238401 Big Roof Rafter 2 4
Y P00060238501 Middle Beam 4
AA P00050181001
Middle Beam
Connector 4
AB P00050181101 Small Connector 1
AC P00060238001 Small Roof Rafter 4
AD P005800001 Hook 1
AE P00060238201
Small Roof Panel
Flashing (Long Side) 2
AF P00060238101
Small Roof Panel
Flashing (Short Side) 2
AG P00070113401 Smll Roof Left Roof
Panel 4
AJ P00070113501
Smll Roof Middle
Roof Panel (Long
Side)
2
AK P00070113601 Smll Roof Right Roof
Panel 4
AL P00080040701
Small Roof Rafter
Cap 4
AM P00090018301 Small Roof Cap 1
AN P00060239001
Big Roof Short Beam
(Long Side) 1 2
AP P00060239101
Big Roof Short Beam
(Long Side) 2 2
AQ P00060238601
Big Roof Short Beam
(Short Side) 1 2
AR P00060238701
Big Roof Short Beam
(Short Side) 2 2

11/ 44
Country of Origin: China
Pais d’origine: Chine
V P00050181301 Court Grand
Cadre de toit 2
W P00060238301 Grand chevron
de toit 1 4
X P00060238401 Grand chevron
de toit 2 4
Y P00060238501 Poutre centrale 4
AA P00050181001 Connexion de la
poutre centrale 4
AB P00050181101 Petit connecteur 1
AC P00060238001 Petit chevron de toit 4
AD P005800001 Crochet 1
AE P00060238201 Petit solin de panneau
de toit (côté long) 2
AF P00060238101 Petit solin de panneau
de toit (côté court) 2
AG P00070113401 Panneau de toit
gauche petit toit 4
AJ P00070113501
Panneau de toit
intermédiaire de
petit toit (côté long) 2
AK P00070113601 Panneau de toit droit
pour petit toit 4
AL P00080040701 Petit chapeau de
chevron de toit 4
AM P00090018301 Petit chapeau de
toit 1
AN P00060239001 Faisceau court Big
Roof (côté long) 1 2
AP P00060239101 Faisceau court Big
Roof (côté long) 2 2
AQ P00060238601 Faisceau court Big
Roof (côté court) 1 2
AR P00060238701 Faisceau court Big
Roof (côté court) 2 2

12/ 44
Country of Origin: China
Pais d’origine: Chine
AS P00060239401
Big Roof Short Beam
(Corner Side) 4
AT P00060239201
Big Roof Long Beam
(Long Side) 1 2
AU P00060239301
Big Roof Long Beam
(Long Side) 2 2
AV P00060238801
Big Roof Long Beam
(Short Side) 1 2
AW P00060238901
Big Roof Long Beam
(Short Side) 2 2
AX P00060239501
Big Roof Long Beam
(Corner Side) 4
AY P00060239801
Big Roof Left Panel
Flashing (Long Side) 2
BA P00060239901
Big Roof Right Panel
Flashing (Long Side) 2
BB P00060239601
Big Roof Left Panel
Flashing (Short Side) 2
BC P00060239701
Big Roof Right Panel
Flashing (Short Side) 2
BD P00060240001
Big Roof Right Panel
Flashing (Corner
Side)
4
BE P00070112901 Big Roof Middle Roof
Panel 2
BF P00070112801 Big Roof Left Big
Roof Panel 4
BG P00070113201 Big Roof Right Big
Roof Panel 4
BJ P00070113001 Big Roof Left Roof
Panel (Corner Side) 4
BK P00070113101 Big Roof Right Roof
Panel (Corner Side) 4
BL P00070112701 Big Roof Left Small
Roof Panel 4

13/ 44
Country of Origin: China
Pais d’origine: Chine
AS P00060239401 Poutre Courte du Grand
Toit (Côté de l’Angle) 4
AT P00060239201 Poutre Longue du
Grand Toit (Côté Long) 1 2
AU P00060239301 Poutre Longue du Grand
Toit (Côté Long) 2 2
AV P00060238801 Poutre Longue du Grand
Toit (Côté Court)1 2
AW P00060238901 Poutre Longue du Grand
Toit (Côté Court) 2 2
AX P00060239501 Poutre Longue du Grand
Toit (Côté de l’Angle) 4
AY P00060239801 Solin du Panneau
Gauche du Grand Toit
(Côté Long）
2
BA P00060239901 Solin du Panneau Panel
du Grand Toit (Côté Long) 2
BB P00060239601 Solin du Panneau
Gauche du Grand Toit
(Côté Court）
2
BC P00060239701 Solin du Panneau Droit
du Grand Toit (Côté
Court)
2
BD P00060240001
Solin du Panneau
Droit du Grand
Toit(Côté coin ) 4
BE P00070112901 Panneau du Toit
Central du Grand Toit 2
BF P00070112801
Panneau de Grande
Toiture Gauche du
Grand Toit
4
BG P00070113201 Panneau de Grande Toiture
Droit du Grand Toit 4
BJ P00070113001
Panneau de Toiture
Gauche du Grand Toit
(Côté de l’Angle)
4
BK P00070113101
Panneau de Toiture
Droite du Grand Toit
(Côté de l’Angle)
4
BL P00070112701
Panneau de Petite
Toiture Gauche du
Grand Toit
4

14 /44
Country of Origin: China
Pais d’origine: Chine
BM P00070113301 Big Roof Right Small
Roof Panel 4
BN P00080040801
Big Roof Rafter Cap
1 4
BP P00080040901
Big Roof Rafter Cap
2 4

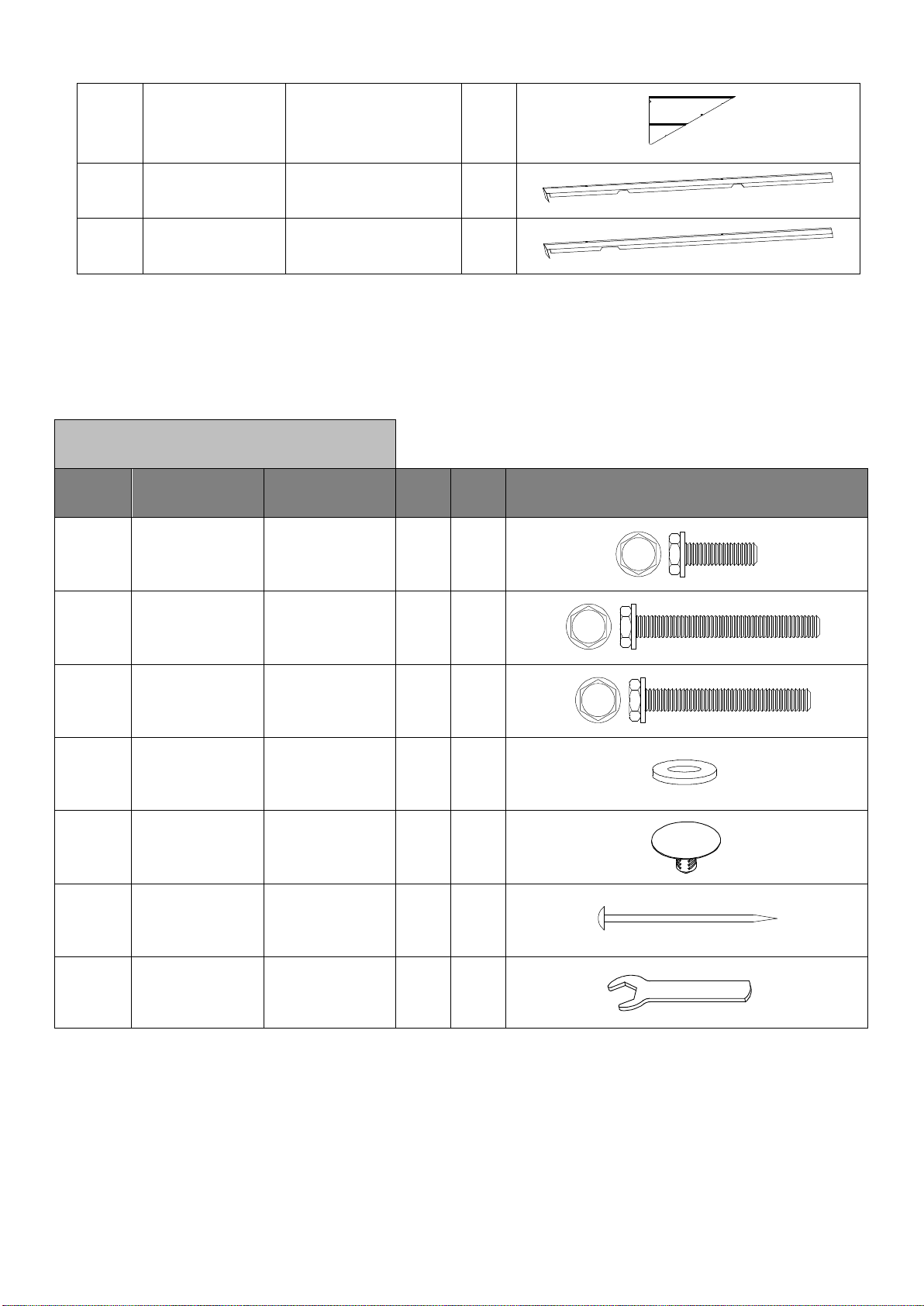

Hardware Pack
Label Part Number Description Qty Add Part Image
H1 H100010047 Bolt M6*20 396 20
H2 H100010058 Bolt M6*50 48 3
HH1 H050050018 M6 Rubber
Washer 22 2
HH2 P00220034001 Black Plastic
Buckle 12 1
HS H070010003 Stake Φ8*180 16 0
HW H090010017 Wrench M6 1 0
H3H100010059 Bolt M6*45 41

15/44
Country of Origin: China
Pais d’origine: Chine
BM P00070113301 Grand toit à droite
Petit panneau de toit 4
BN P00080040801 Chapeau de chevron
de grand toit 1 4
BP P00080040901 Chapeau de chevron
de grand toit 2 4
Liste de Pièces
Étiquette Numéro de
laPièce Description Quantité Add Numéro de la Pièce Diagramme
H1 H100010047 Boulon M6*20 396 20
H2 H100010058 Boulon M6*50 48 3
HH1 M6 Une
rondelle en
caoutchouc
H050050018 22 2
HH2 P00220034001 Boucle en
plastique noir 12 1
HS H070010003 Piquet Φ8*180 16 0
HW H090010017 Clé M6 1 0
H3H100010059 Boulon M6*45 41

16/ 44
Country of Origin: China
Pais d’origine: Chine

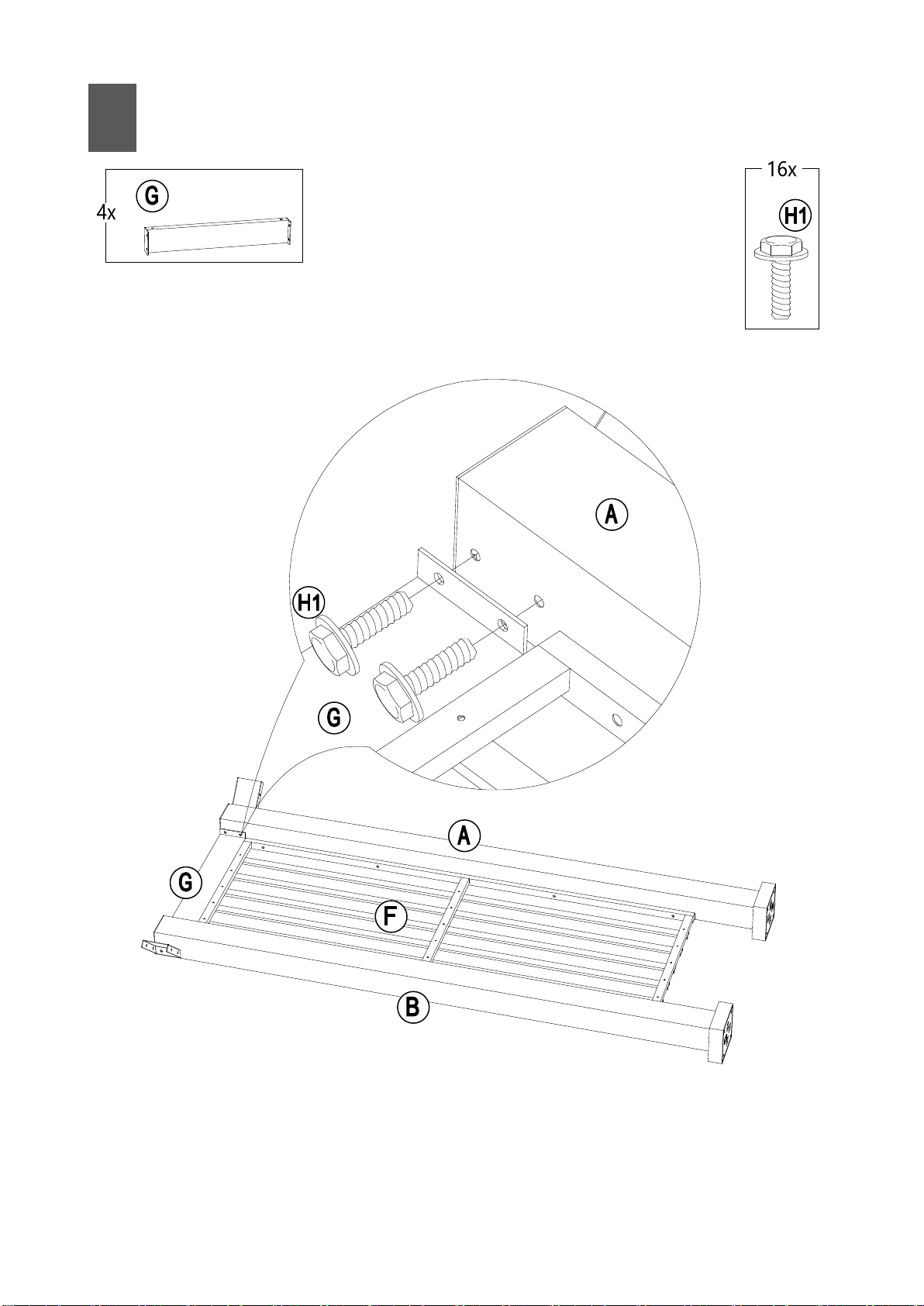

1

17/ 44
Country of Origin: China
Pais d’origine: Chine
2

18/ 44
Country of Origin: China
Pais d’origine: Chine
3

19 / 44
Country of Origin: China
Pais d’origine: Chine
4

20 / 44
Country of Origin: China
Pais d’origine: Chine
5
