WARNING! This appliance is not intended for
use by children or by unassisted, unsupervised
persons whose physical, sensory or mental
capabilities prevent them from using it safely.
Children should be supervised to ensure that
they do not play with the appliance.
WARNING! When using the pressure washer, basic
safety precautions should always be followed to
reduce the risk of fire, electric shock, and personal
injury. These include:
1.Know your product – Know how to stop the machine
and bleed pressure quickly. Thoroughly familiarize
yourself with the controls.
2.Keep bystanders away – All visitors and pets should
be kept a safe distance away from the work area.
Please read these instructions carefully before installing
and operating the equipment!
3.Use the right product – Do not use this machine for
any job except that for which it is intended.
4.Dress properly – Do not wear loose clothing or jewelry.
They can get caught in moving parts. Protective rubber
gloves and non-slip footwear are recommended when
working outdoors.
5.Exercise caution to avoid slipping or falling. Wear
protective footwear that will protect your feet and
improve your footing on slippery surfaces.
6.Stay alert – Watch what you are doing. Use common
sense. Do not operate the pressure washer when you
are tired, or under the influence of alcohol or drugs.
Safety Introductions

04
WARNING! Electrical Shock Hazard – Before starting
up your machine, please check it carefully for any
defects. If you find any, do not start up your machine
and contact your distributor.
WARNING! This washer has been designed for using
special detergent. Using other cleaning agents or
chemicals may adversely affect the safety of the washer.
7.Do not overreach – Keep proper footing and balance
at all times.
8.Avoid unintentional starting – Do not carry a
plugged in machine with your finger on the
trigger. Make sure the switch is off before plugging
in the machine
•Check the water temperature
This pressure washer should not be used to pump hot
water. NEVER connect it to a hot water pipe as it will
significantly reduce the life of the pump.
•Store indoors
NEVER store the pressure washer outdoors, it could get
frozen in wintertime. The pump would be seriously
damaged.
•Ground Fault Circuit Interrupter (GFCI)
Protection should be provided on the circuits or outlets
to be used for this pressure washer. Receptacles are
available having built-in GFCI protection and may be
used for this measure of safety.
•Inspect electrical cables
The insulation of the power cord should be perfectly
intact. If the power cord is damaged or shows any signs
of wearing or tearing, do not use the pressure washer.
Contact SUNPOW customer service center via
Email: [email protected]

WARNING! High-pressure jets can be dangerous if misused.
The jet must not be directed at persons, pets, live electrical
equipment, or the appliance itself.
WARNING! Water that has flowed through backflow
preventers is considered to be non-potable.
WARNING! During cleaning, maintenance or when
replacing parts, the machine must be disconnected
from its power source by removing the plug from the
socket-outlet.
WARNING! High-pressure hoses, fittings, and couplings
are important for the safe operation of the appliance.
•Risk of explosion
Do not spray flammable liquids.
•Disconnect the tool
Disconnect the washer from the electrical power before
performing any maintenance.
•Keep children away
This high-pressure electric power washer must not be used
by children or untrained persons.
•Check for damaged parts
Do not use the appliance if the supply cord or other important
parts of the appliance are damaged (e.g. safety devices,
high-pressure hoses, trigger gun).
05
•Do not direct the jet at yourself or others in order to
clean clothes or footwear.
•To ensure appliance safety, ONLY use original replacement
parts from the manufacturer. Do not use third-party parts as
replacements,pleasecontactuswhenanypartsaredamaged.
only Use hoses, fittings, and couplings provided by the
manufacturer.

Safety Devices
WARNING! This high-pressure electric power washer must
not be used at temperatures below 32ºF (0°C).
WARNING! Power cords on drums should always be
completely unwound to prevent the cord from overheating.
06
•Power cord connections should be kept dry and off the
ground.
•Keep the machine on a stable, flat surface during
operation,handling, transportation, and storage. Sudden
overturn of the machine can cause bodily injury.
•In the event of an accident or breakdown, switch off
the machine immediately. (If contacted with detergent,
rinse with an abundance of clean water.)
The unloader valve can reduce pressure if it exceeds preset
values. The spray gun features a locking device. When the
lock is activated, the spray gun cannot be operated.
1. Thermal sensor
A thermal sensor protects the motor against overloading.
The machine will restart after a few minutes when the
thermal sensor has cooled.
2. Ground fault circuit interrupter (GFCI) protection
A GFCI should be provided on the circuit(s) or outlet(s) to
be used for the pressure washer. Receptacles are available
having built-in GFCI protection and may be used for this
measure of safety.
3. Do not use extension cords with this pressure washer. The
unit comes standard with a 36 ft GFCI power cable to
meet the needs of daily use.
Electric shock may cause SEVERE INJURY or DEATH.
Heed these warnings:
•Do not allow any part of the electric pressure washer
to make contact with water while it is in operation. If

Product Description
Motor
Protection Class
Max. Pressure
13 AMP
Max. Temperature
Rated Pressure:
Max Flow
IPX5
2300PSI
104℉/40℃
1900PSI
2.0GPM
Technical Data
07
the appliance becomes wet while turned off, wipe dry
before starting.
•Do not touch the appliance or its plug with wet hands
or while standing in water.
•Do not abuse the cord. Never pull the pressure washer
by the cord or yank the cord to disconnect it from the
receptacle. Keep the cord away from heat, oil, and
sharp edges.
• This high-pressure electric power washer is intended
for residential use to clean vehicles, machines, buildings,
facades, etc.
• Never use the machine in potentially explosive areas
under any circumstances!
• The operating temperature must be between 32ºF
(0ºC) and 104ºF (40ºC).
• Do not use water that is dirty, gritty, or contains any
chemical products, as these could impair operation
and shorten the life of the machine.
• This unit can be placed upright or horizontally. Do
not step on when placed horiz

08
Read the owner’s manual and safety instructions carefully
before operating the electric pressure washer. Compare the
illustration below to the electric pressure washer in order to
familiarize yourself with the location of the various controls and
adjustments. Save this manual for future reference.
Know Your Electric Pressure Washer
1
14
2
3
4
5678
11
10
13
16
9
18
17
12
19
15
20
21
22
23
24
25
26
1. Transport handle (Pull rod)
2. Trigger gun holder
3. Trigger gun water filter rack
4. Nozzle plug
5. 15º Quick-Connect nozzle (yellow)
6. 25º Quick-Connect nozzle (green)
7. Nozzle holder
8. 40º Quick-Connect nozzle (white)
9. Pull rod button
10. Spray wand holder
11. On/Off switch
12. Spray wand water filter rack
13. Water outlet (high-pressure connection)
14. Universal wheels
15. Scroll Wheels
16. Detergent tank
17. Handle
18. Water inlet (garden hose connection)
19. Bottom bracket
20. Turbo nozzle
21. Spray wand
22. Trigger gun
23. Garden hose adaptor (female coupler)
24. High-pressure hose
25. Needle clean-out tool
26. Soap Quick-Connect nozzle (black)

09
NOTE:The installation of products and accessories can
refer to the video on the product page.
•Electric pressure washer
•Trigger gun
•Spray wand
•4 Quick-Connect nozzles (15º, 25º, 40º and Soap)
•Turbo nozzle
•Needle clean-out tool
•High-pressure hose
•Garden hose adaptor
•User’s manual
IMPORTANT! The equipment and packaging material are
not toys. Do not let children play with plastic bags, foils,
or small parts. These items can be swallowed and pose
a suffocation risk!
1.The washer needs to be used on a secure and stable
surface. It can sit on both vertical and horizontal
positions (Fig. 1).
What is in the Box
Assembly instructions
Fig.1

10
2. Push the spray wand: Align the bayonet when installing,
push the spray wand down far enough into the trigger
gun and turn it to lock it into position (Clockwise).When
disassembling, push the spray wand down far enough into
the trigger gun and turn it then pull it out
(Counterclockwise) (Fig.2).

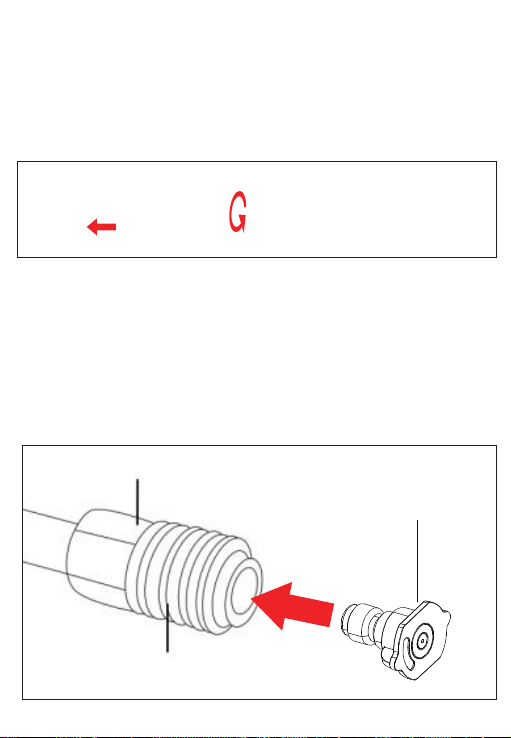

3.
Connect nozzle to the spray wand: The nozzle (black
foam nozzle) has been connected to the spray wand,
Remove the nozzle by placing your hand over the nozzle
while pulling back on the Quick-Connect collar. Then
select the nozzle you need, pull back on the
Quick-Connect collar, snap the desired nozzle onto the
Quick-Connect collar until it clicks into place, and push
up the Quick-Connect collar to complete the
installation (Fig.3).
Fig.2
Fig.3
Spray wand
Nozzle
Quick-Connect collar
“Click”

11
Fig.4
4.
Connect the high-pressure hose to the trigger gun:
Press the orange part (A) of the trigger gun and then
insert or remove the high-pressure hose (Fig.4).
5. Connect the high-pressure hose to the water outlet on the
machine:
Press the Button(B) on the water outlet and then
insert or remove the high-pressure hose (Fig.5).
Fig.7
A
B
Fig.5

12
WARNING! Keep hose away from sharp objects.
Bursting hoses may cause injury. Examine hoses regularly
and replace it if damaged. Do not attempt to mend a
damaged hose.
6.
Connect the garden hose adaptor (female coupler) to
the water inlet of the pressure washer, then thread your
garden hose (male end) into the garden hose adaptor
(Fig. 6). The garden hose must have an internal diameter
of at least 13 mm (1/2 in.) and must be reinforced. The
inflow water capicility should be more than the outflow
water capicility.
NOTE: The machine is not suitable for connection to the
potable water main.
7.
Attach garden hose to water supply (Fig.7).
WARNING! The intake water temperature must not exceed
104ºF/40ºC. The water supply must not exceed 0.7 MPa.6.
The water supply hose is not provided in the packing.
Fig.6
Garden hose
Water inlet
(female coupler)

13
Fig.7
CAUTION! The pressure washer must only be used with clean
water; use of unfiltered water containing corrosive chemicals
will damage the pressure washer.
8.
Make sure the motor switch
Tis pushed to the OFF (0) position before plugging the unit
into the power outlet (Fig.8).
Fig.8
Connect to water supply
Garden hose

Operation
14
9. Check that the electrical supply voltage
and frequency (Volt/Hz) correspond to those specified on
the pressure washer rating plate. If the power supply is
correct, you may now plug the pressure washer into the
power outlet (Fig.9).
Fig.9
Reset
GFCI
Power light
indicator
NOTE:
The GFCI may need to be reset when first plugged
into the electric outlet. Press the "Reset" button until the
power light indicator on the GFCI illuminates.
IMPORTANT! Thispressurewasherisequipped with a micro-switch
sensitive to water flow. This Total Stop System (TSS) senses
water flow in the pump. When the trigger is released, water
stops flowing through the pump. The TSS then automatically
turns the motor off to protect the pump from overheating,
thus saving energy and prolonging pump life.
NOTE: THE RMAL SENSORA thermal sensor protects the
motor against overloading. The machine will restart
after a few minutes when the pressure washer cools down.

Using the nozzles
Fig.10
Slot
Safety
lock Trigger
15
1.Turn the water supply tap on completely.
2.Make sure the safety lock is down and in its original
position (The function is that the trigger cannot be pressed
after being locked, so as to prevent children from touching
it by mistake. It CAN NOT keep the trigger always pressed.)
(Fig.10)
3.Press the trigger for a few seconds until water flow is
steady. This will allow air to escape and discharge any
residual pressure in the hose.
4. Turn the switch to the ON (I) position to start the pressure
washer.
Before beginning any cleaning task, determine the best
nozzle for the job. Each of the nozzles has a different spray
pattern.
The nozzle patterns are 40˚(for gentle cleaning), 25˚(for all-
purpose cleaning), 15˚(for tough jobs), Soap nozzle (for
detergent application) and Turbo nozzle.

Fig.11
Slot
16
CAUTION! NEVER change nozzles without locking the safety
lock on the trigger handle.
WARNING! High-pressure jets can be dangerous if subject to
misusing. The jet must not be directed at persons, pets, live
electrical equipment, or the appliance itself.
To connect a nozzle to the spray wand:
1. Turn off the pressure washer and shut off the water supply.
Pull the trigger to release water pressure.
2. Engage the safety lock on the trigger handle by pushing
down on the safety lock until it clicks into the slot (Fig.11).
Safety lock
3. Snap the desired nozzle onto the Quick-Connect collar
until it clicks into place (Fig. 3)
To disconnect a nozzle from the spray wand once the
cleaning job is complete:
4. Turn off the pressure washer and shut off the water
supply. Pull the trigger to release water pressure.
5. Release the trigger and engage the gun safety lock
(Fig.11).
6. Remove the nozzle by placing your hand over the
nozzle while pulling back on the Quick-Connect collar.
WARNING! Do not make changes to the nozzle while the
trigger is engaged. Doing so could result in damage
to the pressure washer or injury to the user.

Working with detergents
Fig.12
17
Use only detergents specifically designed for use with
pressure washers. DO NOT USE household detergents,
acids, alkaline solutions, bleaches, solvents, flammable
material, or industrial grade solutions. These could damage
the pressure washer. Many detergents may require mixing
prior to use. Prepare the cleaning solution as instructed
on the solution bottle.
1.Remove the cap from the detergent bottle (Fig.12).
2.Fill tank with detergent and cap the tank closed.
3.Install the Soap nozzle (black) on the spray wand (Fig.3).
4.Turn on the pressure washer. Pull the trigger to operate
the unit. The liquid detergent will automatically mix with
water and be discharged through the nozzle.
NOTE: If there is detergent in the built-in detergent tank but
you want to spray water, you can replace the black nozzle
with a different color nozzle. Spray foam only when use
the black nozzle.Please use up the detergent when you
finish using it.

Shutting down
Fig.13
18
1.Turn the switch to the OFF (0) position and unplug the
power cord from the outlet.
2.Turn off the water source.
3.Hold the trigger to release water pressure till the
high-pressure spray gun has no longer sprays water.
4.Disconnect the garden hose from the water inlet on the unit.
5.Disconnect the high-pressure hose connection on the
trigger gun handle.
6.Release the trigger and engage the gun safety lock(Fig.11).
7.Store the accessories in a fixed position or hang them on
the body to prevent loss (Fig.13).
