Please read and comply with
these original instructions prior
totheinitialoperationofyourapplianceand
store them for later use or subsequent own-
ers.
–Before first start-up it is definitely nec-
essary to read the operating instruc-
tions and safety indications Nr. 5.951-
949.0!
–Incaseoftransportdamageinformven-
dor immediately
–Check the contents of the pack before
unpacking. For scope of delivery see il-
lustration 1.
Notes about the ingredients (REACH)
You will find current information about the
ingredients at:
www.kaercher.com/REACH
Danger
Immediate danger that can cause severe
injury or even death.
몇Warning
Possible hazardous situation that could
lead to severe injury or even death.
Caution
Possible hazardous situation that could
lead to mild injury to persons or damage to
property.
Contents
Environmental protection . . EN . . .1
Symbols in the operating in-
structions . . . . . . . . . . . . . . EN . . .1
Overview . . . . . . . . . . . . . . EN . . .2
Symbols on the machine . . EN . . .2
Proper use . . . . . . . . . . . . . EN . . .3
Safety instructions . . . . . . . EN . . .3
Safety Devices. . . . . . . . . . EN . . .3
Start up. . . . . . . . . . . . . . . . EN . . .4
Operation . . . . . . . . . . . . . . EN . . .6
Storage. . . . . . . . . . . . . . . . EN . . .9
Transport . . . . . . . . . . . . . . EN . . .9
Maintenance and care . . . . EN . . .9
Troubleshooting . . . . . . . . . EN . .10
Warranty. . . . . . . . . . . . . . . EN . .13
Accessories and Spare Parts EN . .13
EC Declaration of Conformity EN . .14
Technical specifications . . . EN . .15
Recurring tests. . . . . . . . . . EN . .17
Environmental protection
The packaging material can be
recycled. Please do not throw
the packaging material into
householdwaste;pleasesendit
for recycling.
Oldappliancescontainvaluable
materials that can be recycled;
these should be sent for recy-
cling. Batteries, oil, and similar
substances must not enter the
environment. Please dispose of
your old appliances using ap-
propriate collection systems.
Please do not release engine oil, fuel oil,
diesel and petrol into the environment Pro-
tect the ground and dispose of used oil in
an environmentally-clean manner.
Symbols in the operating
instructions
24 EN

– 2
Figure 1

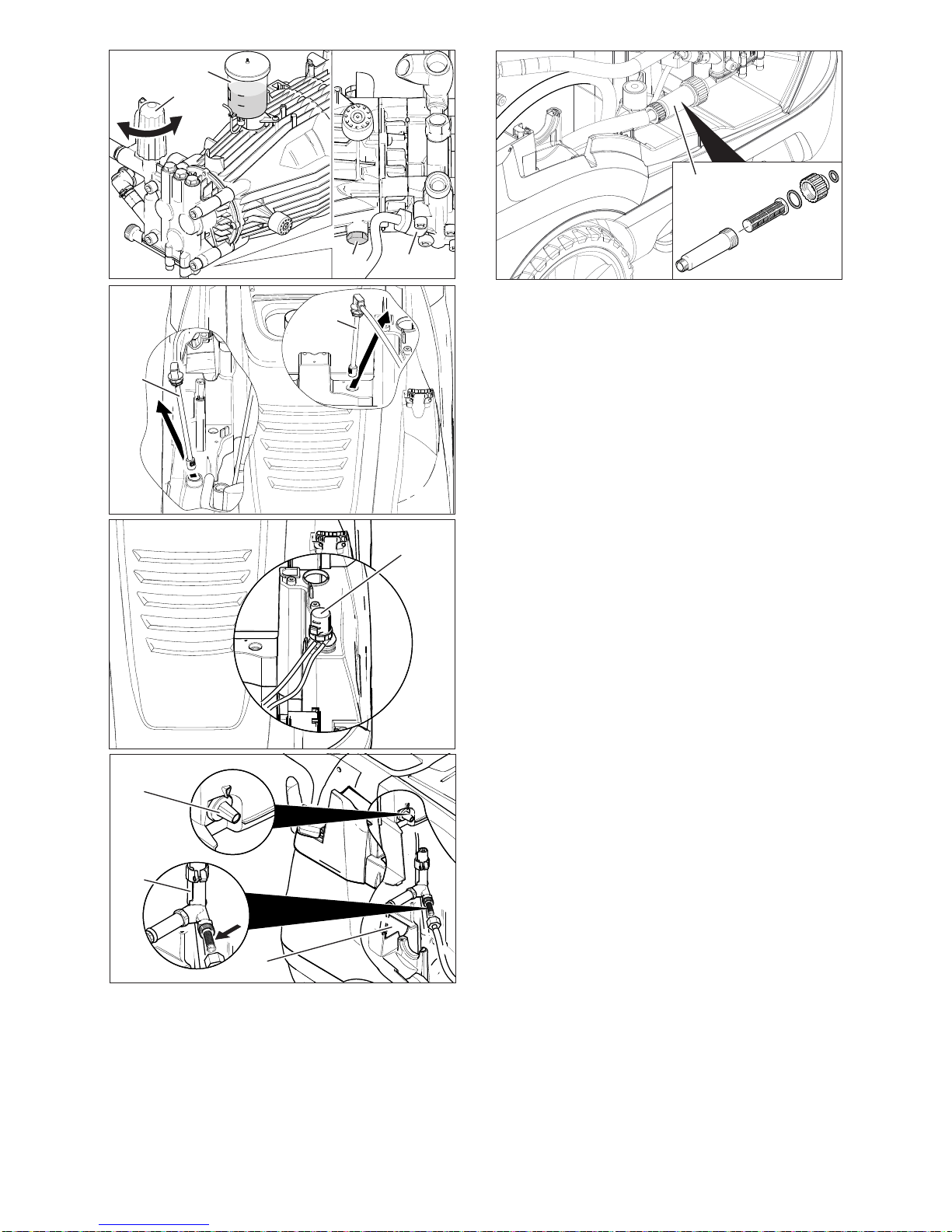

1 Cover
2 Support for spray lance
(both sides)
3 Fill opening for system care Advance
RM 110/RM 111
4 Steering roller with fixed position brake
5 Mounting location for transport
(both sides)
6 Wheel
7 Water supply set
8 High pressure connection
(M/S only)
9 O-ring set (for replacement)
10 High pressure hose
11 Hand spray gun
12 Spray lance
13 High-pressure nozzle (stainless steel)
14 Steam nozzle (brass)
15 Pressure/ quantity regulation at the
hand spray gun
16 Safety latch of the hand spray gun
17 Power supply
18 Folding compartment
(M/S only)
19 Connection for water supply with filter
20 Exit opening of the high-pressure hose
(MX/SX only)
21 Step depression
22 Pouring vent for detergent 2
23 Hand crank for hose drum
(MX/SX only)
24 Pouring vent for detergent 1
25 Hose drum
(MX/SX only)
26 Pouring vent for fuel
27 Handle
28 Operating field
29 Closing flap for storage compartment
30 Storage compartment for accessories
31 Nameplate
32 Cover lock
33 Oil tank
34 Pressure/quantity regulation of the
pump unit
35 Oil drain screw
36 Backflow valve of the detergent infeed
37 Detergent suction hose 1 with filter
38 Detergent suction hose 2 with filter
39 Fuel filter
40 Service switch
41 Water shortage safe guard with sieve
42 Float tank
43 Fine filter (water)
Figure 2

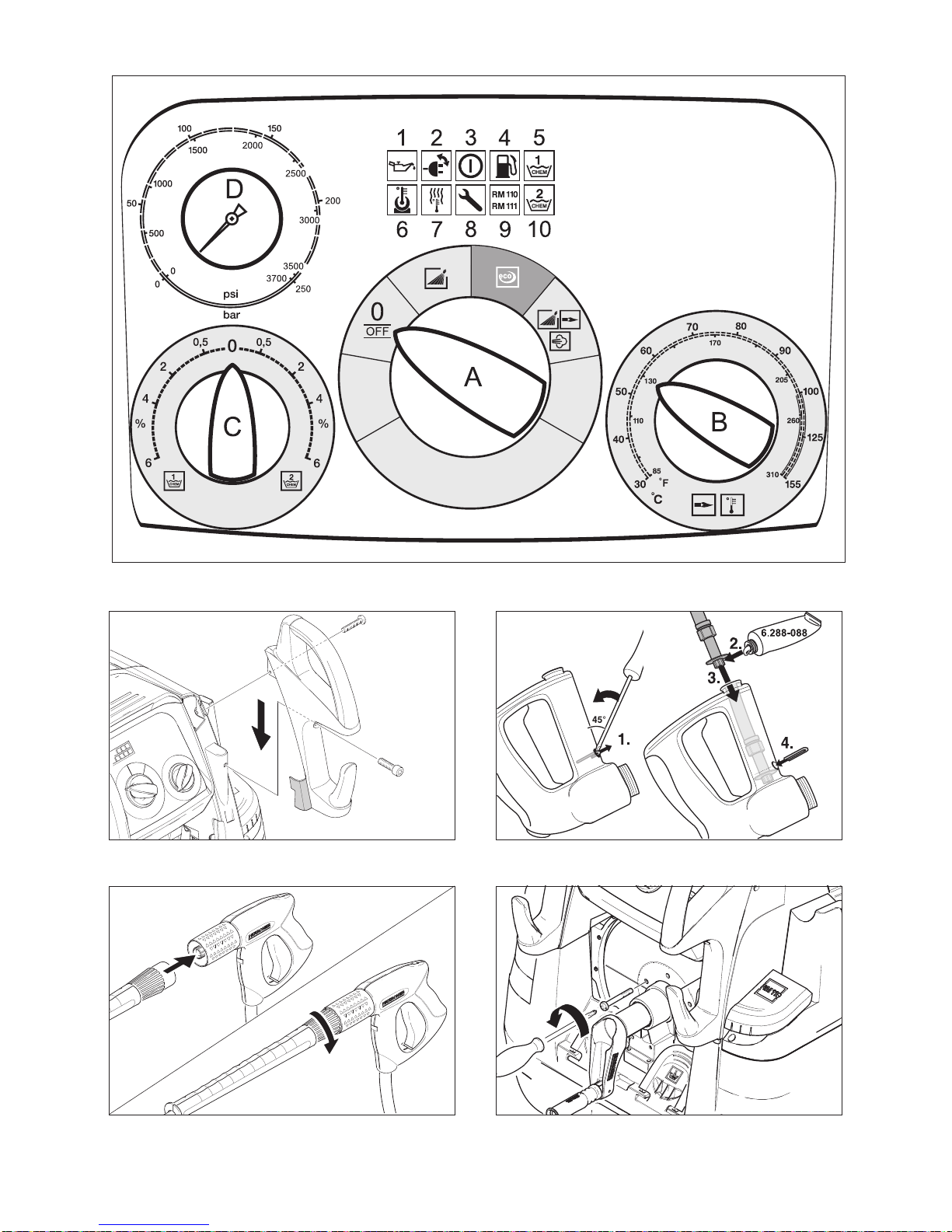

A Power switch
B Temperature controller
C Dosage valve for detergent
D Manometer
1 Indicator lamp pump
2 Indicator lamp rotation direction
(not HDS 7/11, HDS 7/12)
3 “Ready for use” indicator lamp
4 Fuel indicator lamp
5 Indicator lamp: Detergent 1
(HDS 12/18 only)
6 Engine indicator lamp
7 Indicator lamp burner failure
8 Indicator lamp service
9 Indicator lamp system care
10 Indicator lamp: Detergent 2
(HDS 12/18 only)
–Theoperatingelementsforthecleaning
process are yellow.
–The controls for the maintenance and
service are light gray.
High-pressure jets can be dan-
gerous if improperly used. The
jet may not be directed at per-
sons, animals, live electrical equipment or
at the appliance itself.
Overview
Device elements
Operating field
Colour coding
Symbols on the machine
25EN

– 3
Cleaning of: Machines, Vehicles, Struc-
tures, Tools, Facades, Terraces, Garden-
ing tools, etc.
Danger
Risk of injury! Follow the respective safety
regulations when operating at gas stations
or other dangerous areas.
–Please follow the national rules and
regulations for fuel spray jets of the re-
spective country.
–Please follow the national rules and
regulations for accident prevention of
the respective country. Fuel spray jets
mustbe tested regularly and the results
of these tests must be documented in
writing.
–Theheatingapplianceofthemachineis
an ignition plant. All national laws and
regulationsaboutheatingsystemsmust
also be followed.
–As per the applicable national guide-
lines, the first time this high-pressure
cleanermust be taken into operation by
a skilled person. KÄRCHER has al-
ready performed this initial start-up for
youandhasdocumenteditaccordingly.
Thedocumentationcanberequestedat
your KÄRCHER partner. Please have
the part and plant number of the appli-
ance available when enquiring about
the documentation.
–We would like to point out that the appli-
ance must be repeatedly checked by a
skilled person as prescribed by the ap-
plicable national regulations. Please
contact your KÄRCHER partner.
Safety devices serve for the protection of
the user and must not be put out of opera-
tion or bypassed with respect to their func-
tion.
–While reducing the water supply at the
pump head or with the Servopress -
regulationtheoverflowvalveopensand
partof thewater flows backto the pump
suck side.
–If the hand-spray gun is closed, so that
the whole water flows back to the pump
suck side, the pressure switch at the
overflow valve shuts down the pump.
–If the hand spray gun is opened, the
pressure switch on the cylinder head
turns the pump back on.
The overflow valve is set by the manufac-
turer and sealed. Setting only by customer
service.
–The safety valve opens, when the over-
flow valve resp. the pressure switch is
broken.
The safety valve is set by the manufacturer
and sealed. Setting only by customer ser-
vice.
–Thewatershortage safeguardprevents
theburnertobeturnedon whenthereis
water shortage.
–A sieve prevents the contamination of
thesafeguardandmustbe cleaned reg-
ulary.
–The temperature stop switches off the
machine when the waste gases have
reached very high temperatures.
Proper use
Please do not let mineral oil contaminated
waste water reach soil, water or the sew-
age system. Perform engine cleaning and
bottom cleaning therefore only on speci-
fied places with an oil trap.
Safety instructions
Safety Devices
Overflow valve with two pressure
switches
Safety valve
Water shortage safeguard
Temperature stop for exhaust gases
26 EN

– 4
몇Warning
Risk of injury! Device, tubes, high pressure
hose and connections must be in faultless
condition. Otherwise, the appliance must
not be used.
Lock parking brake.
Figure 3
Caution
Hook the electric supply line into the cable
guide of the right handle bow. Ensure that
the cable is not damaged.
Note: To protect the device, the burner is
switched off 5 hours after the system care
container is empty.
–The system care prevents the calcifica-
tionofthe heatingspiralwhile operating
with calciferous tap water. It is dosed
into the supply in the float container
drop by drop.
–The metering is set to medium water ri-
gidity by the manufacturer
Note: Asamplebundle of system care is in-
cluded.
Refill system care.
Determining the hardness of tap water:
–through the public water supply works,
–using a hardness tester (order no.
6.768-004)
Set the service switch according to the
water hardness in the table.
Note: Observe the following when using
system care Advance 2 RM 111:
–Calcification protection: See table
–Pump care and black water protection:
Settheservice switch to at least setting 3.
Danger
Risk of explosion! Only refill diesel oil or
light fuel oil. Unsuitable fuels, e.g. petrol,
are not to be used.
Caution
Never operate device with empty fuel tank
The fuel pump will otherwise be destroyed.
Refill fuel.
Close tank lock.
Wipe off spilled fuel.
Caution
Risk of injury!
–Use Kärcher products only.
–Under no circumstances fill solvents
(petrol, aceton, diluting agent etc.)
–Avoid eye and skin contact.
–Observe safety and handling instruc-
tions by the detergent manufacturer.
Kärcher offers an individual cleaning
and care appliances program.
Your dealer will consult you gladly.
Refill detergent.
Start up
Installing the handle
Refill system care
Adjusting the dosage of the system
care Advance RM 110/RM 111
Water hard-
ness (°dH) Scale on the service switch
<3 OFF (no dosing)
3...7 1
7...14 2
14...21 3
>21 4
Refill fuel
Refill detergent
27EN

– 5
Figure 4
Connect ray tube with hand spray gun
Tighten the screw connection of the
spray lance fingertight.
Insert high pressure nozzle into cover-
ing nut
Install covering nut and tighten firmly
–Appliance without hose drum:
Connect the high pressure hose to the
high pressure connection point of the
machine.
–Device with hose drum:
Connect the high pressure hose to the
hand-spray gun.
Caution
Always unwind high pressure hose com-
pletely
Figure 5
Figure 6
Completely roll off the high-pressure
hose from the hose drum.
Rotatethehosedrumuntilthescrewed-
on semi bowl is pointing toward the top.
Loosenallthreescrewsandremovethe
loosened semi bowl.
Figure 7
Unlatch the fastening clamp for the high-
pressure hose and pull the hose out.
Route the new high-pressure hose
through the intended hose guide and
thedeflectionpulleyatthebottomofthe
appliance.
Slidethehosenippleallthewayintothe
knot section of the hose drum and se-
cure with the fastening clamp.
Replace the half bowl.
For connection values refer to technical
specifications
Attach supply hose (minimum length
7.5 m, minimum diameter 3/4“) to the
water supply set by means of a hose
clamp.
Connect the supply hose to the water
connection point of the machine and at
the water supply point (for e.g. a tap).
Note: Thesupplyhose and the hose clamp
are not included in the scope of delivery.
If you want to suck in water from an exter-
nal vessel, the following modification is
necessary:
Figure 8
Open fill opening for system care.
Release and remove the cover of the
system care.
Remove water connection from the fine
filter.
Unscrew the fine filter from the pump
head.
Figure 9
Remove the system care reservoir.
Unscrew the top supply hose to the
swimmer container.
Figure 10
Connect the top supply hose at pump
head.
Replug the rinse line of the detergent
dosing valve.
Connectsuction hose (minimumdiame-
ter 3/4“) with filter (accessory) to the
water connection point.
–Max. suck height: 0.5 m
Until the pump sucked in water, you should:
Set the pressure/quantity regulation at
the pump unit to maximum quantity.
Close the dosing valve for the detergent.
Install the hand-spray gun, the jet
pipe, the nozzle and the high
pressure hose
Installing the replacement
high-pressure hose (appliances
without hose drum)
Installing the replacement
high-pressure hose (appliances
with hose drum)
Water connection
Suck in water from vessel
28 EN

– 6
Danger
Never suck in water from a drinking water
container. Never suck in liquids which con-
tain solvents like lacquer thinner, petrol, oil
or unfiltered water. The sealings within the
device are not solvent resistant. The spray
mist of solvents is highly inflammable, ex-
plosive and poisonous.
–For connection values, see technical
data and type plate.
–The electrical connections must be
done by an electrician according to IEC
60364-1.
Danger
Danger of injury by electric shock.
–Unsuitable extension cables can be haz-
ardous. Only use extension cables out-
doors which have been approved for this
purposeand labelled with a sufficientcable
cross section:
–Always unwind extension lines completely.
–The plug and coupling of the extension
cable used must be watertight.
Caution
The highest allowed net impedance at the
electrical connection point (refer to techni-
cal data) is not to be exceeded. In case of
confusion regarding the power impedance
presenton your connection,please contact
your utilities provider.
Danger
Risk of explosion!
Do not spray flammable liquids.
Danger
Risk of injury! Never use the appliance
without the spray lance attached. Check
and ensure proper fitting of the spray lance
prior to each use. The screw connection of
the spray lance must be fingertight.
Caution
Never operate device with empty fuel tank
The fuel pump will otherwise be destroyed.
몇Warning
Long hours of using the appliance can
cause circulation problems in the hands on
account of vibrations.
It is not possible to specify a generally valid
operation time, since this depends on sev-
eral factors:
–Proneness to blood circulation deficien-
cies (cold, numb fingers).
–Low ambient temperature. Wear warm
gloves to protect hands.
–A firm grip impedes blood circulation.
–Continuous operation is worse than an
operation interrupted by pauses.
In case of regular, long-term operation of
the device and in case of repeated occur-
rence of the symptoms (e.g. cold, numb fin-
gers) please consult a physician.
Danger
Switch the appliance off prior to replacing
nozzle and activate hand spray gun until
device is pressureless.

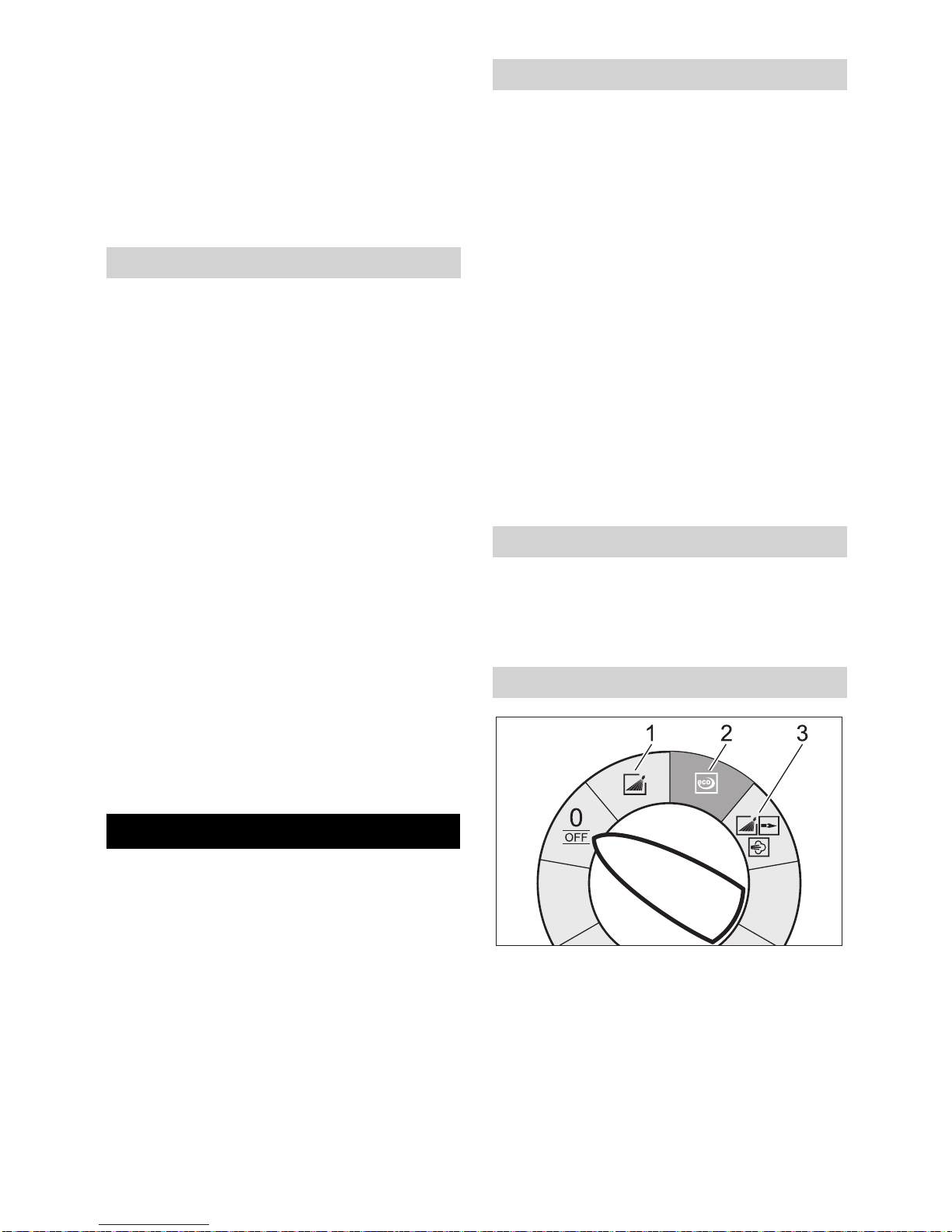

1 Operating with cold water
2 Eco operation (hot water max. 60 °C)
3 Operating with hot water/steam
Power connection
Operation
Safety instructions
Replace the nozzle
Operating modes
0/OFF =Off
29EN

– 7
Set appliance switch to desired operat-
ing mode.
Indicatorlampforoperationalreadiness
lights up.
The device starts briefly and turns off, as
soon as the working pressure is reached.
Note: If the indicator lamps for pump, rota-
tion direction, burner malfunction or engine
are on during operation, turn off the appli-
ance immediately and repair malfunction,
refer to "Help with malfunctions".
Release the trigger gun.
When activating the hand spray gun the de-
vice switches back on.
Note: If no water comes out of the high
pressurenozzle, vent pump. Refer to "Help
withmalfunctions-applianceisnotbuilding
up pressure".
Set temperature regulator to desired
temperature.
30 °C to 98 °C
–Clean with hot water.
100 °C to 150 °C
–Clean using steam.

Replace the high-pressure nozzle
(stainless steel) with steam nozzle
(brass), (refer to "Using steam").
Turn the regulation spindle in a clock-
wise direction: Increase working pres-
sure (MAX).
Turn the regulation spindle in an anti-
clockwise direction: Reduce working
pressure (MIN).
Set thermostat to max. 98 °C.
Settheoperating pressureonthe pump
unit to the maximum value.
Set the working pressure and feed
quantity by turning (steplessly) the
pressure/quantity regulation mecha-
nism at the hand spray gun (+/-).
Danger
When adjusting the pressure/quantity regu-
lation,makesurethatthescrewconnection
of the spray lance does not become loose.
Note: For long term work with low pres-
sure, set pressure at the pump unit.
–For considerate treatment of the envi-
ronment use detergent economically.
–The detergent must be suitable for the
surface to be cleaned.
With support of the detergent dose
valve set detergent concentration as
determined by the manufacturer.
Note: Recommended values at the control
panel at maximum working pressure.
Set pressure/temperature and deter-
gent concentration according to the sur-
face to be cleaned.
Note: To prevent damage due to too much
pressure,alwayspositionhighpressureray
first from a greater distance towards object
to be cleaned.
–Loosen the dirt:
Spray detergent economically and let it
work for 1...5 minutes but do not let it
dry up.
–Remove the dirt:
Spray off loosened dirt with the high
pressure jet.
Turning on the Appliance
Adjust cleaning temperature
Set working pressure and flow rate
Pressure/quantity regulation of the
pump unit
Pressure/ quantity regulation at the
hand spray gun
Operation with detergent
Cleaning
Recommended cleaning method
30 EN

– 8
Removal of light contaminations and clear
rinse, i.e.: Gardening tools, terrace, tools,
etc.
Set operating pressure according to
need.
The appliance works in the most economi-
cal temperature range.
Note: The temperature can be regulated
up to 60 °C.
We recommend the following cleaning tem-
peratures:
–Light contaminations
30-50 °C
–Contaminations containing protein, i.e.
in the food processing industry
max. 60 °C
–Vehicle cleaning, machine cleaning
60-90 °C
–De-preserve, contaminations contain-
ing strong fat contents
100-110 °C
–De-frosting of surcharge substances,
partially facade cleaning
up to 140 °C
Danger
Scalding danger!
Set temperature regulator to desired
temperature.
Danger
Scalding danger! The operating pressure
must not exceed 3,2 MPa (32 bar) when
operating with temperatures above 98 °C.
Therefore the following measures must
definitely be performed:

Replace high pressure nozzle (stain-
less steel) with steam nozzle (brass,
order see specification).
Open up the pressure/ quantity regula-
tor on the hand spray gun completely,
direction + until stop.
Settheoperating pressureonthe pump
unit to the minimum value.
Set temperature regulator to min. 100 °C.
Set dosing value for detergent to "0".
Set the appliance switch to "1" (opera-
tion with cold water).
Open the hand spray gun and rinse the
appliance for at least 1 minute.
Danger
Danger of scalding by hot water. After the
operation with hot water or steam, the de-
vice must be operated with opened gun
with cold water for at least two minutes.
Set the appliance switch to "0/OFF“.
Shut off water supply.
Turnon pump shortly (appr. 5 seconds)
with device switch.
Pull main plug out of socket with dry
hands only.
Remove water connection.
Activate hand spray gun until device is
pressure less.
Lock the trigger gun.
Operating with cold water
Eco operation
Operating with hot water/steam
Operating with hot water
Operating with steam
After operation with detergent
Turn off the appliance
31EN

– 9
Lock in the steel pipe into the holder of
the appliance hood.
Roll up high pressure hose and electri-
cal conduit and hang them into the re-
spective holders.
Device with hose drum:
Before rolling up, stretch out the high
pressure hose.
Turn the hand crank clockwise (Direc-
tion of the arrow).
Note: Do not twist high pressure hose and
electrical conduit.
Caution
Frost will destroy the not completely water
drained device.
Store in a frost free area.
If the device is connected to a chimney, the
following must be observed:
Caution
Threat of damage by penetrating cold air
through the chimney.
Disconnect device from chimney when
outside temperature drops below 0 °C.
If it is not possible to store frost free, shut
down device.
Forlongerworkbreaksorifafrostfree stor-
age is not possible:
Drain water.
Flush device with anti-freeze agent.
Empty detergent tank.
Screw off water supply hose and high
pressure hose.
Screw off supply hose at boiler bottom
and drain heating spiral empty.
Operate device for max. 1 minute until
the pump and conduits are empty.
Note: Observe handling instructions of the
anti-freeze agent manufacturer.
Fill anti-freeze agent of the trade into
swimmer container.
Switch on appliance (without heater) till
the appliance has been completely
rinsed.
A certain corrosion protection is achieved
with this as well.
Caution
Risk of injury and damage! Note the weight
of the appliance in case of storage.
Figure 11
Caution
Risk of damage! When loading the appli-
ance with a forklift, observe the illustration.
Caution
Risk of injury and damage! Observe the
weight of the appliance when you transport it.
When transporting in vehicles, secure
the appliance according to the guide-
lines from slipping and tipping over.
Danger
Risk of injury by inadvertent startup of ap-
pliance and electrical shock.
Firstpull out theplugfrom the mainsbefore
carrying out any tasks on the machine.
Set the appliance switch to "0/OFF“.
Shut off water supply.
Turnon pump shortly (appr. 5 seconds)
with device switch.
Pull main plug out of socket with dry
hands only.
Remove water connection.
Activate hand spray gun until device is
pressure less.
Lock the trigger gun.
Allow device to cool down.
Your Kärcher vender will inform you
about the performance of a periodic
safety inspection resp. signing of a
maintenance contract.
Storing the Appliance
Frost protection
Shutdown
Dump water
Flush device with anti-freeze agent
Storage
Transport
Maintenance and care
32 EN

– 10
Cleanthesieveinthewaterconnection.
Clean the fine filter.
Check oil level.
Caution
In case of lacteous oil inform Kärcher cus-
tomer service immediately
Clean sieve in the water shortage safe
guard.
Clean filter at the detergent suck hose.
Oil change.
Perform the pressure test as per manu-
facturer's instructions.
Take out sieve.
Clean sieve in water and reinstall.
Unpressurize the appliance.
Unscrew the fine filter from the pump
head.
Removethe finefilterand thefilterinsert.
Clean the filter with clean water or com-
pressed air.
Reinstall in reverse sequence.
Loosen covering nut and take off hose.
Take out sieve.
Note: IfnecessaryturninscrewM8appr.5
mm inwards and therewith pull out sieve.
Clean sieve in water.
Push sieve inwards.
Put on hose.
Tighten covering nut firmly.
Take out detergent suck supports.
Clean filter in water and reinstall.
Ready a catch bin for appr 1 Litre oil.
Loosen release screw.
Tighten release screw.
Fill oil slowly up to the MAX marking.
Note: Air pockets must be able to leak out.
For oil type refer to technical specifica-
tions.
Danger
Risk of injury by inadvertent startup of ap-
pliance and electrical shock.
Firstpull out theplugfrom the mainsbefore
carrying out any tasks on the machine.
–Lack of oil
Replenish oil.
–Leak in the high pressure system
Check high pressure system and con-
nections for tightness.
–Water shortage
Check water supply, check connec-
tions.
–Obstructed reed switch in the water
shortage safe guard.
Check water shortage safe guard.
Maintenance intervals
Weekly
Monthly
After 500 operating hours, at least annu-
ally
At least every 5 years, recurring
Maintenance Works
Clean the sieve in the water connection
Cleaning the fine filter
Clean sieve in the water shortage safe
guard
Clean filter at the detergent suck hose
Oil change
Dispose of old oil ecologically or turn in at
a gathering point.
Troubleshooting
Indicator lamp pump
1x blinking
2x blinking
3x blinking
4x blinking
33EN

– 11
Figure 12
Exchange the poles at the appliance
plug.
–No line voltage, see "Appliance is not
running".
–Contactor error
Set the appliance switch to "0/OFF“.
Turn on the appliance.
–Error occurs repeatedly.
Inform Customer Service
–Engine overload/overheat
Set the appliance switch to "0/OFF“.
Allow device to cool down.
Turn on the appliance.
–Error occurs repeatedly.
Inform Customer Service
–Fault in the voltage supply.
Check main connections and mains
fuse.
–Excessive power consumption.
Checkmainconnectionsandmainsfuse.
Inform Customer Service
–The exhaust temperature limiter has
been triggered.
Set the appliance switch to "0/OFF“.
Allow device to cool down.
Turn on the appliance.
–Error occurs repeatedly.
Inform Customer Service
–The flame sensor turned the burner off.
Inform Customer Service
–System care detection defective
Inform Customer Service
–Temperature sensor defective
Inform Customer Service
–Service interval
Perform service work.
–Fuel tank empty.
Refill fuel.
Note: Burner can operate 5 more hours.
–System care tank is empty, due to tech-
nical reasons a remainder stays in the
tank.
Refill system care.
Note: Burner operation no longer possible.
–System care container is empty.
Refill system care.
–Detergent tank 1 is empty.
Refill detergent.
Indicator lamp of rotational
direction is blinking
(not HDS 7/11, HDS 7/12)
Indicator lamp "Ready for use"
turns off
Engine indicator lamp
1x blinking
2x blinking
3x blinking
4x blinking
Indicator lamp burner failure
1x blinking
2x blinking (option)
3x blinking
4x blinking
Indicator lamp service
Fuel indicator lamp glows
Indicator lamp system care is
illuminated
Indicator lamp system care is
blinking
Indicator lamp detergent 1 is
illuminated (HDS 12/18 only)
34 EN

– 12
–Detergent tank 2 is empty.
Refill detergent.
–No power
Check power connection/conduit.
–Air within the system
Vent pump:
Set dosing value for detergent to "0".
With open hand spray gun turn device
onandoffmultipletimes withthedevice
switch.
Open and close the pressure/quantity
regulation at the pump unit with the
hand spray gun open.
Note: By dismantling the high pressure
hosefromthehighpressureconnectionthe
venting process is accelerated.
If detergent tank is empty, refill.
Check connections and conduits.
–Pressure is set to MIN
Set pressure to MAX.
–Sieve in the water connection is dirty
Clean sieve.
Clean the fine filter; replace it, if necessary.
–Amount of water supply is too low.
Check water supply level (refer to tech-
nical data).
–Pump leaky
Note: 3 drops/minute are allowed.
With stronger leak, have device
checked by customer service.
–Leak in the high pressure system
Check high pressure system and con-
nections for tightness.
Leave device running with open deter-
gent dosage valve and closed water sup-
ply, until the swimmer tank is sucked
empty and the pressure falls to "0".
Open the water supply again.
If the pump still is not sucking in any deter-
gent, it could be because of the following
reasons:
–Filter in the detergent suck hose dirty
Clean filter.
–Backflow valve stuck
Removethe detergenthose andloosen
the backflow valve using a blunt object.
–System care container is empty.
Refill system care.
–Fuel tank empty.
Refill fuel.
–Water shortage
Check water supply, check connec-
tions.
Clean sieve in the water shortage safe
guard.
–Fuel filter dirty
Change fuel filter.
–No ignition spark
If device is in use and no ignition spark
can be seen through the viewing glas,
have device checked by customer ser-
vice.
–Working pressure/flow rate to high
Reduce working pressure/flow quantity
at the pressure/volume regulator in the
pump unit.
–Sooty heating spiral
Have device de-sooted by customer
service.
If malfunction can not be fixed, the de-
vice must be checked by customer ser-
vice.
Indicator lamp detergent 2 is
illuminated (HDS 12/18 only)
Appliance is not running
Device is not building up pressure
Device leaks, water drips from the
bottom of the device
Device turns on and off while hand
spray gun is closed
Device is not sucking in detergent
Burner does not start
Set temperature is not achieved
while using hot water
35EN

– 13
The warranty terms published by our com-
petent sales company are applicable in
each country. We will repair potential fail-
ures of the appliance within the warranty
period free of charge, provided that such
failure is caused by faulty material or de-
fects in fabrication.
Note: When connecting the appliance to a
chimney or if the device cannot be ac-
cessed visually, we recommend the instal-
lation of a flame monitor (option).
–Only use accessories and spare parts
which have been approved by the man-
ufacturer. The exclusive use of original
accessories and original spare parts
ensures that the appliance can be oper-
ated safely and trouble free.
–At the end of the operating instructions
youwillfindaselectedlistofspareparts
that are often required.
–For additional information about spare
parts, please go to the Service section
at www.kaercher.com.
Warranty
Accessories and Spare Parts
36 EN

– 14
We hereby declare that the machine de-
scribed below complies with the relevant
basicsafety and health requirements ofthe
EU Directives, both in its basic design and
construction as well as in the version put
into circulation by us. This declaration shall
cease to be valid if the machine is modified
without our prior approval.
5.957-902
The undersigned act on behalf and under
the power of attorney of the company man-
agement.
Authorised Documentation Representative
S. Reiser
Alfred Kärcher GmbH Co. KG
Alfred-Kärcher-Str. 28 - 40
71364 Winnenden (Germany)
Phone: [phone]
Fax: [phone]
Winnenden, 2011/05/01
EC Declaration of Conformity
Product: High pressure cleaner
Type: 1.071-xxx
Type: 1.077-xxx
Relevant EU Directives
97/23/EC
2006/42/EC (+2009/127/EC)
2004/108/EC
1999/5/EC
2000/14/EC
Component category
II
Conformity procedure
Module H
Heating coil
Conformity assessment Module H
Safety valve
Conformity assessment Art. 3 para 3
control block
Conformity assessment Module H
various pipes
Conformity assessment Art. 3 para 3
Applied harmonized standards
EN 55014–1: 2006+A1: 2009+A2: 2011
EN 55014–2: 1997+A1: 2001+A2: 2008
EN 60335–1
EN 60335–2–79
EN 61000–3–2: 2006+A1: 2009+A2: 2009
EN 62233: 2008
HDS 8/17:
EN 61000–3–3: 2008
HDS 10/20, HDS 12/18:
EN 61000–3–11: 2000
EN 300 330-2 V1.5.1 : 2010
EN 301 489-1 V1.8.1 : 2008
EN 301 489-3 V1.4.1 : 2002
Applied specifications:
Based on AD 2000
Based on TRD 801
Name of the appointed agency:
for 97/23/EG
TÜV Rheinland Industrie Service GmbH
Am Grauen Stein
51105 Köln
ID No. 0035
Certificate no.:
01 202 111/Q-08 0003
Applied conformity evaluation method
for 2000/14/EG
Appendix V
Sound power level dB(A)
HDS 8/17
Measured: 86
Guaranteed: 88
HDS 10/20
Measured: 88
Guaranteed: 90
HDS 12/18
Measured: 88
Guaranteed: 90
CEO Head of Approbation
37EN

– 15
Technical specifications
HDS 7/11
Classic *KAP HDS 7/12 *AU HDS 8/17 Classic *KAP HDS 8/17 *AU/Classic
*EU
Main Supply
Voltage V 220 240 220 400-420
Current type Hz 1~ 60 1~ 50 3~ 60 3~ 50
Connected load kW 3,4 3,4 5,5 5,5
Protection (slow) A 16 15 32 16
Type of protection -- IPX5 IPX5 IPX5 IPX5
Protective class -- I I I I
Maximum allowed net impedance Ohm (0,321+
j0,200) (0,321+ j0,200) -- --
Water connection
Max. feed temperature °C 30 30 30 30
Min. feed volume l/h (l/min) 1000 (16,7) 1000 (16,7) 1100 (18,3) 1100 (18,3)
Suck height from open container (20 °C) m 0,5 0,5 0,5 0,5
Max. feed pressure MPa (bar) 0,6 (6) 0,6 (6) 0,6 (6) 0,6 (6)
Performance data
Water flow rate l/h (l/min) 350-700 (5,8-
11,7) 350-700 (5,8- 11,7) 400-800 (6,7- 13,3) 400-800 (6,7- 13,3)
Operating pressure of water (using
standard nozzle) MPa (bar) 3-11 (30-110) 3-12 (30-120) 3-17 (30-170) 3-17 (30-170)
Max. excess operating pressure (safety
valve) MPa (bar) 14 (140) 15 (150) 20,5 (205) 20,5 (205)
Steam flow rate l/h (l/min) 330-360 (5,5-
6) 330-360 (5,5- 6) 340-420 (5,6- 7) 340-420 (5,6- 7)
Max.operatingpressureforworkingwith
steam (using steam nozzle) MPa (bar) 3,2 (32) 3,2 (32) 3,2 (32) 3,2 (32)
Part no. of steam nozzle -- 2.885-039.0 2.885-039.0 2.885-119.0 2.885-119.0
Max. operating temperature of hot water °C 98 98 98 98
Working temperature steam operation °C 155 155 155 155
Detergent suck in l/h (l/min) 0-45 (0-0,75) 0-45 (0-0,75) 0-50 (0-0,8) 0-50 (0-0,8)
Burner performance kW 53 53 63 63
Maximum consumption of heating oil kg/h 4,6 4,6 5,3 5,3
Max. recoil force of hand spray gun N 17,9 17,9 24,3 24,3
Nozzle size -- 048 048 047 047
Values determined as per EN 60355-2-79
Noise emission
Sound pressure level LpA dB(A) 70 70 71 71
Uncertainty KpA dB(A) 2222
Sound power level LWA + Uncertainty
KWA dB(A) 88 88 88 88
Hand-arm vibration value
Hand spray gun m/s21,1 1,1 1,0 1,0
Spray lance m/s23,4 3,4 3,4 3,4
Uncertainty K m/s21,0 1,0 1,0 1,0
Fuel
Fuel -- Fuel oil EL or
Diesel Fuel oil EL or Diesel Fuel oil EL or Diesel Fuel oil EL or Diesel
Amount of oil l 0,75 0,75 0,75 0,75
Oil grade -- 0W40 0W40 SAE 90 SAE 90
Dimensions and weights
Length x width x height mm 1330 x 750 x
1060 1330 x 750 x 1060 1330 x 750 x 1060 1330 x 750 x 1060
Typical operating weight, M/S kg 146 146 155 155
Typical operating weight, MX/SX kg 154 154 163 163
Fuel tank l 25 25 25 25
Detergent Tank l 10+20 10+20 10+20 10+20
38 EN
