Sunrise Medical Switch-It DriveStation User manual

247771
Switch-It
DriveStation
Owner's Manual

Dealer signature and stamp
Thank you for choosing a Switch-It Product. We want to
hear your questions or comments about this manual, the
safety and reliability of your system, and the service you
receive from your Authorized Dealer. Please feel free to
write or call us at the address and telephone number below:
Sunrise Medical (US) LLC
Customer Service Department
2842 N. Business Park Ave
Fresno, CA 93727 USA
[phone]
Be sure to return your warranty card, and let us know if you
change your address. This will allow us to keep you up to
date with information about safety, new products, and
options to increase your use and enjoyment of this base
system.
You can also register your product at:
www.sunrisemedical.com/register
FOR ANSWERS TO YOUR QUESTIONS
Your Authorized Dealer knows your Switch-It Product best,
and can answer most of your questions about system safety,
use and maintenance. For future reference, fill in the
following:
Supplier: __________________________________________
Address: __________________________________________
_________________________________________________
Telephone: ________________________________________
Serial #:______________ Date/Purchased:_______________
INFORMATION YOU SHOULD KNOW
No component of this system was made with Natural Rubber Latex.
www.sunrisemedical.com /register
DISPOSAL AND RECYCLING INFORMATION
When this product reaches the end of its life, please take
it to an approved collection or recycling point designated
by your local or state government. This product is
manufactured using a variety of materials, Your product
should not be disposed of as ordinary household waste.
You should dispose of your system properly, according to
local laws and regulations. Most materials that are used
in the construction of this product are fully recyclable.
The separate collection and recycling of your product at
the time of disposal will help conserve natural resources
and ensure that it is disposed in a manner that protects
the environment.
Ensure you are the legal owner of the product prior to
arranging for the product disposal in accordance with the
above recommendations.
247771 Rev. A
2

WARNING
This device can be affected by Electro-Magnetic Interference (EMI) and Radio Frequency
Interference (RFI).
-Radio wave sources, such as radio stations, TV stations, amateur radio (HAM) transmitters, two-way
radios, and cellular phones can affect powered control.
- If unintended movement or brake release occurs, turn the power wheelchair OFF and do not
operate until inspected, repaired, and/or replaced.
- If the power wheelchair acts in an erratic manner, turn the power wheelchair OFF and do not
operate until inspected, repaired, and/or replaced.
- If the joystick stem is damaged, it can cause the power wheelchair to operate erratically, turn the
power wheelchair OFF and do not operate until inspected, repaired, and/or replaced.
- If any of the device cabling becomes frayed, cut, or disconnected in any way, t urn the power OFF
and do not operate until inspected, repaired, and/or replaced.
NOTE: Check all parts for shipping damage. In case of damage DO NOT use. Contact Carrier/
Sunrise Medical for further instructions.
DO NOT install this equipment without first reading and understanding this manual. If you are
unable to understand the Warnings, Cautions, and Instructions, contact a qualified clinician or
supplier - otherwise injury or damage may occur.
WARNING
3
247771 Rev. A

User information
Congratulations on choosing a Switch-It product. Sunrise
Medical’s high-quality mobility products are designed to
enhance independence and make your everyday life easier.
As a part of our ongoing product improvement initiative,
Sunrise Medical reserves the right to change specifications
and design without notice.
This user manual will help you to use and maintain your
product safely.
If you are visually impaired,
this document can be viewed
in PDF format at
www.SunriseMedical.com
AB FG
D
CE
247771 Rev. A
4

A. Product Description:

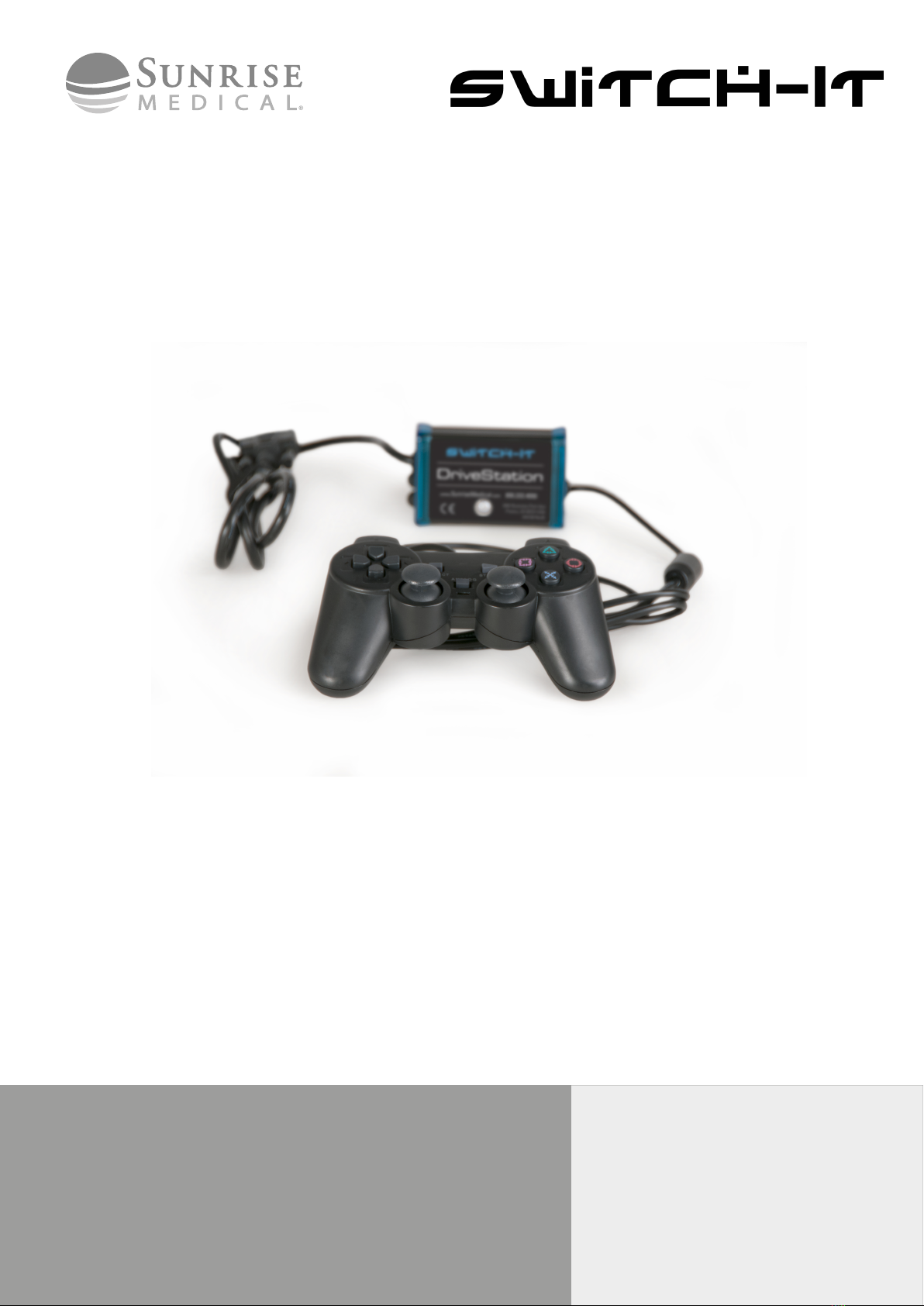

The Switch-It DriveStation is an ergonomic handheld proportional
device (PS2 controller) adapted for use as an alternative drive
control. Ideal for use by pediatric patients, the DRIVESTATION
allows clients already accustomed to operating game
controllers easy control of their power wheelchair.
B. Technical Information:
• Alternative Control Type: Proportional or Switched/
Digital
• Activation Type: Joystick Displacement or Power
wheelchair movement
• Joystick Displacement: up to 45°
• Activating Force: 0.3 oz (10 g)
• Feedback:
o Proportional Driving with Joysticks -
Displacement/Movement of Joystick Knob
o Switched Driving with Action and/or Direction
Pads - Power wheelchair movement
• Connector Type: D-Sub 9 connection to wheelchair
display
• Dimensions:
o Controller: 4" x 6" (102 x 152 mm)
o Adapter box: 2.25" x 3.5" (57 x 89 mm)
C. Compatibility for Driving:
• Penny & Giles R-Net Electronics: Omni is required
• Curtis Electronics Enable 50: Enhanced Display is
required
• Dynamic Controls DX2: Switch It DX Dongle (DXD) is
required
D. Compatibility for Seat Function Programs:
• Pride/Quantum - AAM is required
• Permobil - ICS Module is required
• Sunrise Medical - Custom modification available,
call for quote
5
247771 Rev. A
Switch-It DriveStation users may choose between five different
programs which allow access to seat functions. The default
program (item DS-0) allows for seat function access through the
drive control and power wheelchair programming, the same as
with a standard joystick and only an Omni or Enhanced Display
is required.
Alternatively, the Action Pad (Triangle, Square, Circle and X) or
Direction Pads can be programmed for dedicated seat
functions. There are four standard configurations for this and the
DriveStation is configured with four monoplug outputs for the
dedicated function access and additional equipment is
required:

247771 Rev. A
6
Triangle,
Circle,
Square,
& X
R1 & R2
Left
Analog Stick
L3
Right
Analog Stick
R3
The D Pad
Up
Down
Left
Right
L1 & L2
1
2
E. Key Features:
The Switch-It DriveStation allows both proportional and
switched driving. The joystick knobs may be used for
proportional control, while the action and/or directional
pad buttons can be used for switched driving control.
When using the joystick knobs/thumbsticks for driving,
both knobs may be used, however the right knob/
thumbstick is dominant.
The off button is integrated into the controller, Figure 1.
This button only powers off the controller, it does not
turn off the power wheelchair.
Mode and seating functions are accessed through the
left and right trigger buttons on the front of the
controller, Figure 2.
The Switch-It DriveStation users may choose between
five different programs which allow access to seat
functions. The default program (item DS-0) allows for
seat function access through the drive control and
power wheelchair programming, the same as with a
standard joystick. Alternatively, the Action Pad
(Triangle, Square, Circle and X) or Direction Pads,
Figure 1, can be programmed for dedicated seat
functions. There are four standard configurations for this:
• DS-1: Direction Pad for seat functions, L1 & R1
buttons for mode.
• DS-2: Direction Pads for seat functions, all front
buttons disabled.
• DS-3: Action Pad for seat functions, L1 & R1
buttons for mode.
• DS-4: Action Pad for seat functions, all front
buttons disabled.
F. Troubleshooting:
Issue: Joystick thumbsticks do not return to center.
Common Reason: Joystick knobs are damaged.
Solution: Call for RMA.
Call Sunrise Technical Support at 1.800.333.4000 for
further assistance.

WARRANTY
• All electronic components are covered under warranty for twelve (12) months from the date
of shipment, provided normal use, unless modified or damaged.
• All mounting hardware is covered under warranty for twelve (12) months from the date of
shipment, provided normal use, unless modified or damaged
• All wearable items (covers, pads, etc.) are covered under warranty for three (3) months from
the date of shipment, provided normal use, unless modified or damaged.
Each Switch-It device is carefully inspected and tested to provide peak performance. Every
Switch-It device is covered under a limited, express warranty.
Warranty claims should be processed through the nearest authorized supplier or dealer. A Return
Authorization number must be obtained prior to returning the item for evaluation, along with
details of the issue.
Items returned for warranty claim must be evaluated by Switch-It before warranty determination is
made. Should a defect in materials or workmanship occur during the warranty period, and the
item has not been modified or damaged, Switch-It will, at its option, rework or replace it without
charge.
Except for express warranties made herein, all other warranties, including implied warranties of
merchantability and warranties of fitness for a particular purpose are excluded. There is no implied
warranty beyond what is contained herein. Remedies for breach of express warranties herein are
limited to rework or replacement of the goods. In no event shall damages for breach of any
warranty include any consequential damages or exceed the cost of non-conforming goods sold.
7
247771 Rev. A

Customer Service: 800.333.4000
Fax: [phone]
In Canada: 800.263.3390
Sunrise Medical
2842 N. Business Park Ave.
Fresno, CA 93727 • USA
©2018 Sunrise Medical (US) LLC
01/18 247771 Rev. A
Website Addresses:
[email protected]
www.SunriseMedical.com
www.switchit-inc.com
