SUNSCAN SUNSILO BL1 User manual

High Pressure Hot Water Storage Tanks
Installation and Operations
Manual

1
CONTENTS
PART 1
OVERVIEW
Introduction
Description
Specifications
SAFETY PRECAUTIONS
General Safety Information
Safety Considerations for Installation & Operation
PART 2
INSTALLATION
Hydraulic connections
Electrical connections
MAINTENANCE
Routine Maintenance
WARRANTY
Warranty
Sign off (Customer Copy)
Sign off (Installer Copy)

2
OVERVIEW
Liability waiver
This manual must be read in conjunction with the geyser, controller and pump manuals, as well as any additional
depictions or instructions pertaining to any valves and installation thereof.
SunScan reserves the right to update this manual without prior notice. It is the installer’s responsibility to
ensure that the latest version of this manual is being used. The installation and maintenance of all SunScan
thermal systems are to be carried out by trained and qualified personnel only.
SunScan may not be held liable for any damages to property nor injury or death that may result from the use
of their product.
Introduction
Congratulations on purchasing a SunScan thermal heating system, all of our products use cutting edge
technology and attractive design to bring you a high quality product. This manual must be read thoroughly and
understood before undertaking to install any of the SunScan range of products, please note that this manual
is specific to the system or systems that appear on the cover page, If after reading this manual any aspect of the
installation process remains unclear contact a SunScan representative prior to installation.
This manual serves only as a guide to the correct installation of SunScan components; it does not seek to
defy logic and or the experience of suitably trained installers, use discretion.
SunScan Thermal heating components must be installed in compliance with the following regulations:
SANS 198
SANS 10252 -1
SANS 10254
SANS 10106
SANS 60335-2-21
SANS 10400 –parts A, B, L, XA
SANS 10142-1
No modifications from these standards are allowed.
All local bylaws and estate laws must also be adhered to.
Failure to comply with any or all of these standards may result in injury or death and may void the warranty.Any
attachment, connection, integration or general association of parts or components that directly or indirectly affect
the operation or performance of a SunScan product could void the warranty. Such parts not supplied by
SunScan must be authorised by SunScan in writing in order to retain the benefits of the warranty.

3
Description
SunSilo™ High Pressure Hot Water Storage Tanks are durable boilers ideal for home and professional use,
only the finest eco friendly material is used in their construction, SunSilo vertical boilers are manufactured in a
variety of types and storage capacities and are primarily used as bulk hot water storage vessels for larger hot
water demands.
Types:

4
BL0:
SunSilo BL0 Tanks have no coils (Heat exchangers) and are ideal for situations where potable water can
be circulated on a ring main or through a Thermal Solar Collector.
BL1:
SunSilo BL1 Tanks have 1 coil (Heat exchanger) and are ideal for situations where direct and indirect water
heating and dispersion are required i.e. Water based space heating (coil/indirect), Thermal Solar Collector
(direct)
BL2:
SunSilo BL2 Tanks have 2 coils (Heat exchangers) and are ideal for a variety of situations for example
where indirect water heating through thermal solar collectors is needed or additional heating is required through
indirect heat exchange.
Tanks are available in the following Sizes
BL0
BL1
BL2
420L
420L
420L
500L
500L
500L
1000L
1000L
1000L

5
Specifications
SunSilo™ Tanks:
Material: Steel plate USD37.2 quality
Welding: Robotically welded in inert gas environment
Cleaning: 6 point metal blasting
Internal protection: Glass enamel baked at 850° C
Function Pmax: 6 bar
Testing Pmax: 15 bar for 5 minutes
Function Tmax: +95° C
Insulation:
Material: Polyurethane CFC & FCKW Free
Density: 40 kg/m3
Thickness: 65 mm
(1000L storage tanks, insulation is made from flexible polyurethane 70 mm and is detachable for easier passage
during installation)
Thermal Conductivity: 0,023 W/mk
Outer Cover Material: PVC Colour SunScan™ RED
Heat Exchanger: Coil heat exchanger made of heavy duty steel tube 33mm (tubo).
Electrical Backup (upon request): 2 to 4 KW (230 V) with thermostat or 6KW or 9KW (400 V) without
thermostat.
Tank weights when empty (in KG)
Capacity
BL0
BL1
BL2
420
118
132
152
500
122
165
182
1000
152
201
235

6
Hydraulic Connections BL:
Volume
420 l
500 l
1000 l
Sensor
½"
½"
½"
Heat exchangers
1¼"
1¼"
1¼"
Hot-Cold inlets
1¼"
1¼"
1¼"
Electric Element
1½"
1½"
1½"
Recirculation
1"
1"
1"
Dimensions
Model/Litre
Diameter
Height
420L
730mm
1730mm
500L
730mm
1970mm
1000L
805mm(tank only) / 945mm (Jacket)
2050mm
Heat Exchangers (BL1-BL2)
Model
BL1-
420L
BL2-
420L
BL1-
500L
BL2-
500L
BL1-
1000L
BL2-
1000L
Heat exchanger
Capacity
Lt
7.6
6
11.5
6
13.6
7.5
Surface area
M²
1.5
1.3
2.2
1.3
2.5
1.4
Lower heat exch.
Flow rate
M³/h
3
3
3
3
3
3
Pressure Drop
Mbar
155
140
220
140
250
145
Thermal Losses
(Tank)
Kwh
/24h
2.68
2.68
2.91
2.91
3.6
3.6
Corrosion Protection
Inner cleaning of the tank with automated sand blasting (not chemically) resulting in a perfect adherence of the
enamel. Food grade enamel quality applied with a “double direct” method and baked at 850° C. Extra corrosion
protection is offered by magnesium rods that must be checked and replaced if necessary every 2 to 5 years,
depending on the quality of the water

7
SAFETY PRECAUTIONS
General Safety Information
• WARNING! This appliance is capable of producing temperatures that exceed 50°C.
In certain circumstances safety valves could open to expel hot water and relieve pressure,
Never obstruct these valves and always leave them open to the atmosphere.
• This apparatus is intended for water heating only.
• Any and all work carried out in regards to the installation, commissioning and maintenance
of any SunScan Thermal heating system in its entirety is to be carried out by qualified and suitably trained
professionals.
Safety Considerations for Installation & Operation
All installations are to be carried out in accordance with the Occupational Health and Safety Act (Act 85 of 1993)
requirements and any relevant local authority prescriptions.
General points to consider:
• Assess site specific risks and mitigate to an acceptable level prior to installation, if required consult a trained
professional.
• Water can reach Scalding temperatures!
• Handle Storage Tanks with care to avoid damage to property and personal injury.
• All safety gear must be worn at all times where relevant; these include but are not limited to safety goggles,
gloves, hard hats and safety shoes.
• Ensure installation personnel are competent and in suitable physical condition.
• Any scaffolding or specialized safety equipment must be installed by certified personnel.
• Installers must be trained and conversant with safety procedures
and relevant safety equipment.
• All personnel working on the installation of SunScan SunSilo tanks must be issued with the appropriate safety
equipment.
• Ensure that occupants are aware of all health and safety implications relevant to them.

8
INSTALLATION
Important!!!
SunScan SunSilo Tanks are not weatherproof and must be installed in a suitably protected area.
All aspects of the installation must be carried out by certified personnel.
Fix the device depending on its type and make sure the surface (floor, wall, etc…) can
withstand the weight by taking into account the weight of the device when full of water.
Always leave a gap of at least 40cm from nearest wall and/or ceiling in order to be able to
perform maintenance services.
Hydraulic Connections
Install the 400kpa Pressure reducing valve on the cold in-let. Make sure that if there is an
expansion valve that the evacuation side of the valve is directed outside and away from the
building to a safe outlet point where leak-age will not cause damage to walls, floors, etc... If the
P.R.V does not have an expansion valve, make sure that one is installed, in this instance if a non return
valve is used the expansion valve must be installed between the geyser connection and non return valve

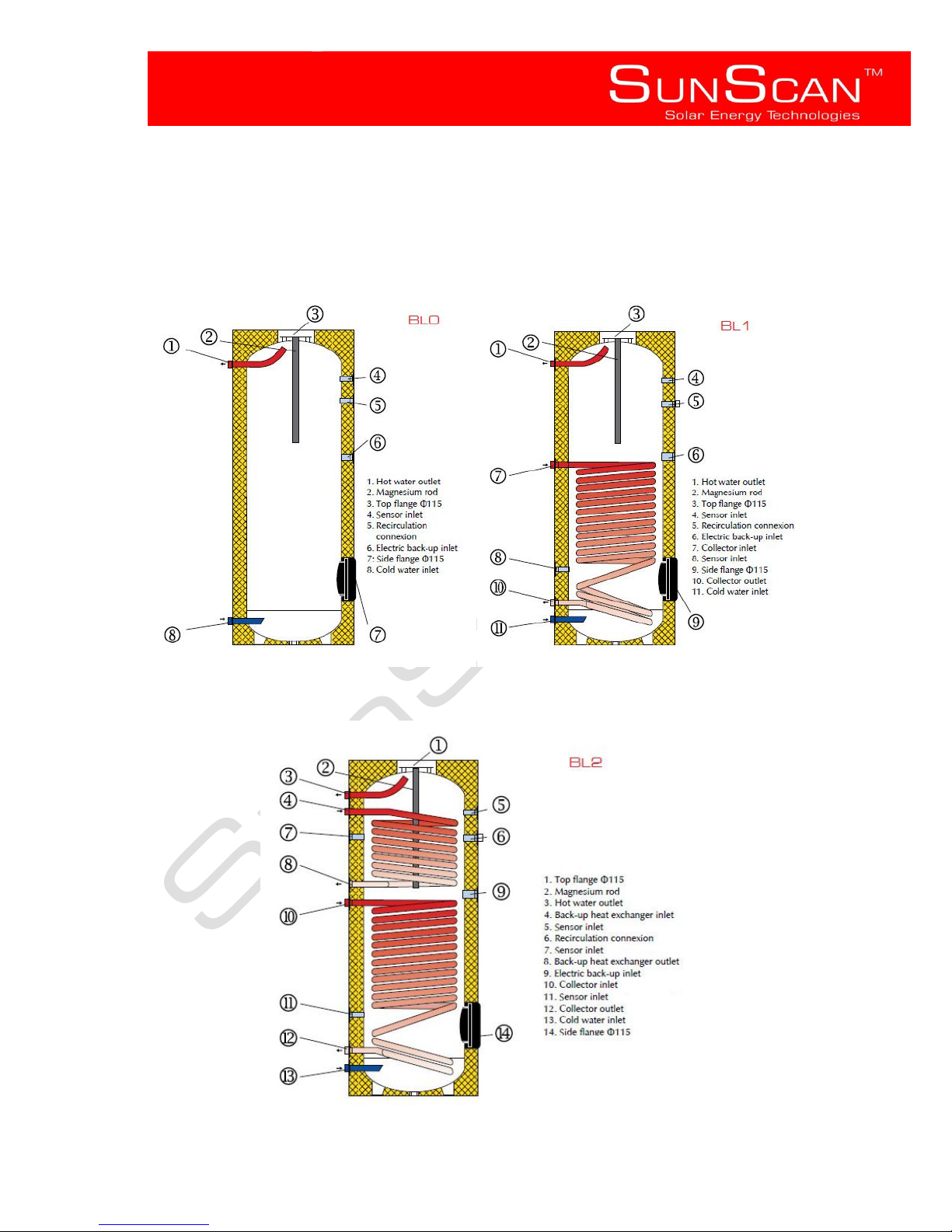

(See diagram below)
A Temperature and pressure relief valve must be installed, SunScan recommends that a “banjo” type
connection be made
A s h u t o f f t y p e “ d r a in ” valve and an expansion pot of a volume equal to at least 5% of the tank
volume must be installed.
Electrical Connections
Make sure that the operation tension of the device and the tension of the electric supply are
compatible. Connect the device using the correct diameter cabling and fuses. Connect the L
(phase), N (Neutral) and of course the ground connection. It is recommended the
thermostat be placed between 50°C and 60°C during winter months and between 45°C and
50°C during summer months. ATTENTION: before turning the electricity ON make sure
the device is full of water.
All electrical connections must be performed by a certified electrician.

9

10
MAINTENANCE
Routine Maintenance
(Maintenance must be performed by certified technicians).
For the correct function of the device, a periodical check of the anode and cleansing of the
device from scale are recommended. This periodical check must be performed every 2 to 4
years, de-pending on the hardness of the water, in order for the warranty to remain valid.

11
WARRANTY CERTIFICATE
Solar Lifestyle warrants the functionality of the components of their SunScan products as follows:
Product
Parts
Labour
SunSilo BL0,BL1,BL2
5 Years
1 year
Element and thermostat (If supplied
by Solar Lifestyle)
1 year
The system is covered for the indicated period from the date of installation and is provided under the
following conditions:
It was installed by a SunScan Certified Installer or Implementation Partner.
It is only supplied by municipal water with a total dissolved hardness of less than 600 ppm at
maximum working pressure of 400 KPa.
All requirements as detailed in the installation manual were complied with.
This warranty only applies to the system product parts listed above and does not apply to any
additional electrical and/or plumbing parts supplied by the installer or the installation.
Should a part of the product be replaced during this period, only the balance of the original warranty
will continue to remain effective.
Solar Lifestyle is excluded from responsibility from any consequential loss including: injury to persons,
damage to property, economic loss, any legal or other damages due to manufacturing defect.
Consequential loss shall be covered by the general household insurance policy of the home owner.
Swimming pool, Spa and Jacuzzi water may not be circulated through the product.
The warranty does not include damage caused by freezing.
Accidental breakage is not covered by this warranty, and should be added to your general household
insurance policy.
Replacement or repair excludes all transport costs.
Should a dispute arise from an installation, or from the product, the dispute will be referred to SESSA
for arbitration and the parties will be held by the arbitrators’ decisions.
All operating valves shall be serviced biannually.
The sacrificial anode shall be checked and replaced if necessary every 2 years
Register Warranty
(Please supply details below and fax or email to SunScan™Technologies)
Name and Surname:
Installation Date:
Installation Address:

12
Sign off (customer copy)
Supplier details Installer details
Solar Lifestyle cc t/a SunScan™ Company Name: __________________________
Physical address Unit S17 Spearhead Address: __________________________
Business Park
Montague Drive __________________________
Montague Gardens
Cape Town __________________________
7441
__________________________
Postal address Suite No. 73, Private Bag x 7
Chempet, 7442 __________________________
Tel [phone] Tel: __________________________
Fax [phone] Fax: __________________________
Email [email protected] Email: __________________________
Installer Sign-off Customer acceptance
Installer Name: ________________________ I, ________________________________________
Installation date: ________________________ , (I.D. No)__________________________________
hereby declare that the Thermal system has been
Location: ________________________ installed to my satisfaction, it has been
demonstrated to me and is in working order and I
Customer Name: ________________________ have been instructed in its operation, maintenance
and usage.
Customer address: ________________________
________________________ Product Serial No: _________________________
________________________
The installer hereby warrants that the system has been installed in accordance with this instruction
booklet and product specific training received.
____________________ _______________ ____________________ _______________
Installer signature Date Customer signature Date

13
Sign off (installer copy)
Supplier details Installer details
Solar Lifestyle cc t/a SunScan™ Company Name: __________________________
Physical address Unit S17 Spearhead Address: __________________________
Business Park
Montague Drive __________________________
Montague Gardens
Cape Town __________________________
7441
__________________________
Postal address Suite No. 73, Private Bag x 7
Chempet, 7442 __________________________
Tel [phone] Tel: __________________________
Fax [phone] Fax: __________________________
Email [email protected] Email: __________________________
Installer Sign-off Customer acceptance
Installer Name: ________________________ I, ________________________________________
Installation date: ________________________ , (I.D. No)__________________________________
hereby declare that the Thermal system has been
Location: ________________________ installed to my satisfaction, it has been
demonstrated to me and is in working order and I
Customer Name: ________________________ have been instructed in its operation, maintenance
and usage.
Customer address: ________________________
________________________ Product Serial No: _________________________
________________________
The installer hereby warrants that the system has been installed in accordance with this instruction
booklet and product specific training received.
____________________ _______________ ____________________ _______________
Installer signature Date Customer signature Date
