Suntec Wellness Klimatronic Transform 7000 User manual

Instruction Manual

2
INTRODUCTION / TECHNICAL DATA
Congratulations on purchasing your SUNTEC WELLNESS KLIMATRONIC
®
TRANSFORM unit.
Your air-conditioner has been developed and manufactured in accordance with standards of state of the art
technology.
Please read the operating instructions carefully before connecting your TRANSFORM unit to the power
supply in order to prevent damage from improper use. Pay special attention to the safety instructions. If you
pass this TRANSFORM unit on to a third party, you must also include these operating instructions. Please
keep these operating instructions in a safe place for any questions which may arise in future.
Thank you for showing confidence in our product. We hope you enjoy a pleasant room climate with your
Suntec air-conditioner.
MODEL TRANSFORM
7000 TRANSFORM 9000 TRANSFORM 10500 TRANSFORM 12000 TRANSFORM 14000
VOLT 230V 50Hz AC 230V 50Hz AC 230V 50Hz AC 230V 50Hz AC 230V 50Hz AC
POWER CONSUMPTION (W) 760 W 990 W 1150 W 1340 W 1530 W
(Wb24 /Db35)
POWER CONSUMPTION (W)
COOLING 900 W 1100 W 1280 W 1480 W 1700 W
HEATING
(EN60335)
700 W 950 W 1100 W 1300 W 1500 W
COOLING CAPACITY 2.000 W 2.600 W 3.000 W 3.500 W 4.000 W
HEATING CAPACITY 2.000 W 2.600 W 3.000 W 3.500 W 4.000 W
(Wb24 / Db35)
DEHUMIDIFICATION
CAPACITY
(30, RH80%)
30L/day 50L/day 50L/day 60L/day 70L/day
NOISE 50dB(A) 51 dB(A) 52dB(A) 53dB(A) 54dB(A)
AIR CIRCULATION [m³/h] 360 400 420 450 450
COOLING AGENT R410a R410a R410a R410a R410a
REMOTE CONTROL INCLUSIVE INCLUSIVE INCLUSIVE INCLUSIVE INCLUSIVE
TIME SWITCH 0-24 STD 0-24 STD 0-24 STD 0-24 STD 0-24 STD
DIMENSIONS (mm) WXDXH 300x480x630 300x480x630 300x505x778 300x505x778 300x505x778
NET WEIGHT 24 kg 25 kg 28 kg 29.5 kg 30,5 kg
Allfiguresareapprox.data.CharacteristicspursuanttocurrentNormEN14511.Subjecttoalterations.
EASY TO OPERATE AND EASY TO MOVE AROUND
The TRANSFORM unit can be moved easily on rollers from room to room.
The air quantity can be adjusted via up to three ventilation levels.
The air flow can be very strong and reach up to 5 or 6 metres.
Installation by a specialist is not required
Simply plug into a normal household socket with an operating voltage of 230V/ 50Hz.
The extract air hose can be stored in the TRANSFORM unit for transport and when not in use.
This Suntec TRANSFORM unit operates in accordance with the heat pump principle. On account of the
special, innovative construction of the TRANSFORM unit, its heating function is extremely efficient
compared to conventional heating units.
SCOPE OF DELIVERY
1 x TRANSFORM unit
1 x remote control
1 x air hose 150 cm
1 x air hose connector
1 x bracket air hose
1 x sir outlet grid
1 x coarse filter top, 1 coarse filter
bottom
1 x activated carbon filter top
1 x operating instructions
1 x drainage hose 50 cm
2 x sealing plug

3
BEFORE INITIATION
1. To avoid damage, place the TRANSFORM unit in an upright position for at least 24 hours
before initiation.
2. Release the holder air hose in the TRANSFORM unit and take out the extract air hose.
3. Fasten the air hose before initiating the TRANSFORM unit.
4. Turn the extract air hose in the direction of the arrow (1) displayed and remove it from the
TRANSFORM unit.
5. Turn the extract air hose in the direction of the arrow (2) displayed and connect it to the
TRANSFORM unit.
6. Plug the power plug into a socket. Never pull the plug out of the socket with force using the
connection line. This can damage the power cable.
7. Since the TRANSFORM unit emits hot air, please observe a sufficient minimum safety
distance to each wall. (Fig. 1)
8. Despite the splash water protection, you should not operate the TRANSFORM unit in moist
areas, such as e.g. swimming baths or similar areas.
9. The colour of the TRANSFORM unit can change slightly due to direct solar radiation.
10. The TRANSFORM unit is equipped with a special thermal deactivation. This protects the unit
from overheating in extreme ambient conditions.
11. Please place the TRANSFORM unit so that the air inlet is not impeded, e.g. by furniture or
curtains, since this can negatively effect the capacity.
12. Do not allow direct sunlight to shine on the TRANSFORM unit, since it may then overheat and
automatically deactivate on account of the thermal deactivation.

4

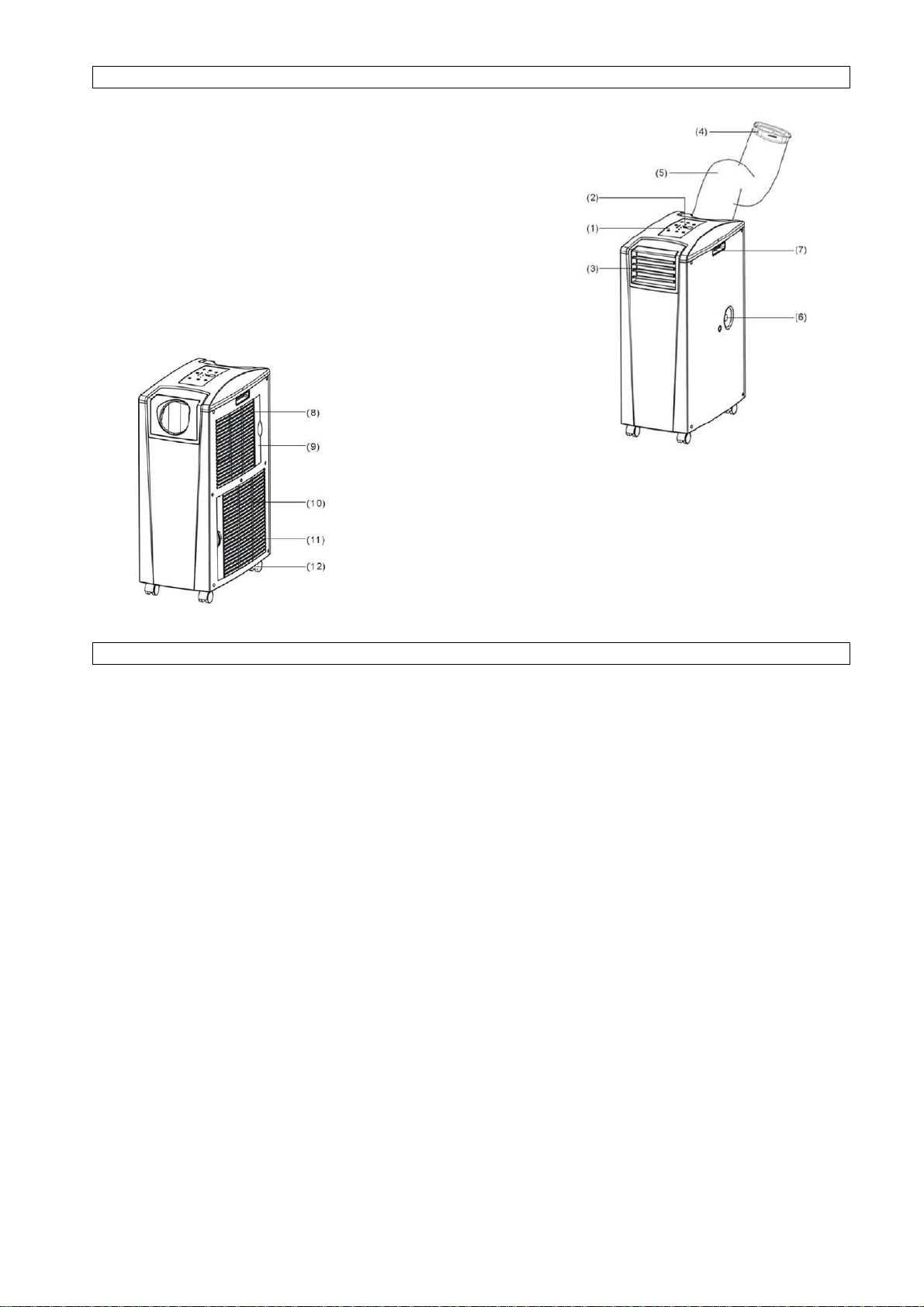

NAME OF THE COMPONENTS
1. Operating panel
2. Control lamp
3. Air outlet grid
4. Air hose connection piece
5. Air hose
6. Upper condensation water outlet with rubber plug
7. Carrier handles
8. Activated carbon filter top
9. Coarse filter top
10. Filter grid
11. Coarse filter bottom
12. Lower condensation water outlet with rubber plug
IMPORTANT INSTRUCTIONS
1. Before initiation, check if the operating voltage specified on the type plate complies with the local
network voltage.
2. DO NOT BLOCK THE VENTILATION. Make sure that the air outlet and air inlet
are never blocked.
3. Only operate the TRANSFORM unit on a horizontal surface to ensure no water leaks out.
4. The TRANSFORM unit must not be operated in an area with explosive and caustic substances.
5. Clean the air filter regularly. A contaminated air filter reduces capacity.
6. Please wait at least 5 minutes after switching off the TRANSFORM unit before switching it back on,
to ensure the compressor is not damaged.
7. The TRANSFORM unit is designed for the cooling, heating and dehumification of inside rooms.
Other use is excluded.
8. If the power cable is damaged, it must be replaced by a qualified specialist for safety reasons.
9. CAUTION! This TRANSFORM unit may only be used by legal adults taking responsibility for safety
and are trained to use it. Children should be supervised to ensure they do not play with the
TRANSFORM unit.

5
OPERATING PANEL
DESCRIPTION OF FUNCTIONS
1. [POWER]
Press this switch to switch on or off
2. [FUNC]
Press this switch to select between the functions “Cooling”, „Heating“ or „Dehumidity“
3. [TEMP+]
Press this switch in the cooling function in order to set the required room temperature by 1°C
respectively up to a maximum temperature of 30°C.
Press this switch in the heating function in order to set the required room temperature by 1°C
respectively up to a maximum temperature of 25°C
4. [TEMP-]
Press this switch in the cooling function in order to set the required room temperature by 1°C
respectively up to a minimum temperature of 17°C.
Press this switch in the heating function in order to set the required room temperature by 1°C
respectively up to a minimum temperature of 15°C
5. LED-DISPLAY
The display shows the required target temperature in operation.
By pressing the [TEMP+] or [TEMP-] switch, the current ambient temperature is briefly displayed.
When pressing the [TIMER] switch, the number of hours is briefly shown until activation or
deactivation. In the dehumification function, „dH“(or „HP“ upside-down) is shown in the display. Error
messages are also shown in the display.
6. [SPEED]
Press this switch to set the ventilation speed to„LOW“, „MID“ (middle), „HI“ (high) or „AUTO“
(automatic). If „AUTO" is selected, the ventilator operates at temperature differences larger than 9
degrees at top speed. If the temperature reduces to a difference smaller than 4 degrees, the ventilator
switches to middle blower position. If the temperature reduces further until the target temperature, the
ventilator switches to the lowest blower position.

6
7. [TIMER]
Programmable time switch with start and residual time
Starting time: This function is used to switch on the TRANSFORM unit automatically when the time
entered has expired. Proceed as follows:
a) Press [TIMER] switch in Stand-by (TRANSFORM unit is connected but not in operation), to enter the
required number of hours after which the TRANSFORM unit is to start.
b) Select the required function (cooling, heating, dehumification) and set the required temperature.
c) When the set number of hours has expired, theTRANSFORM unit starts automatically.
If you press the [POWER] switch before the time has expired, the time programming is deleted, the
TRANSFORM unit switches on and can be operated in the required operating mode.
Residual time: This function is used to automatically deactivate the TRANSFORM unit when the time
entered has expired. Proceed as follows:
a) Press the [TIMER] switch during operation and enter the required number of hours after which the
TRANSFORM unit is to switch off.
b) After the flashing of the number of hours on the LED has stopped, you can select the required
function (cooling, heating, dehumification) and the required temperature.
c) When the set number of hours has expired, the TRANSFORM unit switches on automatically.
If you press the [POWER] switch before the time has expired, the Timer programming is deleted and
the TRANSFORM unit switches off.
8. [SLEEP]
Using this key you can set the sleep function of the TRANSFORM unit. The microprocessor integrated
in the TRANSFORM unit will raise the pre-set temperature by 2°C per hour up to a maximum of 4°C
after 2 hours and maintain this temperature until the set time has expired.
If you use the sleep function, first set the time switch to the set hours as described in the functions
Residual time or Starting time. Then press the [TIMER] switch until the required hours appear on the
display. After the hour display, the display switches automatically to the previous set temperature
display. To change the temperature, press the switch [TEMP+] or [TEMP-]. With each press on the
switch, the temperature increases or decreases by 1°C.

7
COOLING
We recommend starting TRANSFORM early in the morning on warm days to get a cool room..
This TRANSFORM unit has a self-evaporation function for condensation water, so that it is normally not
necessary to empty the water tank in cooling mode. The drainage hose need not be connected. Please
make sure that the outlet is closed with the rubber cap during operation.
(This does not apply in the case of high air humidity. If the TRANSFORM unit operates in cooling mode for a longer period and
especially at a time of year with high air humidity, the condensation tank may be full. The control lamp will remind you to empty the
water. Refer to error message E4. In such a case, empty the water tank via the condensation water outlet. If continuous high air
humidity is likely, it is recommended to drain the condensation continuously via the drainage hose.)

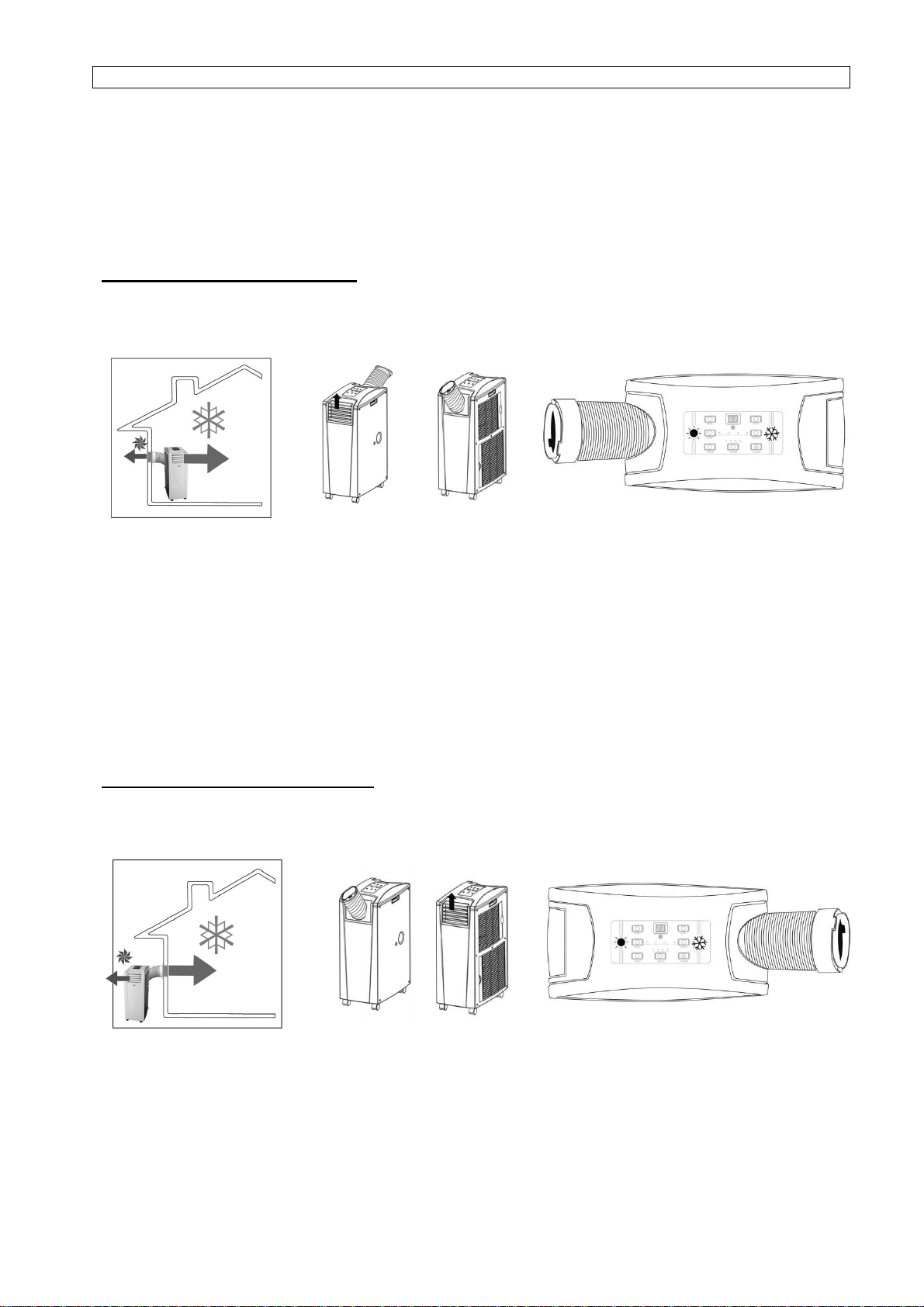

COOLING IN INDOOR OPERATION
The TRANSFORM unit stands in the room to be cooled.
Connect the air hose and the air outlet grid to the TRANSFORM unit as displayed in the illustration; the air
hose connection piece and air outlet grid need to be exchanged.
The warm extract air must be emitted from the room via the air hose. This can be executed e.g. via a tilted
window, a door or wall aperture. Make sure that no warm outside air can enter the room. For effective
cooling, we recommend our selection of various accessories which reduce or prevent entry of warm air into
the room.
Set the function to „COOLING“. Set the target temperature using the temperature control. The settable
temperature range is between 17°C and 30°C target temperature. The TRANSFORM unit must only be
used in an ambient temperature of maximum 32°C.
Note: After switching on, or over, the ventilator operates, but the compressor only starts after the control lamp has flashed for 3
minutes. Cooling effect may require a further 10 minutes. Further information is available under the item, „Troubleshooting“.
COOLING IN OUTDOOR OPERATION
The TRANSFORM unit is outside the room to be cooled.
Connect the air hose and the air outlet grid to the TRANSFORM unit as displayed in the illustration; the air
hose connection piece and air outlet grid need to be exchanged.
Place the TRANSFORM unit in the shade if possible and in a cool place in order to increase efficiency and
to avoid overheating. At an ambient temperature of over 32°C, the TRANSFORM unit may deactivate. If th is
occurs continuously, we recommend you temporarily use the INDOOR OPERATION of the TRANSFORM
unit. We recommend that a drainage hose for condensation water be connected.
Set the function to „COOLING“. The settable temperature range is between 17°C and 30°C. This can be se t
using the temperature control.
The air with high oxygen content cooled by the TRANSFORM unit is led into the room via the air hose. This
can be executed e.g. via a tilted window, a door or wall aperture. Make sure that no warm outside air can
enter the room. We recommend that a drainage hose for condensation water be connected. For effective

8
cooling, we recommend our selection of various accessories which reduce or prevent entry of warm air into
the room, or via the remote control.
Using the „Comfort Control- S Kit“ you can also control the TRANSFORM unit from inside using the remote
control.
Note: After switching on, or over, the ventilator operates, but the compressor only starts after the control lamp has flashed for 3
minutes. Cooling effect may require a further 10 minutes. Further information is available under the part „Troubleshooting“.
HEATING
On cold days it is recommendable to start the TRANSFORM unit early in order to get a warm room.
For the heating function and to improve the heating effect and avoid lower temperatures (lower than
17°C) we recommend you remove the rubber plug from the condensation water outlet and allow the
condensation water to leak out of the TRANSFORM unit using the drainage hose. However, the drainage
hose does not have to be connected in the heating mode. Please make sure that the condensation water
outlet is closed with the rubber cap during operation. In such a case, proceed analogously to the emptying
of the water tank in the cooling function.
The heating function of the TRANSFORM unit must not be operated at a room temperature of more
than 23°C or less than 7°C. The TRANSFORM unit can also be operated with heating function, if the
outside temperature is lower than 7°C. However, you must then ensure that the TRANSFORM unit is
operated inside and the room temperature is at least 7°C.
HEATING IN INDOOR OPERATION
The TRANSFORM unit is in the room to be heated.
Connect the air hose and the air outlet grid to the TRANSFORM unit as displayed in the illustration; the air
hose connection piece and air outlet grid need to be exchanged.
The cold extract air has to be led out of the room via the air hose. This can be executed e.g. via a tilted
window, a door or wall aperture. Make sure that no cold outside air can enter the room. For effective
heating, we recommend our selection of various accessories which reduce or prevent entry of cold air into
the room.
Set the function to „Heating“. The settable temperature range is between 15°C and 25°C target
temperature. You can set this using the temperature control.
Note: After switching on, or over, the ventilator operates, but the compressor only starts after the control lamp has flashed for three
minutes. Cooling effect may require a further 10 minutes. Further information is available under the part „Troubleshooting“.
Caution: In the heating mode, separate setting of the ventilator is not provided, since the highest
ventilation level is already preset to avoid overheating of the unit.

9
HEATING IN OUTDOOR OPERATION
The TRANSFORM unit is outside the room to be heated. Outdoor operation is ideal for the transition period
in which outside temperatures do no fall below 7°C. (If the outside temperature should however fall below 7°C
continuously, we recommend indoor operation). Connect the air hose and the air outlet grid to the TRANSFORM
unit as displayed in the illustration, the air hose connection piece and air outlet grid need to be exchanged.
Set the function to „Heating“. The settable temperature range is between 15°C and 25°C target
temperature. You can set this using the temperature control.
The air with high oxygen content heated by the TRANSFORM unit is fed into the room via the air hose. This
can be executed e.g. via a tilted window, a door or wall aperture. Make sure that no cold outside air can
enter the room. For effective heating, we recommend our selection of various accessories which reduce or
prevent entry of cold air into the room.
Using the “Comfort Control- S Kit“ you can also control the TRANSFORM unit from inside using the remote
control.
Note: After switching on, or over, the ventilator operates, but the compressor only starts after the control lamp has flashed for 3
minutes. Cooling effect may require a further 10 minutes. Further information is available under the part „Troubleshooting“.
DEHUMIDIFICATION
Humidity is extracted from the air, collected in the water tank and discharged via the condensation water
outlet. Only air the room if the humidity of the outside air is below than in the inside room. Set the function
to “Dehumidity”.
The rubber plug of the condensation water outlet is removed and a drainage hose attached. To collect the
condensation water easily in a tank, a drainage hose is included in the scope of delivery which you can
connect to the upper condensation water outlet. Allow water to flow out continuously in order to achieve
higher dehumification capacity. In the dehumidify mode, you must not feed the room air outside with the
extract air hose.
Caution: In the dehumidify mode, separate setting of the ventilator is not provided, since the
lowest ventilation level is already preset to ensure efficient dehumidification of ambient air.

10
CLEANING AND MAINTENANCE
PLEASE REMOVE THE POWER PLUG FROM THE SOCKET BEFORE CLEANING THE TRANSFORM
UNIT.
COARSE FILTER
The air filters on the side of the TRANSFORM units can be simply removed by pulling the frame sidewards.
When cleaning, use a vacuum cleaner with brush or wash the filters under running, warm water and dry
them with a soft cloth!
Please clean the coarse filters regularly when in use.
ACTIVATED CARBON FILTER
The activated carbon filter can not be washed. Please replace if required. We
refer to the part „Spare parts and Accessories“.
TROUBLE SHOOTING/ ERROR MESSAGES
The mobile air conditioner TRANSFORM is equipped with a 3-minute compressor-delay system
which means the compressor needs 3 minutes to start.
This affects the switching on of the TRANSFORM unit (POWER) as well as switching over from
one function to the next, e.g. dehumidify to cooling or heating.
ERROR/
PROBLEM CAUSE REMEDY
Can I switch the
TRANSFORM unit
on immediately
after unpacking
it?
No.
The TRANSFORM unit must be placed upright for at
least 24 hours after every transport. Otherwise the
compressor may be damaged and there is no capacity.
When switching
on the
TRANSFORM unit
I sense a smell.
What should I do?
Production-related
cause or incorrect
storage of unit at e.g.
dusty areas.
Odour development can arise on first use and after a
longer period of non-use by storing in unsuitable areas
(e.g. dusty areas).
Run the unit for ½ a day. The smell will disappear after a
while. In the case of intensive odour development, air the
room.
Can I operate the
TRANSFORM unit
WITHOUT the
extract air hose?
Yes, but only in dehumidification mode.
To achieve temperature adjustments, surplus heat or
coldness must be discharged.
At which intervals
should the
activated carbon
filter of the
TRANSFORM unit
be replaced?
To use the purpose of the filter fully, it should be
replaced every 6 months.
How can I
increase the
efficiency of the
TRANSFORM
unit?
External circumstances exist which may impact the
efficiency of the TRANSFORM unit. Room insulation,
use of wall/window adapter, ratio of window space (solar
radiation), operation of electrical units in the room (EDP),
presence of several persons in the room. You can
increase the efficiency of the TRANSFORM unit
accordingly by adjusting such circumstances.
Compressor does
not activate Depending on ambient temperatures and TRANSFORM unit type it may take approx. 10 minutes after starting the
compressor until the cooling/heating capacity is reached.

11
TRANSFORM unit
deactivates. On reaching the set required temperature, the TRANSFORM unit switches off automatically. Check
manual setting of the required temperature as well as the
TIMER setting.
How is the m² or
m³ data of the
manufacturer
calculated
The m² or m³ data of the manufacturer for the various
TRANSFORM units are average values related to a
room height of 2.5 metres. It must be considered that
such data can be clearly underscored or exceeded
under certain circumstances. Circumstances which work
against efficiency of the TRANSFORM units include e.g.
bad insulation of the building, large window areas, south
facing, attic apartment, many additional heat sources,
such as e.g. number of persons, EDP, light, kitchen
units, washing units etc.
TRANSFORM unit
does not cool
correctly
You achieve the most effective and economical cooling
comfort if you already cool the room to be cooled when
the room temperature is not yet heated up. Air
conditioners operate more effectively if the temperature
is to be maintained. To drastically cool the air and
inventory in a fully heated room requires much more time
and energy.
E1 Room temperature
outside the function
range:
Room temperature
inside the function
range:
Observe all data in these operating instructions
concerning function range.
Temporary error of start temperature. Please switch the
TRANSFORM unit off and start it again after approx. 30
minutes. If the error occurs continuously, the
TRANSFORM unit requires specialist inspection.
E2 Temperature of the
cooling agent lines too
high or too low
Temporary error on measuring output temperature.
Please switch the TRANSFORM unit off and start it
again after approx. 30 minutes. If the error occurs
continuously, the TRANSFORM unit requires specialist
inspection.
E3 Incorrect signal This error message in the cooling function refers to too
high ambient temperatures and in the heating function to
too low ambient temperatures. Please observe the
instructions relating to ideal operation of the
TRANSFORM unit. This may also be a temporary error
measurement between the start and output temperature.
Please switch the TRANSFORM unit off and start it
again after approx. 30 minutes. If the error occurs
continuously, the TRANSFORM unit requires specialist
inspection.
E4 Water tank full If the water tank is full, the warning sign "E4" appears in
the display. To restart operation of the TRANSFORM
unit, please remove the plug of the condensation water
outlet to allow water to leak out. Please use an
appropriate collection tank. When the water has been
completely removed, please start the TRANSPORT unit
again. The TRANSFORM unit can now be used as
usual.
DF De-icing mode This procedure is completely normal and protects the
system from icing and failure. The unit starts
automatically after approx. 15 minutes again (depending
on the function setting). This procedure repeats itself
regularly.
SPARE PARTS AND ACCESSORIES SUPPLY (FAST CONVENIENT SUPPLY)
You can obtain spare parts and accessories for your TRANSFORM unit from your local dealer. And
at our website
www.suntec-wellness.de you will find further information on individual
accessory products as well as information on obtaining our spare parts quickly and conveniently.

12
You will also find other information (e.g. FAQ, lists of spare parts, document download, etc) about
your TRANSFORM unit.
Name
EAN Description Functional drawing
TF Window-Kit
4250058312013
Sliding seal of window and connection
adapter for air hose, especially for sliding
windows.
Air-Block Klima-Sail
4250058312099
Sail which can be used for all types of
windows and doors. As for an external fly
screen, it is fixed with Velcro and operated
via a zip. The window or door can be closed
at any time.
TF Wall-Kit
4250058312020
Clean closing of a wall or wall boring from
inside and outside with connection elements
for the air hose.
TF Comfort-S Control
Kit
4250058312037
Sensor-controlled adapter for a wall or
window boring with air lamellas, integrated
operating panel and a LCD remote control
for convenient and automatic control of the
TRANSFORM in outdoor operation.
TF Air-Transfer-Kit
4250058312044
Extension of the TRANSFORM with a
second air hose. The system can then e.g.
air-condition the living area while in the
storage room and feed the extract air outside
from there.
Air-Extension-Kit
4250058312105
A World First with which you can air-
condition almost every corner of your house,
and it doesn’t matter where the air
conditioner is located. You can extend the
extract air hose by 5 metres via a special
propeller. For TRANSFORM this also applies
for the air supply and extraction.

13

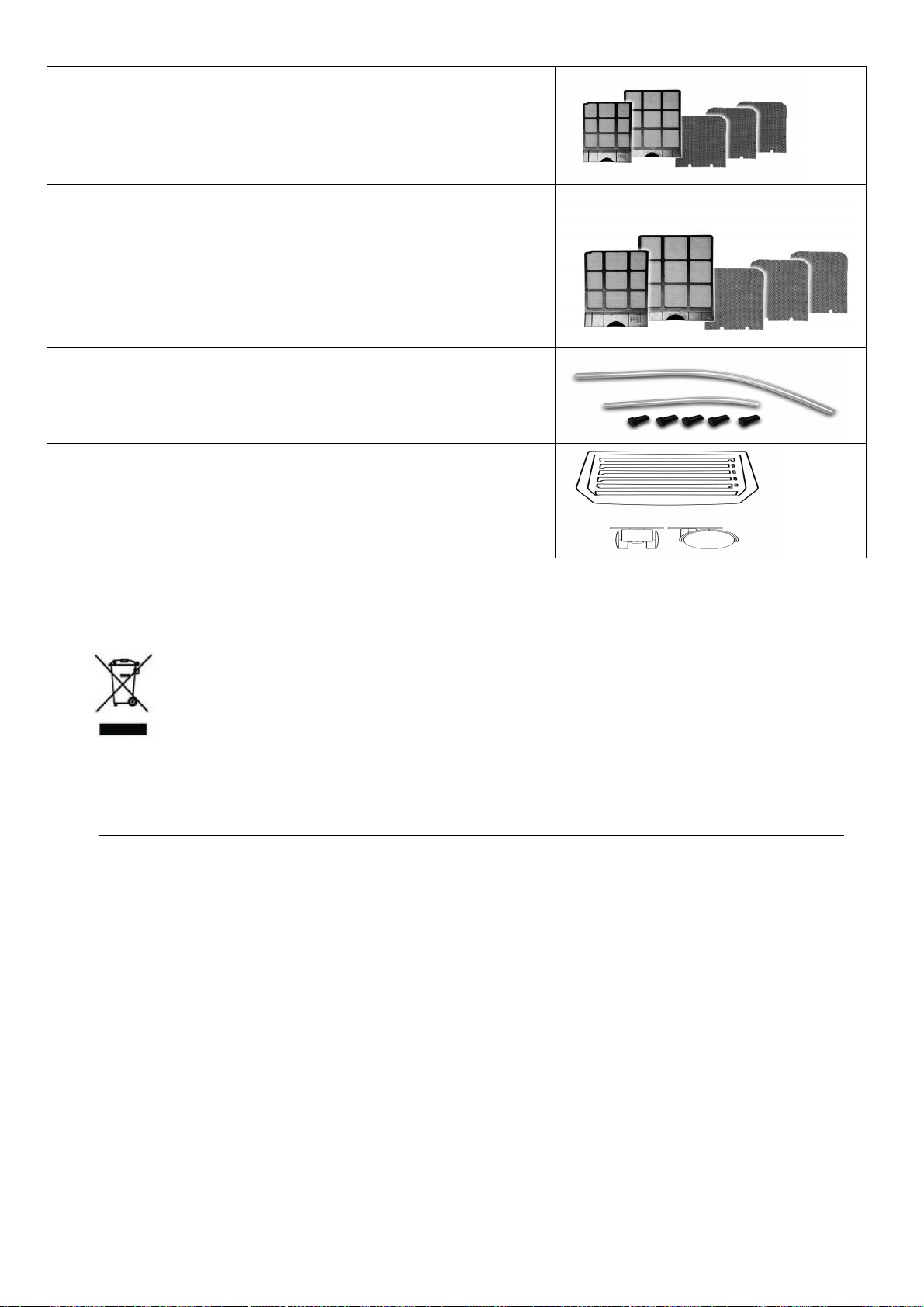

TF Filter-Kit 7/9
4250058312051
Complete filter set including both coarse
filters and 3 spare activated carbon filters for
the models TRANSFORM 7,000 and 9,000.
TF Filter-Kit 10,5/12/14
4250058312068
Complete filter set including both coarse
filters and 3 spare activated carbon filters for
the models TRANSFORM 10,500, 12,000
and 14,000.
TF Drainage-Kit
4250058312075
Complete drainage set for all TRANSFORM
models incl. 2 different hoses and 5 plugs.
TF Component-Kit
4250058312082
Selection of additional TRANSFORM spare
parts.
NOTE CONCERNING PROTECTION OF ENVIRONMENT
This product must not be disposed of via normal household waste after its service life, but must
be taken to a collection station for the recycling of electrical and electronic devices. The symbol
on the product, the operating instructions or the packaging indicate such disposal procedures.
The materials are recycable in accordance with their respective symbols. By means of re-use,
material recycling or any other form of recycling old appliances you are making an important
contribution to the protection of our environment. Please ask your local council where your
nearest disposal station is located.
© 2011 KLIMATRONIC
®
TRANSFORM
SUNTEC WELLNESS GMBH / HOLZSTRASSE 2 / 40 221 DÜSSELDORF / GERMANY
