Supera CVO-50-1 User manual

This manual contains importatant information regarding your Supera unit. Please read this manual thoroughly prior to equipment set-up,
operation and maintenance. Failure to comply with regular maintenance guidelines outlined in this manual may void the warranty.
CVO-50-1
HALF SIZE
CONVECTION OVEN
INSTRUCTION MANUAL

©SUPERA V.1.0 | August 2014
INSTRUCTION
MANUAL
WARNINGS
• Do not touch any hot surfaces
• Do not put items on top of the oven
• Do not stack ovens
• Plug only into a 3-hole grounded electrical outlet
• Do not immerse unit, cord or plug in liquid at any time
• Unplug cord from outlet when not in use and before cleaning
• Do not operate unattended
• Do not use this unit for anything other than intended use
• Do not use outdoors
• Always use on a firm, dry and level surface at least 12” from walls or any other obstruction
• Do not use if unit has a damaged cord or plug, in the event the appliance malfunctions, or has
been damaged in any manner
• Keep children and animals away from unit
• Any incorrect installation, alterations, adjustments and/or improper maintenance can lead to
property loss and injury. All repairs should be done by authorized professionals only
• Ensure that the designated power supply is adequate for continual usage and the voltage is
correct
• This oven is designed to be used for baking and reheating purposes only
TO INSTALL
1. Do not install the oven on the floor.
2. Be sure to install the oven on a flat, sturdy and stable surface. Failure to install on a stable
surface may cause the unit to fall over, causing injury or burns.
3. Remove all the adhesive film which covers the body surface before using.
4. This unit comes with feet that must be assembled. Do not use the appliance without feet.
5. Screw the support feet to the bottom of the appliance.
6. Adjust the appliance height by screwing or unscrewing the feet themselves.
TO USE
Timer
• Set the time switch knob to the number which indicates the cooking time required by the food
you are going to cook
• Set the timer by turning it clockwise. The oven will turn o automatically at the end of the
selected time and a bell will ring.
• The oven can be turned o manually during cooking by turning the timer counter-clockwise to
the “0” position
Convection Cooking
• Turn on the power to the oven
• Set the temperature control to the desired temperature (0-570°F)
• Turn the timer to the desired time (0-120 mins). The temperature light, timer light, and the
inside lamp are on.
• The temperature light will switch o when the temperature rises to the desired level. Then it will
switch on when the temperature drops down. This process will occur automatically.
CLEANING – NOTE: To maintain cleanliness and increase service life, the oven should be
cleaned daily. Do not immerse the unit in water or any other liquid. If liquid enters the electrical
compartment it may cause a short circuit or electrical shock
• When the oven is hot, do not apply water to the glass. This can cause the glass to break.
• When cleaning the oven do not use combustible solvents
• To avoid damage, do not use abrasive cleaners or scouring pads
• If soap or chemical cleaners are used, be sure they are completely rinsed away with clear water
immediately after cleaning. Chemical residue could damage or corrode the surfaces of the unit.

©SUPERA V.1.0 | August 2014
INSTRUCTION
MANUAL

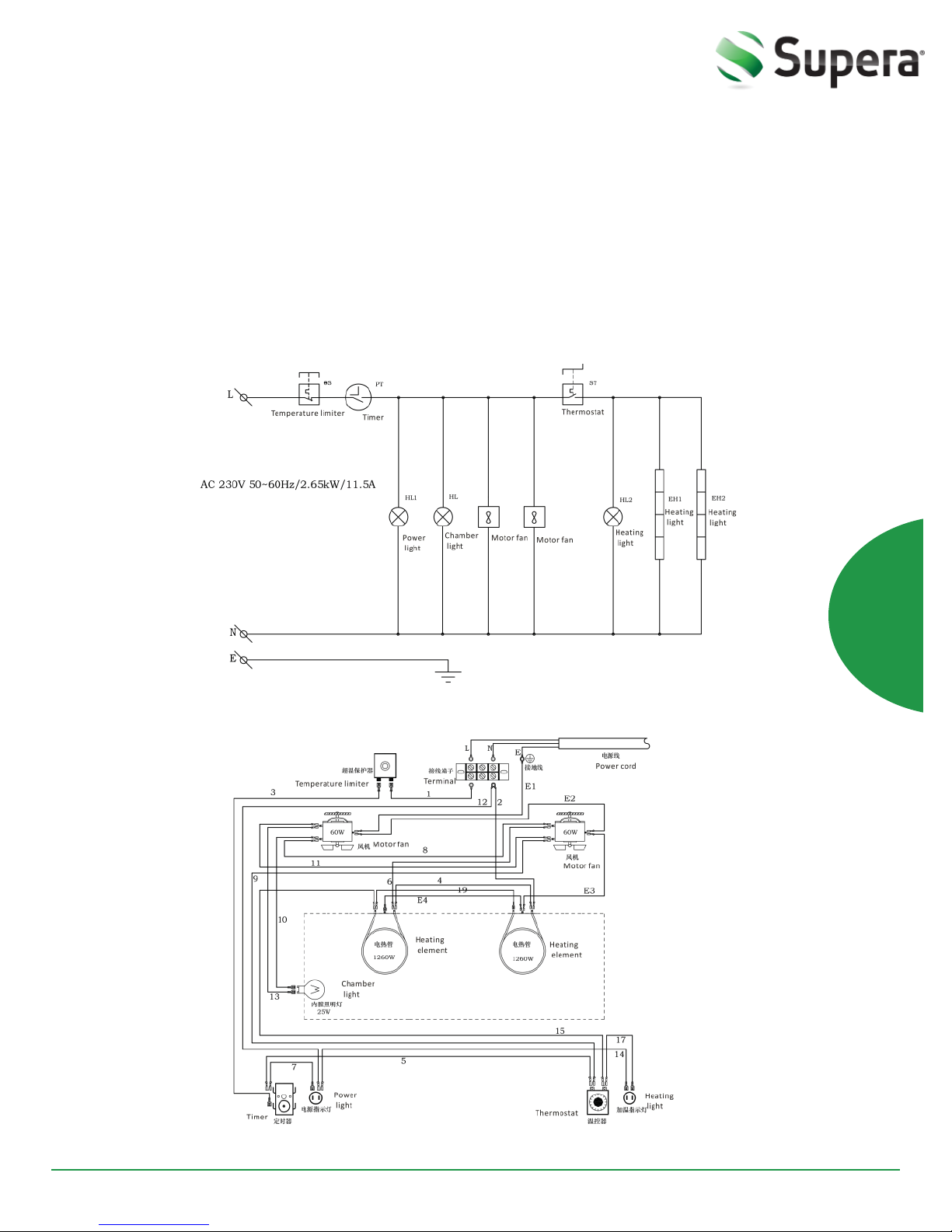

Wiring Diagram for the Convection Oven
STORAGE
• When not in use, turn o the power switch and disconnect the power cord from
the supply
• Bundle up the power cord and put the bundle on the body
• If you must move the unit for an extended amount of time, it is recommended that
you cover the body with a plastic bag and pack it in a corrugated cardboard box.
• Store it in a location with low humidity

©SUPERA V.1.0 | August 2014
INSTRUCTION
MANUAL

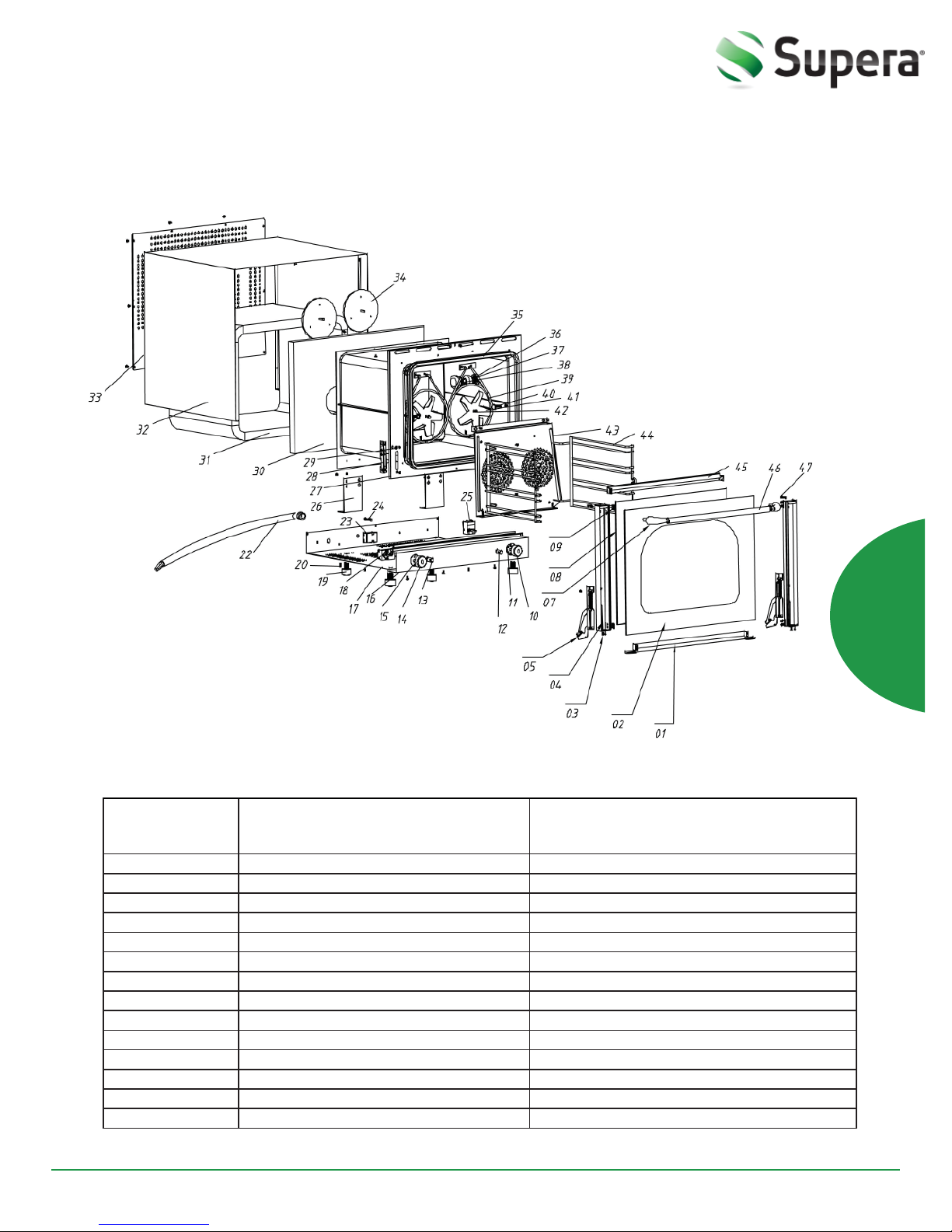

Parts Diagram and Replacement Parts for the Convection Oven
Reference Number Part Number Description
1Bar
2COH2-2OuterGlass
3S/SScrew
4 Door Post
5 COH2-5 Door Hinge and screw
7 Handle Terminal End
8 COH2-8 Inner Glass
9S/SScrew
10 COH2-10 Back Heating Element Switch
11 COH2-11 Back Heating Element Switch Base
12 COH2-12 Timer Indicator Light - Green
13 COH2-13 Power Indicatior light - Green
14 COH2-14 Timer Switch
15 COH2-15 Timer Switch Base

©SUPERA V.1.0 | August 2014
INSTRUCTION
MANUAL
Parts Diagram and Replacement Parts for the Convection Oven
16 Front Bottom Plate
17 D
18 COH2-18 Timer
19 COH2-19 Foot
20 Crosshead Screw
22 COH2-22 Power Cord and Strain Relief
23 COH2-23 Temperature Limit Controller
24 Earth Screw
25 COH2-25 Thermostat
26 Inner Body Support Rack
27 Inner Body
28 COH2-28 Door Hinge Fixture Rack
29 Crosshead Screw
30 Back Heat Preservation Board
31 Inner Body Heat Preservation Board
32 Outer Shell
33 Back Cover Board
34 COHP-16 Motor
35 COH2-35 Door Gasket
36 COH2-36 Floodlight Base
37 COH2-37 Floodlight
38 Lamp Chimeny
39 COH2-39 Heating Element
40 Fixture Screw
41 Wind Blade
42 Fixture Nut of Wind Blade
43 COH2-43 Guide Wind Board
44 Rack
45 Door Bar
46 COH2-46 Door Handle
47 Fixture Screw
Reference Number Part Number Description

©SUPERA V.1.0 | August 2014
