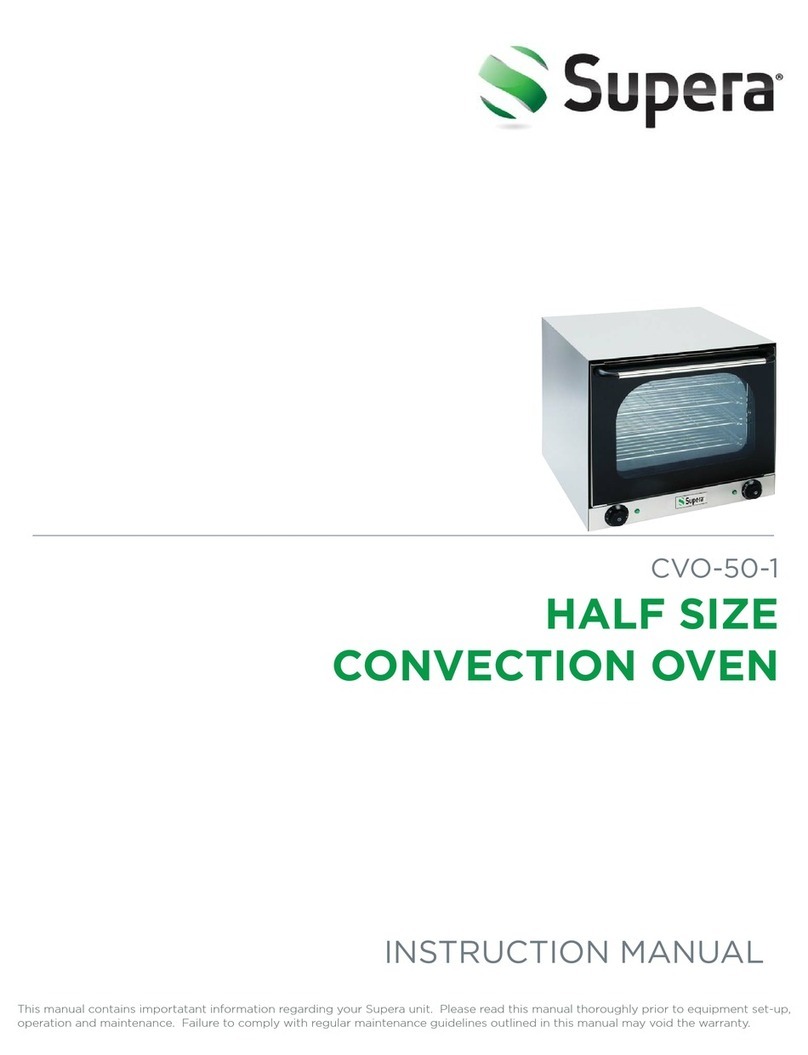

Supera Cvo-50-1 User manual

This manual contains importatant information regarding your Supera unit. Please read this manual thoroughly prior to equipment set-up,

operation and maintenance. Failure to comply with regular maintenance guidelines outlined in this manual may void the warranty.

CVO-50-1

HALF SIZE

CONVECTION OVEN

INSTRUCTION MANUAL

©SUPERA V.1.0 | August 2014

INSTRUCTION

MANUAL

WARNINGS

• Do not touch any hot surfaces

• Do not put items on top of the oven

• Do not stack ovens

• Plug only into a 3-hole grounded electrical outlet

• Do not immerse unit, cord or plug in liquid at any time

• Unplug cord from outlet when not in use and before cleaning

• Do not operate unattended

• Do not use this unit for anything other than intended use

• Do not use outdoors

• Always use on a ﬁrm, dry and level surface at least 12” from walls or any other obstruction

• Do not use if unit has a damaged cord or plug, in the event the appliance malfunctions, or has

been damaged in any manner

• Keep children and animals away from unit

• Any incorrect installation, alterations, adjustments and/or improper maintenance can lead to

property loss and injury. All repairs should be done by authorized professionals only

• Ensure that the designated power supply is adequate for continual usage and the voltage is

correct

• This oven is designed to be used for baking and reheating purposes only

TO INSTALL

1. Do not install the oven on the ﬂoor.

2. Be sure to install the oven on a ﬂat, sturdy and stable surface. Failure to install on a stable

surface may cause the unit to fall over, causing injury or burns.

3. Remove all the adhesive ﬁlm which covers the body surface before using.

4. This unit comes with feet that must be assembled. Do not use the appliance without feet.

5. Screw the support feet to the bottom of the appliance.

6. Adjust the appliance height by screwing or unscrewing the feet themselves.

TO USE

Timer

• Set the time switch knob to the number which indicates the cooking time required by the food

you are going to cook

• Set the timer by turning it clockwise. The oven will turn o automatically at the end of the

selected time and a bell will ring.

• The oven can be turned o manually during cooking by turning the timer counter-clockwise to

the “0” position

Convection Cooking

• Turn on the power to the oven

• Set the temperature control to the desired temperature (0-570°F)

• Turn the timer to the desired time (0-120 mins). The temperature light, timer light, and the

inside lamp are on.

• The temperature light will switch o when the temperature rises to the desired level. Then it will

switch on when the temperature drops down. This process will occur automatically.

CLEANING – NOTE: To maintain cleanliness and increase service life, the oven should be

cleaned daily. Do not immerse the unit in water or any other liquid. If liquid enters the electrical

compartment it may cause a short circuit or electrical shock

• When the oven is hot, do not apply water to the glass. This can cause the glass to break.

• When cleaning the oven do not use combustible solvents

• To avoid damage, do not use abrasive cleaners or scouring pads

• If soap or chemical cleaners are used, be sure they are completely rinsed away with clear water

immediately after cleaning. Chemical residue could damage or corrode the surfaces of the unit.

©SUPERA V.1.0 | August 2014

INSTRUCTION

MANUAL

Wiring Diagram for the Convection Oven

STORAGE

• When not in use, turn o the power switch and disconnect the power cord from

the supply

• Bundle up the power cord and put the bundle on the body

• If you must move the unit for an extended amount of time, it is recommended that

you cover the body with a plastic bag and pack it in a corrugated cardboard box.

• Store it in a location with low humidity

©SUPERA V.1.0 | August 2014

INSTRUCTION

MANUAL

Parts Diagram and Replacement Parts for the Convection Oven

Reference Number Part Number Description

1Bar

2COH2-2OuterGlass

3S/SScrew

4 Door Post

5 COH2-5 Door Hinge and screw

7 Handle Terminal End

8 COH2-8 Inner Glass

9S/SScrew

10 COH2-10 Back Heating Element Switch

11 COH2-11 Back Heating Element Switch Base

12 COH2-12 Timer Indicator Light - Green

13 COH2-13 Power Indicatior light - Green

14 COH2-14 Timer Switch

15 COH2-15 Timer Switch Base

©SUPERA V.1.0 | August 2014

INSTRUCTION

MANUAL

Parts Diagram and Replacement Parts for the Convection Oven

16 Front Bottom Plate

17 D

18 COH2-18 Timer

19 COH2-19 Foot

20 Crosshead Screw

22 COH2-22 Power Cord and Strain Relief

23 COH2-23 Temperature Limit Controller

24 Earth Screw

25 COH2-25 Thermostat

26 Inner Body Support Rack

27 Inner Body

28 COH2-28 Door Hinge Fixture Rack

29 Crosshead Screw

30 Back Heat Preservation Board

31 Inner Body Heat Preservation Board

32 Outer Shell

33 Back Cover Board

34 COHP-16 Motor

35 COH2-35 Door Gasket

36 COH2-36 Floodlight Base

37 COH2-37 Floodlight

38 Lamp Chimeny

39 COH2-39 Heating Element

40 Fixture Screw

41 Wind Blade

42 Fixture Nut of Wind Blade

43 COH2-43 Guide Wind Board

44 Rack

45 Door Bar

46 COH2-46 Door Handle

47 Fixture Screw

Reference Number Part Number Description
