Supera SGL1-1 User manual

This manual contains importatant information regarding your Supera unit. Please read this manual thoroughly prior to equipment set-up,
operation and maintenance. Failure to comply with regular maintenance guidelines outlined in this manual may void the warranty.
SGL1-1, SGLF1-1, SGL2-1
SANDWICH GRILLS
INSTRUCTION MANUAL

©SUPERA V.1.0 | August 2014
INSTRUCTION
MANUAL
WARNINGS
• Do not touch any hot surfaces
• Do not immerse unit, cord or plug in liquid at any time
• Unplug cord from outlet when not in use and before cleaning
• Plug only into a 3-hole grounded electrical outlet
• Do not operate unattended
• Do not use this unit for anything other than intended use
• Do not use outdoors
• Keep children and animals away from unit
• Always cook on a firm, dry and level surface at least 12” from walls or any other obstruction
• Do not use unit with a damaged cord or plug, in the event the appliance malfunctions, or has
been damaged in any manner
• Any incorrect installation, alterations, adjustments and/or improper maintenance can lead to
property loss and injury. All repairs should be done by authorized professionals only
• Ensure that the power supply you are using is adequate for continual grill usage and the voltage
is correct
• Do not jam materials or place heavy objects on grill, as this may cause damage
In order to protect the plates of your new grill during transportation, a layer of food-safe wax
was coated on the surface prior to shipment. This wax is harmless, but must be removed before
you begin to use. To remove, preheat the grill until the wax liquefies. Next, carefully wipe away
the melted wax with a clean, soft cloth. Once all of the wax is removed you can begin to use your
grill.
TO USE
1. Plug the power cord into the appropriately rated outlet.
2. The power light will illuminate.
3. Once desired temperature is set, the Heating Indicator will come on. Warm-up time is
approximately 7-8 minutes. The Heating indicator will cycle at set temperature.
4. For normal use, it is recommended that the temperature range be 392°F-482°F.
5. When the surface reaches the designated temperature, lift top grill using black handle and
lightly grease grill plates with vegetable oil. Place food on grill and lightly press handle down.
Excess oil will collect in the oil collection tray. Remove food when cooked. The heaters will
automatically cycle as needed.
CLEANING – NOTE: To maintain cleanliness and increase service life, the grills should be cleaned
daily. Do not immerse the grill in water or any other liquid.
• Before cleaning or attempting to move grill, unplug and let the unit cool completely
• Wipe the entire unit with a clean soft cloth until it is completely dry
• To avoid damage, do not use abrasive cleaners or scouring pads
• If soap or chemical cleaners are used, be sure they are completely rinsed away with clear water
immediately after cleaning. Chemical residue could damage or corrode the surfaces of the unit.
• Store in a dry clean area when not in use

©SUPERA V.1.0 | August 2014
INSTRUCTION
MANUAL
TROUBLESHOOTING
Problem: Grill plates do not heat even though power indicators are lit
Possible Causes: Defective controller or Defective heater
Action: Replace controller or Replace heater(s)
Problem: Temperature cannot be controlled
Possible Causes: Defective temperature controller
Action: Replace temperature controller
Problem: Heating indicator appears normal, but power indicators are not lit
Possible Causes: Defective power indicator(s)
Action: Replace power indicator(s)

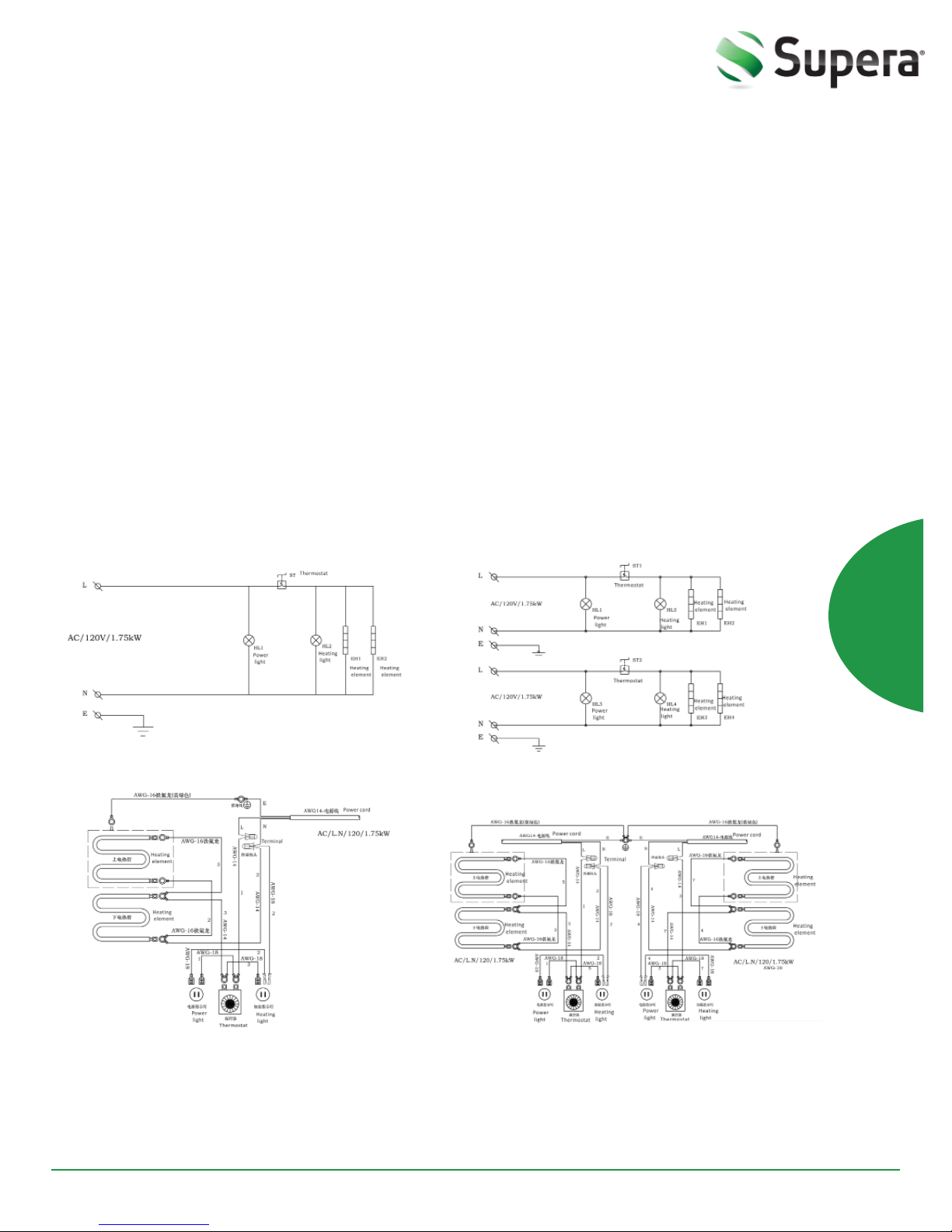

Wiring Diagram for the Sandwich Grills
SGL1-1 and SGLF1-1 SGL2-1

©SUPERA V.1.0 | August 2014
INSTRUCTION
MANUAL
Parts Diagram and Replacement Parts for the Sandwich Grills
SGL1-1 and SGLF1-1
SGL2-1

©SUPERA V.1.0 | August 2014
INSTRUCTION
MANUAL
Replacement Parts for the Sandwich Grills
Reference
Number
SG-811 and SG-811/F
Part Number
1
DF6SG-1
2
TH-1201
3
DF6SG-3
4
5
SG-5
7
SG-7
8
SG1-8
9
SG-9
10
SG-10
11
12
13
14
15
SG-15
16
SG-16
17
SG-17
19
SG-19
20
SG1-20
21
22
SG-22
23
24
SG-24
25
26
SG-26
SG-813 Part
Number Description
DF6SG-1
Heat Indicator - Orange
TH-1201
Thermostat Regulator
DF6SG-3
Power Indicator - Green
Body
SG-5
Torsional Spring w/Screws
SG-7
Adjustbale Tension Base w/Screw
SG3-8
Axis Cover
SG-9
Axis Holding Pin
SG-10
Power Supply Cord
Bottom Plate - Cast Iron
Top Plate Cover w/ Screws
Upper Mounting Plate
Top Plate - Cast Iron
SG-15
Upper Heating Element
SG-16
Wire Tube
SG-17
Upper Axis w/Clips
SG-19
Handle Frame with Grip & Back Axis
SG3-20
Oil Collector
Lower Mounting Plate
SG-22
Rubber Foot
Element Plate
SG-24
Bottom Heating Element
Bottom Cover w/Screws
SG-26
Thermostat Knob
SGL1-1 and SGLF1-1 SGL2-1

©SUPERA V.1.0 | August 2014
LIMITED WARRANTY
Supera, LLC warrants to the original purchaser of new equipment that said equipment, when installed in accordance with our in-
structions within North America and subjected to normal use, is free from defects in material or workmanship for one year. War-
ranty includes onsite service calls within 60 miles of an authorized service company. End user is responsible for all extra travel and
mileage at prevailing rates and for original call to Supera, LLC expressing need for warranty service. Any service provided without
authorization from Supera, LLC will not be covered by Supera, LLC.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESSED OR IMPLIED. SUPERA, LLC EX-
PRESSLY DISCLAIMS ANY IMPLIED WARRANTY OF MERCHANTABILITY OR EXPRESSED OR IMPLIED WARRANTY
OF FITNESS FOR APARTICULAR PURPOSE. SUPERA, LLC HAS FINAL DESCRETION ON ALLWARRANTY REQUESTS.
SUPERA, LLC’S OBLIGATION AND LIABILITY UNDER THIS WARRANTY IS EXPRESSLY LIMITED TO REPAIRING AND
REPLACING EQUIPMENT WHICH PROVES TO BE DEFECTIVE IN MATERIAL OR WORKMANSHIP WITHIN THE APPLI-
CABLE WARRANTY PERIOD. All repairs pursuant to this Warranty will be performed by an Authorized Designated Supera, LLC
Service Location during normal working hours. This warranty does not cover services performed at overtime or premium labor rates.
End user is responsible for the difference between normal service rates and premium service rates. This warranty does not cover any
service technician errors. IN NO EVENT SHALL SUPERA, LLC BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAM-
AGES TO BUYER OR ANY THIRD PARTY, INCLUDING, WITHOUT LIMITATION, LOSS OF PROPERTY, PERSONAL IN-
JURY, LOSS OF BUSINESS OR PROFITS OR OTHER ECONOMIC LOSSES, OR STATUTORY OR EXEMPLARY DAMAGES,
WHETHER IN NEGLIGENCE, WARRANTY, STRICT LIABILITY, OR OTHERWISE.
This warranty is given only to the first purchaser from a retail dealer. No warranty is given to subsequent transferees. Installation in a
residential application will void all warranties.
Warranty does not cover product failures caused by: failure to maintain, neglect, abuse, damage due to excess water, fire, normal wear,
improper set up and use. Periodic maintenance is not covered. Warranty does not cover service requests for free replacement and/or
recall parts.
THE FOREGOING WARRANTY PROVISIONS ARE A COMPLETE AND EXCLUSIVE STATEMENT BETWEEN THE BUYER
AND SELLER. SUPERA, LLC NEITHER ASSUMES NOR AUTHORIZES ANY PERSONS TOASSUME FOR ITANY OTHER
OBLIGATION OR LIABILITY IN CONNECTION WITH SAID EQUIPMENT.
Example of items not covered under warranty, but not limited to only these items:
1. Acts of God, fire, water damage, burglary, accident, theft.
2. Freight damage.
3. Improper installation or alteration of equipment.
4. Use of generic or after market parts.
5. Repairs made by anyone other than a Supera, LLC designated servicer.
6. Lubrication.
7. Expendable wear parts, adjustable feet, blown fuses, lamps, etc.
8. Cleaning of equipment.
9. Misuse or abuse.
FOR WARRANTYAND NON-WARRANTY related issues, technical support, purchase replacement parts and warranty registration
visit www.admiralcraft.com or call 1-800-223-7750 for technical support. Please have your model number, serial number and proof of
purchase ready. It is not necessary to contact the place where you originally purchased your product from.
