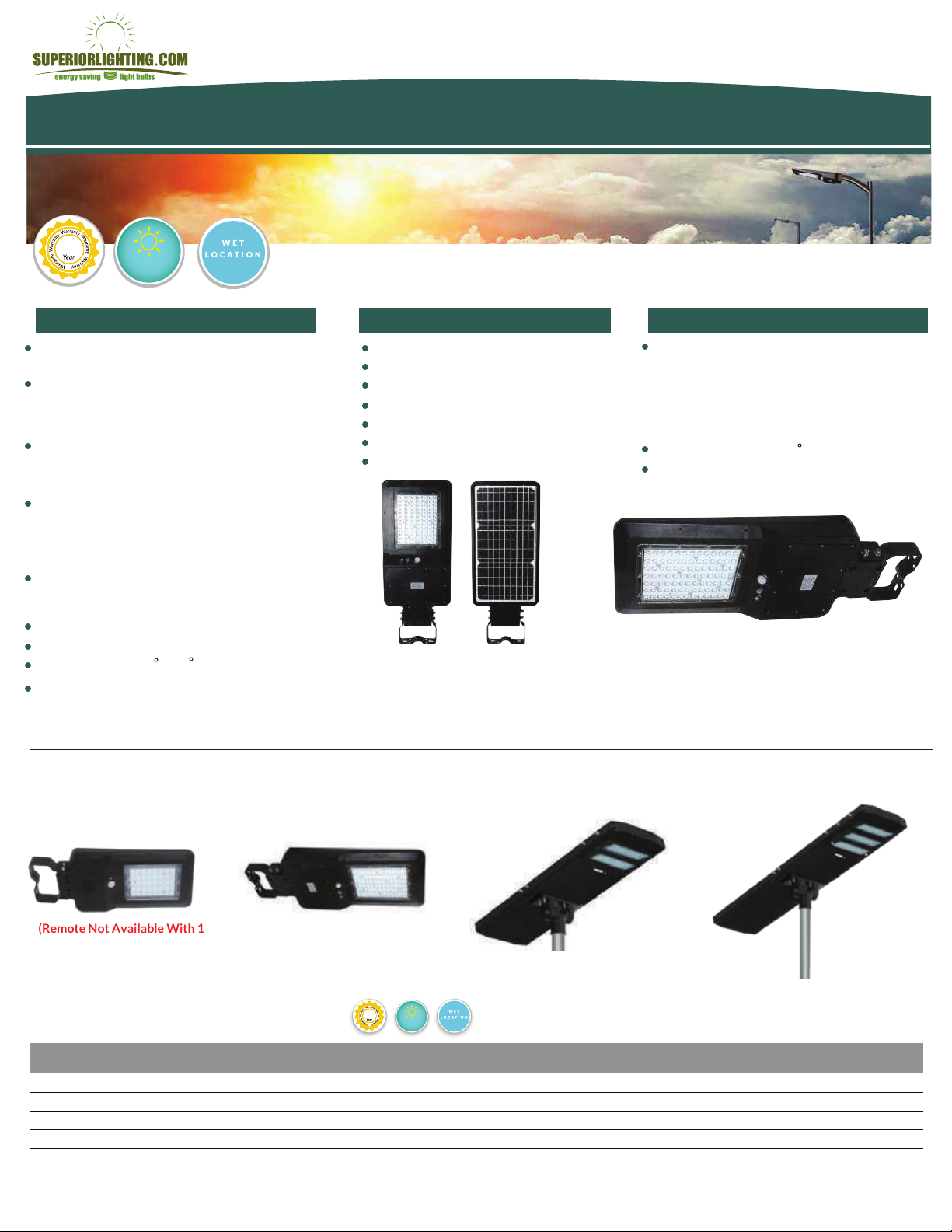

Superior Lighting SOL-DTD-15W-60K-PIR User manual

Superior Lighting | 3530 NW 53rd St Fort Lauderdale, FL 33309 | 1-800-545-7778
Features Application Working Time
LED solar light uses no electricity and is
eco friendly. No wiring needed.
LED solar light includes a dusk-to-dawn
and motion sensor to preserve the battery
and extend solar light output.
Garden
Deck
Yard
Patio
Driveway
Parking lot
Small Roadway
3 nights after a full charge with factory
default motion sensor settings.
PIR sensor angle 120
Detection area 26 feet - 39 feet
(Working time data is based on charging 8 hours in the
summer, measured in north latitude 22 , east diameter 13 .
Working time may change depending on installation areas,
seasons, environments, and lighting mounting direction)
Programmable LED Solar Street Light
Quick Search Code:
Product No WattsLumensColorTempMounting HeightDimensionsBattery
SOL-DTD-15W-60K-PIR
SOL-DTD-40W-60K-REMOTE
SOL-DTD-80W-60K-REMOTE
SOL-DTD-120W-60K-REMOTE
15W 1600LM
(Remote Not Available With 15W)
6000K
40W 4800LM 6000K
80W 12000LM 6000K
120W 18000LM 6000K
10ft – 12ft 19.5”x8.75”x2.25” 7.4V 5400mAh
32650/9.6V
32AH 14.8V
48AH 14.8V
12ft -16ft 28”x11”x3”
45” x 16” x 3.5”
64” x 17” x 3.5”
16ft - 20ft
20ft - 26ft
available for a wide variety of applications
including “Always On” or multiple bright-
ness levels. (Except 15W)
Can be installed on a Straight 2.5 diameter
Pole, Curved Pole, or Wall Mounted.
(Pole / Arm Not Included)
100% IP65 Waterproof.
3-year warranty.
Includes a remote to program / override
default motion and brightness settings.
(Except 15W)
Multiple working / brightness settings
Must be charged in direct sunlight.
Fixture cannot be covered in snow or
shade.
Working Temp: 0 -113 F
Programable LED Solar Street Light
SOLAR
3
SOLAR
3
15W 40W 80W 120W

Dimensions 15W
Dimensions 40W
Dimensions 80W
15W
19.5” x 8.75”x 2.25”
Weight
10lbs
40W
28” x 11”x 3”
80W
45” x 16” x 3.5”
Weight
45lbs
Dimensions 120W
120W
64”
45”
28”
19.5”
11”
8.75”
3”
2.25”
17”
16”
3.5”
3.5”
64” x 17” x 3.5”
Weight
60lbs

Superior Lighting | 3530 NW 53rd St Fort Lauderdale, FL 33309 | 1-800-545-7778
Mode A (Constant lighting mode- Out of the box
Automatically turns on with 60% brightness
Mode B (Motion sensor mode- Out of the box seng)
Automatically turns on
1. Press “sensor mode” button. 2. Choose desired brightness level.
with 100% full brightness when motion is detected in the range
20 seconds of no motion. To override 100% full brightness using the remote:
Press 1
st
me for mode A；Press 2
nd
me for mode B；Press 3
rd
me for off.
Press the button to turn on the light
5 hours working
Programable Instructions: Available in 40W, 80W, & 120W
Sets solar light to motion
sensor function
Sets brightness amount. In
sensor mode the light will dim to
30% brightness after 20 seconds
of no motion
Sets solar light to
always on
Sets time delay before light
changes to sensor mode
Press once for mode A, Press Twice for mode B, Press three times for off
Fixture programing instructions:
and stays on for 4 hours afer which it turns to mode B (motion sensor mode)
then dims to 30% brightness after
seng)
Aer
