Preface
iii
Preface
About This Manual
This manual is written for system integrators, PC technicians and
knowledgeable PC users. It provides information for the installation and use of the
H8DCT-HLN4F/HIBQF serverboard.
The H8DCT-HLN4F/HIBQF serverboard is based on the AMD® SR5670 or SR5690
and SP5100 chipset and supports two AMD Socket C32 type processors with up to
32 GB of ECC/Non-ECC UDIMM or up to 128 GB of ECC RDIMM.
The differences between the features of the H8DCT-HLN4F and H8DCT-HIBQF
serverboards are shown in the table below.
Features H8DCT-HLN4F H8DCT-HIBQF
SR5690/SP5100 Chipset Yes
SR5670/SP5100 Chipset Yes
InfiniBand® Controller Yes
2x 1Gb Ethernet LAN Yes
4x 1Gb Ethernet LAN Yes
Please refer to the motherboard specifications pages on our web site for updates on
supported processors (http://www.supermicro.com/aplus/). This product is intended
to be professionally installed.
Manual Organization
Chapter 1 includes a checklist of what should be included in your motherboard
box, describes the features, specifications and performance of the motherboard
and provides detailed information about the chipset.
Chapter 2 begins with instructions on handling static-sensitive devices. Read this
chapter when installing the processor(s) and memory modules and when installing
the motherboard in a chassis. Also refer to this chapter to connect the hard disk
drives, the various ports, and the power and reset buttons and the system LEDs.
If you encounter any problems, see Chapter 3, which describes troubleshooting
procedures for the video, the memory and the setup configuration stored in CMOS.
For quick reference, a general FAQ (Frequently Asked Questions) section is
provided. Instructions are also included for contacting technical support. In addition,
you can visit our web site for more detailed information.
Chapter 4 includes an introduction to BIOS and provides detailed information on
running the CMOS Setup utility.

Appendix A provides BIOS Error Beep Code Messages.
Appendix B lists BIOS POST Checkpoint Codes.
iv
H8DCT-HLN4F/HIBQF Serverboard User’s Manual

v
Table of Contents
Chapter 1 Introduction
1-1 Overview .........................................................................................................1-1
Checklist..........................................................................................................1-1
1-2 Contacting Supermicro....................................................................................1-2
H8DCT-HLN4F/HIBQF Quick Reference........................................................1-6
1-3 Chipset Overview..........................................................................................1-10
AMD SR5670 or SR5690 and SP5100 Chipset........................................... 1-10
HyperTransport Technology.......................................................................... 1-10
1-4 PC Health Monitoring.................................................................................... 1-10
1-5 Power Configuration Settings.........................................................................1-11
1-6 Power Supply................................................................................................1-12
1-7 Super I/O....................................................................................................... 1-13
Chapter 2 Installation
2-1 Static-Sensitive Devices..................................................................................2-1
Precautions .....................................................................................................2-1
Unpacking .......................................................................................................2-1
2-2 Processor and Heatsink Installation................................................................2-2
2-3 Mounting the Motherboard into a Chassis......................................................2-4
2-4 Installing Memory............................................................................................2-4
DIMM Module Population Configuration .................................................... 2-6
2-5 PCI Expansion Cards......................................................................................2-7
2-6 I/O Port and Control Panel Connections ........................................................2-8
Front Control Panel......................................................................................... 2-8
2-7 Connector Definitions...................................................................................... 2-9
Fan Headers............................................................................................... 2-9
LAN1/2/3/4 (Ethernet Ports).......................................................................2-9
Unit Identifier Button................................................................................... 2-9
JP1 Adapter Card Connector.....................................................................2-9
IPMB.........................................................................................................2-10
Overheat LED........................................................................................... 2-10
USB Headers ........................................................................................... 2-10
SXB1 Adapter Card Slot/Connector.........................................................2-10
Trusted Platform Module Header..............................................................2-11
2-8 Jumper Settings............................................................................................ 2-12
Explanation of Jumpers ................................................................................ 2-12
CMOS Clear.............................................................................................2-12
Table of Contents

vi
InfiniBand Port Enable/Disable ...............................................................2-12
I2C to PCI-Express Slots......................................................................... 2-13
BMC Jumper ............................................................................................ 2-13
VGA Enable/Disable................................................................................. 2-13
LAN Enable/Disable ................................................................................ 2-13
Watch Dog Enable/Disable ...................................................................... 2-13
2-9 Onboard Indicators........................................................................................2-14
LAN1/LAN2/LAN3/LAN4 LEDs................................................................. 2-14
Dedicated IPMI LAN LEDs .....................................................................2-14
Power LED............................................................................................... 2-14
UID LED (LE1) ........................................................................................2-14
InfiniBand LED Indicators.........................................................................2-15
IPMI LED..................................................................................................2-15
2-11 Enabling SATA RAID.....................................................................................2-16
Serial ATA (SATA)..........................................................................................2-16
Installing the OS/SATA Driver....................................................................... 2-16
Building a Driver Diskette.........................................................................2-16
Enabling SATA RAID in the BIOS.................................................................2-17
Using the Adaptec RAID Utility..................................................................... 2-18
Installing the RAID Driver During OS Installation.........................................2-18
2-12 Installing Drivers............................................................................................ 2-19
Supero Doctor III........................................................................................... 2-20
Chapter 3 Troubleshooting
3-1 Troubleshooting Procedures........................................................................... 3-1
Before Power On ............................................................................................3-1
No Power ........................................................................................................ 3-1
No Video .........................................................................................................3-2
Memory Errors ...............................................................................................3-2
Losing the System’s Setup Configuration.......................................................3-2
3-2 Technical Support Procedures........................................................................ 3-3
3-3 Frequently Asked Questions........................................................................... 3-3
3-4 Returning Merchandise for Service.................................................................3-4
H8DCT-HLN4F/HIBQF Serverboard User’s Manual

Table of Contents
vii
Chapter 4 BIOS
4-1 Introduction...................................................................................................... 4-1
4-2 Main Menu ...................................................................................................... 4-2
4-3 Advanced Settings Menu................................................................................4-2
4-3 Security Menu............................................................................................... 4-13
4-4 Boot Menu..................................................................................................... 4-14
4-5 Exit Menu......................................................................................................4-15
Appendix A BIOS Error Beep Codes
Appendix B BIOS POST Checkpoint Codes
B-1 Uncompressed Initialization Codes.................................................................B-1
B-2 Bootblock Recovery Codes.............................................................................B-2
B-3 Uncompressed Initialization Codes.................................................................B-3

Notes
viii
H8DCT-HLN4F/HIBQF Serverboard User’s Manual

Chapter 1: Introduction
1-1
Chapter 1
Introduction
1-1 Overview
Checklist
Congratulations on purchasing your computer motherboard from an acknowledged
leader in the industry. Supermicro boards are designed with the utmost attention to
detail to provide you with the highest standards in quality and performance.
Please check that the following items have all been included with your motherboard.
If anything listed here is damaged or missing, contact your retailer.
• One (1) H8DCT-HLN4F/HIBQF serverboard
• One (1) CD containing drivers and utilities

1-2
H8DCT-HLN4F/HIBQF Serverboard User’s Manual
1-2 Contacting Supermicro
Headquarters
Address: Super Micro Computer, Inc.
980 Rock Ave.
San Jose, CA 95131 U.S.A.
Tel: [phone]
Fax: [phone]
Email: [email protected] (General Information)
[email protected] (Technical Support)
Web Site: www.supermicro.com
Europe
Address: Super Micro Computer B.V.
Het Sterrenbeeld 28, 5215 ML
's-Hertogenbosch, The Netherlands
Tel: [phone]
Fax: [phone]
Email: [email protected] (General Information)
[email protected] (Technical Support)
[email protected] (Customer Support)
Asia-Pacific
Address: Super Micro Computer, Inc.
4F, No. 232-1, Liancheng Rd.
Chung-Ho 235, Taipei County
Taiwan, R.O.C.
Tel: [phone]
Fax: [phone]
Web Site: www.supermicro.com.tw
Technical Support:
Email: [email protected]
Tel: [phone]

Chapter 1: Introduction
1-3

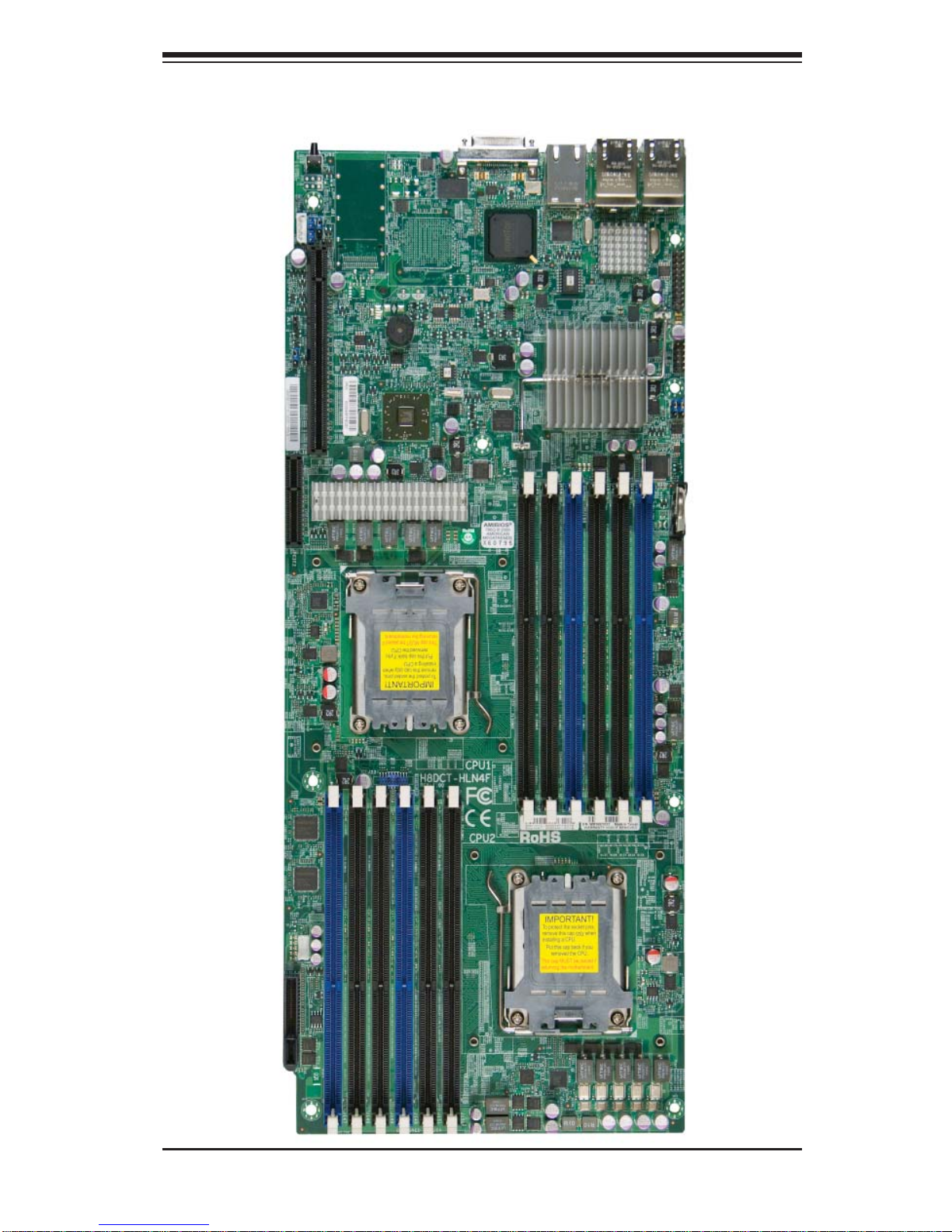

Figure 1-1. H8DCT-HLN4F Image

1-4
H8DCT-HLN4F/HIBQF Serverboard User’s Manual
Figure 1-1. H8DCT-HIBQF Image

Chapter 1: Introduction
1-5
Notes:
Jumpers not indicated are for test purposes only.
Not all ports, jumpers or LED Indicators are available on all serverboards.

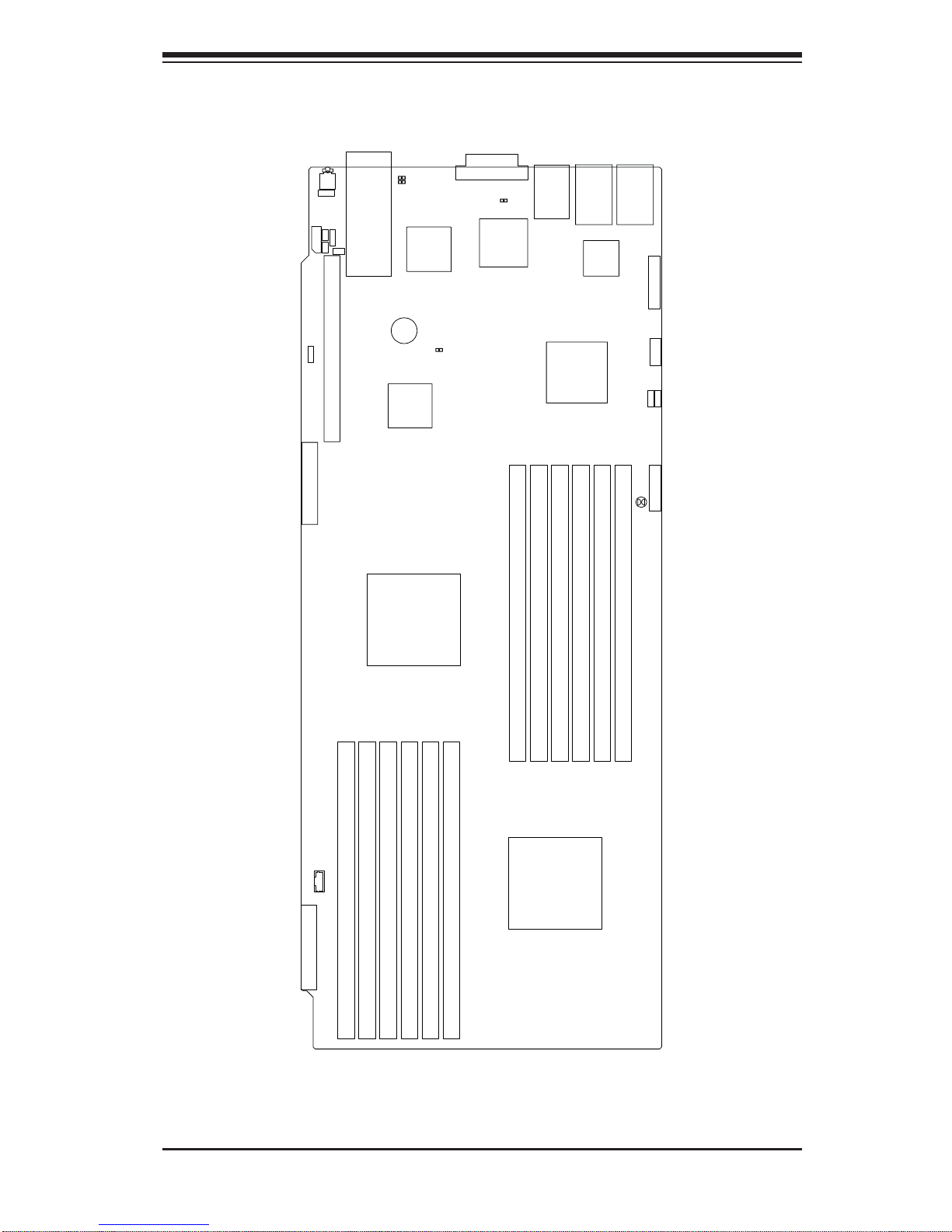

Figure 1-2. H8DCT-HLN4F/HIBQF Motherboard Layout
(not drawn to scale)
GPU_FAN1
KVM
JP1
JIPMB1
LE1
JB1
SPEAKER
JTPM1
DP2
JBT1
JOH1
JI2C2
JI2C1
JPB1
JIB1
JPL1 JWD1
JPG1
LAN2/LAN4
SXB1: PCI-E 2.0 X8
SLOT1 PCI-E 2.0 X16
UID
P2-DIMM1A P2-DIMM1C P2-DIMM1B
CPU1
P2-DIMM2B P2-DIMM2A P2-DIMM2C
CPU2
P1-DIMM2B
P1-DIMM2C
P1-DIMM2A
P1-DIMM1B
P1-DIMM1C
P1-DIMM1A
LAN1/LAN3 IPMI_LAN
USB2/3
InfiniBand BMC NIC
AMD
SP5100
AMD
SR5670
or
SR5690
BATTERY
DP1
LE2
LE3

1-6
H8DCT-HLN4F/HIBQF Serverboard User’s Manual
H8DCT-HLN4F/HIBQF Quick Reference
Jumper Description Default Setting
JBT1 CMOS Clear (See Section 2-7)
JIB1 InfiniBand Enable/Disable Pins 1-2 (Enabled)
JI2C1/JI2C2 I2C to PCI-E Slot Enable/Disable Pins 1-2 (Enabled)
JPB1 BMC Enable/Disable Pins 1-2 (Enabled)
JPG1 VGA Enable/Disable Pins 1-2 (Enabled)
JPL1 LAN 1/2 Enable/Disable (LAN 1/2/3/4 for
H8DCT-HLN4F) Pins 1-2 (Enabled)
JWD1 Watch Dog Enable/Disable Pins 1-2 (Reset)
LED Description
LAN Ports LEDs for the LAN Ethernet ports
Dedicated IPMI LAN LEDs for the dedicated IPMI LAN Ethernet port
LE1 LED for UID Button
LE2 InfiniBand Physical Link LED (Green) (H8DCT-HIBQF only)
LE3 InfiniBand Logical Link LED (Yellow) (H8DCT-HIBQF only)
DP1 LED for IPMI activity
DP2 LED for Serverboard Power-On
Connector Description
GPU FAN 1 GPU Fan Header
JIPMB1 System Management Bus Header (SMBus)
IPMI LAN Dedicated IPMI LAN Port
JB1 InfiniBand Connector
JOH1 Overheat Warning Header
JTPM1 Trusted Platform Module Header
JP1 SMC Proprietary Slot for Power, FP Control & SATA connectors
KVM Keyboard/Video/Mouse Port
LAN1/2/3/4 Gigabit Ethernet (RJ45) Ports
UID Unit Identifier Button
USB2/3 Universal Serial Bus (USB) Ports, Headers

Chapter 1: Introduction
1-7
Motherboard Features
CPU
• Dual AMD Opteron 4000 series (AMD Socket C32 type) processors
Note: Refer to our web site for details on supported processors.
Memory
• Twelve (12) dual channel DIMM slots support up to 32 GB of ECC/Non-ECC
UDIMM or up to 128 GB of ECC RDIMM DDR3-1600/1333/1066 SDRAM
memory in 1 GB, 2 GB, 4 GB, 8 GB or 16 GB size memory modules of 1.5V
or 1.35V voltages.
Note: Refer to Section 2-4 before installing memory and our web site for recommended DIMMs.
Chipset
• AMD SR5670 (H8DCT-HLN4F) or SR5690 (H8DCT-HIBQF) chipset and one
SP5100 Southbridge chipset
Expansion Slots
• One (1) PCI-Express x16 Gen. 2
• One (1) PCI-Express x8 Gen. 2 (in x4 slot; for adapter card)
BIOS
• 16 Mb AMIBIOS® SPI Flash ROM
• DMI 2.3, PCI 2.2, ACPI 1.0 (ACPI 2.0 is BIOS supported), SMBIOS 2.3, Real
Time Clock Wakeup, Plug and Play (PnP), BIOS resume hot keys, Hardware
BIOS Virus Protection
PC Health Monitoring
• Onboard voltage monitors
• Fan status monitor with firmware/software on/off and speed control
• Watch Dog
• Environmental temperature monitoring via BIOS
• Power-up mode control for recovery from AC power loss
• System resource alert (via included utility program)
• Auto-switching voltage regulator for the CPU core
• CPU thermal trip support
• I2C temperature sensing logic
• Chipkill Support

1-8
H8DCT-HLN4F/HIBQF Serverboard User’s Manual
ACPI Features
• Microsoft OnNow
• Slow blinking LED for suspend state indicator
• BIOS support for USB keyboard
• Wake-On-LAN (WOL)
Onboard I/O
• Four (4) USB (Universal Serial Bus 2.0) ports (two via headers, two via KVM
ports)
• Up to four (4) LAN ports supported by one onboard Intel® i350 Ether-
net controller for 10/100/1000Base-T (Four for H8DCT-HLN4F or Two for
H8DCT-HIBQF)
• One (1) dedicated IPMI LAN port
• One (1) KVM (VGA+COM+2*USB) port
• One Mellanox Connect-X2 InfiniBand port supporting a single QSFP connector
(only for H8DCT-HIBQF)
Other
• Onboard power LED
CD Utilities
• BIOS flash upgrade utility
• Super Doctor III
• IPMI 1.5 / 2.0
Dimensions
• Proprietary format: 6.8" x 16.64" (173 x 423 mm)

Chapter 1: Introduction
1-9
AMD
Socket C32
CPU2
HT3 Link
16x16 bits 5.2GT/s
PCI-E GEN2 X16
PCI-E Slot1
PCI-E GEN2 X4
INTEL
I350
A-Link
SP5100
SATA x6
BMC
VGA
WPCM450-R
PCI
SMBus
SIO
W83527SPI Flash
NCSI
DDR2 SDRAM
64Mb X16bit
PSU I2C
IPMB
RJ45USB
Header
FE PHY
RTL8201N
LPC
HWM
W83795G
SR5690
or
SR5670
RJ45
RJ45
PCI-E GEN2 X8
Mellanox
Connect-X2
DDR3
1600/1333/1066 MT/s
DIMM 1A
DIMM 1B
DIMM 1C
DIMM 2A
DIMM 2B
DIMM 2C
CH 2
CH 1
DDR3
1600/1333/1066 MT/s
DIMM 1A
DIMM 1B
DIMM 1C
DIMM 2A
DIMM 2B
DIMM 2C
CH 1
HT3 Link
16 x16 bits 6.4GT/s
HT3 Link
16 x16 bits 6.4GT/s
CH 2
AMD
Socket C32
CPU1
RJ45
RJ45
PCI-E GEN2 X8
PCI-E Slot2
Hot Plug
CONN
JKVM
VGA
COM
USB

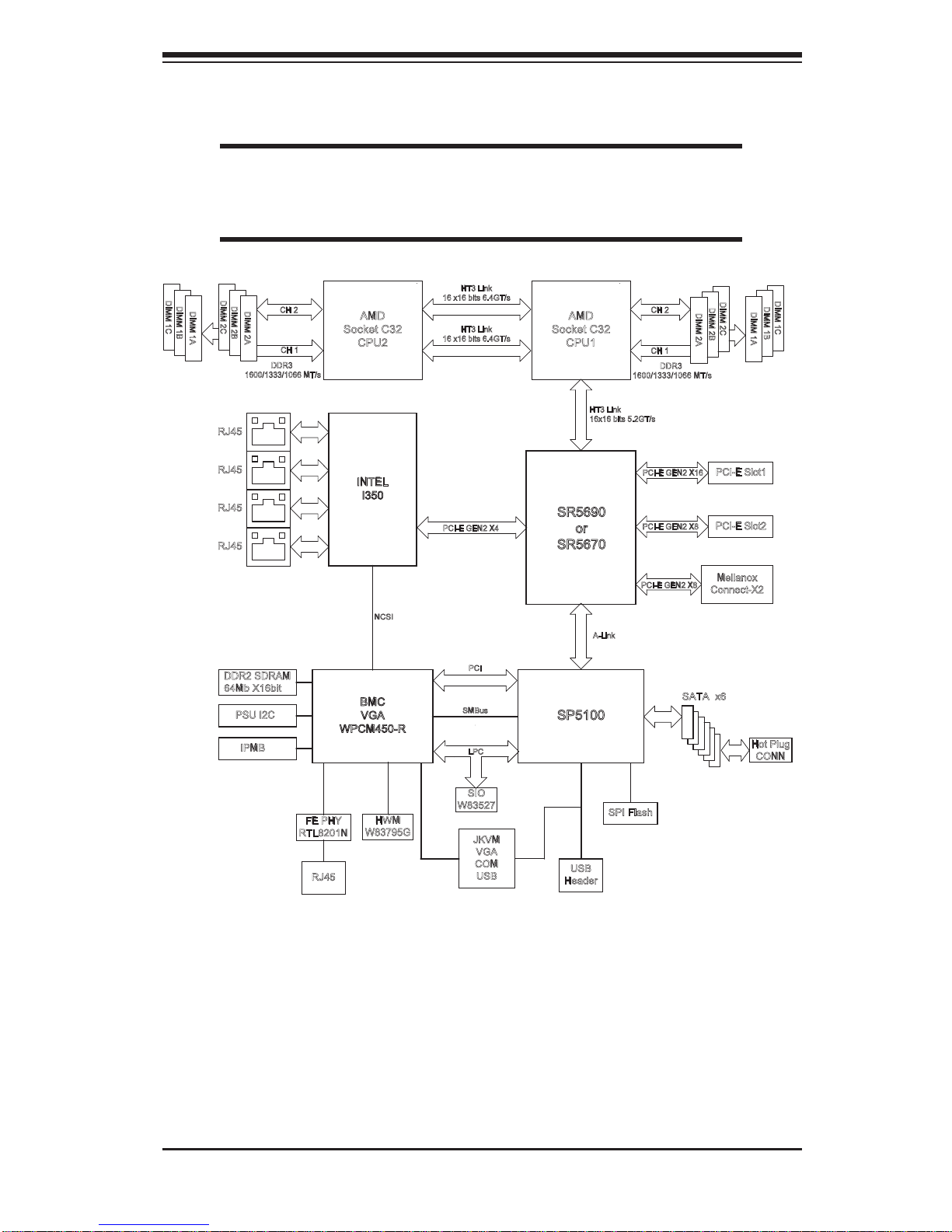

Figure 1-3. AMD SR5670 or SR5690 and SP5100 Chipset:
System Block Diagram
Note: This is a general block diagram and may not exactly represent
the features on your motherboard. See the previous pages for the
actual specifications of your motherboard.

1-10
H8DCT-HLN4F/HIBQF Serverboard User’s Manual
1-3 Chipset Overview
The H8DCT-HLN4F/HIBQF serverboard is based on the AMD
SR5670 or SR5690 and SP5100 chipset. This chipset functions as a Media
and Communications Processor (MCP). Controllers for the system memory are
integrated directly into AMD Opteron processors.
AMD SR5670 or SR5690 and SP5100 Chipset
The AMD SR5670 or SR5690 and SP5100 chispsets are each a single-chip, high-
performance HyperTransport peripheral controller. They include a 30 or 42-lane
PCI Express interface, an AMD Opteron 16-bit Hyper Transport interface link, a
six-port Serial ATA interface and a four-port USB 2.0 interface. This hub connects
directly to the CPU.
HyperTransport Technology
HyperTransport technology is a high-speed, low latency point to point link that was
designed to increase the communication speed by a factor of up to 48x between
integrated circuits. This is done partly by reducing the number of buses in the
chipset to reduce bottlenecks and by enabling a more efficient use of memory
in multi-processor systems. The end result is a significant increase in bandwidth
within the chipset.
1-4 PC Health Monitoring
ThissectiondescribesthePChealthmonitoringfeaturesoftheH8DCT-HLN4F/HIBQF
serverboard. The serverboard has an onboard System Hardware Monitor chip that
supports PC health monitoring.
Onboard Voltage Monitors
The onboard voltage monitor will continuously scan crucial voltage levels. Once
a voltage becomes unstable, it will give a warning or send an error message to
the screen. Users can adjust the voltage thresholds to define the sensitivity of the
voltage monitor. Real time readings of these voltage levels are all displayed in
BIOS.
Fan Status Monitor with Firmware/Software Speed Control
The PC health monitor can check the RPM status of the cooling fans. The onboard
fans are controlled by thermal management via BIOS.

Chapter 1: Introduction
1-11
CPU Overheat/Fan Fail LED and Control
This feature is available when the user enables the CPU overheat/Fan Fail warning
function in the BIOS. This allows the user to define an overheat temperature. When
this temperature is exceeded or when a fan failure occurs, the Overheat/Fan Fail
warning LED is triggered.
Auto-Switching Voltage Regulator for the CPU Core
The 5-phase-switching voltage regulator for the CPU core can support up to
AMD Opteron 4000 series processors and auto-sense voltage IDs ranging from 0.8
V to 1.55V. This will allow the regulator to run cooler and thus make the system
more stable.
1-5 Power Configuration Settings
This section describes the features of your motherboard that deal with power and
power settings.
Microsoft OnNow
The OnNow design initiative is a comprehensive, system-wide approach to system
and device power control. OnNow is a term for a PC that is always on but appears
to be off and responds immediately to user or other requests.
Slow Blinking LED for Suspend-State Indicator
When the CPU goes into a suspend state, the chassis power LED will start blinking
to indicate that the CPU is in suspend mode. When the user presses any key, the
CPU will wake-up and the LED will automatically stop blinking and remain on.
BIOS Support for USB Keyboard
If a USB keyboard is the only keyboard in the system, it will function like a normal
keyboard during system boot-up.
Note: To wake up the system from an S4 state by the USB keyboard/mouse, please
connect the keyboard/mouse to USB port 0/1 at the rear I/O side.

1-12
H8DCT-HLN4F/HIBQF Serverboard User’s Manual
Main Switch Override Mechanism
The power button can function as a system suspend button. When the user
depresses the power button, the system will enter a SoftOff state. The monitor
will be suspended and the hard drive will spin down. Depressing the power button
again will cause the whole system to wake-up. During the SoftOff state, the power
supply provides power to keep the required circuitry in the system alive. In case the
system malfunctions and you want to turn off the power, just depress and hold the
power button for 4 seconds. The power will turn off and no power will be provided
to the motherboard.
Wake-On-LAN (WOL)
Wake-On-LAN is defined as the ability of a management application to remotely
power up a computer that is powered off. Remote PC setup, up-dates and access
tracking can occur after hours and on weekends so that daily LAN traffic is kept
to a minimum and users are not interrupted. The motherboard has a 3-pin header
(WOL) to connect to the 3-pin header on a Network Interface Card (NIC) that has
WOL capability. Wake-On-LAN must be enabled in BIOS.
1-6 Power Supply
As with all computer products, a stable power source is necessary for proper and
reliable operation. It is even more important for processors that have high CPU
clock rates.
The H8DCT-HLN4F/HIBQF serverboard requires the use of proprietary power
supplies. Please refer to the pinout information for the power connectors in Section
7 of Chapter 2 for detailed information on power requirements.
In areas where noisy power transmission is present, you may choose to install a
line filter to shield the computer from noise. It is recommended that you also install
a power surge protector to help avoid problems caused by power surges.
Warning: To prevent the possibility of explosion, do not use the wrong type of
onboard CMOS battery or install it upside down.
