Supero Supero C2G41 User manual

C2G41
USER’S MANUAL
Revision 1.0

Manual Revision 1.0
Release Date: July 15, 2009
Unless you request and receive written permission from Super Micro Computer, Inc., you may not
copy any part of this document. Information in this document is subject to change without notice.
Other products and companies referred to herein are trademarks or registered trademarks of their
respective companies or mark holders.
Copyright © 2009 by Super Micro Computer, Inc.
All rights reserved.
Printed in the United States of America
The information in this User’s Manual has been carefully reviewed and is believed to be accurate.
The vendor assumes no responsibility for any inaccuracies that may be contained in this document,
makes no commitment to update or to keep current the information in this manual, or to notify any
person or organization of the updates. Please Note: For the most up-to-date version of this
manual, please see our web site at www.supermicro.com.
Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product
described in this manual at any time and without notice. This product, including software, if any,
and documentation may not, in whole or in part, be copied, photocopied, reproduced, translated or
reduced to any medium or machine without prior written consent.
IN NO EVENT WILL SUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,
SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO
USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. IN PARTICULAR, SUPERMICRO SHALL NOT HAVE LIABILITY FOR ANY
HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE
COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH
HARDWARE, SOFTWARE, OR DATA.
Any disputes arising between manufacturer and customer shall be governed by the laws of Santa
Clara County in the State of California, USA. The State of California, County of Santa Clara shall
be the exclusive venue for the resolution of any such disputes. Super Micro's total liability for
all claims will not exceed the price paid for the hardware product.
FCC Statement: This equipment has been tested and found to comply with the limits for a Class B
digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
manufacturer’s instruction manual, may cause interference with radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, you are encouraged to try to correct the interference by one or more
of the following measures: Reorient or relocate the receiving antenna. Increase the separation
between the equipment and the receiver. Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected. Consult the dealer or an experienced radio/television
technician for help.
California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate
warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate
Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”
WARNING: Handling of lead solder materials used in this
product may expose you to lead, a chemical known to
the State of California to cause birth defects and other
reproductive harm.

Preface
iii
About This Manual
This manual is written for system integrators, PC technicians and knowledgeable
PC users. It provides information for the installation and use of the Supermicro
C2G41 motherboard. The C2G41 motherboard supports a single Intel® CoreTM
2 Quad/Duo, Pentium® and Celeron® processor with a system bus speed of
1333/1066/800 MHz. The Intel Core 2 Quad/Duo, Pentium® and Celeron processor
supports the 775-Land Grid Array Package that interfaces with the motherboard
via an LGA775 socket. With support for Dual-Core and Quad-Core Technology and
featuring the Intel G41 Express chipset, the C2G41 also features HDMI 1.3 (High
Denition Multimedia Interface), a S/PDIF Port (Sony/Philips Digital Interchange
Format), USB 2.0 sockets, 7.1 Audio, a Gb LAN port and Intel GMA 4500 graphics,
giving the C2G41 motherboard a good balance of price and system performance.
Please refer to the motherboard specications pages on our web site (http://www.
supermicro.com/Products/) for updates on supported processors.
This product is intended to be professionally installed and serviced by a techni-
cian.
Manual Organization
Chapter 1 describes the features, specications and performance of the mainboard
and provides detailed information about the chipset.
Chapter 2 provides hardware installation instructions. Read this chapter when
installing the processor, memory modules and other hardware components into
the system.
If you encounter any problems, see Chapter 3, which describes troubleshooting
procedures for the video, the memory and the system setup stored in CMOS.
Chapter 4 includes an introduction to BIOS and provides detailed information on
running the CMOS Setup utility.
Appendix A provides BIOS POST Messages.
Appendix B are setup instructions for installing Microsoft Windows.
Appendix C provides Driver software installation instructions.
Conventions Used in the Manual:
Special attention should be given to the following symbols for proper installation and
to prevent damage done to the components or injury to yourself:
Warning: Important information given to ensure proper system installation,
to prevent bodily injury or damage to the components.
Note: Additional Information given to differentiate various models or to ensure
correct system setup.
Preface
!

C2G41 User’s Manual
iv
Table of Contents
About This Manual ...................................................................................................... iii
Manual Organization ....................................................................................................iii
Conventions Used in the Manual.................................................................................. iii
Chapter 1: Introduction
1-1 Overview ......................................................................................................... 1-1
Checklist ..................................................................................................... 1-1
Contacting Supermicro ............................................................................... 1-2
C2G41 Image ............................................................................ 1-3
C2G41 Layout ............................................................................ 1-4
C2G41 Quick Reference ............................................................. 1-5
Motherboard Features .............................................................................. 1-6
Intel G41 Chipset: System Block Diagram................................................. 1-8
1-2 Chipset Overview ........................................................................................... 1-9
1-3 Recovery from AC Power Loss .................................................................... 1-10
1-4 PC Health Monitoring ................................................................................... 1-10
1-5 ACPI Features ................................................................................................ 1-10
1-6 Power Supply ............................................................................................... 1-11
1-7 Versatile Media Capabilities ............................................................................1-11
1-8 Super I/O ...................................................................................................... 1-12
Chapter 2: Installation
2-1 Electro-Static Sensitive Devices ..................................................................... 2-1
2-2 Motherboard Installation .................................................................................. 2-2
2-3 Processor and Heatsink Installation ................................................................ 2-4
2-4 Installing DDR3 Memory................................................................................ 2-13
2-5 Control Panel Connectors/IO Ports ............................................................... 2-16
1. Back Panel Connectors - Descriptions....................................................... 2-17
2. Front Control Panel .................................................................................... 2-18
3. Front Control Panel Pin Denitions............................................................ 2-19
PWR LED ............................................................................................... 2-19
HDD LED................................................................................................. 2-19
NIC1 LED Indicators .............................................................................. 2-20
OH/Fan Fail LED ..................................................................................... 2-20
Reset Button............................................................................................ 2-21
PWR Button............................................................................................. 2-21
2-6 Connecting Cables ....................................................................................... 2-22
ATX/Auxiliary Power Connectors ........................................................... 2-22
Universal Serial Bus (USB)..................................................................... 2-23

v
Table of Contents
Chassis Intrusion .................................................................................... 2-23
Fan Headers............................................................................................. 2-24
Overheat/Fan Fail LED (JOH).................................................................. 2-23
ATX PS/2 Keyboard and PS/2 Mouse Ports............................................ 2-25
Serial Ports............................................................................................... 2-25
Wake-On-Ring ......................................................................................... 2-25
Wake-On-LAN .......................................................................................... 2-26
GLAN1 Port .............................................................................................. 2-27
Speaker Connector .................................................................................. 2-27
High Denition Audio (HDA)..................................................................... 2-28
Front Panel Audio Control........................................................................ 2-29
VGA Connector ........................................................................................ 2-30
HDMI Port................................................................................................. 2-30
2-7 Jumper Settings ............................................................................................ 2-31
Explanation of Jumpers ......................................................................... 2-31
TPM Support Enable................................................................................ 2-32
Clear CMOS ............................................................................................. 2-32
2-8 Onboard Indicators ....................................................................................... 2-33
GLAN LED Indicators............................................................................... 2-33
Onboard Power LED ................................................................................ 2-34
2-9 Hard Drive Connections ............................................................................... 2-35
IDE Disk Drive Connector ........................................................................ 2-35
SATA Disk Drive Connectors.................................................................... 2-36
Chapter 3: Troubleshooting
3-1 Troubleshooting Procedures ........................................................................... 3-1
Before Power On....................................................................................... 3-1
No Power................................................................................................... 3-1
No Video .................................................................................................. 3-1
Memory Errors........................................................................................... 3-2
Losing the System’s Setup Conguration ................................................ 3-2
3-2 Technical Support Procedures ........................................................................ 3-2
3-3 Frequently Asked Questions ........................................................................... 3-3
3-4 Returning Merchandise for Service ................................................................. 3-5
Chapter 4: BIOS
4-1 Introduction ....................................................................................................... 4-1
Starting the BIOS Setup Utility ........................................................................ 4-1
4-2 Main Setup ...................................................................................................... 4-2
4-3 Advanced Setup Conguration ......................................................................... 4-4

C2G41 User’s Manual
vi
4-4 Security Settings ............................................................................................ 4-19
4-5 Boot Conguration .......................................................................................... 4-20
4-6 Exit Options .................................................................................................... 4-21
Appendices:
Appendix A: BIOS POST Messages .........................................................................A-1
Appendix B: Installing the Microsoft® Windows® OS ...............................................B-1
Appendix C: Software Driver Installation Instructions................................................C-1
Appendix D: BIOS Recovery......................................................................................D-1

Chapter 1: Introduction
1-1
Chapter 1
Introduction
1-1 Overview
Checklist
Congratulations on purchasing your computer motherboard from an acknowledged
leader in the industry. Supermicro boards are designed with the utmost attention
to detail to provide you with the highest standards in quality and performance.
Please check that the following items have all been included with your mother-
board. If anything listed here is damaged or missing, contact your retailer.
All of the following items are included in the Retail Box Only:
One (1) Supermicro Mainboard
Two (2) SATA cables (CBL-0044L)
One (1) I/O Shield (MCP-260-00032-ON)
One (1) Supermicro CD containing drivers and utilities (CDR-C2)

1-2
C2G41 User’s Manual
Contacting Supermicro
Headquarters
Address: Super Micro Computer, Inc.
980 Rock Ave.
San Jose, CA 95131 U.S.A.
Tel: [phone]
Fax: [phone]
Email: [email protected] (General Information)
[email protected] (Technical Support)
Web Site: www.supermicro.com
Europe
Address: Super Micro Computer B.V.
Het Sterrenbeeld 28, 5215 ML
's-Hertogenbosch, The Netherlands
Tel: [phone]
Fax: [phone]
Email: [email protected] (General Information)
[email protected] (Technical Support)
[email protected] (Customer Support)
Asia-Pacic      
Address: Super Micro, Taiwan
4F, No. 232-1 Liancheng Road
Chung-Ho 235, Taipei Hsien, Taiwan, R.O.C.
Tel: [phone]
Fax: [phone]
Web Site: www.supermicro.com.tw
Technical Support:
Email: [email protected]
Tel: [phone], ext.132 or 139

Chapter 1: Introduction
1-3
Note: All pictures and drawings shown in this manual were based upon the latest
PCB Revision available at the time of publishing of the manual. The motherboard
you've received may or may not look exactly the same as those in this manual.

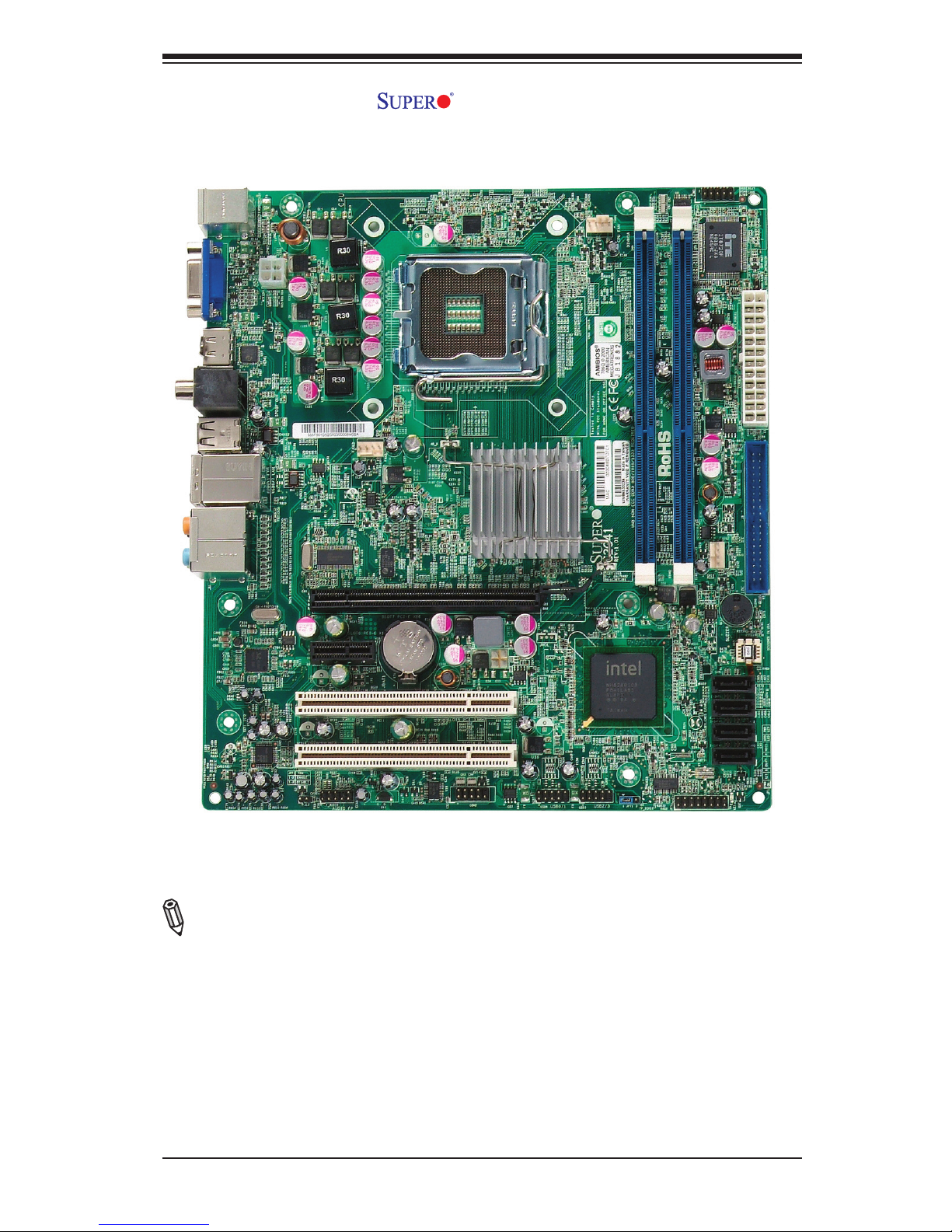

C2G41 Image

1-4
C2G41 User’s Manual
Motherboard Layout
Important Notes to the User
• Jumpers not indicated are for test purposes only.
• See Chapter 2 for detailed information on jumpers, I/O ports and JF1 front
panel connections.
• " " indicates the location of "Pin 1.'
FAN2
FAN1
LE1
JBT1
JF1
121
JPT1
C2G41
Tested to Comply With FCC Standards FOR HOME OR OFFICE USE
ATX_POWER1
LGA775 CPU
ATX12V1
COM2
COM1
1
A
JL1
CHASSIS INTRUSION
TPM
IDE
HDMI
JF1
X
PWR
ON RST OH/FFX HDD
NIC1 LED
PWR LED
CPU FAN
FAN3
I-SATA3
I-SATA2
I-SATA1
I-SATA0
BUZZER
JWOL
+
BATTERY
JPW2
JPW1
AUDIO FP USB0/1 USB2/3
DIMM1B
DIMM1A
SLOT7 PCI-E X16
SLOT6 PCI-E X1
SLOT5 PCI 33MHZ
SLOT4 PCI 33MHZ
USB6/7 LAN
USB4/5 SPDIF OUT
KB/MOUSE
:CMOS CLEAR
ENABLE
JPT1
1-2
2-3 DISABLE
VGA
PSKBM
AUDIO

Chapter 1: Introduction
1-5
C2G41 Quick Reference
Jumpers Description Default Setting
JBT1 CMOS Clear (See Chapter 2)
JPT1 Trusted Platform Module Enable Pins 1-2 (Enabled)
Connectors Description
JPW1 ATX 24-Pin Power Connector
COM1, COM2 COM1 and COM2 Header Connectors
DIMM 1A, 1B Memory Slots
FAN 1-3 Fan 1: CPU Fan, Fan 2/3: Chassis Fan Headers
HDMI Back Panel HDMI Port
IDE IDE Connector
JF1 FP Control Panel Header
JL1 Chassis Intrusion Header
JWOL Wake-on-LAN Header
BUZZER Internal Buzzer/Speaker
AUDO FP Front Panel Audio Header Connector
KB/MOUSE PS/2 Keyboard/Mouse
SPDIF S/PDIF Out Header
JPW2 12V 8-Pin Power Connector
AUDIO Back Panel Audio Ports
LAN Ethernet (Gigabit LAN) Connector
LE1 Standby Power LED Indicator
I-SATA 0,1,2,3 SATA Headers
Slot 4, 5 PCI 33 MHz Slots
Slot 6 PCI-Express x1 Slot
Slot 7 PCI-Express x16 Slot
USB 0/1, 2/3 (Front Panel) USB Ports
USB 4/5, 6/7 (Back Panel) USB Ports
VGA Video/Graphics Connector

1-6
C2G41 User’s Manual
Motherboard Features
Supported Processors
• Single Intel Core 2 Duo/Core 2 Quad/Pentium®/Celeron Processor with a system
bus speed of 1333/1066/800 MHz.
• Supports Intel Dual Core Technology, Thermal Management 2 (TM2).
Memory
• Supports single or dual channel unbuffered non-ECC DDR3 memory, up to 4GB
at 1066/800 MHz for single channel mode or dual-channel interleaved mode in four
DIMM sockets. Note: See Section 2-4 for details.
Chipset
• Intel G41 Express
• Intel ICH7
Expansion Slots
• One (1) PCI-Express x16
• One (1) PCI-Express x1
• Two (2) 32-bit PCI 33MHz
BIOS
• 8 Mb Firmware, AMI BIOS®Flash BIOS
• Plug and Play (PnP), APM 1.2, PCI 2.2, ACPI 1.0/2.0, USB Keyboard Support
PC Health Monitoring
• Onboard voltage monitors for CPU core, G41 core and memory voltage, +5V,
+12V and +3.3V.
• 3-Phase switching voltage regulator
• Adjustable CPU Clock frequency ratio
• 3 4-pin fan headers (supports 3-pin fans w/o speed control)
• Status monitor for speed control, on/off control
• Low-noise fan speed control
• Pulse Width Modulation (PWM) fan connector
• CPU/Chassis temperature monitoring
• CPU thermal trip support
• Thermal Monitor 2 (TM2) support
ACPI Features
• ACPI/ACPM Power Management
• Main switch override mechanism
• Keyboard wake-up from soft-off
• Power-on mode for AC power recovery

Chapter 1: Introduction
1-7
Onboard I/O
Disc Drive
• Four (4) SATA ports
• One (1) EIDE Controller (supports 2 IDE devices)
Video and Graphics
• One (1) Onboard VGA Connector (Intel GMA X4500)
• One (1) HDMI 1.3 port
Audio
• Six (6) I/O Jacks for High Denition audio support (VIA VT1708BHD 7.1)
• One (1) S/PDIF Digital Coaxial Port
• One (1) S/PDIF Digital Optical Port
Networking
• One (1) RJ45 10/100/1000 Ethernet port (Realtek RTL8111C-VC-GR)
Security
• Trusted Platform Module (TPM 1.2) support
Serial, USB, Keyboard and Mouse
• Two (2) 16550 Fast UART serial headers (on-board)
• One (1) PS/2 mouse and One (1) keyboard port
• Two (2) USB 2.0/1.0 internal headers (four devices)
• Four (4) rear USB 2.0/1.0 ports (back panel)
Other Features
• Super Doctor III
• Lead Free
• RoHS compliant
CD Utilities
• BIOS ash upgrade utility
• Drivers and software for the Intel G41 Express chipset utilities
Dimensions
• Micro ATX form factor, 9.6" x 8.6"
Note: Specications are subject to change without notice.

1-8
C2G41 User’s Manual
C2G41 System Block Diagram
Note: This is a general block diagram and may not exactly represent
the features on your motherboard. See the following pages for the
actual specications of each motherboard.
Block Diagram
INTEL
FSB : 1333/1066/800MHz
ICH 7
LGA 775 pin
INTEL
SPI ROM
BW : 133MB/s @Freq : 33MHz
GMCH
ITE 8720F-J
PCIE x1
VGA
PCIE x16
BW : 2GB/s
DIMM1A: DDR3 Socket 240P
Super I/O
INTEL
USB V2.0
DIMM1B: DDR3 Socket 240P
PCI Slot 120pin @ AD17
REALTEK
port 0~7
USB x8
BW : 10GB/s
BW : 500MB/s @Freq : 100MHzBW : 480MB/s @Freq : 48MHz
BW : 8G/s @Freq : 100MHz
Intel P4 Processor Core 2 Duo & Core 2 Quad
& Dual Core
I-SATA0
I-SATA2
SATA-II
BW : 3G/s
I-SATA1
HD Audio Codec
I-SATA3
G41
PCI Slot 120pin @ AD18
COM X 2
TPM
DDR3 :1066/800MHz
8111C
ALC888 VC2
IDE
ATA-100
HDMI MUX &
Level shifter
HDMI
INFINEON SLB9635TT_1.2
KB / MS
LPC
VRM 11.1

Chapter 1: Introduction
1-9
1-2 Chipset Overview
The Intel® G41 Express Chipset, combined wtih the Intel CoreTM 2 processor fam-
ily and the ICH7 I/O controller offers an uncomparable match to deliver new digital
capabilities for the home consumer. Also included with the C2G41 motherboard
is the Intel Graphics Media Accelerator (Intel GMA X4500) for built-in support for
smooth high-denition video playback without the need for third-party accelerators
or decoders.
Intel Core 2 processor Support
The Intel G41 Express chipset fully supports the Intel Core 2 Duo/Quad/ Pentium
processor and Intel Celeron processor. Among the features supported are:
- 1333/1066/800 MHz System Bus
- Fast Memory Access
- Dual-Channel DDR3 Memory
- Intel Flex Memory Technology
- Intel Clear Video Technology
- HDMI Interface
- Intel High Denition Audio
Intel ICH7 System Features
The I/O Controller (ICH7) provides the data buffering and interface arbitration re-
quired for the system to operate efciently. It also provides the bandwidth needed
for the system to maintain its peak performance. The ICH7 supports PCI slots, Se-
rial ATA ports, USB 2.0 ports and dual channel IDE devices. In addition, the ICH7
offers the Intel Matrix Storage Technology which provides various RAID options for
data protection and rapid data access. It also supports the next generation of client
management through the use of PROActive technology in conjunction with Intel's
next generation Gigabit Ethernet controllers.
Note: For detailed information, please refer to Intel's website and search for the
keywords "G41 Express".

1-10
C2G41 User’s Manual
1-3 Recovery from AC Power Loss
BIOS provides a setting for you to determine how the system will respond when
AC power is lost and then restored to the system. You can choose for the system
to remain powered off (in which case you must hit the power switch to turn it back
on) or for it to automatically return to a power on state. See the Power Lost Control
setting in the BIOS chapter of this manual to change this setting. The default set-
ting is Last State.
1-4 PC Health Monitoring
The motherboard has an onboard System Hardware Monitor chip that supports PC
health monitoring.
The onboard voltage monitor will scan the voltages of the Onboard Voltage Moni-
tors for the Onboard voltage monitors for the CPU core, G41 core and memory
voltage, +5V, +12V and +3.3V continuously. Once a voltage becomes unstable, it
will give a warning or send an error message to the screen. Users can adjust the
voltage thresholds to dene the sensitivity of the voltage monitor by using SuperO
Doctor III.
1-5 ACPI Features
ACPI stands for Advanced Conguration and Power Interface. The ACPI specica-
tion denes a exible and abstract hardware interface that provides a standard
to integrate power management features throughout a PC system, including its
hardware, operating system and application software. This enables the system to
automatically turn on and off peripherals such as CD-ROMs, network cards, hard
disk drives and printers. This also includes consumer devices connected to the PC
such as VCRs, TVs, telephones and stereos.
In addition to enabling operating system-directed power management, ACPI pro-
vides a generic system event mechanism for Plug and Play and an operating- sys-
tem-independent interface for conguration control. ACPI leverages the Plug and
Play BIOS data structures while providing a processor architecture-independent
implementation that is compatible with Windows 2000, Windows XP, Windows 2003,
Windows 2003 Servers.
Enhanced Power Management
The onboard ICH7 chip provides advanced power management functions that will
greatly improve the performance of various low-power (suspend) states and en-

Chapter 1: Introduction
1-11
hance clock control. A hardware-based component provides software-independent
thermal management that is compatible with the ACPI Revision 3.0a.
Slow Blinking LED for Suspend-State Indicator
When the CPU goes into a suspend state, the chassis power LED will start blinking
to indicate that the CPU is in suspend mode. When the user presses any key, the
CPU will wake-up and the LED will automatically stop blinking and remain on.
BIOS Support for USB Keyboard
If the USB keyboard is the only keyboard in the system, it will function like a normal
keyboard during system boot-up.
1-6 Power Supply
As with all computer products, a stable power source is necessary for proper and
reliable operation. It is even more important for processors that have high CPU
clock rates of 1 GHz and faster.
The C2G41 accommodates 12V ATX power supplies. Although most
power supplies generally meet the specications required by the CPU, some are
inadequate. A 2-Amp of current supply on a 5V Standby rail is strongly recom-
mended.
It is strongly recommended that you use a high quality power supply that meets
12V ATX power supply Specication 1.1 or above. It is also required that the 12V
8-pin power connection (JPW2) be used for high-load congurations. In areas where
noisy power transmission is present, you may choose to install a line lter to shield
the computer from noise. It is recommended that you also install a power surge
protector to help avoid problems caused by power surges.
1-7 Versatile Media Capabilities
HighDenitionAudio
The High Denition Audio Controller embedded in the ICH7 delivers up to 4 codecs
that can be used for different types of codecs, such as audio and modem codecs.
Operating at 3.3V or 1.5V, the embedded Audio Controller supports a multi-channel
audio stream, 32-bit sample depth, up to 192 kHz of same rate, and can be used with
a variety of microphones for input. With these versatile audio capabilities built in, the
C2G41 provides the user with a surreal audio experience that is larger than life.

1-12
C2G41 User’s Manual
HighDenitionVideo(HDMI)
The C2G41 also includes a High-Denition Multimedia Interface (HDMI) connector
on the motherboard. This connector transmits digital video signals, providing superb
multimedia interface support.
With these versatile audio and video capabilities built in, this motherboard provides
the user with a state of the art audio/video experience that is larger than life.
1-8 Super I/O
The C2G41 features the ITE IT8720F-JX LPC I/O and provides two high-speed,
16550 compatible serial communication ports (UARTs). Each UART includes a
16-byte send/receive FIFO, a programmable baud rate generator, complete modem
control capability and a processor interrupt system. Both UARTs provide legacy
speed with baud rate of up to 115.2 Kbps as well as an advanced speed with baud
rates of 250 K, 500 K, or 1 Mb/s, which support higher speed modems.
The Super I/O provides functions that comply with the ACPI (Advanced Congura-
tion and Power Interface), which includes support of legacy and ACPI power man-
agement through a SMI or SCI function pin. It also features auto power management
to reduce power consumption.

Chapter 2: Installation
2-1
Chapter 2
Installation
2-1 Electro-Static Sensitive Devices
Electro-static Discharge (ESD) can damage electronic components. To prevent dam-
age to your system board, it is important to handle it very carefully. The following
measures are generally sufcient to protect your equipment from ESD.
Precautions
• Use a grounded wrist strap designed to prevent static discharge.
• Touch a grounded metal object before removing the board from the antistatic
bag.
• Handle the board by its edges only; do not touch its components, peripheral
chips, memory modules or gold contacts.
• When handling chips or modules, avoid touching their pins.
• Put the motherboard and peripherals back into their antistatic bags when not in
use.
• For grounding purposes, make sure your computer chassis provides excellent
conductivity between the power supply, the case, the mounting fasteners and
the motherboard.
• Use only the correct type of onboard CMOS battery as specied by the manu-
facturer. Do not install the onboard battery upside down to avoid possible explo-
sion.
Unpacking
The motherboard is shipped in antistatic packaging to avoid static damage. When
unpacking the board, make sure the person handling it is static protected.

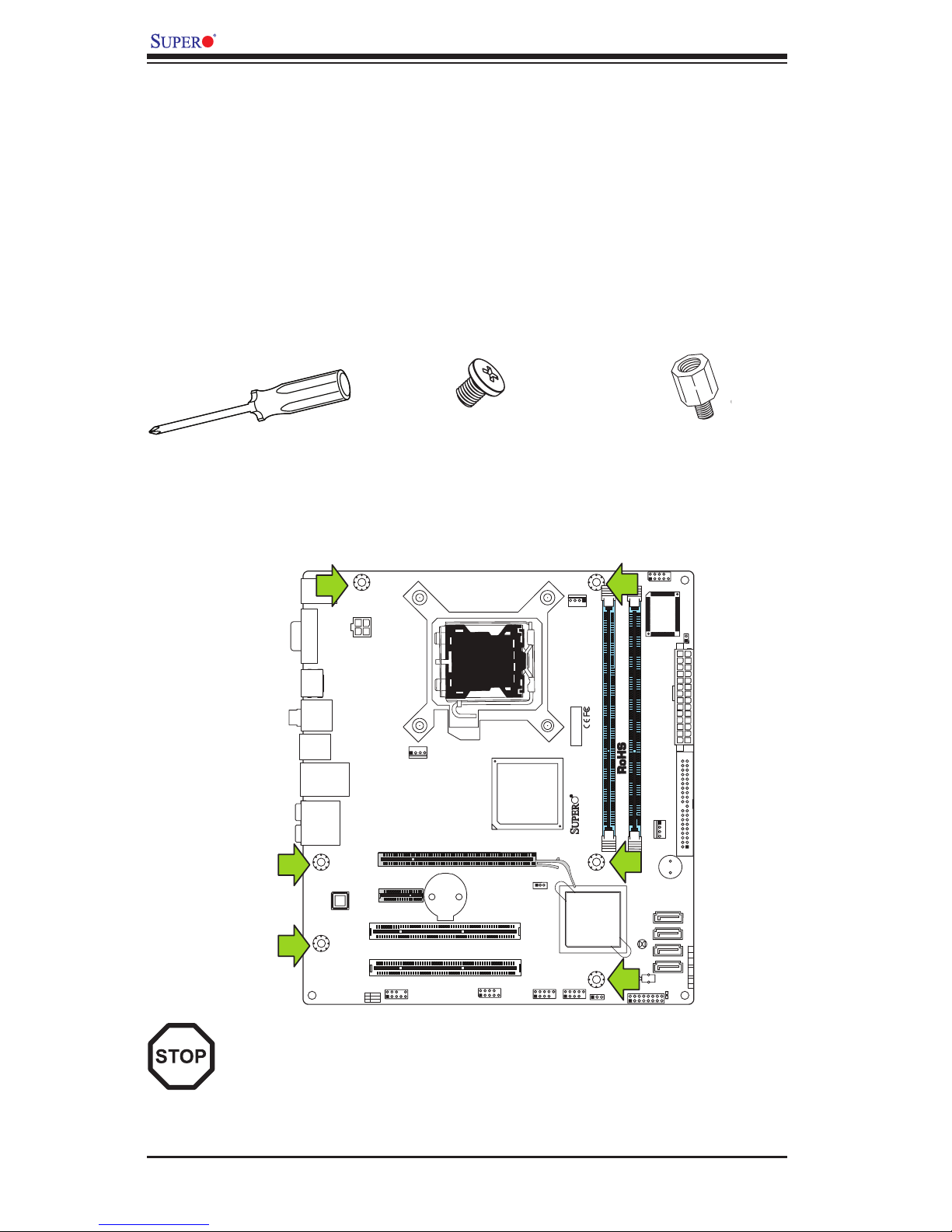

2-2
C2G41 User's Manual
