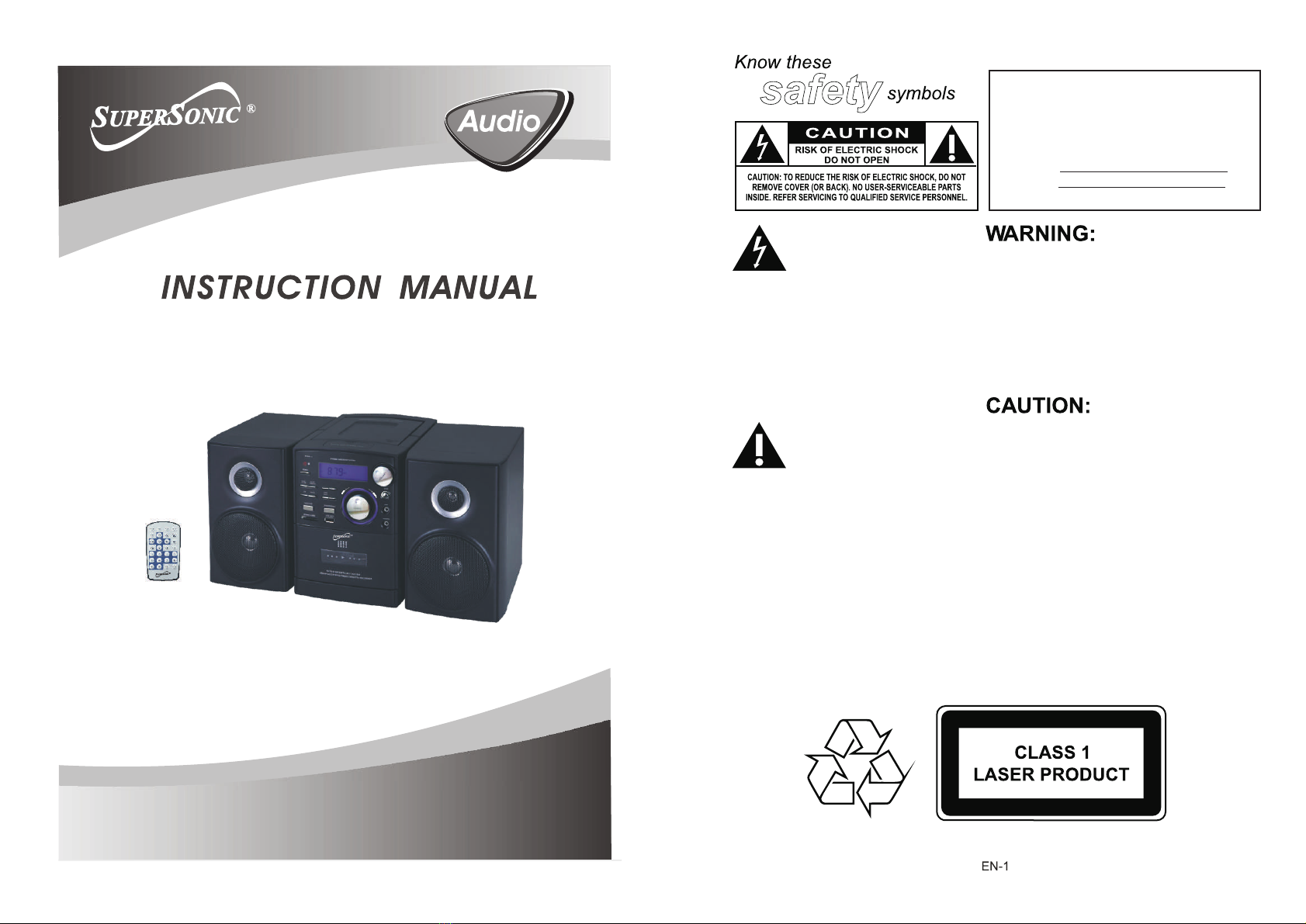

Supersonic SC-805 User manual

For Customer Us e
Enter belo w the Serial No. whi ch is located
On the bottom of the ca bin et. Reta in this
Informati on fo r future referen ce.
Mode No.
Serial No.
This“bolt Of lighting”
indicates uninsulated
material within your unit
which may cause an electrical shock.
For the safety of everyone in your
household, please do not remove
product covering
TO PREVENT
FIRE OR SHOCK HAZARD,DO
NOT EXPOSE THIS EQUIPMENTTO
RAIN OR MOISTURE.
TO PREVENT
ELECTRIC SHOCK, MATCH WIDE
BLADE OF PLUG TO WIDE SLOT,
AND FULLY INSERT.
The“exclamation point”
calls attention to features
for which you should read
the enclosed literature closely to
prevent operating and maintenance
problems.
The normal ventilation of the
Ventilation warning:
product shall not be impeded for
intended use.
Dripping warning:
The product shall not be exposed to
dripping or splashing and that no
objects filled with liquids, such as
vases,shall be placed on the product.
SC-765
SC-805
PORTABLE
STEREO RADIO CASSETTE RECORDER
WITH MP3/CD/CD-R/USB/SD/MMC PLAYER
PRE-D N
PRE-UP
REPEAT
/MO/ST

PRE-DN BUTTON
-In the radio mode,
press PRE-DN button to choose the back channel.
-In the mp3 mode,
press PRE-DN button to enter the back folder.
-In the radio mode,
press PRE-UP button to choose the next channel.
-In the mp3 mode,
6.PRE-UP BUTTON
8.REPEAT/MO/ST BUTTON
- Repeat a track CD/MP3/USB program.
- Repeat mode : normal->repeat 1->repeat all->
repeat album ->normal.
- Press MO/ST button once , to mono state.
- Press MO/ST button twice , to stereo state,
stereo is displayed(In FM mode)..
EN-2 EN-3
123
4
56789
10
11 12
13
14 15
16
17
18
19
20
21
22
23
24 24
25
26
27 28 29

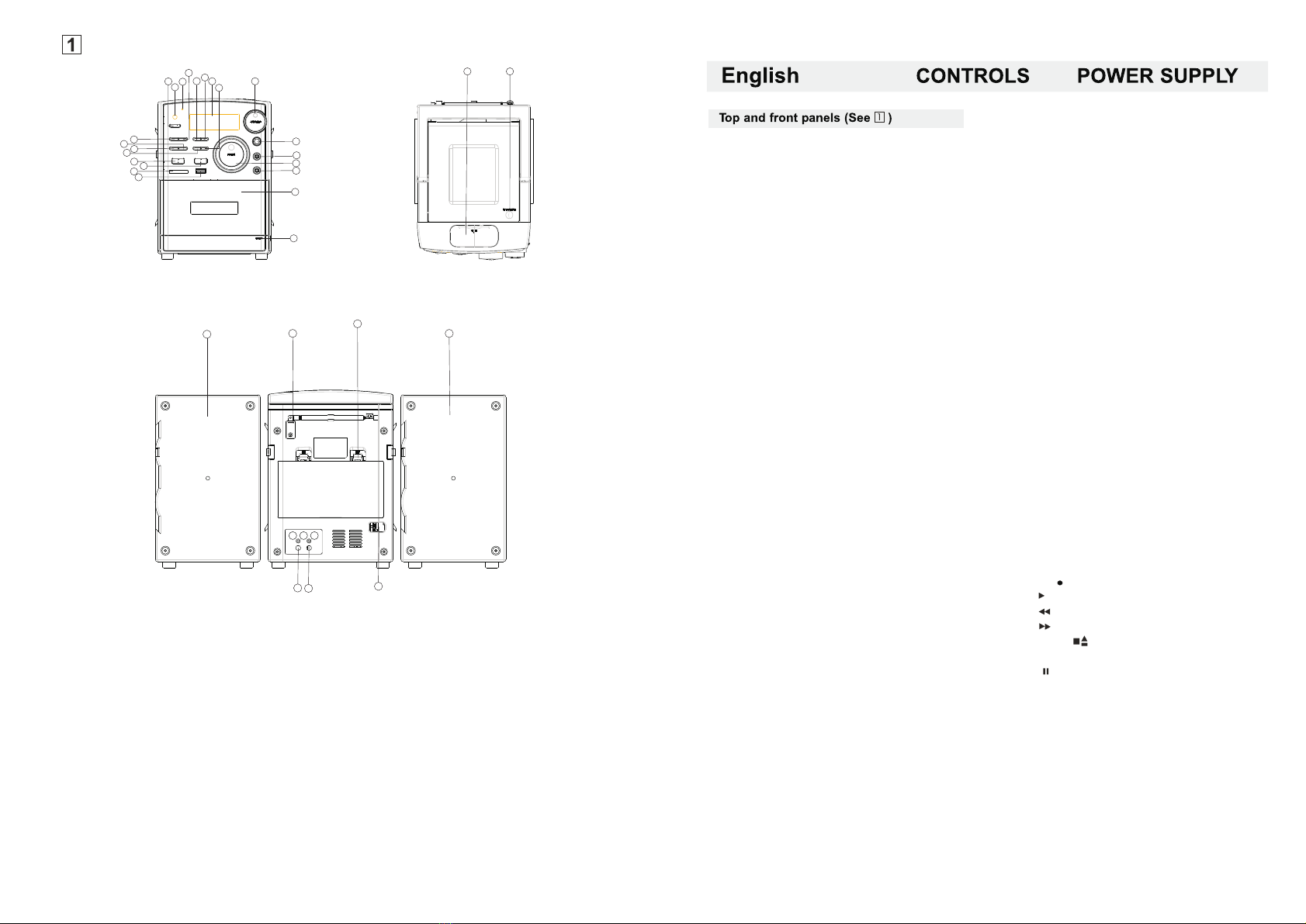

AUDIO AUX PLAYER JACK
30 31
1.
2.
3.
4.STOP/USB/SD BUTTON
5.PRE-DN
6. PRE-UP
7.LCD DISPLAY
8.REPEAT /MO/STBUTTON
9.VOLUME
10.PLAY/PAUSE BUTTON
11.MUTE BUTTON
12.EQ BUTTON
13.TIME/PROGRAM BUTTON
14.FUNCTION BUTTON
15.RANDOM/BAND BUTTON
16.SD/MMC CARD JACK
POWER BUTTON
REMOTE SENSOR
STANDBY INDICATOR
17.
18.
19.AUX JACK
20.TUNING CONTROL
21. STEREO HEADPHONE JACK
22.CASSETTE COMPARTMENT
23.CASSETTE RECORDERS KEYS
24.LEFT&RIGHT SPEAKER BOXES
25.FM ANTENNA
26.BATTERY DOOR
27.SPEAKER WIRE CONNECTOR(R)
28.SPEAKER WIRE CONNECTOR(L)
29.AC MAINS
30.DOCKING JACK
31.CD DOOR
USB JACK
BASS BUTTON
1.POWER BUTTON
-Press POWER button on
2.REMOTE SENSOR
3.STANDBY INDICATOR
4.STOP/USB/SD BUTTON
- stop CD/MP3/USB/IPOD/SD/MMC playback;
erase a CD program.
Press and hold more than 1.5 sec
change USB1.1/MMC(SD)media(only USB)
5.
7.LCD DISPLAY
- show the AM/FM dial frequency
- show the number of tracks
9.VOLUME
- adjust volume level.
10.PLAY/PAUSE BUTTON
- start or pause MP3/CD/USB/IPOD/SD/MMC play
11.MUTE BUTTON
-Press the mute button allows CD / MP3 / USB
/ MMC / SD / TAPE / IPOD (AUX) / the RADIO
to enter the mute state.
12.EQ BUTTON
-Press the button to change EQ CD/MP3 / USB/
SD/MMC/IPOD/RADIO's music style.
-When playing the music, push down this button
is in the popular-jazz-OFF-classica-rock.
13.TIME/PROGRAM BUTTON
-In standby mode, to setup the time of the unit.
-program and review programmed track numbers.
-In the working status, push down this button
can on CD/MP3 / USB/SD/MMC for programming.
Rotate the volume button to hold the CD/MP3 /
USB/SD/TAPE/IPOD (AUX) / RAID the volume.
14.FUNCTION SELECT
- select source of sound CD/USB/TAPE
IPOD(AUX)/RADIO
15.RANDOM/BAND BUTTON
-
16.SD/MMC CARD JACK
- To listen to your SD/MMC card
with Mp3 music files.
17.USB JACK
-To listen to your USB flash memory
stick with Mp3 music files.
18.BASS BUTTON
-
19.AUX JACK
-Push FUNC button , select MP3/AUX station.
Play Mp3、DISCMAN、 WALKMAN AUX
insert when no disc.
In a CD/MP3 / USB/MMC/SD mode,
press this button can be played at random.
-The radio in the mode, press this button
to select the FM STEREO, FM, AM.
Press the BASS button can make the CD/MP3/USB/
MMC/SD/TAPE/IPOD (AUX) / RADIO into the BASS state.
NOTE:Please take out the CD disc.
20.TUNING CONTROL
-Rotate the TUNING control to find the desired stations.
21.STEREO HEADPHONE JACK
- 3.5 mm stereo headphone jack.
22.CASSETTE COMPARTMENT.
23.CASSETTE RECORDERS KEYS
RECORD ( ) - start recording
PLAY ( ) - start playback
F.REW ( )-rewind the tape toward the beginning.
F.FWD ( )-advance the tape toward the end.
STOP/EJECT ( ) - stop the tape
- open the cassette compartment
PAUSE ( ) - interrupt recording or playback.
24.LEFT&RIGHT SPEAKER BOXES
25.FM ANTENNA
- to improve FM reception
26.BATTERY DOOR
-to open battery compartment
27.SPEAKER WIRE CONNECTOR(R)
28.SPEAKER WIRE CONNECTOR(L)
29.AC MAINS
- inlet for power cord.
30.DOCKING JACK
-To listen to your DOCKING with Mp3 music files.
31.CD DOOR OPEN BUTTON
- press here to open/close the CD door.

13.PLAY/PAUSE BUTTON
16.STOP BUTTON
Radio reception
1.Press function button select RADIO mode.
2.Press BAND to select the desired wave band:AM,FM,FM ST.
3.Tune to required station by Rotate BACK/ NEXT or press PRE-DN /PRE-UP.
Manual tuning: Rotate BACK or NEXT and then release within 1 sec.
Auto tuning: Press the play/pause button enter the automatic channel
scan mode, and to be put automatically sets.
Preset channel:(FM 30 Preset memories,AM 10 preset memories)
(1)Rotate BACK/ NEXT Select desired station.
(2) Press PROGRAM button once , The MEMORY number indicator begins steady in the
display.
(3) Press PRESET-UP OR PRESET- DN buttons to select the desired number.
(4) Press PROGRAM button to save that station.
(5) Repeat steps (1) to (4) procedures for other stations.
4.After end of program. press PRE-UP or PRE-DN to start play the frequency that you selected or
Press number key on the remote control.
5.Rotate [VOL-]or [VOL +] to adjust the volume.
6.Extend TELESCOPIC ANTENNA to its full length if you are listening to FM broadcasting.
7.Turn off the radio by press FUNCTION button select other mode or press power button to
off the unit.
8.Switch on again after shut down, the memory frequency still exists.
MONO/STEREO
-Press MO/ST button once,to mono state.
-Press MO/ST button twice, to stereo state,stereo is displayed.
Remote Control
EN-5
EN-4
,
,
,
,
,
,
,
,
Using AC Power
1.check if the power voltage, as shown on the type plate located on the bottom of the set,
corresponds to your local ac power supply. if it does not, consult your dealer or service centre .
2.connect the power cord to the ac mains inlet and the wall outlet. the power supply is
now connected and ready for use.
3.to switch off completely, unplug the power cord from the wall outlet.
unplug the power cord from the wall outlet to protect your set during heavy thunderstorms.
Batteries (not included)
Open the battery compartment and insert eight batteries,
(preferably Alkaline) with the correct polarity as indicated by the + and - symbols
inside the compartment.
Batteries contains chemical substances, so they should be disposed of properly
Incorrect use of batteries can cause electrolyt leakage and will corrode the compartment or
cause the batteries to burst. Therefore:
Do not mix battery types: e.g. alkaline with carbon Zinc. Only use batteries of the same type for the set.
When inserting new batteries, do not try to mix old batteries with new ones.
Remove the batteries if the set is not be used for a long time.
type R-20, UM-1 or D-cells,
POWER SUPPLY
BASIC FUNCTION
USE CLOCK
to setup the time of the unit
1.connect the ac on( .
2.short according to the time button, the time will flashing on the lcd display.
3.press BACK、NEXT to select the number of the time. you can setup the time format by
12h or 24h.
4.press time button to confirm.
5.then you can set the hour and the minute with the same method of steps 3-4.
6.
with the same method of steps 3-4.
The following operation must be in standby mode)
after setup the unit time, long press the time button can setup the unit begin working time ,
Note: after setup the beginning time, the lcd will display the radio/cd/usb/sd/tape/aux/ipod mode,
Press the BACK or NEXT to choose the mode, then it press time button to affirm, otherwise it play
usb or aux mode first.

EN-7
RECORDING FROM CD
1.Insert a blank tape into the tape deck.
2.Press CD button on.
3.Load a CD disc into disc compartment and select the desire track you want to record.
4.Press DISC PLAY/PAUSE button to play the desired track(passage)
5.Press RECORD key and the PLAY key will automatically engage.
6.Press PAUSE key to interrupt or edit recording. Press it again to resume recording.
7.Press STOP/EJ. Key to end recording.
8.To hear what you recorded, follow instructions in PLAY A CASSETTE TAPE
PROGRAM METHOD
(1)Press the [PROGRAM] key at STOP mode, system will go to PROGRAM mode.
-The PRG icon and P01 will blink at 2Hz. This prompts the user to enter the first songs in the
program PLAY list.
(2)The user can select the desire tracks by using [NEXT], [BACK] keys.
Once these keys are pressed, the Display will show the selected track.
(3)After select the desired track, press [PROGRAM] key again and it will be stored in the memory.
Mp3 Maximum 99 Maximum 20 tracks can be programmed when Repeat
steps (2) to (3) procedures.
(4)If press the [STOP] key during the program mode, then the selected TRACKs will be stored
in the memory and return to STOP mode (Continuous Play mode)
(5)If press the [PLAY] key during the program mode, it will start the program PLAY mode.
PLAY start from P01 Track
and CD
RECORDING FROM THE RADIO
1.Tune to the desired radio station.
2.Press STOP/EJ. To open the cassette door.
3.Insert a suitable cassette into the cassette deck and close the cassette door.
4.Press RECORD to start recording. RECORD key and PLAY key go down simultaneously.
5.For brief interruptions ,press PAUSE .To resume recording, press PAUSE again.
6.To stop recording , press STOP/EJ.
7.To hear what you recorded, follow instructions in PLAYING a cassette tape.
EN-6
USING THE CASSETTE
UNDERSTANDING THE BUTTONS
RECORD - Press to record from the radio or CD play.
PLAY - Press to play cassettes.
REW - From stop mode, press to rewind the tape toward the beginning.
F.FWD - From stop mode, press to advance the tape toward the end.
STOP/EJ. - Press to stop current tape activity or to open the cassette compartment door when
no buttons are active.
PAUSE - Press to interrupt tape play or record mode, press the second time to resume tape play
or tape record mode.
PLAY A CASSETTE TAPE
1.Press FUNC button select TAPE mode.
2.Press STOP/EJ.key to open the cassette compartment door.
3.Insert a recorded cassette and close the cassette compartment door.
4.Press PLAY to start playback.
5.To interrupt playback, press PAUSE ,To resume, press the key again.
6.Press REW/F.FWD to move tape to the desired starting point.
7.Adjust the volume to your desired listening level.
8.To stop the tape ,press STOP/EJ.
- The keys are automatically released at the end of the tape, except if PAUSE has been activated.
Erasing a program
You can erase the content of the memory by:
- While playing, press STOP button twice.
- Opening the CD door
- Select the other mode.
USE DOCKING
To listen to your DOCKING with Mp3 music files.
1.Connect to the DOCKING .
2.Press function selector to DOCKING/AUX to supply power and play DOCKING.
-Press PLAY/PAUSE button to play or pause playback;
-Press STOP button to stop playback;
-Press BACK or NEXT to select tracks of the Docking;
-Press and hold on BACK or NEXT more than 1.5 sec to forward or backward
search fast intra track;
-Press REPEAT button to repeat 1 track or repeat all tracks of the Docking.
NOTE: Press BACK button once briefly to return to the beginning of the current track.
、 、 .
To listen music with a mp3 discman walkman
1.Connect to the AUX .
2.press function selector to DOCKING/AUX, the sound source of the mp3
or discman or walkman will output from the unit.
-Rotate the volume control to adjust the volume.
-The unit can't control the player.
-Connect AUX and DOCKING at the same time, the ipod will not playback .
USE AUX

Altering the VOLUME controls will not affect
EN-9
EN-8
Note: at the mode of CD/MP3 / USB/MMC/SD,the lcd will
display the number of song or the song playing time.
if at the mode of docking/aux, the lcd will display the
symbol of docking (au),or the unit time.
-The unit don't support the HDD all and the portion
usb with mp3 player.
USB/MMC(SD) Audio functions
1)press function button or stop/usb/sd button to
choose the usb or sd state.
2) PLAY/PAUSE
3) NEXT, BACK Skip search
4) Program Track(MP3 99 Track CD 20 Track )
5) PLAYMODE : normal->repeat 1->repeat all->
repeat 1 folder->Shuffle ->normal
(There is not repeat 1 folder mode in Program
PLAY mode)
6) Maximum Folder : 99 Folders
7) Maximum File : 999 Files
8) USB_UP ( Select USB/MMC(SD))
- User can switch over USB to MMC(SD) with
pressing [USB_UP] key(Key Pad STOP Long Key).
- Then “- - -“ will be displayed. Press PLAY button
to start playback .
- If a device is successfully read, then the
correspond device is ready to play a file.
- If a device fails to be read, then “NO” will
be appeared on the Display to indicate that there
is no device .
*Notice : If no device is attached or the player
fails to read the device when a user switchover
USB to MMC(SD) with pressing [USB_UP] key,
then “NO” is displayed and the system moves
into the STOP mode.
-When the unit has not the disc,inserting the
usb/sd card will automatically real usb/sd card,
it read the USB first while having the USB.
This CD-player can play Audio Discs,MP3 CD-R.
Do not try to play CD-ROM,CDi,VCD,DVD or
computer CD.
1.
、with the printed side
facing up and press cd door gently to close.
4.press play/pause on the set to start playback.
5.
note: cd/mp3 play will also stop when:
-you open the cd compartment;
-you select radio sound source;
-the cd/mp3 has reached to the end.
selecting a different track.
during playback you can use back or next to
select a particular track.
if you have selected a track number in the
stop or pause position, press play to start
playback.
press next once briefly for the next track,
or press repeatedly until the desired track
number appears in the display.
press back once briefly to return to the
beginning of a current track.
press back more than once briefly for a
previous track.
finding a passage within a track
1.press and hold down back or next.
the cd is played at high speed.
2.when you recognize the passage you want
release back or next.
normal playback resumes.
different play modes:repeat
repeat-play the current track continuously.
repeat all-plays the entire cd continuously.
playing tracks in random order after press
the random button, the tracks will be played
in random order.
Press function button to CD state.
2.to open the cd door, press cd open button.
3.insert a mp3/cd or cd-r
Press the pause button to pause play, press
the play button back playing.
6.to stop cd playback , press stop.
CD/MP3 PLAYER
CD/MP3 Player
Playing a CD/MP3
Playing a USB/SDPlaying a USB/SD

EN-10

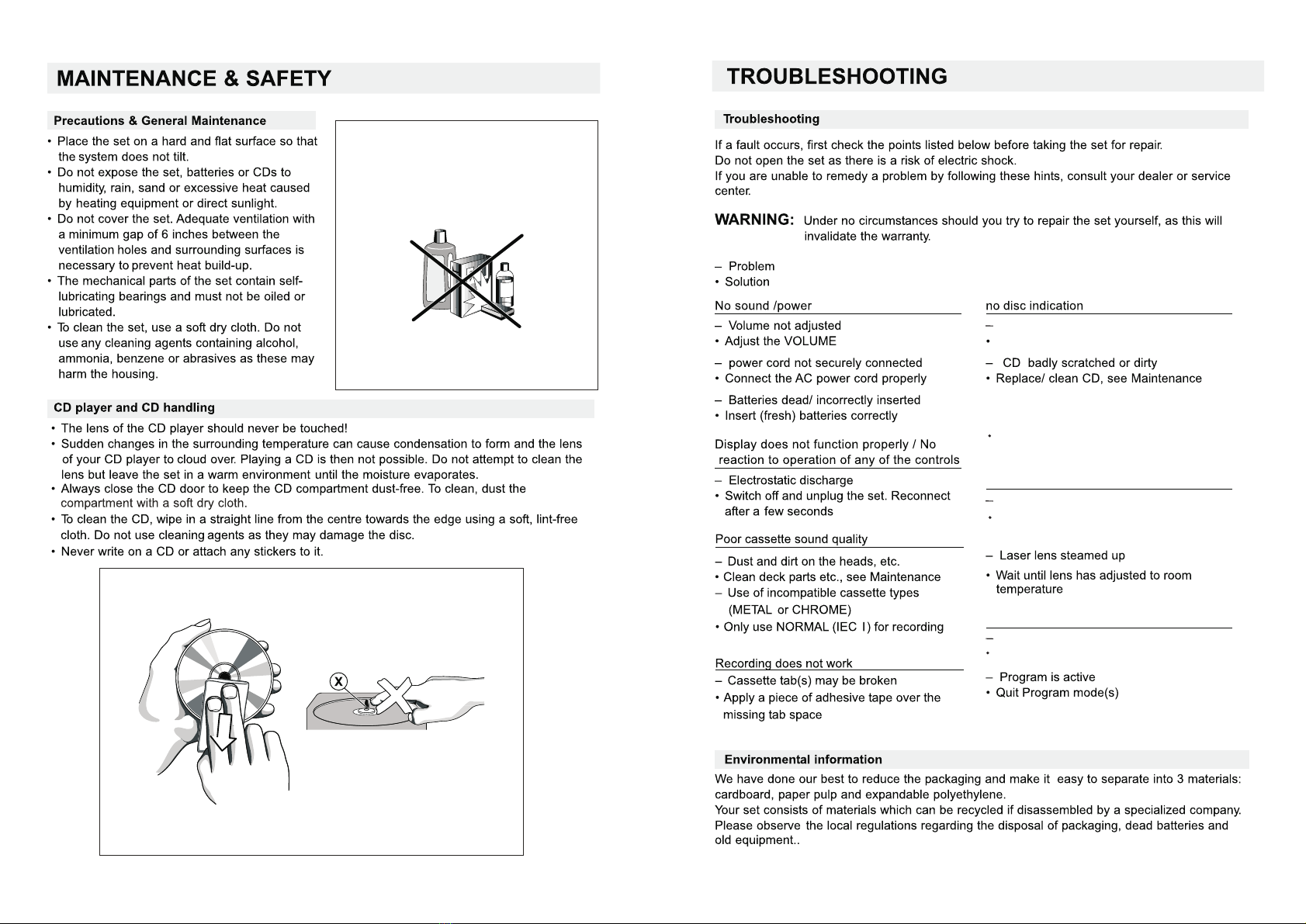

Insert a CD,MP3, CD-R.
No CD/MP3 inserted
CD/MP3/USB/SD playback does not work
CD/MP3/USB/SD badly scratched/dirty
Replace/clean CD/MP3/USB/SD
(see maintenance)
The CD/MP3 skips tracks
CD/MP3 damaged or dirty
Replace or clean CD/MP3
- CD-R、is blank or the disc is
not finalized
Use a finalized CD-R.
EN-11

TECHNICAL SPECIFICATIONS
GENERAL
Power Requirement ............................................................AC 127V~60HZ
Power consumption .............................................................AC 21 Watts
Dimensions......................................................Approx.434 mm(L)x 214 mm(W) x 228 mm(H)
Operation temperature.........................................................+5 ℃ - +35℃
RECEIVER SECTION
Receiving Bands...................................................................AM/FM
Tuning Range..........................................................AM:530-1710KHZ
FM:88-108MHZ
COMPACT DISC SECTION
Optical Pickup...................................................................... .3-Beam Laser
Frequency Response.............................................................100Hz - 16KH z
AUDIO SECTION
Power output .........................................................................Maximum 3 Watt x 2
Headphone Impedance ............................................................4 ~ 32 Ohms
ACCESSORIES
Instruction Booklet.....................................................................1
Remote contro.....................................................................1
CASSETTE SECTION
Recording System.................................................................2 Tracks 2Channel (Stereo)
Biasing System......................................................................DC bias
Frequency Response ............................................................125 -6.3 K H z
Wow And Flutter ................................................................... 0.35% WRMS (JIS)
EN-12
