Sure Electronics Wondom ICP3 User manual
WONDOM ICP3 User Guide
IN-CIRCUIT PROGRAMMER WITH BLE BLUETOOTH FOR APP CONTROL - ICP3
By Sure Electronics Co., Ltd.
WONDOM ICP3 is an in-circuit programmer integrated with Bluetooth BLE designed for customer programming and
user interface control of WONDOM products.
On-board self-boot EEPROM is included in ICP3 for operating the board independently of the Analog Devices, Inc.,
SigmaStudio™software.
With the Bluetooth integrated, customers can realize APP control of audio system through the ICP3.
The package includes:
✓In-circuit Programmer with BLE Bluetooth for APP control - ICP3 x 1
✓6-pin cable x 1
Overview
Functions Required Tools Applicable Products
Programming Analog Devices, Inc., SigmaStudio™JAB3
APM2
APP control WONDOM ‘Miumax’ APP
Interface Definition
In this document, we will mainly give instructions on the following applications:
1) How to achieve programming of APM2 / JAB3 with WONDOM ICP3
2) How to realize APP control of APM2 / JAB3 with WONDOM ICP3
SW MODE FUNCTION
①PROGRAM Programming
②REMOTE APP Control
Micro USB Port
1) DC5V power supply
2) Communication with computer
Bluetooth BLE for communication with
APP (Miumax) to control audio system
SW
For switch between programming and
APP control functions
Programming Port
For connection with applicable
products with a 6-pin cable
KEY1
Reset
Software Download
PROGRAMMING
Analog Devices, Inc.
SigmaStudio™
Android iOS
Miumax V2.0
WONDOM ‘Miumax’
Note:
1. It is suggested to use browser to scan the QR code for Android phones.
2. For iOS phones, customers can go to APP Store and search “Miumax” for download directly.
Before starting, please make sure you have the following items on hand.
Checklist
1WONDOM Products with ADAU1701 DSP
2WONDOM ICP3 with a 6-pin cable
3Analog Devices, Inc. SigmaStudio™
4Accessories
Speakers
Cables
Phone
…
+
To quickly get started with the programming of WONDOM APM2 or JAB3 via ICP3, do the
following steps:
1) Install the SigmaStuido software
2) Connect ICP3to computer
3) Connect audio cables
4) Power up the audio system
5) Connect ICP3 with target products
6) Program
Quick Start
Click HERE to watch video.
Since the most steps of programming APM2 and JAB3 are the same, we will take APM2 as an example to
show you how to operate. If there is difference or points to note, we will mark out with red words.
INSTALLING SIGMASTUDIO SOFTWARE CONNECTING THE AUDIO CABLES
13 42
SETTING UP THE ICP3
POWERING UP THE BOARD
CONNECTING ICP3 WITH TARGET PRODUCTS
How to program
5
PROGRAMMING
Be sure to follow these connection steps.
Download the installation package for SigmaStudio software in the
Analog.com. Download address is as follows. Click the EXE file and
finish installation according to the prompts.
https://www.analog.com/en/design-center/evaluation-hardware-and-
software/software/ss_sigst_02.html#software-overview
Installing Sigmastudio
software

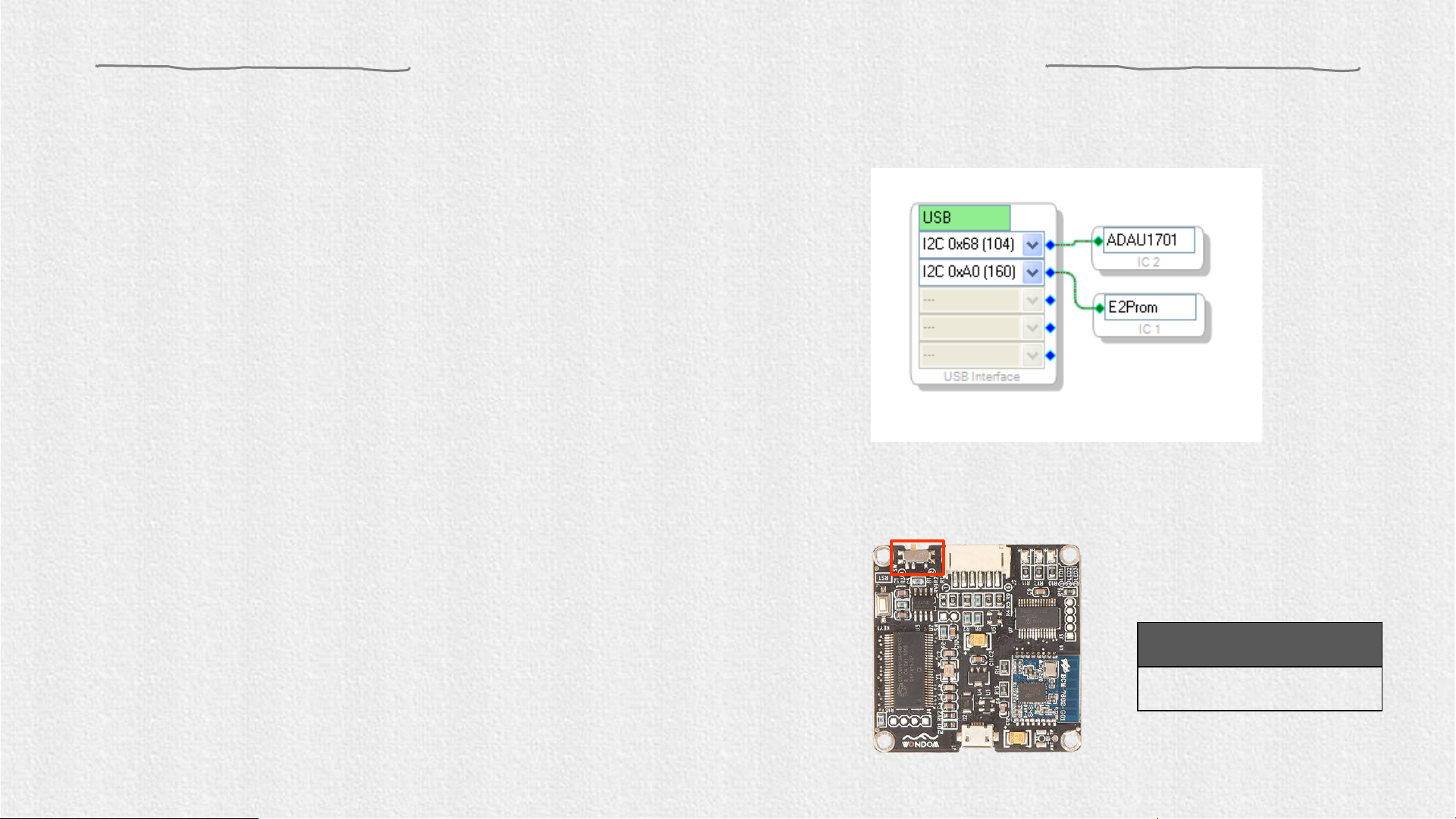

1. Set the SW of ICP3 at (PROGRAM)* and connect
the ICP3 to the computer with a USB cable.
Setting up the hardware
Figure 1
PROGRAM
REMOTE
Setting of SW
SW
3. Please note whether the ICP3 can be recognized by the
computer, if the underpainting of the “USB” turn green, it
represents the ICP3 is recognized, otherwise it will ture
orrange and you should reconnect the ICP3 until it turn
green. See figure 1.
2. Select “USBi” from the list on the left and drag it to
the blank area on the right. Repeat the action to
move “ADAU1701” and “E2Prom” to the right.
*Note：
Customers can realize program with SigmaStudio or APP control of
audio system with ICP3 because of the integrated Bluetooth. We
provide a switch on ICP3 for customers to switch between program
and remote control mode.
Do not connect ICP3 with target products (APM2/JAB3) now.

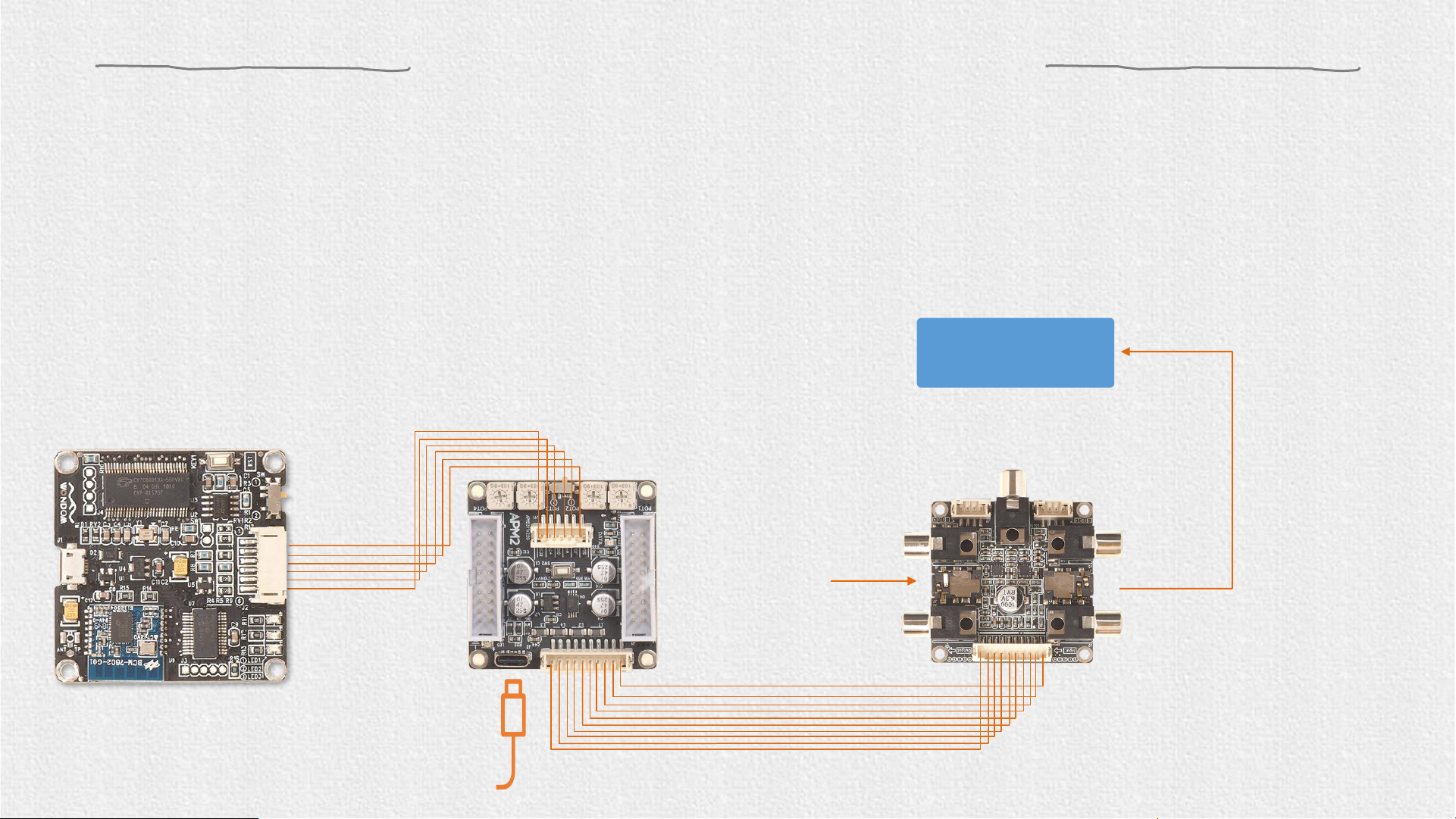

Connecting Audio Cables
Build an audio system with your target products. As for the connections, please kindly refer to the
datasheet or connection guide of each product.
Model
Document
APM2
AA-AP23122 ADAU1701 Kernel Board
JAB3
Audio Amplifier Boards Integrated with ADAU1701 DSP
JAB3+
Audio Amplifier Boards Integrated with ADAU1701 DSP & Bluetooth V5.0
JAB4
4CH 30W Audio Amplifier Boards Integrated with ADAU1701 DSP & Bluetooth V5.0
JAB5
4CH 100W Audio Amplifier Boards Integrated with ADAU1701 DSP & Bluetooth V5.0
Powering up
Make sure the SW1 of APM2 is set at ①(RUN).
(Skip this step when programming other products with ADAU1701 DSP)
Connect ICP3 with APM3 through 6-pin cable.
After connection is done, please power up the target products and feed music to your audio system.
Power up APM2 with DC5V. APM3 will be powered up by APM2.
AMP
Audio Input Audio Input
Programming
Schematic
Toolbox Schematic Design
Drag desired algorithm here and
complete the logic connection
Algorithms
& Modules
Now, you can write program in the schematic design zone.
It’s suggested to modify program based on the demo program we provide to you.
Click HERE to get the basic guide of SigmaStudio programming.
Programming –Demo Program
Products
Demo Program
Document you may
need
APM2
APM2_
SigmaStudio.dspproj
Download
JAB3
- Mono
JAB3_
SigmaStudio_MONO.dspproj
Download
JAB3
- Stereo
JAB3_
SigmaStudio_STEREO.dspproj
JAB3+
JAB3+_Stereo_ADAU1701_DEMOProgram.dspproj
Download
JAB4
JAB4_ADAU1701_DEMOProgram.dspproj
-
JAB5
JAB5_ADAU1701_DEMOProgram.dspproj
Download
Here are the demo programs for the products. You can download them for reference. It’s highly suggested to make
modification based on the demo program.
Online Debug
2.Click the “Link Compile Download” (see figure 3) and
you will find “Active:Downloaded” in the lower right
corner of your computer.
Figure 3
1. Click the “Link Compile Connect” (see figure
2) and you will find “Ready:Compiled” in the
lower right corner of your computer.
Figure 2
If you want to see the actual effect when programming, you can online debug your program.
Please pay attention to the state on the bottom right of SigmaStudio. If it shows “Design Mode”, you need to click the
following two icons to turn it to “Active:Downloaded” so that the modification of your program can be delivered to the
target products.
Program Write
Select “Write Latest Compilation to E2PBOM” to download the program (see figure 4), then you will see a window,
choose the “I2C” on the right and click “OK” (see figure 5).
Figure 4
Figure 5
If you want the program to run offline, you need to write the program into ADAU1701 DSP.
Make sure the state on the bottom right is “Active: Downloaded”, then go to Hardware Configuration page, do as
follows.
Original Firmware Restore
1. Right click the “E2Prom” (see Figure 6) and click ‘Read/Write Window’. You will see the following interface (Figure 7).
Figure 6 Figure 7
2. Click ‘Click here to browse for file’ and select firmware file (Figure 8). Then click ‘Display File’ like Figure 9.
Figure 8 Figure 9
Original Firmware Restore
3. Click ‘Write Display to E2prom’ then click ‘OK’ of the prompt box (Figure 10).
Figure 10
TROUBLE SHOOTING
TROUBLE HOW TO SOLVE
ICP3
cannot be recognized by PC
➢
Make sure the Micro USB cable is of good quality and supports data
communication
➢
Make sure ICP3 is not connected to controlled device (APM2) when
connected to PC
Cannot
writing the program into APM2 successfully
➢
Make sure the ICP3 be recognized by PC
➢
Make sure the SW of ICP3 is at (PROGRAM) and the SW1 on APM2
is set at (RUN)
➢
Make sure the state is “Active: Downloaded”
Cannot
writing the program into JAB successfully
➢
Make sure JAB3 is given audio signal and the two LEDs are on
➢
Make sure the ICP3 be recognized by PC
➢
Make sure the SW of ICP3 is at (PROGRAM)
