WONDOM ICP3 User Guide
IN-CIRCUIT PROGRAMMER WITH BLE BLUETOOTH FOR APP CONTROL - ICP3
By Sure Electronics Co., Ltd.

WONDOM ICP3 is an in-circuit programmer integrated with Bluetooth BLE designed for customer programming and
user interface control of WONDOM products.
On-board self-boot EEPROM is included in ICP3 for operating the board independently of the Analog Devices, Inc.,
SigmaStudio™ software.
With the Bluetooth integrated, customers can realize APP control of audio system through the ICP3.
The package includes:
✓In-circuit Programmer with BLE Bluetooth for APP control - ICP3 x 1
✓6-pin cable x 1
Overview
Functions Required Tools Applicable Products
Programming Analog Devices, Inc., SigmaStudio™JAB3
APM2
APP control WONDOM ‘Miumax’ APP

Product List
Model SKU Description Basic Cables Included
ICP1 DB-DP11219 In-circuit Programmer for ADAU1701 Digital Signal 6Pin cable x 1
ICP3 DB-DP11224 WONDOM In-circuit Programmer with BLE Bluetooth for APP control 6Pin cable x 1
ICP5 DB-DP11226 In-circuit Programmer with UART for PC UI Control & BLE for APP
Control 6Pin cable x 1
APM2 AA-AP23122 ADAU1701 Audio Digital Signal Processor Kernel Board -
APM3 AA-AA11428 ADAU1701 Audio Digital Signal Processor Interface Extension Kit 10Pin cable x 1
JAB3-1100 AA-JA31181 1x 100 Watt Class D Audio Amplifier Board with Audio DSP - JAB3-1100
Power cable x 1
Speaker cable x 1
3.5mm AUX IN cable x 1
JAB3-160 AA-JA31211 1 x 60 Watt Class D Audio Amplifier Board with Audio DSP - JAB3-160
JAB3-250 AA-JA32172 2 x 50 Watt Class D Audio Amplifier Board with Audio DSP - JAB3-250
JAB3-230 AA-JA32473 2 x 30 Watt Class D Audio Amplifier Board with Audio DSP - JAB3-230
Notes:
- Represents no basic cable

Interface Definition
In this document, we will mainly give instructions on the following applications:
1) How to achieve programming of APM2 / JAB3 with WONDOM ICP3
2) How to realize APP control of APM2 / JAB3 with WONDOM ICP3
SW MODE FUNCTION
①PROGRAM Programming
②REMOTE APP Control
Micro USB Port
1) DC5V power supply
2) Communication with computer
Bluetooth BLE for communication with
APP (Miumax) to control audio system
SW
For switch between programming and
APP control functions
Programming Port
For connection with applicable
products with a 6-pin cable
KEY1
Reset

Open Source Files
for PROGRAMMING
Products Function File Version Download
APM2 Demonstration of Signal Flow Chart APM2_SigmaStudio.dspproj - Download
JAB3 - Mono Demonstration of Signal Flow Chart JAB3_SigmaStudio_MONO.dspproj - Download
JAB3 - Stereo Demonstration of Signal Flow Chart JAB3_SigmaStudio_STEREO.dspproj - Download
Note: All the "Demonstration of Signal Flow Chart" files are just for signal flow chart demonstration and customers can not u
se them as running programming.

Open Source Files
for APP CONTROL
Products Function Version File
APM2
Demonstration of Signal Flow Chart APM2_APPCtrl.dspproj - Download
Restoring Program APM2_APPCtrl_V1.0.Hex V1.0 (For Miumax V1.0) Download
APM2_APPCtrl_V2.0.Hex V2.0 (For Miumax V2.0) Download
JAB3 - Mono
Demonstration of Signal Flow Chart JAB3_APPCtrl_MONO.dspproj - Download
Restoring Program JAB3_APPCtrl_MONO_E2Prom_V1.0.Hex V1.0 (For Miumax V1.0) Download
JAB3_APPCtrl_MONO_E2Prom_V2.0.Hex V2.0 (For Miumax V2.0) Download
JAB3 - Stereo
Demonstration of Signal Flow Chart JAB3_APPCtrl_STEREO.dspproj - Download
Restoring Program JAB3_APPCtrl_STEREO_E2Prom_V1.0.Hex V1.0 (For Miumax V1.0) Download
JAB3_APPCtrl_STEREO_E2Prom_V2.0.Hex V2.0 (For Miumax V2.0) Download
ICP3 Demonstration of Signal Flow Chart ICP3-DB-DP11224_CtrlFirmware_V1.0.hex V1.0 (For Miumax) Download
ICP3-DB-DP11224_CtrlFirmware_V2.0.hex V2.0 (For Miumax V2.0) Download
ICP5 Demonstration of Signal Flow Chart ICP5-DB-DP11226_CtrlFirmware_V1.0.hex - Download

Open Source Files
for APP CONTROL
Version Update Declaration
V1.0 Supporting APP - Miumax V1.0
V2.0 Supporting APP - Miumax V2.0
NOTES:
1. All the "Demonstration of Signal Flow Chart" files are just for signal flow chart demonstration and customers can not use
them as running programming. If customers
want JAB3 or APM2 to be recognized by PC UI or APP, please burn in the corresponding "Restoring Program" documentation we pro
vide;
2. We will provide the ICP3_Ctrl.hex and ICP5_Ctrl.hex for customers but we will not provide C source code and support in the
programming. If customers want to
program, please use Microchip Kit3/Kit4.
3. The products in red are processing and will be released soon.

Software Download
PROGRAMMING
Analog Devices, Inc.
SigmaStudio™
Android iOS
APP CONTROL
WONDOM ‘Miumax’
Note:
1. It is suggested to use browser to scan the QR code for Android phones.
2. For iOS phones, customers can go to APP Store and search “Miumax” for download directly.

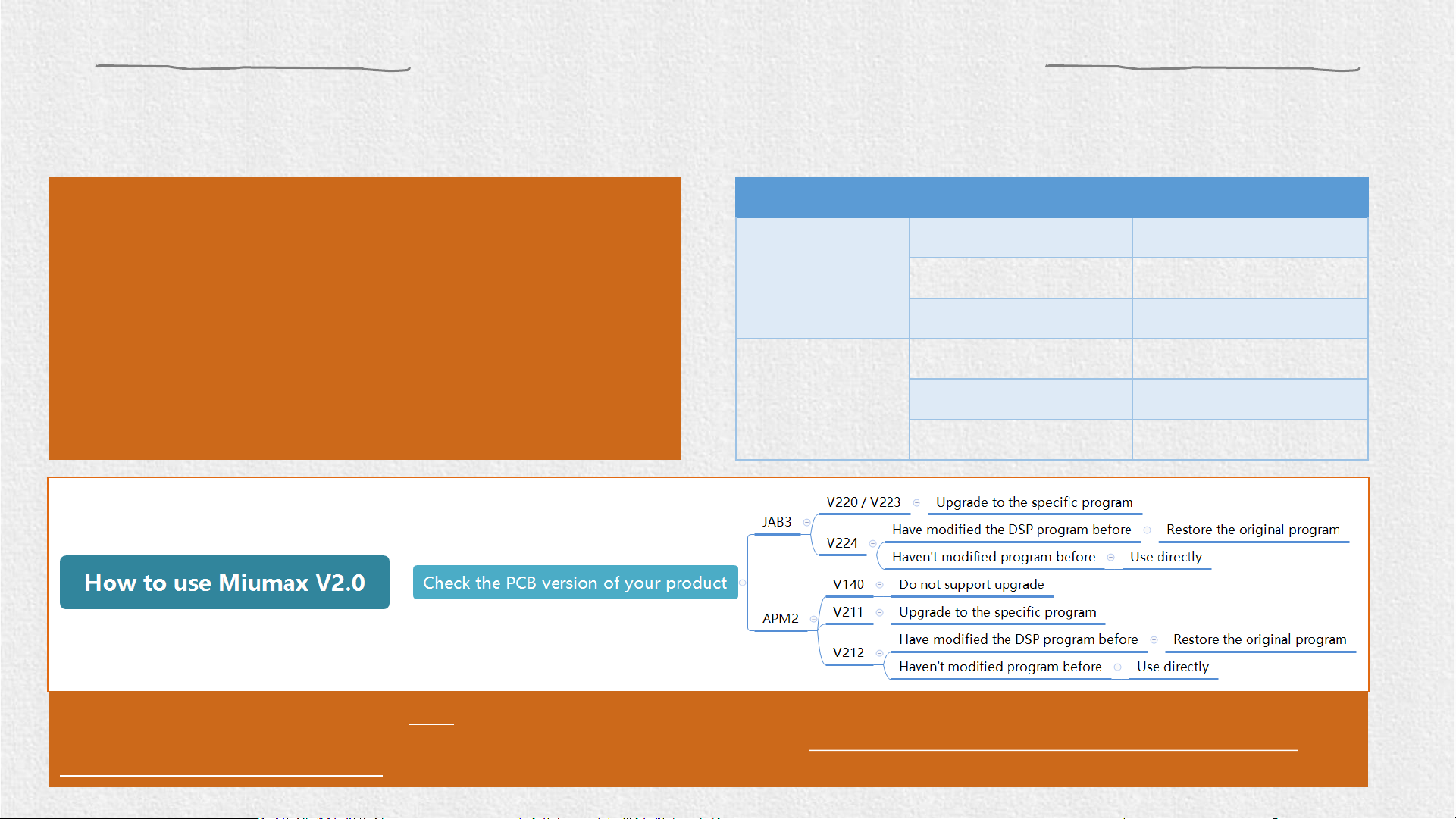

Necessary Requirements
for Use of Miumax V2.0
Please kindly be noted that the specific original
firmware is required for use of Miumax V2.0.
The right chart is the default APP version that products
of different PCB version support.
Product PCB Version Supportive APP
JAB3
V220 -
V223 Miumax V1.0
V224 Miumax V2.0
APM2
V140 -
V211 Miumax V1.0
V212 Miumax V2.0
As for the original firmware, please click HERE to download.
As for how to restore the program, please kindly refer to our video guide on YouTube – “How to use WONDOM ICP3 to program ADAU1701 with
SigmaStudio and realize APP control”.

How to achieve programming of APM2/JAB3
with WONDOM ICP3?
ICP3
WONDOM IN-CIRCUIT PROGRAMMER WITH BLE
BLUETOOTH FOR APP CONTROL - ICP3 VIDEO TUTORIAL >

Before starting, please make sure you have the following items on hand.

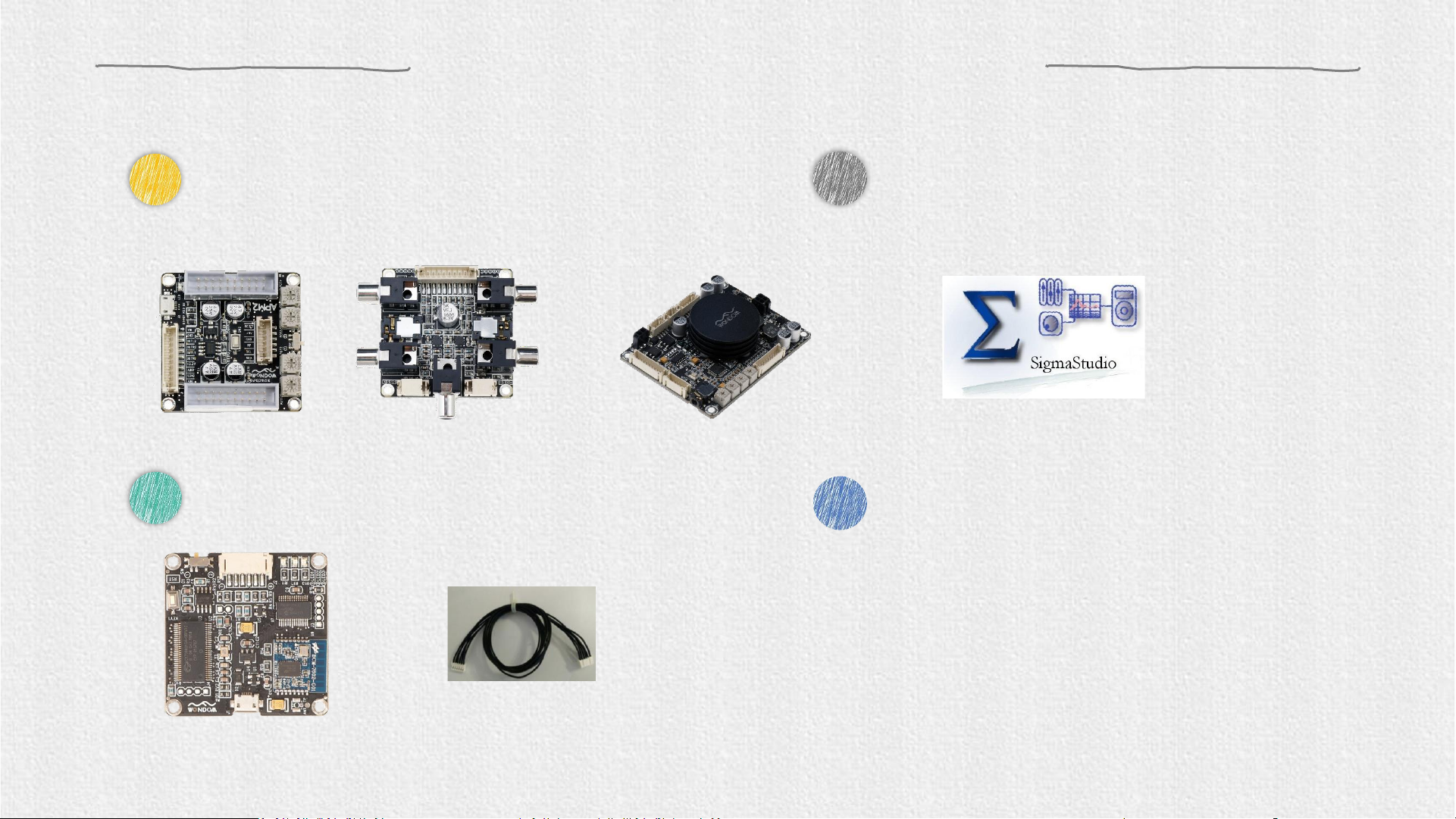

Checklist
1WONDOM APM2+Extension Kit (APM3)/JAB3
2WONDOM ICP3 with a 6-pin cable
3Analog Devices, Inc. SigmaStudio™
4Accessories
Speakers
Cables
Phone
…
OR
+

To quickly get started with the programming of WONDOM APM2 or JAB3 via ICP3, do the
following steps:
1) Install the SigmaStuido software
2) Connect ICP3to computer
3) Connect audio cables of APM2/JAB3
4) Power up the audio system
5) Connect ICP3 with APM2/JAB3
6) Program
Quick Start
Click HERE to watch video.
Since the most steps of programming APM2 and JAB3 are the same, we will take APM2 as an example to
show you how to operate. If there is difference or points to note, we wil mark out with red words.

INSTALLING SIGMASTUDIO SOFTWARE CONNECTING THE AUDIO CABLES
13 42
SETTING UP THE ICP3
POWERING UP THE BOARD
CONNECTING ICP3 WITH APM2 / JAB3
How to program
5
PROGRAMMING
Be sure to follow these connection steps.

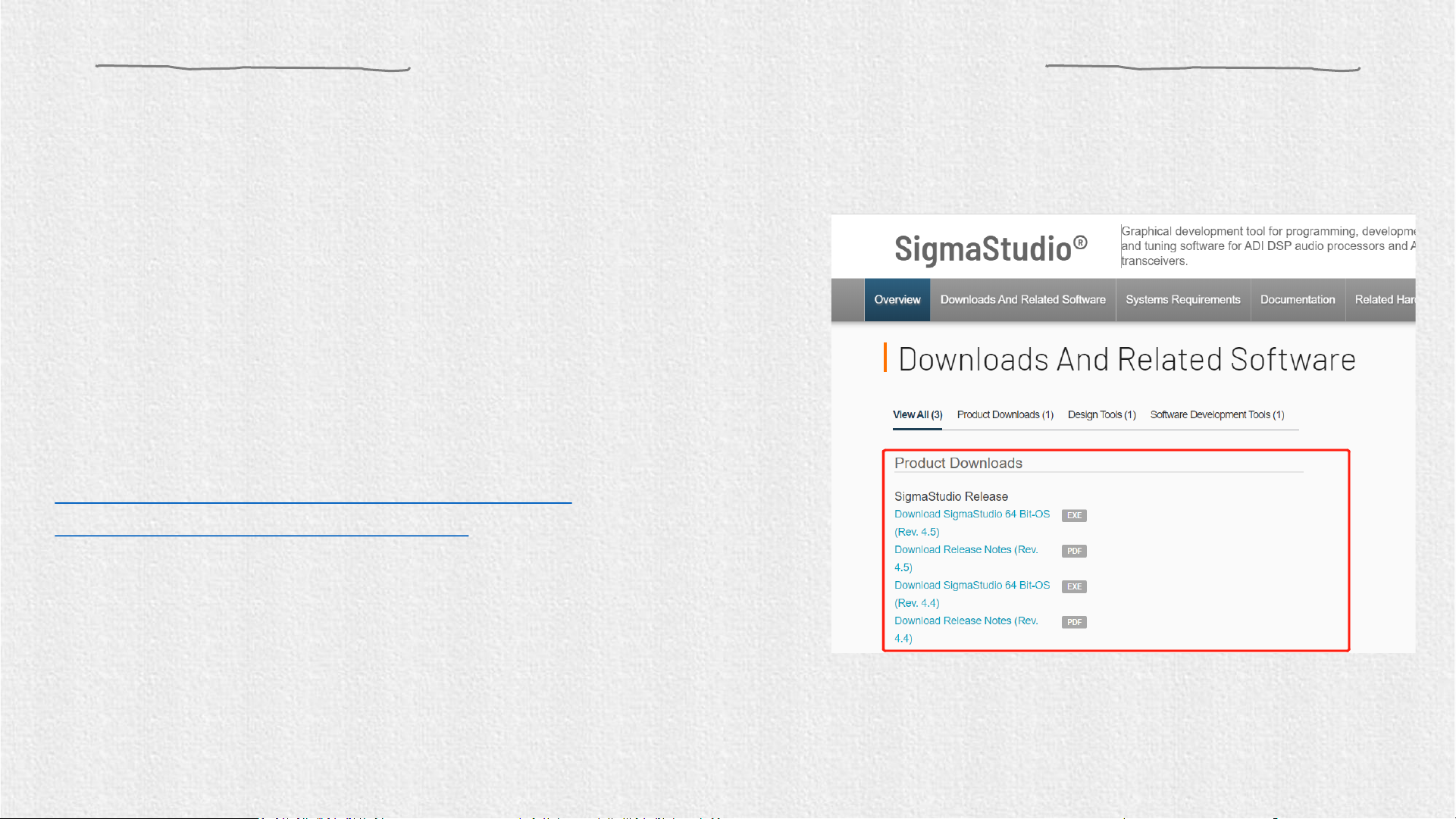

Download the installation package for SigmaStudio software in the
Analog.com. Download address is as follows. Click the EXE file and
finish installation according to the prompts.
https://www.analog.com/en/design-center/evaluation-hardware-and-
software/software/ss_sigst_02.html#software-overview
Installing Sigmastudio
software

2. Set the SW of ICP3 at (PROGRAM)* and connect
the ICP3 to the computer with a USB cable.
1. Compile the needed program in advance.
Setting up the hardware

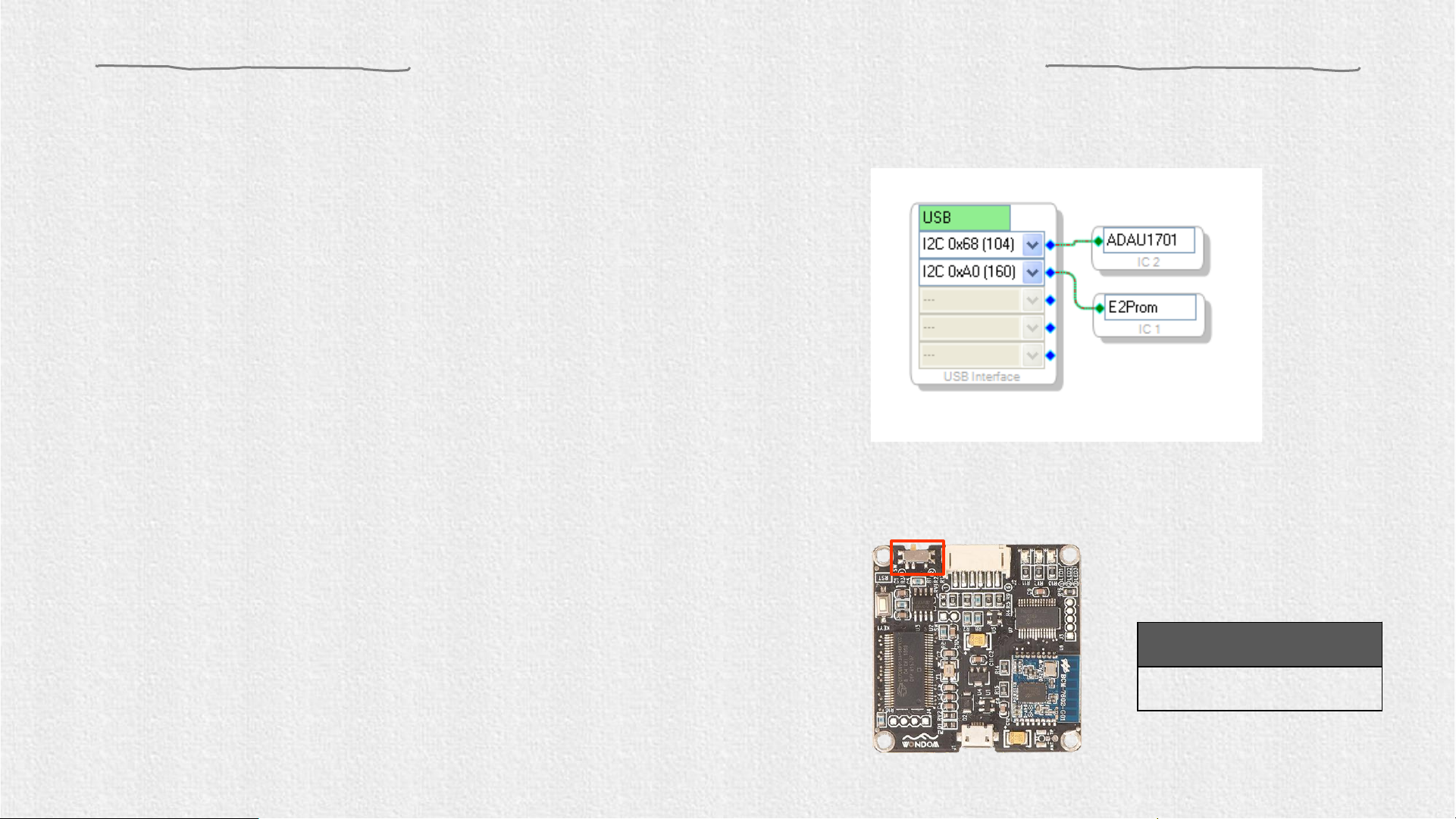

Figure 1

PROGRAM

REMOTE
Setting of SW
SW
4. Please note whether the ICP3 can be recognized by the
computer, if the underpainting of the “USB” turn green, it
represents the ICP3 is recognized, otherwise it will ture
orrange and you should reconnect the ICP3 until it turn
green. See figure 1.
3. Select “USBi” from the list on the left and drag it to
the blank area on the right. Repeat the action to
move “ADAU1701” and “E2Prom” to the right.
*Note：
Customers can realize program with SigmaStudio or APP control of
audio system with ICP3 because of the integrated Bluetooth. We
provide a switch on ICP3 for customers to switch between program
and remote control mode.
Do not connect ICP3 with target products (APM2/JAB3) now.

01.
Connection
02.
Input
03.
Output
Connecting Audio Cables
Use the 10 pin to 10 pin cornoid
to connect APM2 with interface
extension kit (APM3) for playing
music.
This interface extension kit
(APM3) provides three methods
of audio input:
✓RCA
✓3.5mm Aux
✓PH-4PIN-2MM
This interface extension kit
(APM3) provides three channels
of audio output:
✓RCA
✓3.5mm Headphone
✓PH-4PIN-2MM
RCA 3.5mm Aux PH-4PIN-
2MM
RCA 3.5mm
Headphone PH-4PIN- 2MM

Powering up the board
1. Power of APM2:
The DSP Kernel Board (APM2) could be powered by:
1) 5V micro USB through micro USB charging port (J2)
2) External 5-12V DC Supply through Vin control port (J3/J4)
3) External 3.3V DC Supply through +3.3V control port (J3/J4)
2. Power of Extension Kit:
The Extension Kit (APM3) is powered by the Kernel Board (APM2)
3. Power of IC Programmer:
WONDOM IC Programmer could be powered by:
1) 5V micro USB through micro USB charging port (J1)
2) External 5V DC Supply from DSP Kernel Board (APM2)
Power up the APM2.
Make sure the SW1 of APM2 is set at ①(RUN). (Skip this step when programming JAB3)

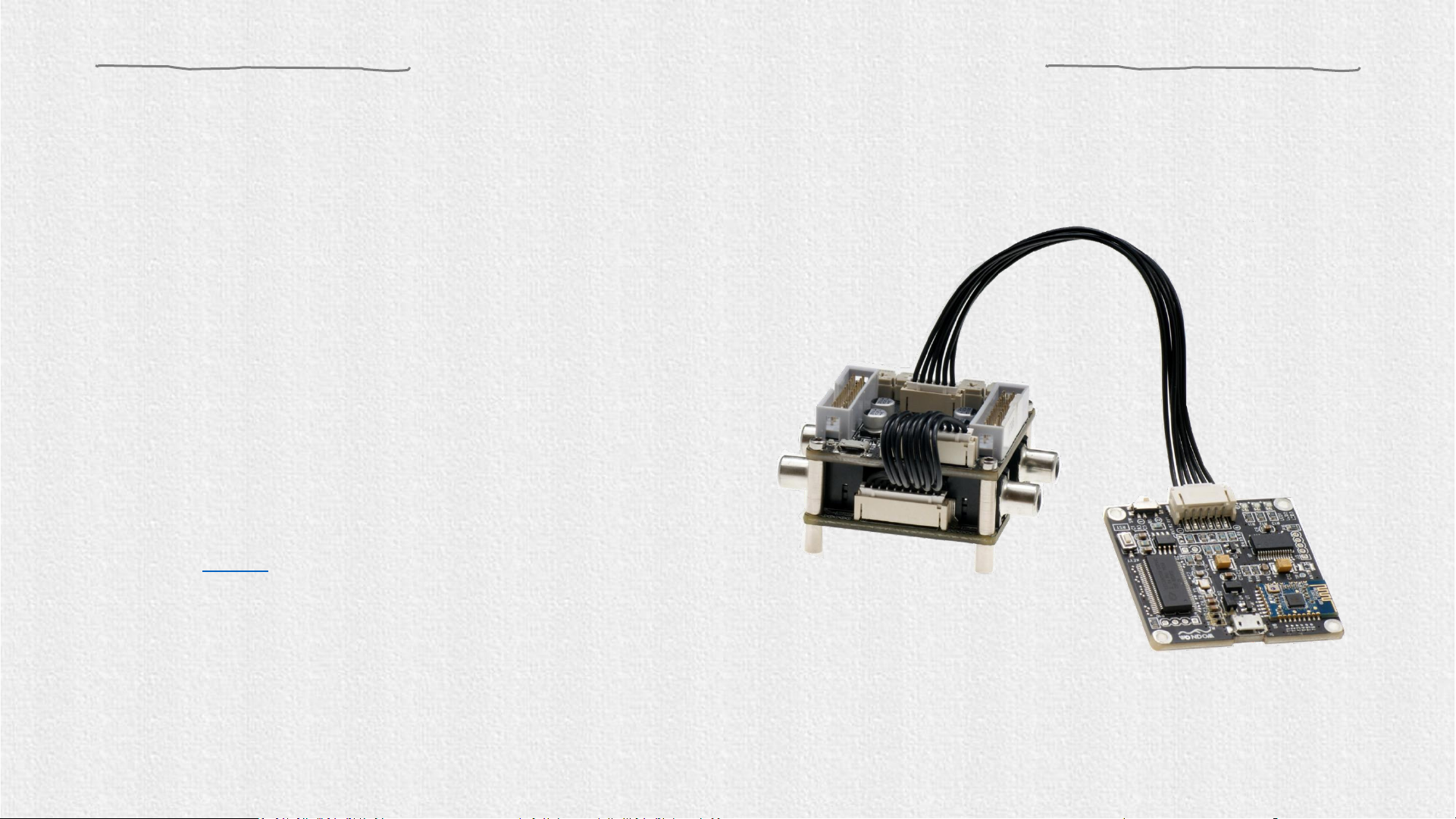

Connect ICP3 with APM3 through 6-pin cable.
Input audio signal to JAB3 and make sure the two LEDs on JAB3 are on before connecting ICP3 with JAB3. Skip this step when
programming APM2.

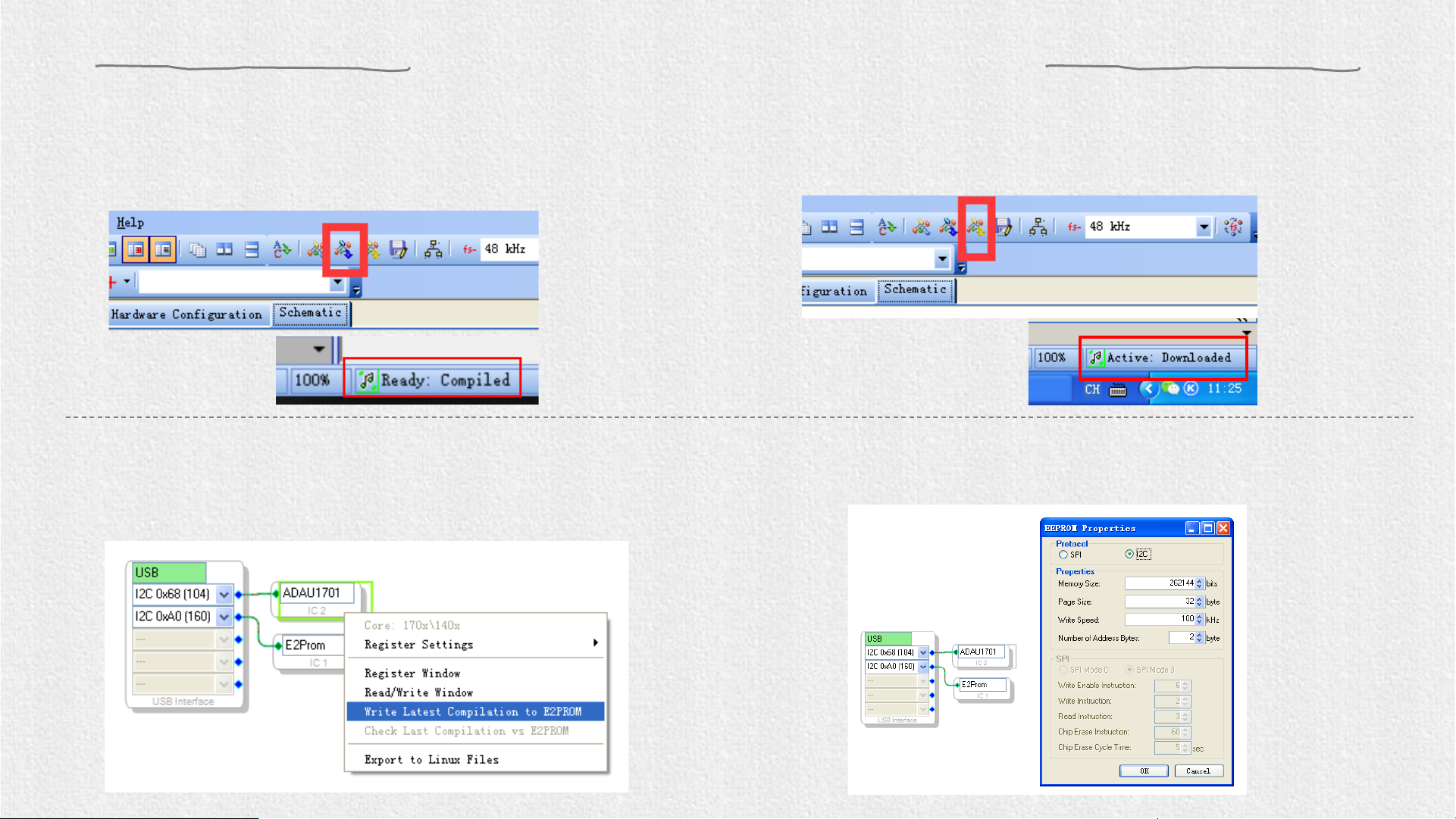

Programming
2.Click the “Link Compile Download” (see figure 3) and
you will find “Active:Compiled” in the lower right
corner of your computer.
3. Make sure the SW of ICP3 is at (PROGRAM) and the SW1 of APM2 is at (RUN), and right-click the “ADAU1701”
and select “Write Latest Compilation to E2PBOM” to download the program (see figure 4), then you will see a window,
choose the “I2C” on the right and click “OK” (see figure 5).
Figure 4
Figure 5
Figure 3
1.Click the “Link Compile Connect” (see figure 2)
and you will find “Ready:Compiled” in the
lower right corner of your computer.
Figure 2

Original Firmware Restore
1. Right click the “E2Prom” (see Figure 6) and click ‘Read/Write Window’. You will see the following interface (Figure 7).
Figure 6 Figure 7
2. Click ‘Click here to browse for file’ and select firmware file (Figure 8). Then click ‘Display File’ like Figure 9.
Figure 8 Figure 9

Original Firmware Restore

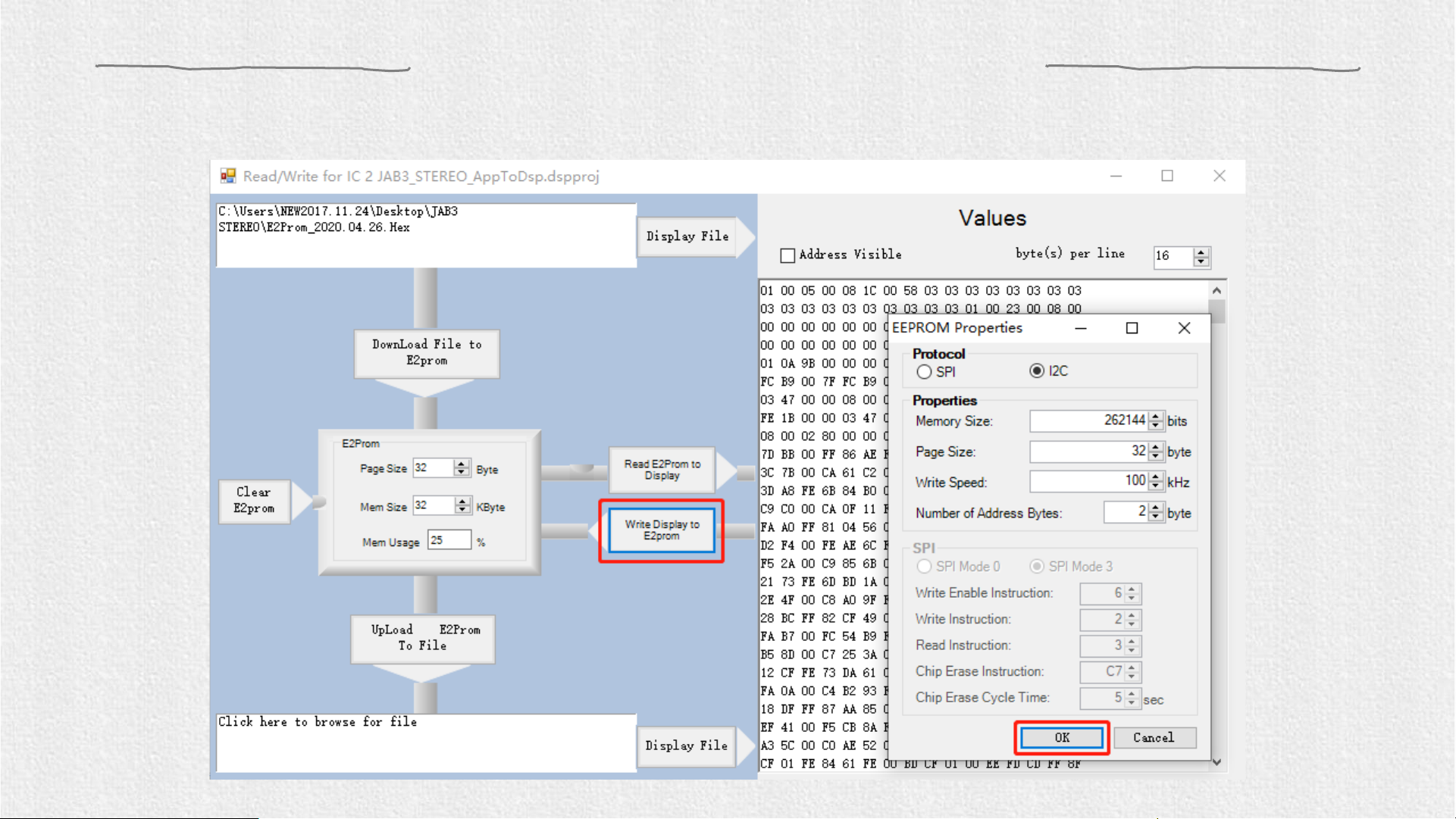

3. Click ‘Write Display to E2prom’ then click ‘OK’ of the prompt box (Figure 10).
Figure 10
