SURIA EURO Series User manual

Operation
Manual Book
EURO SERIES
In order to use the product safely, please read the instruction manual. In addition, please keep the
instruction manual properly.

SURIA GIANT FAN SERVICES SDN BHD (1122001-T)
NO 1-2, JALAN 2/14, DATARAN TEMPLER, BANDAR BARU SELAYANG,
68100 BATU CAVES, SELANGOR DARUL EHSAN.
NO OFFICE: 03-6127 0974
ENGLISH

SURIA GIANT FAN SERVICES SDN BHD (1122001-T)
NO 1-2, JALAN 2/14, DATARAN TEMPLER, BANDAR BARU SELAYANG,
68100 BATU CAVES, SELANGOR DARUL EHSAN.
NO OFFICE: 03-6127 0974
Summary
Thank you for purchasing a gear motor industrial HVLS giant fan (Euro Series). This
operation manual explains how to use the product correctly. Please read this
instruction carefully before use (installation, wiring, operation, maintenance,
inspection, etc). In addition, please use the product after understanding the safety
precautions of the product.
Safety Precautions
General notes:
Please contact our sales consultant and inform us about the problems with
your product due to damage/loss.
This instruction manual is subject to change without prior notice due to
product improvements/specification changes and to improve the
convenience of the instruction manual.
Dangerous:
ATTENTION. Please note all safety information in this instruction manual. Failure to
follow the instruction may result in death or serious injury. The company will not be
responsible for any damage caused by the customer’s failure to comply with the
contents in this instruction manual.
In order to prevent electric shock
Non-professional should not perform repairs / inspections / parts
replacement.
Do not operate with the controller case removed.
Do not perform wiring work while the power is on.
Otherwise there is a risk of electric shock.
Please cut off the power of all equipment before checking and inspection. Even
though the power off, there is residual voltage in the internal capacitor. Wait for
more than one minute after confirming that all indicators are off and the main AC
voltage has dropped to a safe level.

SURIA GIANT FAN SERVICES SDN BHD (1122001-T)
NO 1-2, JALAN 2/14, DATARAN TEMPLER, BANDAR BARU SELAYANG,
68100 BATU CAVES, SELANGOR DARUL EHSAN.
NO OFFICE: 03-6127 0974
Caveat:
Safety level is measure when industrial HVLS giant fans are performed. Before switch
on the power of industrial HVLS giant fan, please make sure that there are no people
touching and no other objects in the relevant area inside and below the industrial
HVLS giant fan.
In order to prevent electric shock
Modification of industrial HVLS giant fans and controllers is strictly
prohibited.
Do not remove the controller case/the button operation panel/touch pad
while the power is on.
To prevent fire
Please confirm whether the rated voltage of industrial HVLS giant fan is consistent
with the power supply voltage before switch on the power. If the main circuit power
supply voltage is used incorrectly, it will definitely cause damage to the product.
Preface
User notice
This manual is for installation, operation and maintenance personnel to
read carefully and follow strictly. The installation and maintenance of the
industrial HVLS giant fan must be performed by a professional.
Protect the product to avoid unnecessary damage during transportation or
installation.
Safety rules
Please confirm in advance whether the input voltage matches with this
product. The standard power supply is 220/415VAC ±10%, 50/60Hz.
When operating the controller, follow the steps of static electricity
protection (ESD) fixation. Otherwise, the internal circuit of the controller
will be damaged by static electricity.
The installation, operation and maintenance of this machine are limited to
the following persons:

SURIA GIANT FAN SERVICES SDN BHD (1122001-T)
NO 1-2, JALAN 2/14, DATARAN TEMPLER, BANDAR BARU SELAYANG,
68100 BATU CAVES, SELANGOR DARUL EHSAN.
NO OFFICE: 03-6127 0974
Designated safety officer, person who has received the necessary
training and has the necessary experience.
This manual instructions can helps you for any situations that may cause
harm to person, equipment or the environment, and must be strictly
followed.
Do not allow children to touch it when running/stopping.
Operating limits & specifications
Operating limits
The company shall not be liable for damage caused by improper use or use
of products beyond the prescribed scope.
This product and accessories are selected and designed according to the
parameters provided by users. If the parameters are changed, inform us to
confirm the feasibility.
The product is not allowed to operate in unstable areas such as high
frequency vibration areas. Please make sure that the installation location is
stable.
The product shall not be operated in harsh conditions such as freezing,
corrosion, explosion and excessive concentration of dust and gas.
Specifications and model
Specification model parameter of Gear motor industrial HVLS giant fan in table
below:
Table 1: Gear Motor Industrial HVLS Giant Fan Technical Data Sheet
Model
Voltage
(v)
Power
(watt)
Speed
(rpm)
Blade
Diameter
(ft)
Air Flow
(CFM)
Noise
(dB)
Weight
(kg)
Euro 12
Euro 14
Euro 16
415
750
70-90
12’-16’
330,000–
390,000
≤40
89-92
Euro 18
Euro 20
415
1500
65-60
18’-20’
420,000-
450,00
≤40
104-106
Euro 22
Euro 24
415
1500
52-50
22’-24’
480,000-
510,000
≤40
108-110

SURIA GIANT FAN SERVICES SDN BHD (1122001-T)
NO 1-2, JALAN 2/14, DATARAN TEMPLER, BANDAR BARU SELAYANG,
68100 BATU CAVES, SELANGOR DARUL EHSAN.
NO OFFICE: 03-6127 0974
Parts & Installation

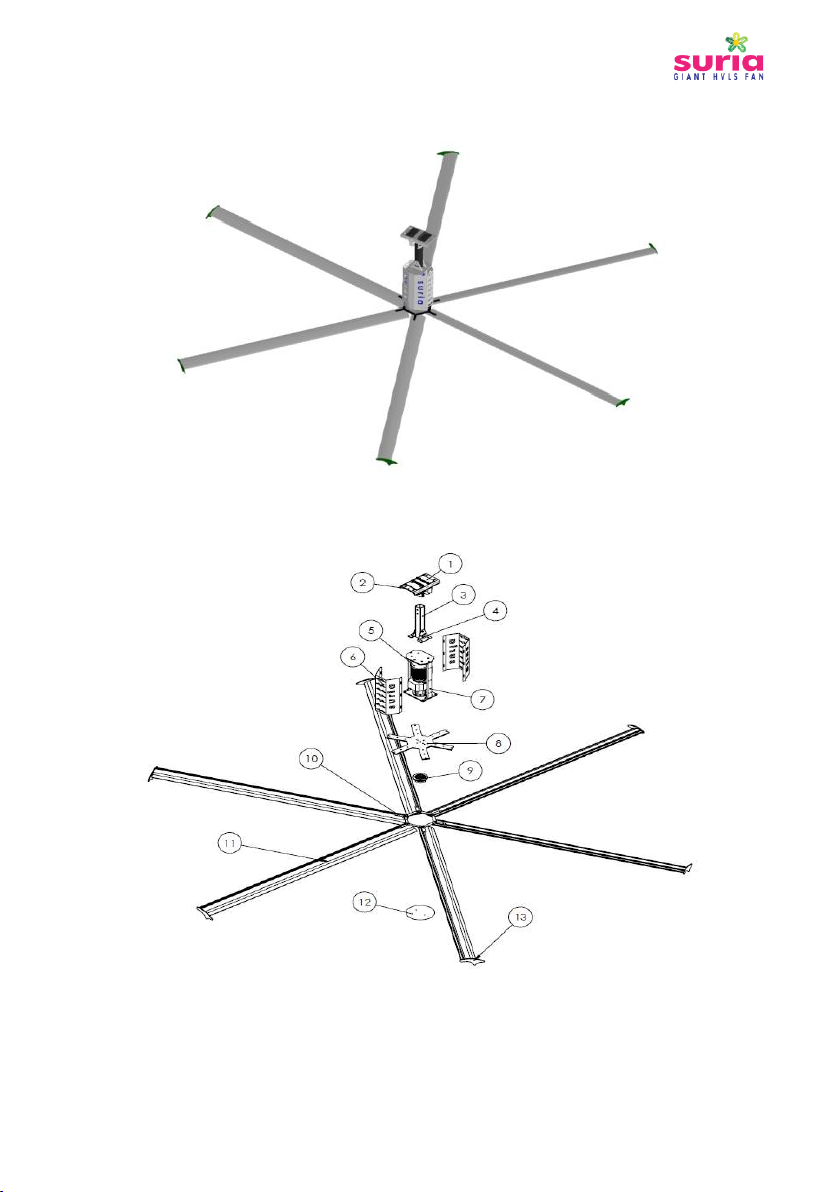

Figure 1: Gear Motor Industrial HVLS Giant Fan (Euro Series)
Figure 2: Exploded View of Euro Series

SURIA GIANT FAN SERVICES SDN BHD (1122001-T)
NO 1-2, JALAN 2/14, DATARAN TEMPLER, BANDAR BARU SELAYANG,
68100 BATU CAVES, SELANGOR DARUL EHSAN.
NO OFFICE: 03-6127 0974
Figure 3: Part of Grande Series (Euro Series –1.5kW @ 0.75kW)
Table 2: Name of components gear motor industrial HVLS giant fan (Euro Series –
1.5kW @ 0.75kW)
No item
Name of part
1
I Beam bracket
2
Fasterner
3
Hollow 4”x4”
4
Lower Bracket
5
Gear motor (WEG –1.5kW / 0.75kW)
6
Cover Frame Motor
7
Frame motor
8
Star Plate
9
Hub Bearing
10
Safety Blade
11
Blade (1.5Kw - 24ft, 22ft, 20ft, 18ft / 0.75Kw –16ft, 14ft, 12ft)
12
Aluminium plate
13
Winglet
13
11
4
2
9
12
5
6
3
7
8
10

SURIA GIANT FAN SERVICES SDN BHD (1122001-T)
NO 1-2, JALAN 2/14, DATARAN TEMPLER, BANDAR BARU SELAYANG,
68100 BATU CAVES, SELANGOR DARUL EHSAN.
NO OFFICE: 03-6127 0974
Wiring
Connection of wire motor
Wiring system
Figure 4: Single Phase Single Line Diagram (Euro Series-0.75kW)
Figure 5: Three Phase Single Line Diagram (Euro Series-1.5kW)
L1
L2
L3
G

SURIA GIANT FAN SERVICES SDN BHD (1122001-T)
NO 1-2, JALAN 2/14, DATARAN TEMPLER, BANDAR BARU SELAYANG,
68100 BATU CAVES, SELANGOR DARUL EHSAN.
NO OFFICE: 03-6127 0974

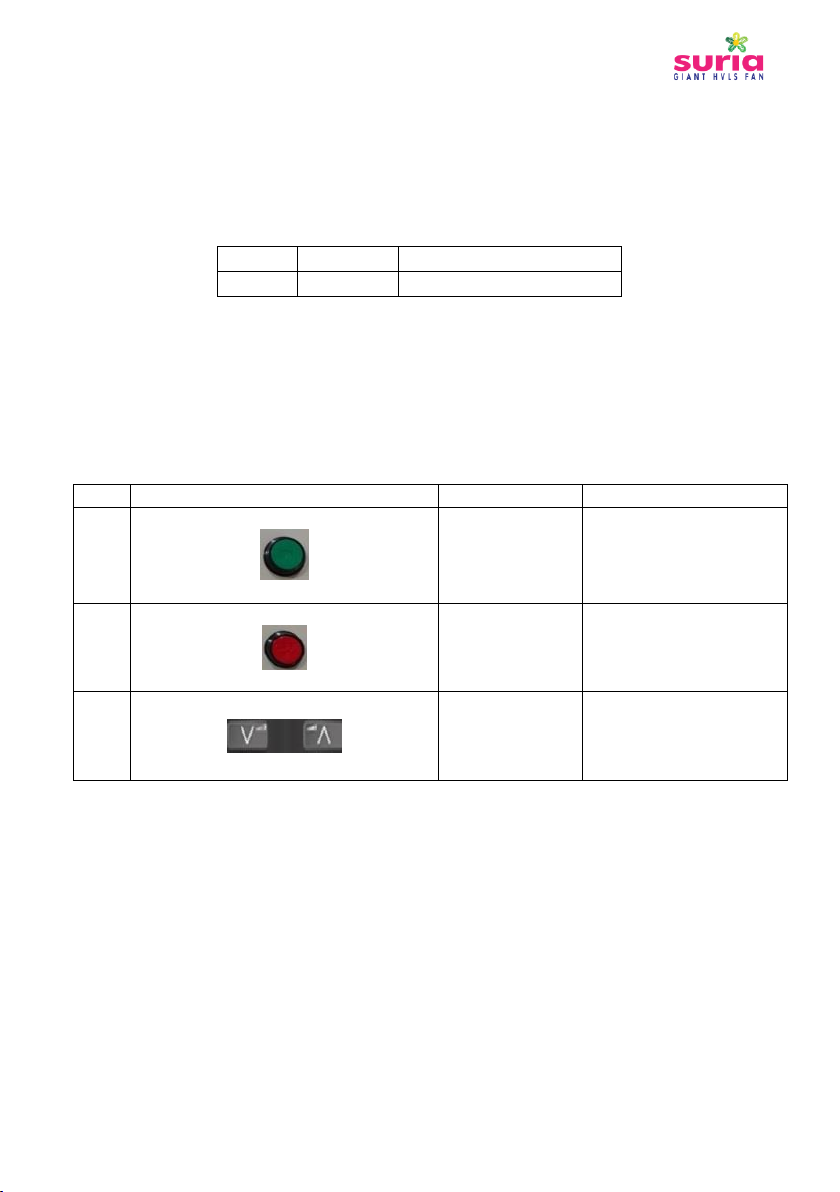

Power on and display status confirmed
Power supply voltage confirmation: 220v
After switching on the power, the display screen normally as follows:
No.
Display
Description
1.
30-47 Hz
speed
Basic operation and operation
Industrial HVLS giant fan can display various data, parameters and warnings through
the display screen. It can be operate by the button. There are different types of
product according to the actual customer requirements of the product.
The name and function of each section:
No
Operating part
Name
Function
1.
Start button
To run fan
2.
Stop button
To stop fan
3.
Speed button
up : Increase speed of
fan
down : Reduce speed of
fan

SURIA GIANT FAN SERVICES SDN BHD (1122001-T)
NO 1-2, JALAN 2/14, DATARAN TEMPLER, BANDAR BARU SELAYANG,
68100 BATU CAVES, SELANGOR DARUL EHSAN.
NO OFFICE: 03-6127 0974

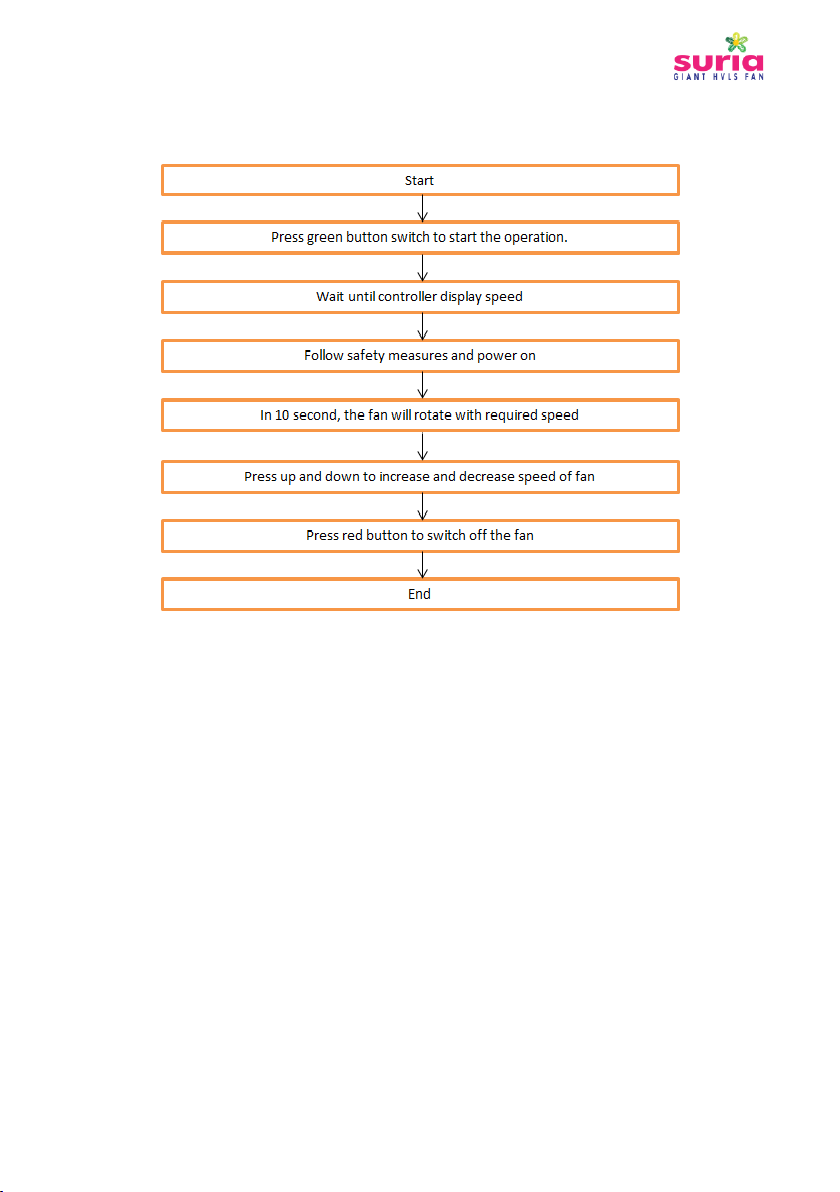

Operating instructions:
Regular inspection and maintenance
Electronic equipment and other components cannot be used permanently even
though in normal working conditions. If the service limit is exceeded, there will be a
change in characteristics or malfunction. To prevent this type of failure, periodic
inspections are required. It is recommended to check the machine every 6-12 month
after installation.

SURIA GIANT FAN SERVICES SDN BHD (1122001-T)
NO 1-2, JALAN 2/14, DATARAN TEMPLER, BANDAR BARU SELAYANG,
68100 BATU CAVES, SELANGOR DARUL EHSAN.
NO OFFICE: 03-6127 0974
Table 3: Regular inspection and maintenance schedule
No
Check the
object
Check the content
Solutions
1.
Overall
Dirt, dust
Parts are
damaged/deformed
Parts that are discoloured
due to time
Replace damaged parts
Contact our after-sales
service
Remove dust/dirt with dry
towel.
2.
Motor
If there is abnormal vibration or
sound when the product is running
Turn off the fan, contact and
consult our after-sales
service
Inspect parts and fastening
connections and tighten all
screws
3.
Controller
system
Confirm whether the
cooling fan is stained with
dust/dirt.
Check the wires and
internal connecting wires
are discoloured, damaged
or detached
Check the wire cladding is
damaged, cracked, or
discoloured
Check the connecting
terminal is worn, damaged
or loose
Check the capacitance
expansion, discoloration,
cracking
Clean/replace the cooling fan
Repair/replace damaged
wires and connectors
Contact the company after
sale if unable to replace or
repair.
4.
LED
Operator
Check the operating parts
operate correctly
Check the operating part
dirty
If LED or operation keys are
defective, please contact our
after-sales service.
Remove dust/dirt with dry
towel. Do no wipe with
water.

SURIA GIANT FAN SERVICES SDN BHD (1122001-T)
NO 1-2, JALAN 2/14, DATARAN TEMPLER, BANDAR BARU SELAYANG,
68100 BATU CAVES, SELANGOR DARUL EHSAN.
NO OFFICE: 03-6127 0974
BAHASA MELAYU

SURIA GIANT FAN SERVICES SDN BHD (1122001-T)
NO 1-2, JALAN 2/14, DATARAN TEMPLER, BANDAR BARU SELAYANG,
68100 BATU CAVES, SELANGOR DARUL EHSAN.
NO OFFICE: 03-6127 0974
Ringkasan
Terima kasih kerana membeli kipas gergasi HVLS industri motor gear (Euro Series).
Manual operasi ini menerangkan cara menggunakan produk dengan betul. Sila baca
arahan ini dengan teliti sebelum digunakan (pemasangan, pendawaian, operasi,
penyelenggaraan, pemeriksaan, dll). Di samping itu, sila gunakan produk setelah
memahami langkah keselamatan produk.
Amaran keselamatan
Nota umum:
Sila hubungi perunding penjualan kami dan beritahu kami mengenai
masalah produk anda kerana kerosakan/kerugian.
Manual arahan ini boleh berubah sebelumnya kerana perubahan produk
dan spesifikasi dan untuk meningkatkan kemudahan manual arahan.
Amaran:
PERHATIAN. Sila fahamkan semua maklumat keselamatan dalam manual arahan ini.
Kegagalan mengikuti arahan boleh mengakibatkan kematian atau kecederaan yang
serius. Syarikat tidak akan bertanggungjawab atas kerosakan yang disebabkan oleh
kegagalan pelanggan untuk mematuhi isi kandungan dalam manual arahan ini.
Untuk mengelakkan kejutan elektrik
Bukan profesional tidak boleh melakukan pembaikan/pemeriksaan/
penggantian alat ganti.
Jangan beroperasi ketika penutup kawalan terbuka.
Jangan melakukan kerja pendawaian semasa kuasa dihidupkan.
Jika tidak, terdapat risiko kejutan elektrik.
Tolong tutup semua kuasa peralatan sebelum pemeriksaan. Terdapat sisa voltan
pada kapasitor dalaman walaupun kuasa telah dimatikan. Tunggu lebih dari satu
minit setelah mengesahkan bahawa semua kuasa peralatan telah mati dan voltan AC
utama telah capai ke tahap yang selamat.

SURIA GIANT FAN SERVICES SDN BHD (1122001-T)
NO 1-2, JALAN 2/14, DATARAN TEMPLER, BANDAR BARU SELAYANG,
68100 BATU CAVES, SELANGOR DARUL EHSAN.
NO OFFICE: 03-6127 0974
Amaran:
Tahap keselamatan diukur semasa kipas gergasi HVLS industri dilakukan. Sebelum
menghidupkan kuasa kipas gergasi HVLS industri, pastikan bahawa tidak ada orang
yang menyentuh dan tidak ada objek lain di kawasan yang berkaitan di dalam dan di
bawah kipas gergasi HVLS industri.
Untuk mengelakkan kejutan elektrik
Pengubahsuaian kipas gergasi HVLS industri dan kawalan dilarang sama
sekali.
Jangan buka penutup kawalan/panel operasi butang/pad sentuh semasa
kuasa dihidupkan.
Untuk mengelakkan kebakaran
Sila pastikan sama ada voltan kipas gergasi HVLS industri selaras dengan voltan
bekalan kuasa sebelum menghidupkan kuasa. Sekiranya voltan bekalan kuasa litar
utama digunakan dengan tidak betul, ia pasti akan menyebabkan kerosakan pada
produk.
Notis pengguna
Manual ini adalah untuk kakitangan pemasangan, operasi dan
penyelenggaraan untuk membaca dan dengan teliti. Pemasangan dan
penyelenggaraan kipas gergasi HVLS industri mesti dilakukan oleh seorang
profesional.
Lindungi produk untuk mengelakkan kerosakan semasa pengangkutan atau
pemasangan.
Peraturan keselamatan
Sila sahkan terlebih dahulu sama ada voltan input sesuai dengan produk ini.
Bekalan kuasa standard ialah 220/415VAC ± 10%, 50 / 60Hz.
Semasa mengendalikan alat kawalan, ikuti langkah-langkah penetapan
perlindungan elektrik statik (ESD). Jika tidak, litar dalaman pengawal akan
rosak oleh elektrik statik.
Pemasangan, operasi dan penyelenggaraan mesin ini terhad kepada orang-
orang berikut:

SURIA GIANT FAN SERVICES SDN BHD (1122001-T)
NO 1-2, JALAN 2/14, DATARAN TEMPLER, BANDAR BARU SELAYANG,
68100 BATU CAVES, SELANGOR DARUL EHSAN.
NO OFFICE: 03-6127 0974
Pegawai keselamatan yang dilantik, orang yang telah menerima
latihan dan pengalaman yang diperlukan.
Arahan manual ini dapat membantu anda dalam sebarang keadaan yang
boleh menyebabkan bahaya kepada orang, peralatan/persekitaran, dan
mesti dipatuhi dengan betul.
Jangan biarkan kanak-kanak menyentuh semasa beroperasi/berhenti.
Had & spesifikasi operasi
Had operasi
Syarikat tidak akan bertanggungjawab ke atas kerosakan yang disebabkan
oleh penggunaan/penggunaan produk yang tidak betul di luar skop yang
ditetapkan.
Produk dan aksesori ini dipilih dan dirancang mengikut parameter yang
disediakan oleh pengguna. Sekiranya parameter diubah, maklumkan kepada
kami untuk mengesahkan sebarang kemungkinan.
Produk tidak dibenarkan beroperasi di kawasan yang tidak stabil seperti
kawasan getaran frekuensi tinggi. Pastikan lokasi pemasangan stabil.
Produk tidak boleh dikendalikan dalam keadaan yang teruk seperti
pembekuan, kakisan, letupan dan kepekatan habuk dan gas yang
berlebihan.
Spesifikasi dan model
Jadual di bawah menunjukkan spesifikasi parameter model kipas gergasi HVLS
perindustrian motor gear:
Jadual 1: Lembaran Data Teknikal Kipas Gergasi Industri Motor Gear
Model
Voltan
(v)
Kuasa
(watt)
Kelajuan
(rpm)
Diameter
Bilah(ft)
Aliran
Udara
(CFM)
Bunyi
(dB)
Berat (kg)
Euro 12
Euro 14
Euro 16
415
750
70-90
12’-16’
330,000–
390,000
≤40
89-92
Euro 18
Euro 20
415
1500
65-60
18’-20’
420,000-
450,00
≤40
104-106
Euro 22
Euro 24
415
1500
52-50
22’-24’
480,000-
510,000
≤40
108-110

SURIA GIANT FAN SERVICES SDN BHD (1122001-T)
NO 1-2, JALAN 2/14, DATARAN TEMPLER, BANDAR BARU SELAYANG,
68100 BATU CAVES, SELANGOR DARUL EHSAN.
NO OFFICE: 03-6127 0974
Bahagian & Pemasangan
Rajah 1: Kipas Gergasi Industri Motor Gear (Euro Series)
Rajah 2: Pecahan Bahagian Euro Series

SURIA GIANT FAN SERVICES SDN BHD (1122001-T)
NO 1-2, JALAN 2/14, DATARAN TEMPLER, BANDAR BARU SELAYANG,
68100 BATU CAVES, SELANGOR DARUL EHSAN.
NO OFFICE: 03-6127 0974
Rajah 3: Bahagian komponen (Euro Series –1.5kW @ 0.75kW)
Jadual 2: Nama komponen kipas gergasi industri motor gear (Euro Series –1.5kW
@ 0.75kW)
No item
Nama Komponen
1
I Beam bracket
2
Fasterner
3
Hollow 4”x4”
4
Lower Bracket
5
Gear motor (WEG –1.5kW / 0.75kW)
6
Cover Frame Motor
7
Frame motor
8
Star Plate
9
Hub Bearing
10
Safety Blade
11
Blade (1.5Kw - 24ft, 22ft, 20ft, 18ft / 0.75Kw –16ft, 14ft, 12ft)
12
Aluminium plate
13
Winglet
13
11
4
2
9
12
5
6
3
7
8
10

SURIA GIANT FAN SERVICES SDN BHD (1122001-T)
NO 1-2, JALAN 2/14, DATARAN TEMPLER, BANDAR BARU SELAYANG,
68100 BATU CAVES, SELANGOR DARUL EHSAN.
NO OFFICE: 03-6127 0974
Pendawaian
Sambungan motor wayar
Sistem Pendawaian
Rajah 4: Garis Tunggal Satu Fasa (Euro Series-0.75kW)
Rajah 5: Garis Tunggal Tiga Fasa (Euro Series-1.5kW)
L1
L2
L3
G

SURIA GIANT FAN SERVICES SDN BHD (1122001-T)
NO 1-2, JALAN 2/14, DATARAN TEMPLER, BANDAR BARU SELAYANG,
68100 BATU CAVES, SELANGOR DARUL EHSAN.
NO OFFICE: 03-6127 0974
Status hidup dan paparan disahkan
Pengesahan voltan bekalan kuasa: 220v
Setelah kuasa dihidupkan, skrin paparan biasanya seperti berikut:
No.
Display
Description
1.
30-47 Hz
speed
Operasi dan operasi asas
Kipas gergasi HVLS industri dapat memaparkan pelbagai data, parameter dan
amaran melalui layar paparan. Ia boleh dikendalikan dengan menggunakan butang.
Terdapat pelbagai jenis produk mengikut kehendak pelanggan.
Nama dan fungsi setiap bahagian:
No
Bahagian Operasi
Nama
Fungsi
1.
Butang mula
Untuk menggerakkan
kipas gergasi.
2.
Butang berhenti
Untuk memberhentikan
kipas gergasi.
3.
Butang Kelajuan
atas : meningkatkan
kelajuan kipas.
bawah : mengurangkan
kelajuan kipas.
