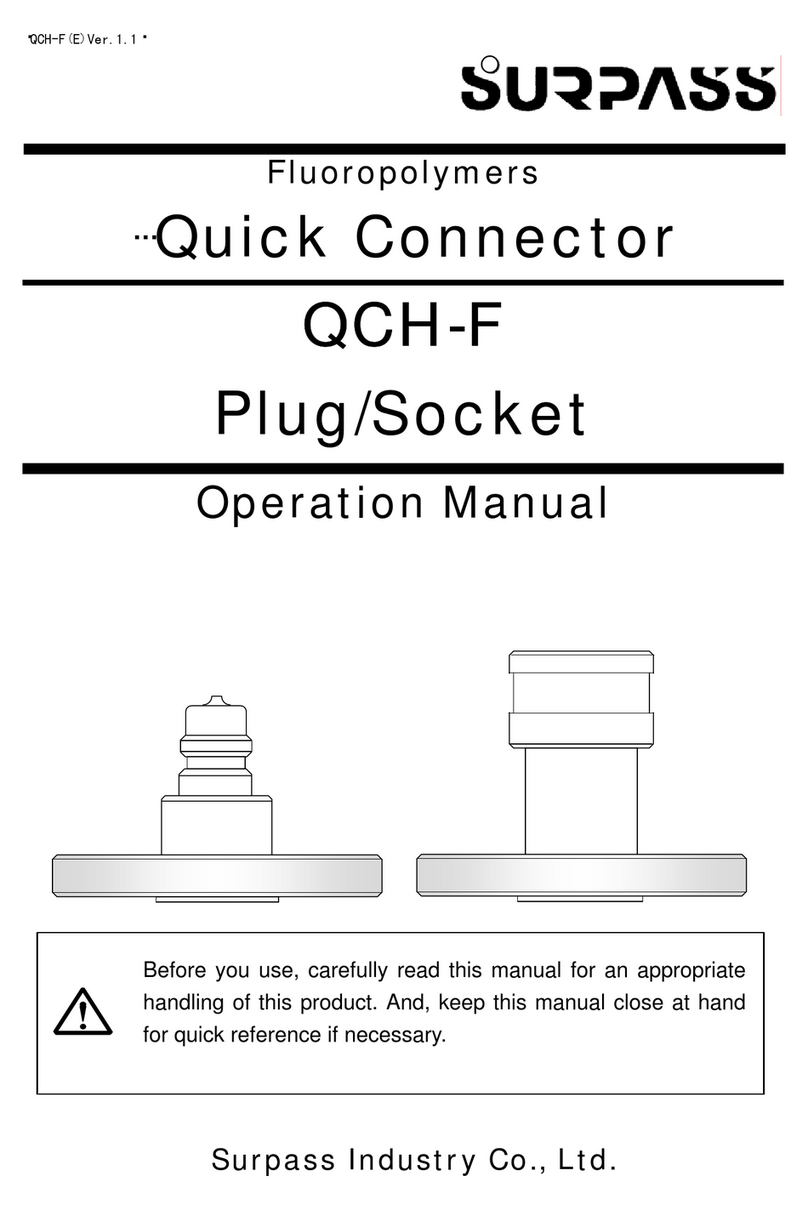

Surpass QCH User manual

00ZX418369E-01 1/16
Quick Connector
QCH
Operation Manual
Surpass Industry Co., Ltd.
2009/12

00ZX418369E-01 2/16
Before You Use


< Description of Operation Manual and Warning Labels >
●The information described in this manual is subject to change without
prior notice, due to improvements of product in performance and/or
functionality.
●The WARNING label instructing handling of socket must be
labeled on an easily visible spot close to the socket-mounted
place.
●No parts of Operation Manual may be reproduced or utilized in any
form or by any means.
●Please download the electronic manual from our homepage in case
that you lost this manual.
●Every effort was made to ensure that all information included in
Operation Manual were complete and accurate at the time of printing.
However, if you have any point of doubt, errors, and omissions, please
contact Surpass Industry.

<Call to:>
Surpass Industry Co., Ltd.
2203 Shimooshi, Gyoda-shi, Saitama 361-0037 Japan
Tel.: [phone]Fax.: [phone]
URL：http://www.surpassindustry.co.jp
C2009 Surpass Industry Co.,Ltd. All rights reserved.
WARNING
●Confirm the compatibility of the type of fluid to be used and the
material of the part in contact with fluids before using this
product.
●Before using this product, carefully read this operation manual
to learn the correct usage of this product.
●Keep this manual at hand to see it any time you need.
●Follow the correct usage of this product specified in this
manual.
●Comply with the statements of warning described in this
manual.
The above instructions are mandatory. Neglecting these
instructions may result in personal injury or accidents.

00ZX418369E-01 3/16
Important Safety Instructions

About Marks Used
Warnings and cautionary notes are provided in this manual to ensure this
product is used correctly and to prevent personal injury and property damage.
The meanings of the WARNING and CAUTION symbols in this manual are
as described below. Read and understand these notes before reading the
rest of this manual.
In particular, fully understand and obey the instruction of DANGER mark.











Provides important notices and indications to operate
the product correctly.
DANGER
This symbol indicates warnings against impending
danger which, if not observed, may cause death or
severe injury to the user.
WARNING 
This symbol indicates warnings which, if not
observed, may cause death or severe injury to the
user.
CAUTION 
This symbol indicates warnings which, if not
observed, may physically impair the user or damage
surrounding objects.

00ZX418369E-01 4/16
DANGER and WARNING Statements
Before use of this product, carefully read the statements of DANGER and
WARNING marks and comply with them.
○General Instructions on Mounting



















○Instructions on Handling

DANGER This is Mandatory Rule!!
●Whenever using this product for hazardous chemical fluids or
solvents, wear anti-chemical protective gear (protective gloves,
protective mask, and protective clothing) that completely protects
your body. Exposure of chemical fluids may result in personal
injury.
WARNING
●Whenever connecting the connector, make sure that the paired female
thread used for it is NPT or PT and then use the appropriate male
thread. Using inappropriate male threads may result in personal injury
due to leakage of chemical fluids.
●Connecting the taper threads in the specified usage and procedures.
Connecting the taper threads in the wrong usage or procedures may
result in personal injury due to leakage of chemical fluids.
WARNING
●Do not damage the connecting part (wound with seal-tape) of plug and
socket. Damage of product may result in personal injury due to leakage
of chemical fluids.
●Do not contact the connector to any rigid materials because it is made
of resin materials. Damage of product caused by contact may result in
personal injury due to leakage of chemical fluids.

00ZX418369E-01 5/16
○Instructions on Mounting

























○Instructions on Maintenance and Inspection






●Release pressure from the piping before attaching/detaching the
connector. A pressurized condition may cause spouting of
chemicals, resulting in personal injury.
●Always wear anti-chemical protective gear (protective gloves,
protective mask, and protective clothing) that protects your entire
body when attaching/detaching the connector. A contact with
chemicals may cause personal injury.
●Attach/detach the connector in a clean place with no dust.
Degradation of sealing performance due to adhesion of dust may
cause liquid leakage, resulting in personal injury.
●Always attach/detach the connector at right angle to the surface of
container. Attaching/detaching the connector at an angle may
cause spouting of chemicals, resulting in personal injury.
●Do not apply the connector to rotary joint or other rotary
application. Lower tackiness caused by the wrong application may
result in personal injury due to leakage of chemical fluids.
●When the connector is connected, make sure that the connector is
fully connected. The chemicals may splash and personal injury
may be caused.
●Use out of the operating pressure range may result in slip-off. Be
sure to use within the operating pressure range.
DANGER This is Mandatory Rule!!
●Surpass Industry is not be liable to any failure or leakage of the product
due to O-Ring replacement and/or disassembly performed by any
parties other than Surpass Industry.
●When you need maintenance work, please call Surpass Industry.
CAUTION
・Apply operating fluid or pure water to the O-Ring of the socket
(inner) or O-Ring sliding part of the plug (sealing part) when
connecting the socket or plug to prevent the O-Ring from being
damaged and to reduce the slide resistance (insertion load).
・Do not use abrasive compound or fluid that is easy to clot as
they may impair normal function.

00ZX418369E-01 6/16
1. Description
Fluoropolymers Quick Connector Series are the "one-touch" (instant lock)
typed connectors for high-purity chemicals used in semi-conductor
manufacturing process. These connectors have proven their reliability and
convenience over many years. Also, repeated efforts to improve
chemical-resistance, leak-resistance, and particle reduction for higher
quality allow our connectors to be applied to various type chemicals.


2. Application
●Containers for high-purity semi-conductor chemicals
●Semi-conductor manufacturing equipment
●Biochemistry, physics and chemistry equipment
●Pure water equipment
●Medical equipment
●Environmental equipment






3. Specification 
■Operating Fluid Pressure ：0～450 kPa (65.25 psi)
■Withstanding Pressure ：550 kPa (79.75 psi)
■Operating Environmental Temperature ：5～60 ℃(41～140 °F)
■Operating Fluid Temperature ：5～70 ℃(41～158 °F)
■Wettedparts ：PCTFE, PTFE, PFA,
O RING(Depends on the material.)
Do not use abrasive compound or fluid that is easy to clot as they
may impair normal function.

00ZX418369E-01 7/16
4. Outside Dimensions

PLUG















SOCKET

















00ZX418369E-01 8/16
5. Mounting
5-1 Unpacking
Carefully unpack the package not to damage the plug and
socket.

5-2 Where to Mount
■Mount the connector in the place where the bending or
tensile stress can not be produced.
■Mount the connector in the place where excessive vibration
or shock can not be produced.
●Whenever using this product for hazardous chemical fluids or
solvents, wear anti-chemical protective gear (protective gloves,
protective mask, and protective clothing) that completely protects
your body. Exposure of chemical fluids may result in personal
injury.
DANGER This is Mandatory Rule!!

00ZX418369E-01 9/16
5-3 Connecting the Taper Threads
①Wind the paired male thread for the female thread of
connector with PTFE seal-tape three or four times.






























WARNING
●Whenever connecting the connector, make sure that the paired female
thread used for it is NPT or PT and then use the appropriate male
thread. Using inappropriate male threads may result in personal injury
due to leakage of chemical fluids.
●Connecting the taper threads in the specified usage and procedures.
Connecting the taper threads in the wrong usage or procedures may
result in personal injury due to leakage of chemical fluids.
・The female thread can be used for tubing. As the paired male
thread, use the taper male.
・Use the male thread that is made of materials such as PTFE,
PCTFE, PFA, PE, and PP, but not made of rigid materials like
metal.
・Whenever using the female thread, wind it with PTFE seal-tape
three or four times and tighten it.

00ZX418369E-01 10/16
6. Mounting Procedures


































・Apply operating fluid or pure water to the O-Ring of the socket
(inner) or O-Ring sliding part of the plug (sealing part) when
connecting the socket or plug to prevent the O-Ring from being
damaged and to reduce the slide resistance (insertion load).
・Do not use abrasive compound or fluid that is easy to clot as
they may impair normal function.
●Release pressure from the piping before attaching/detaching the
connector. A pressurized condition may cause spouting of
chemicals, resulting in personal injury.
●Always wear anti-chemical protective gear (protective gloves,
protective mask, and protective clothing) that protects your entire
body when attaching/detaching the connector. A contact with
chemicals may cause personal injury.
●Attach/detach the connector in a clean place with no dust.
Degradation of sealing performance due to adhesion of dust may
cause liquid leakage, resulting in personal injury.
●Always attach/detach the connector at right angle to the surface of
container. Attaching/detaching the connector at an angle may
cause spouting of chemicals, resulting in personal injury.
●Do not apply the connector to rotary joint or other rotary
application. Lower tackiness caused by the wrong application may
result in personal injury due to leakage of chemical fluids.
●When the connector is connected, make sure that the connector is
fully connected. The chemicals may splash and personal injury
may be caused.
●Use out of the operating pressure range may result in slip-off. Be
sure to use within the operating pressure range.
DANGER This is Mandatory Rule!!

00ZX418369E-01 11/16

6-1 Connecting Procedures
①Before connecting the connector, make sure that the
pressure in tube is not pressurized.







②Pull the socket sleeve by hand.(See Fig. 1 and photo.)












③Insert the socket into the plug by pulling the socket sleeve
until the head of socket reaches the plug.
(See Fig. 2 and photo.)

・Whenever connecting the socket, pull the sleeve by hand. Pulling
sleeve allows socket connection.
・Apply operating fluid or pure water to the O-Ring of the socket
(inner) or O-Ring sliding part of the plug (sealing part) when
connecting the socket or plug to prevent the O-Ring from being
damaged and to reduce the slide resistance (insertion load).
●Release pressure
f
rom the piping before attaching the connector.
A pressurized condition may cause spouting of chemicals,
resulting in personal injury.
●Connect the tube without any moment or tension to bend the joint
portion.
DANGER This is Mandatory Rule!!

00ZX418369E-01 12/16
④Return the socket sleeve to its origin position.
(See Fig. 3 and photo.)







⑤Make sure that the socket has been securely connected to
the plug.(See Fig. 4 and photo.)









6-2 Fluid Transport
Before fluid transport operation, make sure that connection
between plug and socket has been successfully completed.













00ZX418369E-01 13/16

6-3 Disconnecting Procedures
①Keep the pressure in tube non-pressurized (not
pressurized condition).









②Pull out the socket by pulling the socket sleeve.
(See Fig. 5, Fig. 6 and photo.)




















●Release pressure from the piping before detaching the connector.
A pressurized condition may cause spouting of chemicals,
resulting in personal injury.
●Connect the tube without any moment or tension to bend the joint
portion.
DANGER This is Mandatory Rule!!

00ZX418369E-01 14/16
7. Maintenance and Inspection
7-1 Periodic Inspection
You are recommended to appropriately perform the periodic
inspections depending on your product usage (at least once a
year). If you find any deterioration of products, please call
Surpass Industry. 
7-2 Daily Inspections
Before starting operation and after completing operation,
perform the daily inspections checking the following points
against product. Whenever any abnormalities detected, you
must take an appropriate correcting action.

●Can you see any foreign particles, dust, or dirt on the product?
●Can you find any leakage from tubes or connector joints?










●Surpass Industry is not be liable to any failure or leakage of the product
due to O-Ring replacement and/or disassembly performed by any
parties other than Surpass Industry.
●When you need maintenance work, please call Surpass Industry.
CAUTION

00ZX418369E-01 15/16
8. Troubleshooting
Trouble
ConditionChecking PointsCorrecting Action
Fails to connect. ①Do you pull the socket
sleeve?
②Are the plug and the
socket matched in size?
①Connect the socket by
pulling the sleeve.
②Use the plug and the
socket in same size.
Flow fails to
fluids. ①Is the socket securely
connected?
②Is the pressure in tube
pressurized?
①Push the socket into the
innermost part of the plug.
②Pressurize the pressure in
tube appropriately.
Fails to
disconnect. ①Is the pressure in tube
pressurized?
②Do you pull the socket
sleeve by hand?
①Keep the pressure in tube
non-pressurized.
②Pull the socket by pulling
the sleeve.
Notify your nearest sales office for problems not listed above.

00ZX418369E-01 16/16
9. Warranty
The warranty runs for one year after the day when Surpass Industry
products are delivered from Surpass factory in Japan. In case Surpass
Industry should agree in writing that the defects in performance or material
were caused by faulty design or workmanship of Surpass Industry,
replacement products will be supplied free of charge. This warranty shall
not be applied to any defects caused by misuse, alteration, neglectful
treatment, and neglect of our recommendations or instructions.
In addition, we are not be liable to any direct or consequential loss, damage,
and personal injury due to an unauthorized usage in combination with other
products and an improper usage outside of the specifications. Our product
warranty shall be limited to replacement of product.
Replacement with expense to the purchaser shall be applied to the
followings:
●Any defective products caused by usage that is not described in the
Instruction Manual.
●Any defective products caused by neglectful treatment.
●Any defective products caused by decomposition, alteration, and improper
adjustment or repair.
●Any defects of products caused by acts of God including natural disaster
or fires.
●Consumables and accessories.









<Call to:>
Surpass Industry Co., Ltd.
2203 Shimooshi, Gyoda-shi, Saitama 361-0037 Japan
Tel.: [phone]Fax.: [phone]
URL：http://www.surpassindustry.co.jp
C2009 Surpass Industry Co.,Ltd. All rights reserved.
