Sutron TesiMon TM1500 User manual

User Manual
TesiMon Touch Monitor TM1500
Part Number: 80 860.585
Version: 2
Date: 15 June 2004
Valid for: TM1500

Version Date Modifications
1 25 April 2003 First Edition
2 15 June 2004 Revision
This manual, including all illustrations contained herein, is copyright protected. Use of this manual by any third
party in departure from the copyright provision is forbidden. No part of this manual may be reproduced, trans-
lated or electronically or photographically archived or altered without the express written consent from Sütron
electronic GmbH. Violations shall be cause for damage liability.
Sütron electronic reserves the right to make any changes that contribute to technical improvement.

i
Overall Table of Contents
Overall Table of Contents
1 Important Notes ....................................................................................................... 1-1
1.1 Symbols .................................................................................................... 1-1
1.1.1 General Symbols ................................................................................. 1-1
1.1.2 Specific Symbols ................................................................................. 1-1
1.2 Safety Notes ............................................................................................. 1-2
1.3 Intended Use............................................................................................. 1-2
1.4 Target Group............................................................................................. 1-2
2 Installation and Commissioning ............................................................................... 2-1
2.1 Unpacking the Device ............................................................................... 2-1
2.2 Mounting the Device ................................................................................. 2-1
2.2.1 Front Panel Dimensions ...................................................................... 2-2
2.2.2 Mounting Cutout .................................................................................. 2-3
2.2.3 Side View, Mounting Depth ................................................................. 2-4
2.3 Connecting the Device.............................................................................. 2-5

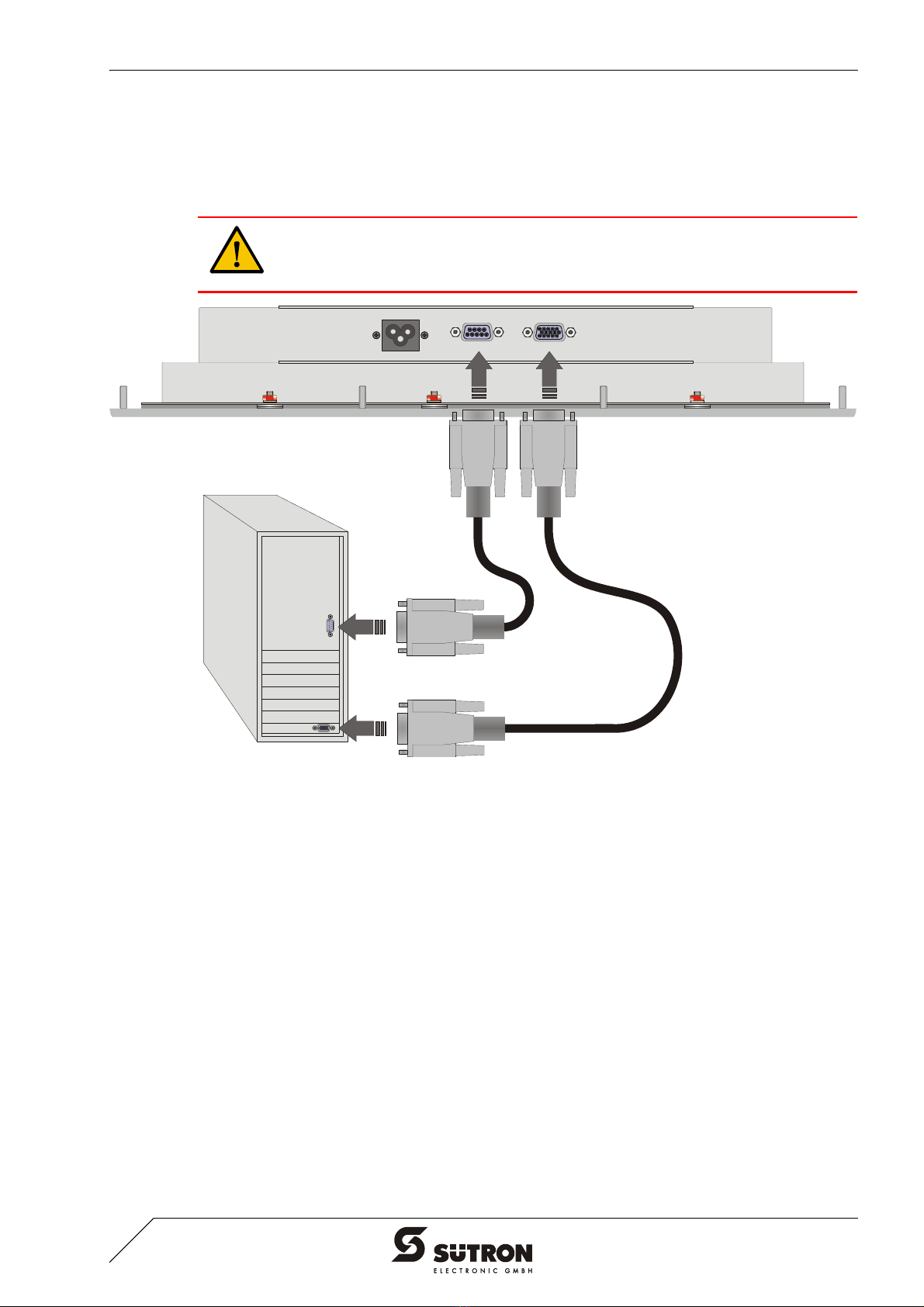

2.3.1 Touch Screen (Option) and VGA ......................................................... 2-5

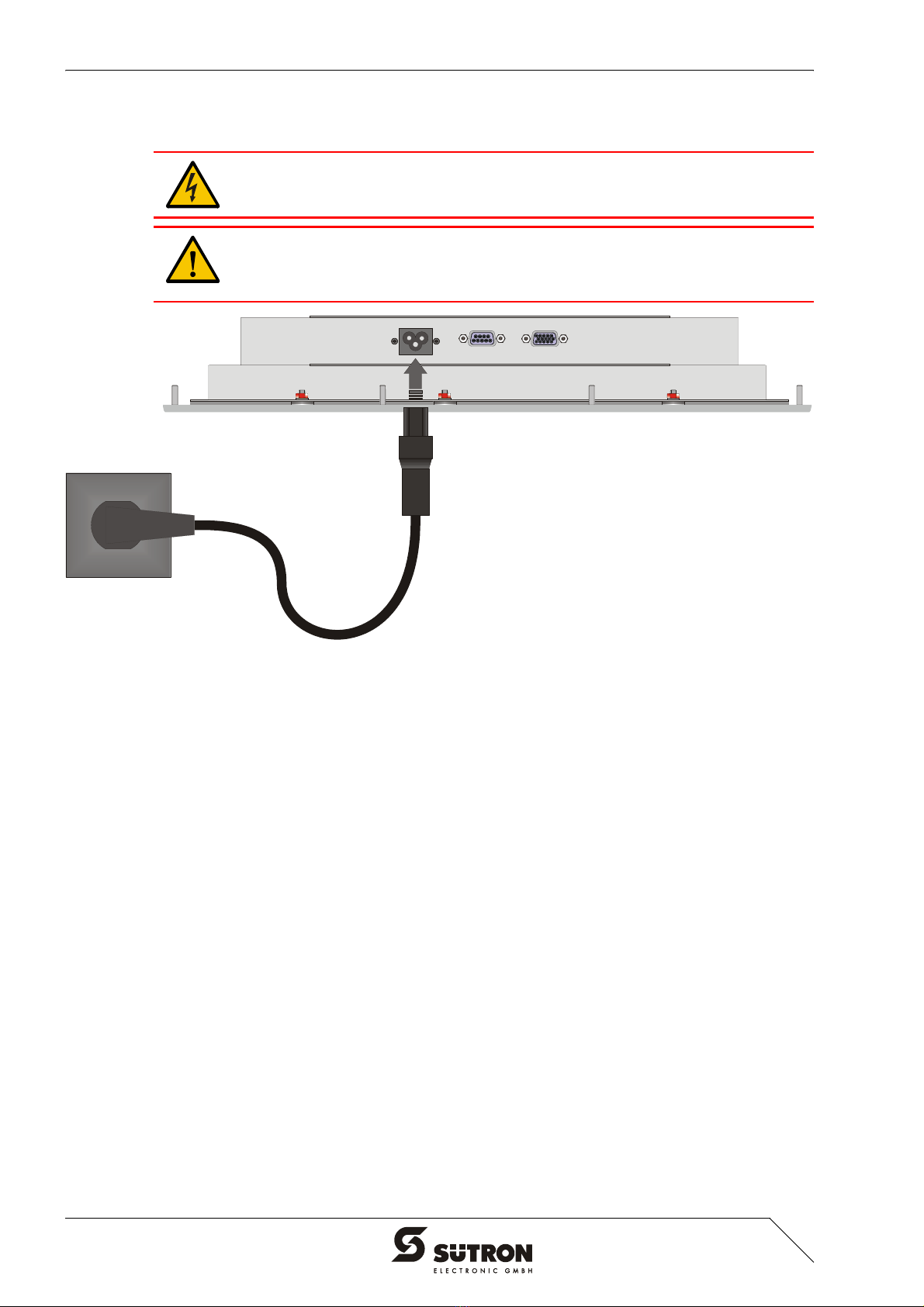

2.3.2 Supply Voltage 100 - 240 V ................................................................. 2-6
2.4 Power-up................................................................................................... 2-6
2.5 Identification.............................................................................................. 2-6
3 Control and Display Elements ................................................................................. 3-1

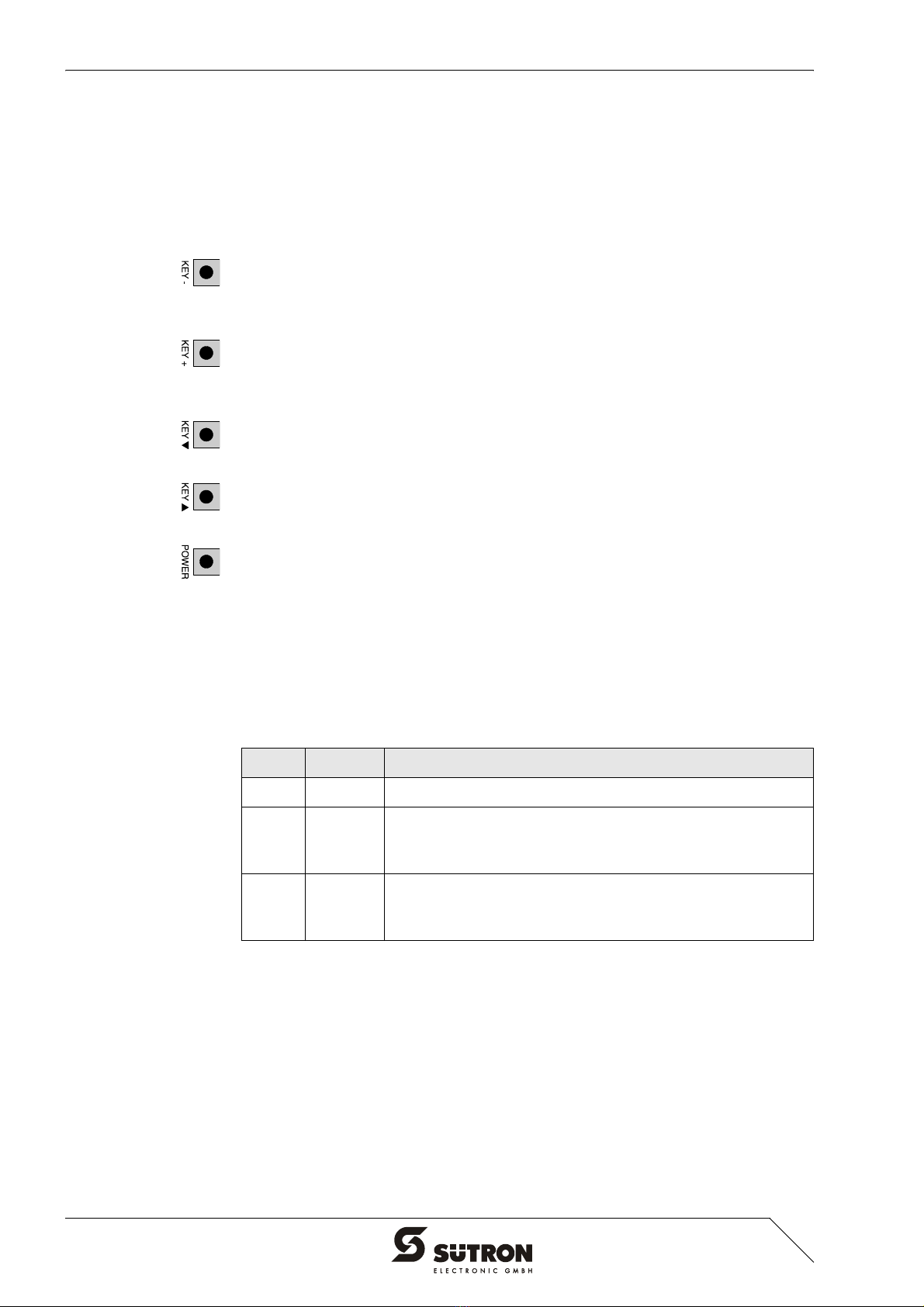

3.1 OSD / Power Keys .................................................................................... 3-2
3.2 Status-LED................................................................................................ 3-2
3.3 Touch Screen............................................................................................ 3-3
3.3.1 Installing the Touch Screen Driver....................................................... 3-3
3.3.2 Calibrating the Touch Screen .............................................................. 3-3
3.4 Display ...................................................................................................... 3-3
4 Interfaces of the Device ........................................................................................... 4-1
4.1 Pin Assignment ......................................................................................... 4-1
4.2 Shielding D-SUB Connectors.................................................................... 4-2
5 Maintenance and Servicing ..................................................................................... 5-1
5.1 Front Panel ............................................................................................... 5-1
6 Technical Data......................................................................................................... 6-1
A Index ........................................................................................................................A-1

Overall Table of Contents
ii

1-1
Important Notes
1 Important Notes
1.1 Symbols
The symbols in this manual are used to draw your attention on notes and dangers.
1.1.1 General Symbols
1.1.2 Specific Symbols
The following symbols indicate specific dangers which could result in damage to
equipment or personal injury or even up to the death of the operator.
Danger
This symbol is used to refer to instructions which, if ignored or not carefully followed
could result in personal injury.
Note
This symbol indicates application tips or supplementary notes.
Reference to source of information
This symbol refers to detailed sources of information on the current topic.
Danger - Electric Shock
Danger - Corrosive
Danger - Toxic
Danger - Explosive
Danger - Fire
Danger - Infrared Light
Danger - Electrostatic Charge

Important Notes
1-2
1.2 Safety Notes
– Read this manual carefully before using the operating device. Keep this manual
in a place where it is always accessible to all users.
– Proper transportation, handling and storage, placement and installation of this
product are prerequisites for its subsequent flawless and safe operation.
– This user manual contains the most important information for the safe operation
of the device.
– The user manual, in particular the safety notes, must be observed by all person-
nel working with the device.
– Observe the accident prevention rules and regulations that apply to the operating
site.
– Installation and operation must only be carried out by qualified and trained per-
sonnel.
1.3 Intended Use
– The device is designed for use in the industry.
– The device is state-of-the art and has been built to the latest standard safety re-
quirements. However, dangerous situations or damage to the machine itself or
other property can arise from the use of this device.
– The device fulfills the requirements of the EMC directives and harmonized Euro-
pean standards. Any modifications to the system can influence the EMC behav-
ior.
1.4 Target Group
All configuration, programming, installation, commissioning, operating and mainte-
nance work in connection with the automation system must be performed by trained
personnel only (e.g. qualified electricians, electrical engineers, etc.).
The configuration and programming personnel must be familiar with the safety con-
cepts of automation technology.
The operating personnel must have been trained in handling the controller and be
familiar with the operating instructions.
The installation, commissioning and maintenance personnel must have an education
which entitles them to work on automation systems.

2-1
Installation and Commissioning
2 Installation and Commissioning
2.1 Unpacking the Device
Unpack all parts carefully and check the contents for any visible damage in transit.
Also check whether the shipment matches the specifications on your delivery note.
If you notice damages in transit or discrepancies, please contact our sales depart-
ment immediately.
2.2 Mounting the Device
The operating device can be easily and quickly mounted from the rear of the operat-
ing device. This is particularly recommended for mounting in switchboards with a
plate thickness of approx. 1 mm to 8 mm (0.039" to 0.315").
1. Insert the operating device from the front through the mounting cutout.
2. Fasten the operating device using hexagon nuts.
When installing the operating device, keep a minimum clearance of 30 mm (1.181")
around the operating device to ensure adequate air circulation.
When the operating device is installed horizontally, please note that additional sourc-
es of heat beneath the operating device may result in heat accumulation.
Make sure to allow sufficient heat dissipation!
Comply with the allowable temperature range listed in the technical data for the use
of the operating device!
To maintain the specified degree of protection, make sure the seal is evenly seated
on the installation surface and the hexagon nuts are tightened uniformly.
Ensure that the maximum torque of 1.2 Nm is not exceeded.

Installation and Commissioning
2-2
2.2.1 Front Panel Dimensions
Figure 2-1 Front panel dimensions

2-3
Installation and Commissioning
2.2.2 Mounting Cutout
Figure 2-2 Mounting cutout
AMounting Cutout
BFront Panel

Installation and Commissioning
2-4

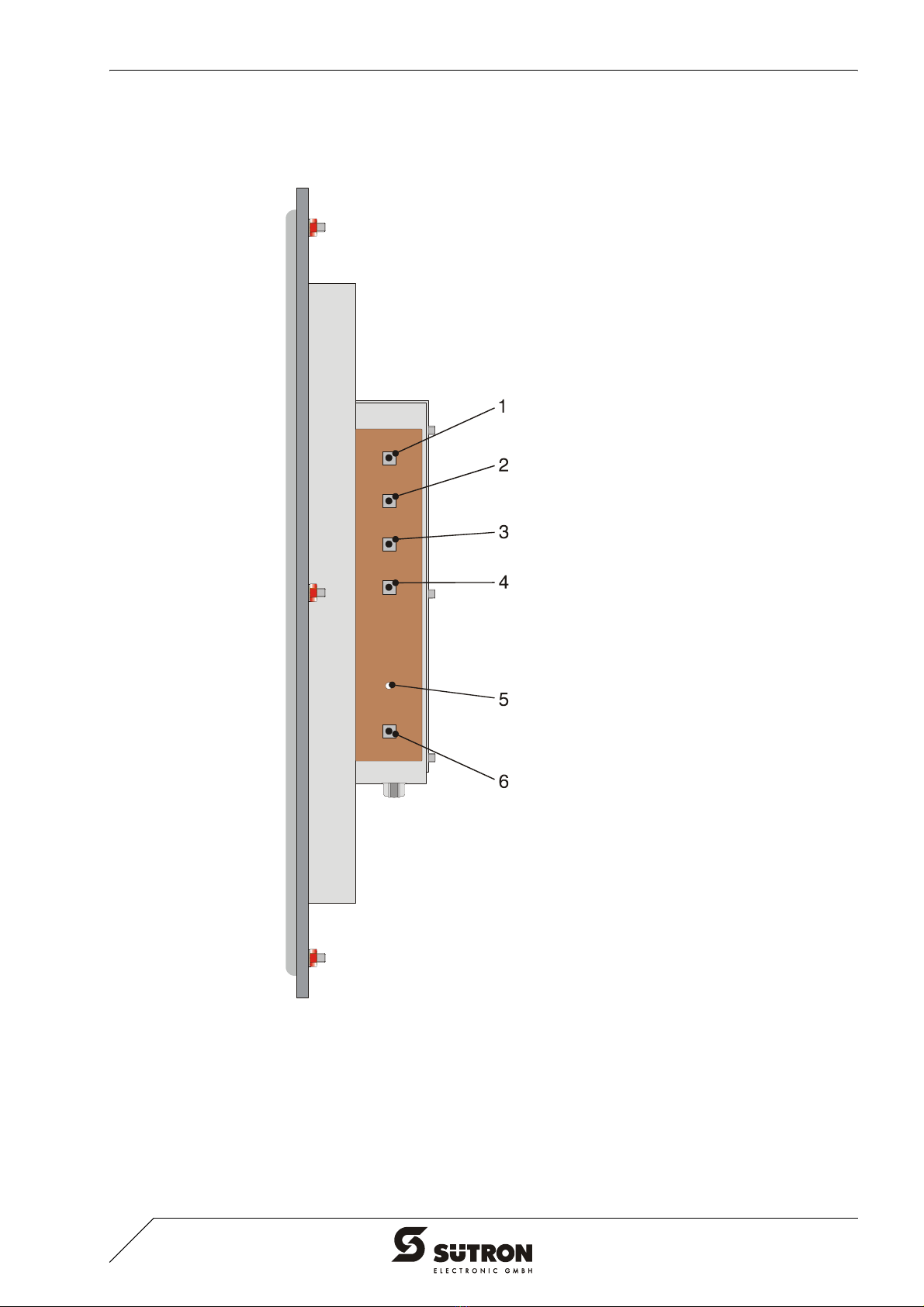

2.2.3 Side View, Mounting Depth
Figure 2-3 Side view and mounting depth for the standard device
1Front Panel
2Circumferential Seal
3Press-in Threaded Bolt M4 x 18 mm (0.709")
4Mounting Surface Thickness 1 mm to 8 mm (0.039" to 0.315")
5Spring Lock Washer B4 DIN 127 Form B (not supplied)
6Nut M4 DIN 934 (not supplied)
