SVIP SVR-19 User manual

All rights reserved. Copying in whole or in part is prohibited w
All rights reserved. Copying in whole or in part is prohibited without expressed written authorization from the manufacturer. ithout expressed written authorization from the manufacturer.
1
QUICK GUIDE
FEATURES
FRONT
1) Audio Mic
2) Capture Button
3) Speaker
4) Record On/Off Button
5) Camera Lens
6) Infrared Light
7) Mic/Audio Recorder
8) Push To Talk Button
9) LCD On/Off
10) Play
11) Power On/Off
BACK
12) “I” Button
13) Recharging Indicator
14) LCD Screen
15) Reset Button
16) Earphone Port
17) USB Port
18) Connector to 2 Way Radio

All rights reserved. Copying in whole or in part is prohibited w
All rights reserved. Copying in whole or in part is prohibited without expressed written authorization from the manufacturer. ithout expressed written authorization from the manufacturer.
2
1. Power On – The system will enter the preview mode when power on.
2. Taking Pictures – Press “Capture” button to take pictures. Pictures will be saved in JPEG
file format.
BASIC OPERATION
Memory Left
Total Files in Memory
Battery Status
Time/Date
When turned on, the LCD screen displays the
following four status icons. (See Diagram A):
1. Amount of Memory Left
2. Total Number of Files Currently Stored in
Memory
3. Battery Status Indicator
4. Time/Date
Diagram A: LCD ON / NOT RECORDING

All rights reserved. Copying in whole or in part is prohibited w
All rights reserved. Copying in whole or in part is prohibited without expressed written authorization from the manufacturer. ithout expressed written authorization from the manufacturer.
3
Flickering Light Indicates
Video is Recording Battery Status
Time Elapsed Time/Date Stamp
Diagram B: LCD ON/RECORDING
1. Video Recording in Progress Indicator Light
2. Battery Status Indicator
3. Time Elapsed
4. Time/Date Stamp (Stamped every second)
4.Review - Press “Play” button to review the latest
data, press “Play” button again, system back to
photo mode.
5.”I” Information – Press “I” button, the LCD screen
displays file size, used space, battery status.
3. Video Recording - Press “Record” button to make video recording, press “Record” button
again to stop. The video file will be saved in MP4 file format.
When in the process of recording video, the LCD screen displays the following four status icons.
(See Diagram B)

All rights reserved. Copying in whole or in part is prohibited w
All rights reserved. Copying in whole or in part is prohibited without expressed written authorization from the manufacturer. ithout expressed written authorization from the manufacturer.
4
•6.Stand by Mode – LCD automatic turn off if no actions within 3 mins. Press any button to turn on the screen.
•7.Push to Talk – connect this device with 2 way radio and press “Push to Talk” button to talk.
•8.Turn off LCD Screen – Press “LCD ON/Off” button to turn off LCD screen.
•9.Infrared Light – press over 1 second LCD on/off button to turn on/off the Infrared Light. When in “Play” mode,
the Infrared Light automatic turn off.
SOFTWARE INSTALLRATION & TRANSFERRING IMAGES
There are 2 different software for this device :
1. Departmental – can be used for transferring files.
2. Individual – can only be used for reviewing images thru LCD screen
Individual and Departmental Software Set up
Select Language and click “OK”

All rights reserved. Copying in whole or in part is prohibited w
All rights reserved. Copying in whole or in part is prohibited without expressed written authorization from the manufacturer. ithout expressed written authorization from the manufacturer.
5

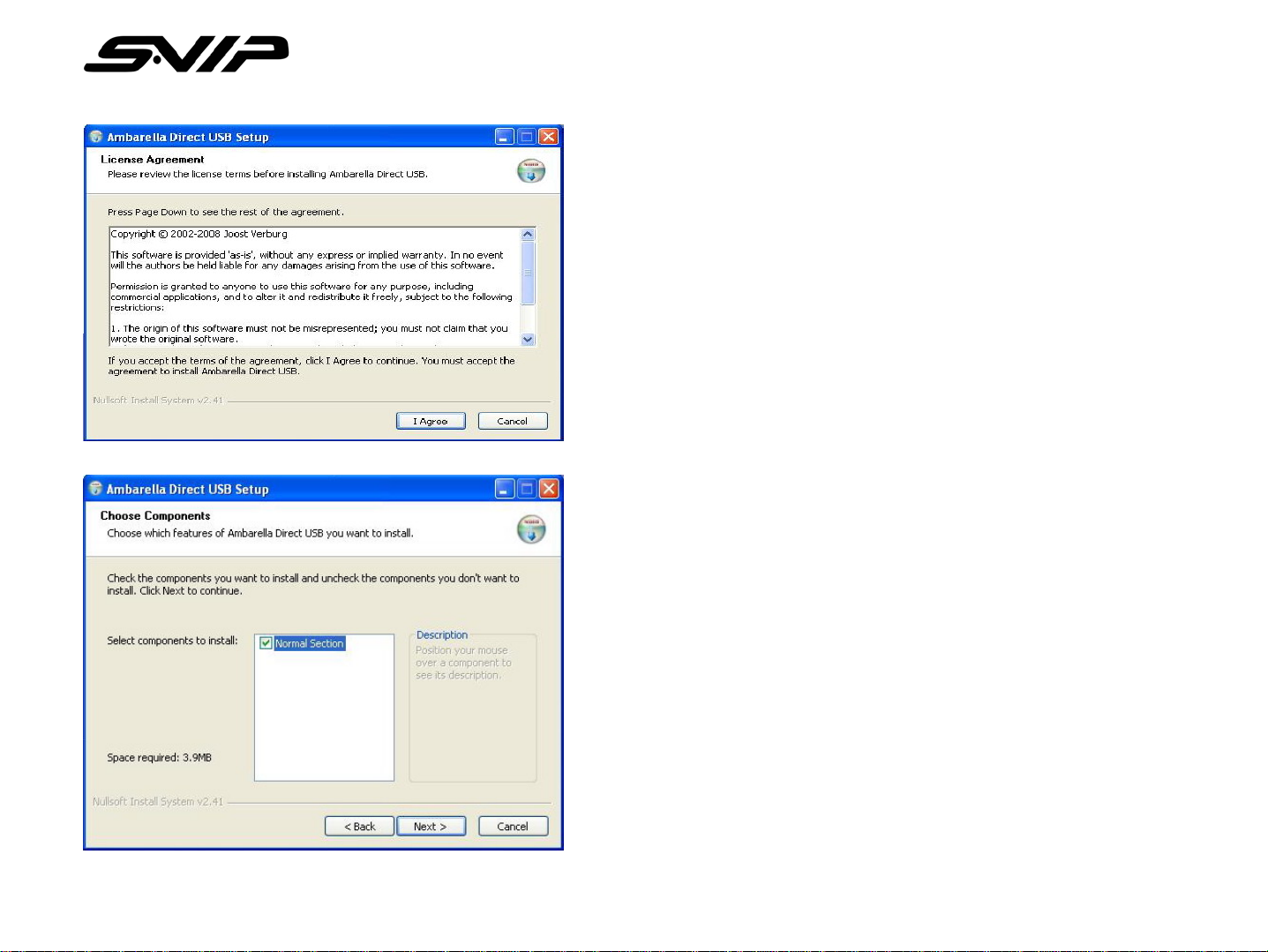

License agreement and click “ I Agree”
Select “Normal Section”, click “NEXT” to continue

All rights reserved. Copying in whole or in part is prohibited w
All rights reserved. Copying in whole or in part is prohibited without expressed written authorization from the manufacturer. ithout expressed written authorization from the manufacturer.
6
To continue the installation, click “INSTALL”
Installation complete, click “CLOSE”

All rights reserved. Copying in whole or in part is prohibited w
All rights reserved. Copying in whole or in part is prohibited without expressed written authorization from the manufacturer. ithout expressed written authorization from the manufacturer.
7
After installation, please run the “Individual.rar” software.
You will see below
Connect the device with PC.
Key in the password: “456789” and
select to review the video or image.
Press “Previous” or “ Next” to reviewing
the video or images through LCD screen

All rights reserved. Copying in whole or in part is prohibited w
All rights reserved. Copying in whole or in part is prohibited without expressed written authorization from the manufacturer. ithout expressed written authorization from the manufacturer.
8
Departmental Software Set up
Make sure the device is turn on and connect with PC via USB
Run the “Departmental.rar” software, you will see below -
Key in Password: 123456
If it’s successfully connected, the status box
will show the connection time and auto
update the correct time to the device.
Key in any 8 numbers Set Serial Number eg:“12345678”

All rights reserved. Copying in whole or in part is prohibited w
All rights reserved. Copying in whole or in part is prohibited without expressed written authorization from the manufacturer. ithout expressed written authorization from the manufacturer.
9
Press “VGA” or “QVGA” button to set up size
Change password –
Enter the Old, New, and Re-type
New Password and click “OK.”
Note: Password can only be numbers + English letters

All rights reserved. Copying in whole or in part is prohibited w
All rights reserved. Copying in whole or in part is prohibited without expressed written authorization from the manufacturer. ithout expressed written authorization from the manufacturer.
10

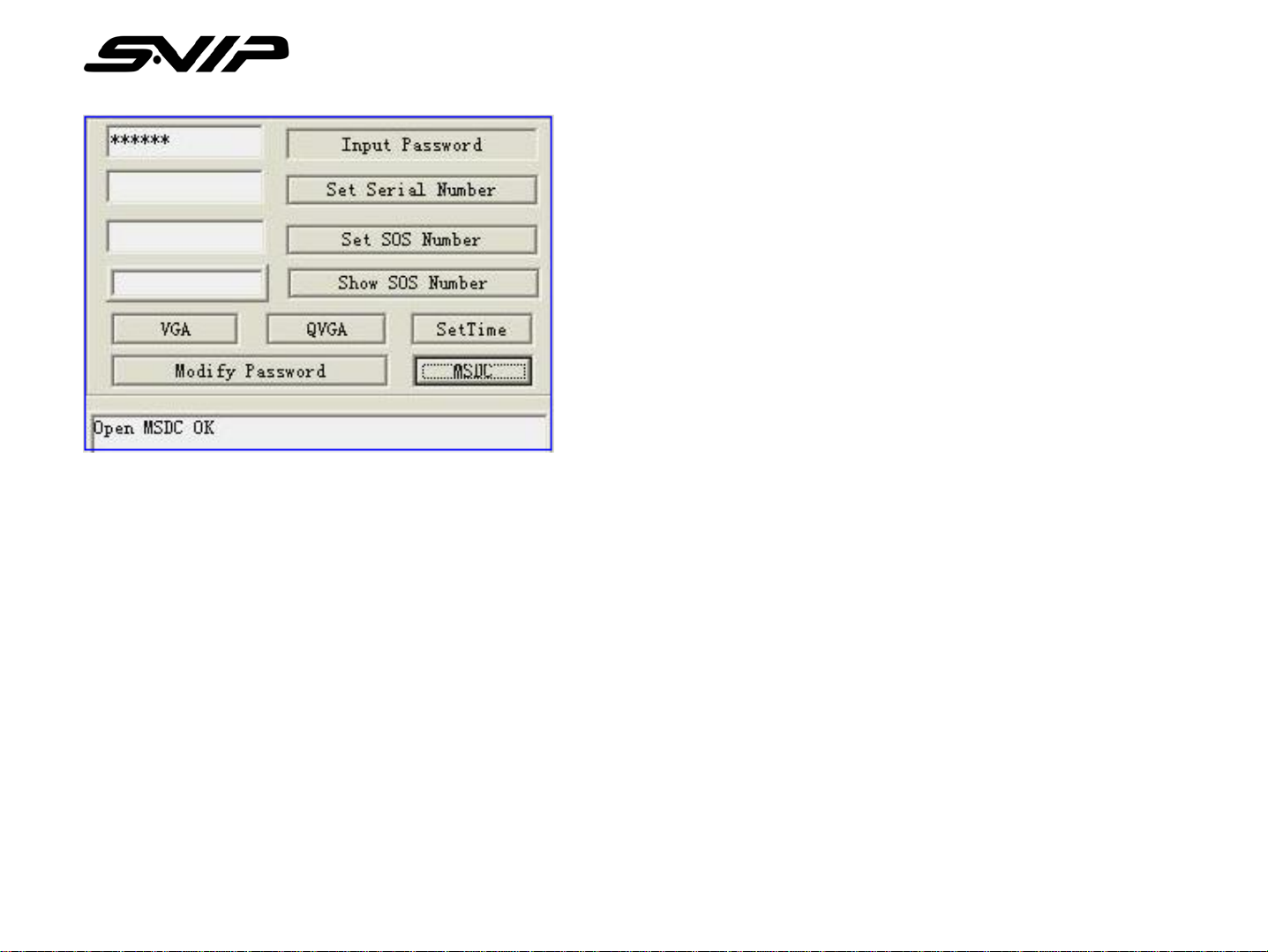

Press “MSDC”
You cab find this device on “my
computer”.
You can use the Departmental
software to copy, save or drag the
files on your PC.

All rights reserved. Copying in whole or in part is prohibited w
All rights reserved. Copying in whole or in part is prohibited without expressed written authorization from the manufacturer. ithout expressed written authorization from the manufacturer.
11
Build-in Battery Charge – turn off the device and connect with PC via USB or use the attached adaptor to charge.
It takes about 3 hours to fully charge the battery.
When charge is ready, the indicator light shows green.
External Battery Charge –
Use the USB to connect the battery with PC for charging. It takes 10 hours to fully charge. (port 19)
Connect the external battery with device, then it can supply the power when build-in battery is low. (port 20)
While using the external battery, connect the 2 way radio through port 21.
USB port
Connector to main device
Connector to radio

All rights reserved. Copying in whole or in part is prohibited w
All rights reserved. Copying in whole or in part is prohibited without expressed written authorization from the manufacturer. ithout expressed written authorization from the manufacturer.
12
SPECIFICATIONS
Sensor 5MP in CMOS Aperture F/3.25
Effective
Pixels 5 mega pixel View Angle 63 degree
Image size 2592x1944 (5 million) Image Format jpeg
LCD Monitor 1.5 inch Battery Internal 3.7 6000 m Ah Lithium
battery
Focal Length 150 cm - infinity Memory Internal 4G flash memory
