SVS PB-3000 User manual

PB-3000
OWNERS MANUAL

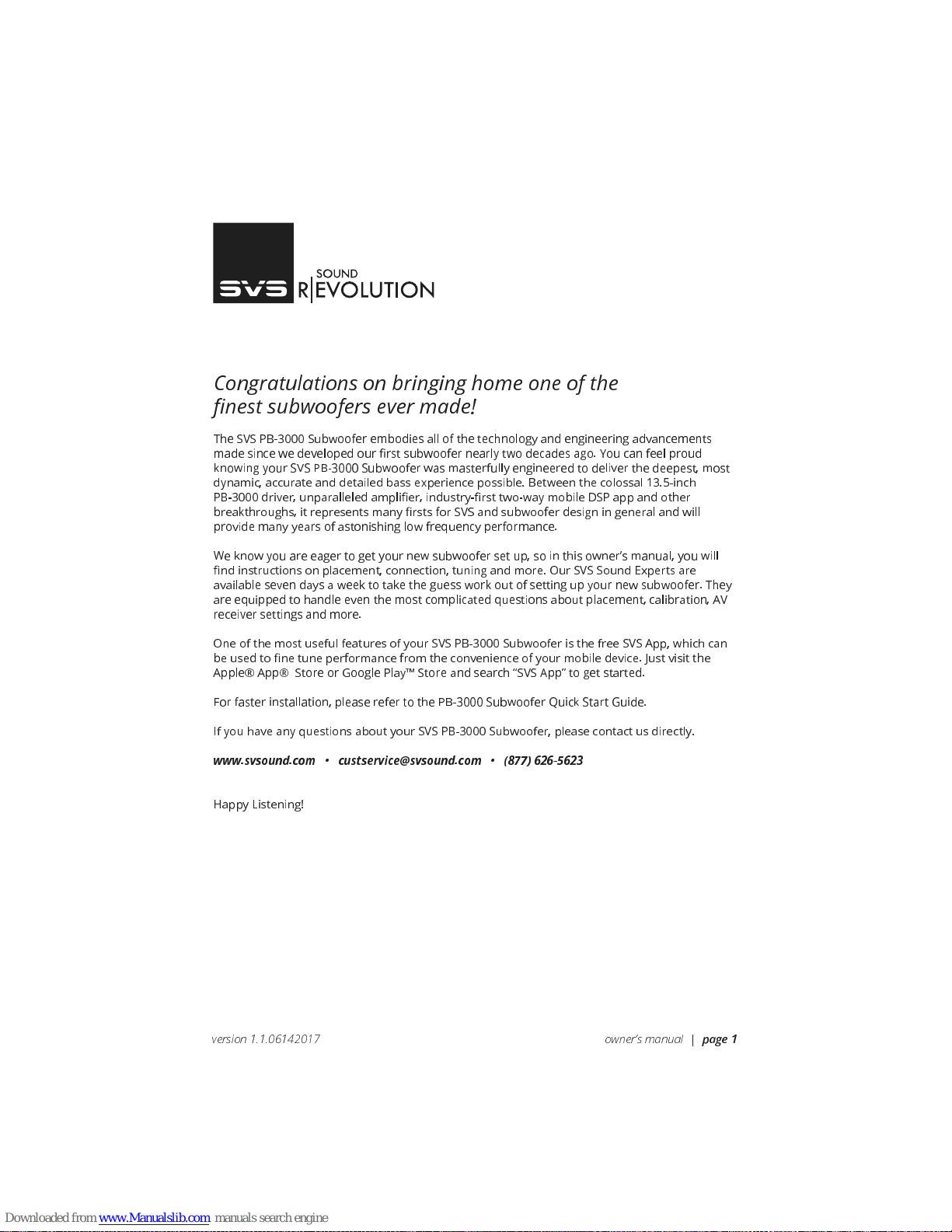

Congratulations on bringing home one of the
nest subwoofers ever made!
The SVS PB-3000 Subwoofer embodies all of the technology and engineering advancements
made since we developed our rst subwoofer nearly two decades ago. ou can feel proud
knowing your SVS PB-3000 Subwoofer was masterfully engineered to deliver the deepest, most
dynamic, accurate and detailed bass experience possible. Between the colossal 13.5-inch
PB-3000 driver, unparalleled ampli er, industry- rst two-way mobile DSP app and other
breakthroughs, it represents many rsts for SVS and subwoofer design in general and will
provide many years of astonishing low frequency performance.
We know you are eager to get your new subwoofer set up, so in this owner’s manual, you will
nd instructions on placement, connection, tuning and more. Our SVS Sound Experts are
available seven days a week to take the guess work out of setting up your new subwoofer. They
are equipped to handle even the most complicated questions about placement, calibration, AV
receiver settings and more.
One of the most useful features of your SVS PB-3000 Subwoofer is the free SVS App, which can
be used to ne tune performance from the convenience of your mobile device. Just visit the
Apple® App® Store or Google Play Store and search “SVS App” to get started.
For faster installation, please refer to the PB-3000 Subwoofer Quick Start Guide.
If you have any questions about your SVS PB-3000 Subwoofer, please contact us directly.
www.svsound.com  [e-mail]  [phone]
Happy Listening!
owners manual | page 1 version 1.1.06142017

PB-3000
SUBWOOFER
SUBWOOFER SPECIFICATIONS & FEATURES
SUBWOOFER SPECIFICATIONS
DRIVER FEATURES
page 2 | owners manual
Weight: 153.2 lbs (69.5 kg)
Dimensions (w/ grill): 23.4” (595mm) H X 20.5” (520mm) W X 30” (763mm) D
Ampli er Power: 1,200 watts cont nuous power / 4,200 watts peak dynam c power
Driver Design:
• Propr etary 13.5” Dr ver w th nely tuned Underhung Motor Con gurat on
• 49.6lb (22.5kg) pound Woofer w th 44.3lb (20.1kg) pounds for the motor
• Underhung 53mm Xmax, 91.6mm Xmech prec s on al gned excurs on
Frequenc Response:
• 16Hz to 200Hz +/-3dB (standard mode)
• 13Hz to 200Hz +/-3dB (extended mode)
• 18Hz to 200Hz +/-3dB (sealed mode)
Max Low Frequenc Output: 134.5dB @ 32Hz 1/8 space 1m
Propr etary 13.5” h gh-performance SVS PB-3000 Subwoofer Dr ver - opt m zed for ported
cab net des gn.
8-layer alum num at w re edge wound 3” vo ce co l for ultra-low d stort on, e c ent heat
d ss pat on, except onal l near ty and nearly zero power compress on.
Two mass ve, ded cated toro dal ferr te magnets generate unparalleled levels of magnet c
force to dr ve the h ghest levels of excurs on, SPL, and start/go power for the deepest and most
author tat ve bass poss ble.
H gh dens ty FEA-opt m zed cast alum num basket prov des unequaled levels of r g d ty, tens le
strength, and energy transference ava lable from a subwoofer.
Dual 24-strand copper and Nomex compos te h gh-temperature leads woven through the
suspens on prov de a remarkably durable electr cal connect on from the ampl er to the vo ce
co l.
Prem um glass ber lam nated dustcap and re nforced, vented paper-compos te cone
sub-structure ensure a l ght, r g d, and neutral rad at ng surface.
Prec s on mach ned motor elements and narrow tolerance suspens on parts produce
unmatched l near ty at full excurs on for except onally t ght and fast response, even at
reference volumes.
Extreme overs zed low carbon vented steel U-yoke and top plate prov de super or cool ng and
mproved magnet cs for max mum performance and e c ency.
Copper r ng short ng sleeve reduces gap nduct on and d stort on, enhances thermal conduc-
t v ty.
•
•
•
•
•
•
•
•
•
DRIVER FEATURES

SUBWOOFER SPECIFICATIONS & FEATURES
owners manual | page 3
PB-3000
SUBWOOFER
Massively powerful Sledge 1,200-watt continuous Class D design with 4,200 watts of Pea
Power.
Unmatched intelligence from user adjustable low pass, phase, polarity and room gain compen-
sation with three parametric EQs and port tuning (Ported models only) for absolute best
alignment with spea ers and optimized performance in any room.
Groundbrea ing SVS Bluetooth DSP control app for iOS and Android devices with three user
presets allow custom tuning for every room and system.
High e ciency cool-running Class D switching topology with massive 32 Amp 600 Volt
MOSFETs result in lower EMI and highest e ciency while providing e ortless power to
produce SPLs and low frequency output with pristine clarity well beyond reference listening
levels.
High resolution 50Mhz Analog Devices Audio DSP with double precision 56bit ltering is the
most advanced subwoofer processor available for perfect audio reproduction.
100v-240v full range input active Power Factor Correction (PFC) pre-regulates mains to solid
360V DC regardless of mains voltage or quality so the sound quality never falters no matter
whats coming out of the wall.
Active PFC lowers average current and smooths mains input current allowing for 1200W output
from a standard 15A mains circuit.
XLR and RCA stereo input/output with ultra-wide input voltage for consumer and professional
audio applications.
Convenient front-mounted display featuring new Intelligent Feature Control (IFC) with bright
blue dimmable/defeatable 8-digit LED front display.
Variable port tuning with standard, extended and sealed modes for easy optimization of
output based on listening preferences and content.
Auto/On and 3-30V AC/DC trigger for maximum installation convenience.
Input impedance 22 ohm (unbalanced RCA)/ 22 ohm (balanced XLR).
Green 0.5-watt low standby power consumption.
RoHS compliant, lead-free construction, world-wide safety certi cations.
AMPLIFIER FEATURES
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Nic el-plated high-tension spring terminals provide secure connections.
Proprietary injection molded gas et and parabolic SBR extreme-excursion surround maintains
ideal pistonic motion for pinpoint accuracy and control.
High quality low carbon 1008 steel components with blac electrophoresis plating for extra
long life.
•
•
•

Speci cations & Features............................................................................................................ 2
Connecting Your Subwoofer........................................................................................................ 6
AC Power Connection............................................................................................................ 7
Line Level Connection – Single LFE Channel........................................................................ 7
Line Level Connection - Stereo Receiver or Preampli er Left/Right Channels................
Connecting Multiple Subwoofers......................................................................................... 9
Control Settings for AV Receiver and Processors............................................................... 11
Control Settings for Stereo Receiver or Preampli er......................................................... 11
Subwoofer Room Placement..................................................................................................... 12
Subwoofer Control Options....................................................................................................... 15
SVS Bluetooth App................................................................................................................ 15
IR Remote Control................................................................................................................. 15
Front Subwoofer Panel......................................................................................................... 15
dvanced Subwoofer Controls.................................................................................................. 16
Volume................................................................................................................................... 16
Low Pass Filter....................................................................................................................... 16
Phase Adjustment................................................................................................................. 16
Polarity................................................................................................................................... 16
Parametric EQ....................................................................................................................... 16
Room Gain Compensation................................................................................................... 16
Port Tuning............................................................................................................................ 17
Presets................................................................................................................................... 17
System Settings..................................................................................................................... 17
dvanced Control Features Table............................................................................................. 18
IR Remote Control Flow Chart................................................................................................... 19
Safety Instructions..................................................................................................................... 20
FCC & IC Compliance................................................................................................................... 22
Cleaning & Cabinet Care............................................................................................................. 23
Warranty & Support.................................................................................................................... 23
Share Your Thoughts.................................................................................................................. 23
TABLE OF CONTENTS
PB-3000
SUBWOOFER
owners manual | page 5

The SVS PB-3000 is designed for easy set-up and integration in both multi-channel home theater
and two-channel (stereo) systems It is best to familiarize yourself with the subwoofer connec-
tions and the rear panel of your AV receiver or preampli er before setting your subwoofer up Be
sure your PB-3000 is switched to O before plugging it in or connecting to your AV receiver.
Its also best to use cables with secure connections for optimal bass performance
In addition to the IR Remote Control and front panel control interface, weve developed the
convenient SVS mobile app for both Apple® iOS® and Google Android that allows you to make
adjustments for room layout, personal preferences, movies vs music, and more Its the best way
to ne tune your subwoofer for perfect performance from the comfort of your favorite seat
A full explanation of all the advanced subwoofer DSP controls is available on pages 15-18 in this
owners manual, as well as in the SVS subwoofer app tutorial The following sections cover basic
connections and control settings when integrating the PB-3000 into a surround sound or two
channel system
BACK PANEL FEATURES
AC POWER CORD RECEPTACLE
ON/OFF SWITCH
UNBALANCED (RCA) LINE LEVEL INPUTS
3V-12V TRIGGER INPUT
UNBALANCED (RCA) LINE LEVEL OUTPUTS
BALANCED (XLR) LINE LEVEL INPUTS
BALANCED (XLR) LINE LEVEL OUTPUTS
CONNECTING & CONTROLLING YOUR SUBWOOFER
PB-3000
SUBWOOFER
page 6 | own rs manual

AC Power Connection
Connect the subwoofer power cord to the subwoofer ampli er and directly into an AC outlet.
Convenience outlets located on the rear panel of some AV receivers or pre/pros are NOT recom-
mended for your P -3000 as these outlets are not meant for high power devices.
Line Level Connection  Single LFE Channel
The most common way to connect your P -3000 is with a single RCA or XLR interconnect cable
going from the LFE or SU 1 Output on your AV receiver or preampli er to the LFE Input on your
P -3000. This allows your processor to perform the upstream bass management and send the
subwoofer a pre- ltered mono signal.
CENTER
REAR FRONT
SUBWOOFER
(SUB1)
LINE LEVEL OUTPUTS
RECEIVER/PREAMP
CONNECTING & CONTROLLING YOUR SUBWOOFER
Line Level Connection  Stereo Receiver or Preampli er Left/Right Channels
oth Left and Right inputs on your P -3000 can be used in a two-channel stereo application with
a stereo preampli er that has Left and Right line level or alanced (XLR) outputs.
Connect the left and right outputs of your preampli er to the left and right line level inputs of the
P -3000 using RCA or XLR interconnects.
PB-3
SUBWOOFER
owners manual | page 7

CONNECTING & CONTROLLING YOUR SUBWOOFER
Enable and adjust the on-board low pass lter of the PB-3000 for a smooth blend with the main
speakers.
NOTE: For additional guidance on speaker/subwoofer crossover settings, please consult our Sound
Experts or our Merlin subwoofer atching tool at www.svsound.com/merlin.
www.svsound.co  [e-mail]  [phone]
3V-12V Trigger Input
This feature will automatically turn the subwoofer on/o when a si nal is sent to the tri er input
from another component in the system (typically the pre/pro or AV receiver). The other compo-
nent in the system must be equipped with a tri er output feature and requires a TS 1/8 mono
cable (pictured below).
LINE LEVEL OUTPUTS
REAR FRONT
R
L
RECEIVER/PREAMP
Line Level Connection  Stereo Receiver or Preampli er Left/Right Channel (contd)
PB-3000
SUBWOOFER
page 8 | owners manual

CONNECTING & CONTROLLING YOUR SUBWOOFER
Connecting Multiple Subwoofers or Going Dual
Running two or more subwoofers has many acoustic bene ts such as: improved frequency
response throughout the listening area, fewer peaks and nulls, increased output and decreased
bass localization. The RC and XLR Outputs provide an easy way to integrate multiple
PB-3000s or other subwoofers into your audio system.
Many V Receivers and Surround Processors have more than one subwoofer output.
s described previously, you can run a single connection from each subwoofer output
to each of your subwoofers.
f you have more subwoofers than Sub Outputs from your V Receiver, an easy
solution is to use an RC splitter or RC Y-adapter to divide the subwoofer output. This
is the most commonly recommended way to connect multiple subwoofers when there
is only one Sub Out.
nother option is to use the Left and Right RC or XLR outputs on the PB-3000 to Daisy
Chain additional subwoofers. Its important to use the matching output and input
terminals. For example, if you are using the RC inputs, be sure to use the RC outputs
to daisy chain to the next subwoofer.
NOTE: While the settings of each subwoofer should be similar, you will probably nd that
each sub will need to be calibrated for optimal performance because of its unique room
placement. Regardless of how you use your subwoofer, e perimentation can often result in
better sound. Don't be afraid to try di erent settings, you can always return the controls to
their defaults.
CENTER
REAR FRONT
SUBWOOFER
(SUB1) SUBWOOFER (SUB2)
LINE LEVEL OUTPUTS
RECEIVER/PREAMP
CENTER
REAR FRONT
SUBWOOFER
(SUB1)
LINE LEVEL OUTPUTS
RECEIVER/PREAMP
CENTER
REAR FRONT
SUBWOOFER
(SUB1)
LINE LEVEL OUTPUTS
RECEIVER/PREAMP
PB-3000
SUBWOOFER
owners manual | page 9

CONNECTING & CONTROLLING YOUR SUBWOOFER
Connecting Multiple Subwoofers or Going Dual (contd)
In a 2-channel system you can set up Stereo Subwoofers, where one is used for the Left
Channel and one for the Right Channel. Typically, the subwoofers will be symmetrically
placed according to your spea ers. And be sure to maintain all the correct Left and
Right output and input connections to ensure optimum performance.
LINE LEVEL OUTPUTS
REAR FRONT
R
L
RECEIVER/PREAMP
LINE LEVEL INPUTS
SPEAKER LEVEL
OUTPUTS
R
L
POWER AMPLIFIER
PB-3000
SUBWOOFER
page 10 | owners manual

CONNECTING & CONTROLLING YOUR SUBWOOFER
Control Settings for AV Receiver & Processor
If using your PB-3000 subwoofer with an AV Receiver or preamp with bass management, it is
recommended to eave a contro settings in the defau t position, aside from the vo ume, which
a ows you to adjust the eve of output based on your persona preferences. Set the PB-3000
vo ume to -10 before running auto-set-up in the AV receiver/processor.
NOTE: Always re-run AV Receiver auto-set-up after moving the subwoofer to a di erent location to
ensure the acoustic distance and calibration levels are set correctly
NOTE: If you want to run the subwoofer louder than the initial auto-set-up level, adjust the subwoofer
channel level upward in the AV receiver menu until you get the experience and performance you want
An increase of 2-4 dB louder than initial set-up level is common for many customers Volume can be
controlled from your mobile device via the Free SVS App, from the IR Remote Control, or using the
buttons on the front panel interface
P ease consu t the Advanced Subwoofer Contro s section of this owner’s manua or contact our
SVS Sound Experts if you have questions about any of the contro settings.
www.svsound.com • [e-mail] • [phone]
Control Settings for Stereo Receiver or Pre-Ampli er
Most Stereo Receivers and Pre-Amp i ers do not have bass management. Instead you wi use
the Left and Right fu -range outputs and make adjustments through the DSP amp i er on the
subwoofer.
Be sure to connect both Left and Right outputs to the Left and Right inputs on the subwoofer.
Set the Low Pass Fi ter to “On” and adjust the Crossover Frequency and S ope to achieve a
smooth b end and transition with the main speakers.
Once b ended, adjust the Subwoofer vo ume to match the vo ume eve of your main speakers.
For ner tuning, our Merlin Subwoofer Selection Tool provides the recommended ow pass
ter frequency and s ope setting for most oudspeakers on the market. Just choose your brand
and mode of speakers from the menus and Mer in does the rest. It’s avai ab e 24/7, 365 at
www.svsound.com/merlin. Our SVS Sound Experts are a so standing by to he p with any
connection or contro questions you have about any of the contro s or settings.
NOTE: Volume and low pass lter can be controlled from your mobile device via the Free SVS App, from
the IR Remote Control, or using the buttons on the front panel interface
P -3000
SUBWOOFER
owners manual | page 11

SUBWOOFER ROOM PLACEMENT
Placement of subwoofers is a process driven by competing variables that di er in every home.
Décor, oor space, furniture, speaker placement, seating location, and of course, sound quality
all factor into the decision of where a subwoofer should be placed. If you have exibility, there s
an artistry to subwoofer placement that can be aided by understanding some basic acoustic
principles and set-up techniques.
If you are limited to a single subwoofer location, its best to nd the ideal listening location in the
room. You ll notice as you move through the room, bass response will vary signi cantly. This is
due to the complex pattern of standing sound waves in the room. Sometimes simply moving a
few feet in any given direction can improve the balance and accuracy dramatically. Once you nd
the ‘subwoofer sweet spot in the room – reserve that seat for yourself!
Corner Placement
Corner placement of a subwoofer reduces the potential to encounter nulls, which are acoustic
cancellation points or ‘dead spots in the room. While this can often make for hugely impactful
bass, it can sometimes result in a “boomy” sound depending on your listening position. If you
experience this, you can use the tuning controls to blend your PB-3000 more smoothly with your
speakers or try pulling it further away from the walls to smooth out the bass response.
PB-3000
SUBWOOFER
page 12 | owners manual

SUBWOOFER ROOM PLACEMENT
Front Placement
Front of the room placement in between or just to the side of the front channel speakers is
another common choice. Front of the room placement usually results in the best blending with
the main speakers and center channel and minimizes localization e ects.
Side Wall Placement
Side wall placement is less frequently used but can be an e ective subwoofer location for
excellent accuracy and output.
PB-3000
SUBWOOFER
owners manual | page 13

SUBWOOFER ROOM PLACEMENT

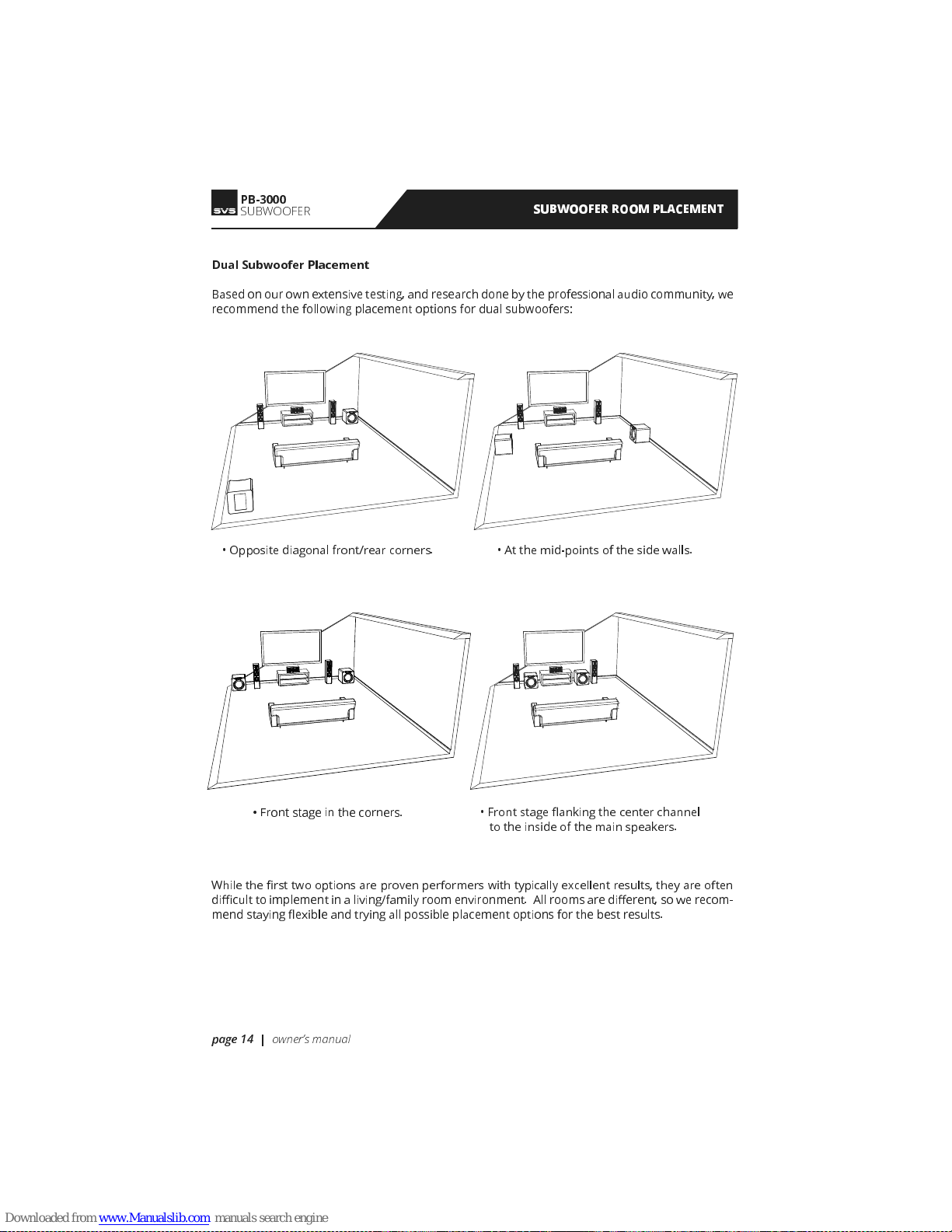

Dual Subwoofer Placement
Based on our own extensive testing, and research done by the professional audio community, we
recommend the following placement options for dual subwoofers:
While the rst two options are proven performers with typically excellent results, they are often
di cult to implement in a living/family room environment. All rooms are di erent, so we recom-
mend staying exible and trying all possible placement options for the best results.
Opposite diagonal front/rear corners.
Front stage in the corners.
At the mid-points of the side walls.
Front stage anking the center channel
to the inside of the main speakers.
PB-3000
SUBWOOFER
page 14 | owners manual

SUBWOOFER CONTROL OPTIONS
Your SVS PB-3000 Subwoofer can be controlled from the new SVS Mobile App, an included IR
Remote ontrol or via the front panel for unprecedented exibility when optimizing performance
for room layout, speakers, system set-up and more.
SVS Bluetooth App
Our groundbreaking SVS Subwoofer DSP app is
available for free via the Apple® App® Store and
Google Play Store. Just search “SVS App” and
follow the prompts to download to your mobile
device. Once installed, there’s a helpful tutorial
that will guide you through each option and
provide common settings to simplify the
process. The SVS App is the only way to access
all of the advanced control features available on
your PB-3000 and it is the most convenient
option for controlling every feature.
IR Remote Control
The included IR remote can be used to adjust
nearly every one of the advanced subwoofer
control settings with two-way feedback on the
front panel display.
Front Subwoofer Panel
The front panel features an intuitive user interface with simpli ed controls that can be used to
adjust the majority of the advanced subwoofer control settings.
ENTER
UP
DOWN
BACK
PB-3000
SUBWOOFER
owners manual | page 15

ADVANCED SUBWOOFER CONTROLS
Volume
Setting the level too high will cause the bass to seem bloated and is the single most common
cause of bad sounding subwoofers. A rule of thumb is that the subwoofer should not draw
attention to itself, but should simply make the systems low end seem more extended and
accurate. Di erent content has di erent levels of output so adjust volume based on source
material and your personal preference.
Low Pass Filter
Enables smooth sonic transition and at fre uency response between speakers and the
subwoofer. This allows you to control the upper fre uency cut-o to blend with main speakers.
It also allows you to adjust slope, or the rate at which the low pass lter rolls o . If using an AV
Receiver with a Subwoofer Output, leave in the OFF position.
Phase Adjustment
Solves sound wave cancellation issues at speci c fre uencies and perfectly aligns the arrival of
output from speakers and subwoofers to your listening position. Normally set to 0° if the
subwoofer is near the main speakers. Adjusting Phase shifts timing of the subwoofer output to
align with the main speakers or additional subwoofers.
Polarity
In some cases, reversing polarity solves dips or humps at the crossover fre uency between a
subwoofer and speaker and can be used to x bass nulls or overly boomy spots in the listening
area. Reversing the electrical polarity of the subwoofer ampli er makes it so the woofer moves
in when speaker drivers move out and is normally set to positive
Parametric EQ
Powerful tool for removing peaks and dips in your listening area, and for creating custom
subwoofer output based on personal listening preferences. Works best when used with acoustic
measurements.
Allows you to set the desired center fre uency of the lter, increase or decrease the SPL dB of the
lter, or adjust the bandwidth of the lter.
Room Gain Compensation
Fixes bloated sounding bass by optimizing low fre uency output and extension when too much
sound wave density is being created by a small room.
PB- 000
SUBWOOFER
page 16 | owners manual

CONNECTING & CONTROLLING YOUR SUBWOOFER
Presets
Allows up to three pre-saved settings for movie, music and custom. This enables easy switching
to optimize your PB-3 s output and settings based on your speci c listening preferences with
di erent kinds of content. If using the SVS App, these presets can be renamed as desired.
Port Tuning
Port blocking allows custom tuning of your PB-3 Subwoofer based on listening preference by
exchanging max output for low frequency depth and quickness. Be sure to use the included
foam port plugs and match port blocking with the selected tuning.
Three tunings are available:
Standard Tune = All ports open (highest maximum output)
Extended tune = One port plugged (deeper extension, slightly less maximum output)
Sealed tune = All ports plugged (best transient response)
System Settings
Allows you to adjust subwoofer stand-by mode and display settings such as timeout and bright-
ness, and also reset the subwoofer to factory settings.
Subwoofer Name
Customize the name of your subwoofer for easy preset switching. (Exclusive SVS App
Feature)
Subwoofer Standby
Choose whether to have your subwoofer in Auto, On (Default), or Trigger mode.
Subwoofer Display
Make adjustments for:
Content shown on the subwoofer front panel interface: Volume (default), Logo, O
Number of seconds before the front panel interface times out
Brightness of display
Reset
Resets PB-3 Subwoofer back to original Factory Settings.
About this App
Provides version number and other information about the SVS App and also allows you
to turn performance monitoring on/o .
PB-3000
SUBWOOFER
owners manual | page 17

ADVANCED CONTROLS FEATURE TABLE
FEATURE OPTIONS & RANGES
FEATURE RANGE / OPTION
Volume
Low Pass Filter
Phase
Polarity
Parametric EQ
Room Gain Comp
Port Tuning
-60dB  0dB (1dB/step)
LP Frequency: 30Hz  200Hz (1Hz/step)
LP Slope: 6dB, 12dB, 18dB, 24dB
0°  180° (1degree/step)
Positive (+) / Neg tive (-)
PEQ Frequency: 20, 22, 25, 28, 30  200Hz (1Hz/step)
PEQ Boost: -12.0  6.0dB (0.1dB/step)
PEQ Q Factor: 0.2  10.0 (0.1/step)
RGC Frequency: 25Hz, 31Hz, 40Hz
RGC Slope: 6dB, 12dB
St nd rd / Extended / Se led
PB-3
SUBWOOFER
page 18 | owners manual

IR REMOTE AND FRONT CONTROL FLOW CHART
VOLUME V -20dB
LP OFF
LP ON
0°
POSITIVE
NEGATIVE
PEQ1 PEQ X OFF
PEQ X ON
FREQ
BOOST
Q FACTOR
PNF 50Hz
PNB 0.0dB
PNQ 1.0
PEQ2
RGC OFF RGC FREQ
RGC SLOP
RGC 25Hz
SL 12dBRGC ON
MOVIE
MUSIC
CUSTOM
DEFAULT
DISPLAY
TIMEOUT
STANDBY
RESET
VOLUME
LOGO
OFF
AUTO
ON
TRIGGER
YES NO DONE
10 SEC
MOVIE SAVED
MUSIC
CUSTOM
PEQ3
LP FREQ
LP SLOPE
LPF 80Hz
LPS 12dB
LP FILT
PHASE
POLARITY
PARA EQ
RGC
PRESET
SAVE TO
SETTING
STANDARD
EXTENDED
SEALED
TUNING
PB-3000
SUBWOOFER
owners manual | page 19

SAFETY INSTRUCTIONS
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturers instruc-
tions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including ampli ers) that produce heat.
Do not defeat the safety purpose of any polarized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A grounding type plug has two prongs and a third
grounding point. The wide blade or the third prong are provided for your safety. If the provided
plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
Only use attachments/accessories speci ed by the manufacturer.
Use only with the cart, stand, tripod, bracket, or table speci ed by the manufacturer, or sold
with the apparatus. When a cart is used, use caution when moving the cart/apparatus combina-
tion to avoid injury from tip-over.
Unplug this apparatus during lightning storms or when unused for long periods of time.
Refer all servicing to quali ed service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
WARNING: To reduce the risk of re or electric shock, this apparatus should not be exposed to
rain or moisture and objects lled with liquids, such as vases, should not be placed on this
apparatus.
This apparatus conforms to the use requirement in tropical and moderate climates, with a
maximum temperature of the environment not exeeding 45°C (113°F).
If the subwoofer is to be used in a con ned space (e.g. built into furniture), the space must be
ventilated to allow su cient air to circulate and cool the unit.
To completely disconnect this equipment from the mains, disconnect the power supply cord
plug from the receptacle.
The mains plug of the power supply cord shall remain readily operable.
The lightning ash with arrowhead symbol within an equilateral triangle is intended to
alert the user to the presence of uninsulated “dangerous voltage” within the products
enclosure that may be of su cient magnitude to constitute risk of electric shock to
persons.
The exclamation point within a triangle is intended to alert the user to the presence of
importance operating and maintenance {servicing) instructions in the literature
companying the product.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
PB-3000
SUBWOOFER
page 20 | owners manual
