SWDK KC301 User manual
SWDK Cord UV Vacuum Cleaner User Manual
爱上洁净的家
Please read this user manual carefully before using and properly keep.
KC 301
Show the message of warranty card
3
4
7
8
9
Important Safety Instruction
Product Description
Carton Contents
Operation Instruction
Clean & Maintenance
Trouble Shooting
Technical Parameter
Hazardous Substance Elements of Products
1
5
10
Important Safety Instruction
About This User Manual
•Before using this product, please carefully read all contents in the user manual.
•Please keep this user manual in a safe place. If you transfer the product to a third party, please
attach this manual together with the machine.
•Any operation that does not comply with the instructions of the manual may result in serious
personal injury, property damage or damage to the product itself.
•Our company does not bear the relevant legal liabilities for losses caused by failure to follow
the instructions in this product description.
Personnel Safety
·It's a very important manual for your personal safety, please be sure to read this carefully to avoid
accidents and may cause damage to the product.
·This product is not suitable for people (including children) who have little experience and
knowledge in the use of UV vacuum cleaner, unless supervised by a person nearby for their safety.
·While using the product, please be careful to avoid danger. Do not stand or sit on this product.
·Please properly keep this product and be out of reach of children who are unable to judge the
environmental risks.
·Do not store this product in a high place to avoid the risk of accidental fall.
心ATTENTION
This product is not waterproof, please do not inhale water and damp dust.
This product is a household bed smashing device. Do not use it to absorb construction waste or heavy metal dust
Product Safety Instruction
•It's not intended for those persons with physical, sensory or intellectual disabilities or
lack experience and knowledge(including children) to use, unless they are supervised or
directed to ensure that they are safe.
•This product is only suitable for working in a dry environment. Do not use it in a humid
environment.
•Do not pump high temperature substances (cigarettes, matches or hot ash), ultra-fine
materials (such as lime, cement, wood chips, gypsum powder, ash, toner, etc.), large
pieces of sharp pieces (such as glass, nails, pins, etc.) , dangerous goods (such as
solvents, detergents, etc.), chemicals (such as acidic substances, detergents, etc.),
flammable and explosive liquids (gasoline, alcohol products)．
•Please keep the crystal flow passage and moving parts away from the hair, loose clothing,
fingers and body parts. Do not point the air passage or tool at the eyes or ears.
•Please check the clean area before usage. If find big paper, paper balls, plastic cloth or
sharp objects, and things that are thicker than the straw diameter, please pre-exclude to
avoid the use of the pipeline.
•If it's found the leaking or high temperature of motor or abnormal sound, such as hot
body, abnormal sound, different sputum, weak service, etc., it should be stopped
immediately.
•Please check the dust cup regularly. If there is more garbage inside, please clean it up in
time and keep the air vents unobstructed to avoid the blockage and cause the force to
drop and the motor start the ship so that reducing the service life of the product
•When clean the product, don't use lubricants, detergents, polishes, etc. to clean any parts.
•When the machine malfunctions, don't repair it by yourself. Please call our after-sales
department for assistance．
•This product is a power tool. Don't let the product run alone without being taken care of.
•Avoid getting to close the heating appliance or violent in case of a fire.
•Don't disassemble the dust cup,UV light cover and open the air hood when the machine is
powered or running to avoid injury or machine damage
2
Warning About UV
•This product is equipped with UV light,
please avoid to watch the machine
bottom when the power and UV
function are opened to prevent UV ray
from causing harm to human body
•Please don't expose UV ray to animals
and plants for avoiding the damage
•Please don't continuously concentrate
UV rays in one place which may cause
damage to cleaning objects
•When the UV light is opened, the eye
cannot directly see it or cannot
illuminate human body skin, causing
damage to human body.

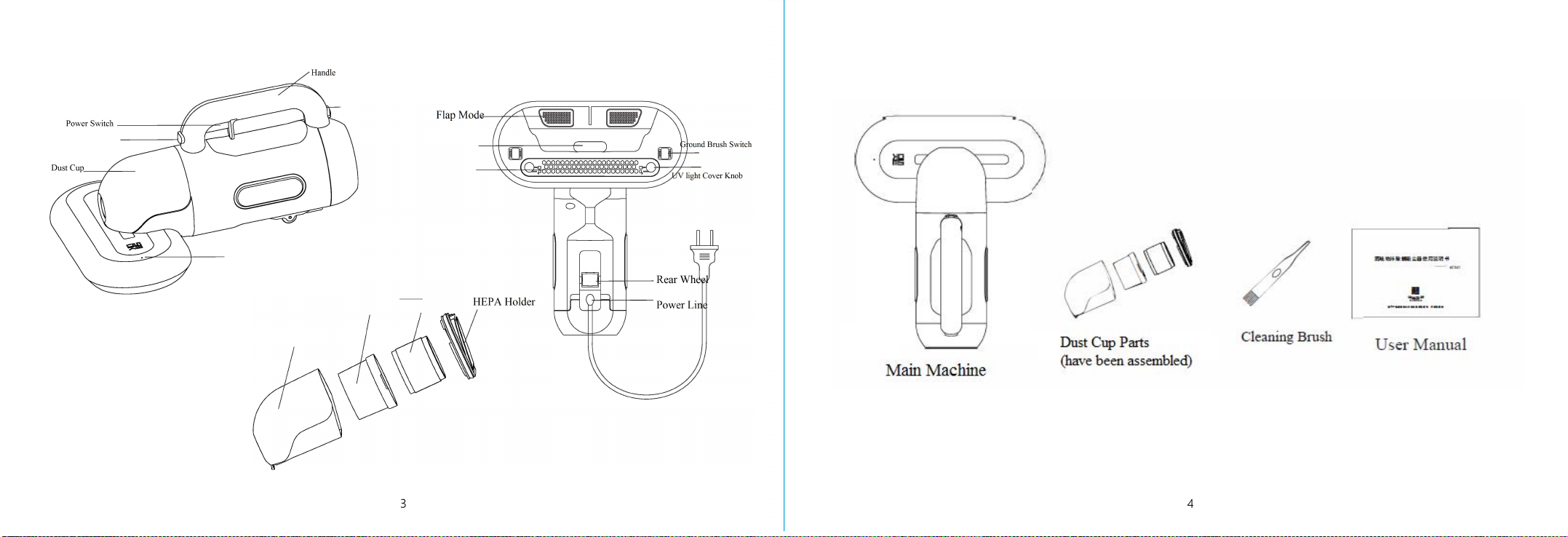

Product Descrition Carton Contents
Air Outlet Release Button
UV Flap Indicator Light
Suction Inlet
UV Light
心
ATTENTION
Please refer this "Carton Contents" to check all accessories before assembly
34
Metal Mesh Filter HEPA
Dust Cup
Dust Cup Release Button
Operation Instruction Clean & Maintenance
Clean the Dust Cup
Preparation
Make sure the product parts are assembled in place;
Insert the plug into the power socket
;
Operation
Shortly press the power button to start the working and all functions.
Shortly press the power button to shut down (all functions stop).
UV and Flapping Instructions
When touch the surface of the object, the ground brush switch is
connected and the UV light is on, the flap mode will also work.
Leave the surface of the object, the ground brush switch is
disconnected, and UV light is off, flapping mode will stop at the
same time
UV and flapping indicator are synchronized.
卒ATTENTION
To avoid the injury for people and pets, UV light is equipped with
ground brush safety switch, the UV light will be off when the product
leaves the object surface
89
89
UV and Flap Indicator Light
Press the button to release the dust cup
｀
Open the metal mesh in the main
clockwise direction
Seperate th dust cup and clean it with the brush
Clean the metal mesh (Washable) and Clean HEPA
with the Brush
Air Outlet Filter Sponge Trouble Shooting
Air Outlet Release Button
When there is malfunction, please refer to below chart for trouble shooting
()
Press the release button to open the air outlet Take out the filter sponge (washable)
么Attention
All washable parts must be dried before they can be put into the product.
Daily Storage
•
When not using the machine for a long time, please keep it in a cool and
dry place. Don't put in direct sunlight or damp environment.
Trouble
Treatment
Insert the plug into the power socket
Machine not work
Less Suction
UV light not work
Excessive noise
Possible Reason
1. The plug isn't fully insert the power socket
2. Power switch isn't pressed
1. Dust cup metal mesh filter or HEPA filter is blocked
2. Suction inlet is blocked
1. Object surface is not smooth or the UV light isn't fully
touched the object, the ground brush switch is in protect
status
2. UV light is damaged
1. Full dust cup
2. Suction inlet is blocked
3. Dust cup metal mesh filter or HEPA filter is blocked
4 The filter component isn't installed
Press the power switch
Clean the dust cup
，
metal mesh filter or
HEPA filter or change HEPA filter
Clean the suction filter
Keep the surface flat or the UV light fully
contact with the cleaned object
Change the UV light
Stop using and clean up the blockage
Install the filter component
78
Technical Parameters Hazardous Substance Elements of Products
Product Cord UV Vacuum Cleaner
Model
KC301
Rated Voltage
220V
Rated Power
400w
Max Power
450w
Dust Cup Capacity
≥ 0.4L
UV Power
6w
N.W.
1.48kg
Power Line
5m
Components Lead Cadmium
Chromium
Polybrominated bipheny Polybrominated diphenyl
ethers
(Pb)
(Hg) ( Cd) (Cr
队）） (PBB)
(PBDE)
Plastic 0。 。 0 。 。
Motor
X。0 。 。 。
PCB board and components 。 。 。 。 。 。
Metal
。 。 0 0 。0
Wire X。X 。 。 。
Others 。 。 0 。 。 0
910
Mercury
Hazardous Substance
