SweetBeam SBS0202 User manual

1

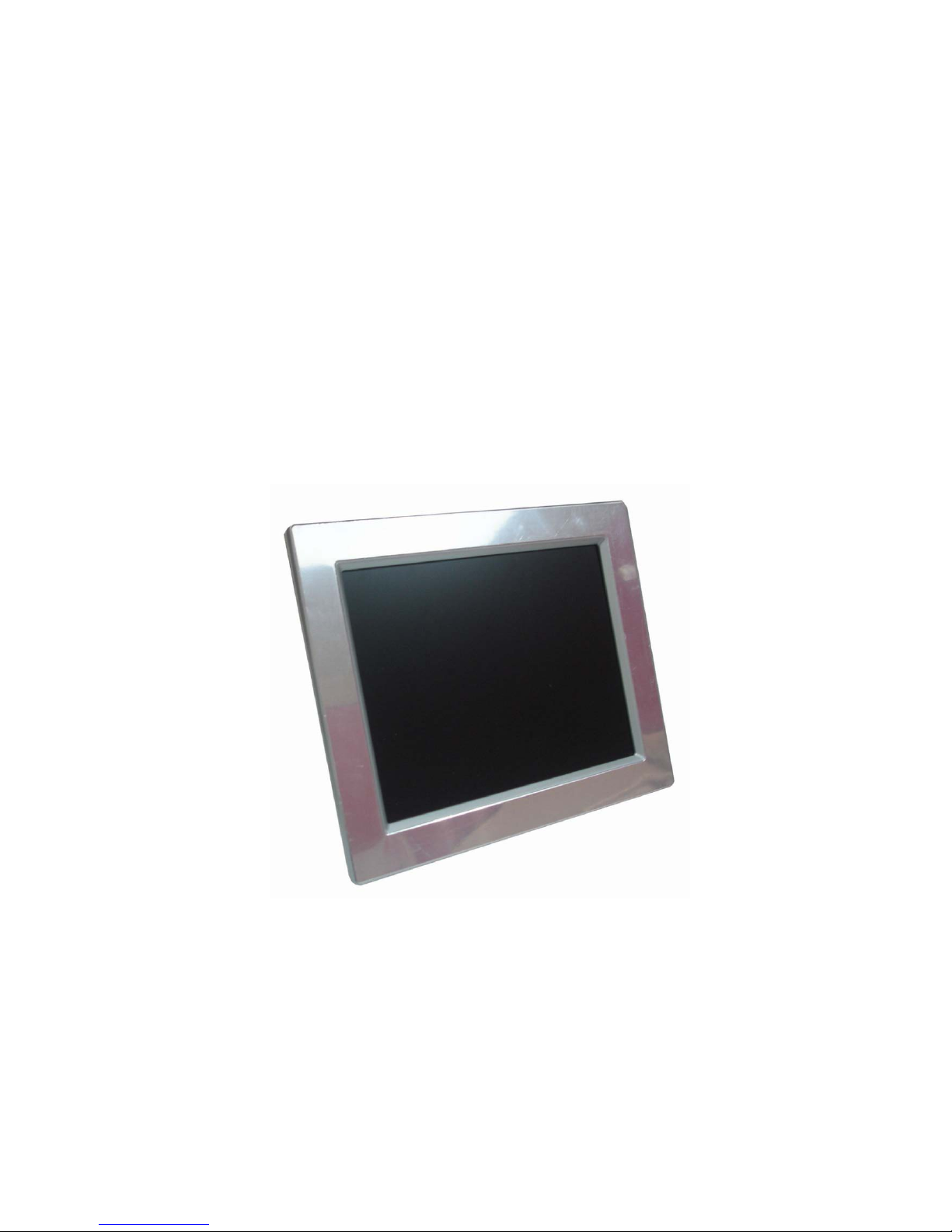

SweetBeam Digital Photo Frame
Users Manual
Model no.: SBS0202

2
Deral Communication Commission interference state-ment :
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Caution
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference and
(2) this device must accept any interference received, including interference that may
cause undesired operation
FCC RF Radiation Exposure Statement:
1. This Transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
2. This equipment complies with FCC RF radiation exposure limits set forth
for an uncontrolled environment. This equipment should be installed and
operated with a minimum distance of 20 centimeters between the radiator and your body.
You are cautioned that changes or modifications not expressly approved by the party
responsible for compliance could void
your authority to operate the equipment.

3
1.Getting to Know Your Photo Frame
USB device port
Ethernet Status Button DC Power input
1.1 USB device port: only for Firmware upgrade
1.2 Ethernet: 10/100Mbps Ethernet
1.3 Status Button:
1.3.1 Press 2 sec.: Photo Frame will display the status of network
connecting.
1.3.2 Press and hold 10sec.: Photo Frame will reboot.
1.3.3 Press and hold over 15sec.: Photo Frame will resume the factory
default settings.
1.4 DC Power input: DC12V/1A
1.5 Touch key: Turn On and Turn Off the LCD panel of Photo Frame.
1.6 Light Sensor: Photo Frame depend on the ambient light level to
automatically adjust the Brightness of LCD panel.
Touch key Light Sensor

4
2. Configuring the Photo Frame
2.1 Getting the IP address of the Photo Frame
Press the Status Button. The Status page will appear as below.
To get the IP address of Photo frame from Status page.
2.2 Accessing to the Photo Frame
2.2.1 Open the Web browser on your computer (for example, Microsoft
Internet Explorer in this guide)
2.2.2 Type the IP address in the Address bar, and then press [Enter].
2.2.3 When the login window appears, enter the default password
(Blank) and press Login to access to the Control Panel of the
Frame’s Web Configuration.
Enter the IP address of the
Photo Frame here.
Enter the Password.

5
2.2.4 After you login into the Web Configuration of the Photo Frame, the
Control Panel will appear as below:
Note. When finish the setting please click Submit to commit changes for
Control Panel

6
2.3 System setting
2.3.1 Password
To prevent unauthorized access to the Photo Frame’s Control Panel,
you are strongly recommend to change the default password.
2.3.2 Status Page Delay
When you press Status Button to enter Status page. The Status page
play time on screen, Its depend on the Delay time setting. Default is
10 seconds.
2.3.3 Automatic Reboot
Allow you setting the Photo Frame to Automatic reboot when a
period of working time. Default is 1440 minutes.
2.4 Networking setting
2.4.1 Ethernet: Select the Ethernet to be Enable. The networking traffic
of Photo Frame will over Ethernet.
2.4.2 Wireless: Please select the Ethernet to be Disable
SSID: Default is SBMAMA
Security and Key: Default is NONE

7
2.4.3 IP networking
This item allows you to select the IP address mode and set up the
related configuration.
Auto: Select this option when your network uses the DHCP server.
When the camera starts up, it will be assigned an IP address
from the DHCP server automatically.
Specific: Select this option to assign the IP address for the Photo
Frame directly.
Address Enter the IP address of the Photo Frame.
Netmask Enter the Subnet Mask of the Photo
Frame.
Gateway Enter the Default Gateway of the Photo
Frame.
DNS1/DNS2 DNS (Domain Name System) translates
domain names into IP addresses. Enter
the Primary DNS(DNS1) and Secondary
DNS(DNS2) that are provided by ISP.
2.5 Player

8
2.5.1 Brightness setting
The setting of Brightness Max/Inter/Min/Window. Allow you to
adjust the brightness range of LCD panel.
2.5.2 Sensor setting
The setting of Sensor max/Min/Off. To adjust the sensitivity of
Light Sensor depend on the ambient light of Photo Frame installed.
2.5.3 User Button setting
The Button is for turn On/Off the Backlight power of LCD panel.
2.5.4 Contents Feed setting
Synchronisation Policy: Select how many online timeout or
Once, The Photo Frame will to
sync with Feed Server.
Transition: Select the Fade in and out or Top down transition
effective.
Feed01...Feed16: Fill in the URL of Feed Server to Feed01..16
field. And specified one for your Photo
Frame to connected.
2.6 Tools
2.6.1 Clear Cache: Clear image cache from Photo Frame’s internal
flash memory
2.6.2 Reboot: To Reboot the Photo Frame
2.6.3 Reset to factory: To resume the factory default settings
2.6.4 Default Image: Allow you upload a image file to be the default
image on screen.

9
3. Specifications
Display 10.4” TFT LCD (4:3)
Ethernet IEEE 802.3 10BASE-T/100BASE-TX
compatible
Wireless IEEE802.11b/g/n Wireless LAN
Two internal Antenna
Media Formats support JPG and BMP
USB port One Type B USB Device port
Power input DC12V
Power consumption 6watts Max.
Dimension W273 x H220 x D42 mm
Materials Plastic
Operating condition Temperature: 0~45℃ Humidity: 0~80%
Storage condition Temperature: -20~60℃ Humidity: 0~90%
Certification FCC/CE
