Sweetwater Spas Maxxus User manual

Owner’s
Owner’s
Manual
Manual

Table of Contents
Important Hot Tub Owner Information.................................................................................................1
Important Safety Instructions....................................................................................................................2
Locating Your Sweetwater Hot Tub........................................................................................................8
General Electrical Safety Instructions...................................................................................................9

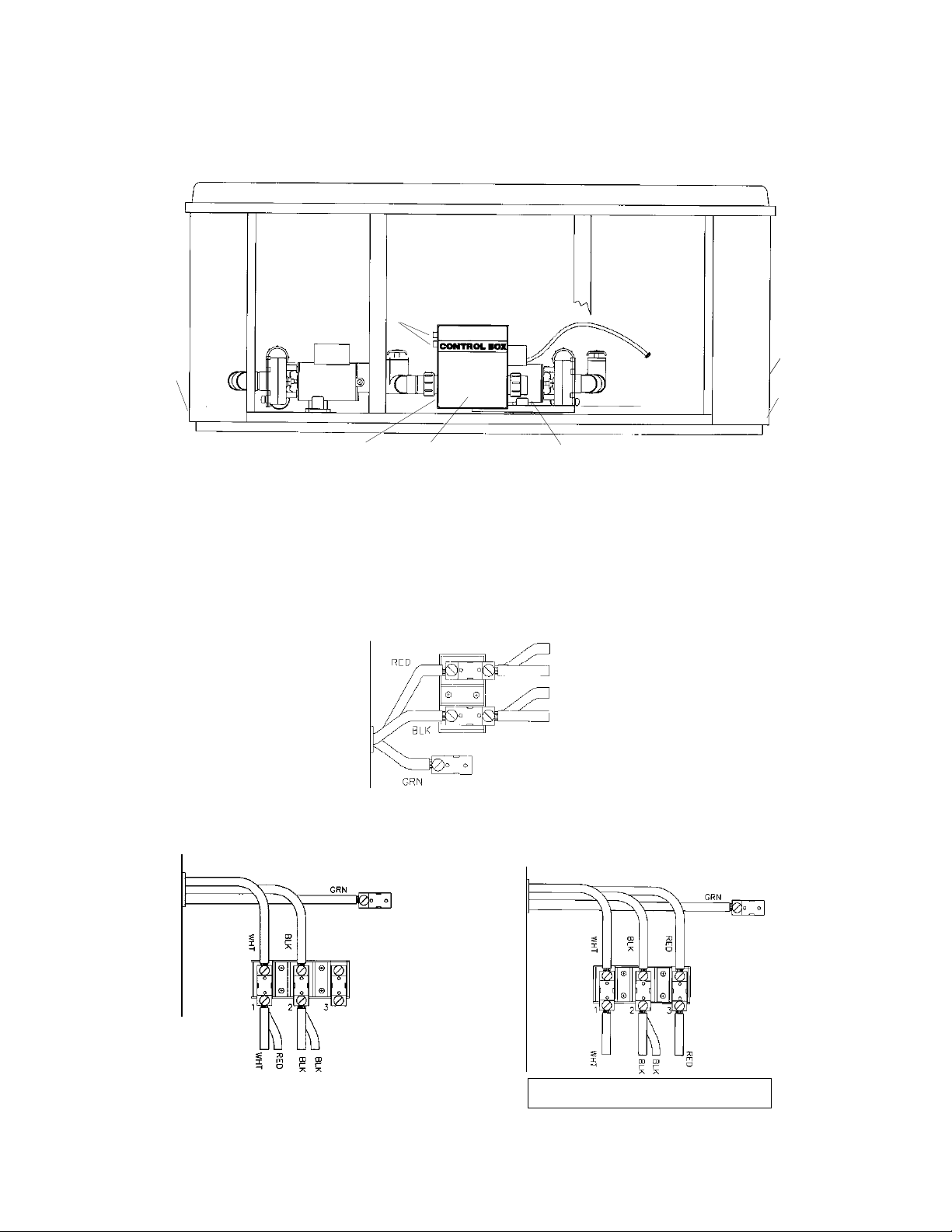

Equipment Bay / Wiring Illustrations 1-4.........................................................................................10
Electrical Installation Instructions (240 VAC).................................................................................11
Bali Service Connection (120 VAC).......................................................................................................12
Power Supply Options and Requirements........................................................................................12
Start Up Instructions.....................................................................................................................................14
Control Panels....................................................................................................................................................16
Warmer and Cooler Buttons.....................................................................................................................17
Light Button .....................................................................................................................................................17
Jets/Jets 1 Button ........................................................................................................................................17
Jets 2 Button...................................................................................................................................................17
Initial Start Up...................................................................................................................................................18
Selecting Filter Cycles .................................................................................................................................18
Filtration ...........................................................................................................................................................18
Filter Cycles.........................................................................................................................................................19
Standard Mode...............................................................................................................................................19
Care and Maintenance of Your Hot Tub............................................................................................19
Cleaning the Filter ........................................................................................................................................20
Ozonators .........................................................................................................................................................20
Draining and Refilling.....................................................................................................................................21
Cleaning the Hot Tub Surface .................................................................................................................21
Maintaining the Wood Cabinet ...............................................................................................................21
Maintaining the Cover.................................................................................................................................22
Winterizing .......................................................................................................................................................22
Restarting Your Hot Tub in Cold Weather..........................................................................................23
Maintaining Water Quality .......................................................................................................................23
pH Control ........................................................................................................................................................23
Sanitizing...........................................................................................................................................................24
Other additives......................................................................................................................................................24
Water sanitization with ozone .................................................................................................................24
Troubleshooting.................................................................................................................................................24
Troubleshooting Procedures......................................................................................................................25
Problem - Procedure.....................................................................................................................................25
Pump priming instructions........................................................................................................................26
(continued)

Wiring Diagram Bali Domestic (60 Hz)..............................................................................................28
Wiring Diagram Cyprus and Aruba Domestic (60 Hz)..............................................................29
Wiring Diagram Palermo and Bahia Domestic (60 Hz)............................................................30
Wiring Diagram Bali Export (50 Hz).....................................................................................................31
Wiring Diagram Cyprus and Aruba Export (50 Hz)....................................................................32
Wiring Diagram Palermo and Bahia Export (50 Hz)..................................................................33

Page 1
Important Hot Tub Owner Information
Your Sweetwater hot tub is constructed to the highest stan-
dards and is capable of providing many years of trouble-free
use. However, because heat retentive materials are utilized
to insulate the hot tub for efficient operation, an uncovered
hot tub surface directly exposed to sunlight and high tem-
peratures for an extended period is subject to permanent
damage. Damage caused by exposing the hot tub to this
abuse is not covered by warranty. We recommend that you
always keep the hot tub full of water when it is exposed to
direct sunlight and that you keep the Sweetwater insulating
cover in place at all times when the hot tub is not in use.
Read and carefully follow the requirements for your hot tub’s
support base (found in the section titled, “Locating Your
Sweetwater Hot Tub”, page 8).
Sweetwater Spas constantly strives to offer the finest hot
tub available, therefore modifications and enhancements
may be made which affect the specifications , illustrations
and/or instructions contained herein.
FCC Notice
This equipment has been tested and found to comply with the limits for
a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These lim-
its are designed to provide reasonable protection against harmful interfer-
ence in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accor-
dance with the instructions, may cause harmful interference to radio com-
munications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures: l) Rearrange
or relocate the receiving antenna. 2) Increase the separation between the
equipment and receiver. 3) Connect the equipment into an outlet on a cir-
cuit different from the circuit connected. 4) Consult the dealer or an expe-
rienced radio/TV technician for help. Changes or modifications not
expressly approved by the party responsible for FCC compliance could
void the user’s authority to operate this equipment.

Page 2
IMPORTANT SAFETY INSTRUCTIONS:
READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY
When installing and using this electrical equipment, basic safety precautions
should always be followed, including:
1) WARNING: To reduce the risk of injury, do not permit children to use this
product unless they are closely supervised at all times.
2) WARNING: A grounding wire connector is provided on this unit to con-
nect a minimum No. 8AWG (8.4mm2) solid copper conductor between
this unit and any metal equipment, metal enclosures of electrical equip-
ment, metal water pipe, or conduit within 5 feet (1.5m) of the unit.
3) DANGER: Risk of Accidental Drowning. Extreme caution must be exer-
cised to prevent unauthorized access by children. To avoid accidents,
ensure that children cannot use this hot tub unless they are supervised
at all times.
4) DANGER: Risk of Injury. The suction fittings in this hot tub are sized to
match the specific water flow created by the pump. Should the need
arise to replace the suction fittings or the pump, be sure that the flow
rates are compatible. Never operate the hot tub if the suction fittings are
broken or missing. Never replace a suction fitting with one rated less than
the flow rate marked on the original suction fitting.
5) DANGER: Risk of Electric Shock. Install at least 5 feet (1.5m), from all
metal surfaces. As an alternative, a hot tub may be installed within 5 feet
(1.5m) of metal surfaces if each metal surface is permanently connected
(bonded) by a minimum No. 8 AWG (8.4 mm2) solid copper conductor
attached to the wire connector on the grounding lug, inside the equip-
ment compartment on the equipment box.
6) DANGER: Risk of Electric Shock. Do not permit any electrical appliance,
such as a light, telephone, radio, television, etc. within 5 feet (1.5m) of a
hot tub.
7) ELECTRICAL SUPPLY: The electrical supply for this product must
include a suitably rated switch or circuit breaker to open all ungrounded
supply conductors to comply with section 422-20 of the National
Electrical Code, ANSI/NFPA 70. The disconnect must be readily accessi-
ble and visible to the hot tub occupant but installed at least 5 feet (1.5m),
from the hot tub water.

Page 3
8) WARNING: To Reduce the Risk of Injury:
a) The water in a hot tub should never exceed 104˚F (40˚C). Water tem-
peratures between 100˚F (38˚C) and 104˚F (40˚C) are considered
safe for a healthy adult. Lower water temperatures are recommended
for young children and when hot tub use exceeds 10 minutes.
b) Since excessive water temperatures have a high potential for causing
fetal damage during the early months of pregnancy, pregnant or possi-
bly pregnant women should limit hot tub water temperatures to 100˚F
(38˚C). If pregnant, please consult your physician before using a hot
tub.
c) Before entering the hot tub, the user should measure the water tem-
perature with an accurate thermometer since the tolerance of water
temperature regulating devices may vary as much as +/- 5˚F (2˚C).
d) The use of alcohol, drugs, or medication before or during hot tub use
may lead to unconsciousness with the possibility of drowning.
e) Persons suffering from obesity or a medical history of heart disease, low
or high blood pressure, circulatory system problems, or diabetes should
consult a physician before using a hot tub.
f) Persons using medication should consult a physician before using a hot
tub since some medication may induce drowsiness, while other med-
ication may affect heart rate, blood pressure, and circulation.
IMPORTANT SAFETY INSTRUCTIONS
(CSA SAFETY INFORMATION)
When using this electrical equipment, basic safety precautions should
always be followed, including the following:
a) READ AND FOLLOW ALL INSTRUCTIONS.
b) A green colored terminal or a terminal marked G, Gr, Ground, ,Grounding
or the symbol*is located inside the supply terminal box or compart-
ment. To reduce the risk of electric shock, this terminal must be con-
nected to the grounding means provided in the electric supply service
panel with a continuous copper wire equivalent in size to the circuit con-
ductors that supply this equipment.
*IEC Publication 417, Symbol 5019.

Page 4
c) At least two lugs marked “Bonding Lugs” are provided on the external
surface or on the inside of the supply terminal box/compartment. To
reduce the risk of electric shock, connect the local common bonding grid
in the area of the hot tub to these terminals with an insulated or bare cop-
per conductor not smaller than No. 6AWG.
d) All field-installed metal components such as rails, ladders, drains or
other similar hardware within 10 feet (3m) of the hot tub shall be bond-
ed to the equipment grounding buss with copper conductors not smaller
than No. 6 AWG.
e) SAVE THESE INSTRUCTIONS .
WARNING: Children should not use hot tubs without adult supervision.
AVERTISSEMENT: NE PAS LAISSER LES ENFANTS UTILISER LA CUVE DE
RELAXATION SANS SURVEILLANCE.
WARNING: Do not use hot tubs unless all suction guards are installed to
prevent body and hair entrapment.
AVERTISSEMENT: NE PAS UTILISER LA CUVE DE RELAXATION SI LES
GRILLES DE PRISE D’ASPIRATION NE SONT PAS TOUTES EN PLACE,.POUR
EVITER QUE LES CHEVEUX OU UNE PARTIE DU CORPS SOIENT ASPIRES
WARNING:People with infectious diseases should not use a hot tub.
AVERTISSEMENT: LES PERSONNES ATTEINTES DE MALADIES INFEC-
TIEUSES NE DEVRAIENT PAS UTILISER LA CUVE DE RELAXATION .
WARNING: To avoid injury, exercise care when entering or exiting the hot
tub.
AVERTISSEMENT: POUR EVITER DES BLESSURES, SOYEZ PRUDENT EN
ENTRANT ET SORTANT DE LA CUVE DE RELAXATION .
WARNING: Do not use drugs or alcohol before or during the use of a hot
tub to avoid unconsciousness and possible drowning.

Page 5
AVERTISSEMENT: POUR EVITER L’EVANOUISSEMENT ET LA NOYADE
EVENTUELLE, NE PRENDRE NI DROGUE NI ALCOOL AVANT D’UTILISER LA
CUVE DE RELAXATION NI QUAND ON S’Y TROUVE.
WARNING: Pregnant or possibly pregnant women should consult a physi-
cian before using a hot tub.
AVERTISSEMENT: LES FEMMES ENCEINTES, QUE LEUR GROSSESSE
SOIT CONFIRMEE OU NON, DEVRAIENT CONSULTER UN MEDECIN AVANT
D’UTILISER LA CUVE DE RELAXATION .
WARNING: Water temperature in excess of 100°F (38˚C) may be injurious
to your health.
AVERTISSEMENT: IL PEUT ETRE DANGEREUX POUR LA SANTE DE SE
PLONGER DANS DE L’EAU A PLUS DE 38˚C.
WARNING: Before entering the hot tub, measure the water temperature
with an accurate thermometer.
AVERTISSEMENT: AVANT D’UTILISER UNE CUVE DE RELAXATION
MESURER LA TEMPERATURE DE L’EAU A L’AIDE D’UN THERMOMETRE
PRECIS.
WARNING: Do not use a hot tub immediately following strenuous exercise.
AVERTISSEMENT: NE PAS UTILISER LA CUVE DE RELAXATION IMMEDI-
ATEMENT APRES UN EXERCICE FATIGANT.
WARNING: Prolonged immersion in a hot tub may be injurious to your
health.
AVERTISSEMENT: RESTER TROP LONGTEMPS DANS LA CUVE DE RELAX-
ATION PEUT ETRE DANGEREUX POUR LA SANTE.
WARNING: Do not permit electric appliances (such as light, telephone,
radio, television, etc.) within 5 feet (1.5m) of this hot tub.
AVERTISSEMENT: NE PAS PLACER D’APPAREIL ELECTRIQUE (LUMINAIR,
TELEPHONE, RADIO, TELEVISEUR, ETC.) A MOINS DE 1.5M DE LA CUVE
DE RELAXATION .

Page 6
CAUTION: Maintain water chemistry in accordance with manufacturer’s
instructions.
AT TENTION: LA TENEUR DE L’EAU EN MATIERES DISSOUTES DOIT ETRE
CONFORME AUX DIRECTIVES DU FABRICANT.
WARNING: The use of alcohol or drugs can greatly increase the risk of fatal
hyperthermia in hot tubs.
AVERTISSEMENT: LA CONSOMMATION D’ALCOOL OU DE DROGUE AUG-
MENTE CONSIDERABLEMENT LES RISQUES D’HYPERTHERMIE MORTELLE
DANS UNE CUVE DE RELAXATION .
SAVE THESE INSTRUCTIONS
HYPERTHERMIA
Prolonged immersion in hot water may induce hyperthermia. A description of
the causes, symptoms, and effects of hyperthermia are as follows:
Hyperthermia occurs when the internal temperature of the body reaches a
level several degrees above the normal body temperature of 98.6˚F (37˚C).
The symptoms of hyperthermia include drowsiness, lethargy, and an increase
in the internal temperature of the body. The effects of hyperthermia include:
a) Unawareness of impending hazard;
b) Failure to perceive heat;
c) Failure to recognize the need to exit hot tub;
d) Physical inability to exit hot tub;
e) Fetal damage in pregnant women; and
f) Unconsciousness and danger of drowning.

Page 7
Cautions
1. Persons suffering from heart disease, diabetes, high or low blood pres-
sure, and any condition requiring medical treatment, pregnant women,the
elderly, or infants should consult with a physician before using a hot tub.
2. The Consumer Products Safety Commission has stated that the water
temperature in a hot tub should not exceed 104˚F (40˚C). Immersion in
water in excess of 104˚F (40˚C) can be hazardous to your health.
3. Observe a reasonable time limit when using the hot tub. Long exposures
at higher temperatures can cause high body temperature. Symptoms may
include dizziness, nausea, fainting, drowsiness, and reduced awareness.
These effects could possibly result in drowning.
4. Do not use the hot tub under the influence of alcohol, narcotics, or other
drugs. Use of the hot tub under these conditions may lead to serious
consequences.
5. Always test the hot tub water temperature before entering the hot tub.
Enter and exit the hot tub slowly. Wet surfaces can be very slippery.
6. Never bring any electrical appliances into or near the hot tub. Never oper-
ate any electrical appliances from inside the hot tub or when you are wet.
7. Proper chemical maintenance of hot tub water is necessary to maintain
safe water and prevent possible damage to hot tub components.
8. Use the hot tub straps and clip tie downs to secure the cover when not
in use. This will help to discourage unsupervised children from entering
the hot tub and keep the hot tub cover secure in high-wind conditions.
There is no representation that the cover, clip tie downs, or actual locks
will prevent access to the hot tub.

Page 8
Locating Your Sweetwater Hot Tub
IMPORTANT: Because of the combined weight of the hot tub, water and
users, it is extremely important that the base upon which the hot tub rests be
smooth, flat, level and capable of uniformly supporting this weight, without
shifting or settling, for the entire time the hot tub is in place. If the hot tub is
placed on a surface which does not meet these requirements, damage to the
skirt and/or the hot tub shell may result. Damage caused by improper sup-
port is not covered under warranty. It is the responsibility of the hot tub owner
to assure the integrity of the support over time.
We recommend a poured, reinforced concrete slab (minimum of 4 inches
thick). Wood decking is also acceptable provided it is constructed so that it
meets the requirements outlined above.
The hot tub must be installed in such a manner as to provide drainage away
from the hot tub. Placing the hot tub in a depression without provisions for
proper drainage could allow rain, overflow and other casual water to flood the
equipment and create a wet condition in which it would sit.
For hot tubs which will be recessed into a floor or deck, install so as to per-
mit access to the equipment, either from above or below, for servicing. Make
certain that there are no obstructions which would prevent removal of the cab-
inet side panels, especially on the side with the equipment bay doors.
In selecting the ideal outdoor location for your hot tub, we suggest that you
take into consideration 1) the proximity to change area and shelter (especial-
ly in colder weather); 2) the pathway to and from your hot tub (this should be
free of debris so that dirt and leaves are not easily tracked into the hot tub);
3) the closeness to trees and shrubbery (remember that leaves and birds
could create extra work in keeping the hot tub clean); 4) a sheltered environ-
ment (less wind and weather exposure can result in lowered operation and
maintenance costs); and 5) the overall enhancement of your environment. It
is preferable not to place the hot tub under an unguttered roof overhang since
Bali Model Only
Bali models to be connected to 120 VAC electrical service must be locat-
ed no more than 10 feet (3m) from a grounded, grounding type electrical
outlet so that the power cord included can be plugged directly into it.
*DO NOT USE AN EXTENSION CORD as this could cause damage to
the hot tub’s equipment due to insufficient voltage. The power supplied to
this hot tub must be a dedicated circuit with no other appliances or lights
sharing the power provided by the circuit. To prepare your hot tub for con-
nection to 120 VAC service, refer to the instructions on page 12.

Page 9
run-off water will shorten the life expectancy of the hot tub cover.
* Power cord is not available for Canada - the hot tub must be hard wired.
For indoor installations, be certain to make provisions for proper ventilation.
When the hot tub is in use, considerable amounts of moisture will escape.
This can damage certain surfaces over time.
If you have any questions regarding the placement or installation of your hot
tub consult your authorized Sweetwater Dealer
.
General Electrical Safety Instructions
Your new hot tub is equipped with the "state-of-the-art" equipment system. It
contains the most advanced safety and self-protective equipment in the indus-
try. Nonetheless, this hot tub must be installed properly to insure dependable
usage. Please contact your dealer or local building department should you
have any questions regarding your installation.
Proper Grounding Is Extremely Important. Sweetwater hot tubs are
equipped with a current collector system. A pressure wire connector is pro-
vided on the surface of the control box, located inside the equipment door
(See illustration 1, item 1) to permit connection of a bonding wire between
this point and any ground metal equipment, metal water pipe or conduit with-
in 5 feet (1.5m) of the hot tub, or copper clad grounding rod buried within 5
feet (1.5m) of the hot tub. Bonding wire must be at least No. 8 AWG (8.4
mm2) solid copper wire. This is a most important safety assurance feature.
Before installing this hot tub, check with the local building department to
insure installation conforms to local building codes.

Page 10
Illustration No. 4
240V 4-Wire Hook-up
Bali Models Only
Illustration No. 3
120V 3-Wire Hook-up
Bali Models Only
Illustration No. 2
240V 3-Wire Hook-up Palermo,
Aruba,Cyprus and Bahia Models
Important: move red wire from position
#1 to position #3 for this hook-up
Illustration No. 1
Equipment Bay
1. Control Box
2. Grounding Lugs
3. Power Supply Entrances.
Use Equipment Panel ‘notch’ on Bali Model.
1
2
3
6
3
4
5
7
4. Pump
5. Heater
6. Hot Tub Drain Cap
7. Pump Drain Plug

Page 11
Electrical Installation Instructions
For Connection to 240V Service
(Note: The Bali model may be connected to 120V service. See the Instructions on next page.)
IMPORTANT NOTICE: The electrical wiring of this hot tub must meet the
requirements of the National Electrical Code (NEC) and any applicable state
or local codes. The electrical circuit must be installed by a qualified electri-
cian and approved by a local building/electrical inspection authority.
1. This hot tub must be permanently connected (hard-wired) to the power
supply. No plug-in connections or extension cords are to be used in
conjunction with the operation of this hot tub. Supplying power to
the hot tub which is not in accordance with these instructions will void
both the independent testing agency listing and the manufacturer’s war-
ranty.
2. The power supplied to this hot tub must be a dedicated circuit with no
other appliances or lights sharing the power provided by the circuit.
3. To determine the current, voltage and wire size required, refer to Table
No. 1, Power Supply Options and Requirements, page 12.
– Wire size must be appropriate per NEC and/or local codes.
– We recommend type THHN wire.
– All wiring must be copper to ensure proper connections. Do not use
aluminum wire.
– When using wire larger than #6, add a junction box near the hot tub
and reduce to short lengths of #6 wire to connect to the hot tub.
4. The electrical supply for this product must include a suitably rated switch
or circuit breaker to open all ungrounded supply conductors to comply
with Section 422-20 of the National Electrical Code, ANSI/NFPA 70. The
disconnecting means must be readily accessible to the hot tub’s occu-
pant but installed at least 5 feet (1.5m) from hot tub water.
5. The electrical circuit supplied for the hot tub must include a suitable
ground fault circuit interruptor (GFCI) as required by NEC Article 680-42.
6. To gain access to the hot tub’s power terminal block, remove the wood
cabinet panel on the control panel side of all models except Aruba. For
Aruba models, remove the wood cabinet panel from the lounge side.
Then open the door to the control box. (Illustration No. 1, item 1).
7. Use the appropriate power supply inlet and remove the panel from the
front of the hot tub to allow you to feed the cable through to the control
box. Install the cable with connector through the large opening provided
in the bottom of the control box.
8. Connect wires, color to color, on terminal blocks TB1 and ground
(Illustration No. 1). TIGHTEN SECURELY! All wires must be hooked up or
damage could result.
9. Close the control box door and reinstall the cabinet side panels.

Page 12
Bali 120 VAC Service Connection
1. Remove the center cabinet panel directly under the hot tub’s control panel.
2. Locate and unroll the GFI protected power cord.
3. Replace cabinet panel making sure cord passes through notch.
Refer to additional instructions in box on page 8.
* Power cord is not available for Canada - the hot tub must be hard wired.
Table No. 1
Power Supply Options and Requirements
Sweetwater hot tubs are designed to provide optimum performance and flex-
ibility of use when connected to the maximum electrical service as listed
below. Bali is shipped configured for 120V, 15A connection with a GFI pro-
tected cord provided.
If you prefer, your Sweetwater dealer can perform a minor circuit board mod-
ification to allow the hot tub to accept different electrical service. The opera-
tional considerations of these modifications are listed in the footnotes located
at the end of this section.
PALERMO and BAHIA DOMESTIC MODELS (60 Hz)
240V/30A*240V/50A
Voltage 240 volts 240 volts
Current Draw 24 amps 40 amps
Number of Wires Three Three
Circuit Breaker 30 amp dual pole 50 amp dual pole
In 50A configuration, the heater will not operate while both the pumps are
operating at high speed.
ARUBA and CYPRUS DOMESTIC MODELS (60 Hz)
240V/30A*240V/40A
Voltage 240 volts 240 volts
Current Draw 24 amps 32 amps
Number of Wires Three Three
Circuit Breaker 30 amp dual pole 40 amp dual pole

BALI DOMESTIC MODEL (60 Hz)**
120V/15A 240V/30A *240V/40A ***
Voltage 120 volts 240 volts 240 Volts
Current Draw 12 amps 22 amps 28 amps
No. of Wires Three (15 amp cord) Four Four
Circuit Breaker 15 amp 30 amp dual pole 40 amp dual pole
PALERMO and BAHIA EXPORT MODELS (50 Hz)
230V/25A*230V/30A
Voltage 230 to 240 volts 230 to 240 volts
Current Draw 18 amps 24 amps
No. of Wires Three Three
Circuit Breaker 25 amp dual pole 30 amp dual pole
In 50A configuration, the heater will not operate while the pumps are oper-
ating at high speed.
ARUBA, BALI and CYPRUS EXPORT MODELS (50 Hz)
230V/20A*230V/30A
Voltage 230 to 240 volts 230 to 240 volts
Current Draw 14 amps 20 amps
No. of Wires Three Three
Circuit Breaker 20 amp dual pole 25 amp dual pole
In 40A configuration, the heater will operate while the pump is operating
at high speed. This also applies to export Palermo and Bahia 30A and
export Aruba, Bali and Cyprus 25A.
*In this configuration, the heater will not operate at the same time as the
high speed of either pump. Note: Pump 2 in Palermo and Bahia models
runs only in high speed.
** Bali Domestic Models Only (60 Hz) - For 240V connection of the Bali
move the red wire from position #1 to position #3 on the terminal block
(see Illustration 4, page 10).
***Bali Domestic Models Only (60 Hz) - If the Bali is to be operated on
240 VAC, 40A service, remove the jumper at location JP1-1 on the circuit
board. 30A, 240 VAC operation increases the output capacity of the heater
four-fold compared to 120 VAC. However, the heater cannot operate when
the pump is on high speed. 40A, 240 VAC operation allows the heater to
operate at the same time as the high speed pump.
Page 13

Page 14
Start Up Instructions
FOR BEST RESULTS, READ EACH STEP IN ITS ENTIRETY BEFORE
PROCEEDING WITH THAT STEP.
1. PREPARE THE HOT TUB FOR FILLING
• Clear all debris from the hot tub. (Although the hot tub shell has been
polished at the factory, you may want to treat it with a specially formu-
lated hot tub cleaner and wax available from your dealer prior to filling
the first time.)
• Remove the filter.
2. FILL THE HOT TUB
• Place the end of your garden hose into the pipe exposed when you
removed the filter cartridge.
Important: Always fill your hot tub through the filter pipe after draining.
Failure to do so may cause air to be trapped in the pump, preventing the
pump from circulating water.
NOTE: Never fill with water from a water softener. If your water is extreme-
ly “hard”, it is preferable to fill half-way with hard water and the rest of the
way with softened water. Or, you may fill entirely with hard water if you use
a special water additive available from your Sweetwater dealer.
• Fill the hot tub until the water level is above all jets. Warning: Do not
over-fill.
• Remove the hose and replace the filter cartridge.
3. TURN ON THE POWER
Turn on the power to the hot tub at the home’s circuit breaker. The heater
and the pump’s low speed automatically activate and the LED display on
the control panel shows the water temperature.
4. ACTIVATE JETS
Press the JETS or JETS 1 button on the control panel once to activate
pump 1 in low speed. Press the button a second time to activate pump 1
in high speed and initiate maximum water flow to certain jets.
5. ADD START-UP CHEMICALS
Add the hot tub water chemicals as recommended by your Sweetwater
Dealer. (See the section titled MAINTAINING WATER QUALITY (page 23) for
general guidance.)

Page 15
6. SET HOT TUB TO HEAT (Default Set Temp is 100˚F (38˚C)
To warm the hot tub water up to a comfortable temperature, follow these steps:
•The LED display on the control panel displays the actual temperature of
the hot tub water. Press either the COOLER (Down) or WARMER (Up)
button to display the “set” temperature for 5 seconds. If you want the
water to heat to a different temperature, simply press COOLER or
WARMER within 5 seconds while the “set” temperature is displayed.
The set temperature advances or decreases by one degree each time
one of these sensor pads is pressed.
•The heater will turn off when the temperature corresponding to the ther-
mostat setting is achieved.
NOTE:
• The maximum temperature for which the hot tub can be set is 104˚F (40˚C) and
the minimum is 65˚F (18˚C).
•Setting the thermostat at maximum will not accelerate the heating process.
This will only result in a higher ultimate temperature.
•If hot tub is hooked up to a15 amp/120V (Bali) Turn off high speed pump to
operate heater.
7. PLACE COVER ON HOT TUB
• Keeping the insulating cover in place anytime the hot tub is not in use
will reduce the time required for heating, thereby minimizing operating
costs.
• The time required for initial heat-up will vary depending on the starting
water temperature and the capacity of your hot tub. Smaller hot tubs
heat at a rate of approximately 6 to 8 degrees per hour; larger hot tubs
heat at about 4 to 6 degrees per hour. The heating rate of a Bali
connected to 120VAC will be about 2 or 3 degrees per hour.
DANGER. RISK OF INJURY. Always check water temperature carefully
before entering hot tub.

Page 16
Control Panels
Illustration No. 5
Bali
Digital Command Center
These buttons:
1. Display temperature setting.
2. Change temperature setting.
3. Perform other programming
functions.
Controls 2-speed pump.
Indicates
heater is on.
COOLER
LIGHT
JETS 1
WARMER
Light
indicator
Red LED display: can shown current water temperature,
set water temperature, error messages, and filter modes.
Controls
light.
Red LED display:
can show current
water tempera-
ture, set water
temperature, error
messages and
filter modes.
JETS
LIGHT
COOLER
WARMER
DIGITAL
COMMAND CENTER
HEAT
Illustration No. 6
Aruba and Cyprus
Digital Command Center
Controls
light
Controls
2-speed
pump
Pump
indicator
These buttons:
1. Display temperature setting.
2. Change temperature setting.
3. Perform other programming
functions.
Indicates
heater is on.

Page 17
WARMER AND COOLER BUTTONS
The hot tub’s thermostat is to provide you with optimum control of the hot
tub water temperature. This temperature set point can be adjusted from 65˚F
(18˚C) to 104˚F (40˚C). In conjunction with setting the temperature, these
two buttons are used in changing the filter cycles (see “Selecting Filter
Cycles”, page 18).
LIGHT
The control panel button labeled LIGHT activates the underwater hot tub light
when depressed and the LED indicator light above this sensor comes on
when the hot tub light is turned on. The light has a one hour default.
There are two colored lenses included with your hot tub which may be placed
over the light lens inside the hot tub. To remove a lens, simply rotate it coun-
terclockwise and pull.
JETS OR JETS 1
The JETS OR JETS 1 button controls the 2-speed pump. Pressing this but-
ton switches the pump from off, to low speed, to high speed, and back to off.
JETS 2
The JETS 2 button controls the high speed pump 2 featured on Palermo and
Bahia models.
JETS 1 JETS 2 COOLER
LIGHT WARMER
Illustration No. 7
Palermo and Bahia
Digital Command Center
Light
indicator
Red LED display: can shown current water temperature,
set water temperature, error messages, and filter modes.
Controls
light
Controls
2-speed
pump 1
Pump 1
indicator
These buttons:
1. Display temperature setting.
2. Change temperature setting.
3. Perform other programming
functions.
Controls
high speed
pump 2
Pump 2
indicator
Indicates
heater is on.
