SWIT NDI EFP User manual

User Manual
Ver：C
Thank you for purchasing SWIT products!
Please read this manual carefully before using.
Multi-Camera Production System
* NDI® is a registered trademark of Vizrt Group.

Contents
Statement
Safety Precautions
Introduction
Features
Index of Parts and Functions
The Camera Adaptor
The Intercom Control Panel
Get Started
1. System Connection
2. IP setup
Webpage Settings - Camera Adaptor
1. Channel - Camera Channel configuration
2. Channel - Return Video Source Select
3. Channel - NDI Group Setting
4. Channel - External Sources
5. Channel - Advanced Settings
6. Network - Change IP address
7. User Admin - Log-in ID and Password Setting
8. Firmware Update
Webpage Settings - Intercom Control Panel
1. Channel - Assign Camera Adaptors
2. NDI settings
Indicators
Troubleshooting
Specifications

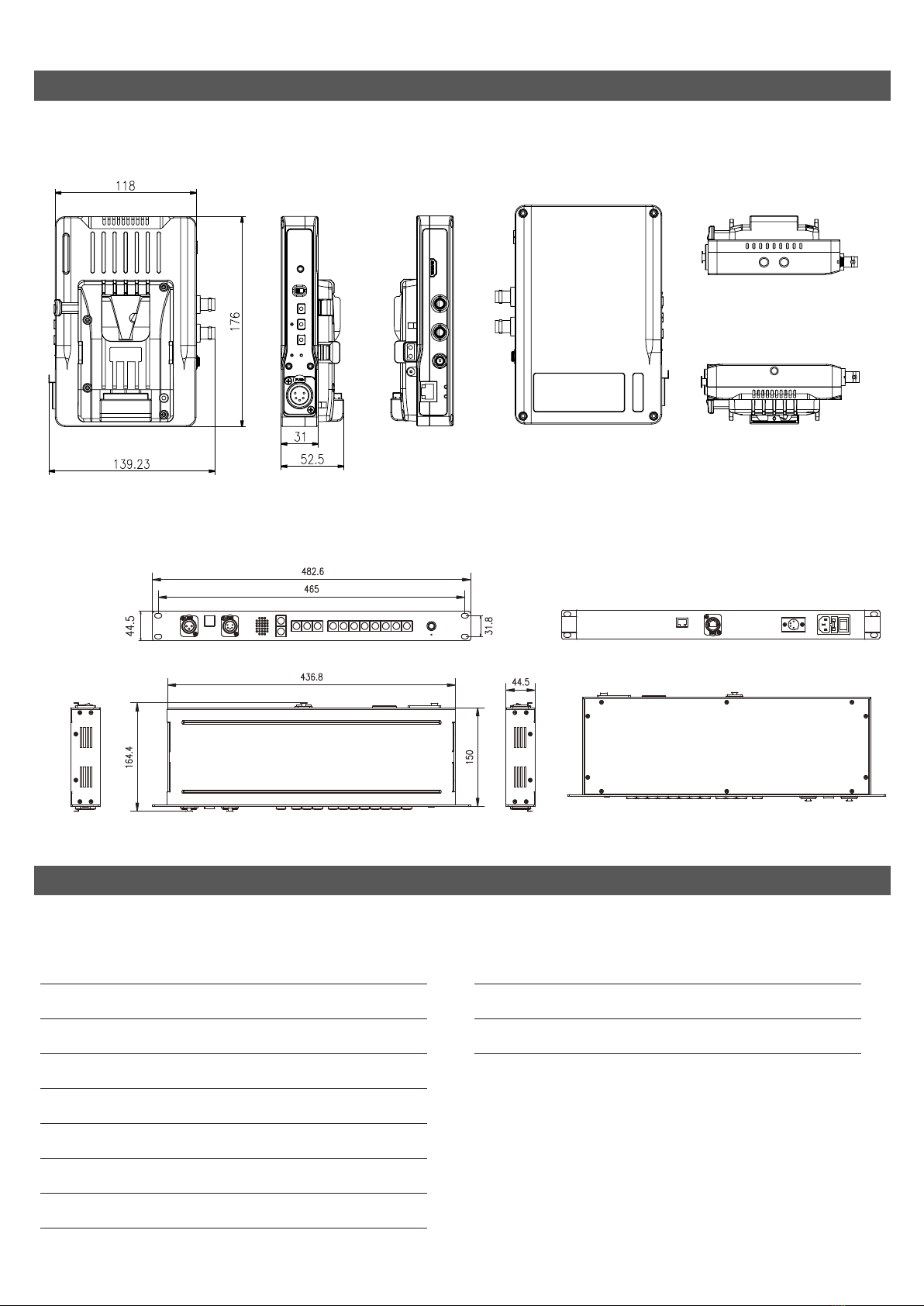

Dimensions
Packing List
3
4
5
5
6
6
7
8
8
9
10
10
10
11
11
12
12
13
13
14
14
14
15
16
17
18
18
2

Any internal technology of this product (including hardware equipment, software design, and
product trademark) is protected by law, and any violation of the intellectual property rights of
this product will be investigated for legal responsibility.
All the company's brands and trademarks in this product are protected by law. All brands and
trademarks of other companies involved in the product are legally protected by their owners.
In order to better serve the majority of users, the company's products will continue to improve
and develop, and the company reserves the right to modify and improve the products
described in this manual without prior notice.
The warranty period of this product is two years, and the following conditions are not covered
by the warranty:
(1) Man-made damage such as appearance wear and tear;
⑵ Product failure or damage caused by failure to use, maintain and store according to the
instructions;
⑶ When used in a special environment, the signal quality will be attenuated;
⑷ Product damage caused by using a non-product matching power adapter;
⑸ Other faults not caused by product design, technology, manufacturing, quality and other
problems or unauthorized disassembly, repair or replacement parts etc.
If users find problems during use or have suggestions and requirements for our products,
please contact us by telephone, fax, email, etc.
Statement
SWIT Electronics Co., Ltd.
Address: 10 Hengtong Road, Nanjing Economic and Technological Development Zone,
Nanjing 210038, P.R. China
Phone: [phone]
Fax: [phone]
Email: c[email protected]c
http//www.swit.cc
3

Safety Precautions
Please follow the safety precautions in this manual and operate in the correct way. Our company
guarantees that this product can be used for a long time, but the following situations are not included:
1.Unauthorized disassembly, maintenance or replacement of parts and other operations.
2.Damage caused by accident, including but not limited to lightning, fire, exposure to rain or moisture.
3.The type of power source being used is not within the voltage range allowed for this product.
Warning
Do not let any liquid splash on the product.
In order to avoid electric shock, please do not block or paste the ventilation holes on the product,
do not remove the product cover, or put pins, iron wires, and foreign objects into the gaps in the
ventilation holes.
To reduce the risk of electric shock or fire, do not place this product in rain or moisture.
Danger
Before connecting with any equipment, please turn off the power first, and then operate.
Power socket: To avoid short-circuit electric shock or fire, please confirm that the type of power
socket used is within the voltage range of this product.
Power cord: Do not place any objects or heavy objects on the power cord to prevent the power cord
from being pressed or strained.
Power load: Do not exceed the load on the wall socket, extension cord or other porous sockets to avoid
fire or electric shock.
Lightning: To avoid lightning or long time without use of the product, please remove the plug/external
battery.
User environment
Do not place this product in an unstable place, the product may be seriously damaged due to falling.
Do not place this product near equipment that is too hot, too cold or too humid, or that will cause a
strong magnetic field.
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
x
4

Introduction
The SWIT NDI EFP system consists of camera adaptors EC-N200 (up to HD) or EC-N200-4K (up to 4K) and
an intercom control panel ET-N80 with all the essential accessories for one-stop setup.
The EC-N200 camera adaptor takes 3G-SDI input from cameras, encoded to an HD NDI stream over an
IP network, and the EC-N200-4K camera adaptor takes 12G-SDI input, and encodes to 4K NDI. Both of
the HD and 4K versions support NDI PGM source decoded and monitoring output via HDMI. You can use
any on-camera monitors with HDMI input, to monitor local camera video and return PGM video in
pic-in-pic mode. The control buttons on the adaptor are available for intercom volume adjustment and
Push-to-talk with the director. There’s on-board TALLY light for cameramen and also extended TALLY
light for the anchor. The camera adaptors support PoE power and V-mount battery power as well.
The ET-N80 intercom control panel can be assigned with up to 8 camera adaptors, and supports link
connection for more channels or for external 3rd party intercom system by 4-wire connector. Directors
can talk to every cameraman individually by pushing button numbers or announce everyone by the
ANN button, instead of selecting intercom channels from webpages.
The NDI EFP system has respected all the operation habits of SDI/Fiber EFP system, and greatly
simplified cable works by using NDI IP solution. You can use any ENG cameras to build up a pure NDI
production system, and all the intercom, TALLY, return video are based on NDI, the high quality and low
latency IP video solution with reasonable network bandwidth.
Encode camera SDI to high bandwidth NDI, HD up to 150Mbps and 4K up to 250Mbps.
Decode PGM NDI in every camera adaptor and display local video and return video together.
Full duplex intercom between cameramen and director.
The director can select camera numbers to talk individually or press ANN to talk to everyone.
The cameraman can initiate the call to director.
Provide dual colors on-board TALLY light and external TALLY light set on the front of the camera.
The camera adaptor supports DC-IN power, V-mount battery power and PoE power.
The intercom control panel can be connected into 3rd party intercom system.
◆
◆
◆
◆
◆
◆
◆
◆
Features
5

Index of Parts and Functions
6
The Camera Adaptor
EC-N200 / EC-N200-4K
SDI LOOP
SDI IN
（1）
（2）
（3）
（4）
（5）
（6）
（7）
（8）
（9）
（10）
（11）
（13）
（12）
（14）
（15）
（16）
（17）
（18）
(1) External TALLY output, 3.5mm jack
(2) Power ON/OFF switcher
(3) Volume Up *
(4) Volume Down *
*Press both to call director
(5) NDI return video Indicator
(6) NDI return video switcher， press in turn:
Local video → Local/Return PIP→ Return Video
(7) SDI input lock indicator
(8) Press the pin to reset
(9) 5-pin XLR headset input
(10) On-board TALLY light
(11) V-mount battery plate (Gold mount option)
(12) D-tap power output from battery
(13) HDMI Monitor out for Local / Return video
(14) SDI loop output*
(15) SDI input*
*EC-N200 up to 3G; EC-N200-4K up to 12G
(16) DC 11-17V input, 5.5/2.1mm jack
(17) RJ45 network cable fixer install position
(18) Gigabit high bandwidth NDI interface *
*EC-N200 up to 1080p50/60, 150Mbps
EC-N200-4K up to 2160p50/60, 250Mbps

7
（1） （2） （3） （4）（5）（6） （7）（8）（9） （10） （11）（12）（13）
（14） （15） （16） （17） （18）
Index of Parts and Functions
The Intercom Control Panel
ET-N80
(1) 3-pin XLR Microphone socket
(2) Mic/Headset switching button
Press down to switch from Headset to Mic
(3) 5-pin XLR Headset socket
(4) Speaker, output when switching to Mic
(5) Volume Down
(6) Volume Up
(7) ANN: Announcement mode
Press to talk to all camera channels
(8) MIC OFF: Turn off the Microphone input
(9) MUTE: Turn off the Headphone/Speaker output
(10) 1-8: Camera Channels 1-8
Press the numbers to talk individually
(11) 4-Wire: External intercom channel
Press to take over external intercom
(12) Power ON/OFF switcher
(13) Press the pin to reset
(14) AC 100-240V 50/60Hz input
(15) AC ON/OFF switcher
(16) DC 11-17V input, 4-pin XLR
(17) External intercom connect, RJ45 4-Wire *
* Pin definition:
(18) NDI network connect, RJ45
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Pin 7
Pin 8
Null
Null
Audio OUT +
Audio IN +
Audio IN -
Audio OUT -
Null
Null

8
Get Started

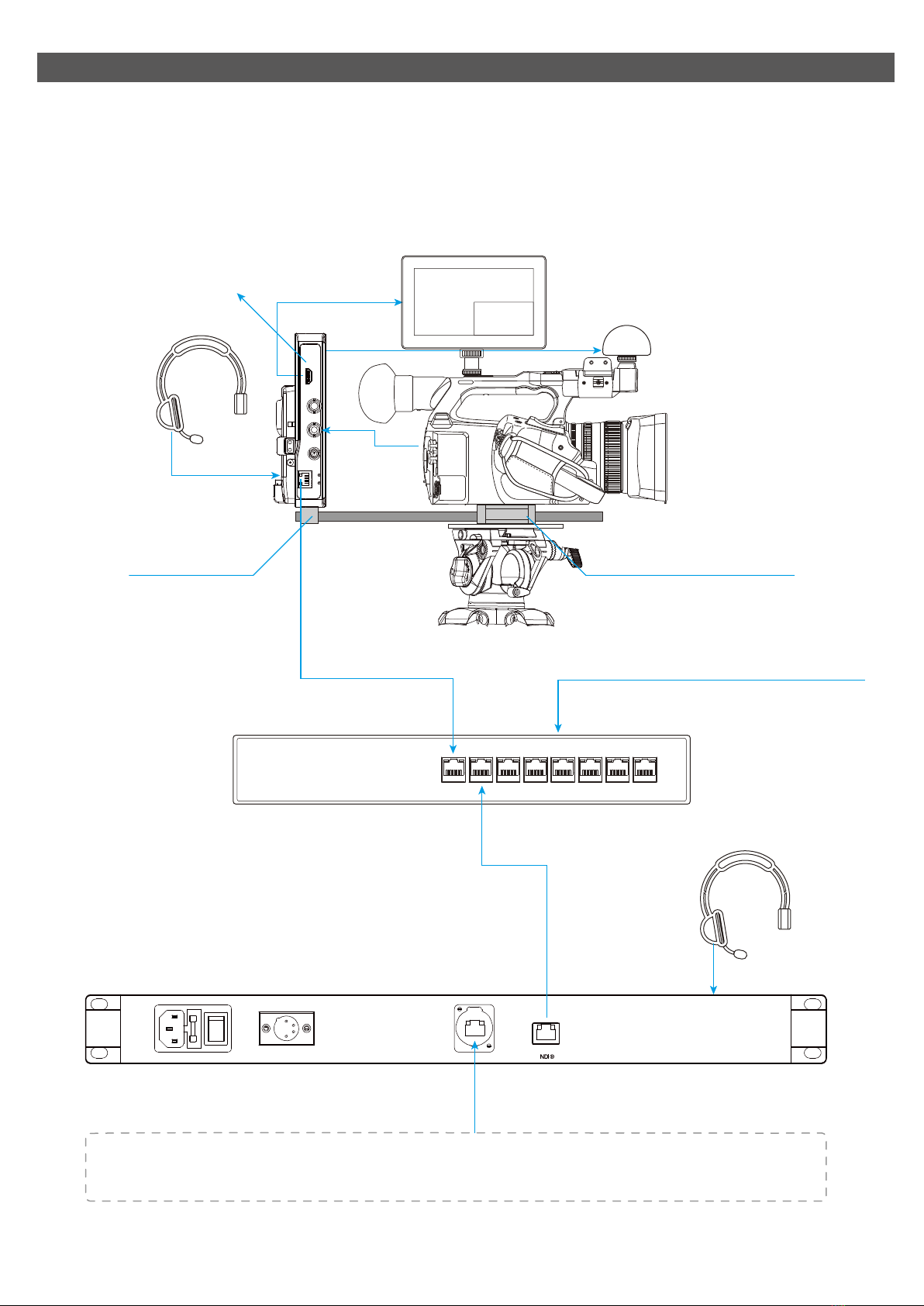

1. System Connection
Connect all the camera adaptors and the intercom control panel to the NDI network.
PGM
CAM 1
Network Switcher
HDMI output
Local / Return video
External TALLY light
Headset
Headset
15mm Rod Rail Clamp 15mm Rod Rail Camera Base
Install between camera and tripod
NDI
PoE Power
More Camera Channels, NDI switcher, NDI monitor etc.
NDI
4-wire
Camera SDI
Input
3rd Party Intercom System
EC-N200/N200-4K
ET-N80

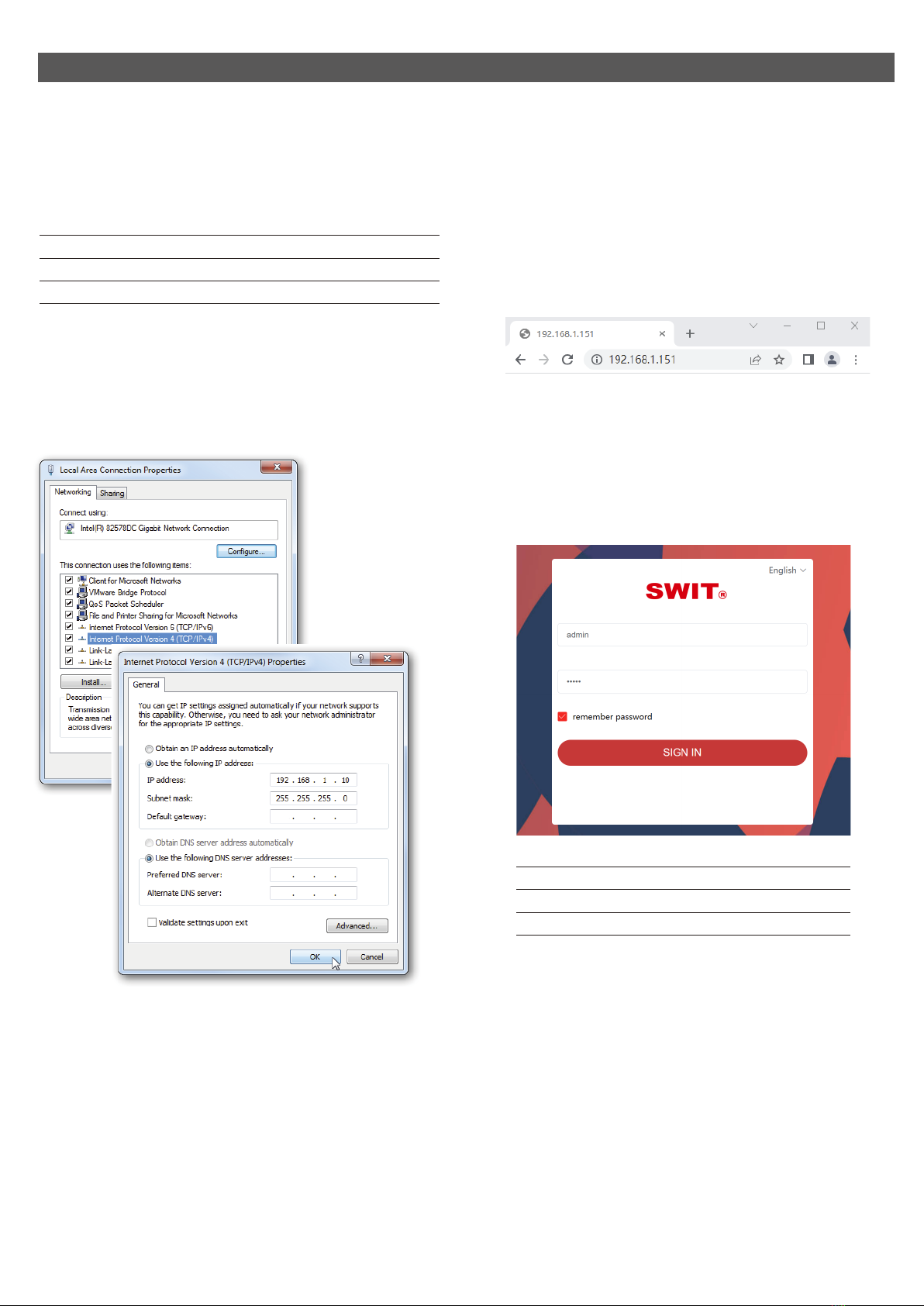

2. IP Setup
The camera adaptor and intercom control panel
has factory default IP address:
Set computer IP address to the same segment,
and connect directly with the device or through
network switcher, by straight through RJ45 cable.
Launch web browser on the computer,
input 192.168.1.15X to enter configuration
webpage of the camera adaptor, and input
192.168.1.101 to enter configuration
webpage of the intercom control panel.
Input User ID and password to log-in
configuration webpage
9
Get Started
Device
EC-N200/N200-4K
ET-N80
Default IP
192.168.1.15X
192.168.1.101
You can find the default IP address on the product label
Item
User ID
Password
Default
admin
admin

10
1. Channel - Camera Channel configuration
2. Channel - Return Video Source Select
Webpage Settings - Camera Adaptor
Status
Info List
Click to enter
the webpage of
Intercom panel.
All NDI sources in current network Select one source as “Return video”
to output via HDMI to camera top monitor
No special characters accepted
IP address of assigned
Intercom Control Panel
No special characters accepted
Rename and Apply

11

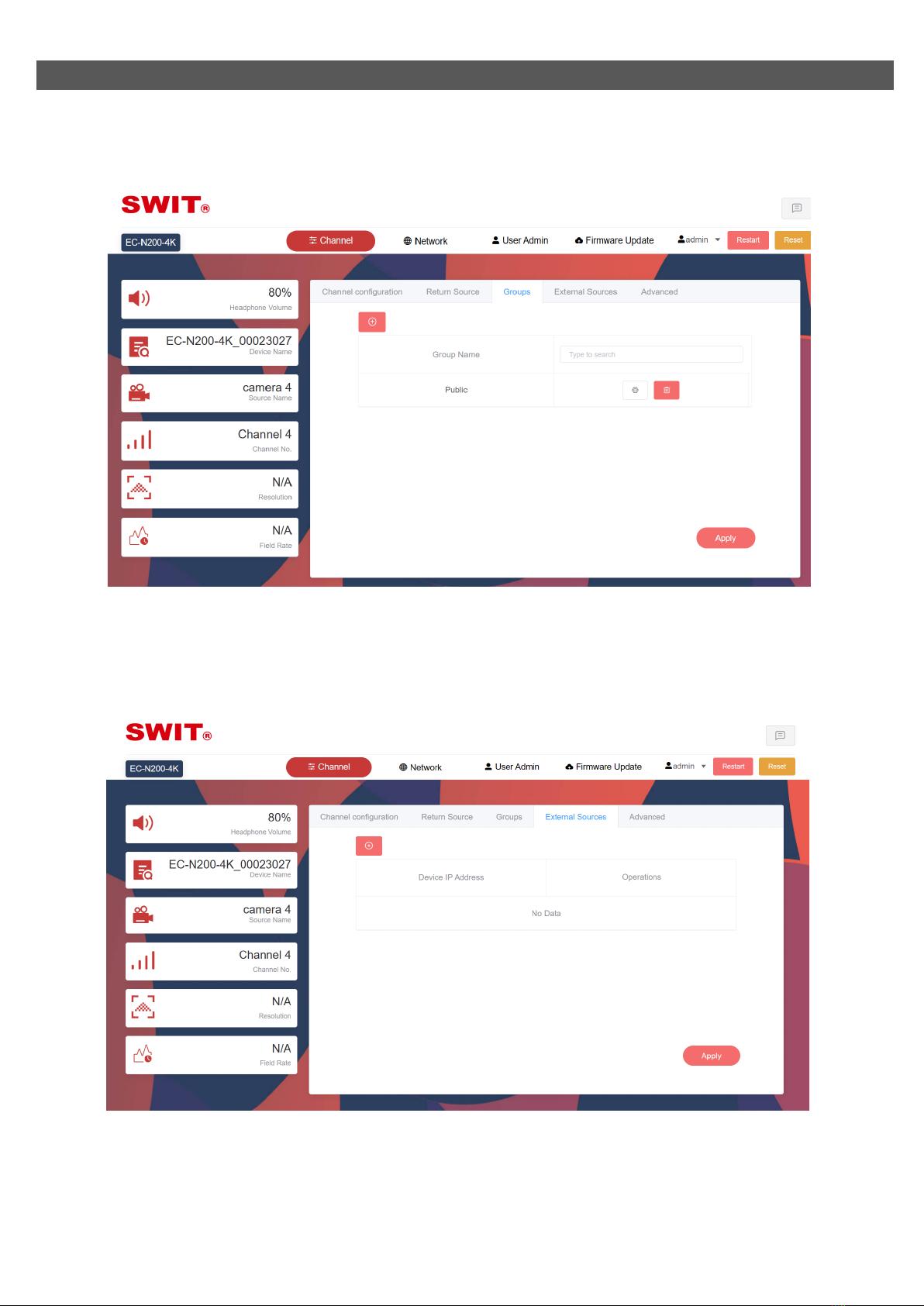

3. Channel - NDI Group Setting
4. Channel - External Sources
Webpage Settings - Camera Adaptor
The current NDI Group will displayed below.
The current external device IP address will displayed below.
Add, Delete, or Modify the name of NDI Group
Add device IP address to find NDI sources from subnet.
Change and Apply
Change and Apply

12
5. Channel - Advanced Settings
6. Network - Change IP address
Webpage Settings - Camera Adaptor
Switch on NDI Discovery Server
Add NDI Discovery Server IP address
Change address
Mac address display
Change and Apply
Change and Apply
UDP (unicast)
UDP (multicast)
RUDP (unicast)
TCP (single connection)
TCP (multi-connection)
Select from:

13

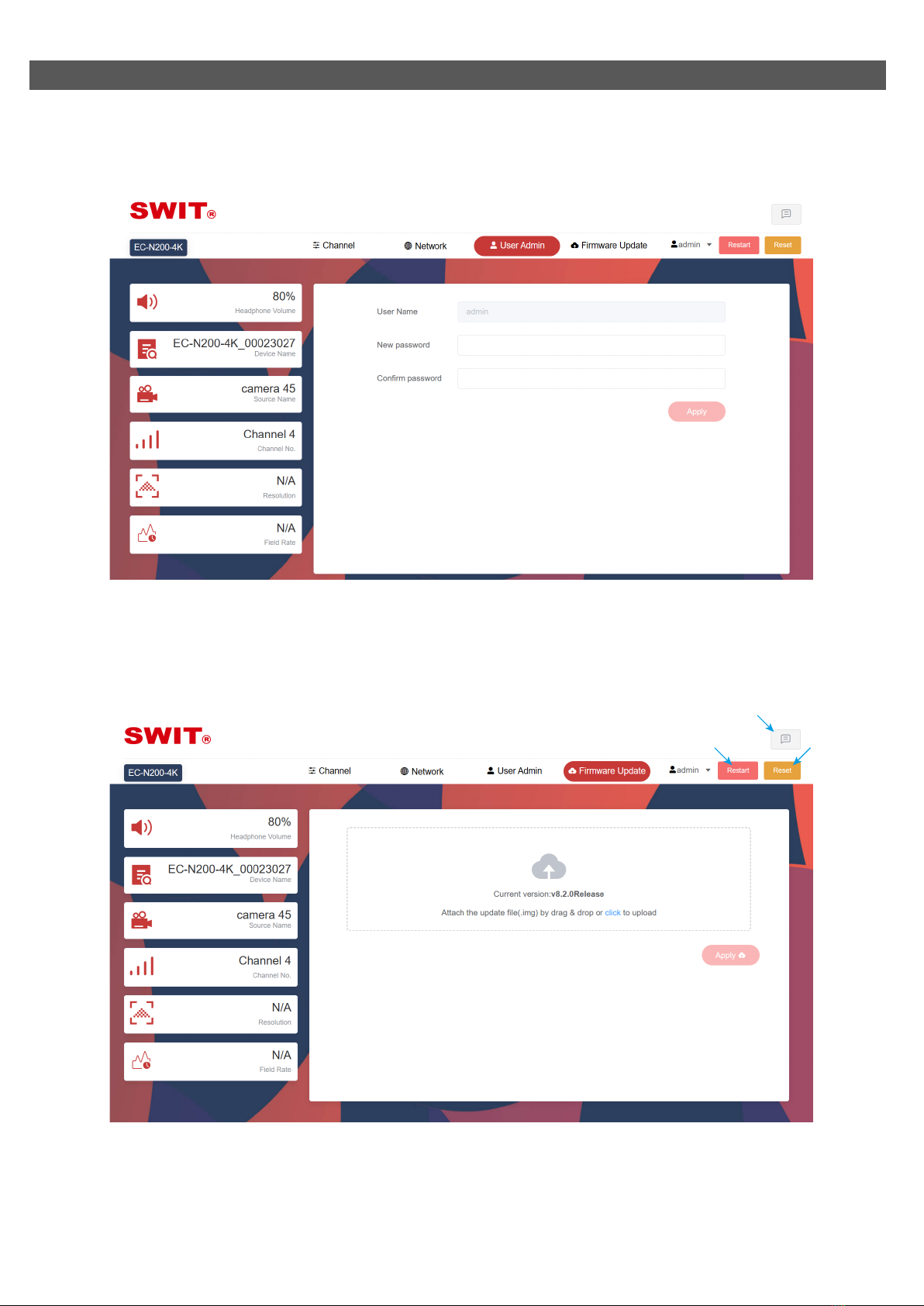

7. User Admin - Log-in ID and Password Setting
8. Firmware Update
Webpage Settings - Camera Adaptor
Change and Apply
Change Log-in User name
4 - 16 letters
Re-type password
Check Serial Number, Model and NDI SDK
Restart the device Reset the device
Drag & drop the firmware file (.img) to this block
Or click the area to browse firmware file and apply
The device will automatically restart after firmware update.
Important:DO NOT cut off power during firmware update

14
1. Channel - Assign Camera Adaptors
2. NDI Settings
Webpage Settings - Intercom Control Panel
Change and Apply
Display color - The device is online
Display grey - The device is offline
Search IP address or device name
to add Camera adaptors
Assigned devices:
Click to remove
the device
Drag the devices to move positions (not available for the offline devices)
Add, Delete, or Modify the name of NDI Group
Add device IP address to find NDI sources from subnet.
Add NDI Discovery Server IP address
Change and Apply

Indicators
On
Off
Red
Green
Red
Green
Red
Green
Amber
Red
Green
Amber
On
Off
Red
Green
Red
Green
Red flashing
Red
Green
Off
Green
Off
Green
Off
Green
Powered on
Device not get powered
No SDI input recognized
SDI input recognized
No return NDI source recognized
Return NDI source recognized
The camera channel is PGM
The camera channel is PVW
The camera channel is both PGM & PVW
The camera channel is PGM
The camera channel is PVW
The camera channel is both PGM & PVW
Powered on
Device not get powered
3-pin Microphone actived
5-pin Headset actived
The camera channel connected
The camera channel intercom actived
The camera channel is calling
External intercom system is connected
External intercom channel is actived
Individual intercom mode
Announcement mode
Microphone is turned on
Microphone is turned off
Earphone or Speaker is turned on
Earphone or Speaker is turned off
ANN
4-wire
MIC
OFF
MUTE
1 2 3 4 5 6 7 8
15
1. The Camera Adaptor EC-N200/N200-4K
2. The Intercom Control Panel ET-N80
Singal Indicator Status/Color Instruction
Singal Indicator Status/Color Instruction
OFF/ON
SDI IN
NDI RETURN
On board
TALLY
External
TALLY
POWER
INPUT

Troubleshooting
16
Camera adaptor not get powered
Camera SDI not connected
Camera SDI format not supported
Network blocked
Didn’t select return video source
Return video not switched on
Low volume or Mic OFF or Mute
Camera adaptor not assigned
Wrong IP address
Web browser need refresh
Firmware file error
The device is already latest firmware
No NDI video
from camera
channels
No return video
display
Intercom can’t
be connected
Unable to launch
web configue page
Unable to
upgrade firmware
Check power supply
Check camera SDI cable
Check camera SDI format
Check IP address of the camera adaptor
Camera adaptor-Channel-Return source
Press Return button on camera adaptor
Check the button status
Check the channel assign settings
Check IP address of the device
Press Ctrl+F5 to refresh web browser
Make sure the file name is correct
Check the firmware version
Phenomenon Possibility Reasons Solutions

EC-N200Camera Adaptor
ET-N80Intercom Control Panel
EC-N200-4K
Input
Output
Video
Formats
SDI
NDI
HDMI
12G-SDI ×1
12G-SDI loop ×1
HDMI 1.3 out ×1
High bandwidth NDI ×1
3G-SDI ×1
3G-SDI loop ×1
HDMI 1.3 out ×1
High bandwidth NDI ×1
1080P（60/59.94/50/30/23.98/29.97/25）
1080I（60/59.94/50）
720P（60/59.94/50）
2160P（60/50/30/23.98/29.97/25）
1080P（60/59.94/50/30/23.98/29.97/25）
1080I（60/59.94/50）
720P（60/59.94/50）
2160P（60/50/30/29.97/25）
1080P（60/59.94/50/30/29.97/25）
1080I（60/59.94/50）
720P（60/59.94/50）
1080P（60/59.94/50/30/23.98/29.97/25）
1080I（60/59.94/50）
720P（60/59.94/50）
1080P（60/59.94/50/30/23.98/29.97/25）
1080I（60/59.94/50）
720P（60/59.94/50）
1080P（60/59.94/50/30/29.97/25）
1080I（60/59.94/50）
720P（60/59.94/50）
AC Input
DC Input
Power
Environment
Size
Weight
Specification
DC Input
Power
Environment
Size
Weight
DC/ Battery 11～17V，1.5A， PoE 42～57V，0.5A
16W
0℃～+40℃
139.23×176×52.5mm
742g
100～240V, 0.5A
11～17V，1.5A
16W
0℃～+40℃
482.6×164.4×44.5mm, 1U rackmount
1.5kg
17

EC-N200/N200-4K
EC-N200/N200-4K
ET-N80
Dimension
Packing List
Unit:mm
Unit:mm
18
Single ear headset (5-pin XLR)
15mm rail rods
Camera 15mm rail base
Adaptor 15mm rail clamp
External TALLY with cable and coldshoe
RJ45 cable fixer
D-tap to 5.5/2.1mm DC cable
Carrying Case
×1
×2
×1
×1
×1
×1
×1
×1
ET-N80
Single ear headset (5-pin XLR)
Swanneck Microphone (3-pin XLR)
AC power cable
×1
×1
×1
