Syba CAM-CNL-C123 User manual

CAM-CNL-C123
User’s Manual

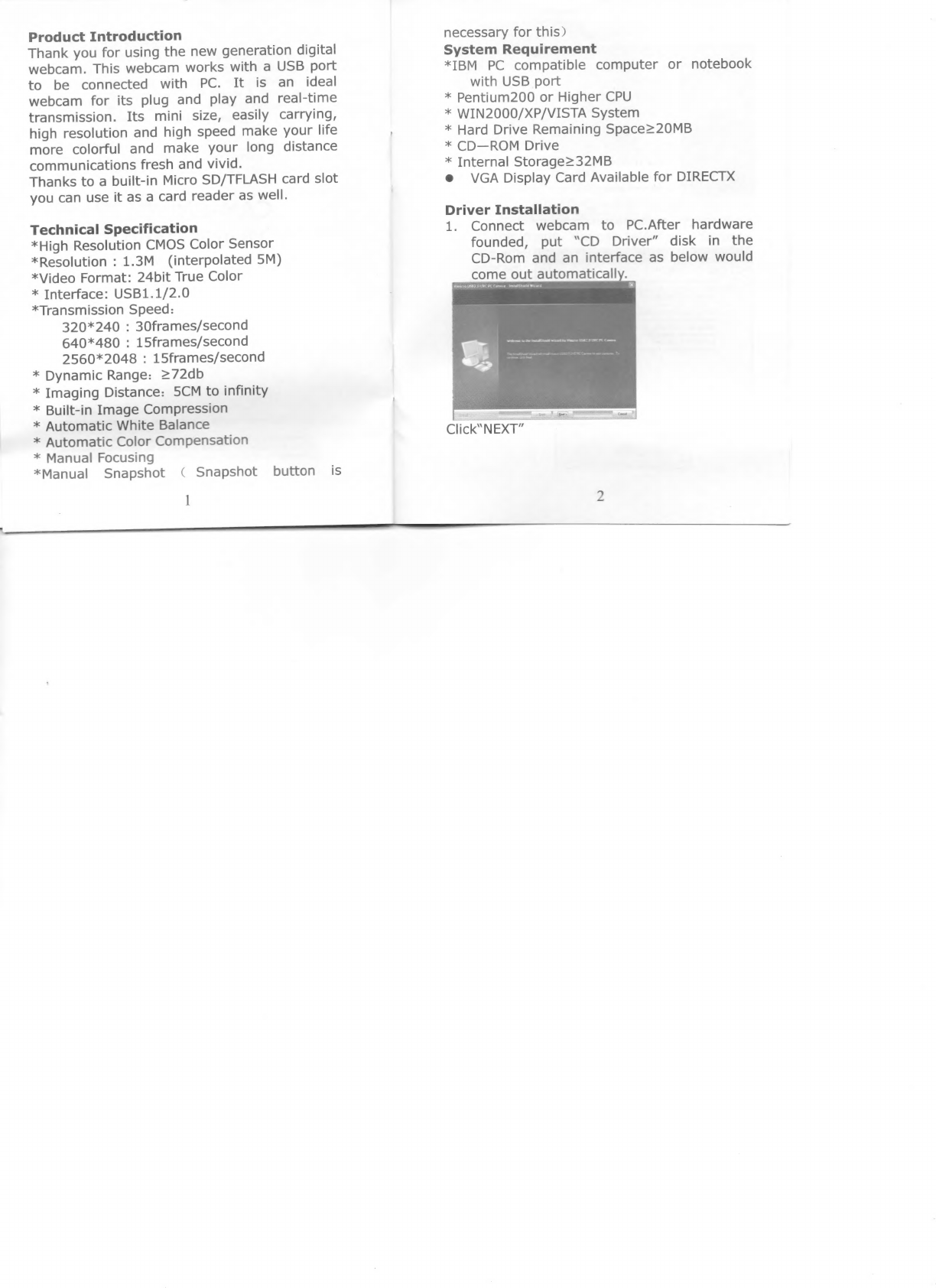

Product Introduction
Thank
you
for
using
the
new
generation
digital
webcam.
This
webcam
works
with
a
USB
port
to
be
connected
with
PC.
It
is
an
ideal
webcam
for
its
plug
and
play
and
real-time
transmission.
Its
mini
size,
easily
carrying,
high
resolution
and
high
speed
make
your
life
more
colorful
and
make
your
long
distance
communications
fresh
and
vivid.
Thanks
to
a
built-in
Micro
SD/TFLASH
card
slot
you
can
use
it
as
a
card
reader
as
well.
Technical Specification
*High
Resolution
CMOS
Color
Sensor
*Resolution
:
1.3M
(interpolated
5M)
*Video
Format:
24bit
True
Color
* Interface: USB1.1/2.0
*Transmission Speed:
320*240 : 30frames/second
640*480 : 15frames/second
2560*2048 : 15frames/second
* Dynamic Range: 272db
*
Imaging
Distance:
5CM
to
infinity
* Built-in Image Compression
* Automatic White Balance
*
Automatic
Color
Compensation
* Manual Focusing
*Manual
Snapshot
(
Snapshot
button
is
1
necessary for this)
System Requirement
*IBM PC compatible computer or notebook
with USB port
* Pentium200 or Higher CPU
* WIN2000/XP/VISTA System
* Hard Drive Remaining Space220MB
* CD—ROM Drive
* Internal Storage=32MB
@ VGA Display Card Available for DIRECTX

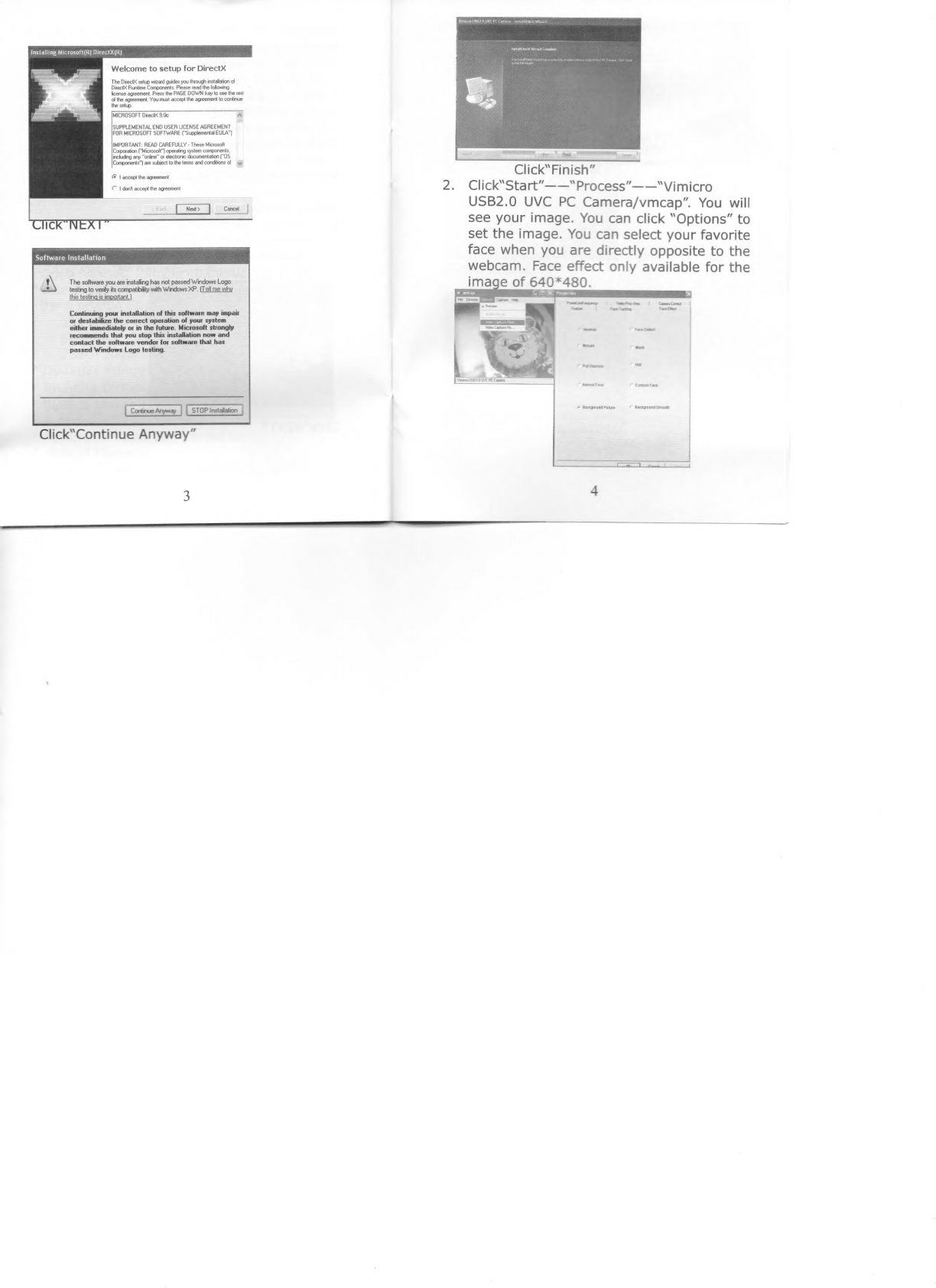

Driver Installation
1. Connect webcam to PC.After hardware
founded, put “CD Driver” disk in the
CD-Rom and an interface as below would
come out automatically.

installing Microsoft{R] DirectXiR}
Welcome to setup for DirectX
The Direct setup wizard guides you through installation of
DirectX Runtime Components. Please read the following
license agreement. Press the PAGE DOWN key to see the rest
of the agreement. You must accept the agreement to continue
the setup.
MICROSOFT DirectX 9.0c
SUPPLEMENTAL END USER LICENSE AGREEMENT
FOR MICROSOFT SOFTWARE ["Supplemental EULA")
IMPORTANT: READ CAREFULLY - These Microsoft
Corporation ("Microsoft") operating system components,
including any “online or electronic documentation ("0S
Components") are subject to the terms and conditions of +-
& | accept the agreement
© | don't accept the agreement
Software Installation
The software you are installing has not passed Windows Logo
testing to verify its compatibility with Windows XP. [Tell me why
this testing is important.)
Continuing your installation of this software may impair
or destabilize the conect operation of your system
either immediately or in the future. Microsoft strongly
recommends that you stop this installation now and
contact the software vendor for software that has
passed Windows Logo testing. :
STOP Instalation
Click“Continue Anyway”
Ames USIONE Camera InstallShield Wizard
Click“Finish”
2. Click“Start”——“Process”——“Vimicro
USB2.0 UVC PC Camera/vmcap”. You will
see your image. You can click “Options” to
set the image. You can select your favorite
face when you are directly opposite to the
webcam. Face effect only available for the
image of 640*480.
i Victo USB2 6 UVC PC Camera
Animal Face Cartoon face
iè Background Picture <~ Background Smooth

VISTA system installation instructions:
. | Click” Windows vista”
riasain
SES
dq
3.
Connect
webcam
to
PC.After
hardware
Fone
Rate.
0000
E]
Fameltenat
P
founded,
put
“CD
Driver”
disk
in
the
eT
=
Opia]
CD-Rom
and
an
interface
as
below
would
come out automatically.
| Color Space / Compression: >
{RGB 24 X
- Output Size: Quai
{320 x 240 z] ee Í

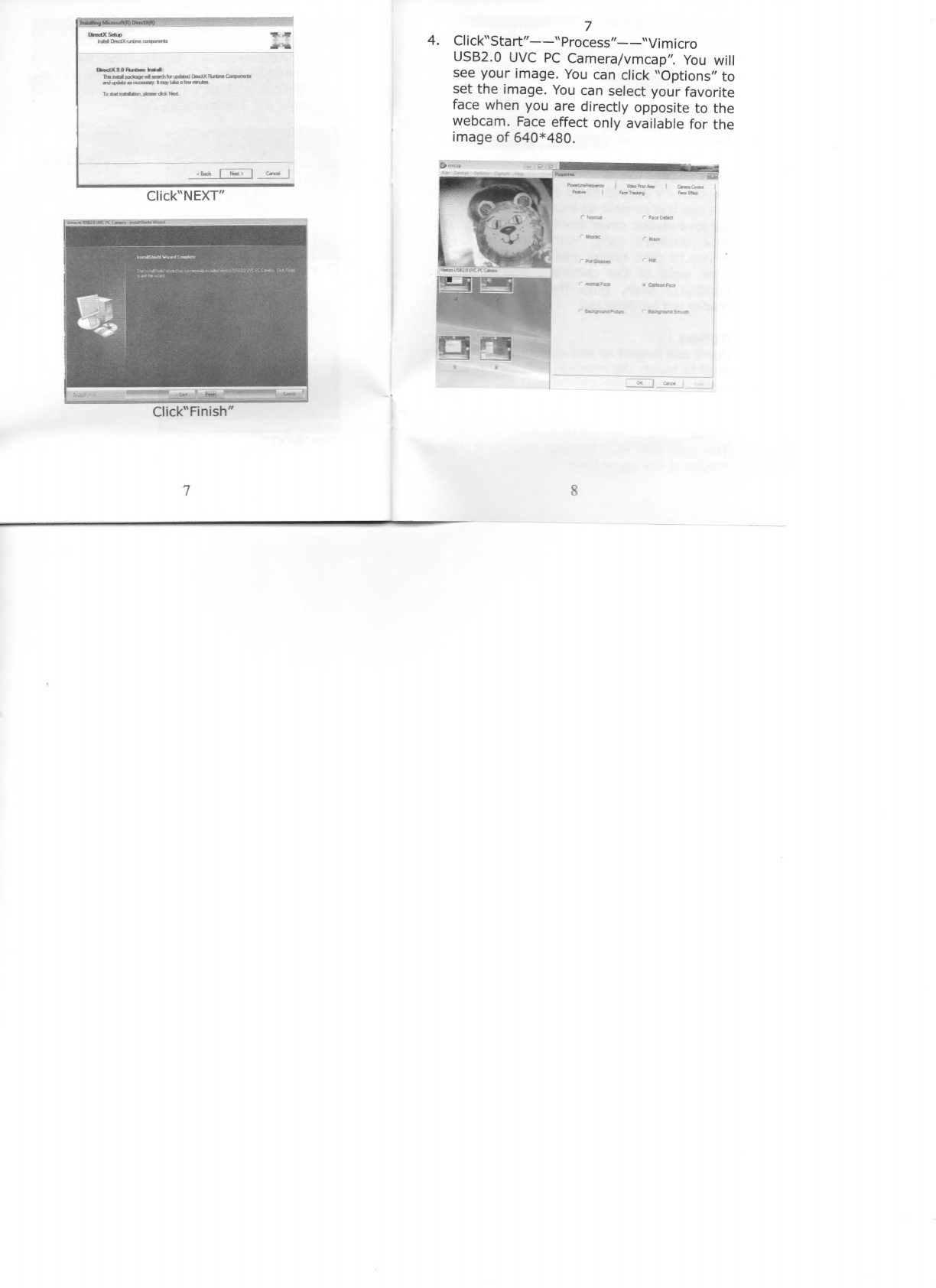

Click“ NEXT”

DirectX 9-0 Runtime install:
and update as necessary. È may take a few minutes.
To stat installation. please click Next.
7
Click“Start”——"Process”——"Vimicro
USB2.0
UVC
PC
Camera/vmcap”.
You
will
see
your
image.
You
can
click
“Options”
to
set
the
image.
You
can
select
your
favorite
face
when
you
are
directly
opposite
to
the
webcam.
Face
effect
only
available
for
the
image of 640*480.

Video Standart: [None /
Frame Rate: [30,000 4 | Fiame Interval 4
Quality: |
Card reader mode
Thanks to a built-in Micro SD/TFLASH slot, you
can use this camera as a card reader.
Remove plastic cover from the slot, then plug
your memory card, with face up. Switch
device to card reader mode (switch is at the
right sight of the camera ; switch to front
position). Then, plug the camera. A card
reader will be detected.
Notice:
Don’t use fingers or any other sharp or coarse
stuff to touch the camera. Soft cotton cloth is
highly recommended to clean the optics parts.
Don’t use this product when ambience is too
hot or too cold or too dusty.
Please avoid to let this product drop heavily.
You can not use camera and card reader
modes at the same time.
