Symmetry EN-7500 Series EN-7530 Installation Guide
9600-0545 Issue 1.1 Page 3 of 21
Table of Contents
1. FEATURES........................................................................................................ 4
2. PACKAGE CONTENTS.................................................................................... 5
3. PART NAMES.................................................................................................... 6
3.1.Internal View..................................................................................................................... 6
4. INSTALLATION................................................................................................. 7
4.1. Installation Template...................................................................................................... 8
4.2. Manual adjustment for 3-axis movements.................................................................. 9
4.3. Setting the Image Attribute............................................................................................ 9
4.4. Operating the OSD Menu.............................................................................................. 9
5. CONNECTIONS............................................................................................... 10
5.1.Connectors...................................................................................................................... 10
6. CONFIGURATION........................................................................................... 13
6.1.Set up network environment ........................................................................................ 13
6.2. View video on web page.............................................................................................. 13
6.2.1. View video using IPAdmin Tool........................................................................... 13
6.2.2.View video using IP address................................................................................. 16
6.3. Reset............................................................................................................................... 16
6.4. Factory Default.............................................................................................................. 16
APPENDIX A: SPECIFICATIONS ...................................................................... 17
Summary................................................................................................................................ 17
Electrical Characteristics..................................................................................................... 18
Environmental Condition..................................................................................................... 18
Analytics................................................................................................................................. 19
APPENDIX B: POWER OVER ETHERNET....................................................... 20
PoE compatibility.................................................................................................................. 20
Power classification.............................................................................................................. 20
APPENDIX C: DIMENSIONS.............................................................................. 21

Symmetry EN-7500 Series EN-7530 Installation Guide
9600-0545 Issue 1.1 Page 4 of 21
1. FEATURES
Camera
Indoor/Outdoor Fixed Dome IP Camera (Vandal Proof)
High Quality Compression in real time streaming
Sony 1/3” Super HAD CCD & High Quality SS-HQ1 Full Kit Chip Set
Sony 1/3" Vertical Double Density Color CCD (Optional)
True Day / Night (ICR)
Improvement of color rolling suppression
Streaming
Dual streaming mode (with different codec/resolution/bit rate etc.)
De-interlacing on DSP
Burnt-in text supported
Unicast/Multicast supported
Video/Audio
Video compression: H.264/MPEG/MJPEG, 25/30FPS@D1(PAL/NTSC)
Audio compression: G.711(µLaw, aLaw)/PCM
Analog video out for external monitors
Video Motion Detection supported
2-way mono audio supported
Network
RTSP/ HTTP protocol supported
10/100 Base-T Ethernet
Additional Features
RS-485 supported
Micro SD card supported
PoE supported
Built-in Video Analytics
OSD supported
Analytics
Intelligent Detection (Included as basic)
VCA (Optional)

Symmetry EN-7500 Series EN-7530 Installation Guide
9600-0545 Issue 1.1 Page 5 of 21
2. PACKAGE CONTENTS
Unpack carefully and handle the equipment with care. The packaging contains:
Camera
DC power adaptor
Extension cable
(for LAN and power connector)
11 Pin terminal block
Hex wrench driver
Screws and Anchor blocks
Installation Template
Video BNC Cable
Quick Installation Guide
Surface Cushion
(for protection against dust)
Note
i
The above contents are subject to change without prior notice.

Symmetry EN-7500 Series EN-7530 Installation Guide
9600-0545 Issue 1.1 Page 6 of 21
3. PART NAMES
3.1. Internal View
1. 11 pin terminal block for D/I, D/O, audio, and serial communication
11 pin terminal block for D/I, D/O, Audio In /Out and serial communication. Refer to the
section “5.1. Connectors”for further information.
2. Reset
Reset switch is used for restarting or resetting the camera to Factory Default (FD).
Refer to the section “6.3. Reset”for more specific information.
3. Micro SD Card Socket
Memory card slot for external storage.
4. Extension Cable Socket
Socket for LAN and power connector.
5. LAN Connector (Ethernet)
RJ45 LAN connector for 10/100 Base-T Ethernet. This socket can also be used to
power the camera via PoE (Optional).
6. Power Adaptor Connector (DC 12V)
The camera needs a DC 12V 1A adapter for power supply.
①
②
③
④
* Models herein and their
appearance are subject to change
without any prior notice.
⑥
⑤

Symmetry EN-7500 Series EN-7530 Installation Guide
9600-0545 Issue 1.1 Page 7 of 21
4. INSTALLATION
Note
i
When assembling the main body of the camera and its dome cover,
make sure they fit each other into place.
1) Connect the LAN cable, power
supply cable, and the video loop out
cable with the camera.
2) Place the installation template on
the ceiling.
3) Drill three holes on the template
and insert anchor blocks into the
holes. Fasten the camera with
screws.
4) Put the dome cover on the main
body of the camera. Make sure the
main body and the cover fit each
other into place.
5) Fasten the cover with screws.

Symmetry EN-7500 Series EN-7530 Installation Guide
9600-0545 Issue 1.1 Page 8 of 21
Caution
!
The camera may fall off the ceiling even after the proper installation and
mounting. To prevent any accident, make sure the ceiling is firm and
stable enough to support the camera. If any reinforcement is needed,
consult with your safety personnel and proceed with the installation.
4.1. Installation Template

Symmetry EN-7500 Series EN-7530 Installation Guide
9600-0545 Issue 1.1 Page 9 of 21
4.2. Manual adjustment for 3-axis movements
After installation, manually adjust the inner mechanism. Perform 3-axis movements
manually by turning the inner mechanism as shown above, and check if it moves
correctly. .
4.3. Setting the Image Attribute
You can set the image attribute of camera through the webpage.
The menu of image attribute can be seen under Setup > Video & Audio > Video-in >
Attribute Setting. Brightness, contrast, hue, saturation and sharpness can be adjusted.
4.4. Operating the OSD Menu
To operate the OSD of camera, refer to the ”EN-7530 OSD Menu Control Manual”on
the CD supplied with your manual.

Symmetry EN-7500 Series EN-7530 Installation Guide
9600-0545 Issue 1.1 Page 10 of 21
5. CONNECTIONS
5.1. Connectors
Audio In / Out
The camera has a mono audio input and a mono audio output. As the output power for
the audio is low, an amplifier is needed (Do not use a headphone or earphone directly
to the camera).
Sensor (DI) connection
The camera provides 1 channel D/I. It can be connected to either a voltage type sensor
or a relay type sensor as the following figures. It can be selected by software.
Input voltage range: 0 VDC minimum to 24 VDC maximum
Input voltage threshold: 1 V
Caution
!
Do not exceed the maximum input voltage or relay rate.
Aout
Ain
Mic
Amp Speaker

Symmetry EN-7500 Series EN-7530 Installation Guide
9600-0545 Issue 1.1 Page 11 of 21
Alarm (DO) connection
This is a relay type output, with a maximum rating of 24VAC 500mA or 12VDC 1A
Caution
!
Do not exceed the maximum relay rating.
Video Out
The camera provides 1 video loop out.
DO
COM
Relay Type
Device
Internal
+5V
DI
COM
DI
COM
+
-
Relay Type
Voltage Type
+
-
Output of
Sensor
Output of
Sensor
Internal
Internal
+
-
Video
GND
White
Black

Symmetry EN-7500 Series EN-7530 Installation Guide
9600-0545 Issue 1.1 Page 12 of 21
RS-485

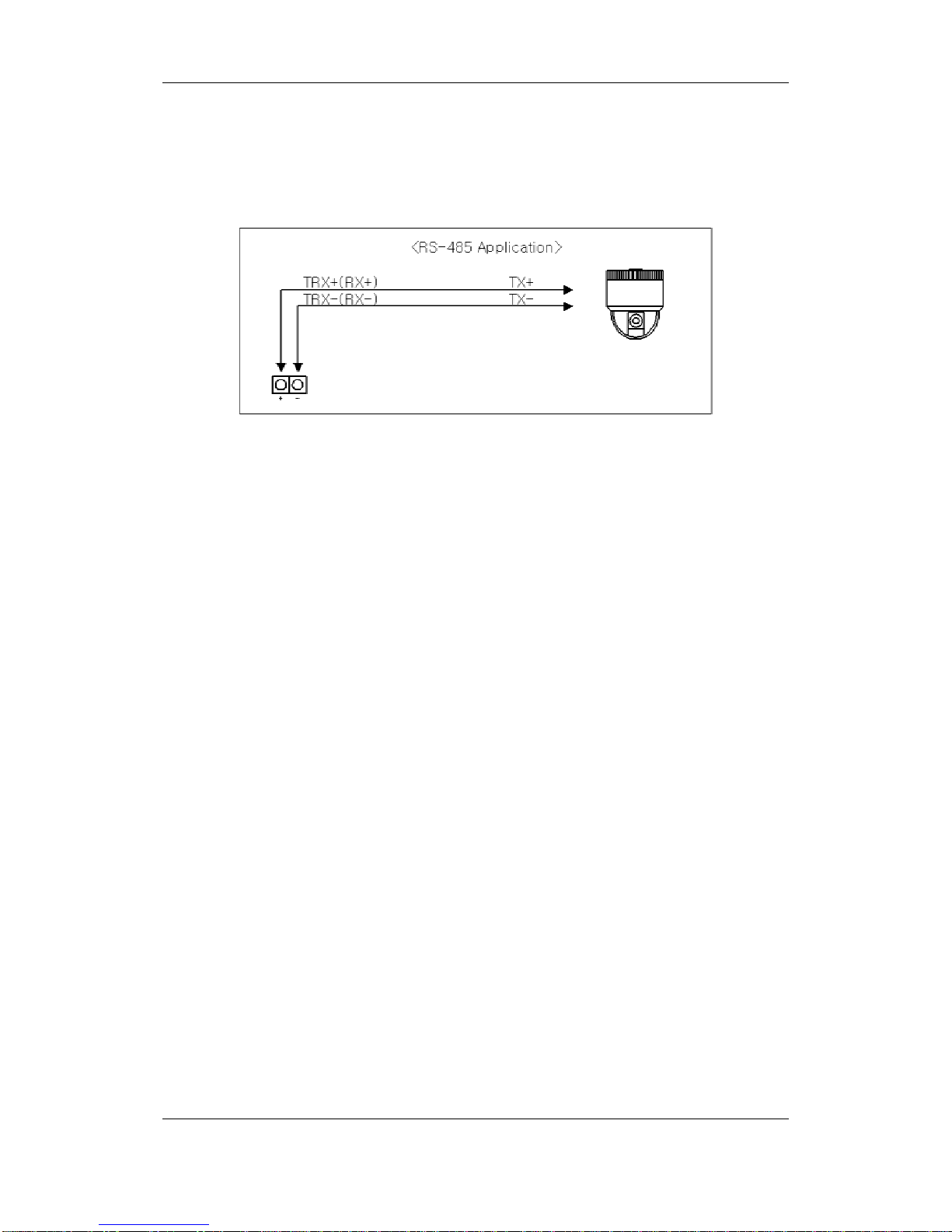

The RS-485 serial port consists of TRX+(RX+) and TRX-(RX-) as shown below:
RS-485 Connection
485 Device

Symmetry EN-7500 Series EN-7530 Installation Guide
9600-0545 Issue 1.1 Page 13 of 21
6. CONFIGURATION
6.1. Set up network environment
The default IP address of your IP device is 192.168.XXX.XXX. You can find the available
IP address from the MAC address of your device. Please make sure the device and your
PC are on the same network segment before running the installation. If the network
segment between your PC and the device is different, change your PC‟s settings as
below.

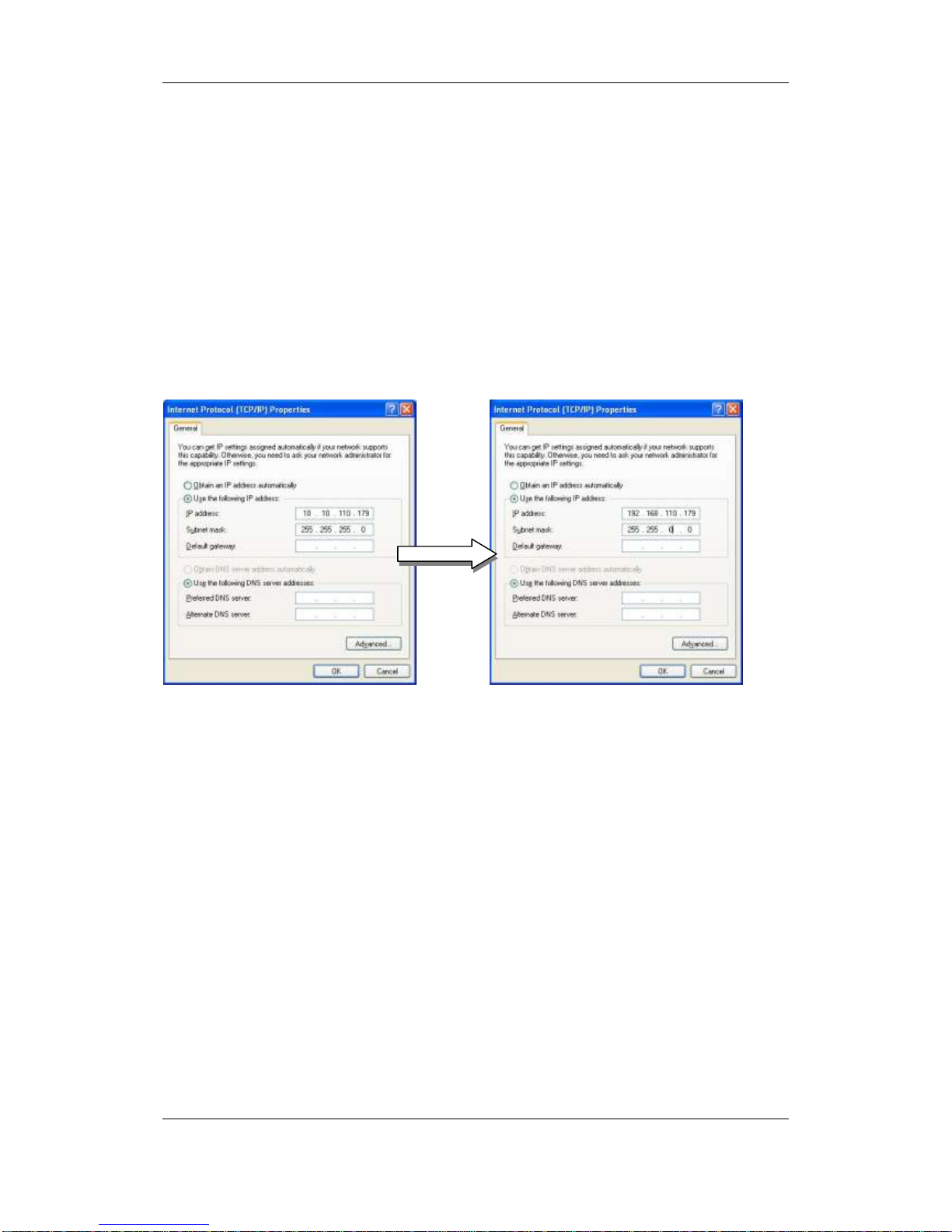

IP address : 192.168.xxx.xxx
Subnet mask: 255.255.0.0
6.2. View video on web page
View the live video on a web page using your IP device and its IP address. You can
use the IPAdminTool or enter the IP address on the web page.
6.2.1. View video using IPAdmin Tool
IPAdminTool automatically searches all activated network encoders and IP cameras
and shows the product name, IP address, MAC address and etc. IPAdminTool is
provided on the CD supplied with your camera.

Symmetry EN-7500 Series EN-7530 Installation Guide
9600-0545 Issue 1.1 Page 14 of 21
To use the IPAdminTool and view the live video on a web page:
1. Start IPAdminTool. Names and info of currently activated devices appear as a
list.
2. Right-click on the desired device and select Web view.

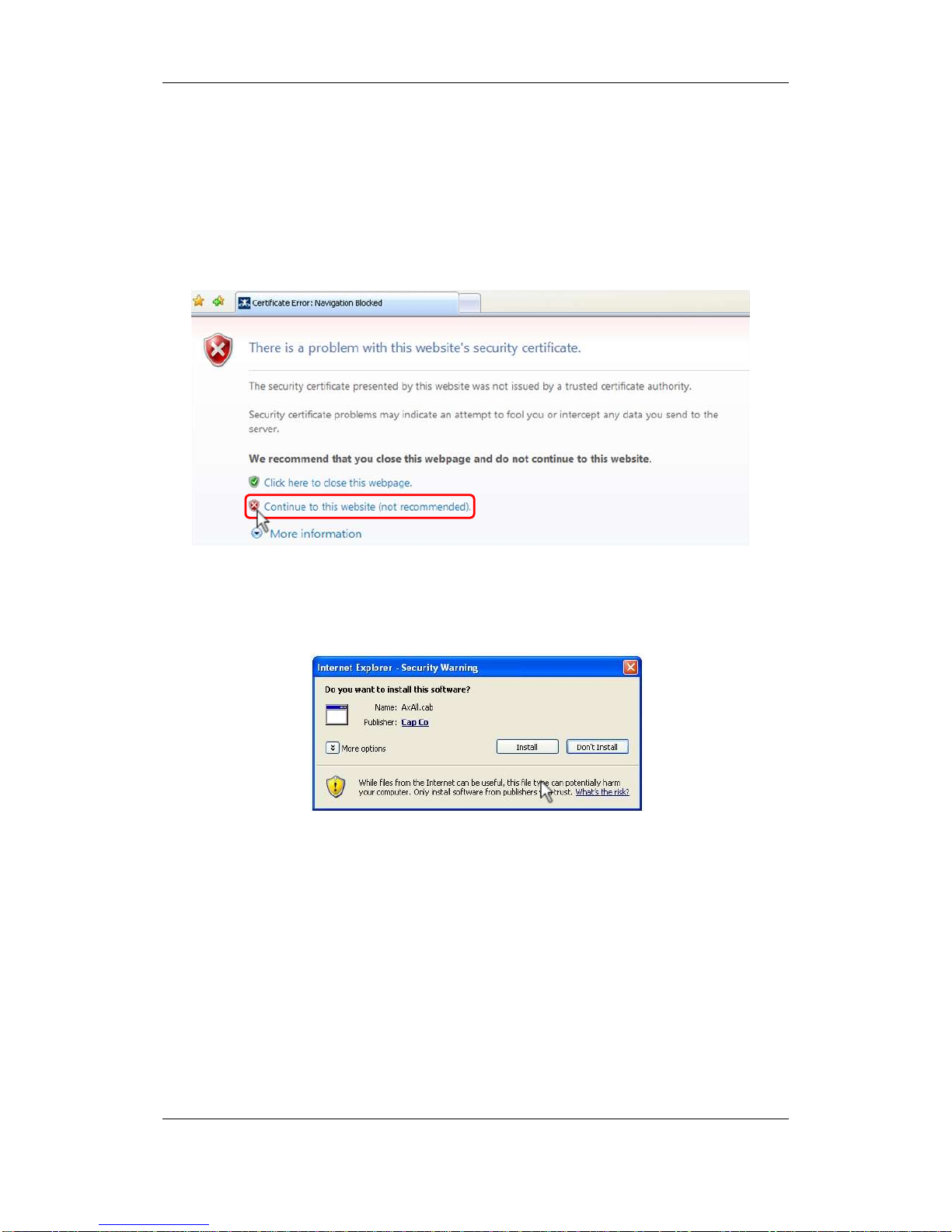

3. Select Continue to this website on the Security Certificate Alert page.
(The explanation and captured images in this manual are based on Internet
Explorer 7.0)
4. Click pop-up blocked and install the ActiveX control by clicking the Install
button. You need to install the ActiveX for displaying the images.

Symmetry EN-7500 Series EN-7530 Installation Guide
9600-0545 Issue 1.1 Page 15 of 21
5. Wait for a few seconds while the web page loads. Then the live video is
displayed on the main page of the web browser.
6. If the live video is not displayed and “Can not Create XMLDOMDocument
Install MSXML4.0” message is shown as below, please download and Install
from the link below.
http://www.microsoft.com/downloads/details.aspx?familyid=3144B72B-B4F2-
46DA-B4B6-C5D7485F2B42&displaylang=en
(VCA Library requires MS XML 4.0 library which is an xml parser made by
Microsoft.)

Symmetry EN-7500 Series EN-7530 Installation Guide
9600-0545 Issue 1.1 Page 16 of 21
6.2.2. View video using IP address
View the live video on a web page using your IP device and its IP address. To have the
correct IP address ready and use it on a web page:
1. Convert a MAC address to an IP address or check the IP address on the
IPAdminTool. Windows Calculator has a useful „Scientific‟ mode („Programmer‟ mode
in Windows 7) to assist with this conversion.
(The MAC address is attached on the side or bottom of the device.)
2. Open a web browser and enter the IP address of the device.
3. Click Continue to this website on the Security Certificate Alert page.
4. Click pop-up blocked and install the ActiveX control as below. You need to install the
ActiveX for displaying the images.
5. Wait for a few seconds while the web page loads. The live video is displayed.
6.3. Reset
1. While the device is in use, press and hold the Reset button.
2. Release the Reset button after 3 seconds.
3. Wait for the system to reboot.
6.4. Factory Default
1. Disconnect the power supply from the device.
2. Connect the power to the device with the Reset button pressed and held.
3. Release the Reset button after 5 seconds.
4. Wait for the system to reboot.
The factory default settings can be inferred as follows:
IP address: 192.168.xx.yy
Network mask: 255.255.0.0
Gateway: 192.168.0.1
User ID: root
Password: pass
MAC address = 00-13-23-01-14-B1 → IP address = 192.168.20.177
Convert the Hexadecimal number to Decimal number.

Symmetry EN-7500 Series EN-7530 Installation Guide
9600-0545 Issue 1.1 Page 17 of 21
APPENDIX A: SPECIFICATIONS
Summary
Camera Module
CCD
Image Sensor
Sony 1/3” Super HAD CCD, 410K Pixel
Effective Pixels
NTSC: 768(H) x 494(V)
PAL: 752(H) x 582(V)
Size
1/3 inch interline transfer CCD
Scanning
system
2:1 Interlace
Sync
Frequency
NTSC: 15.734 KHz (H) 59.94 Hz(V)
PAL:15.625 KHz(H) 50.00 Hz (V)
Electrical
Resolution
540 TV Lines
S/N (Y signal)
50dB (AGC Off)
Min.
Illumination
0.3 Lux/F1.2 (50 IRE, AGC HIGH, DNR HIGH),
0.002Lux (Sens-up)
Wide Dynamic
Range
Not supported
Color
ON/AUTO
AGC Control
OFF/LOW/MIDDLE/HIGH Selectable
White Balance
ATW/AWC/MANUAL (1,800° K~10,500° K)
Electronic
Shutter Speed
AUTO/MANUAL
(NTSC: 1/60~1/120,000,
PAL: 1/50~1/120,000)
Sens-Up
OFF/AUTO
DNR
OFF/LOW/MIDDLE/HIGH (Noise Reduction)
Lens
2.8~10.5 mm F1.2 DC Auto Iris Board Vari-Focal
Day & Night
Removal IR Cut Filter
Video
Compression Format
H.264, MPEG-4, MJPEG Selectable per Stream
Number of Streams
Dual Stream, Configurable
Resolution
D1, 4CIF, VGA, CIF, QCIF
Compression FPS
25/30 fps@D1 (PAL/NTSC)
Deinterlacing
Supported (DSP)
Motion Detection
Supported
OSD
Supported (DSP)
Burnt-in Text (Digital)
Supported (DSP)
Output
1 Loop Out (BNC connector)
Audio
Input/output
1/1 channel
Compression Format
G.711

Symmetry EN-7500 Series EN-7530 Installation Guide
9600-0545 Issue 1.1 Page 18 of 21
Function
Digital Input/output
1/1 channel
RS-485
Supported
Network
10/100 Base-T
Power over Ethernet
Supported
Protocol
TCP/IP, UDP/IP, HTTP, RTSP, RTCP, RTP/UDP,
RTP/TCP,
SNTP, mDNS, UPnP, SMTP, SOCK, IGMP, DHCP,
FTP, DDNS, SSL v2/v3, IEEE 802.1X, SSH
SD Slot
Supported (MicroSD)
※Micro SD Card is not included
Material
Aluminum Die Casting-2
Dimensions
Housing : 150.8(Ø) 113(H) mm
Dome : 100(Ø) mm
Color
White Pearl
Electrical Characteristics
Video Output
1Vp-p, 75Ω
Audio Input
Linein, 1.43Vp-p(Min 1.35Vp-p, max 1.49 Vp-p), 39 KΩ
Audio Output
Lineout, 46mW Power, 16 Ω
Sensor(D/I)
TTL level 4.5V threshold, Max 50mA
Alarm(D/O)
Max 500mA@24VAC or 1A@12VDC
Power Source(Approx)
12 V DC 300 mA or PoE IEEE802.3af (Class 0)
Environmental Condition
Operating Temperature
-10 ˚C ~ 50 ˚C (14˚F ~ 122 ˚F)
Operating Humidity
Up to 85% RH

Symmetry EN-7500 Series EN-7530 Installation Guide
9600-0545 Issue 1.1 Page 19 of 21
Analytics
Intelligent Detection (Included as Standard)
High Performance
Advanced Tracking Algorithm, Low False Alarm Rate
Easy to Use
Intuitive Web Browser Interface
Detection Zones
Multi-segment Polygons and Lines
On-screen Display
Real-time Display of Tracking Data and Events
Burnt-in Annotation
Stream or Analog video out
(※Analog video out support can vary depending on the
device model and hardware version and the firmware
version)
VCA (Optional)
Detection Behavior
Camera Tampering, Direction, Stopping, Loitering,
Entering, Exiting, Appear, and Disappear Filters
3D Behavior
Perspective Corrected Size and Speed Filters
Statistics
Counting Functions and Other Statistics
Meta Data
Binary XML Format

Symmetry EN-7500 Series EN-7530 Installation Guide
9600-0545 Issue 1.1 Page 20 of 21
APPENDIX B: POWER OVER
ETHERNET
The Power over Ethernet(PoE) is designed to extract power from a conventional
twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-
Ethernet (PoE) standard.
IEEE 802.3af allows for two power options for Category 5 cables.
The PoE module signature and control circuit provides the PoE compatibility signature
and power classification required by the Power Sourcing Equipment (PSE) before
applying up to 15W power to the port.
The high efficiency DC/DC converter operates over a wide input voltage range and
provides a regulated low ripple and low noise output. The DC/DC converter also has
built-in overload and short-circuit output protection.
Note: For proper activation of 12V PoE, the Category 5 cable must be shorter than
140m and conform the PoE standard.
PoE compatibility
With non Power Sourcing Equipment (PSE)
When it is connected with non PSE, the power adaptor should be connected.
With power adaptor
Connecting both PSE and power adaptor does not do any harm to the products.
Disconnecting power adaptor while it is operating does not stop operation. The product
continues to work without rebooting.
Power classification
The PoE Power Class supported by the IP device is Class 0.
Class
Usage
Minimum Power Levels
Output at the PSE
Maximum Power Levels at the
Powered Device
0
Default
15.4W
0.44 to 12.95W
