Synco MC4 User manual

2
MC4
User Manual • Uživatelský manuál •
Užívateľský manuál • Használati utasítás •
Benutzerhandbuch

3
Dear customer,
Thank you for purchasing our product. Please read the following instructions carefully
before first use and keep this user manual for future reference. Pay particular
attention to the safety instructions. If you have any questions or comments about the
device, please contact the customer line.
✉www.alza.co.uk/kontakt
✆[phone]
Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz

4

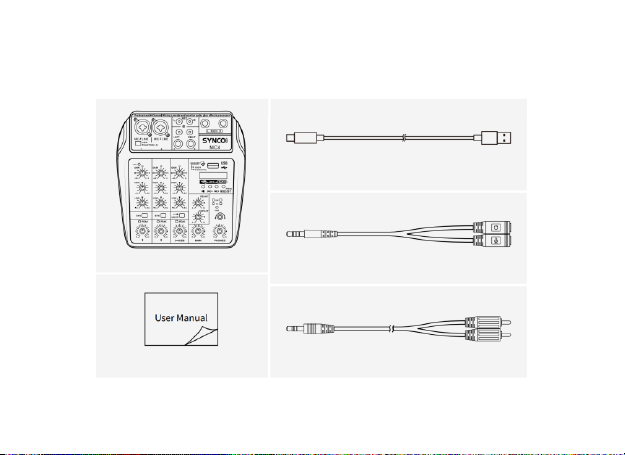

Package List
SYNCO MC4 Mixing Console ×1
User Manual ×1
USB Charging Cable (100 cm) ×1
3.5mm TRRS to Dual 3.5mm TRSF Y Cable (19 cm) ×1
3.5mm TRS to 2-Male RCA Adapter Cable (138 cm) ×1

5
Feature Introduction
•Multipurpose 4-channel mixer with USB audio interface
•Gain control
•High bass adjustment
•Built-in 48V phantom power supply
•High-definition headset output
•Widely used for various devices
•Compact and lightweight

6
Caring for Your SYNCO Product
•Please keep the product in a dry, clean, dust-free environment.
•Keep corrosive chemicals, liquids and heat source away from the product to
prevent mechanical damage.
•Use only a soft and dry cloth for cleaning the product.
•Malfunction may be caused by dropping, impact of external force.
•Do not attempt to disassemble the product. Doing so voids warranty.
•Please have the product checked or repaired by authorized technicians if any
•malfunctions happened.
•Failure to follow all the instructions may result in mechanical damage.
•Warranty does not apply to human errors.

7
Product Introduction

8
1. Mono input jack
MIC/LINE: Are used for connecting XLR and TRS Phone. Microphones and
instruments are accessible.
2. Stereo input jack
Used for connecting line-level instruments such as electric keyboard and audio
device. TRS Phone and RCA plug are accessible.
3. Phantom power switch
4. Phantom power indicator
5. [GAIN] knobs
Used to adjust the gain of the input signal.
6. [HIGH] knobs
Adjust the knobs to control the channel treble tone.
7. [LOW] knobs
Adjust the knobs to control the channel bass tone.
8. [EFX] buttons
Used for accessing channel effect.

9
9. Channel volume
Adjust the knob to control the signal volume.
10. [ST/USB] button
Used for switching ST and USB input signal.
11. [MAIN] knob
Main volume control, used to make the main output signal level achieve ideal state.
12. [PHONES] knob
Used to control the headphone monitoring volume.
13. [REPEAT] knob
Used to adjust the echo repetition frequency.
14. [DELAY] knob
Used to adjust the repeat interval of effect echo.
15. Headphone jack
16. Power indicator
17. Indicator for signal output status

10
18. MP3 master control
[>||] Short press to pause/play; long press to switch to recording state, and record
the output signal of main channel to USB storage.
[|<<] Short press for last song; long press to reduce the volume.
[>>|] Short press for next song, long press to increase the volume.
[MODE] Short press to switch the working status among LINE/BT/PC; long press for
loop playback mode.
19. MP3 display
Indicate the operation and playback status of MP3.
20. MP3 USB jack
21. Stereo output interface
22. Recording terminal
The group of ports are used for main output connection of stereo and recording
interface.
