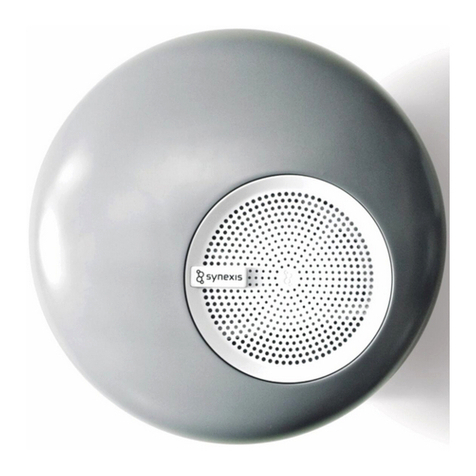

Synexis SPHERE User manual
SPHERE QUICK START GUIDE
1Remove safety screws, top and bottom 2Hold the bottom of the device
Removing cover
1 2 Fan speed control switch
First use
DO NOT OPERATE THIS DEVICE IF ANY DAMAGE IS NOTED. If the device is damaged,
contact your Synexis Account Representative at (844) 352-7680.
Welcome
Thanks for purchasing the Synexis Sphere.
After opening the box, unpack and inspect
your device and bulb for damage.
Getting to know your device
On/O switch and plug
- located on back side of the device
- plug power cable into back
- green indicator will illuminate when power is on
5Remove the cover 6
Putting the cover back on
- position top and bottom pins over slots
- let magnets reengage
- fasten safety screws
3Grab the recess on top 4
Pull the top and bottom
of the cover to disengage
the magnets
When should I replace the following components?
-carbonlter:approx.6months
-MERVlter:approx.3months
- Sail: approx. 3 months
- bulb: approx. 2 years
Visit Synexis.com/manuals for detailed product
information and wall mounting installation instructions.
Included parts:
-1setoflters(1carbonlter,
1MERV11lter)
- 1 UV-A bulb
- 1 power cord
- 1 stand (already installed)
or wall mount bracket
- 1 Torx T10 T-Handle screwdriver
(for Locking Screw)
- 1 Security Torx T10 “L” Shaped tool
(for Bulb Cover)
Removing cover (cont.)
2Remove and insert the new Sail
2
1Insert the new Sail
(Sail ships separately)
1Turn the tabs 90°
3
Remove the lters
Inserting Sail
Replacing Sail
1Hold tabs of the Sail
and pull toward you
Replacing the lters
�
Insert new lters and turn tabs to secure
- airowarrowonMERV11lterpoints
toward unit
- carbonlterontopofMERV11lter
3
Insert new bulb
- align the 4 pins to the female
socket connectors 4Replace bulb cover and fasten the screw
2Remove bulb cover
(and bulb if already inserted)
1Remove safety screw
11711 W 79th Street
Lenexa, KS 66214
United States of America
Phone: (844) 352-7680
Email: [email protected]
Online: synexis.com
Inserting or replacing bulb
SYN-GEN-1120-001
