SYP SY-4KS User manual

SY-4KS
HDMI 4K Scaler (Optional Up & Down Scaling)
OPERATION MANUAL

3
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2011 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

4
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sucient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
v1.00 20/01/2014 First release

5
CONTENTS
1. Introduction...........................................6
2. Applications ...........................................6
3. Package Contents ..................................6
4. System Requirements ...........................6
5. Features..................................................6
6. Operation Controls and Functions .......7
6.1 Front Panel................................................... 7
6.2 Rear Panel..................................................... 9
7. Connection Diagram .......................... 10
8. Specications...................................... 11
9. Acronyms............................................. 11

6
1. INTRODUCTION
The SY-4KS HDMI Scaler is designed to upscale 1080p@24 signals to 4K
Ultra High Denition (UHD) resolutions, or downscale a UHD 4K signal to
1080p@24 for integration into any AV system. The ability to downscale 4K
signals to 1080p is a crucial function when working with 4K sources in a
complex AV system and distributing the HDMI sources to multiple displays
which have varying resolution support. This device allows the user to
select the highest commonly supported resolution between source
and display ensuring maximum compatibility in any system. The SY-4KS
incorporates two HDMI outputs, one of which is a bypass (input follows
output), and the second is a scaled output. The scaled output can be set
to three modes, upscale to 4K, downscale from 4K, or as a bypass output.
Both the bypass output and scaled output operate simultaneously.
2. APPLICATIONS
Display an Ultra HD source on a standard LED TV/monitor
Display an Ultra HD source on a 4K2K TV/Panel
Standard Blu-ray/DVD player source displaying on 4K2K TV/Panel
Standard Blu-ray/DVD player source displaying on standard LED TV/
monitor
3. PACKAGE CONTENTS
1 x HDMI 4K2K Scaler
1 x 5V/2.6A DC Power Supply
1 x User Manual
4. SYSTEM REQUIREMENTS
Input source equipment such as DVD/Blu-ray(4K2K) player and output
HDMI (4K2K) TV/display.
5. FEATURES
Supports HDMI upscaling to 4K or downscale to 1080p@24
Supports HDMI signal bypass
Simultaneous HDMI outputs

7
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
INPUT 4K2K
1080P
Bypass
Up
Bypass Down
SERVICE
Bypass
DC 5V
1 2 3 4 5
1INPUT: Connect to HDMI source equipment such as Blu-ray/DVD
player with or without 4K2K signal.
24K2K / 1080P LED: These LED will illuminate according to input
source signal’s resolution when both LED are illuminating it indicates
the input source’s signal is not 4K2K/1080P.
3Bypass Switch: Use this switch to select the input source signal to
be Up/Down Bypass or to bypass it to the output display. Switch to
Up/Down Bypass the Scaled output port will output 4K2K/1080p
but Bypass port will output 4K2K on both Up/Down Bypass selection
when the connected display supports the resolution or else it will
output 1080p.
LED Switch Bypass Scaled
1080P Up 1080P/4K2K 4K2K
Down 1080P 1080P
4K2K Up 4K2K 4K2K
Down 1080P/4K2K 1080P
Switch to Bypass the device will output 4K2K when the Bypass port
supports 4K2K or else it will output a resolution that both output port
can accept.

8
LED Switch Bypass Scaled
1080P Bypass 1080P 1080P
1080P 1080P
4K2K Bypass 4K2K 4K2K
4K2K 4K2K
Note:
1. 1080p supports 24/25/30
2. 4K2K supports
4096×2160p@24
3840×2160p@24/25/30
3. Switch Down Bypass the input port does not supports
4096x2160p24
4. This device does not support 3D timing under Up/Down Bypass.
5. Other Timings not listed above will be bypass always.
6. HDMI output display change require power replug in order for
the device to get the new EDID.
4SERVICE: This slot is reserved for factory use only.
5DC 5V IN: Connect 5V DC power supply into the unit and connect
the adaptor to an AC outlet. Both 4K2K & 1080P’s LEDs will illuminate
when power is connected.

9

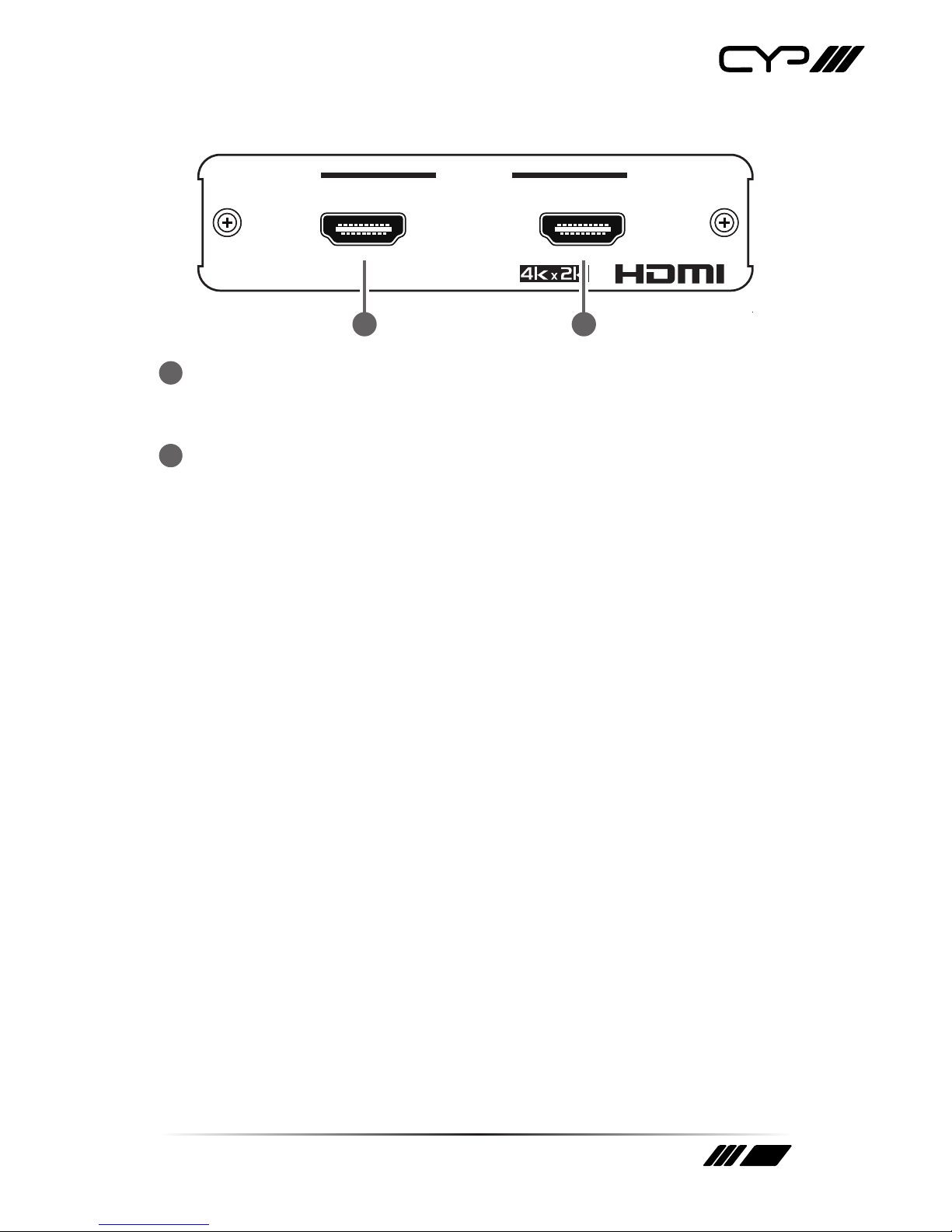

6.2 Rear Panel
OUTPUT
SCALED BYPASS
21
1SCALED: This slot is to connect with HDMI TV/display with or without
4K2K specication for output AV displaying according to Bypass
switch setting.
2BYPASS: This slot is to connect with HDMI TV/display with or without
4K2K specication for output AV displaying according to input source
signal setting.

10
7. CONNECTION DIAGRAM

11
8. SPECIFICATIONS
Video Frequency 300 MHz/9 Gbps
Input Port 1×HDMI
Output Ports 2×HDMI
4K2K HDMI Cable Distance In 5m, Out 10m
Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL
certied)
ESD Protection Human body model:
±8 kV (air-gap discharge)
±4 kV (contact discharge)
Dimensions (mm) 102 (W)×02(D)×25 (H)
102(W)×108.75(D)×25 (H)/Including
Jacks
Weight 220 g
Chassis Material Aluminum
Colour Black
Operating Temperature 0 ˚C~40 ˚C / 32 ˚F ~ 104 ˚F
Storage temperature −20 ˚C~60 ˚C / −4 ˚F ~ 140 ˚F
Relative Humidity 20~90 % RH (no condensation)
Power Consumption 2.4W
9. ACRONYMS
ACRONYM COMPLETE TERM
4K×2K UltraHD Resolution (3840×2160)
HDMI High-Denition Multimedia Interface
HDTV High-Denition Television
UHD Ultra-High Denition (4Kx2K)

CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton,
Middlesex, TW17 8BA
Tel: [phone] | Fax: [phone]
Email: [email protected]
www.cypeurope.com
v1.00
