System One 501 User manual

P/N: 60400601
REV: 02/04
INSTRUCTION MANUAL
MODEL 501/571
FOR ASSISTANCE CALL 1-800-711-1414

P/N: 60400601
REV: 02/04 2
SECTION PAGE
1. Safe Use Instructions...………………………………………………………………………………………………….3
a. General
b. Installation
c. Operation
d. Service
2. Introduction………………………………………………………………………………………………………………….4
a. Product Illustration
3. Specifications………………………………………………………………………………………………………………..5
a. Product Specifications
b. Approved Solvents
c. Certifications
4. Installation and Setup.…………………………………………………………………………………………………..6
a. Unpacking and Setup
5. Operating Instructions…………………………………………………………………………………….…………….6
a. Wash Operation
b. Recycling Operation
6. Troubleshooting………..………………………………………………………………………………………………….7
7. Warranty Information…………………………….………………………………………...………………………….8
TABLE OF CONTENTS

P/N: 60400601
REV: 02/04 3
·KEEP THIS MANUAL AND MSDS IN A PLACE THAT IS READILY AVAILABLE TO THE
USER.
·Read and understand the Instruction Manual and Material Safety Data Sheet (MSDS) for the
solvent used in the Recycling Parts Washer.
·Observe all warnings posted in this manual and on the equipment.
·FIRST AID: See MSDS for detailed information.
oEYE CONTACT: For eyes, immediately flush with plenty of water for 15 minutes and CALL A
PHYSICIAN.
oSKIN CONTACT: In case of contact with skin immediately remove contaminated clothing.
Wash thoroughly with soap and water. Wash contaminated clothing before reuse. Discard
contaminated shoes.
oINHALATION: After high vapor exposure, remove to fresh air. If breathing is difficult, give
oxygen. If breathing has stopped give artificial respiration. CALL A PHYSICIAN IMMEDIATELY!
oSWALLOWING: If swallowed, CALL A PHYSICIAN IMMEDIATELY! Do NOT induce vomiting. Have
patient lie down and keep warm. Vomiting may lead to pneumonitis, which may be fatal.
·FIRE FIGHTING: In case of fire see MSDS for detailed information.
·ACCIDENTAL RELEASE: See MSDS for detailed information.
oFollowing appropriate environmental procedure. Promptly clean up any spills. Stop leaks only
when there is no risk or danger. Notify
SystemOne
® Service Support at 1-800-711-1414
immediately.
·HANDLING AND STORAGE OF SOLVENT: See MSDS for detailed information.
oDo not smoke, eat or drink in the work area. Use good personal hygiene. Wash thoroughly
with soap and water after handling and before eating, drinking or using tobacco products.
oAlways wear the appropriate protective equipment (e.g. gloves, eyewear, apron, etc.).
oKEEP OUT OF REACH OF CHILDREN AT ALL TIMES.
·CAUTION: To reduce the risk of fire or explosion, install, operate, and maintain this equipment in
accordance with this manual.
·Operating this equipment in an unventilated area is not recommended and may be hazardous to
your health.
·This unit is for use in a 103°F (39.5°C) environment with no forced ventilation. Under these
conditions the unit shall be spaced 3 feet from potential sources of ignition such as electrical
receptacles, switched, pilot lights, fixtures, contacts, and other similar equipment that can
produce sparks. If the equipment is used in higher ambient temperatures, an increase in spacing
to sources of ignition shall be considered.
·Ensure the Recycling Parts Washer is properly grounded and the power connected in accordance
with local area requirements.
SAFE USE INSTRUCTIONS
General
Installation

P/N: 60400601
REV: 02/04 4
·WARNING: Solvent used in this Recycling Parts Washer is a combustible liquid and vapor. Adding
other chemicals to the cleaning solvent, including but not limited to kerosene, fuel oil, gasoline,
detergents, or chlorinated solvents may cause hazardous conditions which the manufacturer has no
control over and bears no responsibility.
·The parts washer lid has a fusible link assembly that holds the lid open during use. This fusible link is
a safety feature designed to release the lid in case of fire allowing the lid to close. Do not modify,
alter, or obstruct the operation of the fusible link. Do not leave unattended objects in the sink which
would interfere with the closing of the lid.
·Do not place hot parts into the Recycling Parts Washer.
·Do not spray aerosols into or around Recycling Parts Washer.
·Do not clean or degrease porous or absorbent materials, such as cloth, leather, wood or paper.
·Do not operate Recycling Parts Washer if any leak is apparent or occurs during use. Contact your
service representative.
·Unit produces heat. Do not open the distillation drain knob during a recycle process, or if hot to
touch. Allow the unit to complete the recycle process and always be sure it is cool before
attempting to remove oil waste.
·Close fire lid when not in use.
·Cleaning operations should be conducted in a manner that prevents spillage, splashing, or
misting.
·Service should only be performed by an authorized technician. Risk of electric shock or serious
injury may occur if improperly serviced.
·MODIFICATION OF EQUIPMENT WILL VOID THE MANUFACTURER WARRANTY.
Operation
Service

P/N: 60400601
REV: 02/04 5
Model 501 and 571: Unit is designed to operate only in unclassified areas.
Figure 1
INTRODUCTION
Product Illustration

P/N: 60400601
REV: 02/04 6
Power Requirements: 115VAC, 60 Hz, 12A
Environment: 41°F to 104°F (5°C to 40°C)
Solvent Capacity: 20 gallons US
Figure 2
This unit is approved for mineral spirits with a flashpoint greater than 140°. Notify manufacturer for latest
list of approved solvents.
CAUTION: Avoid distilling solvents that may include unstable reactives, such as Nitrocellulose.
This unit is ETL listed and conforms to UL 2208, Standard for Solvent Distillation
Units and is certified to CAN/CSA C22.2 no.88.
Specification Model
501
Model
571
W (Width) Floor Space 32” 39”
D (Depth) Floor Space 27” 29”
OH (Operating Height) 68” 70”
WH (Working Height) 33.50” 33.50”
FS (Front Spacing) 36” 36”
RS (Rear Spacing) 3” 3”
SS (Side Spacing) 4” 4”
Weight (Empty) 326 lbs. 342 lbs.
SPECIFICATIONS
Product Specifications
A
pproved Solvents
Certifications

P/N: 60400601
REV: 02/04 7

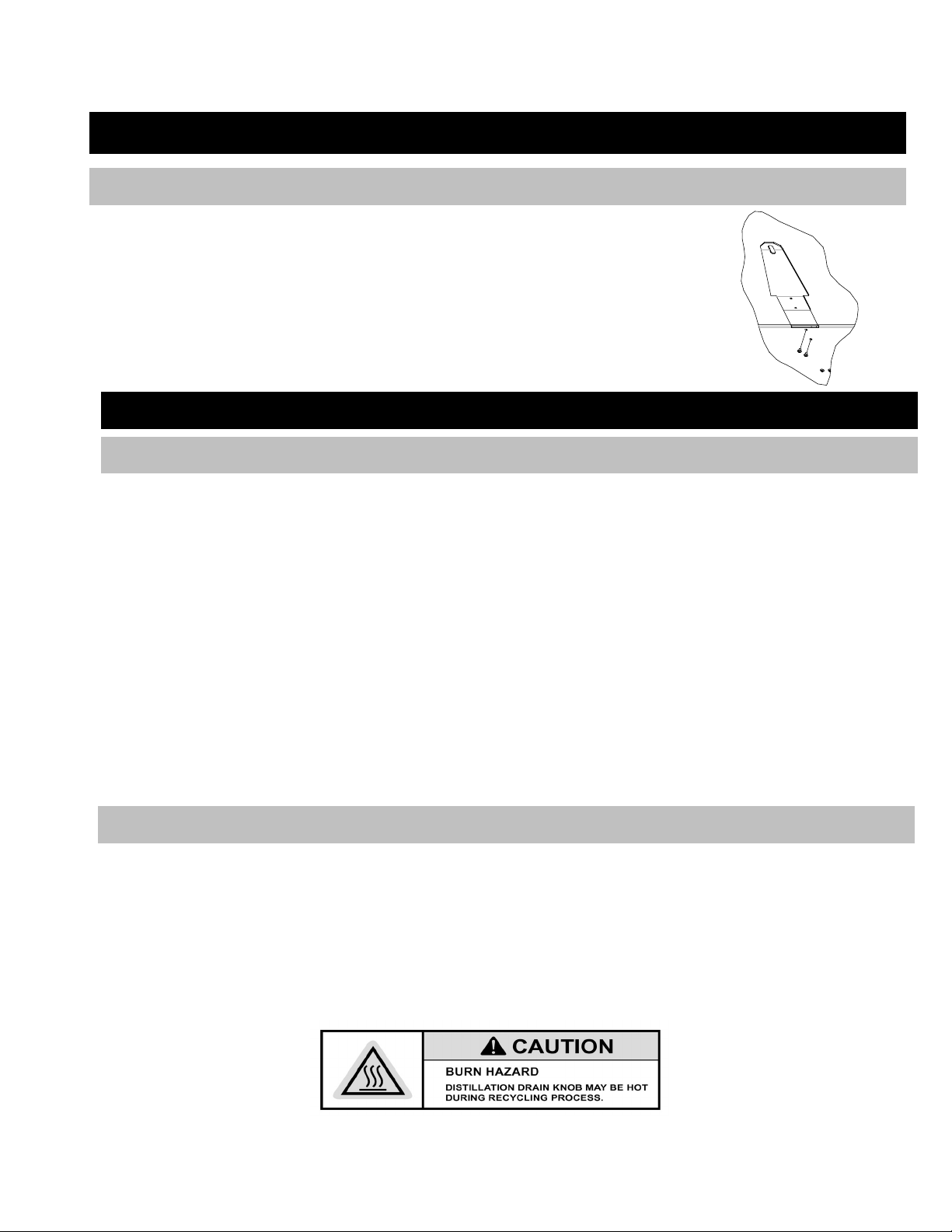

Remove strapping, stretch wrap, and packing material from unit.
1. Attach fire lid bracket to unit as shown in Figure 3.
2. Connect unit to a dedicated 15 ampere branch circuit. Use of an extension cord
is not permitted.
oCAUTION- To provide continued protection against risk of electrical
shock, fire, and explosion, connect to properly grounded outlets only.
3. Fill Reservoir: Remove fill plug and add solvent. Use a dip stick to monitor fluid
level when filling. MAXIMUM 20 GALLONS.
1. Ensure the machine is plugged into a grounded 3-prong outlet before pressing the on/off button.
2. Put on protective eyewear, gloves, clothing, and shoes before operating unit.
3. Lift lid. Be sure latch catches so lid is held in the open position.
4. Wipe off loose or excess dirt from part or assembly, and drain all excess fluids before placing parts
into the wash basin.
5. Adjust nozzle so that it is centered inside the wash basin.
6. Push the on/off button to start solvent flow through spigot and flow-through brush. Solvent flow
will stop after 15 minutes or when the on/off button is pressed again. If solvent does not flow
when the on/off button is pressed, additional solvent may be transferred to the wash basin. Press
and hold the on/off button for twenty seconds. Repeat procedure if necessary.
7. Clean all parts in the wash basin. Avoid splashing outside of the wash basin. Use a stiff brush to
remove heavy deposits. When not in use, place the brush in the wash basin. Do not set brush
down outside of the wash basin.
8. Drain clean parts in the wash basin for approximately 15 seconds or until dripping ceases.
9. Close lid when not in use.
1. Push recycle button once to transfer dirty solvent into the distillation tank and return clean fluid
to the wash basin. The clean fluid transfer takes about 4 minutes, at which time the operator
may then resume use of the machine.
2. Although the recycling process may run for several hours, it will stop automatically once the cycle
is complete. There is a 1 hour lockout period where another recycle process cannot be started.
Do not unplug the unit during this process.
3. For periodic draining of residue, wait until the machine cools down and the temperature indicator
turns green. Unscrew the drain knob and allow the residue to drain into a container. Reinstall the
drain knob and dispose of the residue according to local regulations.
Wash Operation
Recycling Operation
OPERATING INSTRUCTIONS
INSTALLATION AND SETUP
Unpacking and Setup
Figure 3

P/N: 60400601
REV: 02/04 8
Problem Solution
Press on/off button.
Check power cord connection.
Check outlet/circuit breaker.
Wash pump not running
Contact customer service.
Check for low solvent level by removing the strainer basket.
Additional solvent may be transferred to the wash basin. Press and hold
the on/off button for twenty seconds. Repeat procedure if necessary.
Wash pump runs
but no solvent flow
Contact customer service.
Wait for 1 hour if unit just completed a cycle. Unit has a 1 hour lockout.
Check power cord connection.
Check outlet/circuit breaker.
Recycle process not starting
Contact customer service.
Cycle may have stopped prior to completion.
Option 1: Distillation can be continued without transferring fluid from the
wash basin by pressing the technician override button.
Option 2: Press the recycle button to run a new distillation.
Solvent in distillation chamber
Contact customer service.
Remove debris around pneumatic cylinder located under the wash basin
false floors.
Solvent does not stay in
wash basin Contact customer service.
Check for debris underneath the unit and rebalance it.
Distillation chamber is overfilled, remove excess fluid through the drain
knob and press the technician override button to restart the distillation.
Vacuum Pump sounds
louder than normal
Contact customer service.
Too much solvent was transferred into the wash basin by holding the
on/off button.
Holding tank is too full and overflowed into the wash basin. Remove
excess fluid from the holding tank and run a distillation cycle to place fluid
back into holding tank.
Wash basin overfilled
Contact customer service.
Fluid level is low due to removal of solvent to remote locations. Replace or
return solvent to unit.
Machine is beeping Contact customer service.
TROUBLESHOOTING

P/N: 60400601
REV: 02/04 9
DEFECTS & PERFORMANCE: SystemOne products (“Equipment”) are warranted by
SystemOne Technologies Inc., (“Manufacturer”), to be free of defects in materials and
workmanship and to perform in accordance with the Manufacturer’s specifications and operating
manual (“Warranty”) for five (5) years commencing on the date of delivery (Warranty Period).
During the Warranty Period, the Manufacturer will repair, or at its option, replace the
Equipment with like Equipment, free of charge.
WARRANTY REPAIRS: Warranty related repairs for Equipment may be performed on site at
the Equipment location by the Manufacturer’s authorized service agents or, at the
Manufacturer’s option, Manufacturer will supply required parts to the customer with detailed
installation instructions for on site repair by the customer.
ENVIRONMENTAL INFORMATION: Equipment owners/users/operators are responsible for
establishing the waste characteristics of their waste stream including (but not limited to) dried
paint generated as distillation residue. If information on specific products is unavailable, or if
the hazardous or non-hazardous determination is inconclusive, customer should have a waste
stream TCLP conducted by a commercial lab. Contact local and state authorities, as well as the
EPA when in receipt of your waste analysis to determine the residue disposal requirements in
your area.
LIMITED WARRANTY: The Manufacturer shall not be responsible under this limited Warranty
for damages resulting from (i) failure to follow Manufacturer’s installation, operation or
maintenance instructions, (ii) Unauthorized system modification or alteration under the
customer’s control, (iii) accident, abuse, misuse or negligent acts or omissions of the customer
or persons under the customer’s control; or acts of God. THERE ARE NO OTHER EXPRESS
WARRANTIES, WHETHER WRITTEN OR ORAL, OTHER THAN THE WARRANTY SET FORTH IN
PARAGRAPH 1 ABOVE. ALL IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE
IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE
EXPRESSLY DISCLAIMED.
LIMITATION OF WARRANTY: The liability of the Manufacturer and its affiliates, distributors
and suppliers for any claims, losses, damages or expenses from any cause whatsoever
(including acts or omissions of third parties), regardless of the form of action, whether in
contract, tort, or otherwise shall not exceed the lesser of (i) the direct damages proven, (ii) the
repair or replacement cost, lease payoff or purchase price, as the case may be, of the
Equipment that directly gives rise to the claim. The Manufacturer shall not be responsible for
any incidental, special, punitive, exemplary, reliance, consequential (including but not limited to
lost profits or lost revenues) or indirect loss or damage incurred in connection with the
Equipment to the full extent those damages can be disclaimed by law. For personal injury
caused by the Manufacturer’s negligence, the Manufacturer’s negligence shall be limited to
proven damages to person. No action or proceeding against the Manufacturer or its affiliates,
distributors or suppliers may be commenced more than twelve (12) months after the cause of
action occurs.
MANUFACTURER’S WARRANTY INFORMATION
